2AZDK-NDDOMEAgriculture Lamp

Once
Agriculture Lamp - FCC ID 2AZDK-NDDOME - Once
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jun 30, 2021
Application Purpose
Original Equipment
Date of Application
Jun 30, 2021
Equipment Note
Agriculture Lamp
Frequency Range
2405.00000000 - 2475.00000000
Company
Once
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗
↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Nature Dynamics Dome US P1 indoor IP65 Max. 40°C Min. -10°C 1/4 2021-06-02 442295217293 01 © 2021 Signify Holding. All rights reserved Data subject to change without notice Keep for future reference: www.lighting.philips.com 5.71" 3.43" 2.56" 5.28" Ø 0.26" 5.04" Dimensions in inch (") Mounting set. Sold separately as kit. Not included. ! ATTENTION OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC SENSITIVE DEVICES For indoor use only. The luminaire shall be installed by a qualied electrician and wired in accordance with the latest IEE electrical regulations or the national requirements. This luminaire is not suitable for use as emergency lighting. Suitable for wet locations. For agricultural use only. Do not expose to sunlight. Pour une utilisation en intĂ©rieur uniquement. Le luminaire doit ĂȘtre installĂ© par un Ă©lectricien qualiĂ© et cĂąblĂ© conformĂ©ment aux derniĂšres rĂ©glementations Ă©lectriques IEE ou aux exigences nationales. Ce luminaire ne convient pas pour une utilisation comme Ă©clairage de secours. Convient aux emplacements mouillĂ©s. Pour usage agricole uniquement. Ne pas exposer au soleil. - - - - - - - - - - - - SAP12NCV (VAC)P (W) 100000060192900210033012011 2/4 23 45 1 0.8Nm 1 2 3 (4x) 11 2 3 Line (black) Neutral (white) Ground (green) N L Connect maximum of 125 lamps per 15A breaker/165 lamps per 20A breaker. 3/4 EN Storage, installation, use, operation and maintenance of the products needs to be performed exactly according the instructions in this manual and/or other instructions as may be provided by us to guarantee safe use of the product over its entire lifetime. Failure to adhere to these instructions will invalidate your entitlement to warranty. Bolts with indication of torque strength on the drawing need to be tightened using a calibrated torque wrench. Pre-assembled bolts need to be retightened again to the required torque specification to assure maximum strength over lifetime. Disconnect before servicing. Luminaire has basic insulation between Low Voltage supply and control conductors. The light source contained in this luminaire and the external flexible cable shall only be replaced by the manufacturer or his service agent or a similar qualified person. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. IC Radiation Exposure Statement This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. Compliance Statement This device complies with part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by Once could void the user’s authority to operate this equipment. This equipment is intended for commercial use only. FR Le stockage, l’installation, l’utilisation et la maintenance des produits doivent ĂȘtre effectuĂ©s conformĂ©ment aux instructions de ce manuel et / ou d’autres instructions que nous fournissons afin de garantir une utilisation sure du produit pendant toute sa durĂ©e de vie. Le non-respect de ces instructions invalidera votre droit a la garantie. Les vis, dont les couples de serrage sont indiquĂ©s sur les schĂ©mas, doivent ĂȘtre serrĂ©s a l’aide d’une clĂ© dynamomĂ©trique Ă©talonnĂ©e. Les vis, prĂ©assemblĂ©s, doivent ĂȘtre resserrĂ©s a nouveau selon la spĂ©cification de couple de serrage requise afin d’assurer leur rĂ©sistance maximale pendant toute leur durĂ©e de vie. Mettre hors tension avant intervention. Le luminaire comporte une isolation de base entre l’alimentation basse tension et les cĂąbles de contrĂŽle. La source de lumiĂšre contenue dans ce luminaire et le cĂąble externe souple ne doivent ĂȘtre remplacĂ©s que par le fabricant, son agent de service ou une personne qualifiĂ©e. Cet Ă©quipement est conforme aux limites d’exposition aux rayonnements IC Ă©tablies pour un environnement non contrĂŽlĂ©. Cet Ă©quipement doit ĂȘtre installĂ© et utilisĂ© avec un minimum de 20cm de distance entre la source de rayonnement et votre corps. Le prĂ©sent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisĂ©e aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’appareil doit accepter tout brouillage radioĂ©lectrique subi, mĂȘme si le brouillage est susceptible d’en compromettre le fonctionnement. 4/4 © 2021 Signify Holding. All rights reserved. This document contains information relating to the product portfolio of Signify which information may be subject to change. No representation or warranty as to the accuracy or completeness of the information included herein is given and any liability for any action in reliance thereon is disclaimed. The information presented in this document is not intended as any commercial oer and does not form part of any quotation or contract. ONCE and ONCE Innovations Inc. are registered trademarks owned by Signify Holding. Signify Holding. The Netherlands

Cover Letter(s)

Document Version 1.1 2020-10-30 LONG-TERM CONFIDENTIALITY REQUEST for Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 TO WHOM IT M AY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request Long-Term Confidentiality for the following product: For the product stated above, we request Long-Term Confidentiality for exhibits which contain Block Diagram, Operational Description, Parts List/Tune Up Info, Schematics, SDR Software/Security Info. The above exhibits contain ou r trade secrets and proprietary information that could be of benefit to o ur competitors. This information will not be publicly available. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Company Name: Phone: Company Address: Fax: E-mail: Contact Name: Signature: Signature Date: Check your GC here. Click Grantee Search. FCC I D: Grantee Code Equipment Product Code

Cover Letter(s)

Document Version 1.1 2020-10-30 SHORT-TERM CONFIDENTIALITY REQUEST for Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request Short-Term Confidentiality for the following product: For the product stated above, we request Short-Term Confidentiality for exhibits which contain External Photos, Internal Photos, Test Setup Photos, User Manual. We request Short-Term Confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device which is planned for: We are aware that the Short-Term Confidentiality must be released when the product is marketed. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Company Name: Phone: Company Address: Fax: E-mail: Contact Name: Signature: Signature Date: Check your GC here. Click Grantee Search. FCC ID: Grantee Code Equipment Product Code

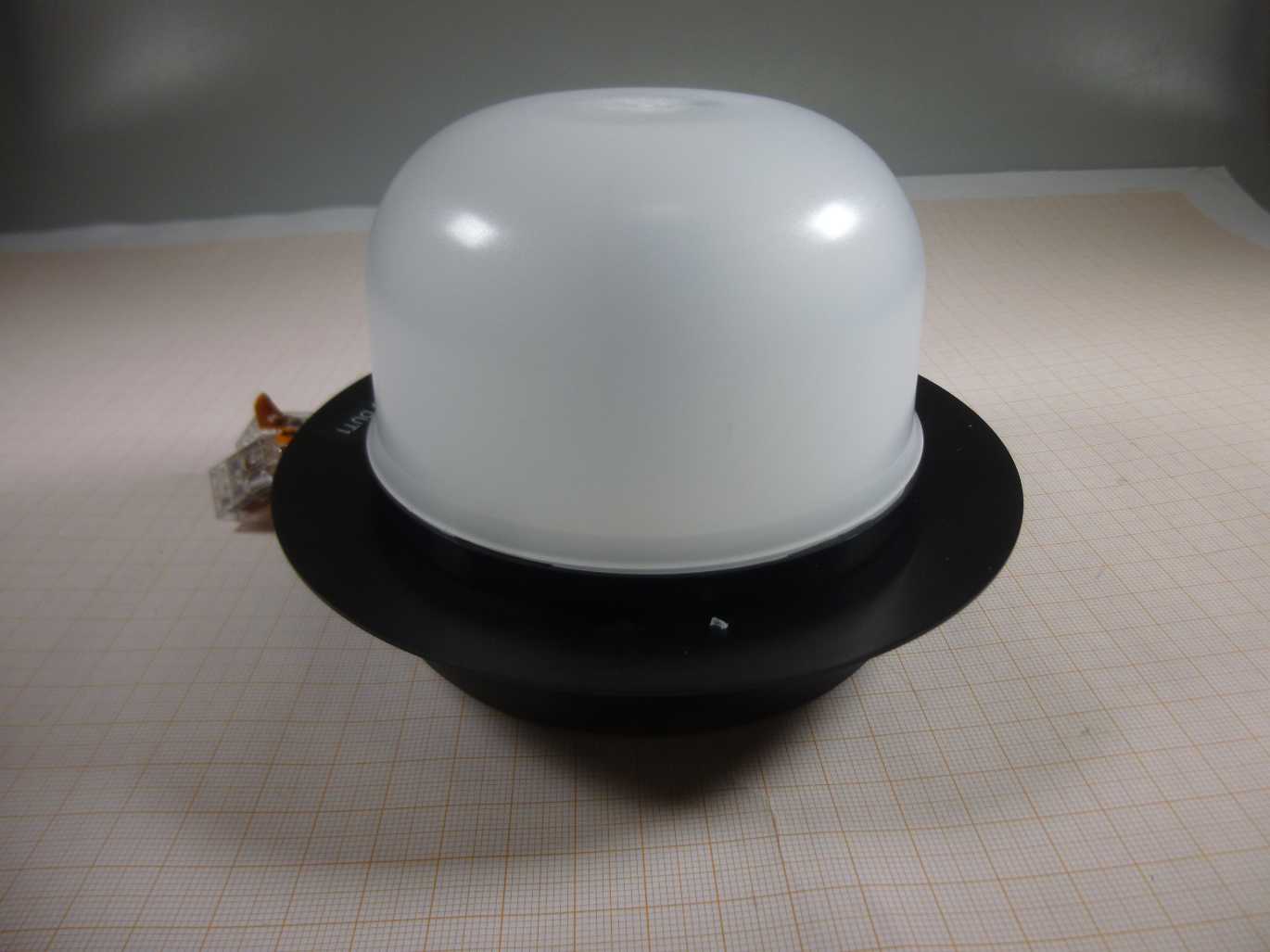

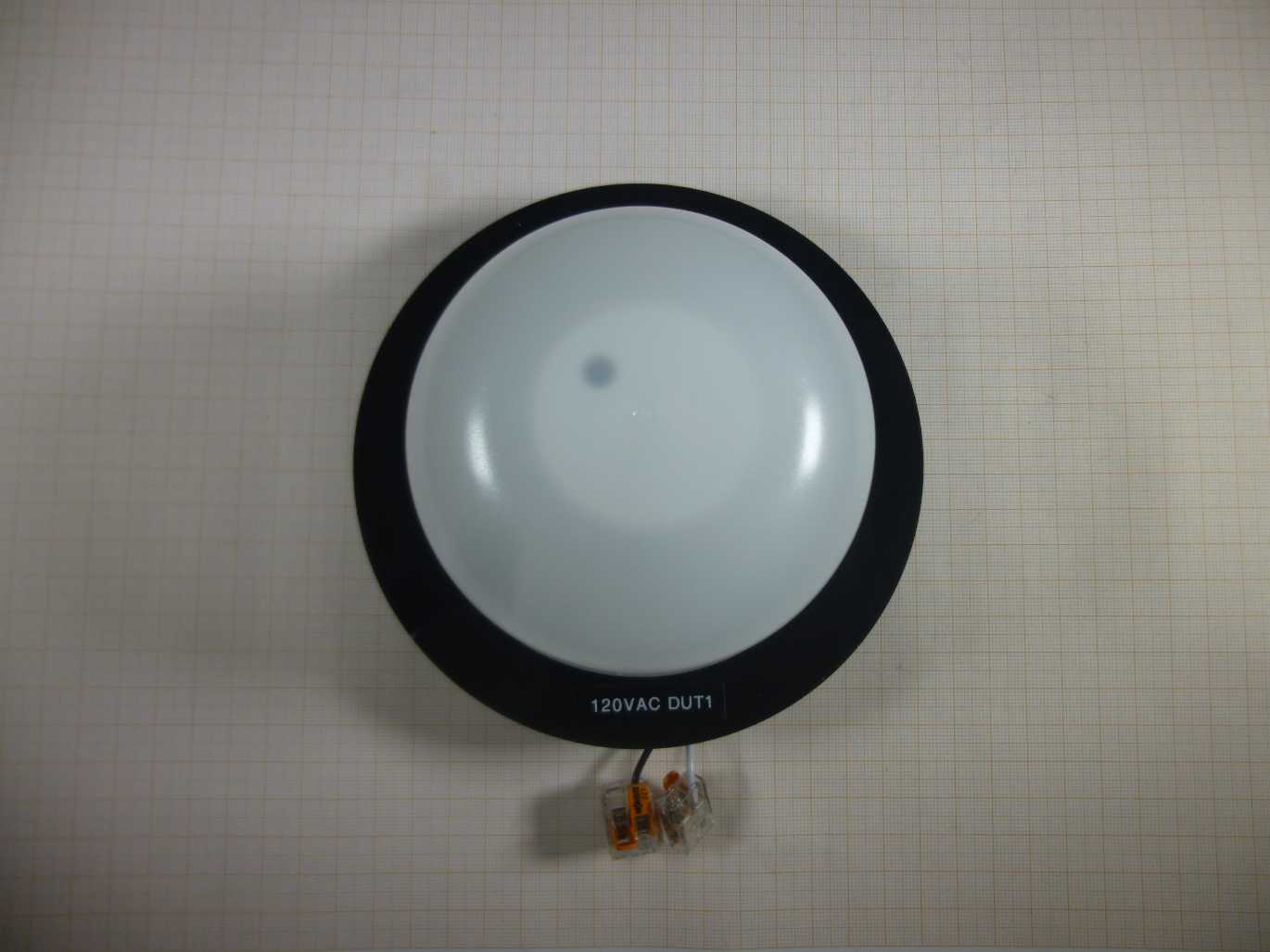

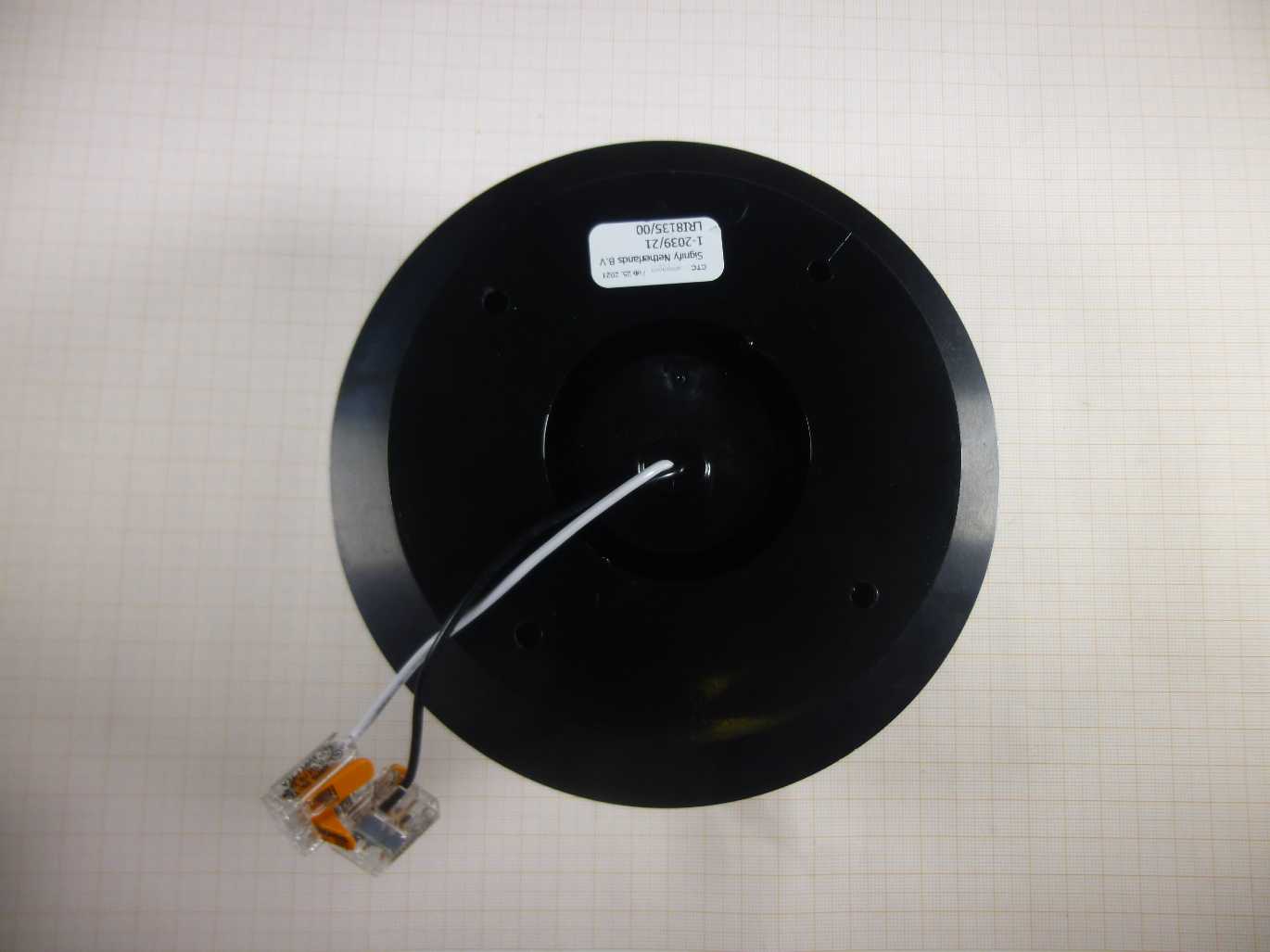

External Photos

Annex A 1-2039/21-01-01_AnnexA External photos of the Equipment Under Test This addendum is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorized: Michael Dorongovski Lab Manager Radio Communications CTC advanced GmbHUntertuerkheimer Str. 6-10 66117 Saarbruecken / Germany Phone: +49 681 5 98 - 0 Fax: +49 681 5 98 - 9075 web: ctcadvanced.com e-mail: [email protected] Photos Photo 1 Photo 2 2021-06-10Document No. 1-2039/21-01-01_AnnexA2/4 Photo 3 Photo 4 2021-06-10Document No. 1-2039/21-01-01_AnnexA3/4 Document history VersionApplied changesDate of release initial release2021-06-10 - END OF DOCUMENT - 2021-06-10Document No. 1-2039/21-01-01_AnnexA4/4

ID Label/Location Info

CAD PROJ - mm UNIT ROUGHN. GENERAL 1st Angle SCALE TREATMENT MATERIAL DATECHECK SH.SH.SUPERS. NAME CLASS NO. QUANT. ORDER NO. PATTERN NO. ASSEMBLY NO. ITEM ANGLEDIMENSION TOLERANCES UNLESS OTHERWISE STATED c 2018 Signify Holding Confidential DATA FMT. PROGR.PLATF. 4422 955 17301 R. Graf 6/7/2021 A3 1 1 ND Dome Product Label - 120V 114 6/7/2021 12 3 4 56 7 8 a b c d e f A l l r i g h t s a r e r e s e r v e d . R e p r o d u c t i o n i n w h o l e o r i n p a r t i s p r o h i b i t e d w i t h o u t t h e w r i t t e n c o n s e n t o f t h e c o p y r i g h t o w n e r . Drawing lay-out according UN-D 1041 Specificaiton Material: Self-adhesive Label Sticker Adhesive: Permanent Background Color: White Print Color: Black Font: Arial Label Size: 6mm x 275mm Notes WWYY: Two digit week, two digit year 275 6 WWYY here

Internal Photos

Annex B 1-2039/21-01-01_AnnexB Internal photos of the Equipment Under Test This addendum is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorized: Michael Dorongovski Lab Manager Radio Communications CTC advanced GmbHUntertuerkheimer Str. 6-10 66117 Saarbruecken / Germany Phone: +49 681 5 98 - 0 Fax: +49 681 5 98 - 9075 web: ctcadvanced.com e-mail: [email protected] Photos Photo 1 Photo 2 2021-06-10Document No. 1-2039/21-01-01_AnnexB2/6 Photo 3 Photo 4 2021-06-10Document No. 1-2039/21-01-01_AnnexB3/6 Photo 5 Photo 6 2021-06-10Document No. 1-2039/21-01-01_AnnexB4/6 Photo 7 2021-06-10Document No. 1-2039/21-01-01_AnnexB5/6 Document history VersionApplied changesDate of release initial release2021-06-10 - END OF DOCUMENT - 2021-06-10Document No. 1-2039/21-01-01_AnnexB6/6

Test Report

TEST REPORT Test report no.: 1-2039/21-01-05 Testing laboratory Applicant CTC advanced GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: https://www.ctcadvanced.com e-mail: [email protected] Accredited Testing Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2018-03) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate starting with the registration number: D-PL-12076-01. Signify Netherland B.V. High Tech Campus 48 5656AE Eindhoven / NETHERLANDS Phone: +31 4027 91435 Contact: Tabish Ahmad e-mail: [email protected] Manufacturer Signify Netherland B.V. High Tech Campus 48 5656AE Eindhoven / NETHERLANDS Test standard/s FCC - Title 47 CFR Part 15 FCC - Title 47 of the Code of Federal Regulations; Chapter I; Part 15 - Radio frequency devices RSS - 247 Issue 2 Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence - Exempt Local Area Network (LE-LAN) Devices For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: Wireless Zigbee/BLE RGB Lamp Model name: ND-Dome 1250/MS30 FCC ID: 2AZDK-NDDOME IC: 27244-NDDOME Frequency: 2400 MHz to 2483.5 MHz Technology tested: Bluetooth Low Energy Antenna: Integrated PiFa antenna Power supply: 108 V to 132 V AC, 50/60 Hz Temperature range: -10°C to +40°C This test report is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report authorized: Test performed: Marco Bertolino Michael Dorongovski Lab Manager Lab Manager Radio Communications Radio Communications Test report no.: 1-2039/21-01-05 © CTC advanced GmbH Page 2 of 48 1 Table of contents 1 Table of contents ............................................................................................................................................. 2 2 General information ......................................................................................................................................... 4 2.1 Notes and disclaimer ............................................................................................................................ 4 2.2 Application details ................................................................................................................................ 4 2.3 Test laboratories sub-contracted ......................................................................................................... 4 3 Test standard/s, references and accreditations .............................................................................................. 5 4 Reporting statements of conformity – decision rule ...................................................................................... 6 5 Test environment ............................................................................................................................................. 7 6 Test item .......................................................................................................................................................... 7 6.1 General description ............................................................................................................................... 7 6.2 Additional information .......................................................................................................................... 7 7 Sequence of testing ......................................................................................................................................... 8 7.1 Sequence of testing radiated spurious 9 kHz to 30 MHz ..................................................................... 8 7.2 Sequence of testing radiated spurious 30 MHz to 1 GHz .................................................................... 9 7.3 Sequence of testing radiated spurious 1 GHz to 18 GHz ................................................................... 10 7.4 Sequence of testing radiated spurious above 18 GHz ....................................................................... 11 8 Description of the test setup.......................................................................................................................... 12 8.1 Shielded semi anechoic chamber ....................................................................................................... 13 8.2 Shielded fully anechoic chamber ........................................................................................................ 15 8.3 Radiated measurements > 18 GHz ...................................................................................................... 16 8.4 Conducted measurements Bluetooth system .................................................................................... 17 8.5 AC conducted ...................................................................................................................................... 18 9 Measurement uncertainty .............................................................................................................................. 19 10 Summary of measurement results ......................................................................................................... 20 11 Additional comments .............................................................................................................................. 21 12 Measurement results .............................................................................................................................. 22 12.1 System gain ..................................................................................................................................... 22 12.2 Power spectral density .....


Text truncated - open the document above for the full version.

Test Report

Measurement Results 1-2039/21-01-05_log1_conducted Test logging This addendum is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorized: Michael Dorongovski Lab Manager Radio Communications CTC advanced GmbHUntertuerkheimer Strasse 6-10 66117 Saarbruecken / Germany Phone: +49 681 5 98 - 0 Fax: +49 681 5 98 - 9075 web: ctcadvanced.com e-mail: [email protected] Table of Content EUT Summary3 1. FCC Part 15.247 Maximum Peak Conducted Output Power DTS ~ BT LE 1 Msps4 2. FCC Part 15.247 Maximum Peak Conducted Output Power DTS ~ BT LE 1 Msps7 3. FCC Part 15.247 Maximum Peak Conducted Output Power DTS ~ BT LE 1 Msps10 4. FCC Part 15.247 Bandwidth 6dB DTS ~ BT LE 1 Msps13 5. FCC Part 15.247 Bandwidth 6dB DTS ~ BT LE 1 Msps15 6. FCC Part 15.247 Bandwidth 6dB DTS ~ BT LE 1 Msps17 7. FCC Part 15.247 Peak Power Spectral Density DTS ~ BT LE 1 Msps19 8. FCC Part 15.247 Peak Power Spectral Density DTS ~ BT LE 1 Msps21 9. FCC Part 15.247 Peak Power Spectral Density DTS ~ BT LE 1 Msps23 10. FCC Part 15.247 Bandwidth 99PCT-20dB ~ BT LE 1 Msps25 11. FCC Part 15.247 Bandwidth 99PCT-20dB ~ BT LE 1 Msps28 12. FCC Part 15.247 Bandwidth 99PCT-20dB ~ BT LE 1 Msps31 13. FCC Part 15.247 TX Spurious Conduced ~ BT LE 1 Msps34 14. FCC Part 15.247 TX Spurious Conduced ~ BT LE 1 Msps36 15. FCC Part 15.247 TX Spurious Conduced ~ BT LE 1 Msps38 16. FCC Part 15.247 Restricted Band Edge Conducted Peak DTS Video Avg (cond) ~ BT LE 1 Msps40 17. FCC Part 15.247 Restricted Band Edge Conducted Peak DTS Video Avg (cond) ~ BT LE 1 Msps42 Document No. 1-2039/21-01-05_log1_conducted2/43 EUT Summary EUT DEFINITION ManufacturerSignify Netherland B.V. TypeND-Dome 1250/MS30 KindWireless Zigbee/BLE RGB Lamp Serial Number | Setup NumberDUT3 | 1.0 Version SW | FW | HW Software version: [VER,6.3.19] [REV,4c9a6cda8a10edda9fbbffbd856426395638efd6-dirty] | IEMB | 913701057803 Comment 1 | 2 | Temperature [°C] Min | Nom | Max-10 | 20 | 40 Voltage [V] Min | Nom | Max 115 V AC Document No. 1-2039/21-01-05_log1_conducted3/43 1. FCC Part 15.247 Maximum Peak Conducted Output Power DTS ~ BT LE 1 Msps Test References TC Start26.04.2021 16:07:24 Ambit Temp [°C] | Humidity [rel%] 0.0 | 0 System Version3.0.1.0 Test SpecificationFCC Part 15.247 Test MethodDTS: KDB 558074 D01 V05 - Chapter 8.3.1.1 RBW ≄ DTS Bandwidth TC Version0.0.1 My DescriptionFCC 15.247 Maximum Peak Output Power Conducted DTS - BT LE 1 Msps Add. Information Test Parameter Technology to testBT LE 1 Msps Antenna Port used1 Temperaturenom Voltagenom Frequency low to testTrue | Freq [MHz] 2402 Frequency mid to testFalse | Freq [MHz] 2440 Frequency high to testFalse | Freq [MHz] 2480 Auto Control enabled Power Supply | Climatic BoxNo | No Additional Path Loss [dB]0.7 Switched PathEUT - SignalingUnit - SpectrumAnalyzer Document No. 1-2039/21-01-05_log1_conducted4/43 Test at TX 2402 MHz READ SA SETTINGS: RefLevel [dBm] | RefLevelOffset [dB] | InpAtt [dB]13.97 | 10.86 | 20 Start [MHz] | Stop [MHz]2401.000 | 2403.000 RBW [MHz] | VBW [MHz]0.100000 | 0.300000 Detector | TraceModePOS | MAXH Sweep: Time [ms] | Count | Points per Section | Type50 | 200 | 10001 | SWE DTS Bandwidth Test DescriptionLower LimitUpper LimitMeasuredUnitVerdict DTS Bandwidth (6dB)------647kHzINFO Plot_FCC Part 15.247 Maximum Peak Conducted Output Power DTS ~ BT LE 1 Msps DTS BW_26042021_160754.png READ SA SETTINGS: RefLevel [dBm] | RefLevelOffset [dB] | InpAtt [dB]18.97 | 10.86 | 25 Start [MHz] | Stop [MHz]2401.000 | 2403.000 RBW [MHz] | VBW [MHz]1.000000 | 3.000000 Detector | TraceModePOS | MAXH Sweep: Time [ms] | Count | Points per Section | Type50 | 200 | 1001 | SWE RESULT Test DescriptionLower LimitUpper LimitMeasuredUnitVerdict Peak Power---30.008.65dBmPASS Peak Power---10007.328245mWPASS Frequency at Peak------2401.698MHzINFO Document No. 1-2039/21-01-05_log1_conducted5/43 Plot_FCC Part 15.247 Maximum Peak Conducted Output Power DTS ~ BT LE 1 Msps_26042021_160813.png TEST FINISHED General VerdictPASS Document No. 1-2039/21-01-05_log1_conducted6/43 2. FCC Part 15.247 Maximum Peak Conducted Output Power DTS ~ BT LE 1 Msps Test References TC Start26.04.2021 16:25:57 Ambit Temp [°C] | Humidity [rel%] 0.0 | 0 System Version3.0.1.0 Test SpecificationFCC Part 15.247 Test MethodDTS: KDB 558074 D01 V05 - Chapter 8.3.1.1 RBW ≄ DTS Bandwidth TC Version0.0.1 My DescriptionFCC 15.247 Maximum Peak Output Power Conducted DTS - BT LE 1 Msps Add. Information Test Parameter Technology to testBT LE 1 Msps Antenna Port used1 Temperaturenom Voltagenom Frequency low to testFalse | Freq [MHz] 2402 Frequency mid to testTrue | Freq [MHz] 2426 Frequency high to testFalse | Freq [MHz] 2480 Auto Control enabled Power Supply | Climatic BoxNo | No Additional Path Loss [dB]0.7 Switched PathEUT - SignalingUnit - SpectrumAnalyzer Document No. 1-2039/21-01-05_log1_conducted7/43 Test at TX 2426 MHz READ SA SETTINGS: RefLevel [dBm] | RefLevelOffset [dB] | InpAtt [dB]14.01 | 10.91 | 20 Start [MHz] | Stop [MHz]2425.000 | 2427.000 RBW [MHz] | VBW [MHz]0.100000 | 0.300000 Detector | TraceModePOS | MAXH Sweep: Time [ms] | Count | Points per Section | Type50 | 200 | 10001 | SWE DTS Bandwidth Test DescriptionLower LimitUpper LimitMeasuredUnitVerdict DTS Bandwidth (6dB)------648kHzINFO Plot_FCC Part 15.247 Maximum Peak Conducted Output Power DTS ~ BT LE 1 Msps DTS BW_26042021_162627.png READ SA SETTINGS: RefLevel [dBm] | RefLevelOffset [dB] | InpAtt [dB]19.01 | 10.91 | 25 Start [MHz] | Stop [MHz]2425.000 | 2427.000 RBW [MHz] | VBW [MHz]1.000000 | 3.000000 Detector | TraceModePOS | MAXH Sweep: Time [ms] | Count | Points per Section | Type50 | 200 | 1001 | SWE RESULT Test DescriptionLower LimitUpper LimitMeasuredUnitVerdict Peak Power---30.008.77dBmPASS Peak Power---10007.533556mWPASS Frequency at Peak------2425.694MHzINFO Document No. 1-2039/21-01-05_log1_conducted8/43 Plot_FCC Part 15.247 Maximum Peak Conducted Output Power DT


Text truncated - open the document above for the full version.

Test Report

TEST REPORT Test report no.: 1-2039/21-01-02 Testing laboratory Applicant CTC advanced GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: https://www.ctcadvanced.com e-mail: [email protected] Accredited Testing Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2018-03) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate starting with the registration number: D-PL-12076-01. Signify Netherland B.V. High Tech Campus 48 5656AE Eindhoven / NETHERLANDS Phone: +31 4027 91435 Contact: Tabish Ahmad e-mail: [email protected] Manufacturer Signify Netherland B.V. High Tech Campus 48 5656AE Eindhoven / NETHERLANDS Test standard/s FCC - Title 47 CFR Part 15 FCC - Title 47 of the Code of Federal Regulations; Chapter I; Part 15 - Radio frequency devices RSS - 247 Issue 2 Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence - Exempt Local Area Network (LE-LAN) Devices For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: Wireless Zigbee/BLE RGB Lamp Model name: ND-Dome 1250/MS30 FCC ID: 2AZDK-NDDOME IC: 27244-NDDOME Frequency: DTS band 2400 MHz to 2483.5 MHz Technology tested: 802.15.4 Antenna: Integrated PiFa antenna Power supply: 108 V to 132 V AC, 50/60 Hz Temperature range: -10°C to +40°C This test report is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report authorized: Test performed: Marco Bertolino Michael Dorongovski Lab Manager Lab Manager Radio Communications Radio Communications Test report no.: 1-2039/21-01-02 © CTC advanced GmbH Page 2 of 48 1 Table of contents 1 Table of contents ............................................................................................................................................. 2 2 General information ......................................................................................................................................... 3 2.1 Notes and disclaimer ............................................................................................................................ 3 2.2 Application details ................................................................................................................................ 3 2.3 Test laboratories sub-contracted ......................................................................................................... 3 3 Test standard/s, references and accreditations .............................................................................................. 4 4 Reporting statements of conformity – decision rule ...................................................................................... 5 5 Test environment ............................................................................................................................................. 6 6 Test item .......................................................................................................................................................... 6 6.1 General description ............................................................................................................................... 6 6.2 Additional information .......................................................................................................................... 6 7 Sequence of testing ......................................................................................................................................... 8 7.1 Sequence of testing radiated spurious 9 kHz to 30 MHz ..................................................................... 8 7.2 Sequence of testing radiated spurious 30 MHz to 1 GHz .................................................................... 9 7.3 Sequence of testing radiated spurious 1 GHz to 18 GHz ................................................................... 10 7.4 Sequence of testing radiated spurious above 18 GHz ....................................................................... 11 8 Description of the test setup.......................................................................................................................... 12 8.1 Shielded semi anechoic chamber ....................................................................................................... 13 8.2 Shielded fully anechoic chamber ........................................................................................................ 15 8.3 Radiated measurements > 18 GHz ...................................................................................................... 16 8.4 Conducted measurements Bluetooth system .................................................................................... 17 8.5 AC conducted ...................................................................................................................................... 18 9 Measurement uncertainty .............................................................................................................................. 19 10 Summary of measurement results ......................................................................................................... 20 11 Additional comments .............................................................................................................................. 21 12 Measurement results .............................................................................................................................. 22 12.1 System gain ..................................................................................................................................... 22 12.2 Power spectral density ........


Text truncated - open the document above for the full version.

Test Report

Measurement Results 1-2039/21-01-02_log1_conducted Test logging This addendum is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorized: Michael Dorongovski Lab Manager Radio Communications CTC advanced GmbHUntertuerkheimer Strasse 6-10 66117 Saarbruecken / Germany Phone: +49 681 5 98 - 0 Fax: +49 681 5 98 - 9075 web: ctcadvanced.com e-mail: [email protected] Table of Content EUT Summary3 1. FCC Part 15.247 Maximum Peak Conducted Output Power DTS ~ Generic 2G44 2. FCC Part 15.247 Maximum Peak Conducted Output Power DTS ~ Generic 2G47 3. FCC Part 15.247 Maximum Peak Conducted Output Power DTS ~ Generic 2G410 4. FCC Part 15.247 Bandwidth 6dB DTS ~ Generic 2G413 5. FCC Part 15.247 Bandwidth 6dB DTS ~ Generic 2G415 6. FCC Part 15.247 Bandwidth 6dB DTS ~ Generic 2G417 7. FCC Part 15.247 Peak Power Spectral Density DTS ~ Generic 2G419 8. FCC Part 15.247 Peak Power Spectral Density DTS ~ Generic 2G421 9. FCC Part 15.247 Peak Power Spectral Density DTS ~ Generic 2G423 10. FCC Part 15.247 Bandwidth 99PCT-20dB ~ Generic 2G425 11. FCC Part 15.247 Bandwidth 99PCT-20dB ~ Generic 2G428 12. FCC Part 15.247 Bandwidth 99PCT-20dB ~ Generic 2G431 13. FCC Part 15.247 TX Spurious Conduced ~ Generic 2G434 14. FCC Part 15.247 TX Spurious Conduced ~ Generic 2G436 15. FCC Part 15.247 TX Spurious Conduced ~ Generic 2G438 16. FCC Part 15.247 Restricted Band Edge Conducted Peak DTS Video Avg (cond) ~ Generic 2G440 17. FCC Part 15.247 Restricted Band Edge Conducted Peak DTS Video Avg (cond) ~ Generic 2G442 18. Common2G4 Peak OP 3MHz/3MHz ~ Generic 2G444 19. Common2G4 Peak OP 3MHz/3MHz ~ Generic 2G446 20. Common2G


Text truncated - open the document above for the full version.

Contact Information

Applicant

Ryan Graf(Engineer)
[email protected](763) 381-5621Fax: (763) 381-5621

Test Firm

cetecom advanced GmbHGerald Schmidt
[email protected]49-681-598-0Fax: 49-681-598-8775

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.40 GHz - 2.48 GHz9.12 mW
Confidentiality
Long Term
Grant Notes
Output Power listed is peak conducted. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits.
