2AZE3-VP-B244GvBox2 Data Collection Device

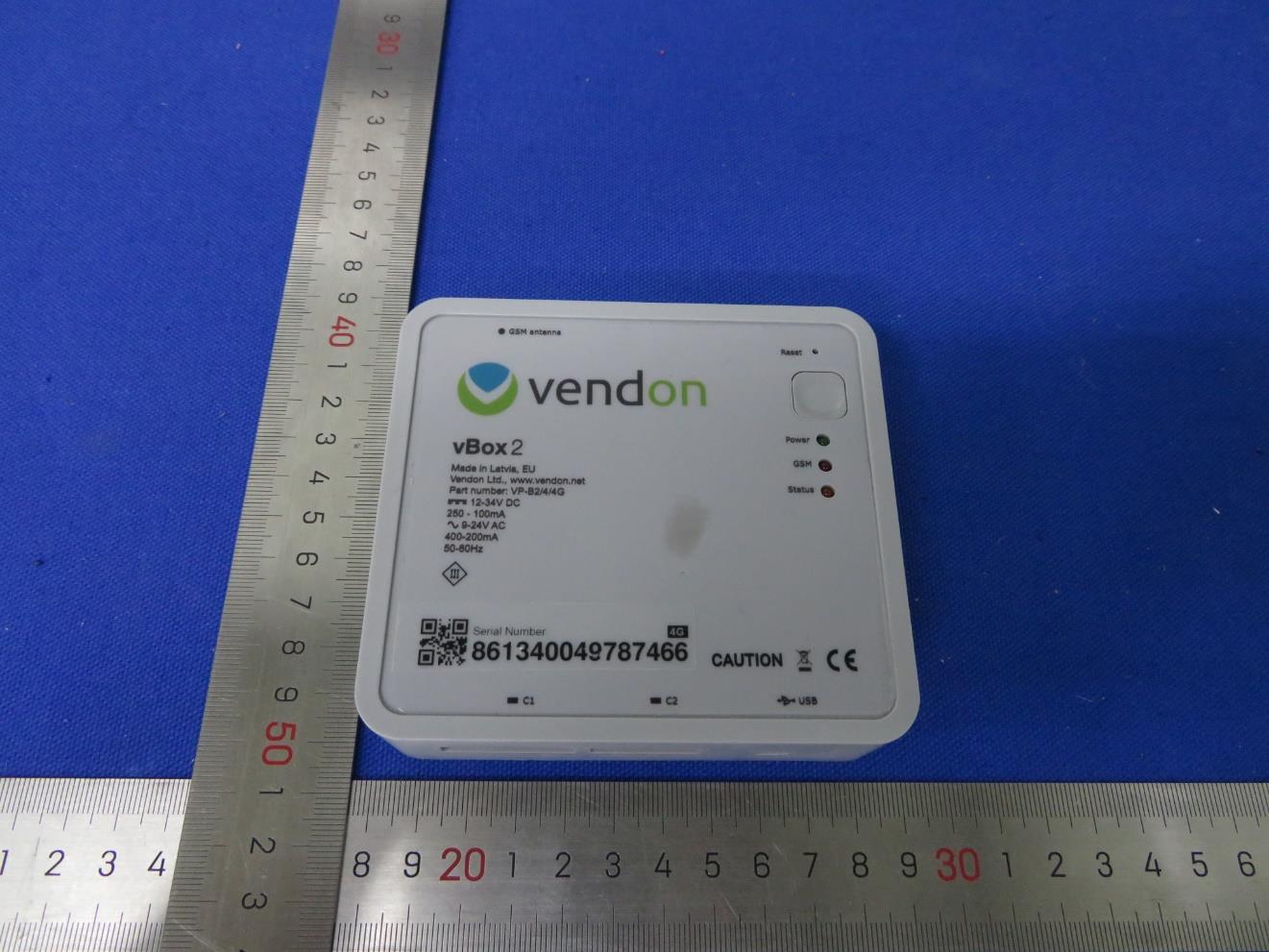

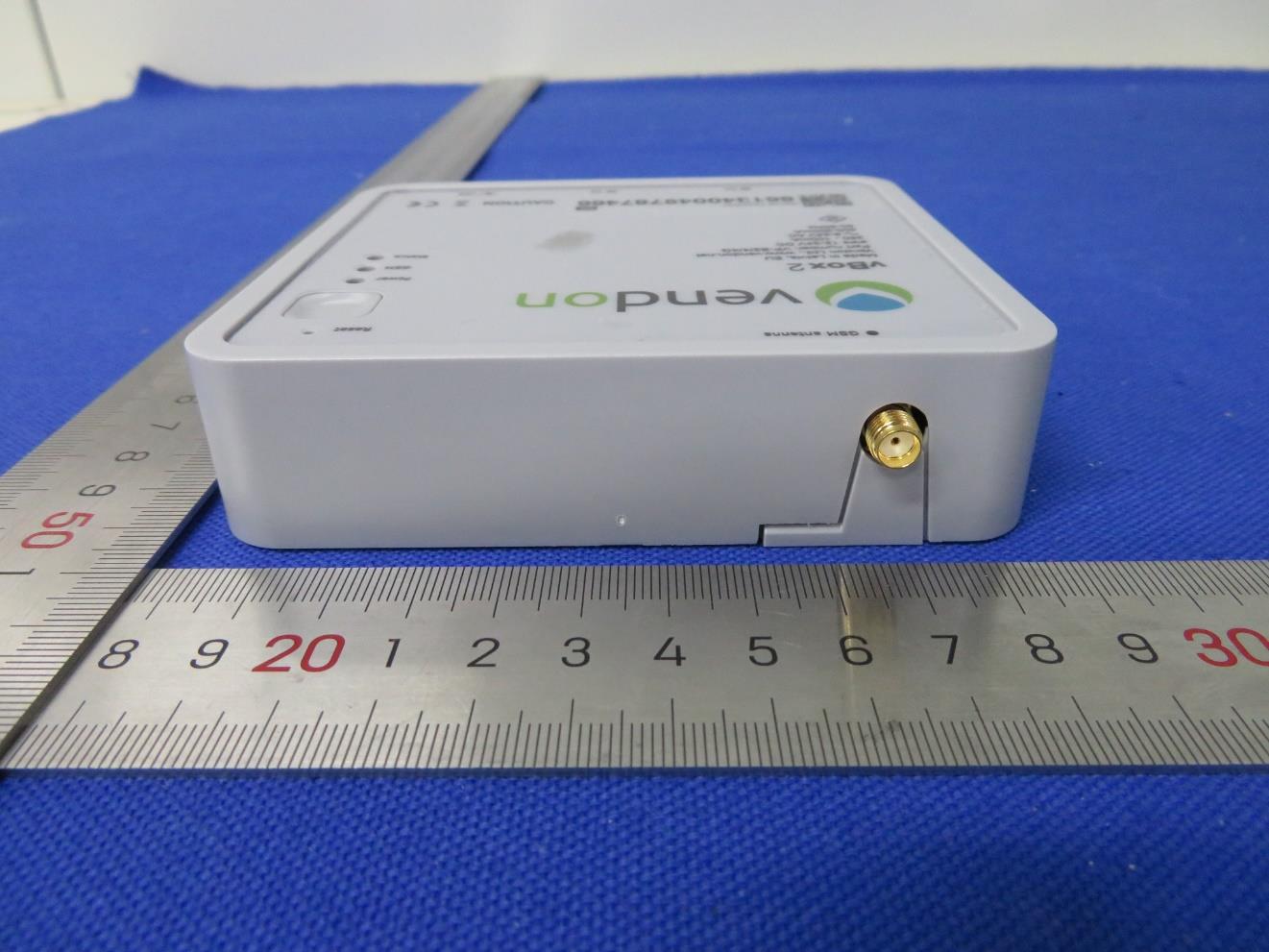

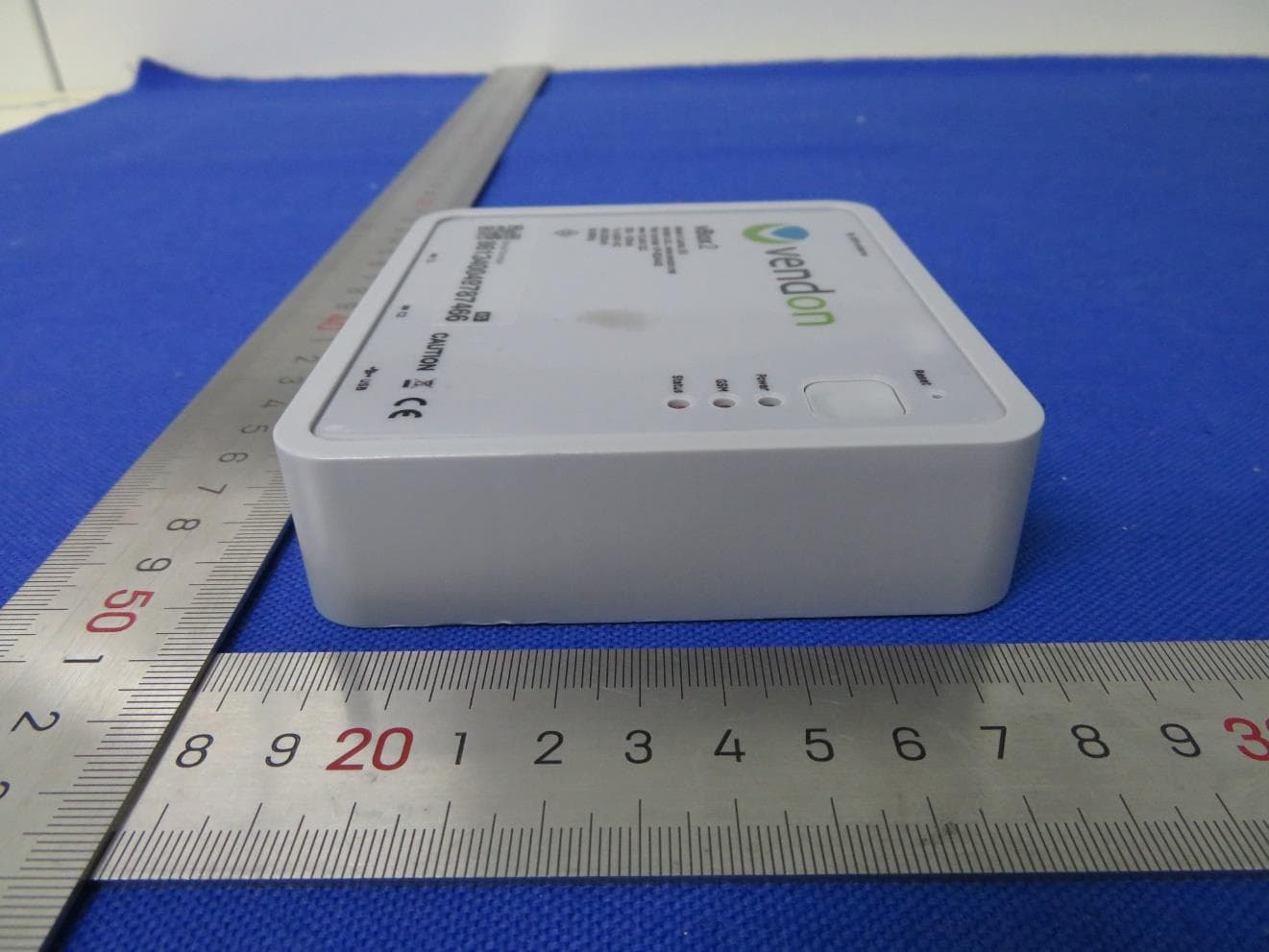

vBox2 is microprocessor driven IoT device for data collection from vending machine or coffee machine components using various standardised protocols. vBox2 transmits collected data over GPRS network to Vendon server gateway. Device firmware is preloaded and managed centrally using Over-TheAir technology. vBox2 supports user (operator) interaction via multi- purpose configurable function button. User operations are confirmed with sound signals. Device status indication LEDs are located on front panel. 1 pcs cellular antenna 2 Reset button Function button Power, online and operation status LEDs USB Mini-B connector Cellular antenna connector 3 USB Mini-B connector - for manual firmware and protocol upload Blinking (slow) - preparing cellular modem on vBox2 start up. ON - modem is connected and communicates with the server (online). Red - modem status OFF - vBox2 device is off. Blinking (fast) - modem is ON, and is exchanging data with the server (online, processing). 4 (non-condensing) +5° to +50°C 5 Do not dissemble or modify vBox2 device. Dismantling of the vBox2 (dismantling of the plastic casing or intervention in the PC board) can affect device’s functioning or damage device. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Avoid liquid penetration into vBox2 device. Install or relocate vBox2 device only when disconnected from the power supply. Only cables provided by Vendon must be used. Do not alter the cables provided with the vBox2. A visual inspection of the vBox2 device must be performed on a regular basis. Discontinue usage if the device looks deformed, broken or swollen. Built-in rechargable Li-Po battery 3.7V 560mAh. The battery withstands up to 300 full charge and discharge cycles under normal working conditions (temperatures 25°C ± 0.5°C). The cycle life is the cycle times when the discharge capacity is about 80% of the rated capacity. The battery warranty is aligned with the vBox2 warranty and it is 1 year. Only Vendon authorised and trained personnel may remove and change the battery. The battery must be replaced only by a battery custom made for Vendon. Never attempt to short-circuit the device or the battery. The device and battery must be recycled and disposed of properly. Disposal. Do not dispose vBox2 device with household waste. Do not dispose of the battery or the device in fire. If the device is not used for a long time, fully recharge the device every half a year. Store the device in a cool and dry place. 9-24V AC 400-200mA vBox2 power supply is provided by connection C1 (see vBox2 components). Use only power source of type “PS1” with internal power limit up to 15W. Unit shall be supplied from LPS (Limited Power Source). Using a series fuse is recomended. 6 FCC ID: 2AZE3-VP-B244G Contains Transmitter Module FCC ID: 2AJYU-8VC0001 NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Contains: 7 8 Attach an antenna. For better network reception place the antenna outside of the vending machine. www.vendon.net Krasta 44, Riga, LV-1003, Latvia +371 2866 9995 [email protected]

Vendon SIA Krasta iela 44 Riga, LV-1003, Latvia Reg. No 40103422387 [email protected] vendon.net Confidentiality Letter Date: 2021.04.23 Subject: Confidentiality Request for FCC ID: 2AZE3-VP-B244G and IC ID: -- Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term Permanent Internal Photos Short Term External Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Part List/Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term User’s Manual Vendon SIA has spent substantial effort in developing this product and it was one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. We also request to apply special conditions - the permanent confidentiality for enclosed internal photos, as per KDB 726920 under section II)3)a) point 2. Devices are supposed to be placed inside the locked vending/coffee machine. Usually at the back of the machine where the main board is. It is only accessible and serviceable by professional designated technicians under a Non-Disclosure Agreement (NDA). Devices are closed and opening the device is forbidden and results with cancellation of warranty. All sales for these devices must be under an NDA restricting the disclosure of the proprietary information. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: __________________________ _ Tija Lasmane ______________ (Signature/Title) (Print name)

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN218GXE 001 Auftrags-Nr.: Order no.: 168310620 Seite 1 von 15 Page 1 of 15 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2021-04-06 Auftraggeber: Client: Vendon SIA, Krasta iela 44, Riga, LV-1003, Latvia Prüfgegenstand: Test item: vBox2 Data Collection Device Bezeichnung / Typ-Nr.: Identification / Type no.: VP-B2/4/4G Auftrags-Inhalt: Order content: Test Report Prüfgrundlage: Test specification: 47 CFR FCC Part 15 Subpart B Wareneingangsdatum: Date of sample receipt: 2021-04-06 Refer to Photo Documentation Prüfmuster-Nr.: Test sample no: A003025581-003, A003025581-004 Prüfzeitraum: Testing period: 2021-04-07 – 2021-04-21 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: X genehmigt von: authorized by: X Datum: Date: 2021-05-11 Ausstellungsdatum: Issue date: 2021-05-11 Stellung / Position: Sachverständige(r)/Expert Stellung / Position: Sachverständige(r)/Expert Sonstiges / Other: FCC ID: 2AZE3-VP-B244G Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TÜV Rheinland (Shenzhen) Co., Ltd. 1601 R&D Room, 1602-1604, 17-18F, Building 7 Site C, Vanke Cloud City Phase I, Xingke First Street, Xili Street, Xili Community, Nanshan District, Shenzhen 518052, P.R. China Mail: [email protected] · Web: www.tuv.com Sam Lin Hardy Suo Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No.: CN218GXE 001 Seite 2 von 15 Page 2 of 15 TEST SUMMARY 5.1.1 CONDUCTED EMISSION ON AC MAINS RESULT: Pass 5.1.2 RADIATED EMISSIONS RESULT: Pass Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No.: CN218GXE 001 Seite 3 von 15 Page 3 of 15 CONTENTS 1. GENERAL REMARKS ......................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ........................................................................................... 4 1.2 TEST STANDARD(S) .......................................................................................................... 4 1.3 LIST OF DOCUMENT CHANGE ............................................................................................. 4 2. TEST SITES ....................................................................................................................... 5 2.1 TEST FACILITIES ............................................................................................................... 5 2.2 TEST DATE ....................................................................................................................... 5 2.3 LIST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................... 5 2.4 TRACEABILITY .................................................................................................................. 6 2.5 CALIBRATION .................................................................................................................... 6 2.6 LOCATION OF ORIGINAL DATA ........................................................................................... 6 2.7 STATUS OF FACILITY USED FOR TESTING ........................................................................... 6 3. GENERAL PRODUCT INFORMATION .................................................................................... 7 3.1 GENERAL DESCRIPTION .................................................................................................... 7 3.2 RATING AND SYSTEM DETAILS ........................................................................................... 7 3.3 INDEPENDENT OPERATION MODES ..................................................................................... 8 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ........................................................ 8 3.5 SUBMITTED DOCUMENTS ................................................................................................... 8 4. TEST SET-UP AND OPERATION MODES ............................................................................... 9 4.1 PRINCIPLE OF CONFIGURATION SELECTION ........................................................................ 9 4.2 TEST OPERATION AND TEST SOFTWARE ............................................................................ 9 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT .......................................................... 9 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ......................................................... 9 4.5 TEST SETUP DIAGRAM .................................................................................................... 10 5. TEST RESULTS ............................................................................................................... 12 5.1 ESSENTIAL REQUIREMENTS OF STANDARD ....................................................................... 12 5.1.1 COND…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Appendix B CN218GXE 001 Page 1 of 3 APPENDIX B: PHOTOGRAPHS OF THE TEST SET-UP APPENDIX B: PHOTOGRAPHS OF THE TEST SET-UP .......................................................................... 1 APPENDIX B.1: SET-UP FOR RADIATED EMISSIONS, BELOW 1 GHZ ................................................... 2 APPENDIX B.2: SET-UP FOR RADIATED EMISSIONS, ABOVE 1 GHZ ................................................... 2 APPENDIX B.3: SET-UP FOR CONDUCTED EMISSION ON AC MAINS ................................................... 3 APPENDIX B.4: SET-UP FOR CONDUCTED EMISSION ON AC MAINS ................................................... 3 Prüfbericht - Produkte Test Report - Products Appendix B CN218GXE 001 Page 2 of 3 APPENDIX B.1: SET-UP FOR RADIATED EMISSIONS, BELOW 1 GHZ APPENDIX B.2: SET-UP FOR RADIATED EMISSIONS, ABOVE 1 GHZ Prüfbericht - Produkte Test Report - Products Appendix B CN218GXE 001 Page 3 of 3 APPENDIX B.3: SET-UP FOR CONDUCTED EMISSION ON AC MAINS APPENDIX B.4: SET-UP FOR CONDUCTED EMISSION ON AC MAINS
