2AZFC-LK-B15Bluetooth light box

Smart LED Colorful Shape Lamp User Manual 01 02 03 04 04 05 05 13 14 15 Safety Information Safety Instructions Introduction What You Get Specifications Installing Your Device The operation of smart APP Functions of 2.4G Remote Control Troubleshooting LOFTEK Warranty Please Use 5V/2A Charging Device to Plug in NOTICE: 01 Safety Instructions ·Before plugging in the shape light, ensure that the voltage of the power source is 5V/2A ,otherwise the device may be damaged due to excessive voltage. ·Do not use the shape light if the power cord or plug is frayed, damaged, or shows signs of wear. Contact LOFTEK customer support for assistance. ·The operating temperature should be within -10° to 40°C (14 to 104°F). Do not expose the shape light to extreme temperatures, such as direct sunlight or freezing conditions. ·Do not use the shape light in environments with high humidity or moisture, as it may result in electric shock or damage to the device. ·To prevent overheating, do not cover the shape light or obstruct the ventilation openings during operation. ·Power off when replacing and cleaning to avoid electric shock. ·When unplugging the shape light, grasp the plug firmly and pull it straight out from the power outlet. Do not yank or tug on the cord. ·If the shape light requires maintenance or repair, contact LOFTEK customer support. Do not attempt to repair it yourself. ·Avoid using the lamp near heat sources. ·Do not stare at the lamp directly for a long time. ·Sockets that are dirty may cause poor contact with the charger and yourshape light may fail to charge properly. 02 Introduction ·Do not use the shape light in areas where it may be exposed to corrosive substances or chemicals. ·Do not use the shape light with any accessories or attachments not recommended by LOFTEK. ·Do not disassemble or modify the shape light and chargers, as this maylead to personal injury, electric shock or fire. ·Do not touch the charger, cable or power socket with wet hands, as this maycause electric shock. ·When unplugging the shape light, grasp the plug firmly and pull it straight out from the power outlet. Do not yank or tug on the cord. ·If the shape light is not functioning properly, discontinue use and contact LOFTEK customer support for troubleshooting assistance. Thanks for choosing LOFTEK Smart Shape Lights with Color Changing! LOFTEK LED colorful mood lighting are versatile and innovative smart lamps that offer an array of impressive features. These lamps are designed with convenience and customization in mind, allowing users to control them effortlessly using a remote control or a dedicated mobile app. It is a remarkable addition to any living space. With their intuitive control options, versatile color options, dynamic music sync feature, and various lighting modes, these smart lamps provide a customizable and immersive lighting experience for all occasions. 03 What You Get 1 1 1 1 Smart LED Shape Light 2.4G Remote 5V/2A DC Adapter User Manual Poduct Model: LK-B30(12" Ball) LK-C30(12" Cube) LK-C40(16" Cube) Material Power Source: Working Voltage Input Rated Power: Lumen Color Number of Light Sources Color Temperature Working Temperature Controlled Polyethylene & ABS Corded Electric AC 100-240V 5V/2A 8W 550-660lm RGB5050+ W2835 RGB+white, total 200LEDS 6400-6900K -10°to 40°C(14° to 104°F) Bluetooth APP/2.4G Remote control 04 Installing Your Device The operation of smart APP Insert the other end of the cable into the DC charging port.
Power on the adapter. Please press the switch on the bottom to activate the functions. Step 1Please scan the QR code below and install the App. 1. 2. 1. 3. 05 If you are an Android user, how do you download the app? You can download it by scanning the QR code. You can go to Google Play and download the"Symphony Lotus Lantern" application. 2. 1. Google Play 06 You can download it by scanning the QR code. You can download "Magic Lantern" from the Apple Store. 1. 2. If you are an IOS user, how can you download the application? Apple Store 07 Step 2: Connect to Bluetooth for pairing The first time you need to agree to use Bluetooth. Turn on Bluetooth on your phone. After turning on Bluetooth, you can find the new device in the “Group Manage” screen, please connect it. 1. 123 2. 3. 08 Step 3: Choose your favorite mood lighting Color and Brightness Adjustment 1. Click to display setting view Lamp switch button Adjust the color Click square icon to adjust the color Click to show the lamp list Switch the color wheel Display the RGB value Click to manual adjustment view Click to shift the interface 09 220+ Lighting Modes 2. Slide up and down to adjust the mode under t h e current category Pattern classification Slide adjustment speed 10 Music Sync & Microphone Rhythm 3.  Switch phone microphone and external microphone Set different rhythm Change the sensitivity of MIC to match the sound 11 Create Helpful Schedules 4. Timing Light-on button Set the lighting cycle Set the time of Light-On Set the light-off cycle Set the time of Light-Off Timing Light-off button 12 On Colorful Light Modes Auto Cycle Off Speed +/- Colorful Light Mode +/- Brightness+/- Quick Select Colors: 6 fixed static colors Timer Setting White Light Cycle 6 colors with fading effect between colors Colorful Light Modes Switch Transparent Plastic Piece 3V Button Cell Battery CR2025 Functions of 2.4G Remote Control Note: *Sensing Distance: 32.8-26 feet. *Single remote can control multiple lamps *Remote is not waterproof. *The battery can be replaced if needed, keep out of the reach of children and pets to avoid swallowing. 11 12 13 11 12 13 13 Troubleshooting Cannot connect to app. *Check if the device is powered on. *Check if Bluetooth on the smartphone is enabled, or try connecting with another smartphone. *When connecting for the first time, ensure the smartphone is near the device. *If the connection error still exists, please delete the connected device from "My Devices" on the app and reconnect it. The remote cont…

Text truncated - open the document above for the full version.

Shenzhenshi Nanjiakejixinxi youxiangongsi Room610, block E, taojindi E-commerce incubator base, Zhantao commercial plaza, Tenglong Road, Longping Community, Dalang Street, Longhua District, Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/10/07 U.S. Agent Designation Shenzhenshi Nanjiakejixinxi youxiangongsi acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2AZFC-LK-B15): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Shenzhenshi Nanjiakejixinxi youxiangongsi Shenzhenshi Nanjiakejixinxi youxiangongsi with the FRN [0030733364] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Mingxia shi Manager Shenzhenshi Nanjiakejixinxi youxiangongsi Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Sincerely, Name/Title： Mingxia shi/Manager Company: Shenzhenshi Nanjiakejixinxi youxiangongsi Address: Room610, block E, taojindi E-commerce incubator base, Zhantao commercial plaza, Tenglong Road, Longping Community,Dalang Street,Longhua District China Phone: 0755-83237435 Fax: N/A E-Mail: [email protected]

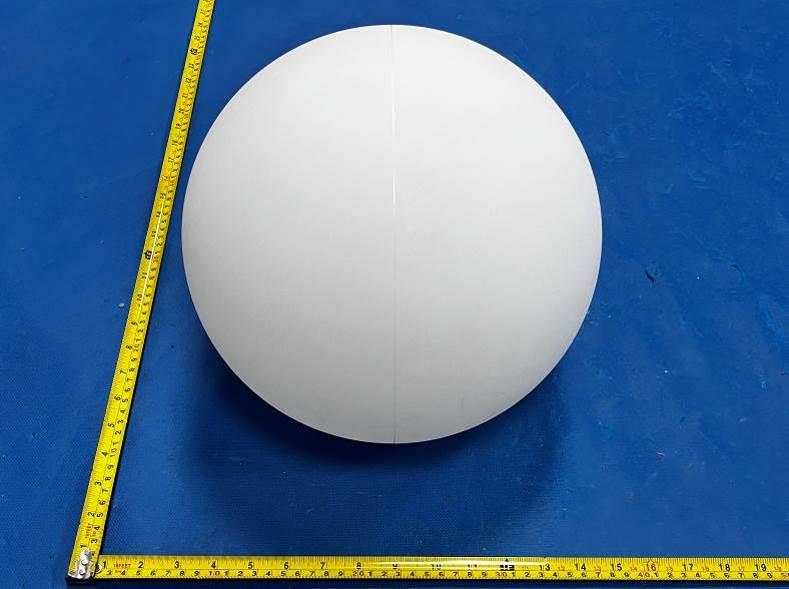

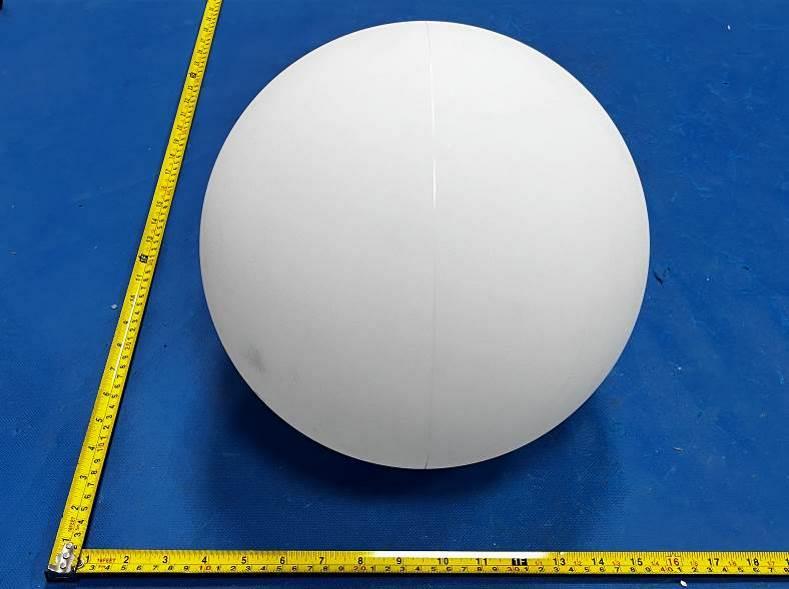

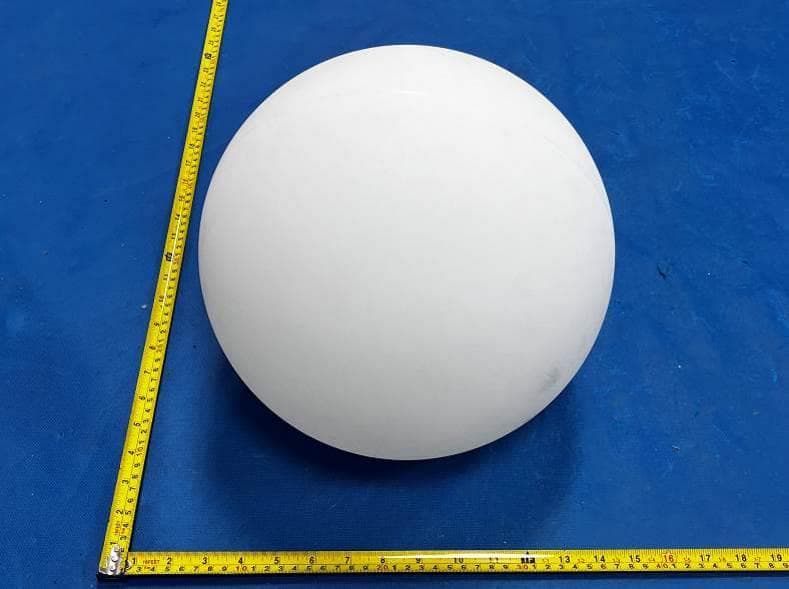

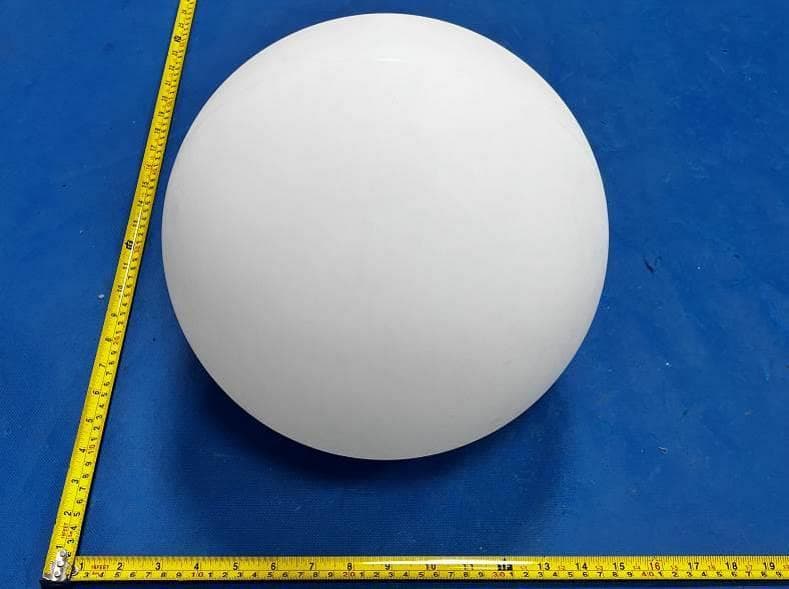

FCC ID: 2AZFC-LK-B15 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2AZFC-LK-B15 Photo 4 Photo 5 Photo 6 FCC ID: 2AZFC-LK-B15 Photo 7

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2AZFC-LK-B15

FCC ID: 2AZFC-LK-B15 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2AZFC-LK-B15 Photo 4 Photo 5 Photo 6 \ FCC ID: 2AZFC-LK-B15 Photo 7 Photo 8 Photo 9 BLE PCB Antenna FCC ID: 2AZFC-LK-B15 Photo 10 Photo 11 Photo 12 FCC ID: 2AZFC-LK-B15 Photo 13

RF Exposure evaluation FCC ID: 2AZFC-LK-B15 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information LK-B15 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: BLE / PCB antenna 0.00dBi for 2400-2500MHz; 5. Manufacturing Tolerance BLE GFSK(Peak) Channel Channel 00 Channel 19 Channel 39 Target (dBm) 1.0 1.0 1.0 Tolerance ±(dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 0.0dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BLE 2.0 1.5849 0.0 1.000 0.0003 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

Antenna describe 1. Antenna describe: Antenna plate PCB ANTENNA Make name/model name PDT-002 Antenna gain 0dBi Frequency range 2.4GHZ-2.483GHZ Connector type direct Manufacturer Name: DONGGUANG XIAOKE INDUSTRLES.CO.,LTD Manufacture Address: NO. 227, DONGCHENG SECTION, GUANDONG ROAD, DONGCHENG STREET, DONGGUAN CITY,CHINA 2.External view drawing: Picture of antenna Antenna Dimensions L1 2.15 mm L2 1.20 mm L3 1.95 mm W1 0.35 mm W2 0.35 mm D1 1.25 mm D2 1.65 mm D3 0.50 mm 3.Antenna Radiation Pattern

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ........................................... : CTA23091900201 2AZFC-LK-B15 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Amy Wen Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Sep. 21, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shenzhenshi Nanjiakejixinxi youxiangongsi Address ............................................ : Room610, block E, taojindi E-commerce incubator base, Zhantao commercial plaza, Tenglong Road, Longping Community, Dalang Street, Longhua District, Shenzhen China Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................... : Bluetooth light box Trade Mark ....................................... : N/A Manufacturer .................................... : Dongguan Shunlong Technology Co., Ltd Model/Type reference....................... : LK-B15 Listed Models .................................. : LK-B20, LK-B30, LK-B40, LK-B50, LK-C20, LK-C30, LK-C40, LK-C50, LK-C60 Modulation ....................................... : GFSK Frequency .......................................... From 2402MHz to 2480MHz Ratings ............................................. : DC 5.0V From external circuit Result................................................ : PASS Report No.: CTA23091900201 Page 2 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Bluetooth light box Model /Type : LK-B15 Listed Models : LK-B20, LK-B30, LK-B40, LK-B50, LK-C20, LK-C30, LK-C40, LK-C50, LK-C60 Applicant : Shenzhenshi Nanjiakejixinxi youxiangongsi Address : Room610, block E, taojindi E-commerce incubator base, Zhantao commercial plaza, Tenglong Road, Longping Community, Dalang Street, Longhua District, Shenzhen China Manufacturer : Dongguan Shunlong Technology Co., Ltd Address : Elevator No.1, 7th Floor, Changxing Zhigu Industrial Park Building, Xinfeng Street, Changlong Community, Huangjiang Town, Dongguan City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23091900201 Page 3 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T ............................................................... 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................ 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emissions and Band Edge 13 4.3 Maximum Peak Output Power 20 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 23 4.6 Out-of-band Emissions 25 4.7 Antenna Requirement 29 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 30 6 P H O T O S O F T H E E U T ............................................................. 31 Report No.: CTA23091900201 Page 4 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 V05r02: Guidance for Performing Compliance Measurements on Digital Transmission Systems (D…

Text truncated - open the document above for the full version.

FCC ID: 2AZFC-LK-B15 Test Setup Photos of the EUT
