2AZFQMR2100ACWLAN AP

Copyright © 2021 DASAN Zhone Solutions Document Number: 830-04383-01 MR-2100AC-XX/W1615MR-XX Quick Installation Instructions Document Number: 830-04406-01 February 2021 Package Contents: • 1 x MR-2100AC-XX or W1615MR-XX • 1 x Quick Install Guide • 1 x Power supply Installation For installations with more than one MR-2100AC-XX/W1615MR-XX, select one unit to be used as the main MESH controller and follow the instructions presented on the current document. 1. Mounting The MR-2100AC-XX/W1615MR-XX may be mounted on flat surfaces such as a desktop. The MR-2100AC-XX/W1615MR-XX is equipped with an extendable base to enhance stability. 2. Connect Power a. Plug the round two pin 12V DC power connector of power converter into the MR-2100AC-XX/W1615MR-XX power port b. Plug the input of power converter into a live AC outlet c. Verify that the POWER LED on the MR-2100AC-XX/W1615MR-XX is solid white indicating local power is on and voltage is good See MR-2100AC-XX/W1615MR-XX LED Behavior for a complete description of the LEDs. 3. Configuring SSID and Wi-Fi Key (Optional) This step is optional. Each MR-2100AC-XX/W1615MR-XX comes with a set of default Wi-Fi SSID and passphrase located on the bottom information label. If using the defaults, step 3 (this step) may be skipped. a. Power up the MR-2100AC-XX/W1615MR-XX as described in the previous step, Connect Power . This is the main MESH controller b. Use a UTP cable between MR-2100AC-XX/W1615MR-XX Ethernet ports and a PC Ethernet port c. Configure a fixed IP address on your PC, for example 192.168.1.101 (for detailed instructions refer to your operating system documentation; for Windows OS follow these instructions https://support.microsoft.com/ en-us/help/15089/windows-change-tcp-ip-settings) d. Open a web browser and input http://192.168.1.100 e. When prompted for credentials enter "admin" as user and for password "DZSXXXXXXXXX" where "XXXXXXXXX" is the 9-digit serial number found on the unit label f. Navigate to WiFi > EasyMesh > Advanced g. Click Configure BSS h. Click Edit BSS i. Change SSID j. Change Password k. Click Save and Apply l. If needed repeat for 2.4Ghz Wi-Fi NOTE: by default, when changing the configuration of the 5GHz radio, the configuration of the SSID and passphrase will be replicated on all radios and all access points forming part of the MESH ecosystem. Copyright © 2021 DASAN Zhone Solutions Document Number: 830-04383-01 4. Setting Up Your MESH Network The first MR-2100AC-XX/W1615MR-XX is the MESH controller. This procedure assumes that the SSID and the Wi-Fi Key have been configured to match on all MR-2100AC-XX/W1615MR-XX devices. If the SSID and Wi-Fi keys for all the MESH devices do not match, follow the instructions in Configuring SSID and Wi-Fi Key . a. Connect the MR-2100AC-XX/W1615MR-XX acting as controller to any unused Ethernet port on your home gateway using CAT5E or CAT6 UTP cable; this will become the MESH controller automatically. b. Power on the rest of the available MR-2100AC-XX/W1615MR-XX devices. c. Place each MR-2100AC-XX/W1615MR-XX in a strategic location where the signal from the main gateway is still strong enough – For maximum performance the MESH LED should remain SOLID GREEN. If the LED remains AMBER this is an indication that MESH link is still ACCEPTABLE, but signal level is either stronger than it needs to be or not strong enough to reach maximum performance. An ACCEPTABLE MESH link is still capable of delivering user bandwidth in the order of 200Mbps. d. As a rule of thumb, start by placing the MR-2100AC-XX/W1615MR-XX halfway between the main home gateway and the location that needs better Wi-Fi coverage. While doing so, make sure that the MESH LED remains solid as this is an indication that the MESH connection with the Master has been established. When the full MESH network is operating properly, All MR-2100AC-XX/W1615MR-XX devices will have its MESH LED solid GREEN or solid AMBER. A solid RED MESH LED indicates that the MESH link quality is too low. While the LED is solid, even if its RED, the MESH link is active. A solid RED MESH LED is still good for internet browsing, email, etc. but Realtime applications like voice and video might suffer from low performance. For a single MR-2100AC-XX/W1615MR-XX (when no remote agents are used) one device solution the indication of proper operation will have the power LED solid white and the MESH LED blinking. e. To connect to the Wi-Fi MESH network, use the Wi-Fi SSID and Password information located in the bottom label on your MR-2100AC-XX/W1615MR-XX device acting as controller. If you want to change the SSID for the MESH Network log into the controller unit and change the 5GHz Wi-Fi SSID and Password, this configuration will be propagated automatically to 2.4GHz and all remote MESH devices. For instructions on how to change the SSID and Password refer to Configuring SSID and Wi-Fi Key . NOTE: When building your MESH network consider that the MR-2100AC-XX/W1615MR-XX acting as remote agent(s) can also utilize a wired or a wireless backhaul connection. Wired connectivity, if available, should always be the preferred method since it maximizes the performance of the Network as a whole. Copyright © 2021 DASAN Zhone Solutions Document Number: 830-04383-01 LED Status Description Power Off No Power Solid Green Device is connected to power supply Mesh Off MESH Disabled(un-MESHed) MESH Role Controller or MESH Role Remote Agent with wired connection Solid Green MESH connected MESH Role Remote Agent with wired connection Solid Green MESH Link Quality Excellent Solid Amber MESH Link Quality Acceptable Solid Red MESH Link Quality Low GE 1-2 Off Gigabit Ethernet Port disconnected Blinking Green Gigabit Ethernet Port connected WiFi Solid Green 2.4G or 5G enabled CE Marking: When the product is marked with the CE mark on the equipment label, a supporting Declaration of Conformity may be downloaded from the DZS, Inc. World Wide Web site at www.dzsi.com . To be protected against all …

Text truncated - open the document above for the full version.

DZS, Inc. Date: 2021-2-19 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regard ing: FCC ID: 2AZFQMR2100AC To who m it may concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technica l Services Co., Ltd. (SGS) Shenzhen Branch and Keny Xu in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including s igning of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, t he undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions f or Certification, as specified by SGS North America, Inc., still resides with DZS, Inc. This authorization is valid until further written notice from the applicant. Sinc erely, Print Name: Doron Paz Title: VP Research & Development Signature: On behalf of Company: DZS, Inc. Telephone: (469) 327-1531 E-mail: [email protected]

DZS, Inc. To: Feder al Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 From: DZ S, Inc. Regardi ng: Confidentiality Request regarding application for FCC ID: 2AZFQMR2100AC LONG TERM CONFIDENTIALITY Pursuan t to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The docume nts above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. SHORT T ERM CONFIDENTIALITY Additionally, the applicant requests the following documents be held confidential until the device is marketed or 180 days from the grant date, whichever is less. If the device is marketed within aforementioned days of the Grant Date, the applicant will notify the TCB per FCC KDB 726920 D01 Confidentiality Request Procedures. External Photos Internal Photos Test Setup Photos User manual(s) Sincerely, Print Name: Doron Paz Title: VP Research & Development Signature: On behalf of Company: DZS, Inc. Telephone: +1(510)541-1307 E-mail: [email protected]

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name DZS, Inc. Address 5700 Tennyson Parkway, Plano, Texas, TX 75024, USA Grantee Code 2AZFQ FCC ID 2AZFQMR2100AC Authorized Contact Name Doron Paz Contact Email [email protected] Contact Phone +1(510)541-1307 I, t he undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a)in accor dance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in accept ing a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1)label ing the equipment with the exact FCC ID as specified in this application, (2)compliance statement labeling pursuant to the applicable rules, (3)compliance of the equipment with the applicable technical rules, c)if the App licant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d)in accor dance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in accor dance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1)the A pplicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2)the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3)the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g)the A pplicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link t o CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 2021-02-19 Print Name: Doron Paz Title: VP Research & Development *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

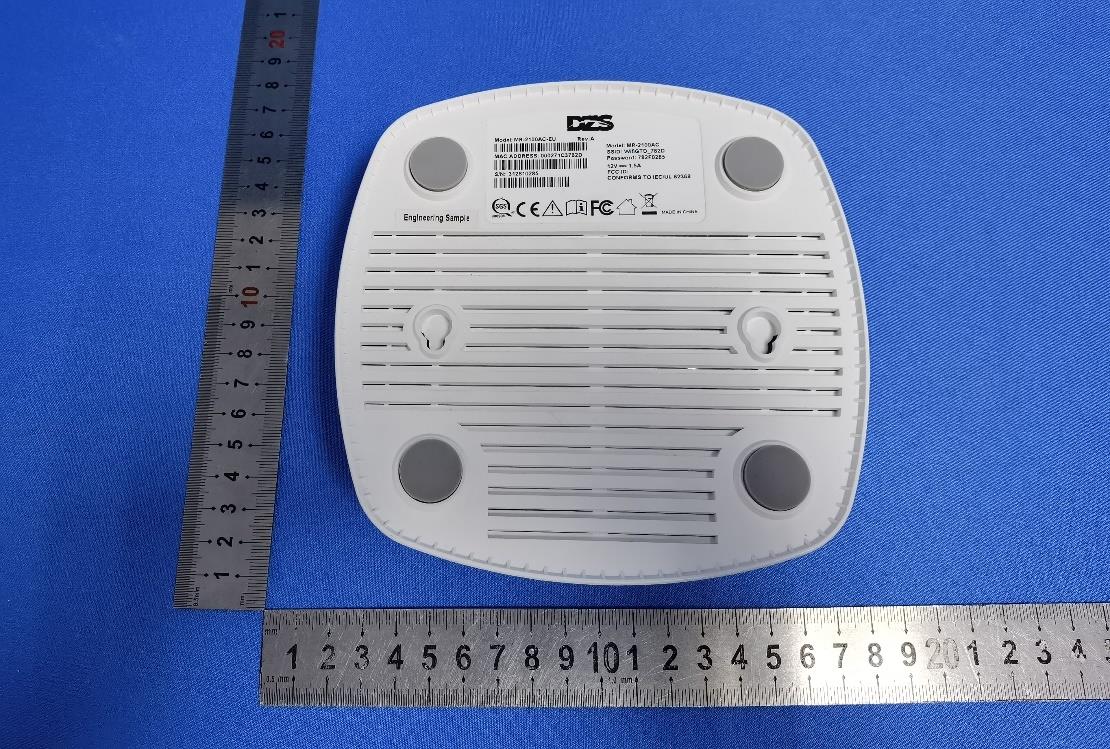

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 4 External Photos for SZEM2101001123CR FCC ID: 2AZFQMR2100AC SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 4 1 EUT Constructional Details SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 4

MR-2100AC-EU S/N:XXXXXXXXX Part No.: MR-2100AC-EU Rev:A ATBE BG CZDK EEFR DE ISIEITEL ESCY LVLILTLUHU MTNL NO PL PTRO SIDKTR FISE CH UK(NI) HR Made in China MR-2100AC-NA S/N: XXXXXXXXX MAC Address: XXXXXXXXXXXX MAC Address: XXXXXXXXXXXX Part No.: MR-2100AC-NA Rev:A Made in China Part No.: W1615MR Rev:A MAC ADDRESS: XXXXXXXXXXXX S/N:XXXXXXXXX SSID: DZS-MESH-XXXX Password: XXXXXXXX 12V 1.5A FCC ID:2AZFQMR2100AC CONFORMS TO IEC/UL 62368 MADE IN CHINA 800938 ! Part No.: MR-2100AC Rev:A MAC ADDRESS: XXXXXXXXXXXX S/N:XXXXXXXXX SSID: DZS-MESH-XXXX Password: XXXXXXXX 12V 1.5A FCC ID:2AZFQMR2100AC CONFORMS TO IEC/UL 62368 MADE IN CHINA 800938 ! EU USA Part No.: MR-2100AC Rev:A MAC ADDRESS: XXXXXXXXXXXX S/N:XXXXXXXXX SSID: DZS-MESH-XXXX Password: XXXXXXXX 12V 1.5A FCC ID:2AZFQMR2100AC CONFORMS TO IEC/UL 62368 MADE IN CHINA 800938 ! This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location: please see external photo on page 2.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 5 Internal Photos for SZEM2101001123CR FCC ID: 2AZFQMR2100AC SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 5 1 EUT Constructional Details 5G Antenna3 2.4G/5G Antenna1 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 5 5G Antenna4 2.4G/5G Antenna2 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 5 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 5 of 5

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100112304 Page: 1 of 8 Keny Xu EMC Laboratory Manager RF Exposure Evaluation Report Application No.: SZEM2101001123CR Applicant: DZS, Inc Address of Applicant: 5700 Tennyson Parkway, Plano, Texas, TX 75024, USA Manufacturer: DZS, Inc Address of Manufacturer: 5700 Tennyson Parkway, Plano, Texas, TX 75024, USA Factory: 1.Aztech Communication Device (DG) Ltd. 2. IOT Manufacturing SDN.BHD Address of Factory: 1.Jiu Jiang Shui Village Chang Ping Town, Dong Guan City Guang Dong Province, China 2. No.8&10, Setia Business Park, Jalan Laman Setia 7/4, Taman Laman Setia, 81550 Gelang Patah, Johor Bahru, Johor Malaysia Product Name: WLAN AP Model No.: MR-2100AC, MR-2100AC-XXX (X: 0-9, A-Z or blank, represents different markets), W1615MR, W1615MR-XXX(X: 0-9, A-Z or blank, represents different markets)   Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Trade Mark: DZS FCC ID: 2AZFQMR2100AC Standards: 47 CFR Part 1.1307, 47 CFR Part 1.1310, 47 CFR Part 2.1091 Date of Receipt: 2021-01-26 Date of Test: 2021-01-30 to 2021-03-10 Date of Issue: 2021-03-11 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100112304 Page: 2 of 8 1 Version Revision Record Version Chapter Date Modifier Remark 01 2021-03-11 Original Authorized for issue by: Edison Li /Project Engineer Eric Fu /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100112304 Page: 3 of 8 2 Contents Page 1 VERSION..............................................................................................................................................................2 2 CONTENTS ..........................................................................................................................................................3 3 GENERAL INFORMATION ................................................................................................................................4 3.1 GENERAL DESCRIPTION OF EUT ..........................................................................................................................4 3.2 TEST LOCATION ..................................................................................................................................................6 3.3 TEST FACILITY ...................................................................................................................................................6 3.4 DEVIATION FROM STANDARDS ............................................................................................................................6 3.5 ABNORMALITIES FROM STANDARD CONDITIONS ..................................................................................................6 3.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER .........................................................................................6 4 RF EXPOSURE EVALUATION ..........................................................................................................................7 4.1 RF EXPOSURE COMPLIANCE REQUIREMENT .........................................................................................................7 4.1.1 Limits .......................................................................................................................................................7 4.1.2 Test Procedure .......................................................................................................................................7 4.1.3 EUT RF Exposure Evaluation................................................................................................................8 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100112304 Page: 4 of 8 3 General Information 3.1 General Description of EUT Power Supply: Switching Adapter1 Model: HS1201500U Input: AC 100-240V, 50/60Hz, Max.0.8A Output: DC 12V, 1.5A, 18W Switching Adapter2 Model: S18B22-120A150-C4 Input: AC 100-240V, 50/60Hz, Max.0.7A Output: DC 12V, 1.5A, 18W Test Voltage: AC 120V, 60Hz and AC 240 V, 50Hz Note: Both nominal AC 120V, 60Hz and AC 240 V, 50Hz are required for testing in accordance with FCC KDB174176 Q4, this report only shows the results of the worst test result(AC 120V/60Hz); Cable: DC cable: 142cm unshielded Internal Source: More than 108MHz For 2.4G WiFi: Operation Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz 802.11n(HT40): 2422MHz to 2452MHz Modulation Type: 802.11b: DSSS(CCK, DQPSK, DBPSK) 802.11g: OFDM(64QAM, 16QAM, QPSK, BPSK) 802.11n(HT20 and HT40): OFDM (BPSK, QPSK, 16QAM, 64QAM) Channel Numbers: 802.11b/g, 802.11n HT20: 11 Channels 802.11n HT40: 7 Channels Channel Spacing: 5MHz Sample Type: Fixed device Antenna Type: PCB Antenna Antenna Gain: Antenna1:3.82dBi, Antenna2: 3.76dBi Note: MIMO for 802.11n For 5G WiFi: Operation Frequency: Band Mode Frequency Range(MHz) Number of channels UNII Band I 802.11a/n(HT20)/ac(HT20) 5180-5240 4 802.11n(HT40)/ac(HT40) 5190-5230 2 802.11ac(HT80) 5210 1 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100112304 Page: 5 of 8 UNII Band III 802.11a/n(HT20)/ac(HT20) 5745-5825 5 802.11n(HT40)/ac(HT40) 5755-5795 2 802.11ac(HT80) 5775 1 Modulation Type: 802.11a: OFDM(64QAM, 16QAM, QPSK, BPSK) 802.11n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) TPC Function: Not support Sample Type: Fixed device Antenna Type: PCB Antenna Antenna Gain: Antenna1:3.85dBi, Antenna2: 3.77dBi, Antenna3:3.80dBi, Antenna4: 3.70dBi Note: MIMO for 802.11n/ac Remark: Model No.: MR-2100AC, MR-2100AC-XXX (X: 0-9, A-Z or blank, represents different markets), W1615MR, W1615MR-XXX(X: 0-9, A-Z or blank, represents different markets) Since according to the declaration fr…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100112303 Page: 1 of 282 Keny Xu EMC Laboratory Manager TEST REPORT Application No.: SZEM2101001123CR Applicant: DZS, Inc Address of Applicant: 5700 Tennyson Parkway, Plano, Texas, TX 75024, USA Manufacturer: DZS, Inc Address of Manufacturer: 5700 Tennyson Parkway, Plano, Texas, TX 75024, USA Factory: 1.Aztech Communication Device (DG) Ltd. 2. IOT Manufacturing SDN.BHD Address of Factory: 1.Jiu Jiang Shui Village Chang Ping Town, Dong Guan City Guang Dong Province, China 2. No.8&10, Setia Business Park, Jalan Laman Setia 7/4, Taman Laman Setia, 81550 Gelang Patah, Johor Bahru, Johor Malaysia Equipment Under Test (EUT): EUT Name: WLAN AP Model No.: MR-2100AC, MR-2100AC-XXX (X: 0-9, A-Z or blank, represents different markets), W1615MR, W1615MR-XXX(X: 0-9, A-Z or blank, represents different markets)   Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Trade Mark: DZS FCC ID: 2AZFQMR2100AC Standard(s) : 47 CFR Part 15, Subpart E 15.407 Date of Receipt: 2021-01-26 Date of Test: 2021-01-30 to 2021-03-10 Date of Issue: 2021-03-11 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100112303 Page: 2 of 282 Revision Record Version Chapter Date Modifier Remark 01 2021-03-11 Original Authorized for issue by: Edison Li/Project Engineer Eric Fu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100112303 Page: 3 of 282 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart E 15.407 N/A 47 CFR Part 15, Subpart C 15.203 Pass Transmission in the Absence of Data 47 CFR Part 15, Subpart E 15.407 N/A 47 CFR Part 15, Subpart C 15.407 (c) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart E 15.407 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 & 15.407 b(8) Pass Duty Cycle 47 CFR Part 15, Subpart E 15.407 KDB 789033 II B 1 KDB 789033 D02 II B 1 Pass 99% Bandwidth 47 CFR Part 15, Subpart E 15.407 KDB 789033 II D N/A Pass 26dB Emission bandwidth 47 CFR Part 15, Subpart E 15.407 KDB 789033 D02 II C 1 47 CFR Part 15, Subpart C 15.407 (a) Pass Minimum 6 dB bandwidth (5.725- 5.85 GHz band ) 47 CFR Part 15, Subpart E 15.407 KDB 789033 D02 II C 2 47 CFR Part 15, Subpart C 15.407 (e) Pass Maximum Conducted output power 47 CFR Part 15, Subpart E 15.407 KDB 789033 D02 II E 47 CFR Part 15, Subpart C 15.407 (a) Pass Peak Power spectrum density 47 CFR Part 15, Subpart E 15.407 KDB 789033 D02 II F 47 CFR Part 15, Subpart C 15.407 (a) Pass Radiated Emissions (Below 1GHz) 47 CFR Part 15, Subpart E 15.407 KDB 789033 D02 II G 47 CFR Part 15, Subpart C 15.209 & 15.407(b) Pass Radiated Emissions (Above 1GHz) 47 CFR Part 15, Subpart E 15.407 KDB 789033 D02 II G 47 CFR Part 15, Subpart C 15.209 & 15.407(b) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart E 15.407 KDB 789033 D02 II G 47 CFR Part 15, Subpart C 15.209 & 15.407(b) Pass Frequency Stability 47 CFR Part 15, Subpart E 15.407 ANSI C63.10 (2013) Section 6.8 47 CFR Part 15, Subpart C 15.407 (g) Pass Remark: Model No.: MR-2100AC, MR-2100AC-XXX (X: 0-9, A-Z or blank, represents different markets), W1615MR, W1615MR-XXX(X: 0-9, A-Z or blank, represents different markets) Only the model MR-2100AC was tested, since according to the declaration from the applicant, the electrical circuit design, layout, components used, internal wiring and functions were identical for all the above models, with only difference on model No. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100112303 Page: 4 of 282 3 Contents Page 1 COVER PAGE ..................................................................................................................................... 1 2 TEST SUMMARY ................................................................................................................................. 3 3 CONTENTS ......................................................................................................................................... 4 4 GENERAL INFORMATION .................................................................................................................. 6 4.1 DETAILS OF E.U.T. ......................................................................................................................... 6 4.2 DESCRIPTION OF SUPPORT UNITS .................................................................................................... 6 4.3 MEASUREMENT UNCERTAINTY ......................................................................................................... 7 4.4 TEST LOCATION ............................................................................................................................. 8 4.5 TEST FACILITY ............................................................................................................................... 8 4.6 DEVIATION FROM STANDARDS ......................................................................................................... 8 4.7 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................. 8 5 EQUIPMENT LIST ............................................................................................................................... 9 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ............................................................................12 6.1 ANTENNA REQUIREMENT ................................................................................................................12 6.1.1 Test Requirement: ................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100112303 Page: 173 of 282 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100112303 Page: 174 of 282 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100112303 Page: 175 of 282 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100112303 Page: 176 of 282 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100112303 Page: 177 of 282 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100112303 Page: 178 of 282 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100112303 Page: 179 of 282 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100112303 Page: 180 of 282 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100112303 Page: 181 of 282 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100112303 Page: 182 of 282 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100112303 Page: 183 of 282 2. Bandwidth 2.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Emission Bandwidth Verdict Test Result (MHz) Limits (MHz) 802.11a 5180 SISO 1 19.613 Only for Report Use PASS 5200 SISO 1 19.602 Only for Report Use PASS 5240 SISO 1 19.476 Only for Report Use PASS 802.11n(HT20) 5180 MIMO 1 19.865 Only for Report Use PASS 5200 MIMO 1 19.624 Only for Report Use PASS 5240 MIMO 1 19.761 Only for Report Use PASS 802.11n(HT40) 5190 MIMO 1 40.306 Only for Report Use PASS 5230 MIMO 1 40.156 Only for Report Use PASS 802.11ac(VHT20) 5180 MIMO 1 19.863 Only for Report Use PASS 5200 MIMO 1 20.046 Only for Report Use PASS 5240 MIMO 1 20.031 Only for Report Use PASS 802.11ac(VHT40) 5190 MIMO 1 40.101 Only for Report Use PASS 5230 MIMO 1 40.188 Only for Report Use PASS 802.11ac(VHT80) 5210 MIMO 1 80.263 Only for Report Use PASS Test Mode Frequency (MHz) TX Type ANT No. Emission Bandwidth Verdict Test Result (MHz) Limits (MHz) 802.11a 5745 SISO 1 15.093 ≥0.5 PASS 5785 SISO 1 15.351 ≥0.5 PASS 5825 SISO 1 15.112 ≥0.5 PASS 802.11n(HT20) 5745 MIMO 1 15.193 ≥0.5 PASS 5785 MIMO 1 15.141 ≥0.5 PASS 5825 MIMO 1 15.174 ≥0.5 PASS 802.11n(HT40) 5755 MIMO 1 35.223 ≥0.5 PASS 5795 MIMO 1 35.025 ≥0.5 PASS 802.11ac(VHT20) 5745 MIMO 1 15.105 ≥0.5 PASS 5785 MIMO 1 15.183 ≥0.5 PASS 5825 MIMO 1 15.188 ≥0.5 PASS 802.11ac(VHT40) 5755 MIMO 1 35.188 ≥0.5 PASS 5795 MIMO 1 35.031 ≥0.5 PASS 802.11ac(VHT80) 5775 MIMO 1 75.493 ≥0.5 PASS SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM210100112303 Page: 184 of 282 Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 802.11a 5180 SISO 1 16.554 Only for Report Use 5200 SISO 1 16.524 Only for Report Use 5240 SISO 1 16.574 Only for Report Use 5745 SISO 1 16.500 Only for Report Use 5785 SISO 1 16.538 Only for Report Use 5825 SISO 1 16.571 Only for Report Use 802.11n(HT20) 5180 MIMO 1 17.649 Only for Report Use 5200 MIMO 1 17.567 Only for Report Use 5240 MIMO 1 17.554 Only for Report Use 5745 MIMO 1 17.800 Only for Report Use 5785 MIMO 1 17.679 Only for Report Use 5825 MIMO 1 17.728 Only for Report Use 802.11n(HT40) 5190 MIMO 1 36.243 Only for Report Use 5230 MIMO 1 36.103 Only for Report Use 5755 MIMO 1 36.369 Only for Report Use 5795 MIMO 1 36.234 Only for Report Use 802.11ac(VHT20) 5180 MIMO 1 17.787 Only for Report Use 5200 MIMO 1 17.642 Only for Report Use 5240 MIMO 1 17.584 Only for Report Use 5745 MIMO 1 17.782 Only for Report Use 5785 MIMO 1 17.661 Only for Report Use 5825 MIMO 1 17.770 Only for Report Use 802.11ac(VHT40) 5190 MIMO 1 36.092 Only for Report Use 5230 MIMO 1 36.218 Only for Report Use 5755 MIMO 1 36.168 Only for Report Use 5795 MIMO 1 36.224 Only for Report Use 802.11ac(VHT80) 5210 MIMO 1 75.660 Only for Report Us…
