2AZGO-SL-F01Magic Color Touch Remote

ZhongshanSimpleLightingCo.,Ltd. 2ndFloor,Building1,No.1HenglongRoad,GuzhenTown,ZhongshanCity,Guangdong,China MagicColorTouchRemoteManual Basicparameters Controlpointfigure:Maximumadjustableto2048pixels Remotecontroldistance:≤30meters Batterymodel:AAABattery(remotecontrolbattery) Remotecontroloperationinstructions :On/offbutton(poweron/off) :Pausebutton/AutoPlay :Colorring(touchacolorandthelampstripwilldisplay thecorrespondingcolor) M+:Modeplus(nexteffect) M-:Modeminus(lasteffect) S+:Speedup(thelamprunsfaster) S-:Slowdown(therunningspeedofthelampslowsdown) B+:Increasebrightness B-:Decreasebrightness LightEffectAutoPlay:pressanykeyofcolorringfirst,thenpressthebuttontoautoplayfromthefirst effecttothelasteffect. Warning:Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsiblefor compliancecouldvoidtheuser’sauthoritytooperatetheequipment. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynot causeharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause undesiredoperation. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15ofthe FCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation. Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththe instructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnot occurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbe determinedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe followingmeasures: --Reorientorrelocatethereceivingantenna. --Increasetheseparationbetweentheequipmentandreceiver. --Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. --Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

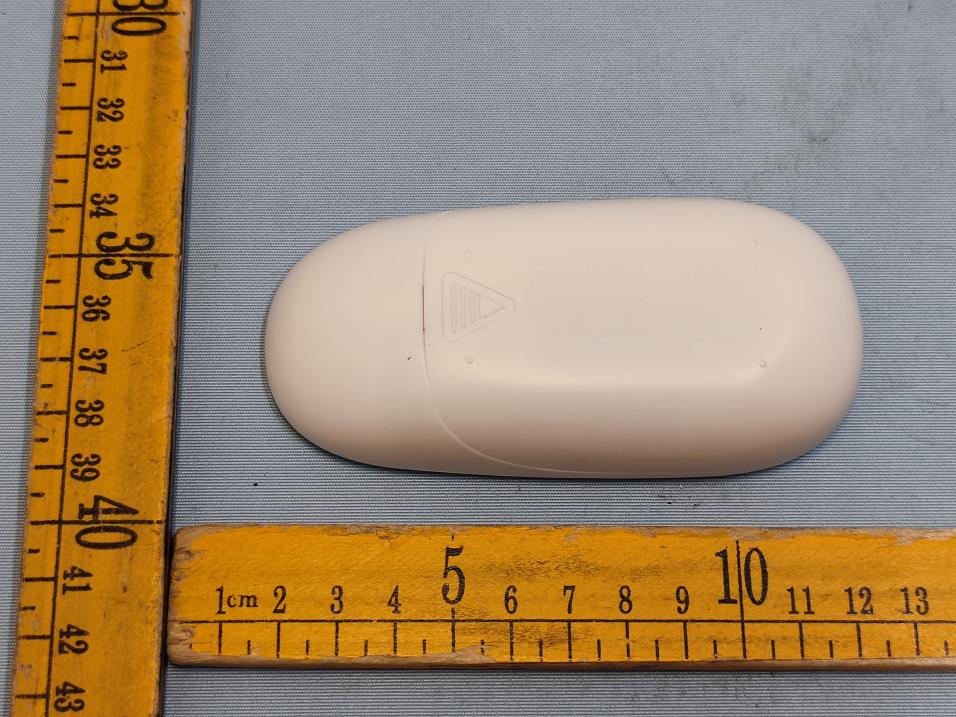

Model:SL-F01 Page 1 of 4 Picture 1 Picture 2 Model:SL-F01 Page 2 of 4 Picture 3 Picture 4 Model:SL-F01 Page 3 of 4 Picture 5 Picture 6 Model:SL-F01 Page 4 of 4 Picture 7

FCC ID: 2AZGO-SL-F01

Model: TCH-RFRC Page 1 of 2 Picture 1 Picture 2 Model: TCH-RFRC Page 2 of 2 Picture 3 Picture 4

Waltek Testing Group (Foshan) Co., Ltd. http://www.waltek.com.cn Page 1 of 25 TEST REPORT Reference No. .................... : WTZ21F03017057W FCC ID ................................ : 2AZGO-SL-F01 Applicant ............................ : Zhongshan Simple Lighting Co., Ltd. Address .............................. : 2nd Floor, Building 1, No.1 Henglong Road, Guzhen Town, Zhongshan City, Guangdong, China Manufacturer .................... : The same as above Address .............................. : The same as above Product Name .................... : Magic Color Touch Remote Model No. ........................... : TCH-RFRC Standards........................... : FCC CFR47 Part 15 Subpart C (Section 15.231):2019 Date of Receipt sample .... : 2021-03-30 Date of Test ....................... : 2021-05-06 Date of Issue ...................... : 2021-05-26 Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group (Foshan) Co., Ltd. Address: No.13-19, 2/F., 2nd Building, Sunlink International Machinery City, Chencun, Shunde District, Foshan, Guangdong, China Tel:+86-757-23811398 Fax:+86-757-23811381 E-mail:[email protected] Compiled by: Approved by: Roy Hong / Project Engineer Danny Zhou / Manager Reference No.: WTZ21F03017057W Page 2 of 25 Waltek Testing Group (Foshan) Co., Ltd. http://www.waltek.com.cn 1 Revision History Test Report No. Date of Issue Description Status WTZ21F03017057W 2021-05-26 Original Valid Reference No.: WTZ21F03017057W Page 3 of 25 Waltek Testing Group (Foshan) Co., Ltd. http://www.waltek.com.cn 2 Contents Page 1 REVISION HISTORY ................................................................................................................................. 2 2 CONTENTS ............................................................................................................................................... 3 3 GENERAL INFORMATION ....................................................................................................................... 4 3.1 GENERAL DESCRIPTION OF E.U.T ................................................................................................... 4 3.2 TECHNICAL CHARACTERISTICS OF EUT ........................................................................................... 4 3.3 STANDARDS APPLICABLE FOR TESTING ............................................................................................ 4 3.4 TEST FACILITY ................................................................................................................................ 5 3.5 SUBCONTRACTED ........................................................................................................................... 5 3.6 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................ 5 4 EUT SETUP AND TEST MODE ................................................................................................................ 6 5 EQUIPMENT USED DURING TEST ......................................................................................................... 7 5.1 EQUIPMENT LIST ............................................................................................................................. 7 5.2 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ......................................................................... 8 5.3 MEASUREMENT UNCERTAINTY ......................................................................................................... 8 6 SUMMARY OF TEST RESULT ................................................................................................................ 9 6.1 ANTENNA REQUIREMENT ............................................................................................................... 10 6.2 RADIATED SPURIOUS EMISSIONS ................................................................................................... 11 6.3 20DB BANDWIDTH ......................................................................................................................... 15 6.4 TRANSMISSION TIME ..................................................................................................................... 16 6.5 DUTY CYCLE ................................................................................................................................. 17 7 PHOTOGRAPHS TEST SETUP ............................................................................................................. 19 7.1 PHOTOGRAPHS - RADIATED EMISSION TEST SETUP ........................................................................ 19 8 PHOTOGRAPHS - CONSTRUCTIONAL DETAILS ............................................................................... 20 8.1 EUT - EXTERNAL PHOTOS ............................................................................................................. 20 8.2 EUT - INTERNAL PHOTOS .............................................................................................................. 23 Reference No.: WTZ21F03017057W Page 4 of 25 Waltek Testing Group (Foshan) Co., Ltd. http://www.waltek.com.cn 3 General Information 3.1 General Description of E.U.T Product Name ............................... : Magic Color Touch Remote Model No. ..................................... : TCH-RFRC Model Description ........................ : --- Rated Voltage................................ : Battery 3V (2*AAA) Battery Capacity ........................... : --- Power Adapter .............................. : --- 3.2 Technical Characteristics of EUT Frequency Range ......................... : 433.92MHz Max. Field Strength ...................... : 87.78dBuV/m (a…
