2AZGU-ORANGEOrange

Orange Getting Started Guide 1.) Press the small button on the front of the OrangeLink to open the battery lid. 2.) Insert (2) 1.5v DC AAA Batteries into the OrangeLink, see below for ( - ) and ( + ) orientation, and close the lid. 3.) Enable the OrangeLink in your Loop Application: Settings > Pump > Devices - Orange (enable toggle switch ON) 4.) To RESET the OrangeLink. Open the battery lid and then close it again. LED and Haptic (Vibration) Feedback Indications 1.When OrangeLink is first powered on, LED light will blink Red and Yellow with a strong vibration. 2.When OrangeLink is powered on but not connected to a phone the LED light will blink Red every 10 seconds 3.When OrangeLink is first connected to a mobile phone, a SOFT vibration is triggered. 4.When the OrangeLink is connected to a mobile phone, LED light will blink Yellow every 10 seconds 5.When OrangeLink is disconnected from a mobile phone a STRONG vibration is triggered. 6.When battery is low, LED light will be constant RED, and with SOFT vibration every 2 mins. 7.When the OrangeLink has a "super low" battery, the voltage is too low to trigger constant RED and SOFT vibration, you will see the OrangeLink repeatedly (connect then disconnect) from the phone (See below for Super Low Indication) FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

DATE2021 /06/01 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AZGU-ORANGE Product Name: Orange Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission's rules, we hereby request that the following documents be held confidential: ( List here the documents for which you are seeking confidentiality - for example ... ) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name Lois Zhang lo ( � ) l ,.ANo4 Title Manager ...__..... -� Company OUTSHINE IOT TECH LIMITED

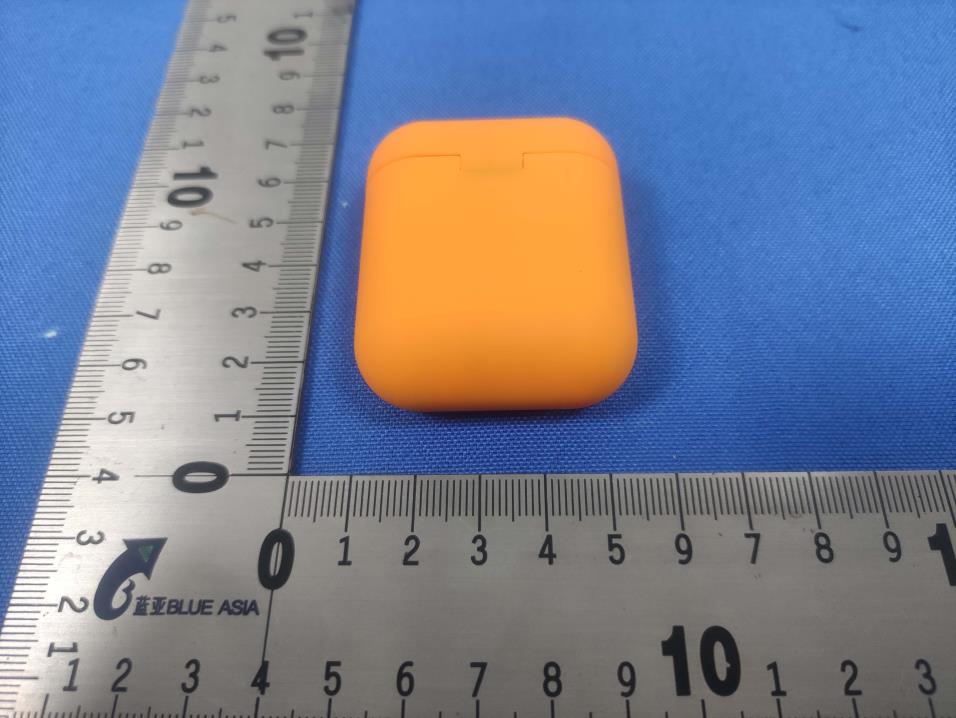

Model No.: Orange

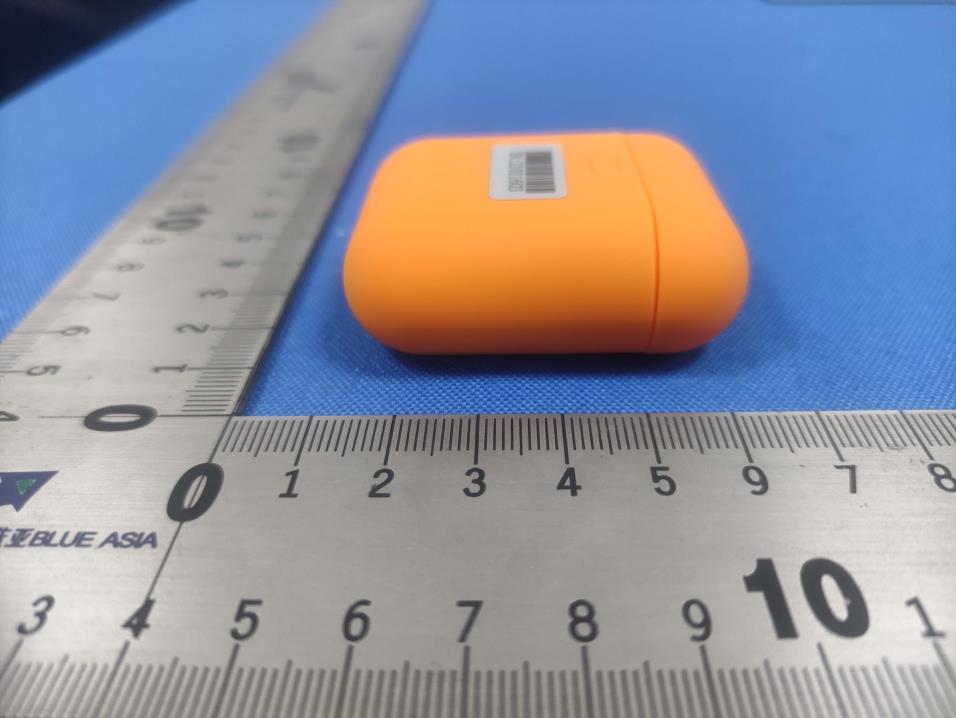

Model No.: Orange

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√ f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2402 MHz -0.3 dBm（ 0.93 mW）output power] ( 0.93 mW /5mm) ·[√2.402(GHz)]= 0.3 <3.0 for 1-g SAR Then SAR evaluation is not required

Page 1 of57 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Add: Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TEST REPORT Product Name : Orange Brand Mark : N/A Model No. : Orange FCC ID : 2AZGU-ORANGE Report Number : BLA-EMC-202101-A7902 Date of Sample Receipt : 2021/1/26 Date of Test : 2021/1/28 to 2021/3/5 Date of Issue : 2021/5/21 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: OUTSHINE IOT TECH LIMITED RM22 2/F FU TAO BUILDING NO.98 ARGYLE STREET KOWLOON Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China TEL: +86-755-23059481 Compiled by: Review by: Approved by: Date: 2021/5/31 Report No.: BLA-EMC-202101-A7902 Page 2 of57 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com REPORT REVISE RECORD Version No. Date Description 00 2021/5/31 Original Report No.: BLA-EMC-202101-A7902 Page 3 of57 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................5 2 GENERAL INFORMATION .........................................................................................................................6 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................6 4 TEST ENVIRONMENT ................................................................................................................................7 5 TEST MODE ................................................................................................................................................7 6 MEASUREMENT UNCERTAINTY ..............................................................................................................7 7 DESCRIPTION OF SUPPORT UNIT...........................................................................................................8 8 LABORATORY LOCATION .........................................................................................................................8 9 TEST INSTRUMENTS LIST ........................................................................................................................9 1 CONDUCTED BAND EDGES MEASUREMENT ..................................................................................... 12 1.1 LIMITS ................................................................................................................................................................... 12 1.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 12 1.3 TEST DATA .............................................................................................................................................................. 12 2 ANTENNA REQUIREMENT ..................................................................................................................... 13 2.1 CONCLUSION ............................................................................................................................................................ 13 3 RADIATED SPURIOUS EMISSIONS ....................................................................................................... 14 3.1 LIMITS ................................................................................................................................................................... 14 3.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 15 3.3 PROCEDURE .......................................................................................................................................................... 15 3.4 TEST DATA .............................................................................................................................................................. 17 4 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS................................................. 25 4.1 LIMITS ................................................................................................................................................................... 25 4.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 26 4.3 PROCEDURE .......................................................................................................................................................... 26 4.4 TEST DATA .............................................................................................................................................................. 28 5 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 32 5.1 LIMITS ................................................................................................................................................................... 32 5.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 32 5.3 TEST DATA .............................................................................................................................................................. 32 Report No.: BLA-EMC-202101-A7902 Page 4 of57 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 6 POW…

Text truncated - open the document above for the full version.

Report No.: BLA-EMC-202101-A7902 Page 30 of57 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com [TestMode: TX high channel]; [Polarity: Horizontal] Test Result: Pass Report No.: BLA-EMC-202101-A7902 Page 31 of57 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com [TestMode: TX high channel]; [Polarity: Vertical] Test Result: Pass Report No.: BLA-EMC-202101-A7902 Page 32 of57 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 5 CONDUCTED SPURIOUS EMISSIONS Test Standard 47 CFR Part 15, Subpart C 15.247 Test Method ANSI C63.10 (2013) Section 7.8.6 & Section 11.11 Test Mode (Pre-Scan) TX Test Mode (Final Test) TX Tester Jozu Temperature 25°C Humidity 60% 5.1 LIMITS Limit: In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval, as permitted under paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20 dB. Attenuation below the general limits specified in §15.209(a) is not required. In addition, radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in §15.209(a) (see §15.205(c)). 5.2 BLOCK DIAGRAM OF TEST SETUP 5.3 TEST DATA Pass: Please Refer To Appendix: Appendix For Details Report No.: BLA-EMC-202101-A7902 Page 33 of57 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 6 POWER SPECTRUM DENSITY Test Standard 47 CFR Part 15, Subpart C 15.247 Test Method ANSI C63.10 (2013) Section 11.10.2 Test Mode (Pre-Scan) TX Test Mode (Final Test) TX Tester Jozu Temperature 25°C Humidity 60% 6.1 LIMITS Limit: ≤8dBm in any 3 kHz band during any time interval of continuous transmission 6.2 BLOCK DIAGRAM OF TEST SETUP 6.3 TEST DATA Pass: Please Refer To Appendix: Appendix For Details Report No.: BLA-EMC-202101-A7902 Page 34 of57 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 7 CONDUCTED PEAK OUTPUT POWER Test Standard 47 CFR Part 15, Subpart C 15.247 Test Method ANSI C63.10 (2013) Section 7.8.5 Test Mode (Pre-Scan) TX Test Mode (Final Test) TX Tester Jozu Temperature 25°C Humidity 60% 7.1 LIMITS Frequency range(MHz) Output power of the intentional radiator(watt) 902-928 1 for ≥50 hopping channels 0.25 for 25≤ hopping channels <50 1 for digital modulation 2400-2483.5 1 for ≥75 non-overlapping hopping channels 0.125 for all other frequency hopping systems 1 for digital modulation 5725-5850 1 for frequency hopping systems and digital modulation 7.2 BLOCK DIAGRAM OF TEST SETUP 7.3 EST DATA Pass: Please Refer To Appendix: Appendix For Details Report No.: BLA-EMC-202101-A7902 Page 35 of57 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 8 MINIMUM 6DB BANDWIDTH Test Standard 47 CFR Part 15, Subpart C 15.247 Test Method ANSI C63.10 (2013) Section 11.8.1 Test Mode (Pre-Scan) TX Test Mode (Final Test) TX Tester Jozu Temperature 25°C Humidity 60% 8.1 LIMITS Limit: ≥500 kHz 8.2 BLOCK DIAGRAM OF TEST SETUP 8.3 TEST DATA Pass: Please Refer To Appendix: Appendix For Details Report No.: BLA-EMC-202101-A7902 Page 36 of57 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10 APPENDIX 10.1 APPENDIX : DTS BANDWIDTH Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE Ant1 2402 0.708 2401.648 2402.356 >=0.5 PASS 2442 0.708 2441.652 2442.360 >=0.5 PASS 2480 0.712 2479.652 2480.364 >=0.5 PASS Report No.: BLA-EMC-202101-A7902 Page 37 of57 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs BLE_Ant1_2402 BLE_Ant1_2442 BLE_Ant1_2480 Report No.: BLA-EMC-202101-A7902 Page 38 of57 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.2 APPENDIX : OCCUPIED CHANNEL BANDWIDTH Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE Ant1 2402 1.0454 2401.496 2402.541 --- PASS 2442 1.0477 2441.494 2442.542 --- PASS 2480 1.0505 2479.494 2480.544 --- PASS Report No.: BLA-EMC-202101-A7902 Page 39 of57 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs BLE_Ant1_2402 BLE_Ant1_2442 BLE_Ant1_2480 Report No.: BLA-EMC-202101-A7902 Page 40 of57 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.3 APPENDIX C: MAXIMUM CONDUCTED OUTPUT POWER Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE Ant1 2402 -0.32 <=30 PASS 2442 -0.98 <=30 PASS 2480 -1.7 <=30 PASS Report No.: BLA-EMC-202101-A7902 Page 41 of57 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs BLE_Ant1_2402 BLE_Ant1_2442 BLE_Ant1_2480 Report No.: BLA-EMC-202101-A7902 Page 42 of57 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.4 APPENDIX : MAXIMUM POWER SPECTRAL DENSITY Test Result T…

Text truncated - open the document above for the full version.

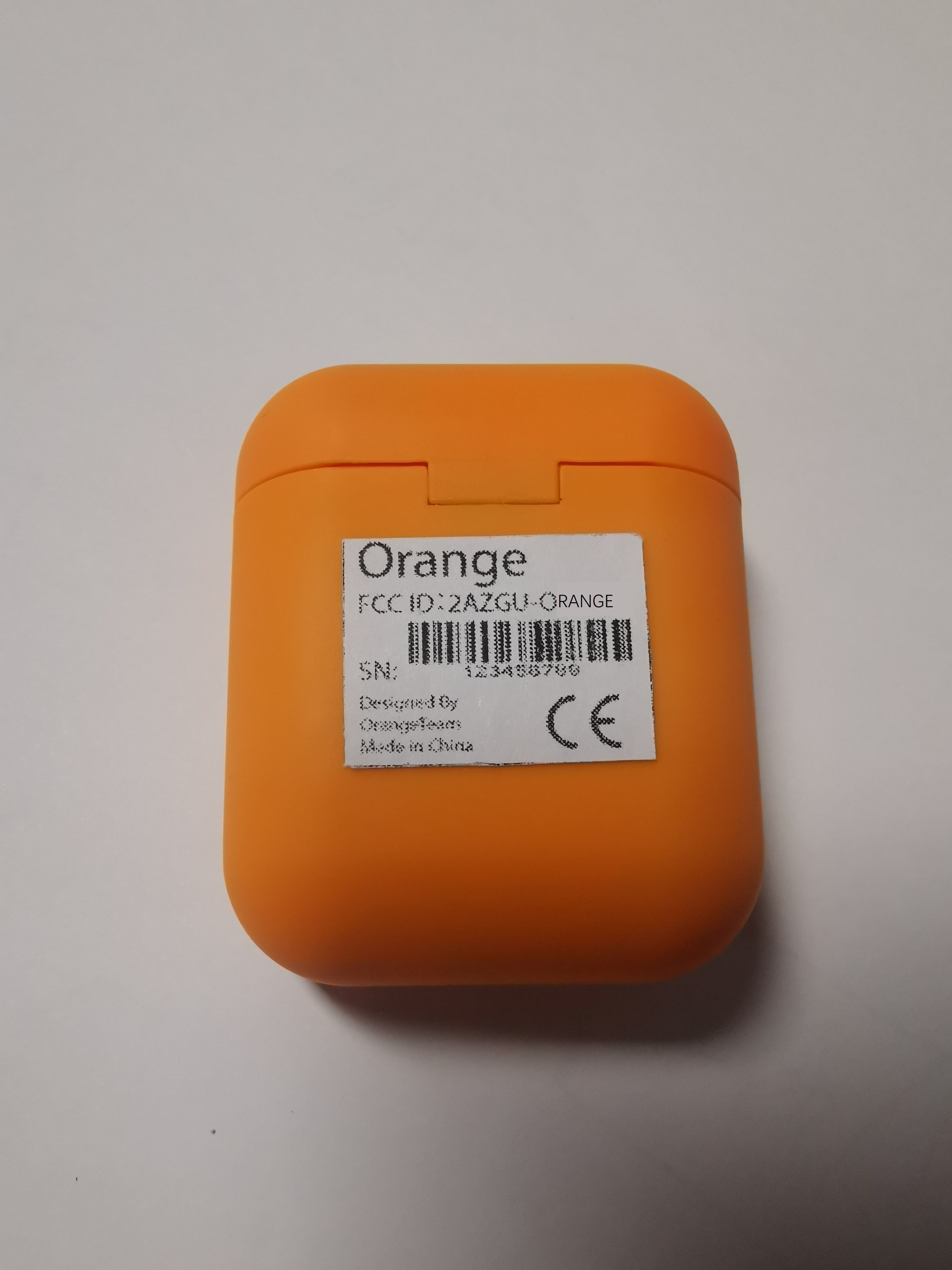

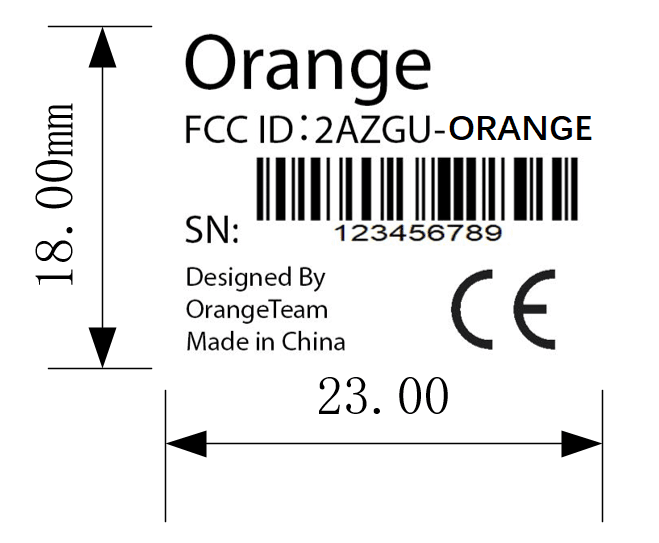

Model No.: Orange
