2AZHT-AL-XXXXVehicle Terminal

Shenzhen ALEX Electronics Co., Ltd.
Vehicle Terminal - FCC ID 2AZHT-AL-XXXX - Shenzhen ALEX Electronics Co., Ltd.
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
May 28, 2021
Application Purpose
Original Equipment
Date of Application
May 27, 2021
Equipment Note
Vehicle Terminal
Frequency Range
2510.00000000 - 2560.00000000
Company
Shenzhen ALEX Electronics Co., Ltd.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

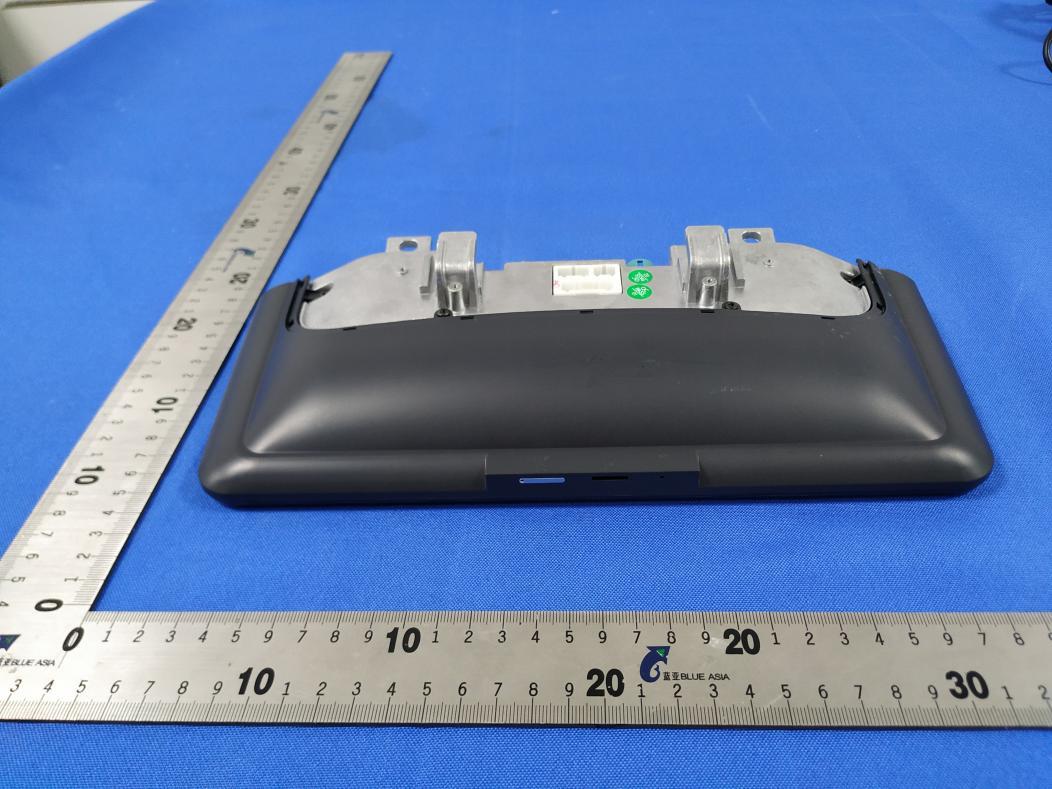

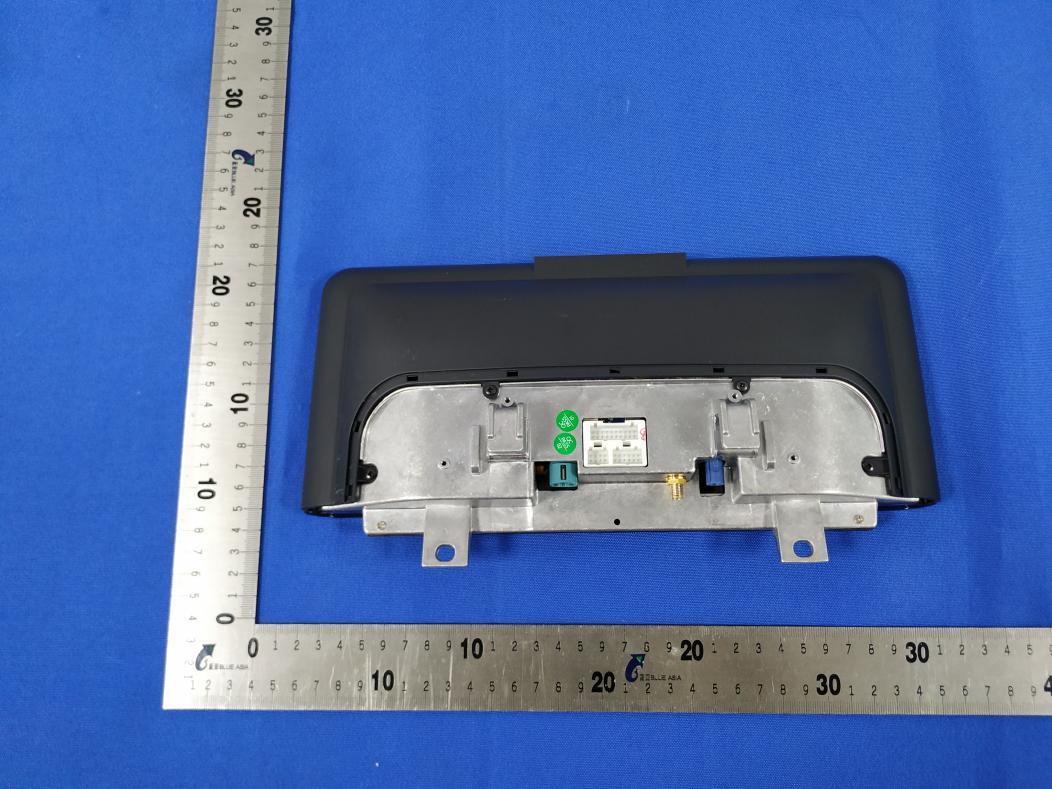

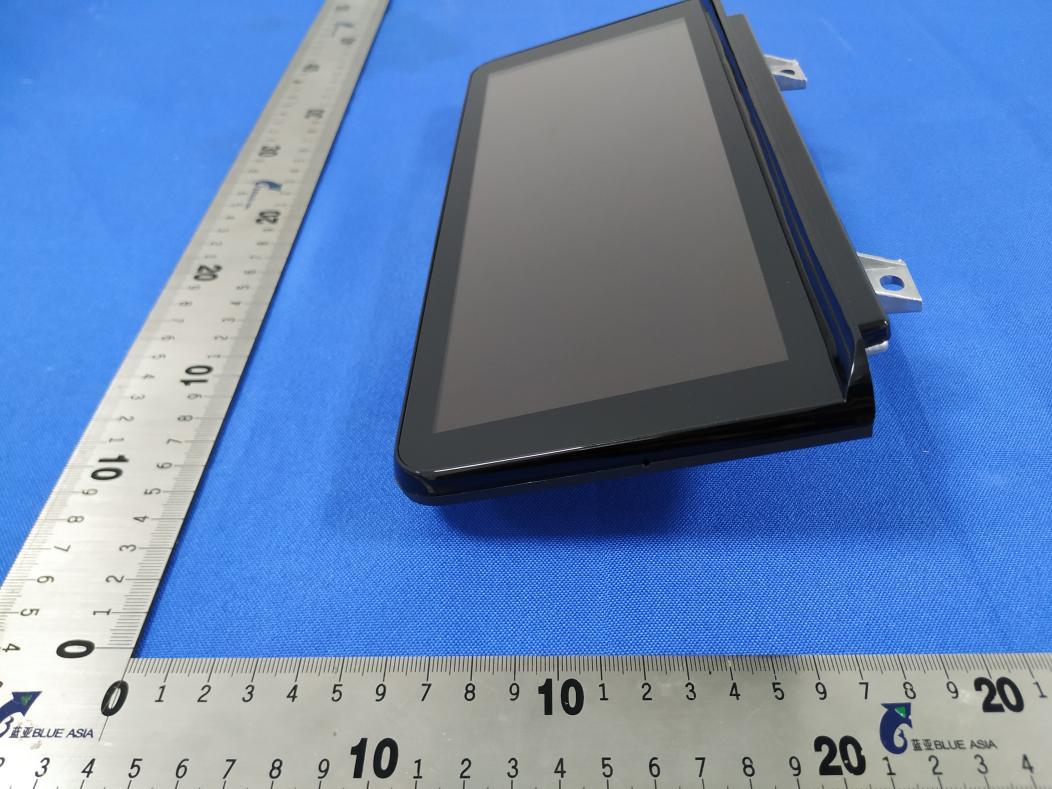

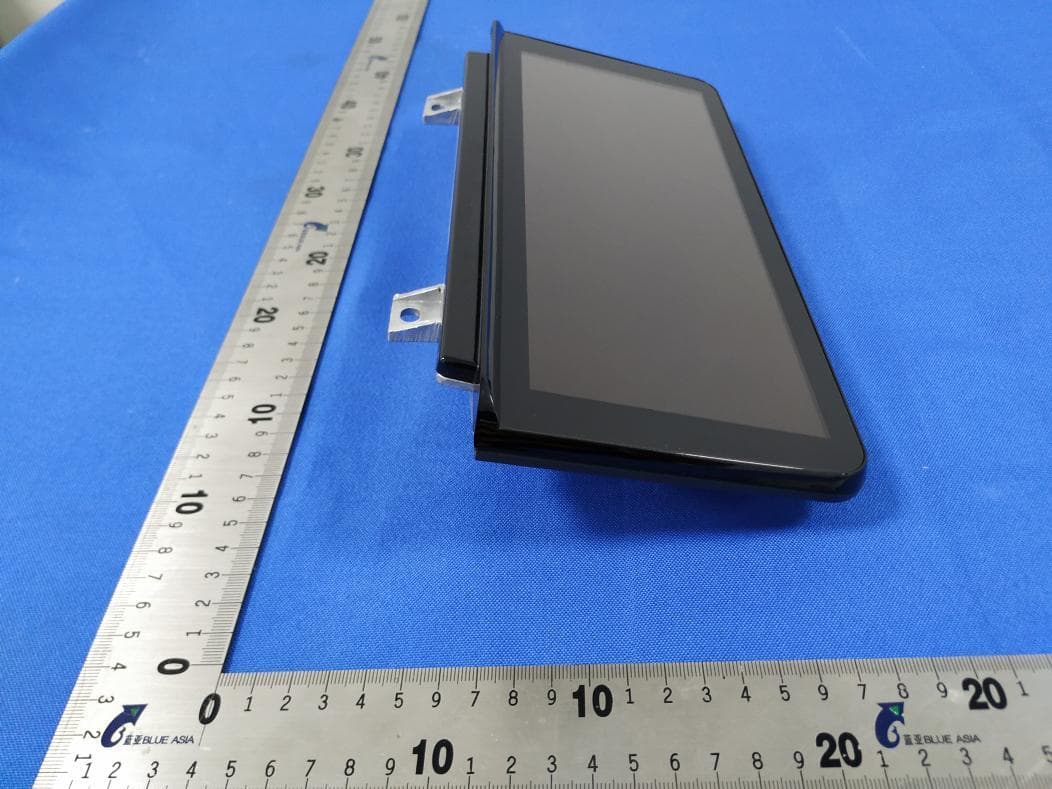

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗
↗
↗
↗
↗
↗
↗
↗
↗

Test Report

↗
↗
↗
↗
↗
↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Android Navigation User Manual For Models:AL-6X series Version:V0.1 English V12 Shenzhen ALEX Electronics Co., Ltd Navigation...........................................................................1 Main Menu How to use Navigation Music Player..................... .................................................3 Music Player Introduction Video Player.......................................................................3 Video Player interface Interface Introduction Bluetooth Phonecall & Music..........................................6 Bluetooth Connection Bluetooth Music Bluetooth Settings Phone-link...........................................................................8 IOS Phone connection Android Phone Connection DVR....................................................................................10 USB DVR connection Method AV DVR Connection Method Rear-view camera...........................................................12 Reversing camera connection Reversing camera settings Steering Wheel Control..................................................14 How to control by I-DRIVE/Steering Wheel Buttons Settings.............................................................................16 Audio settings System settings More settings System Upgrade..............................................................20 Firmware update MCU software update Feature and Accessories...............................................21 Feature Accessories FAQ.....................................................................................23 . Catalog Function Settings Feature Catalog 1.Main menu First Page Second Page Third Page 2. How to use Navigation Enter the first page. Click icon “Navigation”,access into Navigation function.. Please refer to the map manual for navigation. Navigation 1 Common function Original car info Function Catalog Settings Feature 2 1.Music Player Interface 2.Interface Introduction 3.Support Audio Format APE/FLAC/WMA/AAC/OGG/RA/WAV/MP3/MP2 1.Support Video Format H.263/H.264/MPEG1/MPEG2/MPEG4/RMVB/AVI/WMV/3GP/MP4/MOV /MPG/VOB/MKV/FLV/TS/TP/DAT etc.. 2.Video player Interface 3.Operation Menu 4.PIP(Picture in Picture) Music Player Video Player Select this icon for achieving the PIP function. 4 Local memory List Menu List operation menu 3 Function Catalog Settings Feature 5..Full Screen Play 6.Split Screen Click”Switcher button”, you can achieve double screen between Navigation and video or Music player.. 1.Connection Turn on the Phone Bluetooth and search for Bluetooth devices; Default Device name:: GOCSDK Password:0000 2. Dial Touch an arbitrary point within this Area for achieving playing in full screen. 5 6 Bluetooth Phonecall & Music switcher Split screen Function Catalog Settings Feature 3.Missed/Received call Note: Only can check the call log that called after connecting Bluetooth.. 4..Bluetooth music(*Phone should with Music Player and turn it on) 5.Phone Book Once User Sync phone book,then he can check record here. 1.Introduction It can map the phone screen to the device screen and display it. Support IOS 7.0 version or above and Android 5.5 version or above(If venison is too high,need to wait for the update) 2.Connection and Notes Click”IPHONE WIFI” or “Android WIFI”,Follow the instruction the screen.It will display the pictures,videos, and Navigation to device screen 7 Phonelink 8 Function Catalog Settings Feature *Note: 1)Android version: Must connect by USB cable for the first time. 2)Android version: Must connect Bluetooth first 3) If sharing the HOTSPOT from mobile phone, it would quick connect well. 4)Android system: Two-way control ; IOS version: one way control by phone. 5)Android version: Must use data cable not only for charging **Must install DVR device before using this function.. 1.Connecting method of USB 2.0 DVR Connect USB DVR with USB connector, install APK of DVR. 1) Connect USB Cable with android device. 2) Connect USB DVR with USB connector, 2.Connecting method of AV DVR AV DVR: Connect the RAC connector with Device, 1) Connect AV Cable with android device.; 2)Connect AV DVR with AV connector DVR 9 10 Function Catalog Settings Feature 3.3.Settings for AV DVR In Factory Settings - DVR - CVBS DVR (√) After installing, click the DVR icon in APPS,then it can show the current picture. If you need check the reversing info, Car should be with camera. Support Original camera/Aftermarket camera/and 360 Camera 1.Connecting 2.Reversion camera Options After connecting well the camera, choose the correct options in settings 11 12 Rear-view camera Camera power video input 360 input Function Catalog Settings Feature 3.Reversion display You can settings the Brightness/contrast and the path line/Radar Only can show the display of Radar if the original car with Radar. Steering Wheel Control It can control some function in Android system 1.Original car info Once go to original menu, no Touch function, only control by idrive; 2.Dashboard info (Android dashbaord Display only,it won’t change driving patterns ) Settings Parking line PDC & Radar Navi Answer /Hang up Previous /Next Track Mode Volume +/- 13 14 Car info and Dashboard Clicl it go to Car info Touch here to OEM menu Function Catalog Settings Feature Choose your options carefully before setting them. Misoperation may not be the effect you want 1.Settings menu 2.System settings 1) Rear view mirror camera The camera ,right and left is the opposite 2)Video while driving ban *For your safety, watching Video is forbidden when driving. 3) Rear view camera type Choose the correct one according the one you use. 4) Brightness Please keep the Default brightness. If set it too bright,the screen will be Settings Settings menu Current settings menu 切换不同的模式 剩余油量 温度显示 ECO PRO COMFORT SPORT 15 16 Function Catalog Feature Settings heat. 3.Navigation settings Choose the Map App you need here, then you can go to Navigation function n main menu by clicking icon”Navigation”. 4.Audio settings Audio settings for: Media audi…

Text truncated - open the document above for the full version.

External Photos

Model No.: 5213

ID Label/Location Info

爱乐士 Label Product Name:Vehicle Terminal Model:AL-5213 FCC ID:2AZHT-AL-XXXX 标签外形尺寸 L25mmxH12mm

Internal Photos

Model No.: 5213

RF Exposure Info

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com SAR TEST REPORT Product: Vehicle Terminal Model No.: 5213 Additional Model: 6201620262036207620862096210 621162136215621762186219622362256227622962316233 623662396243624562516253625662576258626162636267 626862716273627862836288629365026503650965136538 681068336858686852085209521152155217521852195224 522552275231523652395243524552515256525752585261 526352675268527152735278528852935509551355235538 58075810583358585868 Trade Mark: Report No.: TCT210507E026 Issued Date: May 14, 2021 Issued for: Shenzhen ALEX Electronics Co., Ltd. A & B Block, building 1, Jinshun Industrial Park, No.29, Anju Road, Anliang Community, Henggang Subdistrict, Longgang District, Shenzhen(No.6, 5F, A Block)China Issued By: Shenzhen Tongce Testing Lab TCT Testing Industrial Park, Fuqiao 5th Industrial Zone, Fuhai Street, Bao'an District, Shenzhen, Guangdong, 518103, People's Republic of China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT210507E026 Page 2 of 177 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ........................................................................................................................................................ 3 2. Facilities and Accreditations ..................................................................................................................................... 4 2.1. Facilities ............................................................................................................................................................. 4 2.2. Location ............................................................................................................................................................. 4 2.3. Environment Condition: ................................................................................................................................... 4 3. Test Result Summary ................................................................................................................................................. 5 4. EUT Description .......................................................................................................................................................... 6 5. RF Exposure Limit ...................................................................................................................................................... 7 6. SAR Measurement System Configuration ................................................................................................................ 8 6.1. SAR Measurement Set-up ................................................................................................................................ 8 6.2. E-field Probe ...................................................................................................................................................... 9 6.3. Phantom ............................................................................................................................................................. 9 6.4. Device Holder .................................................................................................................................................. 10 6.5. Data Storage and Evaluation .......................................................................................................................... 11 6.6. Position of the wireless device in relation to the phantom ......................................................................... 12 6.7. Tissue Dielectric Parameters ......................................................................................................................... 15 6.8. Tissue-equivalent Liquid Properties ............................................................................................................. 16 6.9. System Check .................................................................................................................................................. 17 7. Measurement Procedure .......................................................................................................................................... 18 8. Conducted Output Power ........................................................................................................................................ 21 9. Exposure Position Consideration ........................................................................................................................... 34 9.1. EUT Antenna Location .................................................................................................................................... 34 9.2. Test Position Consideration ........................................................................................................................... 34 10. SAR Test Results Summary .................................................................................................................................... 35 10.1. Body-Worn 1g SAR Data ................................................................................................................................ 35 10.2. Hotspot 1g SAR Data ...................................................................................................................................... 37 10.3. Simultaneous Transmission Conclusion ...................................................................................................... 39 10.4. SAR Simultaneous Transmission Analysis ..............................…

Text truncated - open the document above for the full version.

RF Exposure Info

Report No.: TCT210507E026 Page 23 of 177 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Channel Frequency (GHz) Max. Tune-up Power (dBm) Max. Power (mW) Test distance (mm) Result Exclusion thresholds for 1-g SAR Exclusion thresholds for 10-g SAR 78 2.480 7.00 5.01 5 1.58 3.0 7.5 Note 1. Per KDB 447498 D01v06, the 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm 1-g SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison 2. Base on the result of note1, RF exposure evaluation of BT is not required. 3. Per KDB 248227 D01 v02r02, choose the highest output power channel to test SAR and determine further SAR exclusion. 4. The output power of all data rate were prescan, just the worst case (the lowest data rate) of all mode were shown in report. Bluetooth Mode GFSK Pi/4DQPSK Channel 0 39 78 0 39 78 Frequency 2402 2441 2480 2402 2441 2480 Average Power (dBm) 5.97 5.96 6.50 5.82 5.92 6.33 Mode 8DPSK BLE Channel 0 39 78 0 20 39 Frequency 2402 2441 2480 2402 2440 2480 Average Power (dBm) 6.18 6.17 6.69 / / / Report No.: TCT210507E026 Page 24 of 177 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com LTE Band 2 Conducted Power of LTE Band 2 Bandwidth Modulation RB size RB offset Channel Channel Channel 18607 18900 19193 1.4MHz QPSK 1 0.00 22.84 23.94 24.45 3.00 22.88 24.30 24.68 5.00 22.79 24.00 24.27 3 0.00 23.08 24.19 24.77 2.00 23.11 24.43 24.67 3.00 23.04 24.33 24.37 6 0.00 22.05 23.26 24.06 16QAM 1 0.00 21.89 22.59 24.10 3.00 22.13 22.60 23.85 5.00 21.96 22.53 23.58 3 0.00 22.03 22.86 23.92 2.00 22.07 22.93 23.87 3.00 22.10 22.94 23.80 6 0.00 21.00 22.06 22.96 Bandwidth Modulation RB size RB offset Channel Channel Channel 18615 18900 19185 3MHz QPSK 1 0.00 23.19 24.01 24.80 7.00 23.21 24.37 24.91 14.00 23.29 24.39 24.06 8 0.00 22.11 23.07 23.85 4.00 22.05 23.12 23.72 7.00 22.03 23.14 23.72 15 0.00 22.07 23.16 23.77 16QAM 1 0.00 22.52 22.75 23.64 7.00 22.67 23.21 23.60 14.00 22.29 22.88 23.19 8 0.00 21.32 21.93 22.93 4.00 21.36 21.97 22.93 7.00 21.34 21.99 22.48 15 0.00 21.29 22.07 22.78 Report No.: TCT210507E026 Page 25 of 177 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Conducted Power of LTE Band 2 Bandwidth Modulation RB size RB offset Channel Channel Channel 18625 18900 19175 5MHz QPSK 1 0.00 22.95 23.78 24.60 12.00 23.26 24.33 24.71 24.00 23.16 24.11 23.74 12 0.00 22.02 23.13 23.77 6.00 22.09 23.17 23.78 13.00 22.13 23.25 23.65 25 0.00 22.02 23.22 23.69 16QAM 1 0.00 21.91 22.77 23.71 12.00 22.38 23.35 23.58 24.00 21.80 23.04 23.10 12 0.00 20.83 21.76 22.84 6.00 20.83 21.86 22.81 13.00 20.86 21.95 22.41 25 0.00 21.25 22.05 22.83 Bandwidth Modulation RB size RB offset Channel Channel Channel 18650 18900 19150 10MHz QPSK 1 0.00 23.10 24.14 24.09 24.00 23.55 24.43 25.32 49.00 22.99 24.42 23.63 25 0.00 22.13 23.06 23.83 12.00 22.17 23.22 23.79 25.00 22.21 23.30 23.76 50 0.00 22.23 23.15 23.79 16QAM 1 0.00 22.46 22.75 23.11 25.00 22.80 22.91 24.40 49.00 22.53 22.97 22.74 25 0.00 21.15 22.18 22.83 13.00 21.20 22.36 22.78 25.00 21.18 22.52 22.67 50 0.00 21.25 22.09 22.64 Report No.: TCT210507E026 Page 26 of 177 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Conducted Power of LTE Band 2 Bandwidth Modulation RB size RB offset Channel Channel Channel 18675 18900 19125 15MHz QPSK 1 0.00 23.27 23.50 23.77 37.00 23.44 24.53 25.04 74.00 22.63 24.46 23.32 36 0.00 22.22 23.03 23.82 18.00 22.29 23.17 23.81 38.00 22.31 23.35 23.84 75 0.00 22.20 23.17 23.78 16QAM 1 0.00 22.75 22.58 22.99 37.00 23.27 23.25 24.28 74.00 22.17 22.97 22.67 36 0.00 21.17 22.02 22.84 18.00 21.25 22.27 22.82 38.00 21.27 22.43 22.85 75 0.00 21.14 22.00 22.68 Bandwidth Modulation RB size RB offset Channel Channel Channel 18700 18900 19100 20MHz QPSK 1 0.00 22.88 23.03 24.31 49.00 23.43 24.75 24.60 99.00 23.00 24.72 23.54 50 0.00 22.24 23.04 23.76 25.00 22.28 23.23 23.81 50.00 22.50 23.46 23.82 100 0.00 22.35 23.21 23.73 16QAM 1 0.00 22.18 22.38 23.27 49.00 22.27 23.19 23.49 99.00 22.03 22.93 22.98 50 0.00 21.40 21.82 22.84 25.00 21.45 22.23 22.93 50.00 21.61 22.48 22.83 100 0.00 21.38 22.16 22.62 Report No.: TCT210507E026 Page 27 of 177 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com LTE Band 4 Conducted Power of LTE Band 4 Bandwidth Modulation RB size RB offset Channel Channel Channel 19957 20175 20393 1.4MHz QPSK 1 0.00 22.54 23.87 24.12 3.00 22.84 24.03 24.57 5.00 21.36 23.47 24.36 3 0.00 23.04 24.15 24.15 2.00 23.06 24.38 24.26 3.00 23.01 24.12 24.74 6 0.00 22.11 23.26 23.45 16QAM 1 0.00 22.01 22.45 24.12 3.00 22.12 22.54 23.25 5.00 21.95 22.54 23.15 3 0.00 22.04 22.74 23.77 2.00 21.88 22.26 23.15 3.00 22.10 22.15 23.15 6 0.00 21.01 22.02 22.06 Bandwidth Modulation RB size RB offset Channel Channel Channel 19965 20175 20385 3MHz QPSK 1 0.00 23.19 23.05 21.17 7.00 23.14 24.18 20.86 14.00 23.02 24.03 20.55 8 0.00 22.14 23.15 20.24 4.00 22.02 22.58 19.93 7.00 22.18 22.41 19.62 15 0.00 22.19 22.03 19.31 16QAM 1 0.00 22.45 22.15 19.00 7.00 22.34 24.15 19.84 14.00 22.17 22.14 19.61 8 0.00 22.02 21.59 19.39 4.00 21.23 21.58 19.17 7.00 22.02 21.99 22.48 15 0.00 21.12 22.07 22.78 Report No.: TCT210507E026 Page 28 of 177 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Conducted Power of LTE Band 4 Bandwidth Modulation RB size RB offset Channel Channel Channel 19975 20175 20375 5MHz QPSK 1 0.00 22.95 23.78 24.6 12.00 22.48 24.33 24.71 24.00 22.05 24.11 23.74 12 0.00 22.14 23.13 23.77 6.00 23.48 23.17 23.78 13.00 22.13 23.25 23.65 25 0.00 22.02 23.22 23.69 16QAM 1 0.00 21.91 22.77 23.71 12.00 22.38 23.35 23.58 24.00 21.89 2…

Text truncated - open the document above for the full version.

RF Exposure Info

Report No.: TCT210507E026 Page 45 of 177 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com UNCERTAINTY FOR PERFORMANCE CHECK Uncertainty Component Description Uncertainty Value(%) Probably Distribution Div. (Ci) 1g (Ci) 10g Std. Unc. 1g(%) Std. Unc. 10g(%) v Measurement system Probe calibration 7.2.1 5.8 N 1 1 1 5.8 5.8 Axial isotropy 7.2.1.1 3.5 R 3 (1-C p ) 1/2 (1-C p) 1/2 1.43 1.43 Hemispherical isotropy 7.2.1.1 5.9 R 3 2.41 2.41 Boundary Effects 7.2.1.4 1.00 R 3 1 1 0.58 0.58 Linearity 7.2.1.2 4.70 R 3 1 1 2.71 2.71 System detection limits 7.2.1.2 1 R 3 1 1 0.58 0.58 Modulation Response 7.2.1.3 3 N 1 1 1 0.00 0.00 Readout Electronics 7.2.1.5 0.5 N 1 1 1 0.50 0.50 Response Time 7.2.1.6 0 R 3 1 1 0.00 0.00 Integration Time 7.2.1.7 1.4 R 3 1 1 0.81 0.81 RF Ambient Conditions-Noise 7.2.3.7 3 R 3 1 1 1.73 1.73 RF Ambient Conditions-Reflection 7.2.3.7 3 R 3 1 1 1.73 1.73 Probe positioned mechanical Tolerance 7.2.2.1 1.4 R 3 1 1 0.81 0.81 Probe positioning with respect to phantom shell 7.2.2.3 1.4 R 3 1 1 0.81 0.81 Extrapolation interpolation and integration algorithms for Max.SAR evaluation 7.2.4 2.3 R 1 1 1 1.33 1.33 Dipole Deviation of experimental source from numerical source 4 N 1 1 1 4.00 4.00 Input power and SAR drift measurement 7.2.3.6 5 R 3 1 1 2.89 2.89 Dipole axis to liquid distance 2 R 3 1 1 Phantom and tissue parameters Phantom uncertainty (shape and thickness tolerances) 7.2.2.2 4 R 3 1 1 2.31 2.31 uncertainty in SAR correction for deviation (in permittivity and conductivity) 7.2.6 2 N 1 1 0.84 2.00 1.68 Liquid conductivity (temperature uncertainty) 7.2.3.5 2.5 N 1 0.78 0.71 1.95 1.78 Liquid conductivity -measurement uncertainty 7.2.3.3 4 N 1 0.23 0.26 0.92 1.04 Liquid permittivity (temperature uncertainty) 7.2.3.5 2.5 N 1 0.78 0.71 1.95 1.78 Liquid permittivity measurement uncertainty 7.2.3.4 5 N 1 0.23 0.26 1.15 1.30 Combined standard uncertainty RSS 10.15 10.05 Expanded uncertainty (95%CONFIDENCEINTE RVAL k 20.29 20.10 Report No.: TCT210507E026 Page 46 of 177 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 10.6. Test Equipment List Test Equipment Manufacturer Model Serial Number Calibration Calibration Date (D.M.Y) Calibration Due (D.M.Y) PC Lenovo H3050 N/A N/A N/A Signal Generator Angilent N5182A MY47070282 Sep. 28, 2020 Sep. 27, 2021 Multimeter Keithley Multimeter 2000 4078275 Sep. 28, 2020 Sep. 27, 2021 Network Analyzer Agilent 8753E US38432457 Sep. 28, 2020 Sep. 27, 2021 Wireless Communication Test Set R & S CMU200 111382 Sep. 28, 2020 Sep. 27, 2021 Wideband Radio Communication Tester R&S CMW500 114220 Sep. 28, 2020 Sep. 27, 2021 Power Meter Agilent E4418B GB43312526 Sep. 28, 2020 Sep. 27, 2021 Power Meter Agilent E4416A MY45101555 Sep. 28, 2020 Sep. 27, 2021 Power Meter Agilent N1912A MY50001018 Sep. 28, 2020 Sep. 27, 2021 Power Sensor Agilent E9301A MY41497725 Sep. 28, 2020 Sep. 27, 2021 Power Sensor Agilent E9327A MY44421198 Sep. 28, 2020 Sep. 27, 2021 Power Sensor Agilent E9323A MY53070005 Sep. 28, 2020 Sep. 27, 2021 Power Amplifier PE PE15A4019 112342 N/A N/A Directional Coupler Agilent 722D MY52180104 N/A N/A Attenuator Chensheng FF779 134251 N/A N/A E-Field PROBE MVG SSE2 SN 36/20 EPGO346 Oct. 23, 2020 Oct. 22, 2021 DIPOLE 835 MVG SID835 SN 16/15 DIP 0G835-369 Jun. 05, 2018 Jun. 04, 2021 DIPOLE 1800 MVG SID 1800 SN 16/15 DIP 1G800-371 Jun. 05, 2018 Jun. 04, 2021 DIPOLE 1900 MVG SID1900 SN 16/15 DIP 1G900-372 Jun. 05, 2018 Jun. 04, 2021 DIPOLE 2450 MVG SID 2450 SN 16/15 DIP 2G450-374 Jun. 05, 2018 Jun. 04, 2021 DIPOLE 2600 MVG SID 2600 SN 16/15 DIP 2G600-375 Jun. 05, 2018 Jun. 04, 2021 Limesar Dielectric Probe MVG SCLMP SN 19/15 OCPG71 Jun. 05, 2018 Jun. 04, 2021 Communication Antenna MVG ANTA59 SN 39/14 ANTA59 N/A N/A Mobile Phone Position Device MVG MSH101 SN 19/15 MSH101 N/A N/A Dummy Probe MVG DP66 SN 13/15 DP66 N/A N/A SAM PHANTOM MVG SAM120 SN 19/15 SAM120 N/A N/A PHANTOM TABLE MVG TABP101 SN 19/15 TABP101 N/A N/A Robot TABLE MVG TABP61 SN 19/15 TABP61 N/A N/A 6 AXIS ROBOT KUKA KR6-R900 501822 N/A N/A Note:1.N/A means this equipment no need to calibrate 2.Each Time means this device need to calibrate every use time 3. The dipole was not damaged properly repaired. 4. The measured SAR deviates from the calibrated SAR value by less than 10% 5. The most recent return-loss result meets the required 20 dB minimum return-loss requirement 6. The most recent measurement of the real or imaginary parts of the impedance deviates by less than 5 from the previous measurement. Report No.: TCT210507E026 Page 47 of 177 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11. System Check Results Date of measurement: 05/08/2021 Test mode: 835 (Body) Product Description: Validation Dipole Model: SID835 E-Field Probe: SSE2 (SN 36/20 EPGO346) Phantom Validation plane Input Power 100mW Crest Factor 1.0 Probe Conversion factor 5.65 Frequency (MHz) 835.000000 Relative permittivity (real part) 55.242077 Relative permittivity (imaginary part) 21.378187 Conductivity (S/m) 0.938883 Variation (%) -0.150000 SAR 10g (W/Kg) 0.633123 SAR 1g (W/Kg) 0.949446 SURFACE SAR VOLUME SAR Report No.: TCT210507E026 Page 48 of 177 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.9625 0.6022 0.3594 0.2202 0.0725 Hot spot position Report No.: TCT210507E026 Page 49 of 177 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Date of measurement: 05/10/2021 Test mode: 1800MHz (Body) Product Description: Validation Dipole Model: SID1800 E-Field Probe: SSE2 (SN 36/20 EPGO346) Phantom Validation plane Input Power 100mW Crest Factor 1.0 Probe Conversion factor 4.52 Frequency (MHz) 1800.000000 Relative permittivity (real part) 53.292699 Relative permittivity (imaginary part) 15.200000 Conductivity (S/m) 1.530000 Variation (%) 3.050000 SAR 10g (W/Kg) 2.053687 SAR 1g (W/Kg) 3.782547 SURF…

Text truncated - open the document above for the full version.

RF Exposure Info

Report No.: TCT210507E026 Page 67 of 177 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com MEASUREMENT 2 Lower Band SAR (Channel 4132): Date: 05/08/2021 Frequency (MHz) 826.400000 Relative permittivity (real part) 55.262927 Relative permittivity (imaginary part) 21.378266 Conductivity (S/m) 0.931230 Variation (%) 2.280000 Crest Factor: 1.0 Probe Conversion factor 1.86 E-Field Probe: SSE2 (SN 36/20 EPGO346) Area Scan dx=8mm dy=8mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm,Complete/ndx=8mm dy=8mm, h= 5.00 mm Phantom Validation plane Device Position Body back(0mm) Band BAND5_WCDMA850(hotspot) SURFACE SAR VOLUME SAR Maximum location: X=1.00, Y=-39.00 SAR Peak: 0.31 W/kg SAR 10g (W/Kg) 0.139432 SAR 1g (W/Kg) 0.232477 Report No.: TCT210507E026 Page 68 of 177 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.3059 0.2251 0.1550 0.1109 0.0837 Hot spot position Report No.: TCT210507E026 Page 69 of 177 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com LTE Band 2 MEASUREMENT 1 Middle Band SAR (Channel 18900): Date: 05/11/2021 Frequency (MHz) 1880.000000 Relative permittivity (real part) 53.291337 Relative permittivity (imaginary part) 14.232400 Conductivity (S/m) 1.531736 Variation (%) -2.770000 Crest Factor 1.0 Probe Conversion factor 2.32 E-Field Probe: SSE2 (SN 36/20 EPGO346) Area Scan dx=8mm dy=8mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm,Complete/ndx=8mm dy=8mm, h= 5.00 mm Phantom Validation plane Device Position Body back(0mm) Band LTE band 2 (1 RB#49) SURFACE SAR VOLUME SAR Maximum location: X=0.00, Y=48.00 SAR Peak: 0.51 W/kg SAR 10g (W/Kg) 0.251468 SAR 1g (W/Kg) 0.367801 Report No.: TCT210507E026 Page 70 of 177 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.5127 0.3839 0.2683 0.1915 0.1411 Hot spot position Report No.: TCT210507E026 Page 71 of 177 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com MEASUREMENT 2 Middle Band SAR (Channel 18900): Date: 05/11/2021 Frequency (MHz) 1880.000000 Relative permittivity (real part) 53.291337 Relative permittivity (imaginary part) 14.232400 Conductivity (S/m) 1.711736 Variation (%) 1.030000 Crest Factor 1.0 Probe Conversion factor 2.32 E-Field Probe: SSE2 (SN 36/20 EPGO346) Area Scan dx=8mm dy=8mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm,Complete/ndx=8mm dy=8mm, h= 5.00 mm Phantom Validation plane Device Position Body back(hotspot 0mm) Band LTE band 2 (1 RB#49) SURFACE SAR VOLUME SAR Maximum location: X=0.00, Y=-46.00 SAR Peak: 0.60 W/kg SAR 10g (W/Kg) 0.265046 SAR 1g (W/Kg) 0.413834 Report No.: TCT210507E026 Page 72 of 177 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.5956 0.4373 0.2990 0.2109 0.1557 Hot spot position Report No.: TCT210507E026 Page 73 of 177 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com LTE Band 4 MEASUREMENT 1 Hight Band SAR (Channel 20300): Date: 05/10/2021 Frequency (MHz) 1745.000000 Relative permittivity (real part) 53.321249 Relative permittivity (imaginary part) 12.468850 Conductivity (S/m) 1.502592 Variation (%) 1.270000 Crest Factor 1.0 Probe Conversion factor 2.16 E-Field Probe: SSE2 (SN 36/20 EPGO346) Area Scan dx=8mm dy=8mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm,Complete/ndx=8mm dy=8mm, h= 5.00 mm Phantom Validation plane Device Position Body back(0mm) Band LTE band 4(1 RB#0) SURFACE SAR VOLUME SAR Maximum location: X=-16.00, Y=-49.00 SAR Peak: 0.45 W/kg SAR 10g (W/Kg) 0.205840 SAR 1g (W/Kg) 0.312762 Report No.: TCT210507E026 Page 74 of 177 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.4485 0.3274 0.2221 0.1554 0.1138 Hot spot position Report No.: TCT210507E026 Page 75 of 177 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com MEASUREMENT 2 Hight Band SAR (Channel 20300): Date: 05/10/2021 Frequency (MHz) 1745.000000 Relative permittivity (real part) 53.321249 Relative permittivity (imaginary part) 12.468850 Conductivity (S/m) 1.502592 Variation (%) -1.150000 Crest Factor 1.0 Probe Conversion factor 2.16 E-Field Probe: SSE2 (SN 36/20 EPGO346) Area Scan dx=8mm dy=8mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm,Complete/ndx=8mm dy=8mm, h= 5.00 mm Phantom Validation plane Device Position Body back(hotspot 10mm) Band LTE band 4(1 RB#0) SURFACE SAR VOLUME SAR Maximum location: X=-8.00, Y=-49.00 SAR Peak: 0.57 W/kg SAR 10g (W/Kg) 0.256461 SAR 1g (W/Kg) 0.389661 Report No.: TCT210507E026 Page 76 of 177 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.5602 0.4065 0.2740 0.1910 0.1403 Hot spot position Report No.: TCT210507E026 Page 77 of 177 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com LTE Band 5 MEASUREMENT 1 High Band SAR (Channel 20600): Date: 05/08/2021 Frequency (MHz) 844.000000 Relative permittivity (real part) 55.260832 Relative permittivity (imaginary part) 12.468860 Conductivity (S/m) 0.934272 Variation (%) -1.160000 Crest Factor 1.0 Probe Conversion factor 1.86 E-Field Probe: SSE2 (SN 36/20 EPGO346) Area Scan dx=8mm dy=8mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm,Complete/ndx=8mm dy=8mm, h= 5.00 mm Phantom Validation plane Device Position Body back(0mm) Band LTE band 5(1 RB#24) SURFACE SAR VOLUME SAR Maximum location: X=-2.00, Y=-9.00 SAR Peak: 0.28 W/kg SAR 10g (W/Kg) 0.157407 SAR 1g (W/Kg) 0.228518 Report No.: TCT210507E026 Page 78 of 177 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.t…

Text truncated - open the document above for the full version.

Contact Information

Applicant

LUO WUJUN
[email protected]86-755-28612816Fax: 86-755-28612836

Test Firm

BlueAsia of Technical Services (Shenzhen)Blue Zheng
[email protected]+86 755-23059481-815

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
11272.51 GHz - 2.56 GHz168.30 mW17M9W7D0.01 ppm
Confidentiality
Long Term
Grant Notes
Power output listed is ERP for Part 22, EIRP for Part 24 and Part 27. The highest reported SAR for stand-alone and simultaneous transmission exposure conditions are 0.59 W/kg and 0.85 W/kg, respectively. This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations.
