2AZHY-RC12515NWireless remote control

TOVEENEN Long Range Remote Control Outlet 500ft  15A  3000W USER GUIDE Contact Customer Service: [email protected] Manufacturer: Shenzhen SYG Technologies Co., Ltd. Address: Room 402, Dunbeixincun 2-46, Longhua, Shenzhen, China Product Warranty This product has a one-year warranty. If you have any questions about product or use, please contact us. Features & Specification  Ultra-long wireless range over 500ft. Range can reach 1000ft in open space  Remote can work through concrete walls and floors  Every remote outlet has Independent coding without conflict  NON-WATERPROOF Wireless Range 500ft ~ 1000ft Rated Current 15 Amp Input Voltage AC 85V~265V 50/60Hz Load Capacity Resistive load: 3000W (e.g. incandescent light, heater) Inductive load: 1000W (e.g. pump, Motor, LED lamp) Battery Type 12V 23A Operating Instructions 1. Plug the remote outlet into a socket or wall outlet 2. Control on/off: Remote controller or pressing the button of outlet 3. Indicator light of remote outlet will show on/off status. ON: Red, OFF: Green Pairing/Learning Instructions One outlet can pair 3 remotes at most. One remote can pair multiple outlets. 1. Plug the remote outlet into an electrical socket. 2. Press and hold the button of remote outlet for 5 seconds, the Indicator light of outlet will flash, then release the button. 3. Press and hold ‘ON’ button of remote for about 2s until you hear a click sound from the outlet, then release ‘ON’ button. 4. Press and hold ‘OFF’ button of remote for about 2s until you hear a click sound from the outlet, then release ‘OFF’ button. 5. Pairing complete. Now newly added remote can control the remote outlet. Remove all outlet-pairing (Reset outlet)  Plug this outlet into a power strip → Turn off the power to outlet → Press and hold the button of outlet (don’t release) → Turn on the power to outlet. The Indicator light of outlet will flash green. Wait for 5 seconds until the Indicator light shows red. → Release the button. Reset complete.  After the reset, you'll need to re-pair the remote. FCCStatement Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwo conditions:(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptany interferencereceived,includinginterferencethatmaycauseundesiredoperation. Caution:Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor compliancecouldvoidtheuser’sauthoritytooperatetheequipment. NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice, pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcan radiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,may causeharmfulinterferencetoradiocommunications.However,thereisnoguaranteethat interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmful interferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing measures: ‐Reorientorrelocatethereceivingantenna. ‐Increasetheseparationbetweentheequipmentandreceiver. ‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris connected. ‐Consultthedealeroranexperiencedradio/TVtechnicianforhelpimportantannouncement RadiationExposureStatement ThedevicehasbeenevaluatedtomeetgeneralRFexposurerequirement.Thedevicecanbeusedin portableexposureconditionwithoutrestriction.

ShenZhen Shi ShenYuanGuang KeJi YouXian GongSi Add: 02, No.46, Zone 2, Dunbei New Vil, Hualian Community, Hua Lian She Qu, Long Hua Jie Dao, Long Hua Qu,Shenzhen, CN Date: 2021-4-20 FCC ID: 2AZHY-RC12515N Dear Sir/Madam, We, ShenZhen Shi ShenYuanGuang KeJi YouXian GongSi Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Wireless remote control Model no.: RC12515N, RS120A, RS120A-2 Remote, RS120A-3T, RC12515N-1T1R, RC12515N- 2T1R, LR-500, LR-400, RC-100, RC120N, RC120S, RC120U, RS120N, DS120A,DS120S, DS120N, RS120S, RS120U, DS120A-2T, DS120U, RC120E, RS120E, DS120E, RC120X, RS120X, DS120X, RC120N-2T, RS120N-2T, DS120N-2T, RC120S-2T, RS120S-2T, DS120S-2T, RC120U--2T, RS120U- 2T, DS120U-2T, RC120E-2T, RS120E-2T, DS120E-2T, RC120X-2T, RS120X-2T, DS120X-2T Sincerely, Name/Title： Li Guo Xu/Manager Company: ShenZhen Shi ShenYuanGuang KeJi YouXian GongSi Address: 02, No.46, Zone 2, Dunbei New Vil, Hualian Community, Hua Lian She Qu, Long Hua Jie Dao, Long Hua Qu,Shenzhen, CN Phone: 0086-18780249925 Fax: / E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-4-20> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AZHY-RC12515N RC12515N For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Li Guo Xu/Manager Company: ShenZhen Shi ShenYuanGuang KeJi YouXian GongSi Address: 02, No.46, Zone 2, Dunbei New Vil, Hualian Community, Hua Lian She Qu, Long Hua Jie Dao, Long Hua Qu,Shenzhen, CN Phone: 0086-18780249925 Fax: / E-Mail: [email protected]

ShenZhen Shi ShenYuanGuang KeJi YouXian GongSi 02, No.46, Zone 2, Dunbei New Vil, Hualian Community, Hua Lian She Qu, Long Hua Jie Dao, Long Hua Qu,Shenzhen, CN Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-4-20 To whom it may concern: We, ShenZhen Shi ShenYuanGuang KeJi YouXian GongSi the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AZHY-RC12515N including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Li Guo Xu/Manager Company: ShenZhen Shi ShenYuanGuang KeJi YouXian GongSi Address: 02, No.46, Zone 2, Dunbei New Vil, Hualian Community, Hua Lian She Qu, Long Hua Jie Dao, Long Hua Qu,Shenzhen, CN Phone: 0086-18780249925 Fax: / E-Mail: [email protected]

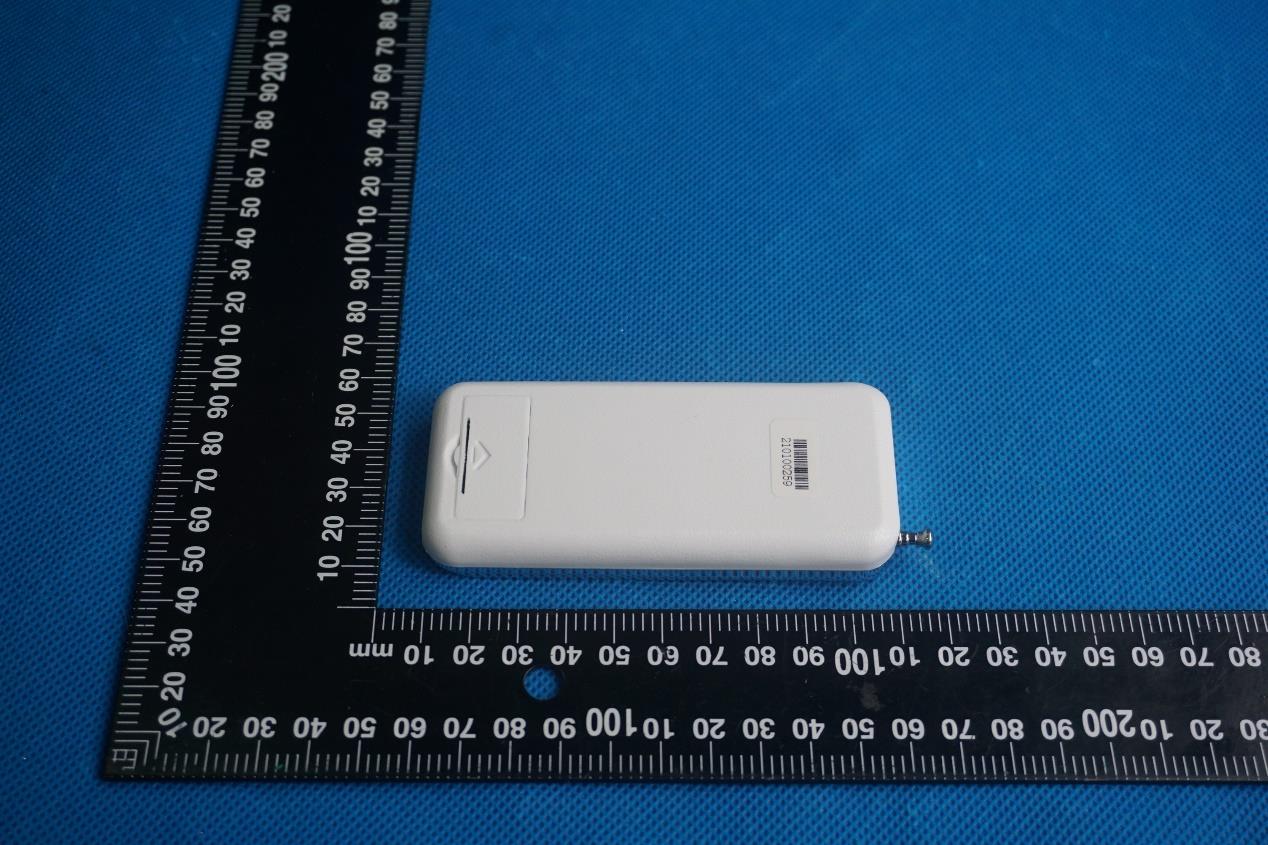

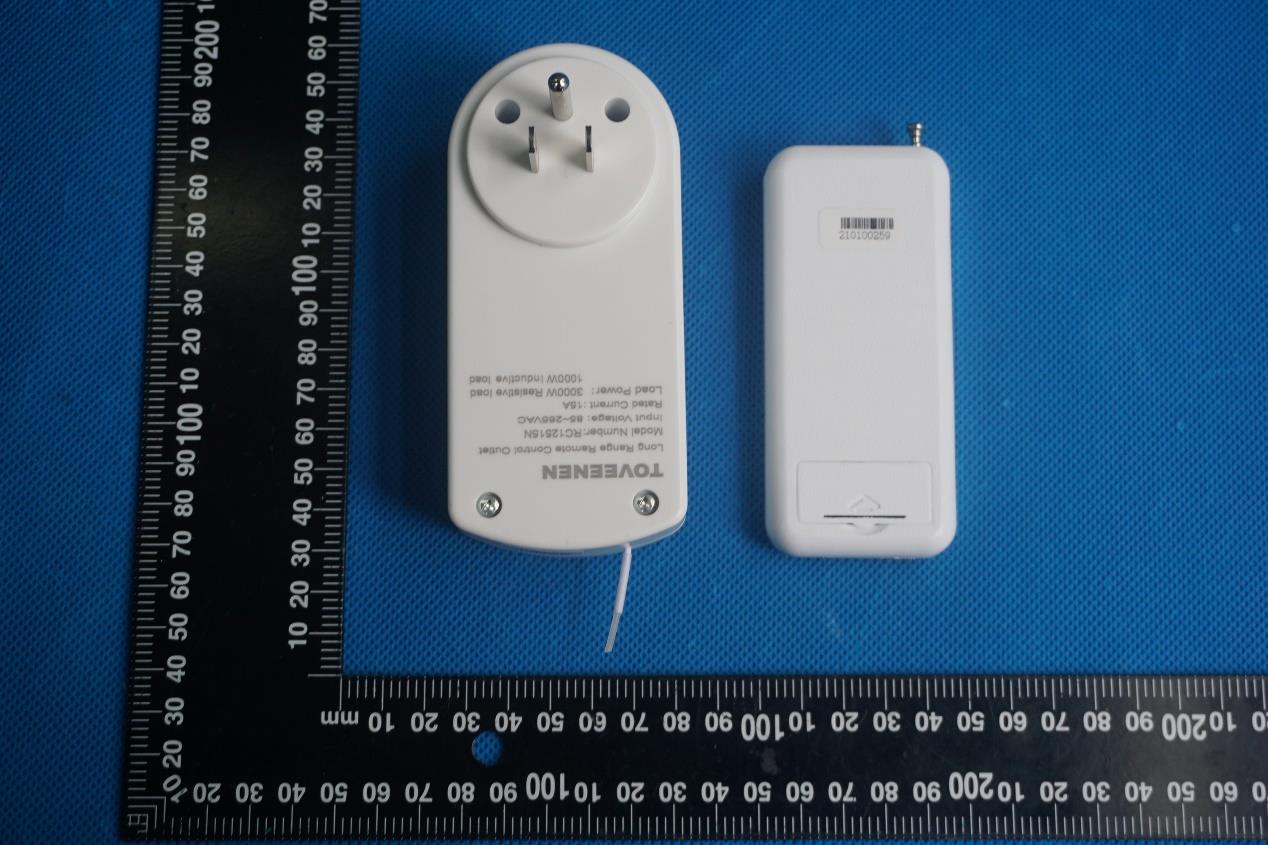

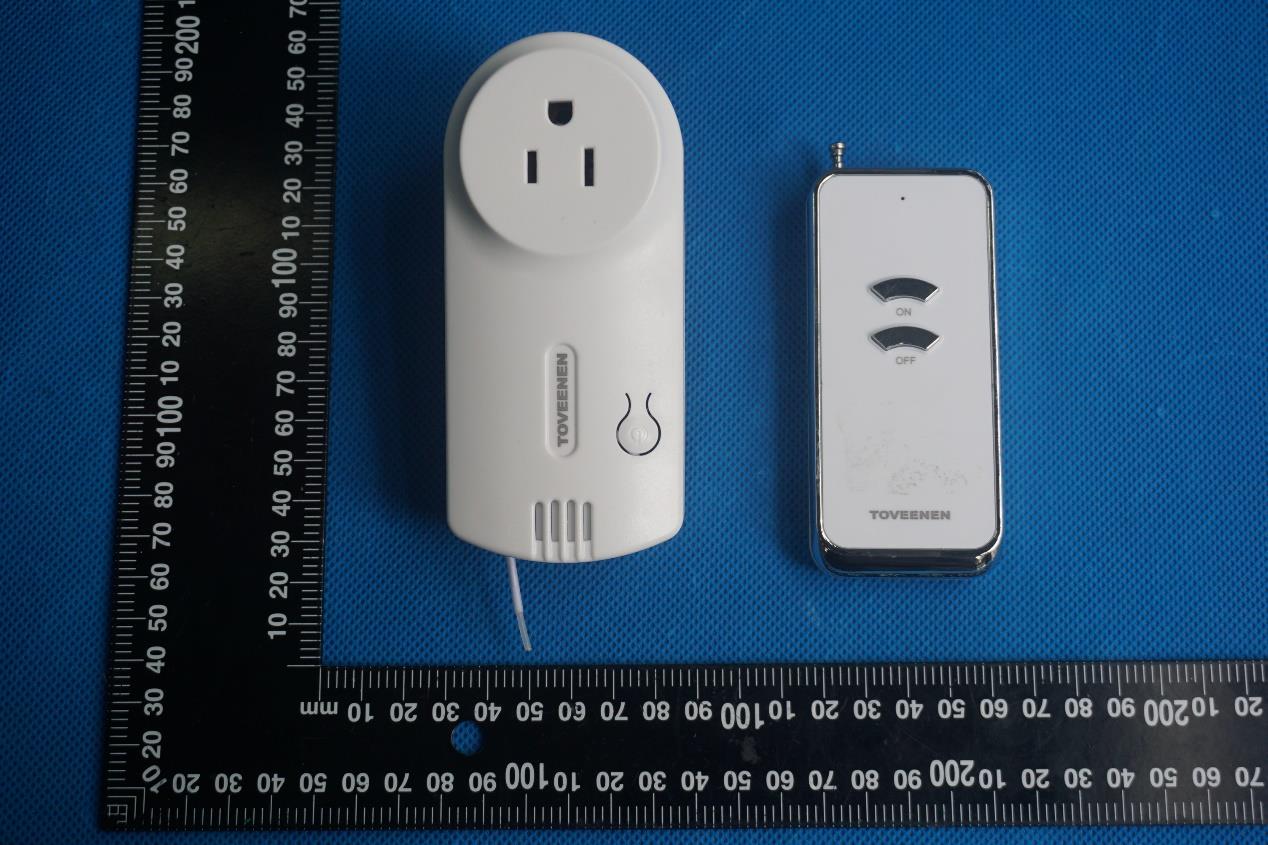

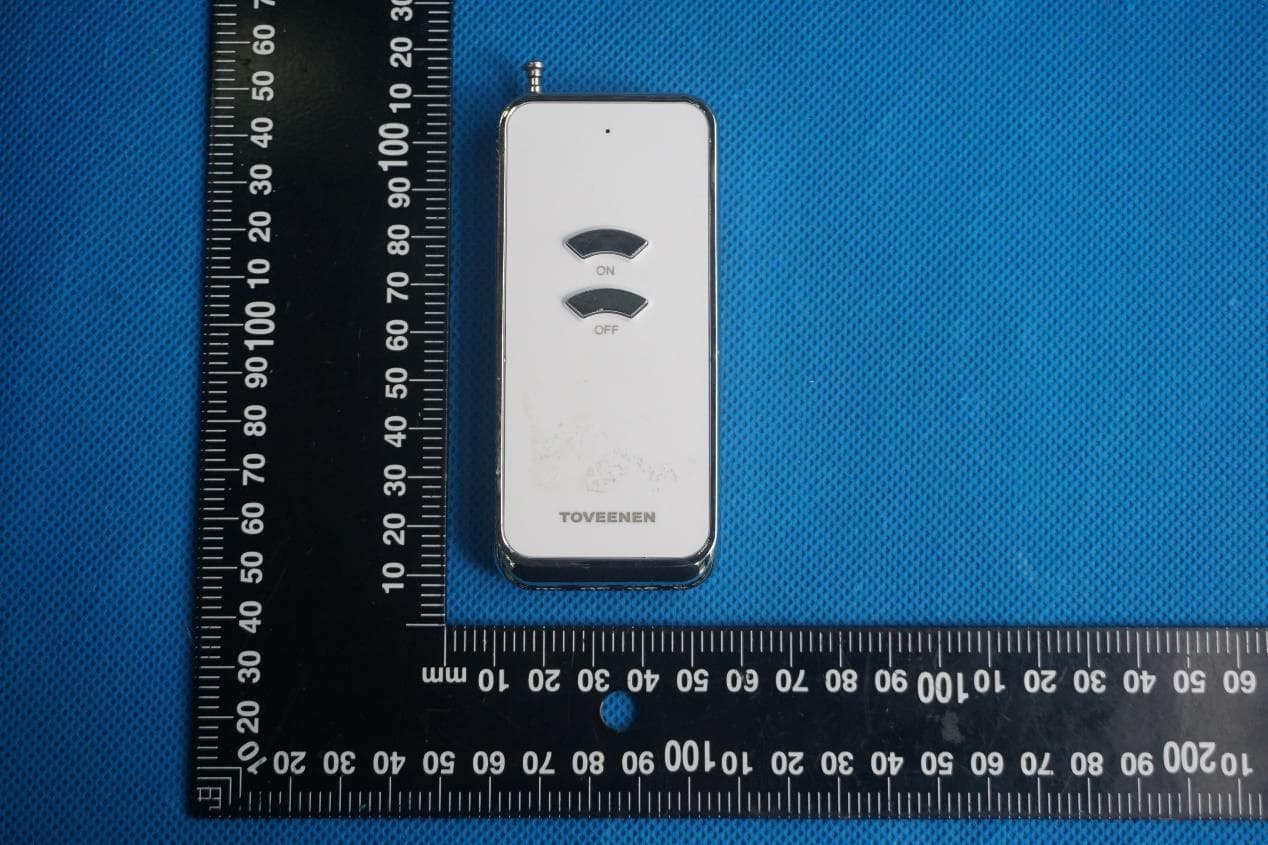

GTSL202104000055 Product Name: Wireless remote control Test Model No.: RC12515N EUT Constructional Details External Photo Fig.1 Fig.2 Receiver Transmitter GTSL202104000055 Fig.3 Fig.4 GTSL202104000055 Fig.5 Fig.6 GTSL202104000055 Fig.7 Fig.8 GTSL202104000055 Fig.9

FCC ID: 2AZHY-RC12515N Wireless remote control Model No.: RC12515N FCC ID: 2AZHY-RC12515N

GTSL202104000055 Product Name: Wireless remote control Test Model No.: RC12515N EUT Constructional Details Internal Photo Fig.1 Fig.2 GTSL202104000055 Fig.3 Fig.4 Antenna GTSL202104000055 Fig.5

Global United Technology Services Co., Ltd. Report No.: GTSL202104000055F01 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 20 Cover Page TEST REPORT Applicant: ShenZhen Shi ShenYuanGuang KeJi YouXian GongSi Address of Applicant: 02, No.46, Zone 2, Dunbei New Vil, Hualian Community, Hua Lian She Qu, Long Hua Jie Dao, Long Hua Qu,Shenzhen, CN Manufacturer: ShenZhen Shi ShenYuanGuang KeJi YouXian GongSi Address of Manufacturer: 02, No.46, Zone 2, Dunbei New Vil, Hualian Community, Hua Lian She Qu, Long Hua Jie Dao, Long Hua Qu,Shenzhen, CN Equipment Under Test (EUT) Product Name: Wireless remote control Model No.: RC12515N Serial No.: See page 5 for details Trade Name: TOVEENEN FCC ID: 2AZHY-RC12515N Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.231 Date of sample receipt: Mar.30,2021 Date of Test: Mar.30,2021-Apr.09,2021 Date of report issued: Apr.09,2021 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSL202104000055F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 20 2 Version Version No. Date Description 01 Apr.09,2021 Original Prepared By: Date: Apr.09,2021 Project Engineer Check By: Date: Apr.09,2021 Reviewer Report No.: GTSL202104000055F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 20 3 Contents Page 1 COVER PAGE ...........................................................................................................................................1 2 VERSION ...................................................................................................................................................2 3 CONTENTS ...............................................................................................................................................3 4 TEST SUMMARY ......................................................................................................................................4 4.1 MEASUREMENT UNCERTAINTY .............................................................................................................4 5 GENERAL INFORMATION .......................................................................................................................5 5.1 GENERAL DESCRIPTION OF EUT ..........................................................................................................5 5.2 TEST MODE .........................................................................................................................................6 5.3 DESCRIPTION OF SUPPORT UNITS ........................................................................................................6 5.4 TEST FACILITY ....................................................................................................................................6 5.5 TEST LOCATION ..................................................................................................................................6 5.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER ..........................................................................6 5.7 DEVIATION FROM STANDARDS ..............................................................................................................6 5.8 ABNORMALITIES FROM STANDARD CONDITIONS ....................................................................................6 5.9 ADDITIONAL INSTRUCTIONS ..................................................................................................................6 6 TEST INSTRUMENTS LIST ......................................................................................................................7 7 TEST RESULTS AND MEASUREMENT DATA .......................................................................................9 7.1 ANTENNA REQUIREMENT .....................................................................................................................9 7.2 RADIATED EMISSION METHOD ............................................................................................................10 7.3 20DB OCCUPY BANDWIDTH ...............................................................................................................14 7.4 DWELL TIME .....................................................................................................................................16 7.5 DUTY CYCLE .....................................................................................................................................17 8 TEST SETUP PHOTO .............................................................................................................................20 9 EUT CONSTRUCTIONAL DETAILS .......................................................................................................20 Report No.: GTSL202104000055F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 20 4 Test Summary Test Item Section in CFR 47 Result Antenna Requirement 15.203 Pass Conduction Emission 15.207 N/A Field strength of the Fundamental Signal 15.231 (b) Pass Spurious Emissions 15.231 (b)/15.20…

Text truncated - open the document above for the full version.

GTSL202104000055 GlobalUnitedTechnologyServicesCo.,Ltd. No.123-128,TowerA,JinyuanBusinessBuilding,No.2,LaodongIndustrialZone, XixiangRoad,BaoanDistrict,Shenzhen,Guangdong,China518102 Telephone:+86(0)75527798480Fax:+86(0)75527798960Page1of1 ProductName:Wirelessremotecontrol TestModelNo.:RC12515N TestSetupPhoto RadiatedEmission ------End------
