2AZI5Y1Remote Parameter

1 控制器产品规格书 Controller product specification Product Name: Remote Parameter Shanghai Edge Light Industry Co.,LTD. TEL:+86-21-64412288 FAX:+86-21-64412266 E-mail: [email protected] 2 1、产品简介 Product Introductions Y系列LED控制器可体验到调光、调色温、RGB、RGBW控制，满足客户不同的需求；通过RF遥控器 可以进行速度/亮度调节，自定义任意色，静态颜色选择以及各种动态灯光变化效果。 Y series LED controller includes functions of dimming, color temperature adjusting, RGB and RGBW control, meeting different needs of customers; with the RF remote control, you can adjust speed/brightness, favorite colors, single color effect or multiple color dynamic effects. 3 2、机械尺寸(mm) Dimensions 3、Y1的操作说明 Y1 Operation Instructions 遥控器驱动器配对： 只有使驱动器进入配对模式时才能和遥控器配对或者取消配对。 Match the remoter to the driver: The driver needs to be connected with the remote when being operated by users. 4 驱动器有两种方式进入配对模式： 1、长按驱动器上的功能按键3s以上。当驱动器上的LED状态灯常亮时表示驱动器已经进入了配 对模式。需要注意的是，该操作会删除之前这台设备上所有已经配对的遥控器信息，如果20s内未完 成配对设备会自动退出配对模式。 2、驱动器通电后的5s内设备自动处于配对模式，此时驱动器上的LED状态灯常亮。5s后设备 自动退出配对模式。 注意：驱动器的状态参数保存会有5s的延时。 Two Methods of Matching: 1. Press the function button on the drive more than 3 seconds. It indicates that the driver is in matching mode when the LED status light on the driver works constantly. It should be noted that matching operation will delete all previously paired remote control information on this device. If the driver cannot receive the matching signal within 20s, it will automatically exit the matching mode. 2. The device is automatically in matching mode within 5 seconds after turning on, and the LED status light on the driver is working. The device automatically exits matching mode after 5 seconds if no remote signal receiving. Note: Parameter preserving of the driver needs 5 seconds. 配对操作： 当驱动器在配对模式时，单击遥控器上的任意按键或滑环。 Matching Operation ON: Click any button or slip the color ring on the remote control. 5 取消配对操作： 1、当驱动器在配对模式时，长按遥控器开关按键。 2、长按驱动器上的功能按键3s以上。 Matching Operation OFF: 1. Press the remote control switch button until it is shut down. 2. Press the function button on the driver for 3 seconds. 4、接收控制器部件说明： Controller Component Description 5、遥控器操说明： Remote Operation 6 Scene I键： Scene Button 长按3秒保存当前场景。 短按，调出已保存场景 I。 Press 3 seconds to save the current modes. Quick press to restart the last saved modes. Scene II键： Scene Button 长按3秒保存当前场景。 短按，调出已保存场景 II。 Press 3 seconds to save the current modes. Quick press to restart the last saved modes. 7 30秒延时关灯键30s Delay close 按下后30秒关灯。 7、技术参数： Technical Parameters DIM遥控器： DIM Remote 型号 Item Y1(DIM) 工作电压 Voltage 3Vdc(battery CR2032) 工作频率 Frequency 2.4G 遥控距离 Operating Distance 40m 工作温度 Operating Temperature -30°C~55°C 重量 Weight 40g RGBW恒压接收器： RGBW Constant Voltage Driver 型号 Item CL 4X2.5A -2.4G 输入电压 Input Voltage 12~24Vdc 最大负载电流 Maximum Load Current 5Ax4路/最大11A 5Ax4 channel/Max. 11A 最大负载功率 Maximum Load Power （0~30W...60W)x4路/最大240W （0~30W...60W)x4 channel/Max. 240W 保护 Protection 短路/过流保护 Short Circuit/Over Current 工作温度 Operating Temperature -30°C~55°C 重量 Weight 42g 8 8、连接示意图： Connection Diagram 例1: 连接12V灯具, 可负载0~120W(5AX4CHX12V). Connect to 12V LED Strip, the devices can load 0~120W(5AX4CHX12V). 例2: 连接24V灯具, 可负载0~240W(5AX4CHX24V). Connect to 24V LED Strip, the devices can load 0~240W(5AX4CHX24V). 9 FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Kantenlicht (Shanghai) Technology Co., Ltd Agent Authorization Company: Kantenlicht (Shanghai) Technology Co., Ltd Address: 35 Lane 188, Maoting Road, Chedun Town, Songjiang District, Shanghai,china 201611 Product Name: Remote Parameter Model Number(s): Y1(DIM),Y2(CCT),Y3(RGB),Y4(RGBW),Y5(PWM) Product Description: Remote control We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021.05.13 Name: Branda Jiang Title: Manager Company: Kantenlicht (Shanghai) Technology Co., Ltd

Kantenlicht (Shanghai) Technology Co., Ltd Authorization Letter We, (the approval holder) Company name Kantenlicht (Shanghai) Technology Co., Ltd Addresss 35 Lane 188, Maoting Road, Chedun Town, Songjiang District, Shanghai,china 201611 declare that the following representative (agent): Name (person) Bovey Yang Company name Shenzhen STS Test Services Co., Ltd. Addresss 1/F., Building B, Zhuoke Science Park, No.190, Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China City Shenzhen Country China to act on our behalf on all matters concerning the application and documents submitted to Micom Labs for product certification below Product Description Remote Parameter Type or Model(s) Y1(DIM),Y2(CCT),Y3(RGB),Y4(RGBW),Y5(PWM) Tradename or Brand(s) Attestation: City: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shanghai 2021.05.13 Branda Jiang Manager

Differences Description We Kantenlicht (Shanghai) Technology Co., Ltd state: Product： Remote Parameter Model Name： Y1(DIM),Y2(CCT),Y3(RGB),Y4(RGBW),Y5(PWM) Brand Name： FCC ID： 2AZI5Y1 The electrical circuit design, layout, components used and internal wiring for above models are identical, only the model name and software function are different (Y series LED controller includes functions of dimming, color temperature adjusting, RGB and RGBW control, meeting different needs of customers. With the RF Remote Parameter, you can adjust speed/brightness, favorite colors, single color effect or multiple color dynamic effects.). Sincerely, Company: Kantenlicht (Shanghai) Technology Co., Ltd Title: Manager E-mail: [email protected] Name: Branda Jiang Signature

Kantenlicht (Shanghai) Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021.05.13 Subject; Request for Confidentiality FCC ID: 2AZI5Y1 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) asconfidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Branda Title: Manager

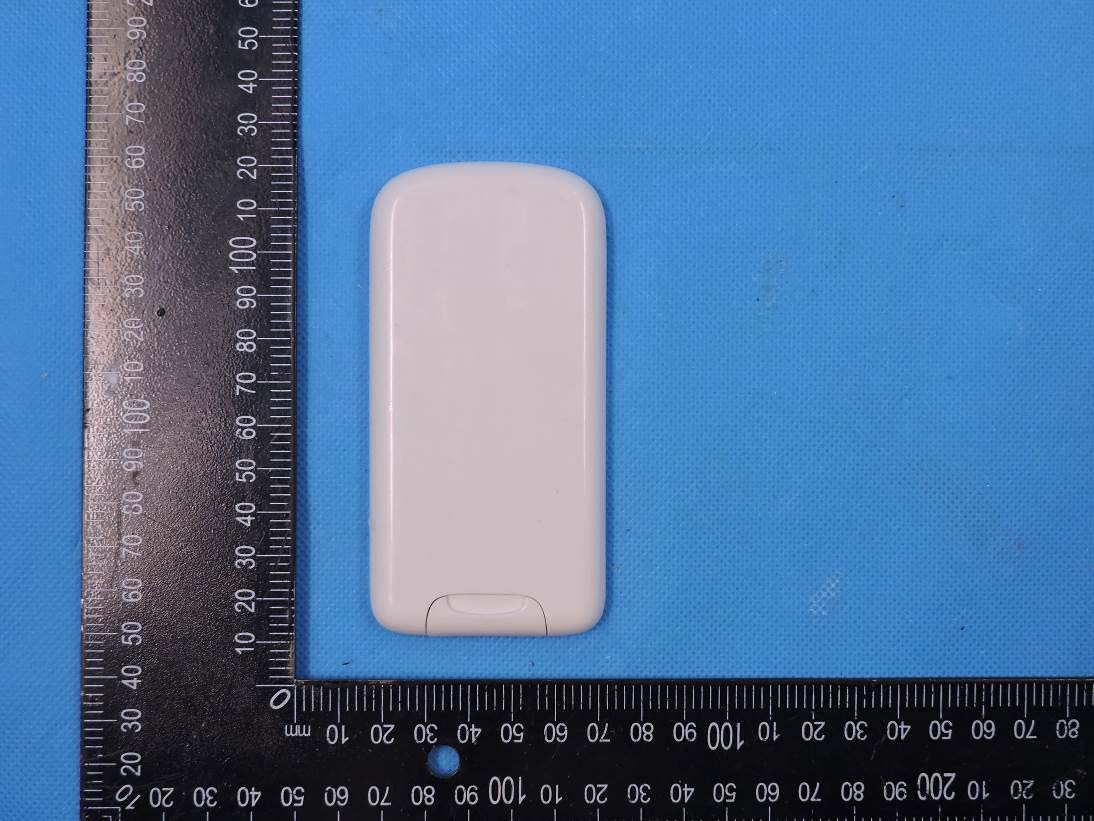

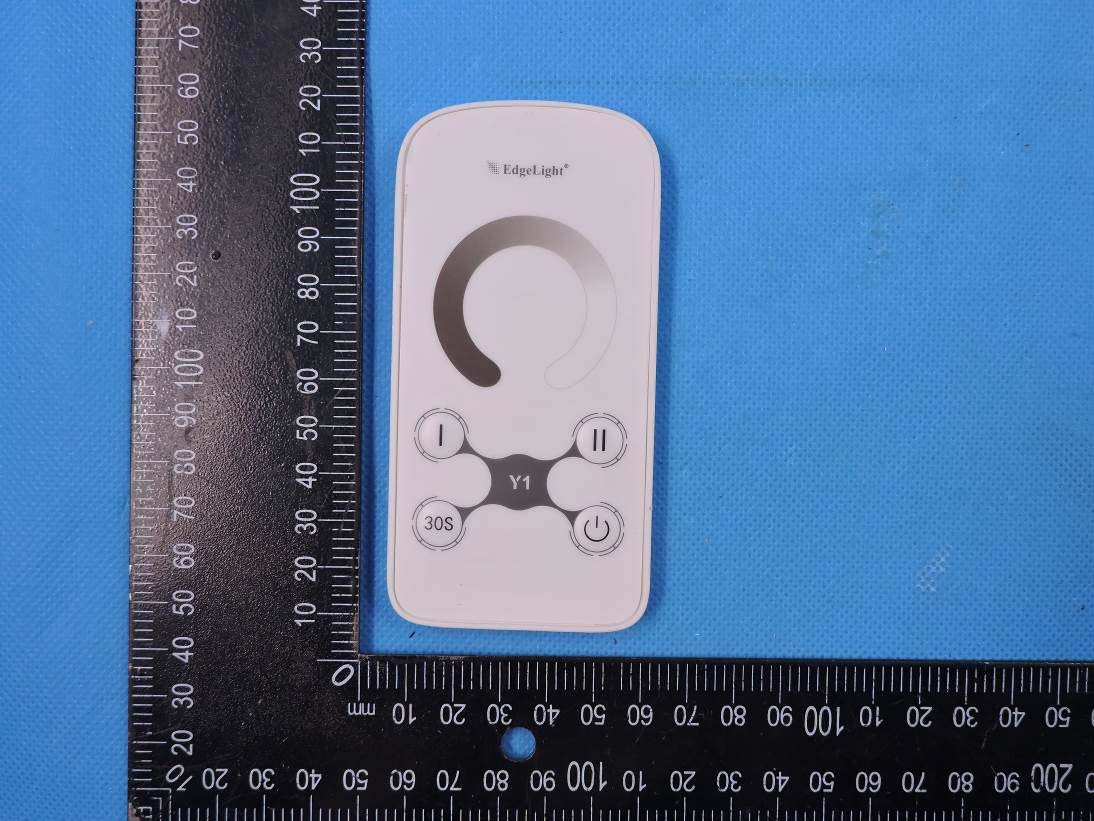

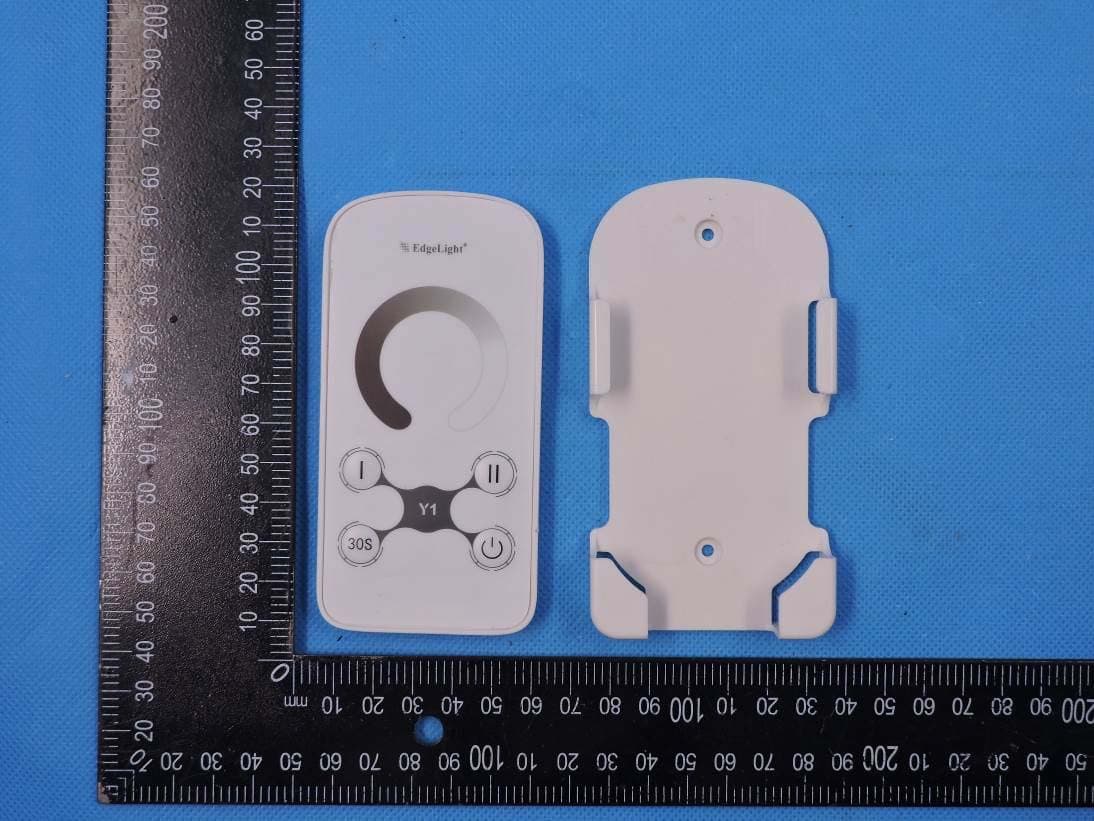

Page 1 of 4 Report No.: STS2103196 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: Y1(DIM) Photo 1 Photo 2 Page 2 of 4 Report No.: STS2103196 Photo 3 Photo 4 Page 3 of 4 Report No.: STS2103196 Photo 5 Photo 6 Page 4 of 4 Report No.: STS2103196 Photo 7 Photo 8

FCC Label L: 50mm, W: 30mm The label is silk-screen on the sample Remote Parameter FCC ID: 2AZI5Y1 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Page 1 of 4 Report No.: STS2103196 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: Y1(DIM) Photo 1 Photo 2 Page 2 of 4 Report No.: STS2103196 Photo 3 Photo 4 Page 3 of 4 Report No.: STS2103196 Photo 5 Photo 6 Antenna Page 4 of 4 Report No.: STS2103196 Photo 7

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.: STS2103196W02 Issued for Kantenlicht (Shanghai) Technology Co., Ltd 35 Lane 188, Maoting Road, Chedun Town, Songjiang District, Shanghai,china 201611 Product Name: Remote Parameter Brand Name: Model Name: Y1(DIM) Series Model: Y2(CCT),Y3(RGB),Y4(RGBW),Y5(PWM) FCC ID: 2AZI5Y1 Test Standard: FCC Part 15.249 S T L A B S Page 2 of 36 Report No.: STS2103196W02 TEST RESULT CERTIFICATION Applicant’s Name ................. : Kantenlicht (Shanghai) Technology Co., Ltd Address .................................. : 35 Lane 188, Maoting Road, Chedun Town, Songjiang District, Shanghai,china 201611 Manufacture's Name ............ : Shanghai Edgelight Industry Co.,Ltd Address .................................. : No 55,Beimin Rd,Songjiang District Shanghai,china 201611 Product Description Product Name ........................ : Remote Parameter Brand Name ......................... : Model Name ........................... : Y1(DIM) Series Model .......................... : Y2(CCT),Y3(RGB),Y4(RGBW),Y5(PWM) Test Standards ...................... : FCC Part15.249 Test Procedure ....................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ............................ : Date of receipt of test item ..... : 31 Mar. 2021 Date of performance of tests .. : 31 Mar. 2021 ~ 17 May 2021 Date of Issue .......................... : 17 May 2021 Test Result .............................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory: (Vita Li) Page 3 of 36 Report No.: STS2103196W02 Table of Contents Page 1. SUMMARY OF TEST RESULTS 5
1.1 TEST FACTORY 6
1.2 MEASUREMENT UNCERTAINTY 6
2. GENERAL INFORMATION 7
2.1 GENERAL DESCRIPTION OF THE EUT 7
2.2 DESCRIPTION OF THE TEST MODES 8
2.3 TEST SOFTWARE AND POWER LEVEL 8
2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8
2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 9
2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10
3. EMC EMISSION TEST 12
3.1 CONDUCTED EMISSION MEASUREMENT 12
3.2 RADIATED EMISSION MEASUREMENT 14
4. BANDWIDTH TEST 32
4.2 TEST SETUP 32
4.3 EUT OPERATION CONDITIONS 32
4.4 TEST RESULTS 33
5. ANTENNA REQUIREMENT 35
5.1 STANDARD REQUIREMENT 35
5.2 EUT ANTENNA 35
APPENDIX- PHOTOS OF TEST SETUP 36
Page 4 of 36 Report No.: STS2103196W02 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 17 May 2021 STS2103196W02 ALL Initial Issue Page 5 of 36 Report No.: STS2103196W02 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part 15.249 , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A 15.203 Antenna Requirement Pass 15.249 Radiated Spurious Emission Pass 15.205 Radiated Band Edge Emission Pass 15.249 20dB Bandwidth Pass NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 6 of 36 Report No.: STS2103196W02 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 9K-30MHz ±2.84dB 4 All emissions, radiated 30M-1GHz ±4.39dB 5 All emissions, radiated 1G-6GHz ±5.10dB 6 All emissions, radiated>6G ±5.48dB 7 Conducted Emission (9KHz-150KHz) ±2.79dB 8 Conducted Emission (150KHz-30MHz) ±2.80dB Page 7 of 36 Report No.: STS2103196W02 2. GENERAL INFORMATION 2. Channel List Channel Frequency (MHz) 1 2411 2 2442 3 2473 3. Table for Filed Antenna Ant Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 Y1(DIM) PCB N/A 0dBi Antenna Note: The antenna information refer the manufacturer provide report, applicable only to the tested sample identified in the report. 2.1 GENERAL DESCRIPTION OF THE EUT Product Name Remote Parameter Trade Name Model Name Y1(DIM) Series Model Y2(CCT), Y3(RGB), Y4(RGBW), Y5(PWM) Model Difference Only the model name and software function are different (Y series LED controller includes functions of dimming, color temperature adjusting, RGB and RGBW control, meeting different needs of customers. With the RF Remote Parameter, you can adjust speed/brightness, favorite colors, single color effect or multiple color dynamic effects.). Product Description The EUT is a Remote Parameter Operation Frequency: 2411-2473 MHz Modulation Type: GFSK Antenna Designation: Please refer to the Note 3. Antenna Gain(Peak): 0dBi Based on the application, features, or specification exhibited in User Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User Manual. Channel List Pleas…

Text truncated - open the document above for the full version.

Page 1 of 1 FCC ID: 2AZI5Y1 DXX Setup photo Model name: Y1(DIM) DXX radiation L DXX radiation H
