2AZIK-AH9066Wirerless Signal Wall-through Ethernet Connector-ETHERNET AIR

Zhuhai Jinhong Technology Co., LTD

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: May 08, 2021
Application Purpose: Original Equipment
Date of Application: May 08, 2021
Equipment Note: Wirerless Signal Wall-through Ethernet Connector-ETHERNET AIR
Frequency Range: 903.50000000 - 926.50000000
Company: Zhuhai Jinhong Technology Co., LTD
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Zhuhai Jinhong Technology Co.,Ltd V1.0-2021 ETHERNET AIR application manual Appearance: Remarks： A： Power input 5~12Vdc; B: Network port; C: Power indicator; D: Receive/transmit indicator; E: Signal strength indicator； F：Antenna; Application guide: 1. Connect the antenna to the SMA antenna connector. 2. When the power adapter is connected to the DC port and power on,the five indicator lights will flash for 3 seconds to enter the self-test.When the power light and RX light are always on,the devices is the receiving device;if the RX light is not on，the device is the transmitting device. 3. Connect video monitoring:RX device is connected with NVR or computer through network cable,and TX device is connected with IPC camera through network cable to realize remote video monitoring. 4. WIFI coverage expansion:the TX device is connected to the LAN port of the router through the network cable,and the RX device is connected to the WAN port of the router through the network cable to realize remote WIFI coverage. A B C D E F Zhuhai Jinhong Technology Co.,Ltd V1.0-2021 5. FCC Statement 6. 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 7. (1) This device may not cause harmful interference. 8. (2) This device must accept any interference received, including interference that may cause undesired operation. 9. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 10. NOTE: 11. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. 12. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 13. Reorient or relocate the receiving antenna. 14. Increase the separation between the equipment and receiver. 15. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 16. Consult the dealer or an experienced radio/TV technician for help.

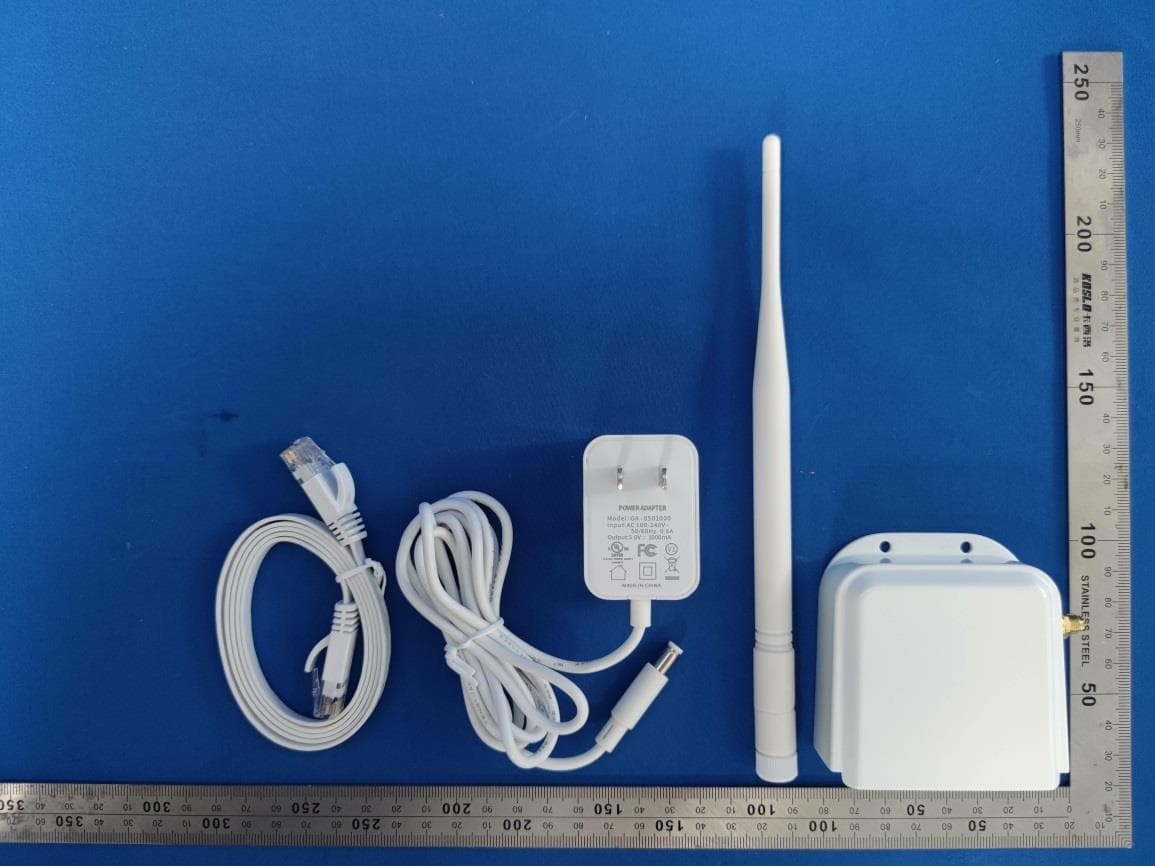

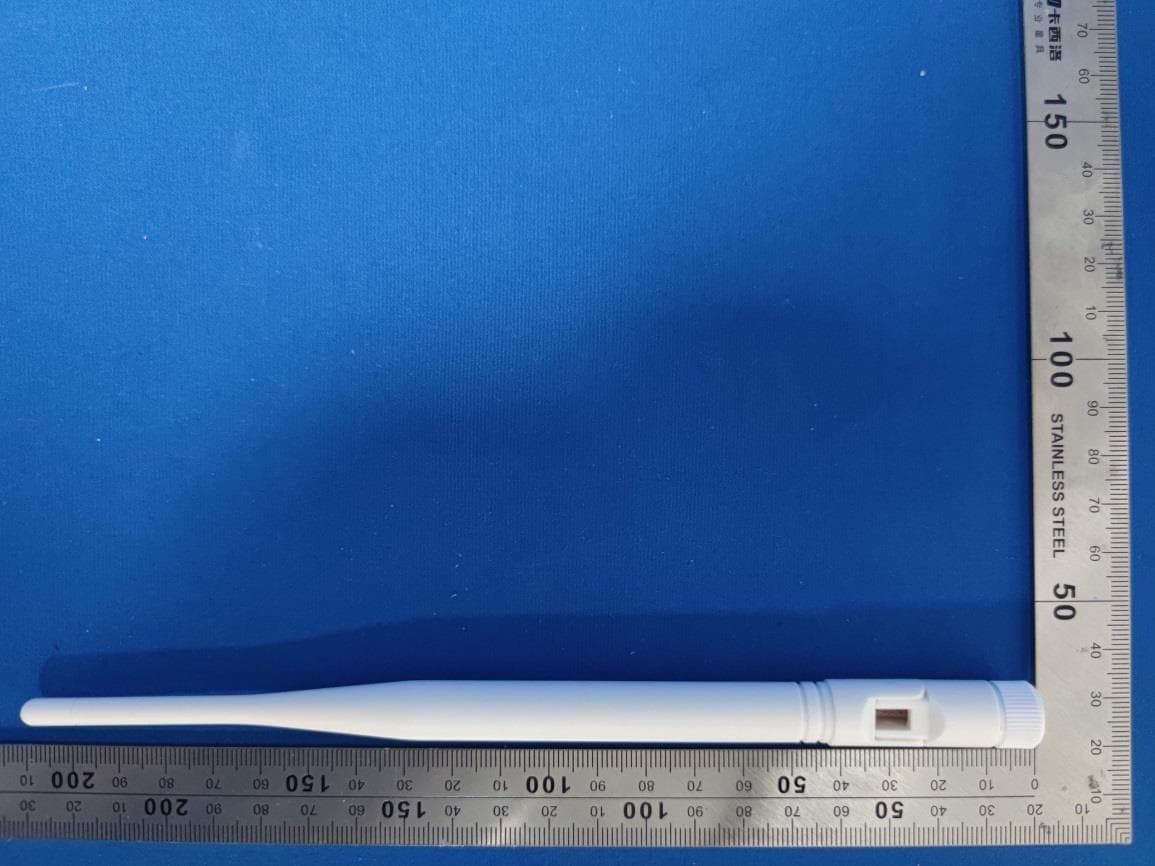

External Photos

Report No: JYTSZB-R12-2100513 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2104004 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 48 of 55 8 EUT Constructional Details Report No: JYTSZB-R12-2100513 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2104004 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 49 of 55 Report No: JYTSZB-R12-2100513 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2104004 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 50 of 55 Report No: JYTSZB-R12-2100513 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2104004 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 51 of 55 Report No: JYTSZB-R12-2100513 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2104004 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 52 of 55

ID Label/Location Info

label location label location

Internal Photos

RF Exposure Info

JianYan Testing Group Shenzhen Co., Ltd. Report No: JYTSZB-R12-2100666 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the JYT product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page RF Exposure Evaluation Report Applicant: Zhuhai Jinhong Technology Co., LTD Address of Applicant: room R07-06, 2nd floor, 4th building, number 2007 Mingzhunan road, Zhuhai City, Guangdong Province, China Equipment Under Test (EUT) Product Name: Wirerless Signal Wall-through Ethernet Connector-ETHERNET AIR Model No.: AH 9066, ZG302M, ZR08PR, TD-AH9066, HW9066, TX23- 9066, COD- AH06, 87306, MT141 FCC ID: 2AZIK-AH9066 Applicable standards: FCC CFR Title 47 Part 2 Subpart J Section 2.1091 Date of sample receipt: 01 Apr., 2021 Date of Test: 02 Apr., to 23 Apr., 2021 Date of report issue: 25 Apr., 2021 Test Result: PASS* Report No: JYTSZB-R12-2100666 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2104004 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 2 of 6 2 Version Version No. Date Description 00 25 Apr., 2021 Original Tested by: Date: 25 Apr., 2021 Test Engineer Reviewed by: Date: 25 Apr., 2021 Project Engineer Report No: JYTSZB-R12-2100666 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2104004 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 3 of 6 3 Contents Page 1 COVER PAGE ....................................................................................................................................................... 1 2 VERSION ............................................................................................................................................................... 2 3 CONTENTS ........................................................................................................................................................... 3 4 GENERAL INFORMATION .................................................................................................................................. 4 4.1 CLIENT INFORMATION ........................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T. ...................................................................................................................... 4 4.3 OPERATING MODES .............................................................................................................................................. 4 4.4 ADDITIONS TO, DEVIATIONS, OR EXCLUSIONS FROM THE METHOD ...................................................................... 4 4.5 LABORATORY FACILITY ........................................................................................................................................ 4 4.6 LABORATORY LOCATION ...................................................................................................................................... 4 5 TECHNICAL REQUIREMENTS SPECIFICATION IN FCC CFR TITLE 47 PART 2.1091 ............................ 5 5.1 LIMITS .................................................................................................................................................................... 5 5.2 TEST PROCEDURE ................................................................................................................................................. 5 5.3 RESULT .................................................................................................................................................................. 6 5.4 CONCLUSION ......................................................................................................................................................... 6 Report No: JYTSZB-R12-2100666 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2104004 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 4 of 6 4 General Information 4.1 Client Information Applicant: Zhuhai Jinhong Technology Co., LTD Address: room R07-06, 2nd floor, 4th building, number 2007 Mingzhunan road, Zhuhai City, Guangdong Province, China Manufacturer/Factory: Zhuhai Jinhong Technology Co., LTD Address: room R07-06, 2nd floor, 4th building, number 2007 Mingzhunan road, Zhuhai City, Guangdong Province, China 4.2 General Description of E.U.T. Product Name: Wirerless Signal Wall-through Ethernet Connector-ETHERNET AIR Model No.: AH9066, ZG302M, ZR08PR, TD-AH9066, HW9066, TX23-9066, COD- AH06, 87306, MT141 Operation Frequency: 903.5-926.5MHz for 802.11ah…

Text truncated - open the document above for the full version.

Test Report

JianYan Testing Group Shenzhen Co., Ltd. Report No: JYTSZB-R12-2100513 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the JYT product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page FCC REPORT (802.11ah) Applicant: Zhuhai Jinhong Technology Co., LTD Address of Applicant: room R07-06, 2nd floor, 4th building, number 2007 Mingzhunan road, Zhuhai City, Guangdong Province, China Equipment Under Test (EUT) Product Name: Wirerless Signal Wall-through Ethernet Connector-ETHERNET AIR Model No.: AH 9066, ZG302M, ZR08PR, TD-AH9066, HW9066, TX23- 9066, COD- AH06, 87306, MT141 FCC ID: 2AZIK-AH9066 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: 01 Apr., 2021 Date of Test: 02 Apr., to 23 Apr., 2021 Date of report issued: 25 Apr., 2021 Test Result: PASS* * In the configuration tested, the EUT complied with the standards specified above. Report No: JYTSZB-R12-2100513 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2104004 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 2 of 55 2 Version Version No. Date Description 00 25 Apr., 2021 Original Tested by: Date: 25 Apr., 2021 Test Engineer Reviewed by: Date: 25 Apr., 2021 Project Engineer Report No: JYTSZB-R12-2100513 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2104004 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 3 of 55 3 Contents Page 1 COVER PAGE ....................................................................................................................................................... 1 2 VERSION ............................................................................................................................................................... 2 3 CONTENTS ........................................................................................................................................................... 3 4 TEST SUMMARY .................................................................................................................................................. 4 5 GENERAL INFORMATION .................................................................................................................................. 5 5.1 CLIENT INFORMATION ............................................................................................................................................ 5 5.2 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................................... 5 5.3 TEST ENVIRONMENT AND MODE ............................................................................................................................ 7 5.4 DESCRIPTION OF SUPPORT UNITS ........................................................................................................................ 7 5.5 MEASUREMENT UNCERTAINTY .............................................................................................................................. 7 5.6 LABORATORY FACILITY .......................................................................................................................................... 7 5.7 LABORATORY LOCATION ....................................................................................................................................... 7 5.8 TEST INSTRUMENTS LIST ....................................................................................................................................... 8 6 TEST RESULTS AND MEASUREMENT DATA ................................................................................................ 9 6.1 ANTENNA REQUIREMENT ....................................................................................................................................... 9 6.2 CONDUCTED EMISSION ....................................................................................................................................... 10 6.3 CONDUCTED OUTPUT POWER ............................................................................................................................ 13 6.4 OCCUPY BANDWIDTH .......................................................................................................................................... 14 6.5 POWER SPECTRAL DENSITY ............................................................................................................................... 15 6.6 BAND EDGE ......................................................................................................................................................... 16 6.6.1 Conducted Emission Method................................…

Text truncated - open the document above for the full version.

Test Report

Report No.: JYTSZB-R12-2100513 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2104004 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 1 of 54 Test Data Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) NVNT 802.11ah-1M 903.5 Ant1 100 0 NVNT 802.11ah-1M 914.5 Ant1 100 0 NVNT 802.11ah-1M 926.5 Ant1 100 0 NVNT 802.11ah-2M 905 Ant1 100 0 NVNT 802.11ah-2M 915 Ant1 100 0 NVNT 802.11ah-2M 925 Ant1 100 0 NVNT 802.11ah-4M 906 Ant1 100 0 NVNT 802.11ah-4M 914 Ant1 100 0 NVNT 802.11ah-4M 926 Ant1 100 0 NVNT 802.11ah-8M 908 Ant1 100 0 NVNT 802.11ah-8M 916 Ant1 100 0 NVNT 802.11ah-8M 924 Ant1 100 0 Duty Cycle NVNT 802.11ah-1M 903.5MHz Ant1 Report No.: JYTSZB-R12-2100513 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2104004 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 54 Duty Cycle NVNT 802.11ah-1M 914.5MHz Ant1 Duty Cycle NVNT 802.11ah-1M 926.5MHz Ant1 Report No.: JYTSZB-R12-2100513 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2104004 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 54 Duty Cycle NVNT 802.11ah-2M 905MHz Ant1 Duty Cycle NVNT 802.11ah-2M 915MHz Ant1 Report No.: JYTSZB-R12-2100513 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2104004 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 4 of 54 Duty Cycle NVNT 802.11ah-2M 925MHz Ant1 Duty Cycle NVNT 802.11ah-4M 906MHz Ant1 Report No.: JYTSZB-R12-2100513 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2104004 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 5 of 54 Duty Cycle NVNT 802.11ah-4M 914MHz Ant1 Duty Cycle NVNT 802.11ah-4M 926MHz Ant1 Report No.: JYTSZB-R12-2100513 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2104004 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 6 of 54 Duty Cycle NVNT 802.11ah-8M 908MHz Ant1 Duty Cycle NVNT 802.11ah-8M 916MHz Ant1 Report No.: JYTSZB-R12-2100513 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2104004 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 7 of 54 Duty Cycle NVNT 802.11ah-8M 924MHz Ant1 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT 802.11ah-1M 903.5 Ant1 20.071 0 20.071 30 Pass NVNT 802.11ah-1M 914.5 Ant1 20.257 0 20.257 30 Pass NVNT 802.11ah-1M 926.5 Ant1 20.324 0 20.324 30 Pass NVNT 802.11ah-2M 905 Ant1 20.517 0 20.517 30 Pass NVNT 802.11ah-2M 915 Ant1 20.283 0 20.283 30 Pass NVNT 802.11ah-2M 925 Ant1 20.713 0 20.713 30 Pass NVNT 802.11ah-4M 906 Ant1 20.104 0 20.104 30 Pass NVNT 802.11ah-4M 914 Ant1 20.973 0 20.628 30 Pass NVNT 802.11ah-4M 926 Ant1 20.678 0 20.678 30 Pass NVNT 802.11ah-8M 908 Ant1 20.718 0 20.718 30 Pass NVNT 802.11ah-8M 916 Ant1 20.692 0 20.692 30 Pass NVNT 802.11ah-8M 924 Ant1 20.151 0 20.151 30 Pass Report No.: JYTSZB-R12-2100513 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2104004 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 8 of 54 Power NVNT 802.11ah-1M 903.5MHz Ant1 Power NVNT 802.11ah-1M 914.5MHz Ant1 Report No.: JYTSZB-R12-2100513 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2104004 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 9 of 54 Power NVNT 802.11ah-1M 926.5MHz Ant1 Power NVNT 802.11ah-2M 905MHz Ant1 Report No.: JYTSZB-R12-2100513 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2104004 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 10 of 54 Power NVNT 802.11ah-2M 915MHz Ant1 Power NVNT 802.11ah-2M 925MHz Ant1 Report No.: JYTSZB-R12-2100513 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2104004 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 11 of 54 Power NVNT 802.11ah-4M 906MHz Ant1 Power NVNT 802.11ah-4M 914MHz Ant1 Report No.: JYTSZB-R12-2100513 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2104004 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 12 of 54 Power NVNT 802.11ah-4M 926MHz Ant1 Power NVNT 802.11ah-8M 908MHz Ant1 Report No.: JYTSZB-R12-210…

Text truncated - open the document above for the full version.

Test Setup Photos

Contact Information

Applicant

Tao Yin(Manager)

[email protected]86-13539566613Fax: 0756-6903029

Test Firm

JianYan Testing Group Shenzhen Co., Ltd.Bruce Zhang

[email protected]+86 (0) 755 23118282

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	903.5 MHz - 926.5 MHz	125.10 mW

Confidentiality

Long Term

Grant Notes

Output power listed is conducted. This device has 1 MHz, 2 MHz, 4 MHz and 8 MHz bandwidth mode. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
