2AZIM-DETDetector HDR

Installation - main principles FCC Compliance Statement - FCC ID2AZIM-DET This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: The grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. 1. Device groups and number of devices Reconeyez system is installed in device groups consisting of one bridge and up to 8 detectors or sirens. The limitation of 8 devices per one bridge ensures acceptable alarm transmission speed and timely arrival of all Routine check messages and synchronization of all device configuration values from user interface to devices. More than 8 devices per bridge can cause issues with connectivity and alarm/device configuration arrival. All Reconeyez devices in the same device group need to be on the same 2,4 GHz channel (eg. the default channel 22). 2. Connectivity and correct order of installation  Updated on 03 Jan 2024 •  3 Minutes to read The correct order of installati on is that first the bridge is configur ed via the Reconey ez app and its mobile signal connecti vity checked. Installing all devices without verifying that there is adequate mobile signal is not advised. After verifying bridge connectivity to Reconeyez server installer can continue with detector and siren installation. During detector and siren installation installer can verify its connectivity to the bridge by using the Trace function in Reconeyez app. Trace function displays the live 2,4 GHz signal in dBm from each device to the bridge. Final connectivity test before installer leaves the site should involve triggering at least one alarm event from each device and verifying that it arrives into Reconeyez server. 3. Installation distances and direct line of sight Each detector and siren should have direct line of sight with its bridge as a rule. This will ensure minimal packet loss and fastest alarm event transmission to server. If this is not possible due to buildings or landscape profile, then alarm transfer will be slower and device battery depletion faster. In areas with large concrete building or mountains, it is advised to install several device groups to cover the desired area from all directions so there would be good connectivity between each detector and its bridge. 4. Mutliple device groups in the same area Mutliple device groups in the same area or installation site (in 1 km radius) means that device groups must be programmed to use different 2,4 GHz radio channels. Failure to do so will result in detectors communicating with several bridges that they can "hear". This will result in occasional or permanent connectivity problems. To change the 2,4 GHz channel user the Reconeyez app and choose correct 2,4 GHz channels for each device in the app Device configuration menu. Do not forget to change the scanned channel also in the Reconeyez app to find the devices again after their channel is changed.  Previous Battery extension pack - technical datasheet Next Installation - before going to site 

1tJt1 reconeyez Defendec Ltd Erika 14, C-entrance, 10416 Tallinn Harjumaa, Estonia Date: 11/14/23 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AZIM-DET Attestation Statements Part 2.911 (d)(S)(i) Filing To whom it may concern, Defendec Ltd, certifies that the equipment for which authorization is sought is not "covered" equipment prohibited from receiving an equipment authorization pursuant to the section 2.903 of the FCC rules. Sincerely, Siqnature: DJti/ Tauri Tuubel CTO

1flt1 reconeyez Defendec Ltd Erika 14, C-entrance, 10416 Tallinn Harjumaa, Estonia Date: 11/14/23 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AZIM-DET Attestation Statements Part 2.911 (d)(5)(ii) Filing T o whom it may concern, Defendec Ltd certifies that, as of the date of the filing of the application, Defendec Ltd is not identified on the Covered Ust (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing "covered" equipment. Sincerely, Signature ;J~ Tauri Tuubel CTO

1tJt1 reconeyez Defendec Ltd Erika 14, C-entrance, 10416 Tallinn Harjumaa, Estonia Date: 11/14/23 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AZIM-DET Confidentiality Request T o whom it may concern, Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, we hereby request confidential treatment of the information accompanying this application as outlined below: 181Block Diagram ~Operational Description ~Schematics ~Parts List □Tune-Up lnformation □Security lnformation □Software Defined Radio (SDR) lnformation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Ruie 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature:jO .vJJ{/ Tauri Tuubel CTO

1fft1 reconeyez Defendec Ltd Erika 14, C-entrance, 10416 Tallinn Harjumaa, Estonia Date: 11/14/23 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC 1D: 2AZIM-DET Declaration on Model Differences T o whom it may concern, The two sub models DH019C0-GG-1810 and DH019C0-GG-1850 that Iive under model Detector_HDR_XRL, the difference between them is the physical PIR lens angle, this isa purely non electronic change and has no impact on the electronic parameters. Sincerely, Signature: fj~ Tauri Tuubel CTO

Defendec Ltd Erika 14, C-entrance, 10416 Tallinn Harjumaa, Estonia Date: 11/14/23 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AZIM-DET Declaration of Authorization To whom it may concern, I, the undersigned, hereby authorize, Shenzhen UnionTrust Quality and Technology Co., Ltd. (Billy Li Tel:+86-755-28230888), to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Shenzhen UnionTrust Quality and Technology Co., Ltd. on our behalf shall have the same effects as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 853(a). This authorization is valid until further written notice from the applicant. Sincerely, Signature: Tauri Tuubel CTO

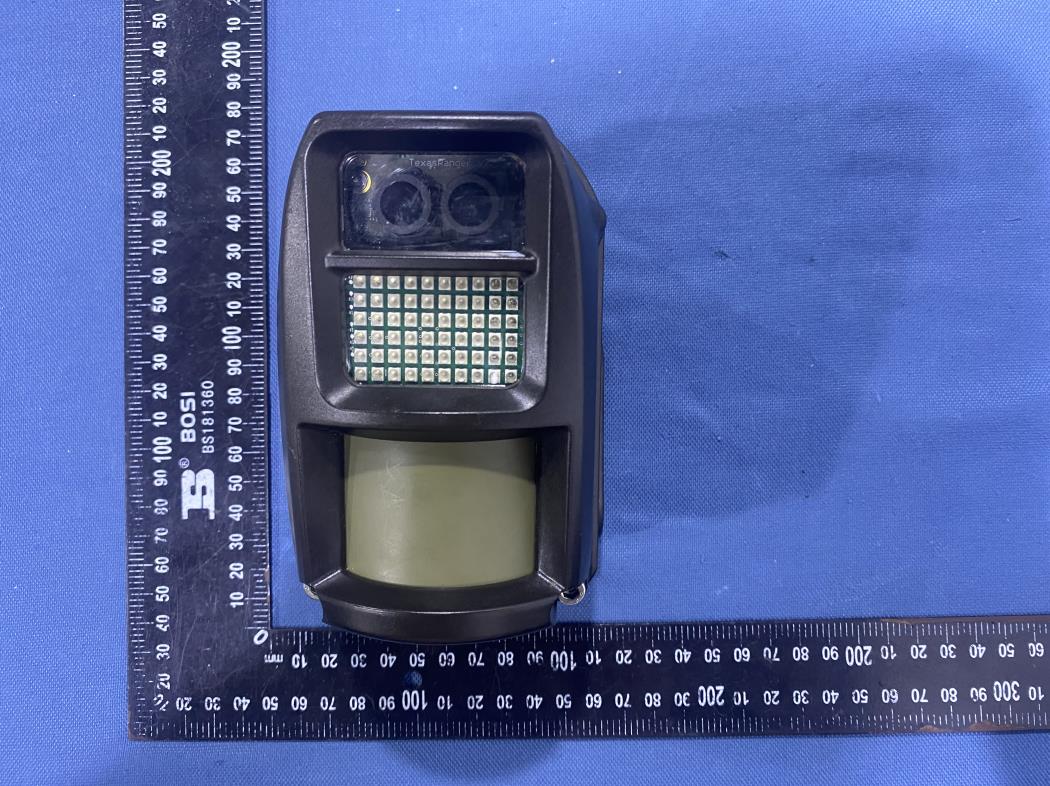

Page 1 of 3 FCC ID: 2AZIM-DET Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT EXTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 3 FCC ID: 2AZIM-DET Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 3 FCC ID: 2AZIM-DET Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo

Defendec Ltd Erika 14, C-entrance, 10416 Tallinn Harjumaa, Estonia Date: 11/14/23 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AZIM-DET Internal Labeling Request To whom it may concern, Based on the guidance of KDB 784748 D01, Section 3, Defendec Ltd., has determined that external labeling of their product would not desirable for end users for the following reasons: 1) The product is used outdoors and will be subject to environmental degradation; over time any external labeling will be worn away. 2) The product is typically mounted and an end user does not readily view the external labeling of the product; the one time the product labelling will be reviewed is during the product installation. The labeling of the product can be safely put into a user accessible battery cavity, as pictured below, and this will ensure the labeling will not be degraded over time. Sincerely, Signature: Tauri Tuubel CTO

Page 1 of 8 FCC ID: 2AZIM-DET Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT INTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 8 FCC ID: 2AZIM-DET Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo 2.4GHz Antenna Page 3 of 8 FCC ID: 2AZIM-DET Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 4 of 8 FCC ID: 2AZIM-DET Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 5 of 8 FCC ID: 2AZIM-DET Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 6 of 8 FCC ID: 2AZIM-DET Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 7 of 8 FCC ID: 2AZIM-DET Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 8 of 8 FCC ID: 2AZIM-DET Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo

RF Exposure Requirements 1. EUT information Product Name: Detector HDR FCC ID: 2AZIM-DET 2. RF information General 2.4GHz Tx frequency range: 2405~2480MHz Type of Modulation: GFSK Device category: Portable device Maximum Conducted Output Power: -32.55dBm, Max. Tune-up Power: -32.0 dBm (±1 dB) Maximum Antenna Gain: 3.31 dBi 3. Radio-frequency exposure According to KDB 447498 D04, SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Mode Max. Tune-up Power (dBm) Max. Tune-up Power (mW) All Face Ant. to Surface (mm) Calculated Result (mW) Require SAR Testing? General 2.4GHz -31.0 0.000794 5 2.72 No So the transmitter complies with the RF exposure requirements and the SAR is not required.

Page 1 of 5 ___________________________________________________________________________________________________________________________________________________________________________________________________________________________________ TEKFUN CO., Ltd. E-mail: [email protected] URL: www.tekfun.com.tw 4F., No.32, Kunming St., Jhongli City, Taoyuan Hsien 32089, Taiwan Tel : 886-3-4280826 Fax:886-3-4280010 Tekfun Co., Ltd. SPECIFICATION FOR APPROVAL CUSTOMER Defendec DESCRIPTION IP66 Miniature 2.4GHz Antenna (External) w/ Pigtail Cable PART NO. M48-FL-174-120-RPSMA DATE 2024/1/3 DESIGNER BILL CHANG DIRECTOR JASON TSAI Approved by Customer/date: Page 2 of 5 ___________________________________________________________________________________________________________________________________________________________________________________________________________________________________ TEKFUN CO., Ltd. E-mail: [email protected] URL: www.tekfun.com.tw 4F., No.32, Kunming St., Jhongli City, Taoyuan Hsien 32089, Taiwan Tel : 886-3-4280826 Fax:886-3-4280010 Tekfun Co., Ltd. ANTENNA SPECIFICATIONS FOR APPROVAL 1 GENERAL DESCRIPION 1.1 Type No. : M48-FL-174-120-RPSMA 1.2 Customer P/N : 2 DESCRIPTION & APPLICATION This antenna assembly is designed for use in 2.4GHz frequency 3 ELECTRICAL CHARACTERISTICS 3.1 Frequency Range : 2.4-2.5GHz 3.2 V.S.W.R : ≦2.5 3.3 Connector : RP-SMA Male 3.4 Impedance : 50 Ω 3.5 Gain : 2dBi (Peak) 3.6 Cable : RG174 120mm 3.7 Radiation : Omni-directional 3.7 Polarization : Linear 3.8 Antenna type : Monopole 3.9 Antenna Cover : PC, Black 4 ENVIRONMENTAL CHARACTERISTICS 4.1 Operating temperature range -30 ~ + 65 degree 4.2 Storage Temperature: -40 ~ +75 degree 4.3 Waterproof: IP66 rating 5 QUALIFICATION TESTING 5.1 All products shall be able to withstand the following testing. 5.2 Physical dimensions identified within this specification. 6 PACKING 6.1 Packing: Poly Bag. Page 3 of 5 ___________________________________________________________________________________________________________________________________________________________________________________________________________________________________ TEKFUN CO., Ltd. E-mail: [email protected] URL: www.tekfun.com.tw 4F., No.32, Kunming St., Jhongli City, Taoyuan Hsien 32089, Taiwan Tel : 886-3-4280826 Fax:886-3-4280010 Tekfun Co., Ltd. ANTENNA SPECIFICATIONS FOR APPROVAL 7 DRAWING Page 4 of 5 ___________________________________________________________________________________________________________________________________________________________________________________________________________________________________ TEKFUN CO., Ltd. E-mail: [email protected] URL: www.tekfun.com.tw 4F., No.32, Kunming St., Jhongli City, Taoyuan Hsien 32089, Taiwan Tel : 886-3-4280826 Fax:886-3-4280010 Tekfun Co., Ltd. ANTENNA SPECIFICATIONS FOR APPROVAL 8 TEST VSWR – Return LOSS Page 5 of 5 ___________________________________________________________________________________________________________________________________________________________________________________________________________________________________ TEKFUN CO., Ltd. E-mail: [email protected] URL: www.tekfun.com.tw 4F., No.32, Kunming St., Jhongli City, Taoyuan Hsien 32089, Taiwan Tel : 886-3-4280826 Fax:886-3-4280010 Tekfun Co., Ltd. ANTENNA SPECIFICATIONS FOR APPROVAL 9 TEST PATTERNS

Page 1 of 34 Report No.: 2308086385RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 FCC TEST REPORT Product Name: Detector HDR Trade Mark: N/A Model No.: Detector_HDR_XRL Add. Model No.: DH019C0—GG—1810, DH019C0— GG—1850 Report Number: 2308086385RFC-1 Test Standards: FCC 47 CFR Part 15 Subpart C FCC ID: 2AZIM-DET Test Result: PASS Date of Issue: January 8, 2024 Prepared for: Defendec Ltd Erika 14, C-entrance, 10416 Tallinn, Harjumaa, Estonia Prepared by: Shenzhen UnionTrust Quality and Technology Co., Ltd. Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China TEL: +86-755-2823 0888 FAX: +86-755-2823 0886 Prepared by: Reviewed by: David Chen Henry Lu Senior Project Engineer Team Leader Approved by: Date: January 8, 2024 Kevin Liang Assistant Manager Page 2 of 34 Report No.: 2308086385RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 Version Version No. Date Description V1.0 January 8, 2024 Original Page 3 of 34 Report No.: 2308086385RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.2.1 GENERAL DESCRIPTION OF EUT ............................................................................................................ 4 1.2.2 DESCRIPTION OF ACCESSORIES .............................................................................................................. 4 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 4 1.4 DESCRIPTION OF SUPPORT UNITS ...................................................................................................................... 5 1.5 TEST LOCATION ................................................................................................................................................. 5 1.6 TEST FACILITY ................................................................................................................................................... 5 1.7 DEVIATION FROM STANDARDS ............................................................................................................................ 5 1.8 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 6 1.9 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 6 1.10 MEASUREMENT UNCERTAINTY ........................................................................................................................... 6 2. TEST SUMMARY ...................................................................................................................................................... 7 3. EQUIPMENT LIST .................................................................................................................................................... 8 4. TEST CONFIGURATION .......................................................................................................................................... 9 4.1 ENVIRONMENTAL CONDITIONS FOR TESTING ........................................................................................................ 9 4.1.1 NORMAL OR EXTREME TEST CONDITIONS ............................................................................................... 9 4.1.2 RECORD OF NORMAL ENVIRONMENT....................................................................................................... 9 4.2 TEST CHANNELS ............................................................................................................................................... 9 4.3 EUT TEST STATUS ............................................................................................................................................ 9 4.4 TEST SETUP .................................................................................................................................................... 10 4.4.1 FOR RADIATED EMISSIONS TEST SETUP ................................................................................................ 10 4.4.2 FOR CONDUCTED EMISSIONS TEST SETUP ............................................................................................ 11 4.4.3 FOR CONDUCTED RF TEST SETUP ........................................................................................................ 12 4.5 SYSTEM TEST CONFIGURATION ........................................................................................................................ 12 4.6 DUTY CYCLE ................................................................................................................................................... 13 5. RADIO TECHNI…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2AZIM-DET Report No.: 2308086385RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 1 PHOTOS OF TEST SETUP Radiated emission 30MHz to 1GHz Test Setup Radiated emission Above 1GHz Test Setup Page 2 of 2 FCC ID: 2AZIM-DET Report No.: 2308086385RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com RF Test Setup
