2AZJ3-ES32-SF-TAFloatie Speaker

USER’S MANUAL I ES32-SF-TA 1. Press and hold the Power button for 2-3 seconds to turn the speaker On. Speaker Floatie 2-3 SEC PRESS & HOLD Power Charging port SPECIFICATIONS CHARGING BLUETOOTH PAIRING Bluetooth Range: Up to 33 feet (10 meters) Battery Type: Polymer Lithium Ion Battery Charging Input: Play Time: Approximately 3-5 hours** Charging Time: Approximately 1-2 hours **Applicable at 50% of maximum volume. Results will be lower when volume is higher. 1. The included USB charging cable has a Micro USB plug and a standard USB plug. 2. Insert the cable’s standard USB plug into the USB port of a computer or suitable USB charging adapter. Then insert the cable’s Micro USB end into the speaker’s charging port. Charging in red light, Blue light after full charge. Micro USB Plug USB Plug The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sakar International is under license. Other trademarks and trade names are those of their respective owners. A QUICK LOOK 2. Go to the Bluetooth settings menu on your phone. Make sure that Bluetooth is turned on. Connect to the device listed as "Speaker Floatie." connected Speaker Floatie DC 5V 500 mA Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Consult the dealer or an experienced radio/TV technician for help. 1. READ ALL INSTRUCTIONS BEFORE USING YOUR SPEAKER. 2. Do not allow children to use the speaker without proper adult supervision. 3. Do not expose your speaker to excessive heat or fire. 4. Always press the buttons carefully. 5. Do not use in extremely dry environments as this can lead to static discharge during usage. 6. Do not expose your speaker to temperatures above 104°/ 40°C. Keep out of direct sunlight. 7. Do not attempt to repair this product yourself. Contact a qualified service center if your speaker are in need of service. 8. Do not drop, puncture or expose the speaker to extreme physical force. 9. Your speaker are not intended for commercial use. 10. Do not place the speaker near objects that generate a strong magnetic field. 11. Use only the included charging cable. 12.Unplug this device when not in use for long periods of time and during lightning storms. 13. Do not pull or yank on the power cable. Always remove the cable gently from wall outlets and the speaker’s charging port. 14. Use a soft cloth to clean your speaker . Never use rubbing alcohol or other harsh chemicals. 15. Please recycle or dispose of your speaker properly based on the laws and rules of your 16. The device has been evaluated to meet general RF exposure requirement. municipality. Contact local recycling facilities and/or the manufacturer of your speaker for futher information. IMPORTANT SAFETY PRECAUTIONS VIVITAR ONE YEAR WARRANTY FCC STATEMENT ©2022 Sakar International 195 Carter Drive Edison, NJ 08817 Support: 800 592 9541 www.vivitar.com OTHER FUNCTIONS This warranty covers the original consumer purchaser only and is not transferable. This warranty covers products that fail to function properly UNDER NORMAL USAGE, due to defects in material or workmanship. Your product will be repaired or replaced at no charge for parts or labor for a period of one year. What Is Not Covered by Warranty Damages or malfunctions not resulting from defects in material or workmanship and damages or malfunctions from other than normal use, including but limited to, repair by unauthorized parties, tampering, modification or accident. To Obtain Warranty Service and Troubleshooting Information: Call 1-800-592-9541 or visit our website at www.vivitar.com. To receive Warranty service along with the name and address of an authorized product service center, the original consumer purchaser must contact us for problem determination and service procedures. Proof of purchase in the form of a bill of sale or receipted invoice, evidencing that the product is within the applicable Warranty period(s), MUST be presented in order to obtain the requested service. It is your responsibility to properly package and send any defective products along with a dated copy of proof of purchase, a written explanation of the problem, and a valid return address to the authorized service center at your expense. Do not include any other items or accessories with the defective product. Any products received by the authorized service center that are not covered by warranty will be returned unrepaired. 1. Turn on two speakers, and short press power button into TWS mode (Do not do BT paring pls). 2. Short press twice one of the power button into tws paring. 3. Wait for ting voice means tws paring finish automatically. 4. Do BT paring, then go for music playing. 5. End TWS paring: close BT paring firstly, short press twice power button to end tws paring. TWS

Sound Tide Electronics (DongGuan) Co., Limited. Agent Authorization Company: Sound Tide Electronics (DongGuan) Co., Limited. Address: 401, No.12 Ditang Lane, Dapianmei Village, Dalingshan Town, Dongguan, Guangdong, 523820 China Product Name: Floatie Speaker Model Number(s): ES32-SF-TA, SF-ES32-LM, SF-ES32-FL Product Description: Floatie Speaker We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Nov. 18, 2021 Name: Carrie Niu Title: Sales Manager Company: Sound Tide Electronics (DongGuan) Co., Limited.

Sound Tide Electronics (DongGuan) Co., Limited. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Nov. 18, 2021 Subject; Request for Confidentiality FCC ID: 2AZJ3-ES32-SF-TA To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Carrie Niu Title: Sales Manager

Model Difference Declaration To Whom It May Concern, We, Sound Tide Electronics (DongGuan) Co., Limited. (Floatie Speaker) ; Model Number:ES32-SF-TA, SF-ES32-LM, SF-ES32-FL; All model’s the function, software and electric circuit are the same, only with a product color, appearance and model named different. Test sample model: ES32-SF- TA Please contact me if you have any question. Name: Carrie Niu Date: Nov. 18, 2021 Title: Sales Manager Signature of applicant:

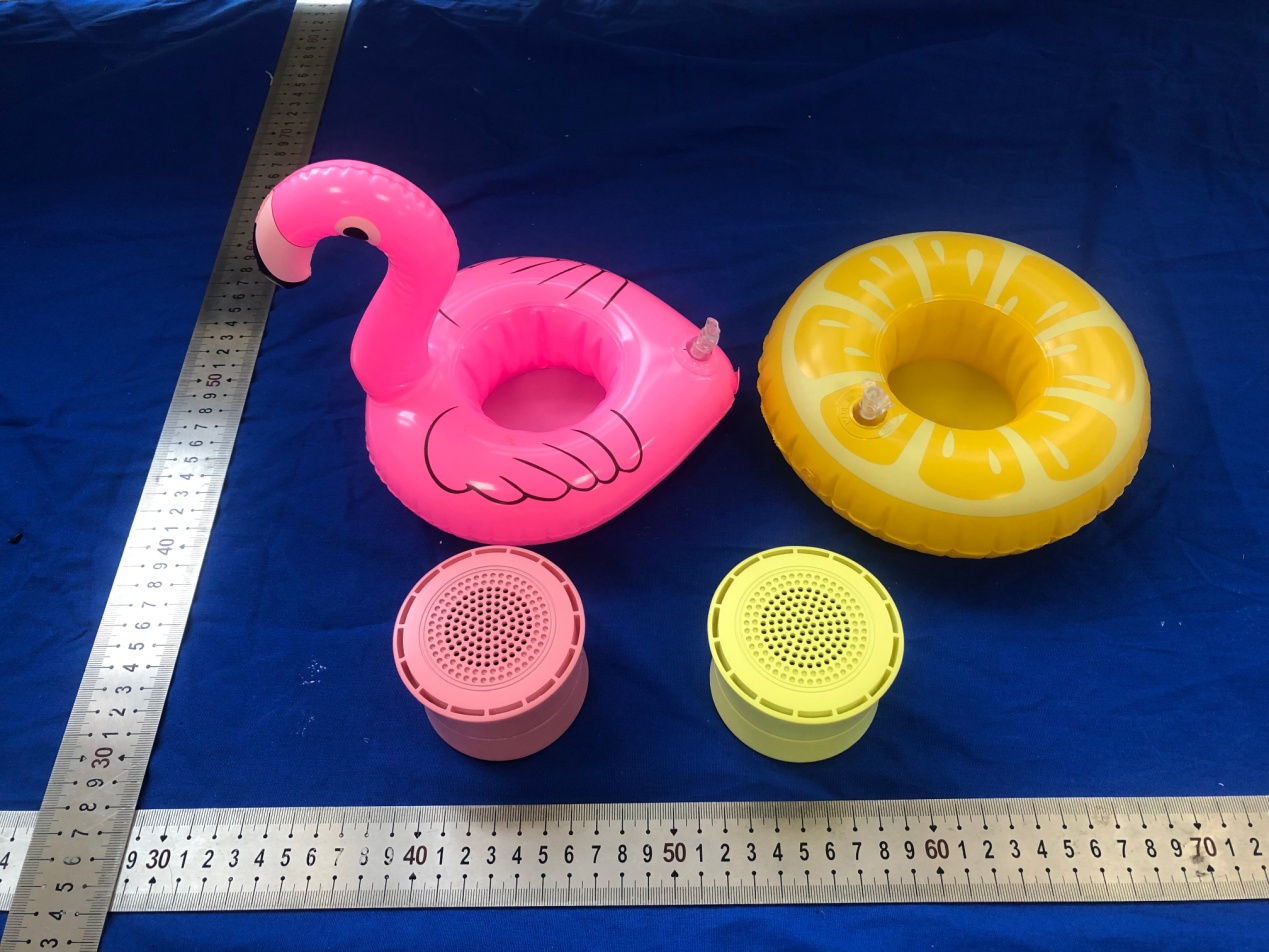

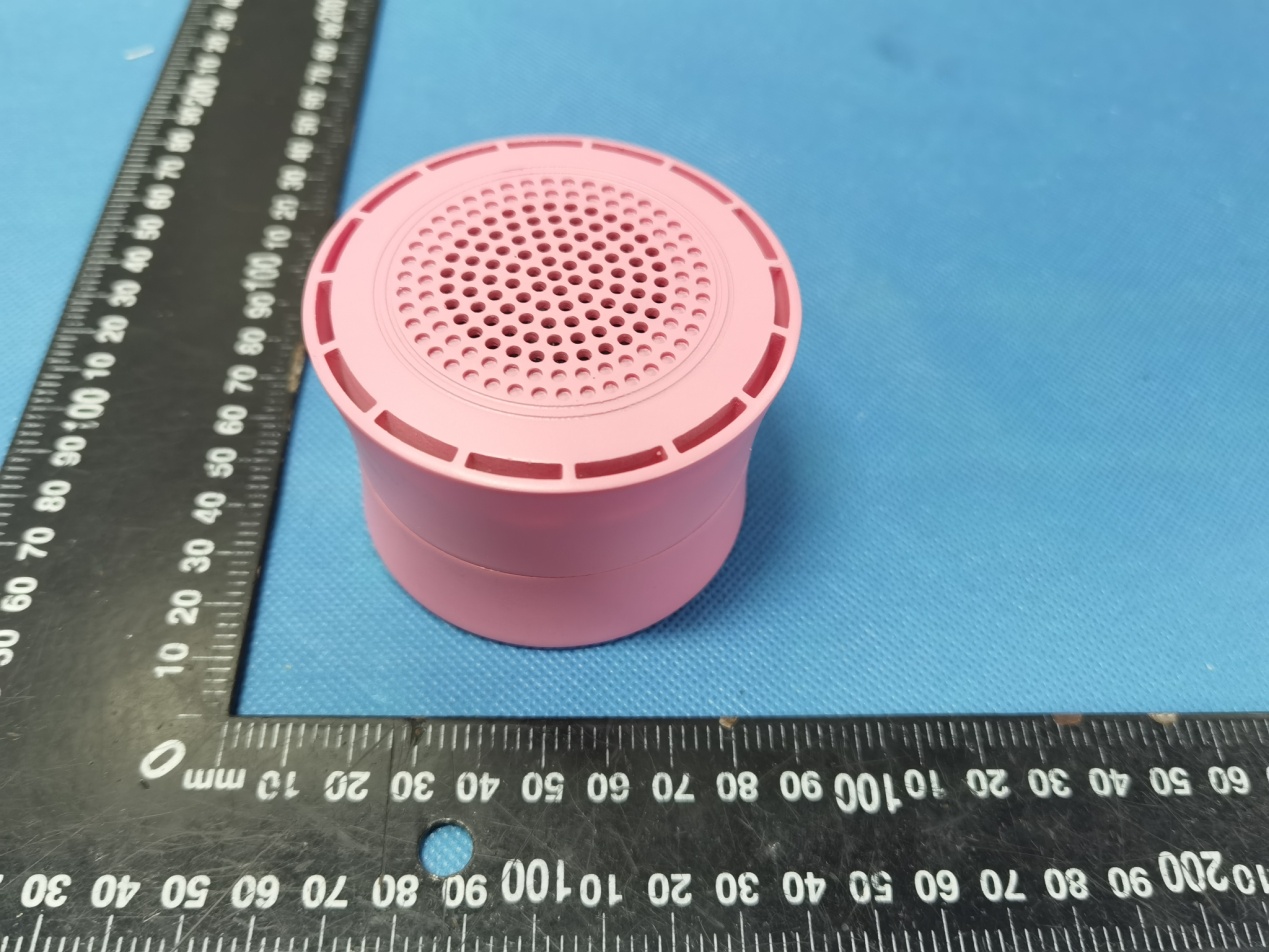

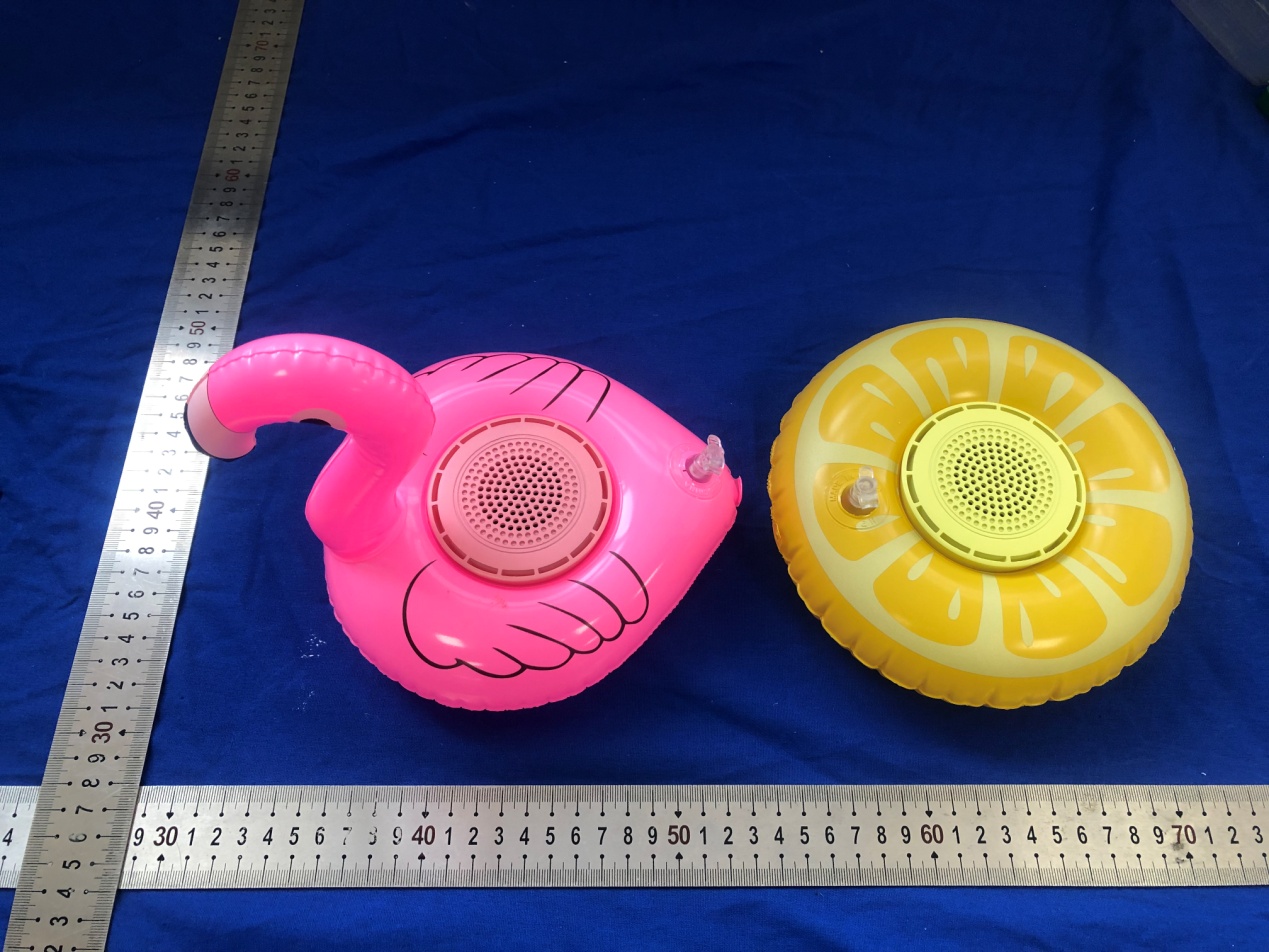

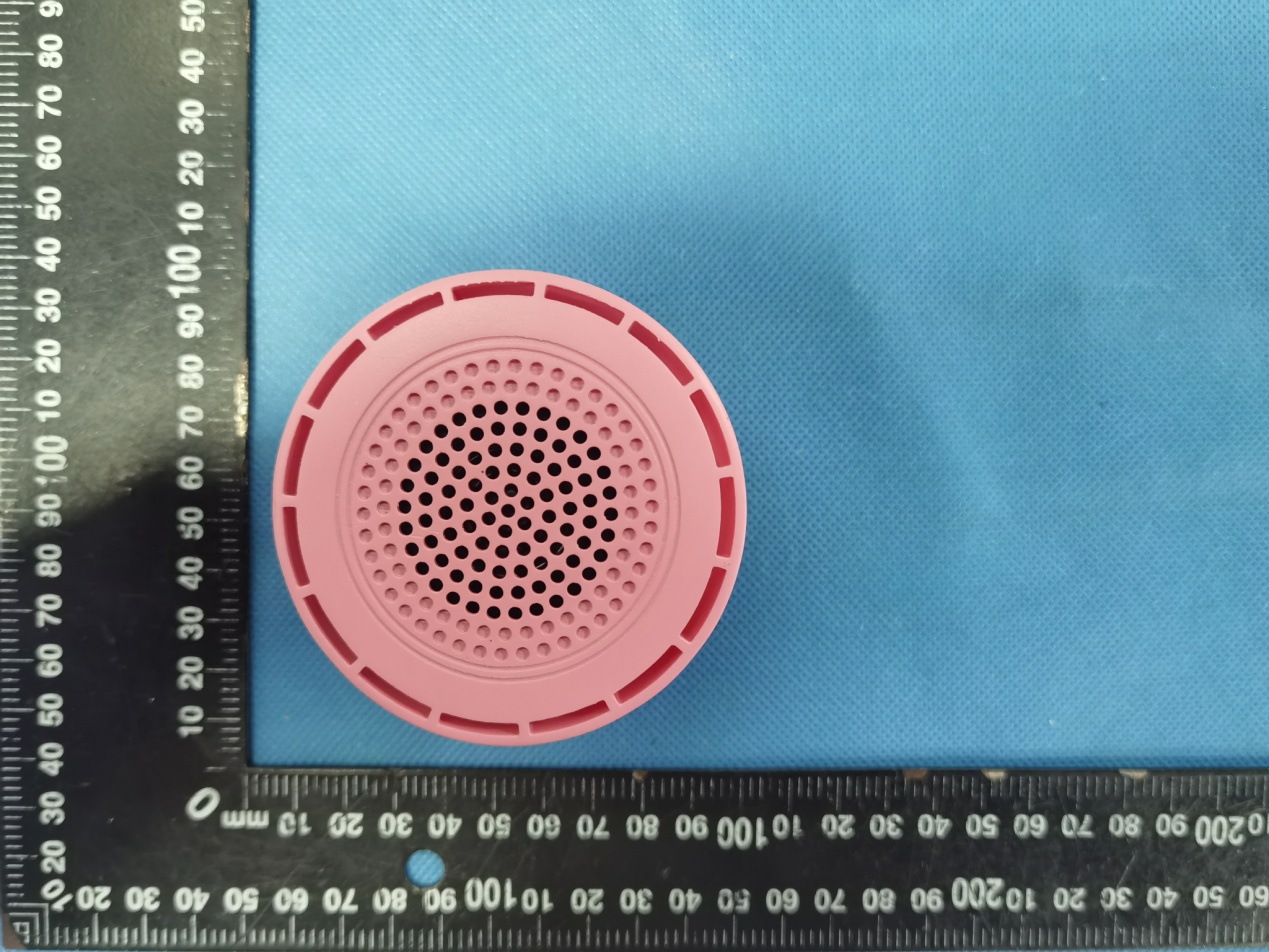

Annex A External Photos Report No.: HK2111094293‐E Page 1 of 5 Report No.: HK2111094293‐E Page 2 of 5 Report No.: HK2111094293‐E Page 3 of 5 Report No.: HK2111094293‐E Page 4 of 5 Report No.: HK2111094293‐E Page 5 of 5

FCC ID LABEL: Ca. 5mm x 10mm Label Location FCC ID: 2AZJ3-ES32-SF-TA

Annex B Internal Photos Report No.: HK2111094293‐E Page 1 of 2 Antenna Report No.: HK2111094293‐E Page 2 of 2

FCC RF Exposure EUT Description: Floatie Speaker Model No.: ES32‐SF‐TA, SF‐ES32‐LM, SF‐ES32‐FL FCC ID: 2AZJ3‐ES32‐SF‐TA 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√ f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation BT Frequency (MHz) Output power （dBm） Tune Up Power （dBm） Max Tune Up power dBm/mW Min test separati on distance mm Result Limit (mW/cm 2 ) SAR Test Exclusion EDR:2480 ‐4.33 ‐4±1 ‐3/0.50 5 0.157 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2111094293‐E, antenna gain=0dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.157 which is<= 3, RF Exposure testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Page 1 of 47 Report No.: HK2111094293-E TEST REPORT FCC PART 15 SUBPART C 15.247 Test report On Behalf of Sound Tide Electronics (DongGuan) Co., Limited. For Floatie Speaker Model No.: ES32-SF-TA, SF-ES32-LM, SF-ES32-FL FCC ID: 2AZJ3-ES32-SF-TA Prepared for : Sound Tide Electronics (DongGuan) Co., Limited. 401, No.12 Ditang Lane, Dapianmei Village, Dalingshan Town, Dongguan, Guangdong, 523820 China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Nov. 08, 2021 ~ Nov. 15, 2021 Date of Report: Nov. 15, 2021 Report Number: HK2111094293-E Page 2 of 47 Report No.: HK2111094293-E TEST RESULT CERTIFICATION Applicant’s name ................. : Sound Tide Electronics (DongGuan) Co., Limited. Address ................................. : 401, No.12 Ditang Lane, Dapianmei Village, Dalingshan Town, Dongguan, Guangdong, 523820 China Manufacture's Name ............ : Sound Tide Electronics (DongGuan) Co., Limited. Address ................................. : 401, No.12 Ditang Lane, Dapianmei Village, Dalingshan Town, Dongguan, Guangdong, 523820 China Product description Trade Mark: VIVITAR Product name ........................... : Floatie Speaker Model and/or type reference : ES32-SF-TA, SF-ES32-LM, SF-ES32-FL Standards ............................. : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Nov. 08, 2021 ~ Nov. 15, 2021 Date of Issue ........................................... : Nov. 15, 2021 Test Result ............................................... : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 47 Report No.: HK2111094293-E Table of Contents Page 1. SUMMARY............................................................................................................................................................ 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION ....................................................................................................................................... 7 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 7 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 7 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 8 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 2.7. DESCRIPTION OF TEST SETUP ................................................................................................................................ 10 3. TEST CONDITIONS AND RESULTS ......................................................................................................................... 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 14 3.3. MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................................................... 25 3.4. 20DB BANDWIDTH ..................................................................................................................................................... 26 3.5. FREQUENCY SEPARATION ............................................................................................................................................. 29 3.6. NUMBER OF HOPPING FREQUENCY ................................................................................................................................. 31 3.7. TIME OF OCCUPANCY (DWELL TIME) .............................................................................................................................. 33 3.8. OUT‐OF‐BAND EMISSIONS ............................................................................................................................................ 36 3.9. PSEUDORANDOM…

Text truncated - open the document above for the full version.

Test Model：ES32-SF-TA Radiated Emission
