2AZJKP80SSonic Electric Toothbrush

1 Model:P80S SonicElectricToothbrush ElektrischeSchall-Zahnbürste CepillodedientesElectrósonico Brosseàdentsélectriquesonique Spazzolinodadentielettricosonico 音波式電動歯ブラシ InstructionManual(EN)...............1 Bedienungsanleitung(DE)............6 ManualdeInstrucciones(ES)........11 Moded’emploi(FR)......................17 Manualed'istruzioni(IT)..............21 取扱説明書(JP)..............................26 InstructionManual(EN) ThankyouforchoosingtheFairywillP80Ssonictoothbrush.Pleasereadtheinstructions carefullybeforeusingtheproduct,andkeeptheusermanualinasafeplaceforfuture reference. WARNNING: AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliance couldvoidtheuser'sauthoritytooperatetheequipment. Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo conditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause undesiredoperation. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital device,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable protectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates 2 usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththe instructions,maycauseharmfulinterferencetoradiocommunications.However,thereisno guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningthe equipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreof thefollowingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. -Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris connected. -Consultthedealeroranexperiencedradio/TVtechnicianforhelp. ThedevicehasbeenevaluatedtomeetgeneralRFexposurerequirement.Thedevicecanbeused inportableexposureconditionwithoutrestriction. 1.Features: AWaterproofandnon-slipdesign. Replaceablebrushheadswithunique3Dshapebristlesdesignandabristlereplacement reminder,tohelpkeepyourteethwhiterandhealthier. Thehigh-frequencyvibrationeffectivelyremovesplaque,givingyourteethandgumsa deepcleaning,andpreventinggingivitis. Withthepressureindicator,usersareabletoknowwhenthepressureistoohardtotheir teeth. TheBluetoothtechnologyisbuiltintothetoothbrushforFairywillApplicationconnection, userscanlearnmoreabouttheirteethandgumconditionsthroughthetoothbrush connectingtotheFairywillApplication. USBcharging,travelfriendlyandcompatiblewithglobalvoltage. Alow-powerremindingfunction,whenthevoltageofthebatteryislowonpower,the indicatorlightwillkeepflashingquicklyorthetoothbrushisunabletoturnonduringthe operatingprocess,asaremindertochargethetoothbrush. A2minutesmarttimerwithintervalpausing,thatgivesaremindertochangethebrushing locationevery30seconds.  Thereare5modes:White,Clean,Sensitive,MassageandCustomsettingsbuiltintothe toothbrush.Thereisalsoamodememoryfunctionbuiltintothebrush,thatmeanswhen youturnonthetoothbrush,thedefaultstartingmodestaysthesameasthemodethat wassetatthetimethetoothbrushwaslastshutoff. 3 2.Designs: 1 BrushHead 2 PressureIndicator 3 ON/OFFButton 4 White 5 Clean 6 Sensitive 7 Massage 8 Custom 9 ChargingIndicator 10 BluetoothIndicator 11 ChargingPort 3.Operations: ☆Usingthetoothbrush Slidethetoothbrushheaddowntothehandleandmakesureitislockedinthecorrect position. UsercandownloadtheFairywillapplicationinphones,Androidsystemuserscan downloadthe“Fairywill”applicationfromGooglePlay,IOSsystemuserscandownload the“Fairywill”applicationfrom“APPSote”directly. Turnonthetoothbrushbypressingthe“Power”button. TheBluetoothindicatorwilllightupinWhiteifthedeviceandtoothbrushisinconnection, pleaseconnecttotheFairywillapplicationthatdownloadinphone. Shiftbetweenthe5modes(“White,Clean,Sensitive,MassageandCustom”)by continuouslypressingthe“Power”button. Wetthebristlesandapplyanappropriateamountoftoothpasteontothebrush. Placethebristleswithtoothpasteagainsttheteethataslightangletowardsthegumline. Gentlymovethebrushheadacrosstheteethonthefront,back,andallchewingsurfaces. Thebrushshouldbeallowedtoglideacrosstheteethwithminimalpressure.Donotapply toomuchpressuretotheteeth/gums,orapplythebristlestooneareaofthemouthforan extendedperiodoftime. 4 Ifthepressureistoohardagainstusers’teeth,thepressureindicatorlightwillturnonin Redtoremindtheuserstobecarefulwhencleaningorchangetoasuitablemodeoftheir own. Thebrushhasa2minutesmarttimerasthisisrecommendedbydentistsastheoptimal timeforbrushingtheteethandthereisintervalpausingafterevery30secondsasa remindertomovetoanotherquadrantofthemouth. Movetothenextsectionwhenyoufeelthepauseandthetoothbrushwillautomatically poweroffafter2minutes. Toavoidsplashingtoothpaste,onlyturnonthetoothbrushafteryouhaveplaceditagainst yourteethandonlyremoveitfromthemouthafteritisturnedoff. Notes: 1.Whenthephonedeviceandthetoothbrusharedisconnectedafterthebrushingprocess complete,thetoothbrush’sBluetoothfunctionwillgointoastandbyhibernationifitisina non-usestatusforalongtime.Itcanreducepowerconsumptionandextendbatterylifeinthis status.TheBluetoothfunctionwillawakewhenusersraisethetoothbrushagain.Ifitisnot awakened,pleasepressthepowerbuttontocheckwhetherthepowerissufficientornot; 2.BluetoothConnectionSteps: 1)Search:Startthe"Fairywill"APPonthephone,addorsearchforthetoothbrushdevices, clickonthetoothbrushdevicethatfoundonthephonetoassociateandconnect(pleaseplace thetoothbrushdeviceandthemobilephoneintheeffectiverange) 2)Connect:Whenthetoothbrushdeviceisintheconnectingprocess,theBluetoothindicator flashesinWhite,keeppressingthepowerbuttonofthetoothbrushforconnectionuntilitis finished; 3)SuccessfulConnection:Aftertheconnectioniscompleted,youcanmodifythedevicename andsetthebrushheadinformation,etc. ☆Changingthetoothbrushhead Install:Slidethetoothbrushheaddowntowardthehandle.Pleasemakesureitisinthe correctposition.  Detach:Firmlyholdthebasethen,pu…

Text truncated - open the document above for the full version.

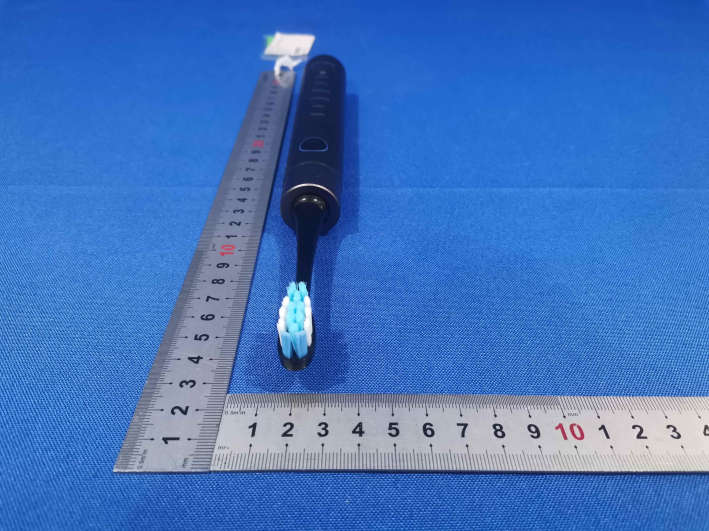

ReportNo.:EED32N80162601Page 29 of 36 PHOTOGRAPHSOFEUTConstructionalDetails TestmodelNo.:P80S ViewofProduct-1 ViewofProduct-2 ReportNo.:EED32N80162601Page 30 of 36 ViewofProduct-3 ViewofProduct-4 ReportNo.:EED32N80162601Page 31 of 36 ViewofProduct-5 ViewofProduct-6 ReportNo.:EED32N80162601Page 32 of 36 ViewofProduct-7 ViewofProduct-8
