UHF 無線麥克風系統 UHF Wireless Microphone System Quick User Guide 快速使用指南 Packing List Receiver Transmitter Mobile phone audio cable Camera audio cable Lavalier microphone Belt clip Hotshoe camera mount Instruction manual LED indicator status Audio input normal level indication No audio signal input Audio input peak indication Transmitter receiving status indication audio output indication No receive or no audio signal Receiver a: Red b: Green No light Status 1. antenna 2. Low battery indicator 3. 3.5mm audio output interface 4. 3.5mm microphone input interface 5. Channel selection 6. Volume adjustment 7. Channel display LED light 8. a: RF status light b: Audio light 9. a: Input peak indicator b: Audio input indicator 10. Switch lock 11. Battery bin 12. Belt clip 13. Hotshoe camera mount Transmitter Receiver Battery Installation Push and hold the position marked “PUSH” on the hotshoe camera mount ( ), separate the horizontal part of the belt clip from the level and groove on the hotshoe camera mount ( ), and then push the hotshoe camera mount in the direction of the arrow ( ). Disassemble hotshoe camera mount 123 1 2 3 Push the bottom of the belt clip ( ) to create a certain space between the belt clip and the receiver. Align the belt clip with the two vertical grooves on the hotshoe camera mount and insert the camera mount ( ) in the direction of the arrow. Push in the hotshoe camera mount until the belt clip fits into the horizontal groove on the handle of the camera mount. Install hotshoe camera mount 1 1 2 2 If the radio signals of the receiver and transmitter are connected properly, the red light indicator of the receiver will be long on, The number of channels displayed by the digital light is the same as that of the transmitter; if not connected, the red indicator of thereceiver will not be on. Before leaving the factory, the transmitter and receiver of each product have been set up in pairs, and can be used directly when starting. Matching of transmitter and receiver How to set the channel of the Receiver and Transmitter 1. Turn on the Receiver/Transmitter. 2. Long press the “Channel” button and the letters of the digital light will be converted sequence. 3. Set Receiver and Transmitter to the same channel the red light on Receiver turns on. Product connection diagram * Please connect the cable to the same terminal as the above picture according to the device you are using. 3.5mm 3-pole jack Microphone connection 3.5mm 4-pole jack Smartphone connection 3.5mm 3-pole jack Audio output connection 3.5mm 3-pole jack Camera connection Receiver and Transmitter indicators is as follows Receiver The red indicator light does not illuminate when there is no signal, and the red indicator light is on when the signal is received. Product Specification 124105 6119712 a b Receiver Specifications - 1 -- 2 -- 3 -- 4 -- 5 -- 6 - 123105 61171213 a b 8 Product description RF Carrier Frequency Range : 470 ~ 960MHz (Depending on country or region) Frequency Stability : 0.005% Effective Working Distance (ideal environment) : ≥50M Audio Compression : Digital Audio Compression Audio Frequency Response : 150 Hz ~ 1800 Hz ± 3 dB Dynamic Range : 90 dB (Circuit) S/N : 81 dB (Circuit) T.H.D : ≤0.8%, @1KHz Working Temperature Range : -10°C ~ +50°C Receiving Mode : Superheterdyne Mirror Suppression : 45 dBm Noise Regulation : built - in setting parameters RF Sensitivity : when input is 10 dBu, S/N ≥ 45 dB Frequency Synchronization : Manual key settings Max Output Level : LINE : 0.72 Vpp Output Level Adjustment Range : 5 level for adjustment, attenuation adjustment, Every 3dB step Output Impedance : 400 Ω Power : AA 1.5V x 2 Normal Working Current : 3V 100mA Battery Life : ≥11Hours Dimension : 96 x 60 x 18.8 (mm) Net Weight : 55g (without battery) Transmitter Specifications Oscillation : PLL synthesized Transmission Power : 10 dBm Carrier Error : 0.005% Harmonic radiation : -32 dBm Modulation : FM Nomina/Maximum Frequency Offset : ±65 KHz Max Input Level : 420 mV1% Input Lmpedance : 2.2 KΩ Input Gain Adjustment Range : 5 level adjustment setting, every 3dB step Frequency Setting : Manual key setting Power : AA 1.5V x 2 Normal Working Current : Battery powered : 120mA Battery Life : ≥11Hours Dimension : 96 x 60 x 18.8 (mm) Net Weight : 55g (without battery) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF Exposure Information The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Moman Technology Limited 12/F, SanToi Building, 137-139 Connaught Road, Central Hong Kong China Date: 2021-4-24 FCC ID: 2AZKG-MTS Dear Sir/Madam, We, ShenZhen Shi ShenYuanGuang KeJi YouXian GongSi Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: UHF Wireless Microphone Model no.: T1, T2，T3，T4，T5，T6，T7，T8，T9，T10，T1S，T2S，T3S，T4S，T5S，T6S， T7S，T8S，T9S，T10S Sincerely, Name/Title： Xiaoyang Cao/Manager Company: Moman Technology Limited Address: 12/F, SanToi Building, 137-139 Connaught Road, Central Hong Kong China Phone: 020-62342911 Fax: / E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021/04/24 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AZKG-MTS T1 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Xiaoyang Cao/Manager Company: Moman Technology Limited Address: 12/F, SanToi Building, 137-139 Connaught Road, Central Hong Kong China Phone: 020-62342911 Fax: / E-Mail: [email protected]

Moman Technology Limited 12/F, SanToi Building, 137-139 Connaught Road, Central Hong Kong China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021/04/24 To whom it may concern: We, Moman Technology Limited the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AZKG-MTS including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Xiaoyang Cao/Manager Company: Moman Technology Limited Address: 12/F, SanToi Building, 137-139 Connaught Road, Central Hong Kong China Phone: 020-62342911 Fax: / E-Mail: [email protected]

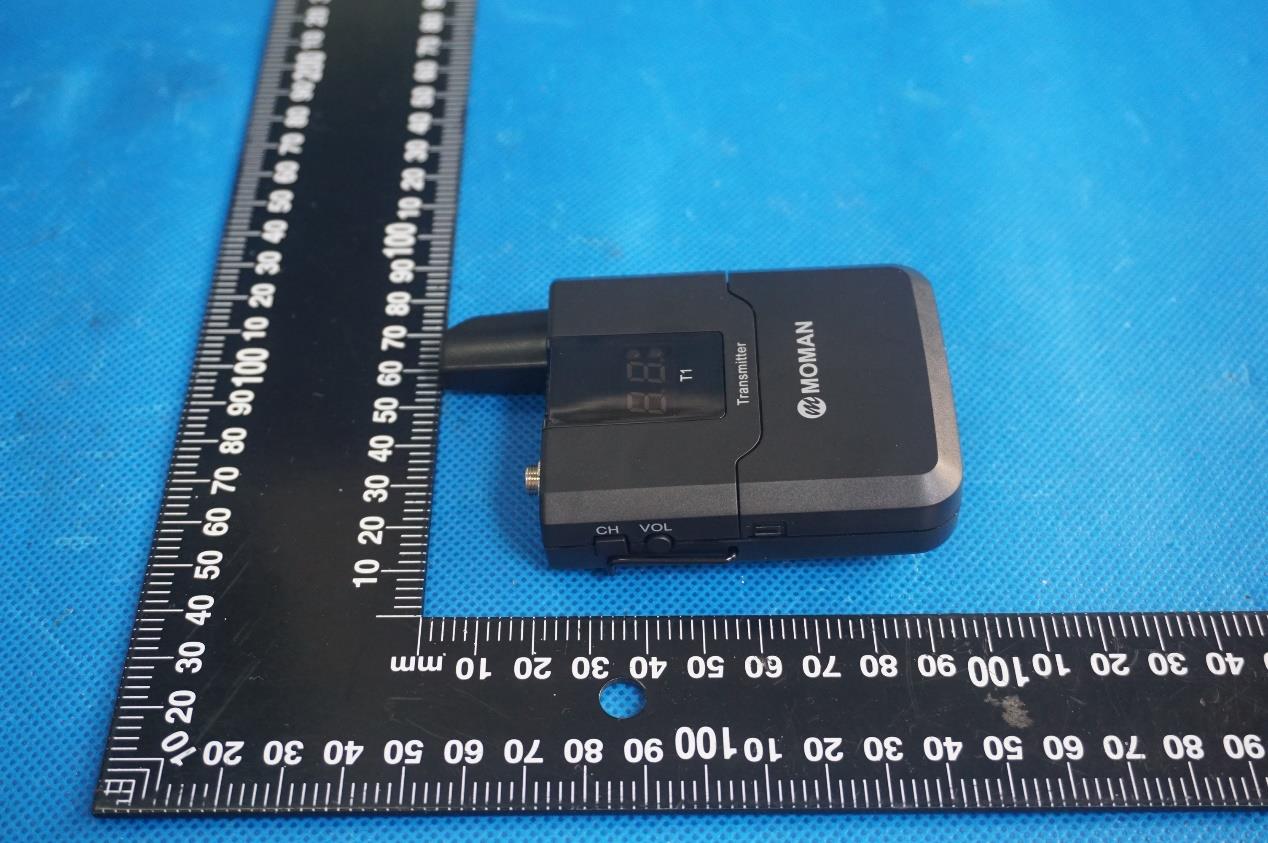

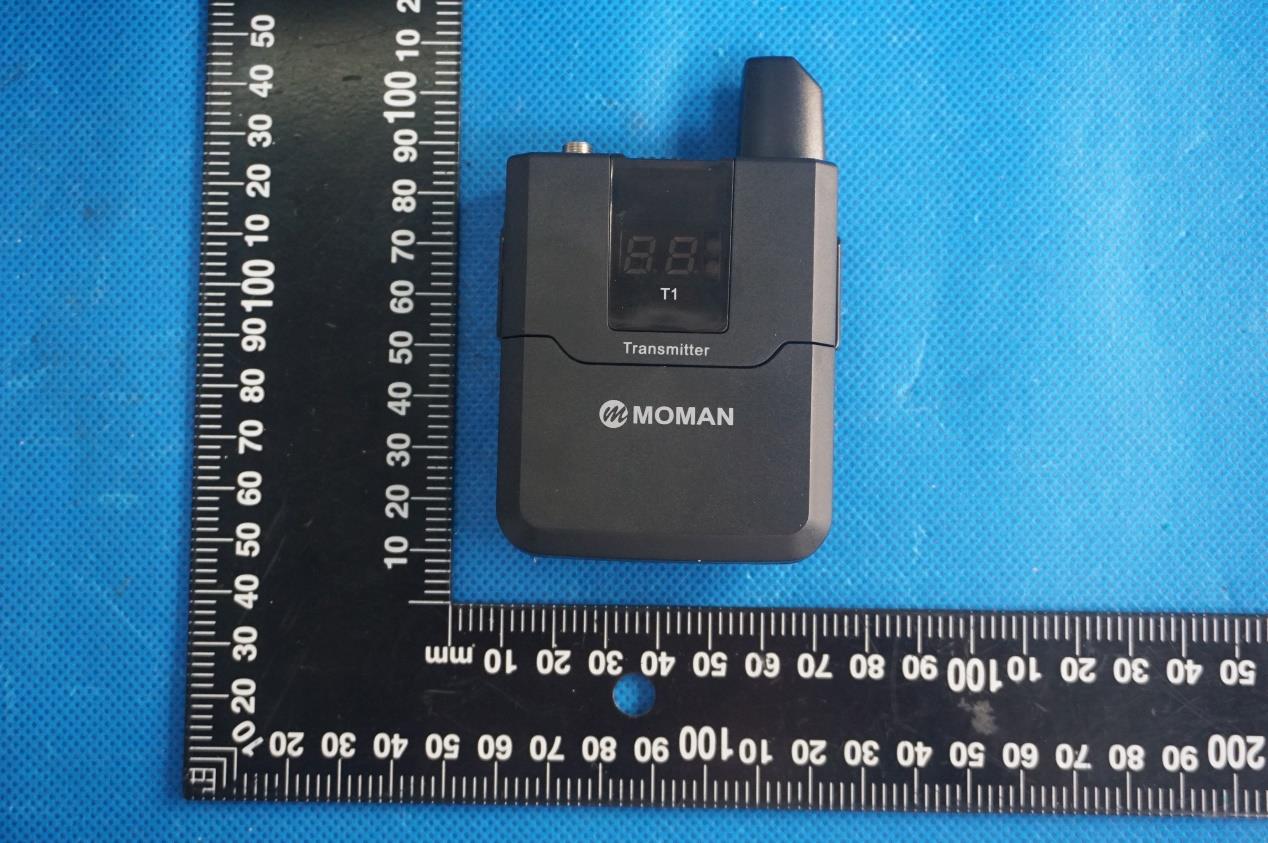

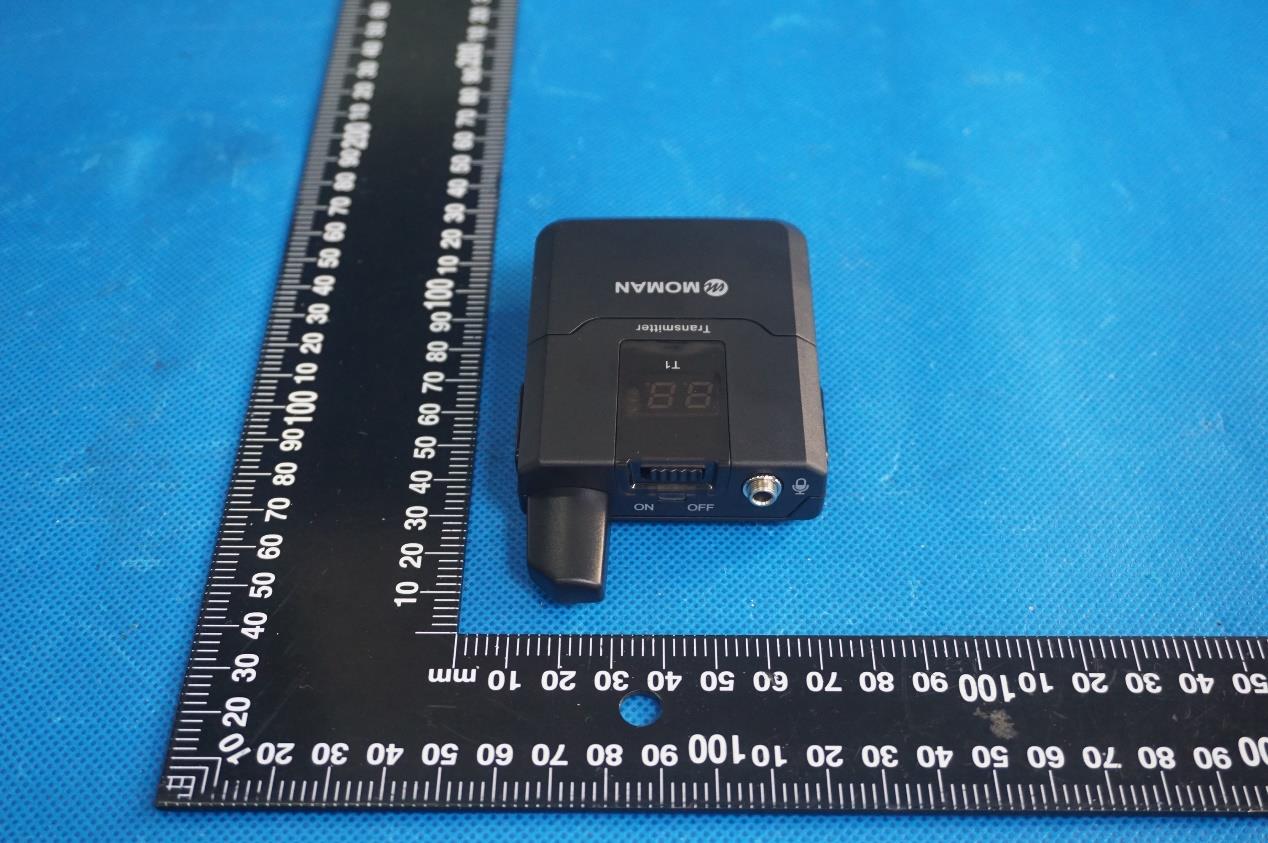

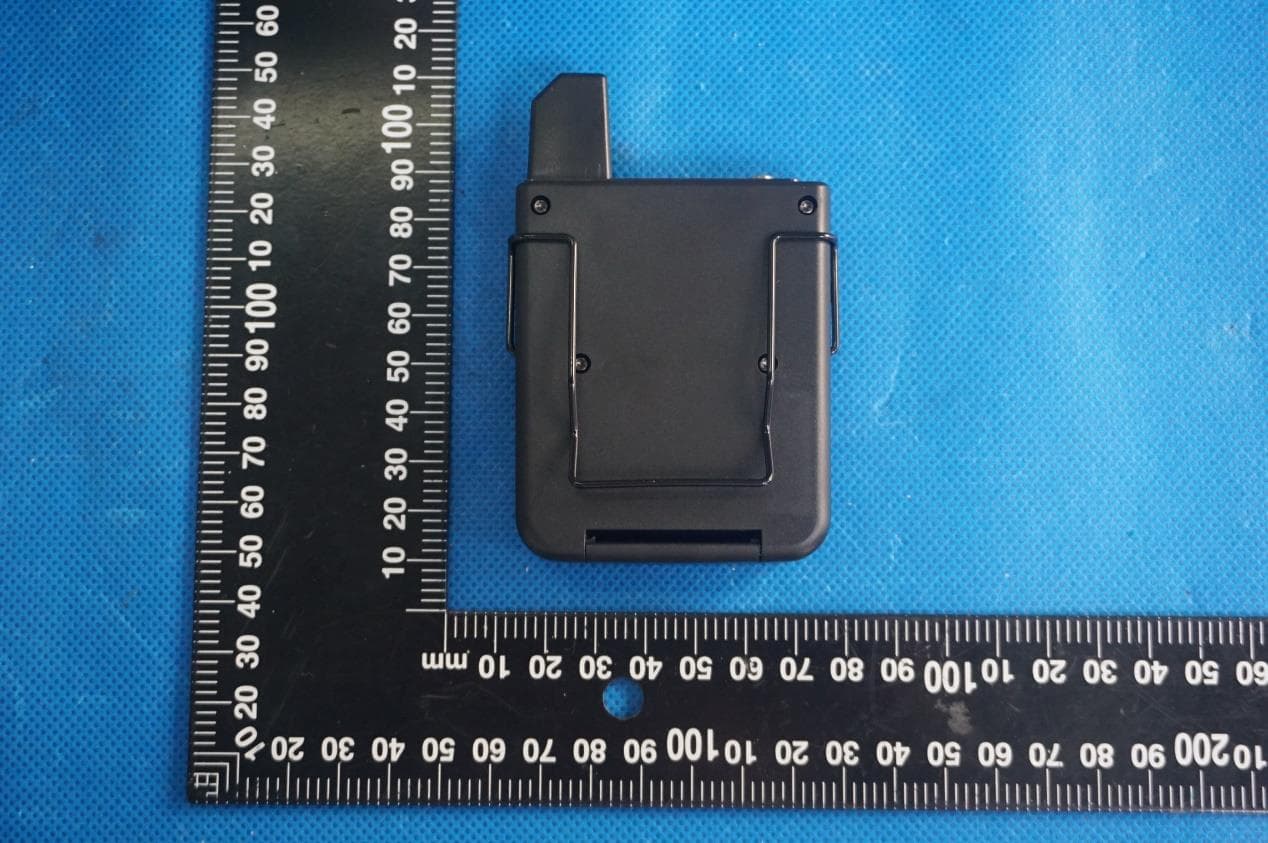

GTSL202103000146 Product Name: UHF Wireless Microphone Test Model No.: T1 EUT Constructional Details External Photo Fig.1 Fig.2 Transmitter Receiver GTSL202103000146 Fig.3 Fig.4 GTSL202103000146 Fig.5 Fig.6 GTSL202103000146 Fig.7

FCC ID: 2AZKG-MTS UHF Wireless Microphone Model No.: T1 FCC ID: 2AZKG-MTS

GTSL202103000146 Product Name: UHF Wireless Microphone Test Model No.: T1 EUT Constructional Details Internal Photo Fig.1 Fig.2 GTSL202103000146 Fig.3 Fig.4 Antenna GTSL202103000146 Fig.5

RF Exposure evaluation FCC ID: 2AZKG-MTS 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance UHF Wireless Microphone Channel Channel 1 Channel 9 Channel 16 Target (dBm) 10.0 10.0 10.0 Tolerance ±(dB) 1.0 1.0 1.0 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (MHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW FM 570 5 11.0 12.589 1.901<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................
