2AZKN-Y933 IN 1 Wireless Charge Station

Radiation Exposure Statement This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be coÿlocated or operating in conjunction with any other antenna or transmitter. During the operation of device a distance of 15 cm surrounding the device and 20 cm above the top surface of the device must be respected.

Shenzhen XinZhaoYi Technology Co.LTD The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 4/10/2023 U.S. Agent Designation Shenzhen XinZhaoYi Technology Co.LTD acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2AZKN-Y93): Name and company of U.S. agent: Tim Payne, FCC US Agent, LLC Physical U.S. address of agent: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN of U.S. agent: 0033402884 Email address of U.S. agent: [email protected] FCC US Agent, LLC acknowledges their obligation to accept service of process on behalf of Shenzhen XinZhaoYi Technology Co.LTD. Shenzhen XinZhaoYi Technology Co.LTD accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). Sincerely, Signature Chuanjin Jia engineer Manager Shenzhen XinZhaoYi Technology Co.LTD Signature Tim Payne Manager FCC US Agent, LLC 48_[model] US_Agent_2.911(d)(7)-U, V03

Sincerely, Name/Title： Chuanjin Jia/engineer Manager Company: Shenzhen XinZhaoYi Technology Co., LTD Address: 2nd Floor, Building A7, Quanbao Industrial Zone, No.32, Guanghui Road, Longteng Community, Shiyan Street, Baoan District, Shenzhen China Phone: 13923765917 Fax: 13923765917 E-Mail: [email protected]

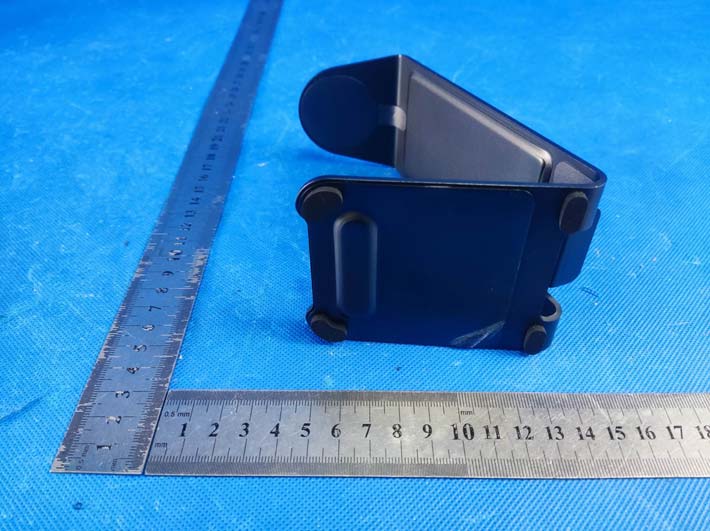

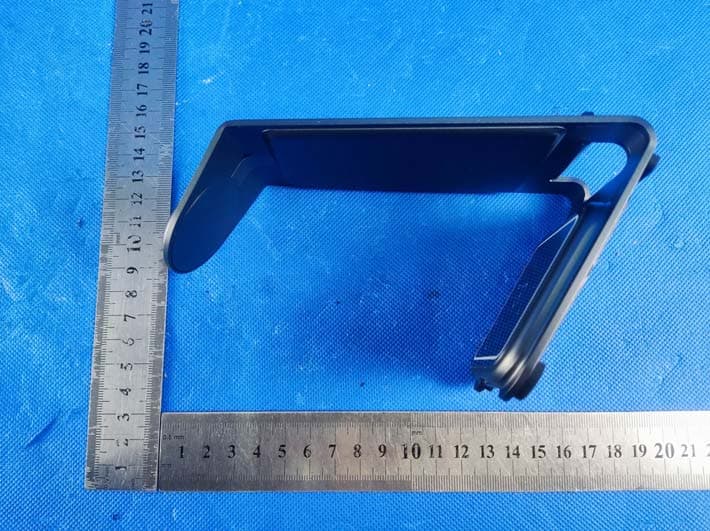

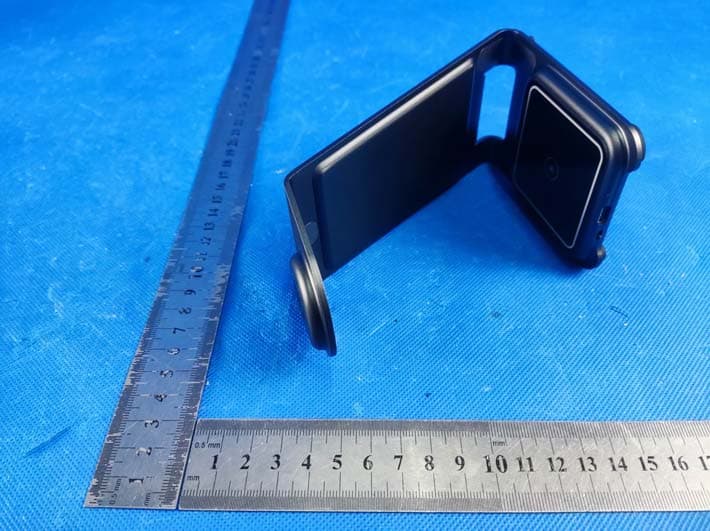

Page 1 of 5 FCC ID: 2AZKN-Y93 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 5 FCC ID: 2AZKN-Y93 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Page 3 of 5 FCC ID: 2AZKN-Y93 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 Page 4 of 5 FCC ID: 2AZKN-Y93 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 Page 5 of 5 FCC ID: 2AZKN-Y93 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 9 ---The End---

Label FCC ID: 2AZKN-Y93

Page 1 of 8 FCC ID: 2AZKN-Y93 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Page 2 of 8 FCC ID: 2AZKN-Y93 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Antenna Page 3 of 8 FCC ID: 2AZKN-Y93 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 Antenna Page 4 of 8 FCC ID: 2AZKN-Y93 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 Page 5 of 8 FCC ID: 2AZKN-Y93 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 9 Photo 10 Page 6 of 8 FCC ID: 2AZKN-Y93 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 11 Photo 12 Page 7 of 8 FCC ID: 2AZKN-Y93 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 13 Photo 14 Antenna Page 8 of 8 FCC ID: 2AZKN-Y93 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 15 Photo 16 ------End------

Page 1 of 6 FCC ID: 2AZKN-Y93 RF Exposure Evaluation 1 Measuring Standard KDB 680106 RF Exposure Wireless Charging Apps v03r01 2 Requirements According to the item 5 of KDB 680106 v03r01: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Power transfer frequency is less than 1MHz. (2) Output power from each primary coil is less than or equal to 15 watts. (3) The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. (4) Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). (6) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the surface from all coils that by design can simultaneously transmit, and while those coils are simultaneously energized, are demonstrated to be less than 50% of the applicable MPE limit. Remark: Meet all the above requirements. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Page 2 of 6 FCC ID: 2AZKN-Y93 3 Test Setup 4 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (15 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 D01v03. Remark：The EUT’s test position A, B, C, D and E is valid for the E and H field measurements. 5 Description of the test mode Equipment under test was operated during the measurement under the following conditions: Test Mode Description Mode 1 AC Adapter + EUT + Mobile phone+ Earphone+ Watch Record Mode 2 AC Adapter + EUT + Mobile phone+ Earphone Pre-tested Mode 3 AC Adapter + EUT + Mobile phone+Watch Pre-tested Mode 4 AC Adapter + EUT + Earphone +Watch Pre-tested Mode 5 AC Adapter + EUT + Mobile phone Pre-tested Mode 6 AC Adapter + EUT + Earphone Pre-tested Mode 7 AC Adapter + EUT + Watch Pre-tested Mode 8 Test the EUT in idle mode. Pre-tested Note: All test modes were pre-tested, but we only recorded the worst case in this report. Page 3 of 6 FCC ID: 2AZKN-Y93 6 Peripheral List 7 Test Instruments list Test Equipment Manufacturer Model No. SN. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) Electric and Magnetic Field Analyzer Narda EHP-200A 180ZX10505 22.06.2022 21.06.2024 8 Test Result E-Filed Strength at 15 cm from the edges surrounding the EUT (V/m) Unit Test mode Test Position A Test Position B Test Position C Test Position D Test Position E 50% Limits (V/m) Limits (V/m) V/m TM1 88.79 101.26 95.43 95.22 91.65 307 614 H-Filed Strength at 15 cm from the edges surrounding the EUT (A/m) Unit Test mode Test Position A Test Position B Test Position C Test Position D Test Position E 50% Limits (A/m) Limits (A/m) A/m TM1 0.215 0.226 0.156 0.205 0.214 0.815 1.63 H-Filed Strength at 20 cm from the top of the EUT (A/m) Unit Test mode Test Position E 50% Limits (A/m) Limits (A/m) A/m TM1 0.200 0.815 1.63 Note: All test modes were pre-tested, but we only recorded the worst case in this report. N o. Equipment Manufacturer Model No. Serial No. Power cord signal cable 1 Adapter NOKIA F0302 N/A N/A N/A 2 Mobile lphone Apple Iphone 11 N/A N/A N/A 3 Airpod Apple Airpod 3 N/A N/A N/A 4 Watch Apple S6 N/A N/A N/A Page 4 of 6 FCC ID: 2AZKN-Y93 9 Test Setup photo Test Position A-15cm from the edge of EUT to the geometric center of the probe Test Position B-15cm from the edge of EUT to the geometric center of the probe Page 5 of 6 FCC ID: 2AZKN-Y93 Test Position C-15cm from the edge of EUT to the geometric center of the probe Test Position D-15cm from the edge of EUT to the geometric center of the probe Page 6 of 6 FCC ID: 2AZKN-Y93 Test Position E-15cm from the edge of EUT to the geometric center of the probe Test Position F-20cm from the edge of EUT to the geometric center of the probe ***End of report***

Page 1 of 25 Report No.: AIT23032906FW1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling Third Street, Jitigang, Huangjiang,Dongguan, Guangdong, China. FCC TEST REPORT Client Information: Applicant: Shenzhen XinZhaoYi Technology Co.LTD Applicant add.: 2nd Floor, Building A7, Quanbao Industrial Zone, No.32, Guanghui Road, Longteng Community, Shiyan Street, Baoan District, Shenzhen Manufacturer: Shenzhen XinZhaoYi Technology Co.LTD Manufacturer add.: 2nd Floor, Building A7, Quanbao Industrial Zone, No.32, Guanghui Road, Longteng Community, Shiyan Street, Baoan District, Shenzhen Product Information: Product Name: 3 IN 1 Wireless Charge Station Model No.: Y93,Y95,M1,M2,M3,M5,M6,M8,M9 Brand Name: N/A FCC ID: 2AZKN-Y93 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Prepared By: Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang,Dongguan, Guangdong, China Tel.: +86-769-8202 0499 Fax.: +86-769-8202 0495 Date of Receipt: Mar. 29, 2023 Date of Test: Mar. 29, 2023~ Mar. 30, 2023 Date of Issue: Mar. 31, 2023 Test Result: Pass This device described above has been tested by Dongguan Yaxu (AiT) Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Dongguan Yaxu (AiT) Technology Limited, this document may be altered or revised by Dongguan Yaxu (AiT) Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Simba Huang Seal.chen Page 2 of 25 Report No.: AIT23032906FW1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling Third Street, Jitigang, Huangjiang,Dongguan, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS ........................................................................................................................................................... 2 2 TEST SUMMARY .................................................................................................................................................. 5 2.1 STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................. 5 2.2 MEASUREMENT UNCERTAINTY ............................................................................................................................ 5 3 TEST FACILITY ..................................................................................................................................................... 6 3.1 DEVIATION FROM STANDARD ............................................................................................................................... 6 3.2 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................... 6 3.3 TEST LOCATION ................................................................................................................................................. 6 4 GENERAL INFORMATION ................................................................................................................................... 7 4.1 EUT TEST MODE ............................................................................................................................................... 8 4.2 DESCRIPTION OF TEST SETUP............................................................................................................................. 8 4.3 PERIPHERAL LIST ............................................................................................................................................... 9 4.4 EUT PERIPHERAL LIST ....................................................................................................................................... 9 5 EQUIPMENTS LIST FOR ALL TEST ITEMS ..................................................................................................... 10 6 CONDUCTED EMISSION TEST ......................................................................................................................... 11 6.1 CONDUCTED EMISSION MEASUREMENT ................................................................................................ 11 6.2 POWER LINE CONDUCTED EMISSION LIMITS ........................................................................................... 11 6.3 TEST PROCEDURE ...................................................................................................................................... 11 6.4 DEVIATION FROM TEST STANDARD ......................................................................................................... 11 6.5 TEST SETUP ................................................................................................................................................. 12 6.6 EUT OPERATING CONDITIONS .................................................................................................................. 12 6.7 TEST RESULT .................................................................................................................................................. 13 7 RADIATED EMISSION MEASUREMENT .......................................................................................................... 15 7.1 RADIATED EMISSION LIMITS .............................................................................................................................. 15 7.2 ANECHOIC CHAMBER TEST SETUP DIAGRAM ..................................................................................................... 16 7.3 TEST PROCEDURE ........................................................................................................................................... 16 7.4 DEVIATION FROM TEST STANDAR…

Text truncated - open the document above for the full version.

Shenzhen XinZhaoYi Technology Co.LTD 2nd Floor, Building A7, Quanbao Industrial Zone, No.32, Guanghui Road, Longteng Community, Shiyan Street, Baoan District, Shenzhen, China 1. Antenna Description: Antenna type: loop coil Antenna Manufacturer: Shenzhen songdao Co. LTD Model: Y93 antenna Antenna Gain(Peak): 0 dBi Frequency range:110kHz~205kHz 300 KHz~350KHz 2. Antenna Photo: A 40.0±1.0 B 20±1.0 C 27±1.0 E 48±1.0 F 120±3 K 3±2 Shenzhen XinZhaoYi Technology Co.LTD 2nd Floor, Building A7, Quanbao Industrial Zone, No.32, Guanghui Road, Longteng Community, Shiyan Street, Baoan District, Shenzhen, China A 43.8±0.25 B 38.5±1 C 20.5±0.5 E 5.0±0.3 F 3±2 K 35±2 A 40.0±1.0 B 20±1.0 C 27±1.0 E 48±1.0 F 100±3 K 3±2

Page 1 of 2 FCC ID: 2AZKN-Y93 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Test Setup Photo Radiated Emission Page 2 of 2 FCC ID: 2AZKN-Y93 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Conducted Emission ------End------
