2AZKWREBE-TZ29LAElectronic Shelf Label

CUSTOMER : Standard . DATE : 2019,06.10 . REV : 0.4 . SPECIFICATIONS FOR APPROVAL SPECIFICATIONS FOR APPROVAL CUSTOMER : Standard DATE : 2023. 11. 01 PRODUCT SPECIFICATION APPROVAL REMARK APPENDIX DESIGNED CHECKED APPROVED 2022.11.01 2022.11.01 2022.11.01 K.S.AN J.B.KIM I.U.KIM Model Customer P/N Description REBE-TZ21L REBE-TZ29L - 3 Color graphic Button LED IEEE802.15.4 1 / 17 Revision Date Contents of Revision Change Remark 1.0 ’23.11.01 First release Revision History SPECIFICATION MODEL ESL TAG (LED) REV. No. Rev 1.0 REG. DATE 2023.11.01 PAGE 17 REV. DATE - - - 2 / 17 TABLE OF CONTENTS 1. Application ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3/17 2. Quality ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3/17 3. Appearance and Characteristics ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3/17 4. Overall Service Scenario ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4/17 5. General Features ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 5/17 6. Absolute Maximum Rating ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 8/17 7. Electrical Specification ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 9/17 8. Mechanical Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 10/17 9. User Quick Manual ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 13/17 10. Disclaimers ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 16/17 11. Certification ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 17/17 3 / 17 1. Application This Specification is Applied to ATEC IoT Wireless Electronic Shelf Label. (ATEC IoT ESL Tag) ATEC IoT ESL Tag is used by retailers for displaying product pricing or information on shelves. Typically, electronic display modules are attached to the front edge of retail shelving. These modules use Electrophoretic Display (EPD) or similar screen technologies to show the current product price to the customer. A communication network allows the price or information display to be automatically updated whenever a product price or information is changed. 2. Quality Quality should meet each condition which mentioned on this specification. However, the items which are not mentioned on this specification follow the inspection agreements and standards which are agree with both companies. 3. Appearance and Characteristics Appearance should not be contaminated by harmful materials and should not have cracks, etc. Mechanical dimensions should meet the contents of clause 8. 3.1. Appearance Electrical Characteristics should meet the contents of clause 7. 3.2. Characteristic 4 / 17 4. Overall Service Scenario •One Platform & Integrated Gateway Wired •WiFi / Ethernet •IEEE802.15.4 •2,000 Tags per GW ESL EMS (1) Server POS (1) EMS : ESL Management Software GATEWAY 2.4GHz Wireless Tags (Battery / Power Line) Wireless & Bi-Directional 5 / 17 5. General Features 5.1. Description 5.1. Description Item Description Size REBE-TZ21L (2.1”) : 68.0 x 36.5 x 13.0 mm REBE-TZ29L (2.9”) : 87.8 x 44.0 x 13.0 mm Digital Display Type : Electrophoretic Display Size / DPI - REBE-TZ21L : 48.8(H) x 23.9(V) (mm) / 130 - REBE-TZ29L : 67.1(H) x 29.2V) (mm) / 112 Display Color 3-Color (Red/Black/White) (1) Indicator Color 3-Color (Red/Green/Blue) (2) Power (3) Rate : 3.0 V / 100 Ma - REBE-TZ21L, REBE-TZ29L : CR2450 Coin Battery 2in1 PKG* 1 set (Removable) NFC (4) Operating frequency of 13.56 MHz (Receiving Only) Network 802.15.4 2.4GHz IEEE802.15.4 compliant RF Transceiver Security Robust wireless network (ATEC IoT own protocol) Protocol Compatible with ATEC IoT protocol communication devices Comm. Range Max. 30m (Under LoS) (5)(6) [Notice] (1) If the background of display is red, display quality can be decreased. Generally, we recommend that the portion of red color has less than 50%. (2) The LED luminous intensity depends on operating voltage. (3) It can be used by connecting an external power source that meets power specification instead of the battery provided (Refer to clause 6.2. about Power specifications) (4) Refer to clause 9.2.1 about NFC Function (5) LoS (Line of Sight) : Without any sort of an obstacle between a gateway and end devices. (6) Communication Range depends on surrounding environment. 6 / 17 (at 23°C and 55% RH , Image update 2 times per day) 5.2. Battery Life Time [Notice] (1) The battery life time depends on operating conditions (Temperature, humidity, wireless environment, image update count, Indicator...etc) Model Life Time (1) REBE-TZ21L REBE-TZ29L 5years 7 / 17 6. Absolute Maximum Rating 6.1. Environmental Conditions The normal operating environmental conditions are those as below. In such conditions, ESL must be in conformity with the present specification. The conformity to such requirement must be certified by the manufacturer. Parameter Condition Min. Typ. Max. Unit Operating Environment Temperature 10 23 30 °C Humidity 45 55 65 %RH Storage Environment Temperature 0 23 40 °C Humidity 45 55 65 %RH 6.2. Electrical Conditions The operating electrical conditions are those as below. In such conditions the ESL must be in conformity with the present specification. All devices can be damaged or non-operated over the specification as below. The conformity to such requirement must be certified by the manufacturer. Parameter Condition Min Typ. Max Unit Supply Voltage DC Power Supply 2.3 3.0 3.3 V Power Consumption @ 3.0~3.3V - - 100 mA ESD Protection Air Condition @Soft Fail -8 - +8 kV (1)Tag can operate at 0~40°C. But only assure the image quality of EPD at 10~30°C. (2)Depending on the characteristic of the EPD, it may become reddish by passing time. (3)Moisture, liquid and direct sunlight can damage the tag and reduce its life time. (4)Getting a magnetic close to the tag can be degraded the performance. (wireless communication, remote controller, etc) (5)When storing the tag, change it to a white screen, and maintain the proper temperature and humidity. (6)After receiving the product, it should be installed within 3 months. (7)The display glass may break when it is dropped or bumped on a hard surface. (fragile by external impact) [Notice] It can be used by connecting an external power source instead of the battery provided But it must meet the power…

Text truncated - open the document above for the full version.

Rev 1/26/2023 ATEC IoT CO., LTD. Add: 289, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Republic of Korea Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 22-11-2023 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2AZKWREBE-TZ29LA ATEC IoT FRN: 0030798458 ATEC IoT CO., LTD. certifies that, as of t he date of the filing of the application, ATEC USA, Inc. is our designated U.S. agent for service of process for t he above referenced FCC ID. ATEC IoT CO., LTD. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. ATEC USA accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: ATEC USA, Inc. Address: 6829 Atmore Drive Suite A Richmond, VA. 23225, USA Contact Person: YOUNGHO.PARK Tel.: +1 470 383 2868 Email: [email protected] The U.S. agent does not do any other business with the FCC and does not have an FRN. Sincerely, ATEC IoT CO., LTD. ATEC USA, Inc Inuk Kim YOUNGHO. PARK (Applicant signature)

ATEC IoT CO., LTD. Add: 289, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Republic of Korea Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 11-21-2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2AZKWREBE-TZ29LA ATEC IoT CO., LTD. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Inuk Kim / Manager ATEC IoT CO., LTD. ATEC IoT CO., LTD. Add: 289, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Republic of Korea Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 11-21-2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2AZKWREBE-TZ29LA ATEC IoT CO., LTD. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or offiliates) an entity producing “covered” equipment. Sincerely, Inuk Kim / Manager ATEC IoT CO., LTD.

ATEC IoT CO., LTD. Add: 289, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Republic of Korea November 22, 2023 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : ATEC IoT CO., LTD. FCC Application for FCC ID : 2AZKWREBE-TZ29LA To whom it may concern: We, the undersigned, hereby attest to the fact that we will apply the Supplier’s Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely, Inuk Kim / Manager ATEC IoT CO., LTD.

ATEC IoT CO., LTD. Add: 289, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi- do, Republic of Korea November 22, 2023 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : ATEC IoT CO., LTD. FCC ID : 2AZKWREBE-TZ29LA Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), ATEC IoT CO., LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give ATEC IoT CO., LTD. commporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name CONFIDENTIAL Schematics CONF APPENDIX 2AZKWREBE-TZ29LA SCH DIA.pdf Parts list CONF APPENDIX 2AZKWREBE-TZ29LA PL.pdf Block diagram CONF APPENDIX 2AZKWREBE-TZ29LA BLK DIA.pdf Operational description CONF APPENDIX 2AZKWREBE-TZ29LA OpDes.pdf SHORT-TERM CONFIDENTIAL External Photos SHORT-TERM CONF 2AZKWREBE-TZ29LA EXT Photo.pdf Internal Photos SHORT-TERM CONF 2AZKWREBE-TZ29LA INT Photo.pdf Te s t-Setup Photos SHORT-TERM CONF 2AZKWREBE-TZ29LA Test Photo.pdf User’s Manual SHORT-TERM CONF 2AZKWREBE-TZ29LA Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Inuk Kim / Manager ATEC IoT CO., LTD.

ATEC IoT CO., LTD. Add: 289, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Republic of Korea November 22, 2023 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: 2AZKWREBE-TZ29LA including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from ATEC IoT CO., LTD. LTA Co.,LTD. (Contact Person) Contact name: Ja-Beom Koo Position: Manager Phone:(82)31-323-6008 E-mail: [email protected] Sincerely, Inuk Kim / Manager ATEC IoT CO., LTD.

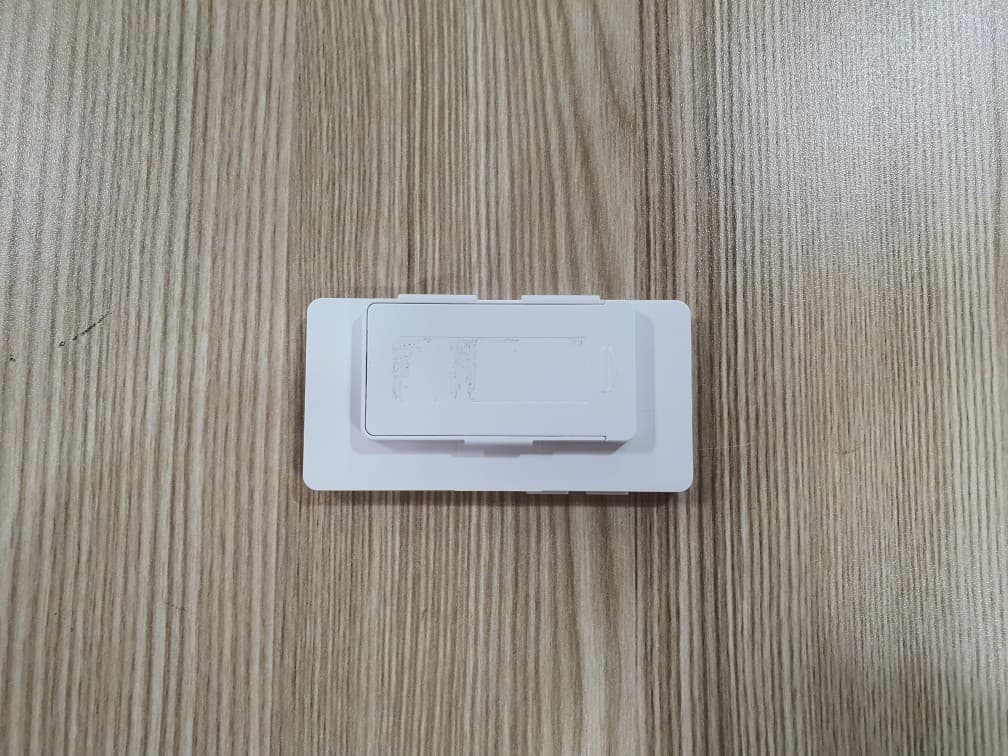

FCC ID: 2AZKWREBE-TZ29LA Front Rear Copyright ○ c 2023, LTA Co., Ltd .Page 1 of 4 FCC ID: 2AZKWREBE-TZ29LA To p Bottom Copyright ○ c 2023, LTA Co., Ltd .Page 2 of 4 FCC ID: 2AZKWREBE-TZ29LA Left Right Copyright ○ c 2023, LTA Co., Ltd .Page 3 of 4 FCC ID: 2AZKWREBE-TZ29LA Label Position Internal Position Copyright ○ c 2023, LTA Co., Ltd .Page 4 of 4

FCC ID: 2AZKWREBE-TZ29LA SAMPLE LABEL & LOCATION It is attached to the product on the back of the battery location. ATEC IoT CO., LTD. Model : REBE-TZ29L FCCID : 2AZKWREBE-TZ29LA Manufacturer : Sunlin Vietnam Electronics CO.,LTD Made in Vietnam Copyright Ⓒ 2023, LTA Co., Ltd.

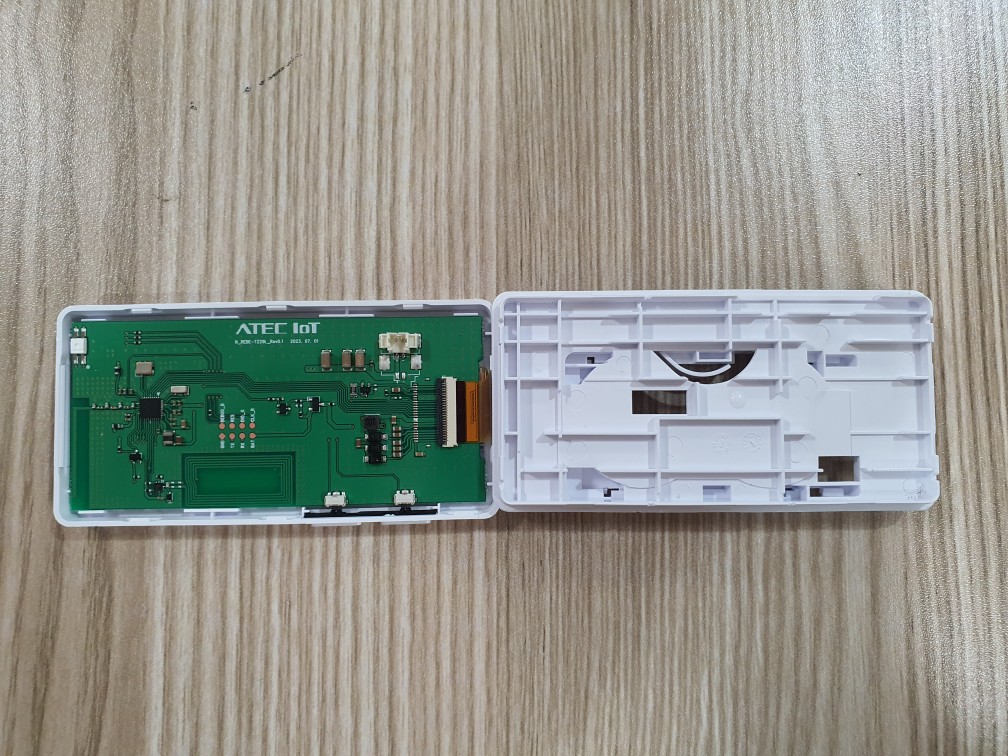

FCC ID: 2AZKWREBE-TZ29LA Board–Front Board–Rear Copyright ○ c 2023, LTA Co., Ltd. Page 1 of 2 FCC ID: 2AZKWREBE-TZ29LA Antenna(2.4GHz ANT) Copyright ○ c 2023, LTA Co., Ltd. Page 2 of 2

Ref. No.: LR500112311M 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 17159 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests : November 21 ,2023 Test Report S/N: LR500112311M Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT Equipment Class : Digital Transmission System (DTS) Manufacturing Description : Electronic Shelf Label Manufacturer : Sunlin Vietnam Electronics CO.,LTD Model name : REBE-TZ29L Variant Model name : - Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.247 Subpart C ; ANSI C63.10 – 2013 KDB 447498 D01 General RF Exposure Guidance v06 Frequency Range : 2405 ~ 2480 MHz Zigbee Max. Output Power : Max 0.9 dBm - Conducted Data of issue : November 22 ,2023 This test report is issued under the authority of: The test was supervised by: Ja -Beom Koo, Manager Eun-Hwan Jung, Test Engineer 2AZKWREBE-TZ29LA ATEC IoT CO., LTD. Copyright ○ c 2023, LTA Co., Ltd. Page 1 of 7 Ref. No.: LR500112311M TABLE OF CONTENTS 1. GENERAL INFORMATION ---------------------------------------------------------------------------- 2. INFORMATION ABOUT TEST ITEM --------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 RF EXPOSURE EVULATION--------------------------------------------------------------------------- 3 4 5 5 6 Copyright ○ c 2023, LTA Co., Ltd. Page 2 of 7 Ref. No.: LR500112311M 1. General information 1- 1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile : +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1- 2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference RRA KOREA KR0049 - EMC accredited Lab. FCC U.S.A 649054 2025-03-29 FCC CAB VCCI J APA N C-4948, 2026-09-10 VCCI registration VCCI J APA N T-2416, 2026-09-10 VCCI registration VCCI J APA N R-4483(10 m), 2026-10-15 VCCI registration VCCI J APA N G-847 2024-12-13 VCCI registration IC CANADA 5799A-1 2024-08-15 IC filing Copyright ○ c 2023, LTA Co., Ltd. Page 3 of 7 Ref. No.: LR500112311M 2. Information about test item 2-1 Client & Manufacturer Client Company name : ATEC IoT CO., LTD. Address : 289, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Republic of Korea Tel / Fax : +82-31-696-9829 / +82-31-696-9899 Manufacturer Sunlin Vietnam Electronics CO.,LTD Address Plot D4, Chau Son Industrial Zone, Chau Son Commune, Phu Ly City, Ha Nam Province, Vietnam Tel / Fax +82-31-696-9829 / +82-31-696-9899 2- 2 Equipment Under Test (EUT) Model name : REBE-TZ29L Serial number : Identical prototype Date of receipt : November 7 ,2023 EUT condition : Pre-production, not damaged Antenna type : Pattern Antenna (0.03 dBi) Frequency Range : 2405 ~ 2480 MHz RF output power : Max 0.9 dBm – Conducted Type of Modulation : GFSK Power Source : DC 3 V 2-3 Tested frequency Bluetooth LOW MID HIGH Frequency (MHz) Zigbee 2405 2440 2480 2-4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer Notebook - MS-1736 MSI Copyright ○ c 2023, LTA Co., Ltd. Page 4 of 7 Ref. No.: LR500112311M 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) §1.1310 and §2.1091 RF EXPOSURE EVULATION - - C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable - Copyright ○ c 2023, LTA Co., Ltd. Page 5 of 7 Ref. No.: LR500112311M 3.2 RF EXPOSURE EVULATION 1.1 Limit According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength Magnetic field Strength Power density (mW/cm²) Averaging time 1.34 - 30....................................... 824/f 2.19/f *(180/ f²) 30 30 - 300....................................... 27.5 0.073 0.2 30 300 - 1500.................................... ............... ............... f/1500 30 1500 - 100.000................................. ............... ............... 1.0 30 F = frequency in MHz * = Plane-wave equivalent power density 1.2 MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance Power density at the specific separation: S = PG/(4R 2 π) Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20 cm = limit for MPE) S = (1.23 *1.01) / (4 * 20 2 * π) S = 0.39 mW/cm 2 Copyright ○ c 2023, LTA Co., Ltd. Page 6 of 7 Ref. No.: LR500112311M 1.3 MAXIMUM PERMISSIBLE EXPOSURE Prediction - Calculated under the worst-case conditions of each mode. (Measured power 1.0 dBm ± 0.5dB) 2.4GHz Mode SAR Test exclusion thresholds for 100MHz to 6GHz at test separation distance ≤ 50 mm = Used [(max.power of channel, including tune-up torelance, mW)/(min. test separation distance, mm)] * [√f(GHz)] = [1.23 / 5 ] * [ √2.480 ] = 0.10 ≤ 3.0, for 1g SAR Thus, SAR for this device is not required. Max Peak output Power at antenna input terminal 0.9 dBm Max Peak output Power at antenna input terminal 1.23 mW Prediction distance 20 cm Prediction frequency 2480 MHz Antenna Gain(typical) 0.03 dBi Antenna Gain(numeric) 1.01 - Copyright ○ c 2023, LTA Co., Ltd. Page 7 of 7

Ref. No.: LR500112311L 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 17159 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: November 7 ,2023 ~ November 21 ,2023 Test Report S/N: LR500112311L Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT Equipment Class : Digital Transmission System (DTS) Manufacturing Description : Electronic Shelf Label Manufacturer : Sunlin Vietnam Electronics CO.,LTD Model name : REBE-TZ29L Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.247 Subpart C ; ANSI C63.10 - 2013 Frequency Range : 2405 ~ 2480 MHz Zigbee Max. Output Power : Max 0.9 dBm - Conducted Data of issue : November 22 ,2023 This test report is issued under the authority of: The test was supervised by: Ja -Beom Koo, Manager Eun-Hwan Jung, Test Engineer 2AZKWREBE-TZ29LA ATEC IoT CO., LTD. Copyright ○ c 2023, LTA Co., Ltd. Page 1 of 29 Ref. No.: LR500112311L TABLE OF CONTENTS 1. GENERAL INFORMATION -------------------------------------------------------------------------- 2. INFORMATION ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT ------------------------------------------------------------------------------------------ 3.1 SUMMARY OF TESTS ---------------------------------------------------------------------------- 3.2 TECHNICAL CHARACTERISTICS TEST ----------------- ----------------------------------- 3.2.1 6 dB BANDWIDTH -------------------------------------------------------------------------- 3.2.2 PEAK OUTPUT POWER -------------------------------------------------------------------- 3.2.3 POWER SPECTRAL DENSITY ------------------------------------------------------------ 3.2.4 BAND EDGE ---------------------------------------------------------------------------------- 3.2.5 CONDUCTED SPURIOUS EMISSIONS ------------------------------------------------- 3.2.6 RADIATED SPURIOUS EMISSIONS ---------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 8 10 12 14 16 29 Copyright ○ c 2023, LTA Co., Ltd. Page 2 of 29 Ref. No.: LR500112311L 1. General information 1- 1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 17159 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1- 2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference RRA KOREA KR0049 - EMC accredited Lab. FCC U.S.A 649054 2025-03-29 FCC CAB VCCI J APA N C-4948, 2026-09-10 VCCI registration VCCI J APA N T-2416, 2026-09-10 VCCI registration VCCI J APA N R-4483(10 m), 2026-10-15 VCCI registration VCCI J APA N G-847 2024-12-13 VCCI registration IC CANADA 5799A-1 2024-08-15 IC filing Copyright ○ c 2023, LTA Co., Ltd. Page 3 of 29 Ref. No.: LR500112311L 2. Information about test item 2-1 Client & Manufacturer Client Company name : ATEC IoT CO., LTD. Address : 289, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, Republic of Korea Tel / Fax : +82-31-696-9829 / +82-31-696-9899 Manufacturer Sunlin Vietnam Electronics CO.,LTD Address Plot D4, Chau Son Industrial Zone, Chau Son Commune, Phu Ly City, Ha Nam Province, Vietnam Tel / Fax +82-31-696-9829 / +82-31-696-9899 2- 2 Equipment Under Test (EUT) Model name : REBE-TZ21L Serial number : Identical prototype Date of receipt : November 7 ,2023 EUT condition : Pre-production, not damaged Antenna type : Pattern Antenna (0.03 dBi) Frequency Range : 2405 ~ 2480 MHz RF output power : Max 0.9 dBm – Conducted Type of Modulation : Pi/4 DQPSK, 8DPSK Power Source : DC 3 V This product uses two antennas at one oscillation, and both antennas cannot operate at the same time, but only antennas operate at one time when transmitting. 2- 3 Tested frequency LOW MID HIGH Frequency (MHz) Zigbee 2405 2440 2480 2-4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer Notebook - MS-1736 MSI Copyright ○ c 2023, LTA Co., Ltd. Page 4 of 29 Ref. No.: LR500112311L 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Test Condition Status (note 1) 15.247(a) 6 dB Bandwidth Conducted C 15.247(b) Transmitter Peak Output Power C 15.247(e) Transmitter Power Spectral Density C 15.247(d) Band Edge & Conducted Spurious emission C 15.209 Transmitter emission Radiated C 15.207 AC Conducted Emissions Conducted N/A 15.203 Antenna requirement - C N/ A : This product is only operated with DC voltage. The above equipment was tested by LTA Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10-2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247 The test results of this report relate only to the tested sample identified in this report. The tests were performed according to the method of measurements prescribed in KDB No.558074.  Antenna Requirement ATEC IoT CO., LTD. FCC ID: 2AZKWREBE-TZ29LA unit complies with the requirement of §15.203. The antenna type is Pattern Antenna Copyright ○ c 2023, LTA Co., Ltd. Page 5 of 29 Ref. No.: LR500112311L 3.2 Technical Characteristics Test 3.2.1 6 dB Bandwidth Procedure: The bandwidth at 6 dB below the highest in-band spectral density was measured with a spectrum analyzer connected to the antenna terminal, while EUT is operating in transmission mode at the appropriate frequencies. After the trace being stable, Use the marker-to-peak function to set the marker to the peak of the emission. Use the marker-delta function to measure 6 dB down one side of the emissi…

Text truncated - open the document above for the full version.

CUSTOMER : Standard . DATE : 2019,06.10 . REV : 0.4 . SPECIFICATIONS FOR APPROVALSPECIFICATIONS FOR APPROVALPRODUCT SPECIFICATION APPROVALREMARKAPPENDIX DESIGNEDCHECKEDAPPROVED 2023.11.012023.11.012023.11.01 K.S.ANJ.B.KIMI.U.KIM ModelDescription REBE-TZ29L_ANT IEEE802.15.4 1/ RevisionDateContents of Revision ChangeRemark 1.0’23.11.01First release Revision History SPECIFICATION MODELREBE-TZ29L_ANTREV. No.Rev 1.0 REG. DATE2023.11.01PAGE6 REV. DATE--- 2/ 6 ANTENNA SPECIFICATION ATEC IoT Co.,Ltd. 289, Pangyo-ro, Bundan-gu, Seongnam-si,Gyeonggi, Republic of Korea TEL : +82-31-696-9815 PAX : +82-31-696-9899 1.Model : REBE-TZ29L_ANT 2.Application : 2.4GHz IEEE802.15.4 compliant RF Transceiver 3.Electrical specification and performance 4.Hardware specification and mechanical 5. Company information ELECTRICAL DATASPECIFICATIONSREMARK FREQUENCY RANGE2405 ~ 2480 MHz IMPEDANCE50 ΩNOMINAL V. S. W. R2405 ~ 2480 MHzLess than 2.0 : 1#1. Attached PEAK GAIN(Min)2405 ~ 2480 MHz0.03 dBi#2. Attached MECHANICALSPECIFICATIONSREMARK Dimension3.8mmx 18.0mm#3. Attached 3/ 6 6. OPERATING TEMPERATURE 7. HUMIDITY Condition 8. TEST and Q/C This specification is according to fixed demands and suitable ATEC IoTQ/C provision. Condition : 80% / ＋30°C ~ +50 °C Measuring method Antenna is placed in climatic chamber for 48 hours. Antenna is taken out from the chamber and measured after another 24 hours in room temperature Demands : No visual and mechanical changes. Unchanged mechanically during the test. The antenna shall satisfy the electrical data. Temperature : －20°C / ＋60°C Demands : Set Antenna for 48 hours each temperature. No visual and mechanical changes. Unchanged mechanically during the test. The antenna shall satisfy the electrical data 4/ 6 #1. Attached: VSWR 5/ 6 Efficiency Frequency(MHz) 240524402480 Avg.Eff. [%] Efficiency(dB) -5.63-5.27-5.64-5.39 28.88 #2. Attached Frequency [MHz]2405241024152420242524302435244024452450245524602465247024752480 Efficiency [dB] -5.63 -5.53 -5.34 -5.27 -5.10 -4.99 -4.94 -4.88 -4.99 -5.15 -5.20 -5.38 -5.60 -5.46 -5.63 -5.64 Efficiency [%] 27.3 28.0 29.2 29.7 30.9 31.7 32.1 32.5 31.7 30.5 30.2 29.0 27.6 28.4 27.4 27.3 Peak Gain [dB] -0.65 -0.53 -0.34 -0.29 -0.15 -0.05 -0.02 0.03 -0.13 -0.31 -0.37 -0.56 -0.81 -0.68 -0.86 -0.87 Directivity [dB] 4.99 5.00 5.00 4.98 4.95 4.94 4.91 4.91 4.87 4.84 4.84 4.83 4.79 4.78 4.77 4.78 Minimum Gain [dB] -18.21 -18.67 -18.82 -18.97 -19.23 -19.42 -19.46 -19.70 -19.82 -19.85 -19.27 -19.22 -19.31 -19.30 -19.19 -19.37 Radiation Pattern and Gain Radiation Pattern TEST METHOD ①Network Analyzer ②Signal Interface : Coaxial Cable ③Test PCB Antenna ④Dual Polarized Antenna ⑤Shield Room ① ② ③ ④ ⑤ 2405 MHz2440 MHz2480 MHz 6/ 6 #3. Attached: Drawing paper

FCC ID: 2AZKWREBE-TZ29LA Radiate Emission Copyright ○ c 2023, LTA Co., Ltd. Page 1 of 3 FCC ID: 2AZKWREBE-TZ29LA Copyright ○ c 2023, LTA Co., Ltd. Page 2 of 3 FCC ID: 2AZKWREBE-TZ29LA Copyright ○ c 2023, LTA Co., Ltd. Page 3 of 3
