2AZLCBL-ASLD-01Controller

使用手册 本产品采用红外线遥控控制，单键功能控制简单明了，可实现渐变，跳变，闪动等动态功 能，具有断记忆功能，无需频繁设置，速度亮度可调节。本品适用于各种LED灯带彩虹管控制。 一、产品参数： 输入输出电压：AC110V/220V 最大输出电流：9A 最大单机负载：1500W 外形尺寸：85*85*32mm 单个包装尺寸：145*85*65mm 单个毛重：180g 静态功耗：<1W 使用范围：接100米灯条 遥控距离：10-20米 输出连接方式：共阳 二．使用说明： 1 ．将灯条插头插入控制器的输出插座，线位顺序要对应。 2．电源插头通电，使用遥控器进行操控即可让控制器按照需要进行工作。 3．安装控制器时要将遥控接收管安装在无障碍物的位置，避免遥控失灵。 4．输出端勿短路。 三．功能模式列表 亮度升（共 10 级） 速度加（共10级） 亮度降（共 10 级） 速度降（共10级） 关闭负载输出 开启负载输出 静态红色 静态绿色 静态蓝色 静态白色 W（RGB） 静态橙色 静态淡绿色 静态深蓝色 七彩跳变 FLASH 静态深黄色 静态青色 GB 静态褐色 七彩闪动 SIROBE 静态黄色 RG 静态浅蓝色 静态粉红 七彩渐变 FADE 静态淡黄色 静态淡蓝色 静态紫色 动态模式循环SMOOTN 注意事项： 1.本产品使用的是危险电压，切勿拆开外壳，触摸导电体，防止触电。 2.安装灯条连接插针时，注意灯条四条线之间有无短路现像，如有短路损坏或错误操作损坏本 产品的，不在质保范围内。 User Manual This product can be used by infrared remote control, with one-touch function controlled straightforward, realized gradient, jumping, flicker on dynamic functions, broken memory function without frequent Settings, speed adjustable brightness. This product is suitable for various high voltage strips and rainbow strips tape and module control. I.The related param eters: Input/output voltage：AC110V/220V Maximum output current：9A Max single load：1500W product size：90*70*28mm Packing size：145*85*65mm Gross weight：180g Static Power：<1W Use range: 100M high voltage LED strip Remote control distance: 10-20M Output connection mode: common anode II.Instructions: 1. The lamp plug is inserted into the controller output socket, the line in order to correspond. 2. Power plug is electrified, using a remote control to let the controller according to the requirement of work. 3. The setup controller to the remote receiving tube installation without an obstacle position, avoiding remote failure. 4. Output cannot short circuit. III. Function mode list: Brightness liter Speed add brightness drop Slowing shut load output open load output Static red static green static blue static white W (RGB) Static orange static pale green static dark blue colorful jumping in the FLASH Static deep yellow static cyan static brown Roundest flashing SIROBE Static yellow static light blue static pink colorful gradient FADE Static flaxen static light blue static purple dynamic model circulation smootn Safety information 1. This product uses dangerous voltage, do not open the shell, touch the conductive body, prevent electric shock. 2. The connecting pin when the installation of lights. The installation of lights, note the lamp strip between four lines have no short circuit phenomenon, such as short circuit damage or improper operation of the product is not in the warranty scope. FCCCaution Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe followingtwocond itions:(1)Thisdevicemaynotcaus eharmfulinterference,and(2) thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay caus eun desiredoperation. AnyChangesormodificationsno texpresslyapprovedbythepartyresponsiblefor co mpliancecou ldvoidtheuser'sauthoritytooperatet heequ ipment. Note:Thisequipmenthasbeenteste dandfoundtocomplywiththelimitsforaClass Bdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesign edto providereasonableprotectionagainst harmfulinterferenceinaresidentialinstallation. Thisequ ipmentgeneratesusesandcanradiateradiofrequ encyenergyand,ifnot ins talledandusedinaccordancewiththei ns tructions ,maycaus eharmfulinterference toradiocommunication s.However,thereisnoguaranteethatinterfe re ncewillnot occurinapar ticularinstall ation.Ifthisequipmentdoescaus eharmfulinterfe re nceto radioortel evisionreception,whichcanbedeterminedbyturningtheequipmentoff andon,t heuserisencouragedtotrytocorrecttheinterfer encebyon eormoreofthe followingmeasures: -Reorientorrel ocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandrecei ver. -Connecttheequ ipmentintoanoutletonacircuitdifferentfromthattowhichthe receiveriscon nected. -Con sultthedealeroranexp eriencedradio/TVtechnicianforhelp. This equipmentcomplieswithFCC radiationexposurelimits setforthforan uncontrolledenvironment.

BEAUTY (STC) MANUFACTURING CO.,LIMITED M odel Difference Product description: Controller Model name: BL-ASLD-01, BL- ASLD-02, BL-ASLD-03, BL- ASLD-04, BL- ASLD-05, BL-A SLD-06, BL- ASLD-07, BL- ASLD-08, BL-ASLD-09, BL- ASLD-10 . Trade Name: N/A FCC ID: 2AZLCBL-ASLD-01 All the model are the same circuit and RF module, only different for model name. Regards Sincerely C lient’s signature: Client’s name / title : Frank Mai (Manager) Contact information / address: FLAT RM B 8/F CHONG MING BUILDING 72 CHEUNG SHA WAN ROAD KOWLOON HONGKONG

C5266091_X8_Ed.1 Letter of Authorization BEAUTY (STC) MANUFACTURING CO.,LIMITED Company: BEAUTY (STC) MANUFACTURING CO.,LIMITED. Address: FLAT RM B 8/F CHONG MING BUILDING 72 CHEUNG SHA WAN ROAD KOWLOON HONGKONG Product Name: Controller Model Number: BL-ASLD-01 FCC Identifier: 2AZLCBL-ASLD-01 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Frank Mai Date: Apr.12.2021 Title: Manager Signature of applicant: 1/1

C5266091_X10_Ed.2 BEAUTY (STC) MANUFACTURING CO.,LIMITED Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: Apr.12.2021 Subject: Request for Confidentiality FCC ID: 2AZLCBL-ASLD-01 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ______ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. 1/1 C5266091_X10_Ed.2 Sincerely, Signature: Name: Frank Mai Title: Manager 1/1

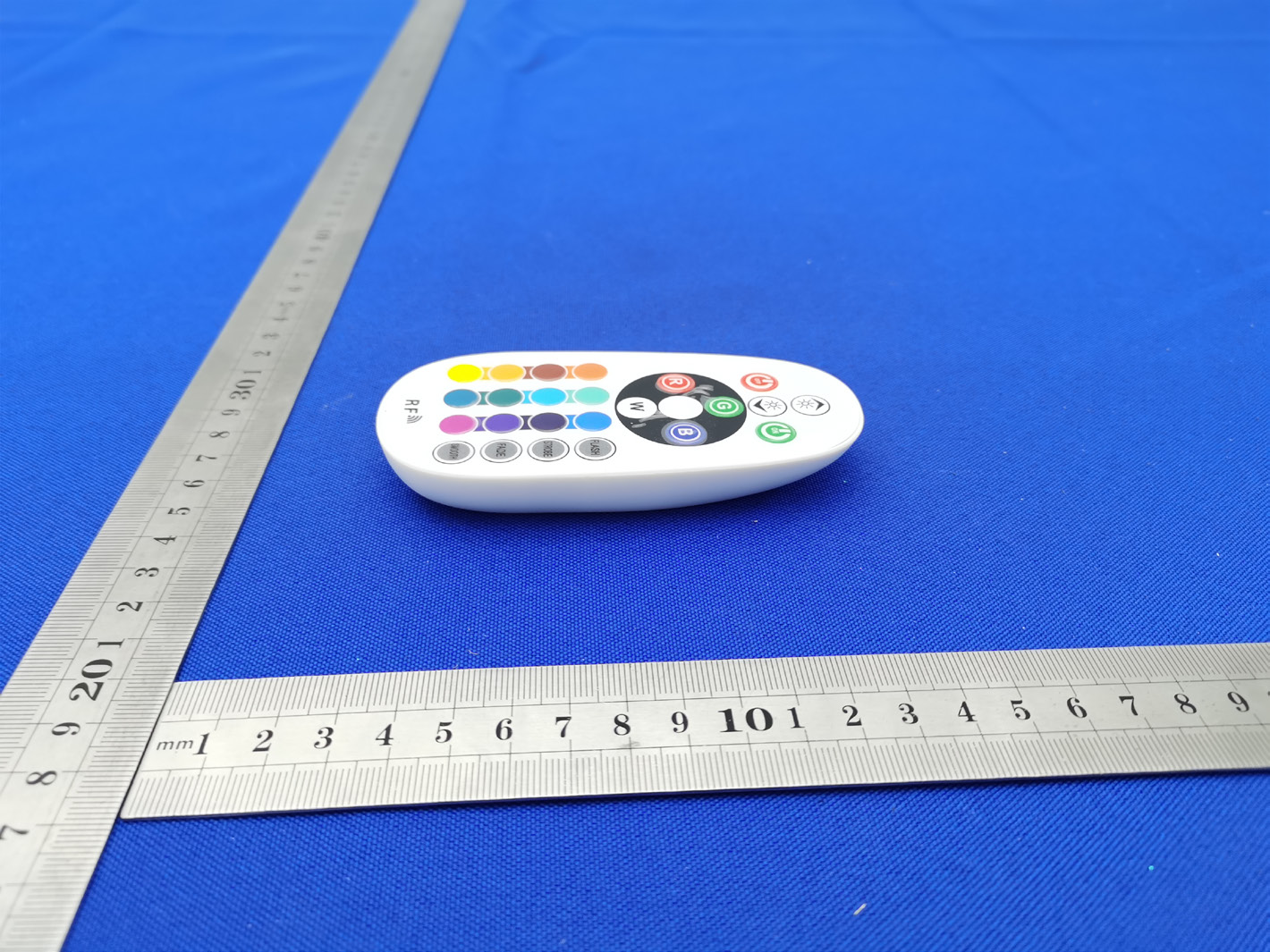

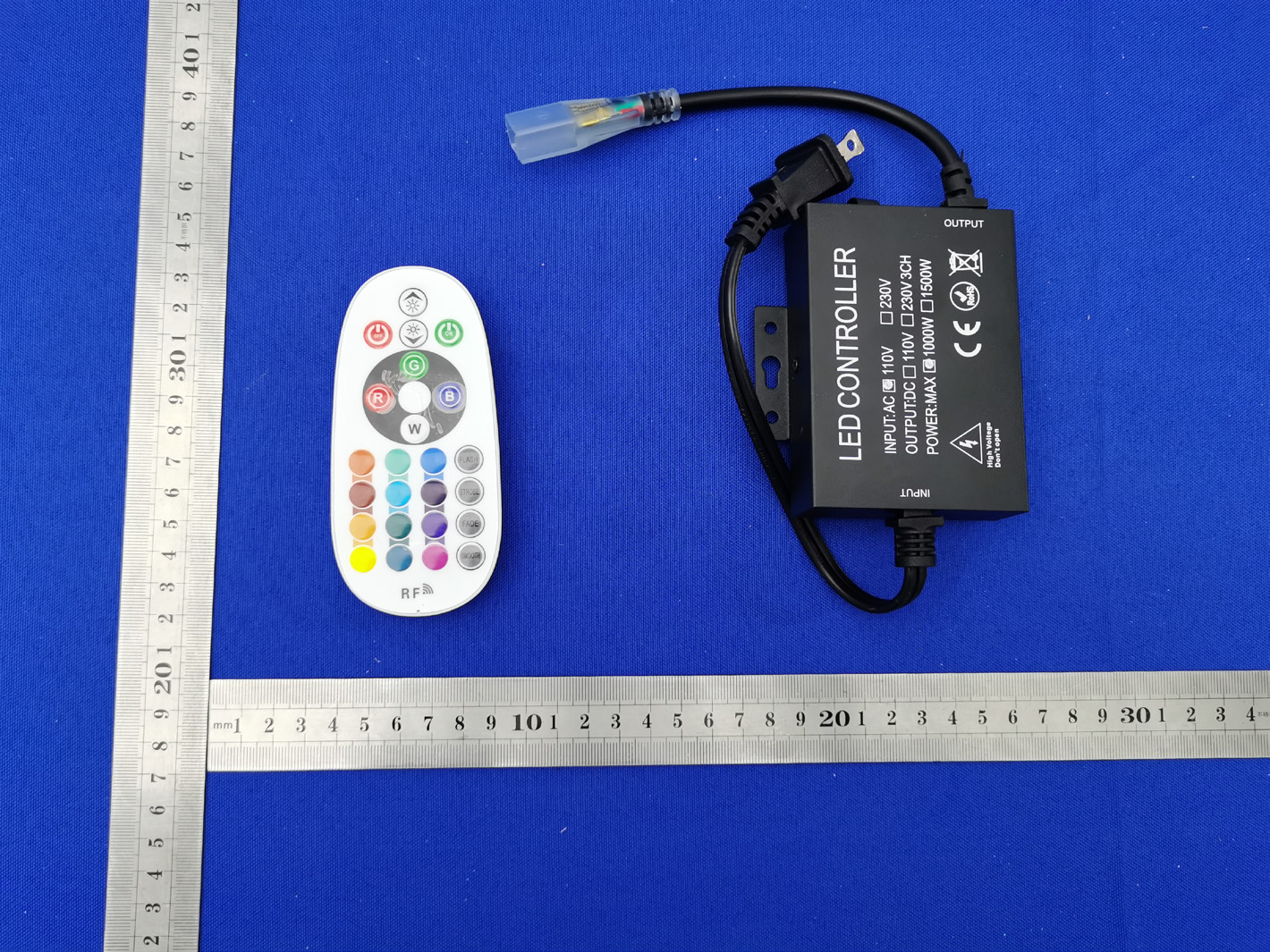

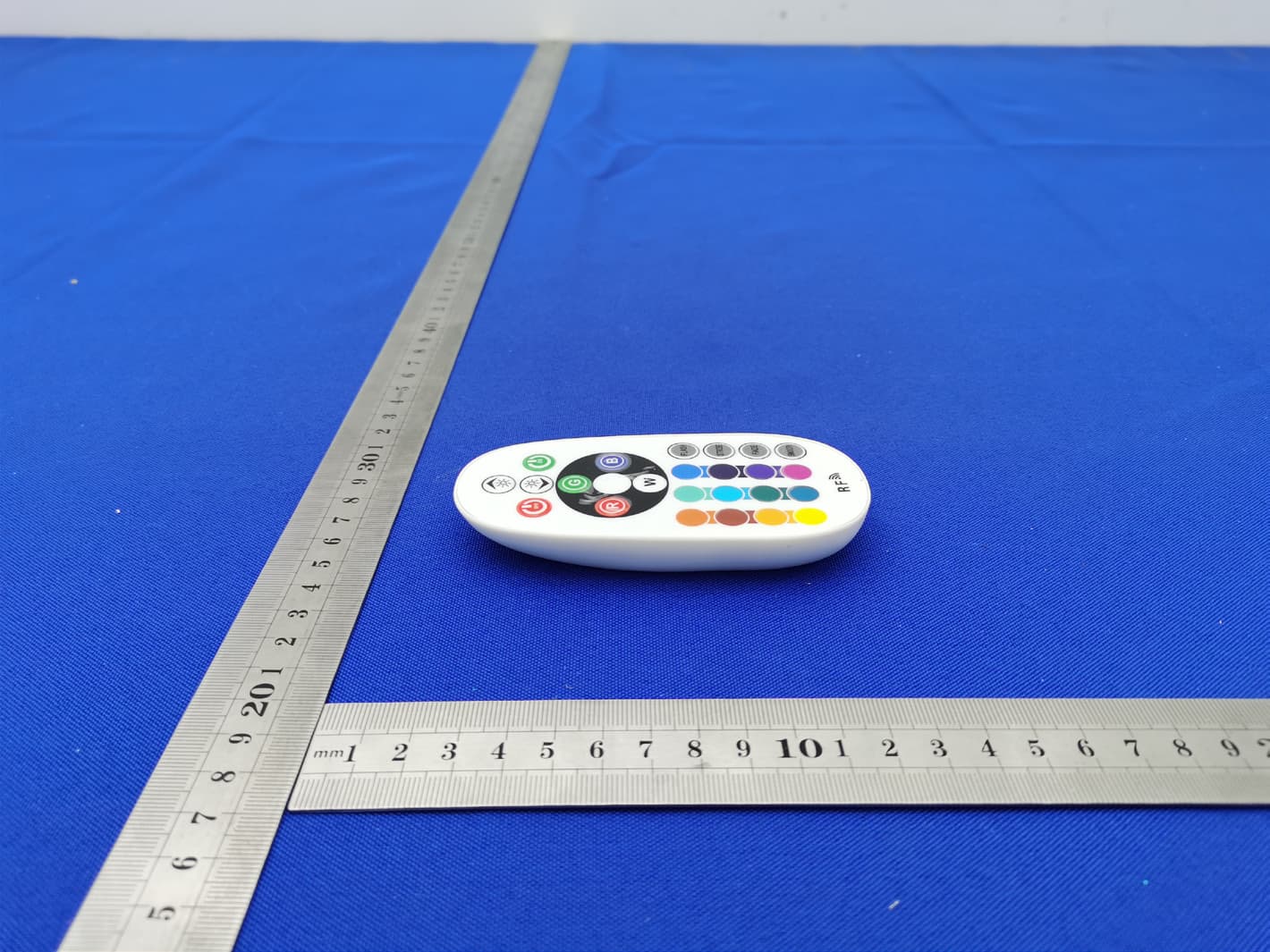

External Photos FCC ID: 2AZLCB L-ASLD-01

Model: BL-ASLD-01 FCC ID: 2AZLCBL-ASLD-01 Label Location

Internal Photos FCC ID: 2AZLCBL-ASLD-01 Antenna HTW0417

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB210408031RFX TEST REPORT Compiled by: Reviewed by: Approved by: Arron Liu Bin Mei Rita Xiao / Director The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Controller FCC ID: 2AZLCBL-ASLD-01 Trademark: N/A Model Number: BL-ASLD-01, BL-ASLD-02, BL-ASLD-03, BL-ASLD-04, BL-ASLD-05, BL-ASLD-06, BL-ASLD-07, BL-ASLD-08, BL-ASLD-09, BL-ASLD-10 Prepared For: BEAUTY (STC) MANUFACTURING CO.,LIMITED Address: FLAT RM B 8/F CHONG MING BUILDING 72 CHEUNG SHA WAN ROAD KOWLOON HONGKONG Manufacturer: BEAUTY (STC) MANUFACTURING CO.,LIMITED Address: 41th Caihong Road, High-tech Industrial zone, Jianghai District, Jiangmen city, Guangdong province, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: Floor 1&2, Building A, No. 26 of Xinhe Road, Xinqiao Street, Baoan District, Shenzhen China Sample Received Date: Apr. 7, 2021 Sample tested Date: Apr. 7, 2021 - Apr. 12, 2021 Issue Date: Apr. 12, 2021 Report No.: CTB210408031RFX Test Standards FCC Part15.231 ANSI C63.10:2013 Test Results PASS Remark: This is 433MHz radio test report. Report Tel: 4008-707-283 Web: http://www.ctb-lab.netPage 1 of 27 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB210408031RFX TABLE OF CONTENT Test Report Declaration Page 1. VERSION ...................................................................................................... 4 2. TEST SUMMARY ........................................................................................... 5 3. MEASUREMENT UNCERTAINTY .................................................................. 6 4. PRODUCT INFORMATION AND TEST SETUP ............................................... 7 4.1 Product Information ............................................................................................. 7 4.2 Test Setup Configuration ..................................................................................... 7 4.3 Support Equipment .............................................................................................. 7 4.4 Test Mode ........................................................................................................... 8 4.5 Test Environment ................................................................................................ 8 5. TEST FACILITY AND TEST INSTRUMENT USED .......................................... 9 5.1 Test Facility ......................................................................................................... 9 5.2 Test Instrument Used .......................................................................................... 9 6. AC POWER LINE CONDUCTED EMISSION ................................................... 11 6.1 Block Diagram Of Test Setup ............................................................................ 11 6.2 Limit ................................................................................................................... 11 6.3 Test procedure .................................................................................................. 11 6.4 Test Result ........................................................................................................ 12 7. RADIATED EMISSION ................................................................................. 13 7.1 Block Diagram Of Test Setup ............................................................................ 13 7.2 Limit ................................................................................................................... 13 7.3 Test procedure .................................................................................................. 14 7.4 Test Result ........................................................................................................ 15 8. DWELL TIME ............................................................................................... 21 8.1 Block Diagram Of Test Setup ............................................................................ 21 8.2 Limit ................................................................................................................... 21 8.3 Test procedure .................................................................................................. 21 8.4 Test Result ........................................................................................................ 22 9. OCCUPIED BANDWIDTH ............................................................................ 23 9.1 Block Diagram Of Test Setup ............................................................................ 23 9.2 Limit ................................................................................................................... 23 Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 27 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB210408031RFX 9.3 Test procedure .................................................................................................. 23 9.4 Test Result ........................................................................................................ 24 10. ANTENNA REQUIREMENT ......................................................................... 25 11. EUT PHOTOGRAPHS .................................................................................. 26 12. EUT TEST SETUP PHOTOGRAPHS ............................................................ 27 (Note: N/A means not applicable) Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 27 Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB210408031RFX 1. VERSION Report N o. Issue Date Description Approved CTB21008031RFX Apr. 12, 2021 Original Valid Report Tel:…

Text truncated - open the document above for the full version.

Radiated Emission Below 1G Above 1G FCC ID: 2AZLCB L-ASLD-01
