2AZLD-AIHOORA1TWS Bluetooth Headset

材质：80g 铜版纸 尺寸：97*97mm 风琴折页（双面印刷） 印刷颜色：单黑 Excessive sound pressure from earphones and headphones can cause hearing loss. Hereby, Shenzhen Ausounds Intelligent Co.,Ltd.A1. declares that the radio equipment type (True Wireless Earbuds, A1) is in compliance with Directive 2014/53/EU. Notice: This device may be used in each member state of the EU. AIHOOR A1 USER MANUAL Model: A1 AUSOUNDS Intelligence, LLC. www.aihoor.net | [email protected] Designed by AUSOUNDS In California USA FCC ID: 2AZLD-ARA1 This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect thee quipment into anoutlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF Exposure Information The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure conditi on without restriction. CE Statement Max RF power level: BT classic (2402–2480MHz): 2.281dBm RF exposure assessment has been performed to prove that this unit will not generate the harmful EM emission above the reference level as specified in EC Council Recommendation (1999/519/EC). CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. - 09 - - 10 - Amazon US orders: [email protected] Amazon EU orders: [email protected] Amazon CA orders: [email protected] Amazon JP orders: [email protected] *Please note, AIHOOR can only provide after sales service for products purchased directly from AIHOOR. If you have purchased from a different seller, please contact them directly for service or warranty issues. FCC Information for Users Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - 08 - - 07 - FAQ The earbuds are on, but not connecting to my device For the earbuds and your device to establish a connection, you need to put them both in pairing mode. Please follow the instructions in the Pairing section of this manual. I’ve connected the earbuds with my smartphone but can’t hear any sound Double-check the volume level on your smartphone and the earbuds. Some smartphones require you to set up the earbuds as an audio output device before the audio can be transmitted. If you’re using a music player or other device, please make sure it supports the A2DP profile. The sound isn’t very clear or the caller can’t hear my voice clearly Adjust the volume on your smartphone and the earbuds. Try moving closer to your smartphone to rule out the possibility of interference or wireless range related issues. LED Indicator (Earbuds) Flashing green and red Flashing red Status Pairing mode Low battery - 06 - What’s the wireless range of the earbuds? The maximum range is 10m (33ft). However, the actual range depends on environmental factors. For optimal performance, keep your device connected within a range of roughly 4m to 8m and make sure that there are no major obstacles (like reinforced steel walls) between the earbuds and your device. The earbuds won’t turn on Try charging the earbuds for a while. If the earbuds still won’t power on, please contact our support team at the email address given in ‘Warranty & Customer Support.’ I put the earbuds back in the charging case, but the earbuds are still connected The charging case is probably out of power. Try charging it. Product Care & Use Keep away from liquids and extreme heat. Don’t use the earbuds at high volume for extended periods, as this may cause. Warranty & Customer Support For questions, support, or warranty claims, contact us at the address below that corresponds with your region. Please include your Amazon order number and product model number. Notes When you turn on the earbuds, they will automatically reconnect to the last-paired device or enter pairing mode if no paired device is found. To clear the pairing list, take either of earbuds out of the charging case, and then tap touch-sensitive panel for 7 times, After that, put the earbud back in and take it out again to enter pairing mode. In pairing mode, the earbuds will automatically turn off after 5 minutes if no devices are paired. If one of the earbuds has no sound output, put both earbuds back into the charging case and take them out again. The maximum wireless operating range is 10m (33ft). If you exceed this range, the earbuds will disconnect from your paired device. The connection will be re-established if you re-enter the wireless range within 5 minutes. The earbuds will automatically reconnect to the last-paired device. To connect with other devices, repeat the previous pairing steps. AUTOMATIC CONNECTION Pairing: 1. Turn on the Bluetooth of your mobile phone. 2. Open the charging case, they will automatically turn on and enter the pairing mode. 3. Turn on the pairing function on the device …

Text truncated - open the document above for the full version.

Shenzhen Ausounds Intelligence Co.,Ltd. Agent Authorization Company: Shenzhen Ausounds Intelligence Co.,Ltd. Address: 606B, 6th Floor, Xuyuan Building, No. 5003 Longgang Avenue, Longgang District, Shenzhen China Product Name: TWS Bluetooth Headset Trade Mark: AIHOOR Model Number(s): AIHOOR A1 FCC ID: 2AZLD-AIHOORA1 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-07-20 Name: youjun pu Title: Quality manager Company: Shenzhen Ausounds Intelligence Co.,Ltd.

Shenzhen Ausounds Intelligence Co.,Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-07-20 Subject; Request for Confidentiality FCC ID: 2AZLD-AIHOORA1 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: youjun pu Title: Quality manager

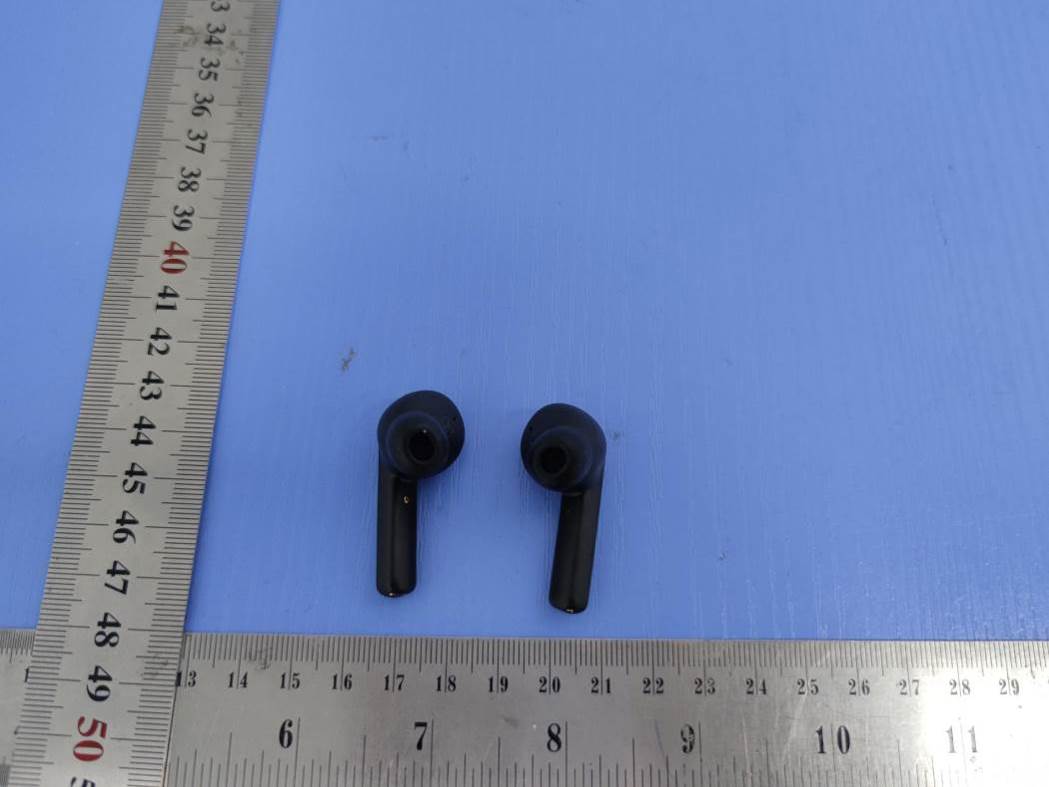

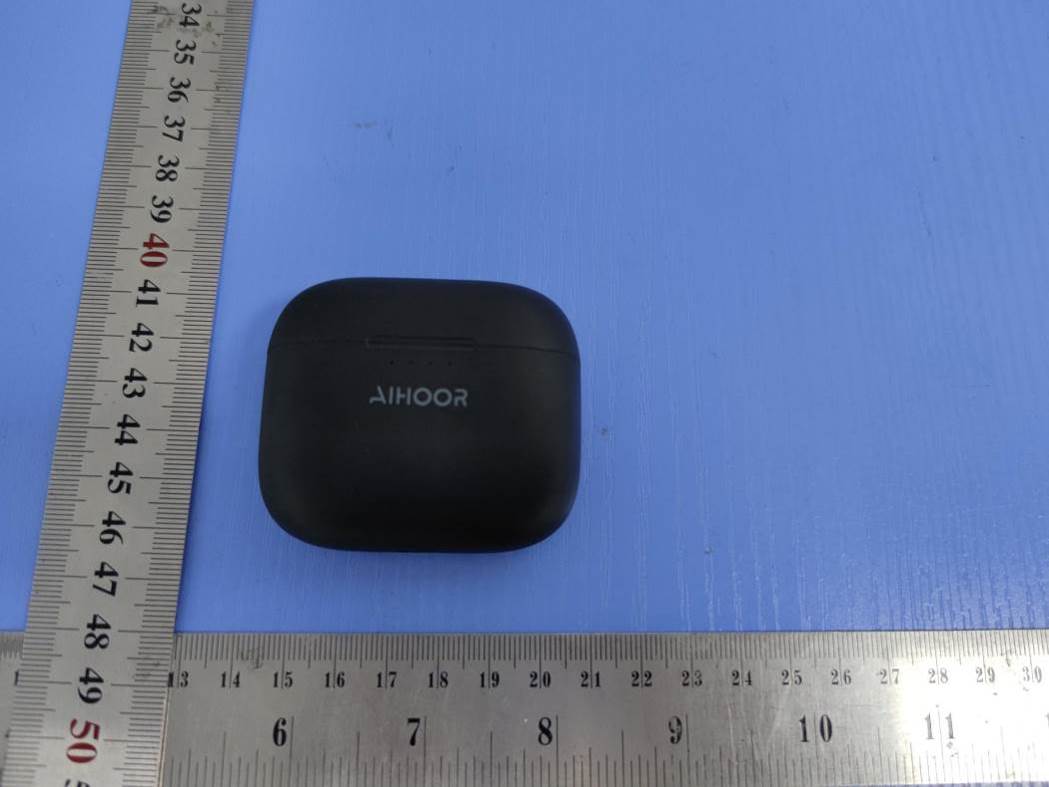

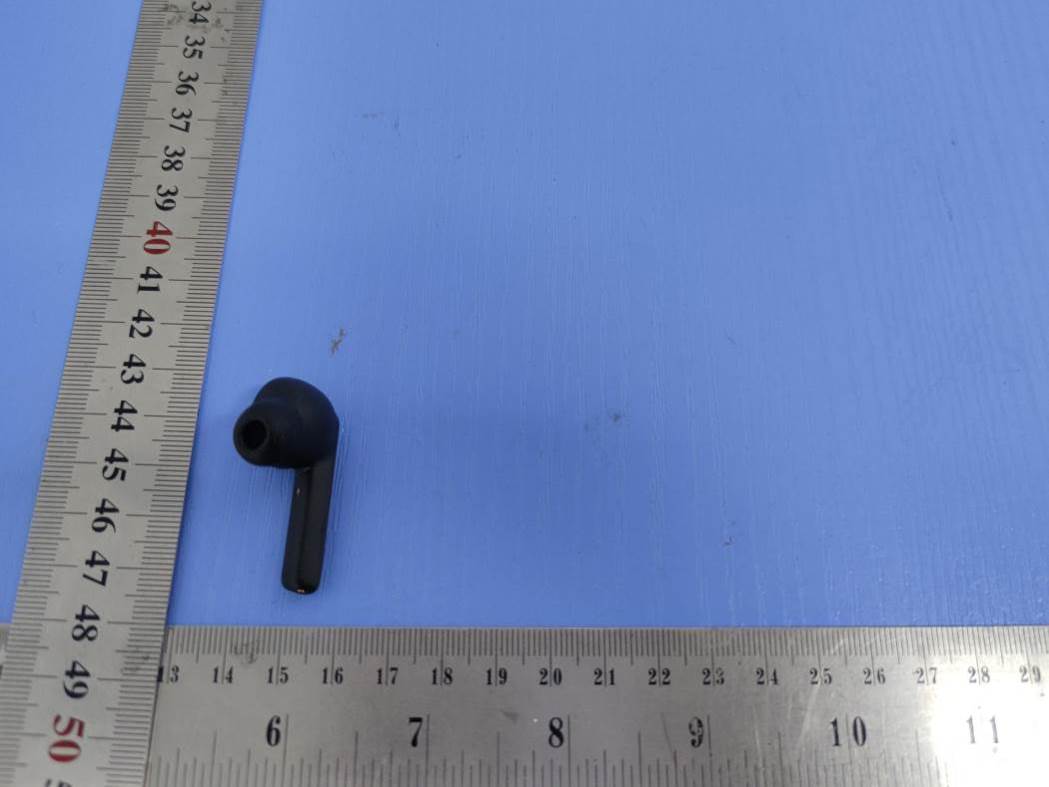

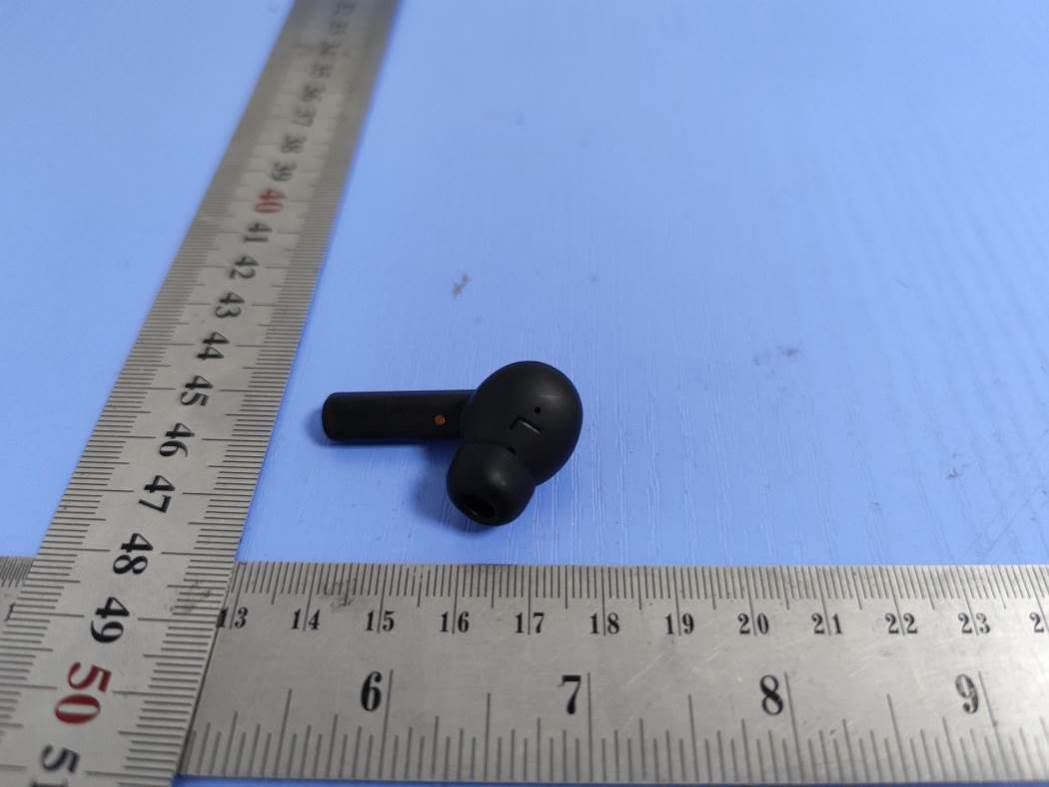

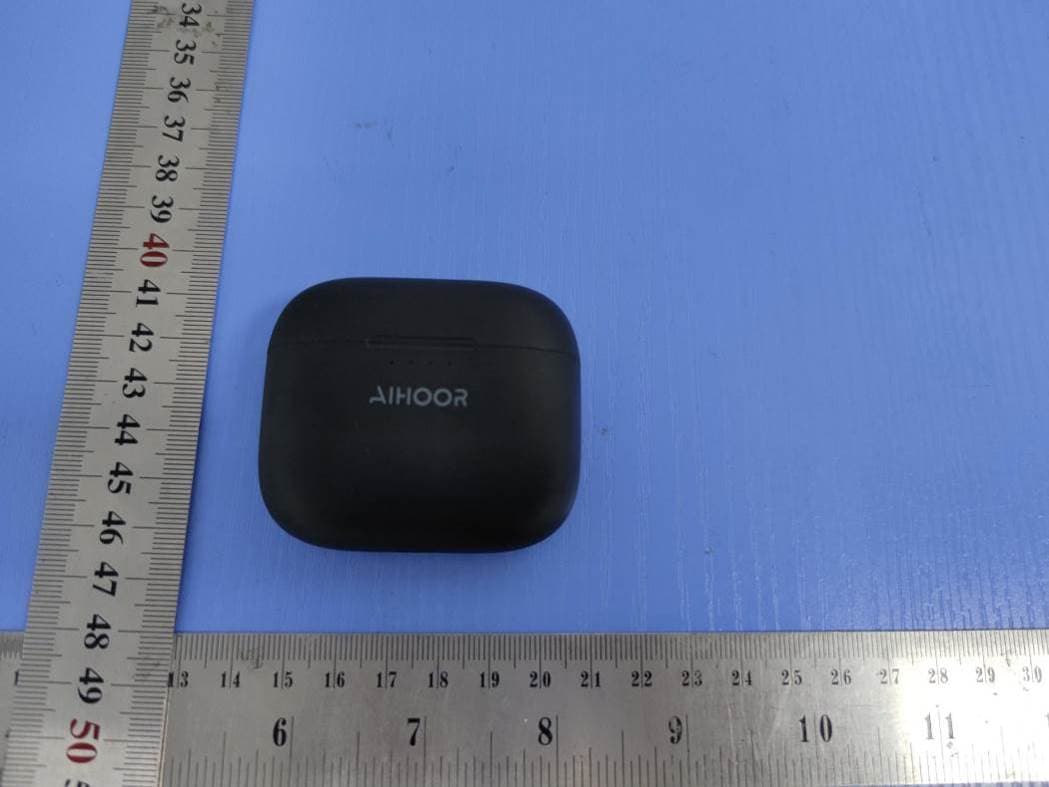

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 7 External Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 7 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 7 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 7 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 7 Fig.9 Fig.10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 6 of 7 Fig.11 Fig.12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 7 of 7 Fig.13 Fig.14

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L2.0cm*W1.5cm Label Location TWS Bluetooth Headset Model No.: AIHOOR A1 FCC ID: 2AZLD-AIHOORA1

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 Internal Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 Fig.3 Fig.4 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD‐AIHOORA1 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID : 2AZLD‐AIHOORA1 Product name : TWS Bluetooth Headset Test Model : AIHOOR A1 Power supply : Charging Box: Input: DC 5V Headphones: DC 3.7V by Rechargeable Li‐ion Battery, 60mAh Bluetooth : 2402MHz ~ 2480MHz Channel Number : 79 channels for Bluetooth V5.2(DSS) Channel Spacing : 1MHz for Bluetooth V5.2(DSS) Modulation Type : GFSK, π/4‐DQPSK, 8‐DPSK for Bluetooth V5.2(DSS) Bluetooth Version : V5.2 Antenna Type : PIFA Antenna Antenna Gain : 2.57dBi(Max.) Hardware Version : YH03_V1.2 Software Version : AIHOOR A1 VF_L_AK_1818_V1.0_20210419 Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1‐g head or body and 10‐g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source‐based time‐averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune‐up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two‐way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune‐up tolerance, mW)/ (min. test separaƟon distance, mm)] · [√f (GHz)] ≤ 3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD‐AIHOORA1 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune‐up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results <BT> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 2.281 39 2441 0.961 78 2480 0.668 π/4DQPSK 0 2402 -0.232 39 2441 -1.567 78 2480 -2.240 8DPSK 0 2402 0.150 39 2441 -1.130 78 2480 -1.865 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD‐AIHOORA1 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 5. Manufacturing Tolerance <BT> GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 2.0 0 0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Chan…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 1 of 47 Appendix A RF Test Data for BT V5.2(BDR/EDR) (Conducted Measurement) Product Name: TWS Bluetooth Headset Trade Mark: AIHOOR Test Model: AIHOOR A1 Environmental Conditions Temperature: 21.6 C Relative Humidity: 52.7% ATM Pressure: 100.0 kPa Test Engineer: Carl Fu Supervised by: Li Huan A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm]Limit [dBm] Verdict GFSK LCH 2.281 21 PASS MCH 0.961 21 PASS HCH 0.668 21 PASS π/4DQPSK LCH -0.232 21 PASS MCH -1.567 21 PASS HCH -2.240 21 PASS 8DPSK LCH 0.150 21 PASS MCH -1.130 21 PASS HCH -1.865 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 1.008 Not Specified PASS MCH 1.507 Not Specified PASS HCH 1.009 Not Specified PASS π/4DQPSK LCH 1.358 Not Specified PASS MCH 1.358 Not Specified PASS HCH 1.360 Not Specified PASS 8DPSK LCH 1.319 Not Specified PASS MCH 1.318 Not Specified PASS HCH 1.318 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 1.128 1.005 PASS MCH 1.012 1.005 PASS HCH 1.210 1.005 PASS π/4DQPSK LCH 1.086 0.907 PASS MCH 1.160 0.907 PASS HCH 0.936 0.907 PASS 8DPSK LCH 1.228 0.879 PASS MCH 1.276 0.879 PASS HCH 0.910 0.879 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N]Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 17 of 47 Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s]Verdict GFSK DH5 LCH 2.89 106.7 0.308 0.4 PASS DH5 MCH 2.89 106.7 0.308 0.4 PASS DH5 HCH 2.89 106.7 0.308 0.4 PASS π/4DQPSK 2DH5 LCH 2.89 106.7 0.308 0.4 PASS 2DH5 MCH 2.89 106.7 0.308 0.4 PASS 2DH5 HCH 2.89 106.7 0.308 0.4 PASS 8DPSK 3DH5 LCH 2.89 106.7 0.308 0.4 PASS 3DH5 MCH 2.89 106.7 0.308 0.4 PASS 3DH5 HCH 2.89 106.7 0.308 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH 2.12 -37.651 -17.880 PASS MCH 0.72 -37.744 -19.280 PASS HCH 0.52 -37.972 -19.480 PASS π/4DQPSK LCH -2.95 -38.531 -22.950 PASS MCH -4.251 -37.055 -24.251 PASS HCH -4.923 -38.140 -24.923 PASS 8DPSK LCH -3.465 -37.972 -23.465 PASS MCH -4.495 -36.083 -24.495 PASS HCH -4.76 -38.478 -24.760 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA Page 28 of 47 π/4DQ…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 36 FCC TEST REPORT FOR Shenzhen Ausounds Intelligence Co.,Ltd. TWS Bluetooth Headset Test Model: AIHOOR A1 Additional Model No.: N/A Prepared for : Shenzhen Ausounds Intelligence Co.,Ltd. Address : 606B, 6th Floor, Xuyuan Building, No. 5003 Longgang Ave nue, Longgang District, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : June 29, 2021 Number of tested samples : 2 Sample No. ： 210618012A-1, 210618012A-2 Serial number : Prototype Date of Test : June 29, 2021 ~ June 30, 2021 Date of Report : July 02, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 36 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ....................... : LCS210618012AEA Date of Issue ......................................... : July 02, 2021 Testing Laboratory Name ................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ................................................. : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ................ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ............................... : Shenzhen Ausounds Intelligence Co.,Ltd. Address ................................................. : 606B, 6th Floor, Xuyuan Building, No. 5003 Longgang Ave nue, Longgang District, Shenzhen, China Test Specification Standard ............................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. .......................... : LCSEMC-1.0 TRF Originator ..................................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .......................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ........................ : TWS Bluetooth Headset Trade Mark ........................................... : AIHOOR Test Model ........................................... : AIHOOR A1 Ratings ................................................. : Charging Box: Input: DC 5V Headphones: DC 3.7V by Rechargeable Li-ion Battery, 60mAh Result ................................................. : Positive Tested by: Compiled by: Approved by: Ray Yang/ Administrator Jin Wang/ Technique principal Gavin Liang / Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 36 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210618012AEA July 02, 2021 Date of issue Test Model.............................. : AIHOOR A1 EUT......................................... : TWS Bluetooth Headset Applicant............................... : Shenzhen Ausounds Intelligence Co.,Ltd. Address................................... : 606B, 6th Floor, Xuyuan Building, No. 5003 Longgang Ave nue, Longgang District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Manufacturer......................... : Shenzhen Ausounds Intelligence Co.,Ltd. Address................................... : 606B, 6th Floor, Xuyuan Building, No. 5003 Longgang Ave nue, Longgang District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Ausounds Intelligence Co.,Ltd. Address................................... : 606B, 6th Floor, Xuyuan Building, No. 5003 Longgang Ave nue, Longgang District, Shenzhen, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 36 Revision History Revision Issue Date Revisions Revised By 000 July 02, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 Report No.: LCS210618012AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 36 TABLE OF CONTENTS Description Page 1.GENERAL INFORMATION .................................................................................................... 6 1.1 Description of Device (EUT) ...........................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZLD-AIHOORA1 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laborato…

Text truncated - open the document above for the full version.
