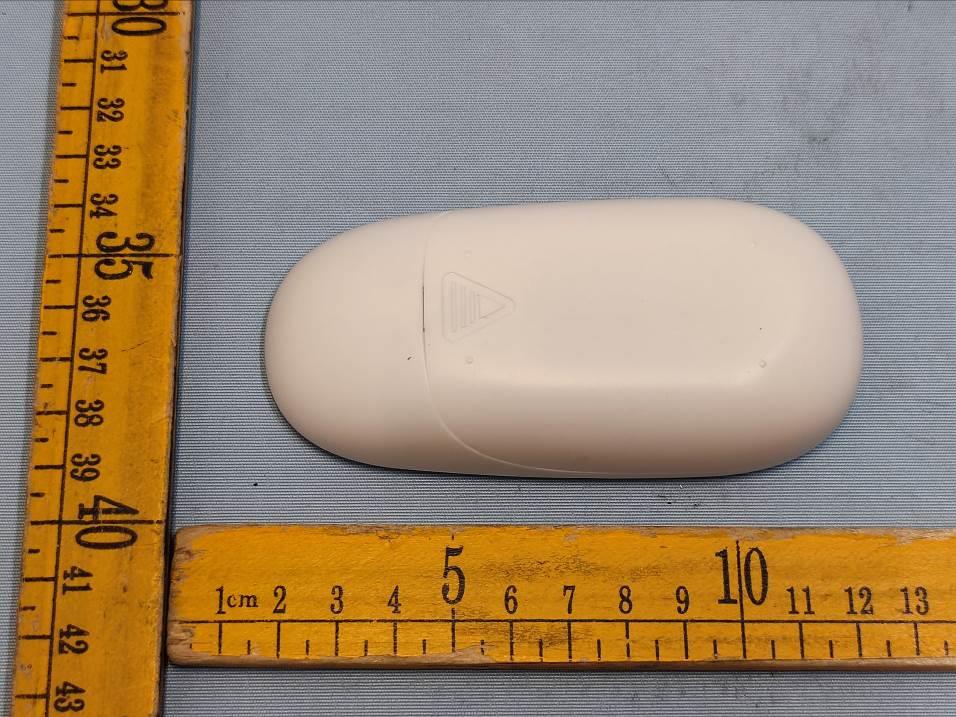

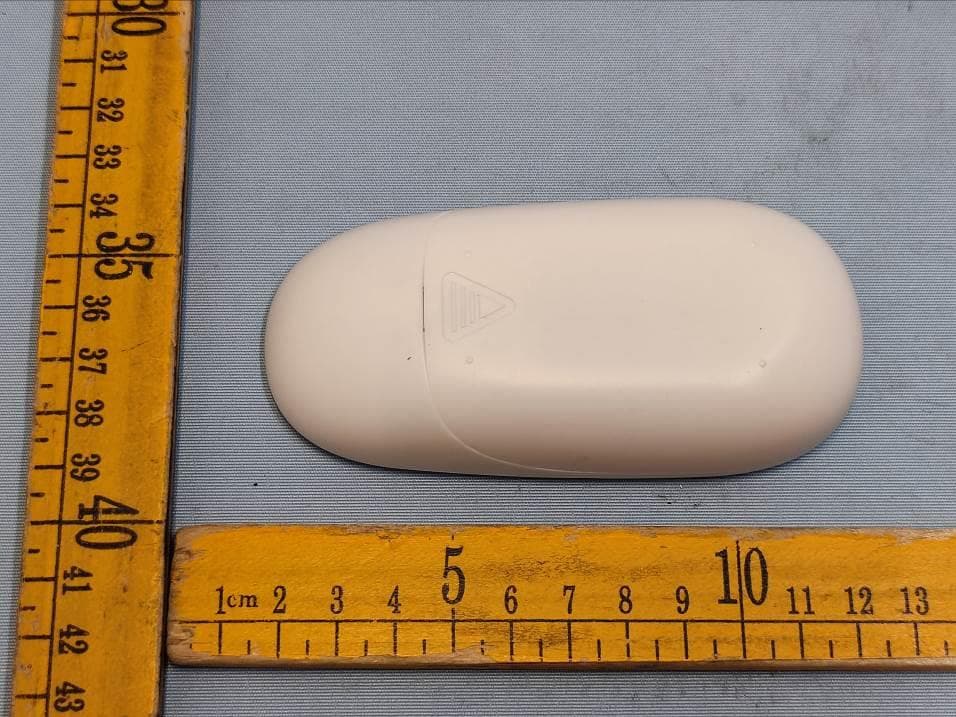

2AZLJ-TCHMagic Color Touch Remote

XIAMEN XINGFEIXIANG E-COMMERCE CO., LTD. ROOM 311, 3TH FLOOR, NO. 2 MALONG ROAD, TORCH PARK, TORCH HIGH-TECH ZONE, XIAMEN CHINA 361000 Magic Color Touch Remote Manual Basic parameters Control point figure: Maximum adjustable to 2048 pixels Remote control distance: ≤30 meters Battery model: AAA Battery (remote control battery) Remote control operation instructions : On/off button (power on/off) : Pause button / Auto Play : Color ring (touch a color and the lamp strip will display the corresponding color) M+: Mode plus (next effect) M-: Mode minus (last effect) S+: Speed up (the lamp runs faster) S-: Slow down (the running speed of the lamp slows down) B+: Increase brightness B-: Decrease brightness Light Effect Auto Play: press any key of color ring first, then press the button to auto play from the first effect to the last effect. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Model: TCH-RFRC Page 1 of 4 Picture 1 Picture 2 Model: TCH-RFRC Page 2 of 4 Picture 3 Picture 4 Model: TCH-RFRC Page 3 of 4 Picture 5 Picture 6 Model: TCH-RFRC Page 4 of 4 Picture 7

FCC ID: 2AZLJ -T CH

Model: TCH-RFRC Page 1 of 2 Picture 1 Picture 2 Model: TCH-RFRC Page 2 of 2 Picture 3 Picture 4

Waltek Testing Group (Foshan) Co., Ltd. http://www.waltek.com.cn Page 1 of 25 TEST REPORT Reference No. .................... : WTZ21F03018032W FCC ID ................................ : 2AZLJ-TCH Applicant ............................ : XIAMEN XINGFEIXIANG E-COMMERCE CO., LTD Address .............................. : ROOM 311, 3TH FLOOR, NO. 2 MALONG ROAD, TORCH PARK, TORCH HIGH-TECH ZONE, XIAMEN CHINA 361000 Manufacturer .................... : The same as above Address .............................. : The same as above Product Name .................... : Magic Color Touch Remote Control Model No. ........................... : TCH-RFRC Standards........................... : FCC CFR47 Part 15 Subpart C (Section 15.231):2019 Date of Receipt sample .... : 2021-03-16 Date of Test ....................... : 2021-03-21 to 2021-04-27 Date of Issue ...................... : 2021-06-04 Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group (Foshan) Co., Ltd. Address: No.13-19, 2/F., 2nd Building, Sunlink International Machinery City, Chencun, Shunde District, Foshan, Guangdong, China Tel:+86-757-23811398 Fax:+86-757-23811381 E-mail:[email protected] Compiled by: Approved by: Roy Hong / Project Engineer Danny Zhou / Manager Reference No.: WTZ21F03018032W Page 2 of 25 Waltek Testing Group (Foshan) Co., Ltd. http://www.waltek.com.cn 1 Revision History Test Report No. Date of Issue Description Status WTZ21F03018032W 2021-06-04 Original Valid Reference No.: WTZ21F03018032W Page 3 of 25 Waltek Testing Group (Foshan) Co., Ltd. http://www.waltek.com.cn 2 Contents Page 1 REVISION HISTORY ................................................................................................................................. 2 2 CONTENTS ............................................................................................................................................... 3 3 GENERAL INFORMATION ....................................................................................................................... 4 3.1 GENERAL DESCRIPTION OF E.U.T ................................................................................................... 4 3.2 TECHNICAL CHARACTERISTICS OF EUT ........................................................................................... 4 3.3 STANDARDS APPLICABLE FOR TESTING ............................................................................................ 4 3.4 TEST FACILITY ................................................................................................................................ 5 3.5 SUBCONTRACTED ........................................................................................................................... 5 3.6 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................ 5 4 EUT SETUP AND TEST MODE ................................................................................................................ 6 5 EQUIPMENT USED DURING TEST ......................................................................................................... 7 5.1 EQUIPMENT LIST ............................................................................................................................. 7 5.2 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ......................................................................... 8 5.3 MEASUREMENT UNCERTAINTY ......................................................................................................... 8 6 SUMMARY OF TEST RESULT ................................................................................................................ 9 6.1 ANTENNA REQUIREMENT ............................................................................................................... 10 6.2 RADIATED SPURIOUS EMISSIONS ................................................................................................... 11 6.3 20DB BANDWIDTH ......................................................................................................................... 15 6.4 TRANSMISSION TIME ..................................................................................................................... 16 6.5 DUTY CYCLE ................................................................................................................................. 17 7 PHOTOGRAPHS TEST SETUP ............................................................................................................. 19 7.1 PHOTOGRAPHS - RADIATED EMISSION TEST SETUP ........................................................................ 19 8 PHOTOGRAPHS - CONSTRUCTIONAL DETAILS ............................................................................... 20 8.1 EUT - EXTERNAL PHOTOS ............................................................................................................. 20 8.2 EUT - INTERNAL PHOTOS .............................................................................................................. 23 Reference No.: WTZ21F03018032W Page 4 of 25 Waltek Testing Group (Foshan) Co., Ltd. http://www.waltek.com.cn 3 General Information 3.1 General Description of E.U.T Product Name ............................... : Magic Color Touch Remote Control Model No. ..................................... : TCH-RFRC Model Description ........................ : --- Rated Voltage................................ : Battery 3V (2*AAA) Battery Capacity ........................... : --- Power Adapter .............................. : --- 3.2 Technical Characteristics of EUT Frequency Range ......................... : 433.92MHz Max. Field Strength ...…
