2AZNC-WEMA10GPRS wireless single light controller

Specification of GPRS wireless single light controller Version：NEMA interface wireless single light controller specification_V1.2 Date：2021-1 1 Introduction The NEMA interface wireless single light controller is designed for road and area lighting in smart cities. It has the functions of switching, dimming and monitoring lamps; GPS positioning function; environmental illumination detection, whether the street lamp is tilted, etc. 1.1 Safety Instructions The following safety principles are followed to ensure personal safety and to help protect the product and work environment from potential damage. When in an airport or other places, it is necessary to prevent the terminal from causing interference to the aircraft communication system. Ignoring this prompt may lead to flight safety issues and even violations of the law. When in a hospital or health care places, user need to pay attention to whether there are restrictions on the use of terminal equipment. RF interference can cause the medical device to malfunction, so it may be necessary to turn off the terminal device. The terminal device does not guarantee an effective connection under any circumstances, and it is necessary to ensure that the device is powered on and in an area with sufficient signal strength. Terminal device will receive and transmit RF signals when it is turned on. Radio frequency interference occurs when you are near a radio or other electronic device. Keep the device away from flammable gases. Do not put it near gas stations, oil depots, chemical plants or explosive work site. There are hidden dangers in operating electronic equipment in any potentially explosive atmosphere. 2 Features 2.1 Main Features Features Description Supply power Wide voltage input design: can work at 100-264VAC Surge protection: 4KV, 4KA Save power Working power consumption: <2W Power off consumption: <0.4W (120V); <0.5W (230V) Working temperature -40~70°C GPRS module Working in 850/900/1800/1900MHz quad-band ISM frequency band; Comply with IEEE802.15.4 standard; AES128 encryption GPRS data characteristics In Single Tone mode: Data downlink transmission: 85.6kbps Data uplink transmission: 85.6kbps In Multi Tone mode: Data downlink transmission: 85.6kbps Data uplink transmission: 85.6bps Support IPv4, IPv6, UDP, CoAP, PPP, SMTP, DTLS, TCP and other protocol stacks Driving power Supports up to 1000W LED driver Dimming interface Equipped with 1 channel 0~10V dimming interface (analog), one channel PWM Self-information monitoring Monitor the lamp input voltage, current, power, power factor and Temperature. Statistical energy consumption and working hours location GPS accuracy ±6M (without obstruction to the air) Light control Meets ANSI C136.10 standard (only in offline mode, Optional) Dimming Strategic dimming Group dimming The lamps still work according to the set dimming schedule and illuminance even when communication fails protection Over voltage, over current, short circuit protection Warranty 5 years 3 Specification 3.1 Absolute Maximum Range PARAMETER TEST CONDITIONS MIN TYP MAX UNIT 参数 测试环境 最小 典型 最大 单位 Min input voltage 100 / / VAC 最小输入电压 Max input voltage / / 264 VAC 最大输入电压 Max output current Peak@100mS / / 5 A 最大输出电流 峰值，100ms Max dimming current RMS / / 10 mA 最大调光电流 平均值 3.2 Electrical Specification At 220VAC input, 20°C, 50% humidity, 100Kpa atmospheric pressure. PARAMETER TEST CONDITIONS MIN TYP MAX UNIT 参数 测试环境 最小 典型 最大 单位 AC input voltage 100 / 264 VAC 交流输入电压 AC input current 220VAC 0.02 / 5 A 交流输入电流 AC output current 220VAC,RMS 0 / 5 A 交流输入电流 平均值 Power Dissipation 0.4 / 2 W 自身功耗 Dimming voltage 0 / 10 V 调光电压 Dimming current 10Voutput 0 1 10 mA 调光输出电流 Dimming accuracy -1 / +1 % 调光精度 Metering voltage range 0 / 300 VAC 计量电压输入范围 Metering current range 0 / 20 A 计量电流输入范围 Metering voltage accuracy -2 / +2 % 计量电压精度 Metering current accuracy -2 / +2 % 计量电流精度 RF transmission distance 3dBi antenna 500 / / m 射频传输距离 使用3dBi增益天线 RF transmission rate Good signal / 250 / Kbps 射频传输速率 信号良好 RF band 射频频段 850 / 1900 MHz RF receiver sensitivity -98.8 / / dBm 接收灵敏度 RF transmitter power / 26±2 dBm 发射功率 Spectral range of Photocell sensitivity / / / nm 光控 光谱灵敏范围 GPS Sensitivity Tracking / -160 / dBm GPS 接收灵敏度 追踪卫星 3.3 Operating Condition PARAMETER TEST CONDITIONS MIN TYP MAX UNIT 参数 测试环境 最小 典型 最大 单位 Operating temperature -40 / 70 °C 工作温度 Storage temperature Indoor dry, well-ventilated place -40 / 80 °C 存储温度 室内干燥通风良好处 Relative humidity No frost 10 / 95 % 性对湿度 无霜冻 Vibration / / 10 G 机械振动 Warranty 5 Years 保质 Ingress protection Not Installed / IP53 / 防护 未安装时 Packaging Impact Drop / 1 / m 包装防护 跌落 Flammability UL94-V0 阻燃 3.4 Safety TYPE/类型 Test level/测试等级 Isolation Voltage AC to Dimming 3kVac,10mA,1min 隔离电压 交流到调光 Certification UL773/EN61010-1/EN61347 认证 3.5 Electromagnetic Compatibility TYPE/ Standard/ Test level/ 类型 标准 测试等级 Electrostatic discharge immunity IEC61000-4-2 Level 4 静电放电抗扰度 RFEMS IEC61000-4-3 Level 2 辐射、射频和电磁场的抗扰度 Electrical fast transient burst immunity IEC61000-4-4 Level 4 电快速瞬变脉冲群抗扰度 Surge Immunity IEC61000-4-5 Level X 浪涌抗扰度 4KV,4KA Conducted disturbances induced by RF field immunity IEC61000-4-6 Level 2 射频场感应的传导干扰抗扰性 Power frequency magnetic field immunity IEC61000-4-8 Level 3 工频磁场抗扰度 Electromagnetic disturbance characteristics FCC PART15 Class B / EN55015 电磁干扰特性认证 Electromagnetic compatibility and EN300328/EN301489-1/EN301489-17/EN300440-2/ Radio spectrum Matters (ERM) 电磁兼容性和无线电频谱认证 EN62479/EN61326-2-1 4 Structural Data 4.1 Size Figure 1: Module side view Figure 2: Top view 4.2 Interface Figure 3: Bottom view  PIN Li: Live line input/火线输入；   PIN Lo: Live line output/火线输出;   PIN N: Neutral line input/零线输入;   PIN 1: CH1 Dim+/调光通道 1 正;   PIN 2: CH1 Dim-/调光通道 1 负;   PIN 3: CH2 Dim+/调光通道 2 正;   PIN 4: CH2 Dim-/调光通道 2 负;   The Rubber Ring makes installation ingress protection can reach IP65;  橡胶圈可以使产品安装在底座上后达到 IP65 防护等级。   Complies with ANSI C136.41-2013. 符合 ANSI C136.41-2013 要求。 5 Part Description NB Antenna Light Sensor (In…

Text truncated - open the document above for the full version.

Shenzhen Sinoco Lighting Technologies Co., Ltd G building, Shasi High-Tech Industrial park, Shajing Town, Baoan District, Shenzhen, Guangdong, China.518104 TEL: +86-13902984889 FAX: +86-13902984889 DATE Mar. 26, 2021 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AZNC-WEMA10 Product Name: GPRS wireless single light controller Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) Schematics Block diagram Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 03-26-2021 By: Michelle Liu Signature Printed Title: Manager On behalf of : Shenzhen Sinoco Lighting Technologies Co., Ltd Telephone: +86-13902984889

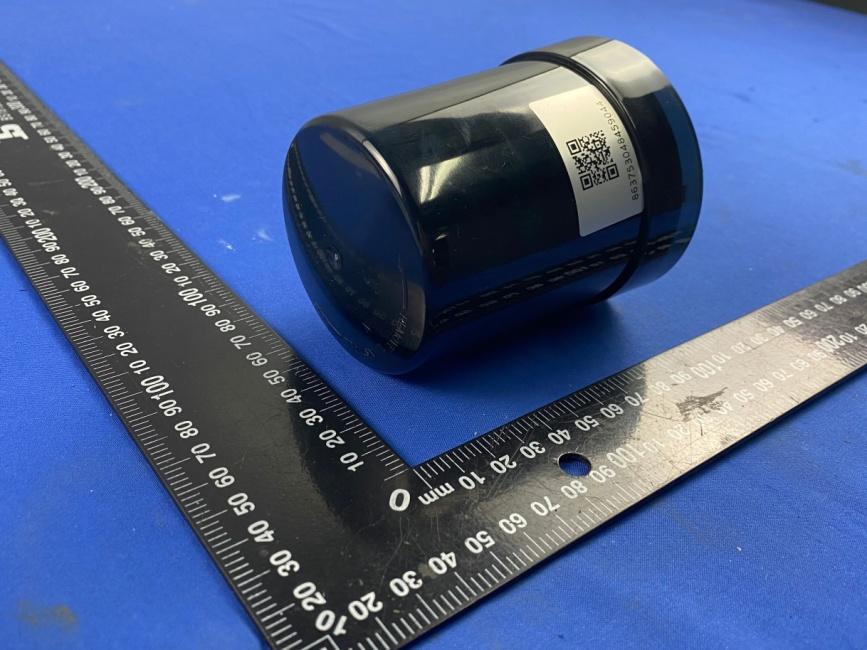

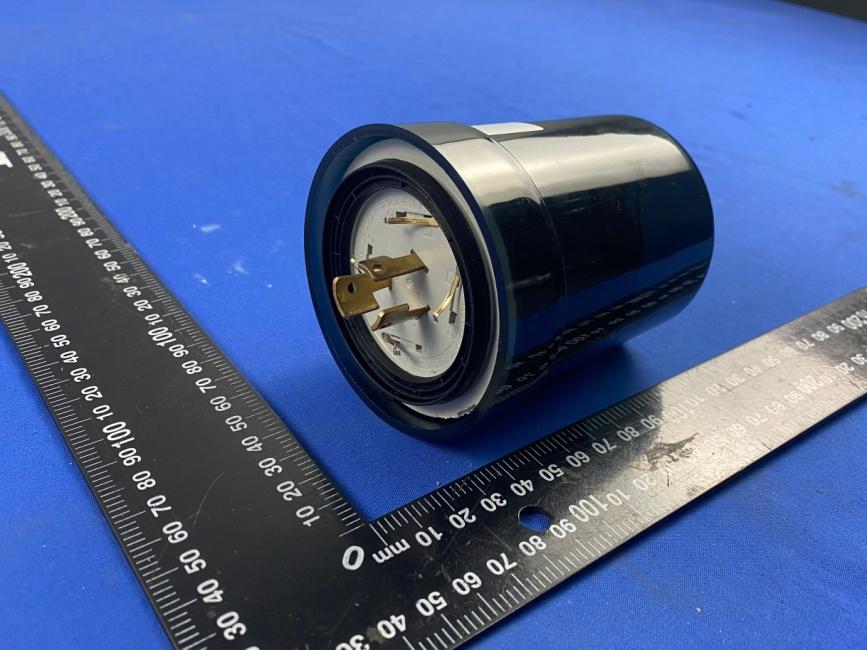

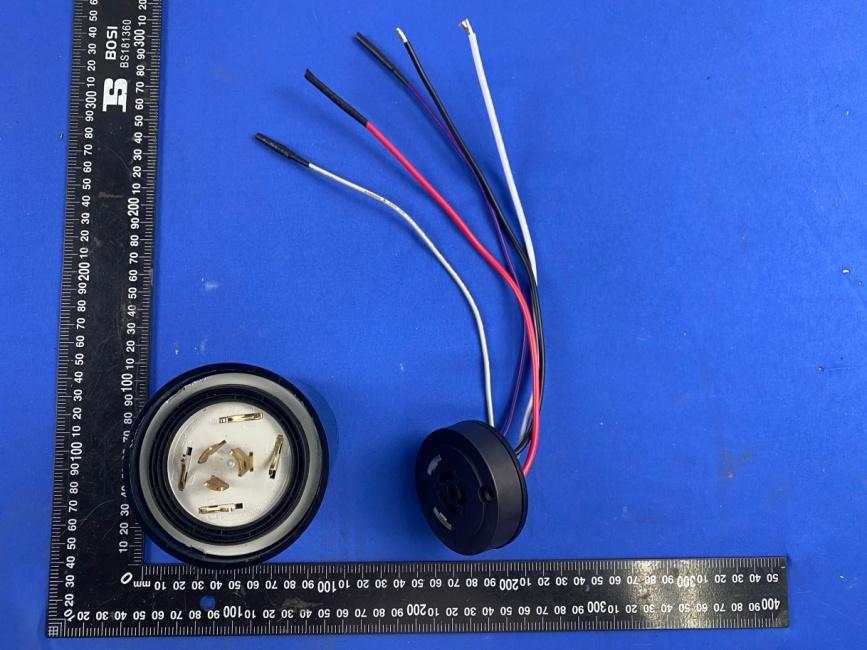

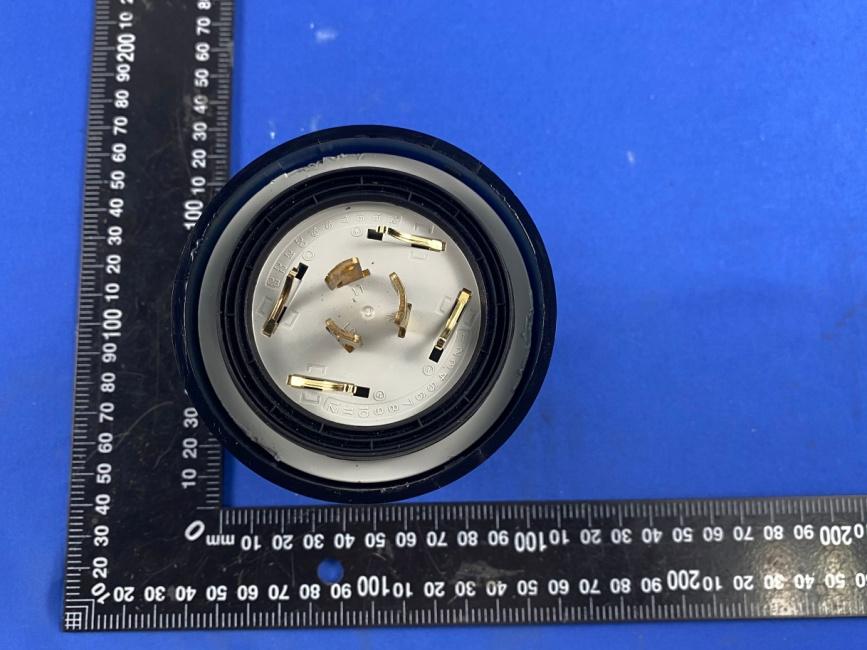

FCC ID: 2AZNC-WEMA10 Page 1 of 2 Report No.: CTL2009191031-WF External Photos of EUT FCC ID: 2AZNC-WEMA10 Page 2 of 2 Report No.: CTL2009191031-WF

FCC ID: 2AZNC-WEMA10 Page 1 of 1 Report No.: CTL2009191031-WF FCC ID Label Information 1.Label location: 2. FCC ID Label: Location GPRS wireless single light controller Model: WE-MA-10 FCC ID: 2AZNC-WEMA10 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2AZNC-WEMA10 Page 1 of 4 Report No.: CTL2009191031-WF Internal Photos of EUT Antenna FCC ID: 2AZNC-WEMA10 Page 2 of 4 Report No.: CTL2009191031-WF FCC ID: 2AZNC-WEMA10 Page 3 of 4 Report No.: CTL2009191031-WF FCC ID: 2AZNC-WEMA10 Page 4 of 4 Report No.: CTL2009191031-WF

RF Exposure evaluation FCC ID: 2AZNC-WEMA10 1.Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01 v06 : Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2.Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 2dBi, the RF power density can be obtained. Mode Max. Output Power (dBm) Max. Output Power (mW) Antenna Gain (Numeric) Power Density At 20 cm (mW/cm 2 ) Power Density Limit FCC (mW/cm 2 ) Test Results GSM 850 30.36 1086.4256 0.7079 0.1530 0.5667 PASS PCS1900 27.42 552.0774 0.7079 0.0778 1.0000 PASS The RF exposure evaluation is not required. 5. Conclusion

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC Part 22 Subpart H / Part 24 Subpart E Report Reference No. ................ : CTL2009191031-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Nice Nong (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : GPRS wireless single light controller Model/Type reference ................ : WE-MA-10 List Model(s) ............................... : N/A Trade Mark .................................. : SINOCO FCC ID ......................................... : 2AZNC-WEMA10 Applicant’s name ....................... : Shenzhen Sinoco Lighting Technologies Co., Ltd Address of applicant ................. : G building, Shasi High-Tech Industrial park, Shajing Town, Baoan District, Shenzhen, Guangdong, China.518104 Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : FCC CFR Title 47 Part 2, Part 22H and Part 24E EIA/TIA 603-D: 2010 KDB 971168 D01 TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Jan. 29, 2021 Date of sampling ........................ : Jan. 29, 2021 Date of Test Date ........................ : Jan. 29, 2021–Mar. 18, 2021 Data of Issue............................... : Mar. 23, 2021 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 3 of 28 Report No.: CTL2009191031-WF TEST REPORT Test Report No. : CTL2009191031-WF Mar. 23, 2021 Date of issue Equipment under Test : GPRS wireless single light controller Sample No. CTL200919103-1-S001 Model /Type : WE-MA-10 Listed Models : N/A Applicant : Shenzhen Sinoco Lighting Technologies Co., Ltd Address : G building, Shasi High-Tech Industrial park, Shajing Town, Baoan District, Shenzhen, Guangdong, China.518104 Manufacturer : Shenzhen Sinoco Lighting Technologies Co., Ltd Address : G building, Shasi High-Tech Industrial park, Shajing Town, Baoan District, Shenzhen, Guangdong, China.518104 Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 33 Report No.: CTL2009191031-WF ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2021-03-23 CTL2009191031-WF Tracy Qi V1.0 Page 4 of 33 Report No.: CTL2009191031-WF Contents 1 SUMMARY ............................................................................................................................................................... 5 1.1 TEST STANDARDS ..................................................................................................................................................... 5 1.2 TEST DESCRIPTION ........................................................................................................................................................ 5 1.3 TEST FACILITY .............................................................................................................................................................. 6 1.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2 GENERAL INFORMATION .......................................................................................................................................... 7 2.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 7 2.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 7 2.3 DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 7 2.4 EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 8 2.5 RELATED SUBMITTAL(S) / GRANT (S) ................................................................................................................................ 8 2.6 MODIFICATIONS ........................................................................................................................................................... 8 3 TEST CONDITIONS AND RESULTS .............................................................................................................................. 9 3.1 OUTPUT POWER .......................................................................................................................................................... 9 3.2 OCCUPIED BANDWIDTH ............................................................................................................................................... 16 3…

Text truncated - open the document above for the full version.

FCC ID: 2AZNC-WEMA10 Page 1 of 1 Report No.: CTL2009191031-WF Test set-up Procedures
