T805 Tablet PC User Manual Safety and Warning Information WARNING! Main Supply: This equipment is designed to operate from a 100-240 Volt, 50/60Hz AC power supply. The use of other power sources may damage this equipment. Check that the voltage marked on the rating plate located at the rear of the power adaptor states 100-240V. The manufacturer will NOT accept responsibility or damage or injury caused by connecting to the wrong voltage. WARNINGS! The main plug shall be the main disconnect device and shall remain operable at all times. Do not push objects into holes and ventilation slots. Do not expose this product to moisture or place any objects filled with liquids on or near the product. Do not place a naked flame source, such as lighted candles, on or near this product. Do not store or operate the device in environments where the temperature is above 50 degrees celsius or below -10 degrees celsius. Do not intentionally hit the device or place heavy or sharp objects on the device. Only use accessories specified by the manufacturer. Keep the device away from benzene, diluents, and other chemicals. Do not attempt to repair this product yourself. Always use a qualified service agent to perform adjustments or repairs. Basic Operation Power on In the shutdown state, long press "" button boots Power off In the power on state, long press the "" key 3 seconds then pop-up device options, select " Power off " for shut down. Sleep the machine under normal operating conditions, Short press the power button, Into hibernation, Now, Screen will close. Short press the power button again, Be able to resume normal mode. When the time being use this MID can enable this feature when, to reduce power consumption. Power reset If there is shutdown to the tablet in the process of operation, you can turn off and restart the tablet by pressing "reset" key. Screen time out If you do not contact the tablet within the set time, and do no operate by the button, the contact screen will be automatically off. In any state, short press "" button and for activation; Then skid the lock upwards to the green of spotted which will accomplish to access to the upper interface. If it is necessary to deactivate the contact screen time out function, you can set the [Screen time out] option under [display] function into "Never ". Using the Micro SD card After this unit is connected with the computer, you will find two moving disks. The first one is the built-in memory disk for this unit and the other is the disk for the Micro SD card. If no card is inserted, the second disk can not be opened. This unit supports the extension of the Micro SD card from 4GB to 64GB. Inserting and Pulling out the Micro SD card Inserting: Put the Micro SD card face up (side with words), and slightly force the card into the socket of the card, i.e. connecting the unit. Under this state, you can play the content in the Micro SD card. Pulling: Slightly push the Micro SD, and it will bounce by a section, and then you can take it out. Caution: Please perform inserting and pulling operation when power is off! Otherwise, it will lead to the loss or damage to the files within the unit! If no card is inserted, the computer will be unable to perform read and write operation for the disk notes of the later removable disk (Micro SD card). Battery: High capacity Polymer battery is used for this unit. The duration available of the battery power depends on volume, types of playing files and operation of batteries. The tablet can be set up by the user as "user define power off time" or "display setup" to save batteries. Charging: This unit can be recharged by USB port, using standard 5V/2A charger: Warnings for charging: 1. A new battery may be empty and not charged before you get the device. 2. If the device is not used for long time, it is better to charge it to full capacity every 2 or 3 months during storage. Power adapter is a key component of the portable tablet, which play a crucial role in keeping the portable tablet’s normal work and protecting your security when using the tablet, a long-term customer surveys and after-sales service Practice shows that the malfunction of the portable tablet in many cases were caused by using inappropriate accessories, in particular the power adapter. Use the substandard power adapter will shorten the life of the portable tablet by considerably, the voltage instability will seriously affected the normal work of the portable tablet and bring permanent damage on the tablet’s performance and reliability, Use the substandard power adapter will also reduce the vocal quality of the tablets, shutdown the tablet when you using it, In addition, Use the substandard power adapter will cause combustion and explosion which will disserve the safety of the consumers. Setting up your tablet 1. 2. After charging the battery, press and hold the power button for up to 5 seconds until the pattern is displayed. IMPORTANT: If the battery image is not displayed on the screen, press the power button briefly to display the image, and then press and hold the power button until the logo is displayed. 3.Follow the on-screen instructions to select a language and a wireless network. Lock and unlock Turn off the tablet Lock—Press the power button. Press and hold the power button, Unlock—Press the power button to touch Power off, and then touch OK. turn on the tablet, then place your If your tablet becomes unresponsive, finger on the lock icon and slide press and hold the power button for the icon to the unlock position several seconds to turn off the tablet. All apps—Swipe up from bottom and display a list of all apps installed. Back—Opens the previous screen. Home—Opens or returns to the Home screen. Recent apps—Opens a list of apps used recently. NOTE: The appearance of the Home screen may vary. Search—Allows you to type one or more keywords to search. Voice search—Allows you to speak one or more keywords to search with the installed search app. *The sea…

Text truncated - open the document above for the full version.

Geek Land USA, LLC Add: 1100 Peachtree Street, Ste 200，Atlanta, GA 30309 USA Date: 2021-4-16 FCC ID: 2AZNOT805 Dear Sir/Madam, We, Geek Land USA, LLC Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Android Tablet Model no.: T805, T806,T807,T808 Sincerely,

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-4-16> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AZNOT805 T805 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely,

Geek Land USA, LLC 1100 Peachtree Street, Ste 200，Atlanta, GA 30309 USA Date: 2021-4-16 FCC ID: 2AZNOT805 Model Number: T805 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Geek Land USA, LLC, declare that this EUT (FCC ID: 2AZNOT805) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely,

Geek Land USA, LLC 1100 Peachtree Street, Ste 200，Atlanta, GA 30309 USA Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-4-16 To whom it may concern: We, Geek Land USA, LLC the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AZNOT805 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely,

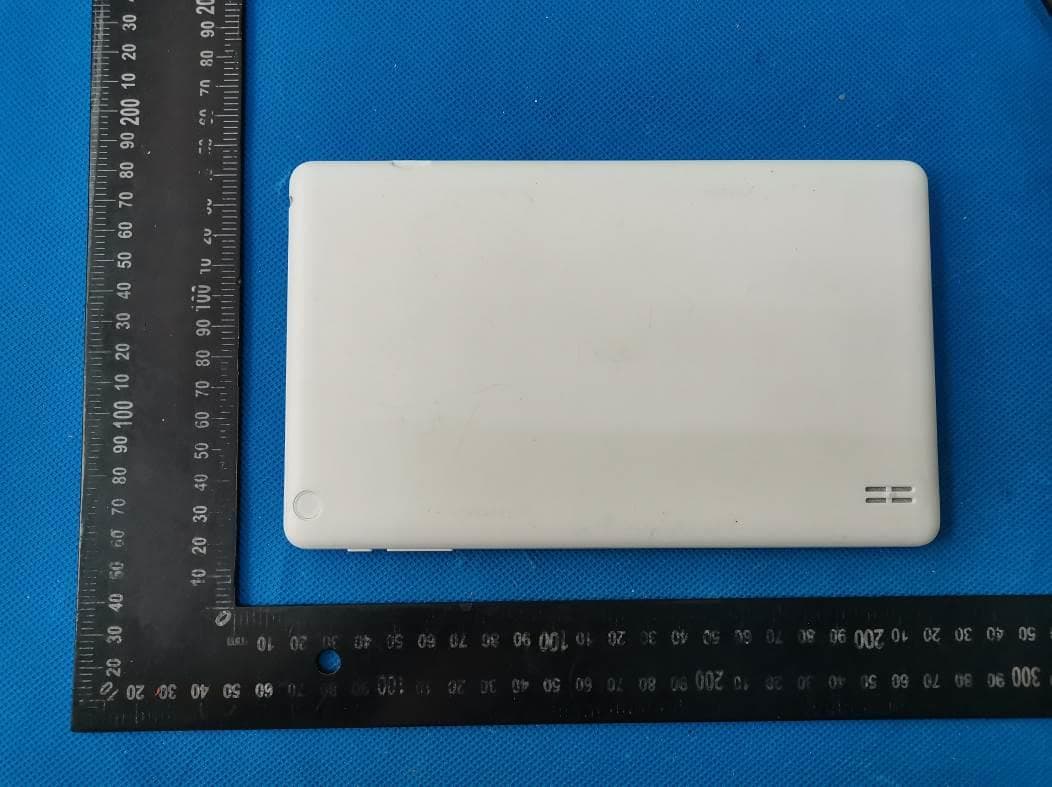

FCC ID: 2AZNOT805 External Photos of the EUT Fig.1 Fig.2 FCC ID: 2AZNOT805 Fig.3 Fig.4 FCC ID: 2AZNOT805 Fig.5 Fig.6

FCC ID: 2AZNOT805 Label and Location Size: L: 4.0cm*W: 3cm Label and Location Android Tablet Model No.: T805 FCC ID: 2AZNOT805 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2AZNOT805 Internal Photos of the EUT Fig.1 Fig.2 Antenna FCC ID: 2AZNOT805 Fig.3 Fig.4 FCC ID: 2AZNOT805 Fig.5 Fig.6

RF Exposure evaluation FCC ID: 2AZNOT805 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance B mode (Average) Channel Channel 0 Channel 6 Channel 11 Target (dBm) 8.5 8.5 8.5 Tolerance ±(dB) 1.0 1.0 1.0 G mode (Average) Channel Channel 0 Channel 6 Channel 11 Target (dBm) 8.5 8.5 8.5 Tolerance ±(dB) 1.0 1.0 1.0 N20 mode (Average) Channel Channel 0 Channel 6 Channel 11 Target (dBm) 8.5 8.5 8.5 Tolerance ±(dB) 1.0 1.0 1.0 N40 mode (Average) Channel Channel 3 Channel 6 Channel 9 Target (dBm) 8.0 8.0 8.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 3 5.2GWIFI N20 mode (Average) Channel Channel 36 Channel 40 Channel 48 Target (dBm) 4.0 3.0 3.0 Tolerance ±(dB) 1.0 1.0 1.0 N40 mode (Average) Channel Channel 38 Channel 46 Target (dBm) 4.0 3.0 Tolerance ±(dB) 1.0 1.0 AC20 mode (Average) Channel Channel 36 Channel 40 Channel 48 Target (dBm) 4.0 5.0 5.0 Tolerance ±(dB) 1.0 1.0 1.0 AC40 mode (Average) Channel Channel 38 Channel 46 Target (dBm) 4.0 5.0 Tolerance ±(dB) 1.0 1.0 5.8GWIFI N20 mode (Average) Channel Channel 149 Channel 157 Channel 165 Target (dBm) 2.0 3.0 2.0 Tolerance ±(dB) 1.0 1.0 1.0 N40 mode (Average) Channel Channel 151 Channel 159 Target (dBm) 3.0 3.0 Tolerance ±(dB) 1.0 1.0 AC20 mode (Average) Channel Channel 149 Channel 157 Channel 165 Target (dBm) 2.0 3.0 2.0 Tolerance ±(dB) 1.0 1.0 1.0 AC40 mode (Average) Channel Channel 151 Channel 159 Target (dBm) 4.0 3.0 Tolerance ±(dB) 1.0 1.0 Page 3 of 3 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW 2.4GWIFI 2.450 5 9.5 8.9125 2.7901<3.0 Yes 5.2GWIFI 5.250 5 6.0 3.9811 1.8244<3.0 Yes 5.8GWIFI 5.825 5 5.0 3.1623 1.5264<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .....................: FCC ID. ........................................... : GTS20210422019-1-1 2AZNOT805 Compiled by ( position+printed name+signature) ..: File administrators Jimmy Wang Supervised by ( position+printed name+signature) ..: Test Engineer Aaron Tan Approved by ( position+printed name+signature) ..: Manager Jason Hu Date of issue .....................................: Apr. 22, 2021 Representative Laboratory Name .: Shenzhen Global Test Service Co.,Ltd. Address ............................................: No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong, China Applicant’s name ............................: Geek Land USA, LLC Address ............................................: 1100 Peachtree Street, Ste 200，Atlanta, GA 30309 USA Test specification ...........................: Standard ...........................................: FCC Part 15.247 TRF Originator ..................................: Shenzhen Global Test Service Co.,Ltd. Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Android Tablet Trade Mark .......................................: N/A Manufacturer ....................................: Geek Land USA, LLC Model/Type reference .......................: T805 Listed Models ..................................: T806,T807,T808 Modulation Type ...............................: CCK/DSSS/ OFDM Operation Frequency ........................: From 2412 - 2462MHz Rating ...............................................: DC 3.80V From Battery and DC 5V From External circuit Result ...............................................: PASS Report No.: GTS20210422019-1-1 Page 2 of 40 T E S T R E P O R T Test Report No. : GTS20210422019-1-1 Apr. 22, 2021 ____________________________________________________________________________________ Date of issue Equipment under Test : Android Tablet Model /Type : T805 Listed Models : T806,T807,T808 Applicant : Geek Land USA, LLC Address : 1100 Peachtree Street, Ste 200，Atlanta, GA 30309 USA Manufacturer : Geek Land USA, LLC Address : 1100 Peachtree Street, Ste 200，Atlanta, GA 30309 USA Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20210422019-1-1 Page 3 of 40 Contents 1 T E S T S T A N D A R D S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 2 S U M M A R Y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 0 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 13 4.3 Maximum Conducted Output Power 19 4.4 Power Spectral Density 21 4.5 6dB Bandwidth 24 4.6 Out-of-band Emissions 27 4.7 Antenna Requirement 35 5 T E S T S E T U P P H O T O S O F T H E E U T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 6 6 P H O T O S O F T H E E U T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 7 Report No.: GTS20210422019-1-1 Page 4 of 40 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 v05r02: Guidance for Compliance Measurements on Digital Transmission Systems (DTS) ,Frequency Hopping Spread Spectrum System(HFSS), and Hybrid System Devices Operating Under §15.247 of The FCC rules. Report No.: GTS20210422019-1-1 Page 5 of 40 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Mar.18,2021 Testing commenced on : Mar.18,2021 Testing concluded on : Apr. 22, 2021 2.2 Product Description Product Name: Android Tablet Model/Type reference: T805 List Model No. T806,T807,T808 Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Power supply: DC 3.80V From Battery and DC 5V From External circuit Adapter information (Auxiliary test supplied by test Lab） : Model:EP-TA20CBC Input:AC100-240V-50/60Hz，0.5A Output:DC 5V,2A testing sample ID： GTS20210…

Text truncated - open the document above for the full version.

FCC ID: 2AZNOT805 Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig. 1 Fig. 2 FCC ID: 2AZNOT805 Test Setup Photo of Line Conducted Emissions Measurement
