2AZOJ-EGC05Bluetooth earphones

Shenzhen Luxneon Ltd Day period April 2, 2019 Version of this 01 The file number 002 1．Using range This specification describes the TWS Bluetooth headset related parameter requirements and inspection rules. This specification refers to the national GB8898-2011 audio product safety and GB 13837-2012 sound general specification. 2．Product Parameter Characteristics No. project The parameter characteristic 01 The product name Bluetooth earphonest 02 Product model EGC05 03 Track system True stereo 04 The control mode touch 05 Active passive active 06 Bluetooth solutions JL6963A4 07 Bluetooth version Bluetooth V5.0 08 Support Bluetooth protocol HSP/HFP/AVRCP/A2DP 09 Bluetooth operating frequency 2.4GHz-2.48GHz 10 Receiving sensitivity ≥-90dBm 11 Bluetooth effective range Straight line accessibility ≥10 ~ 15 meters 12 The speaker power Rating 3mW 13 Radio frequency power rating of earphones Class2 14 Headphone amplifier type Chip built-in 15 Audio signal-to-noise ratio ≥95dB 16 Frequency response 20Hz～20KHz 17 Loudspeaker unit Φ10mm, 32 bits high fidelity 18 The microphone Silicon microphones,-42dB±2 19 Built-in battery Single lug polymer battery 3.7V/30mAh, charging case polymer battery 3.7V/200mAh 20 Music time About 2 hours 21 Talk time About 2 hours 22 Charging Input Standard Apple interface, DC5V/1A 23 Charging time The headset takes about 45 minutes to fully charge and the charging case takes about 1.5 hours to fully charge 24 Battery cycle life The charging and discharging cycles of the headset shall be ≥350 times, and the charging box shall be ≥350 times 25 Single lug weight/size 4g， 16.5*18.0*40.5mm 26 Charging box weight/size 38g，44.3*21.3*53.5mm Shenzhen Luxneon Ltd Day period April 2, 2019 Version of this 01 The file number 002 3．Product features/features 4．Test items and standards Instruments/tools: computer, Bluetooth adapter, Bluetooth tester, charging cable or DC power supply. 27 Temperature/humidity range In dry and ventilated room, should avoid contact with corrosive substances, away from fire and heat sources. The product will be charged once every 3 months during storage. Operating temperature/humidity: 0~40°C，≤70% Storage temperature/humidity:-10~45°C，≤70% No. project Functional features 01 control Support control answer/hang up/pause/play/previous/next / No. project Test conditions and methods The judgment standard 01 Bluetooth connection Remove both earphones from the charging box and turn them on until the red and blue lights flash to automatically complete pairing. Search for connection through Bluetooth tester to check whether the earphones can be successfully connected, and observe whether the connection name displayed on Bluetooth tester is The connection is successful Bluetooth name: B55 02 The keyboard After the Bluetooth tester is paired with the headset and connected successfully, it is required to test the following key functions: answer/hang up/pause/play/last song/next song/voice assistant and other functions are normal The key function is normal 03 Indicator light Charging status: the red light is long on; Charging completed: red light goes off; Pairing status: red and blue light flashing; Connection status: red and blue lights off. Indicator light and corresponding state is normal 04 From the test When the headphone is connected with the iPhone successfully and the music is played, the music sound should not be stuck when the headphone is directly to the phone and the headphone is back to the phone ≥10 meters Music playing normal 05 Connection stability Connect the earphone with the iPhone and play music successfully. When the straight connection distance is ≥10 meters without obstacles, pay attention to whether there is pause or stuck sound in the music The music sounds normal Shenzhen Luxneon Ltd Day period April 2, 2019 Version of this 01 The file number 002 5．Headphone reliability test 6．Products use （1）LED Indicator Status •Pairing status: red and blue lights flashing •Connection status: red and blue lights off •Caller status: The blue light is long on •Call status: blue light flashing •Charging status: the red light is long on •Charging completed: red light goes off （2）Key function operation •Play/Pause: Press once •Upper/Lower: Press the upper twice on the left and the lower twice on the right Answer the call: press the button once （3）Operation specification •Keep the distance between the Bluetooth headset and the mobile phone (or other connected devices) within 1 meter (the closer the better). •The Bluetooth headset will be automatically paired in the power-on state, and the red and blue lights will flash after successful pairing 06 Automatic connection First, connect the earphone to the mobile phone successfully, and then turn off the earphone and restart it, and check whether it can automatically reconnect with the last connected device Automatic connection is normal No. project Test conditions and methods The test results 01 High and low temperature cycle Place the Bluetooth headset in a temperature control box with the temperature of 20°C±5°C for the following steps A) Put the sample in an experimental chamber with a temperature of 45 ° C ±2 ° C for 2 hours; B) Reduce the temperature of the chamber to -10°C±2°C, and keep it for 4 hours; C) Temperature conversion time is not more than 30 minutes; D) Repeat steps a) ~ b) for a total of 4 times. Bluetooth headset should not leak, not deflate, not fire, not explode, not break, indicator light and all functions are normal. OK Shenzhen Luxneon Ltd Day period April 2, 2019 Version of this 01 The file number 002 •Turn on the Bluetooth function of the user's mobile phone (or other Bluetooth devices) and search or scan. At this time, the phone will search for all nearby Bluetooth devices. Select the name of the headset in the search list: the red and blue lights will be off after successful connection of B55. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two cond…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021/4/20 Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AZOJ-EGC05 EGC05 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Vincent Yu/ Certified engineer Company: Heena Fashions INT Ltd Address: 184 cheetham hill road Manchester M8 8LQ England U.K. Phone: 86 18194075166 Fax: E-Mail: [email protected]

Heena Fashions INT Ltd 184 cheetham hill road Manchester M8 8LQ England U.K. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021/4/20 To whom it may concern: We, Heena Fashions INT Ltd the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AZOJ-EGC05 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Vincent Yu/ Certified engineer Company: Heena Fashions INT Ltd Address: 184 cheetham hill road Manchester M8 8LQ England U.K. Phone: 86 18194075166 Fax: E-Mail: [email protected]

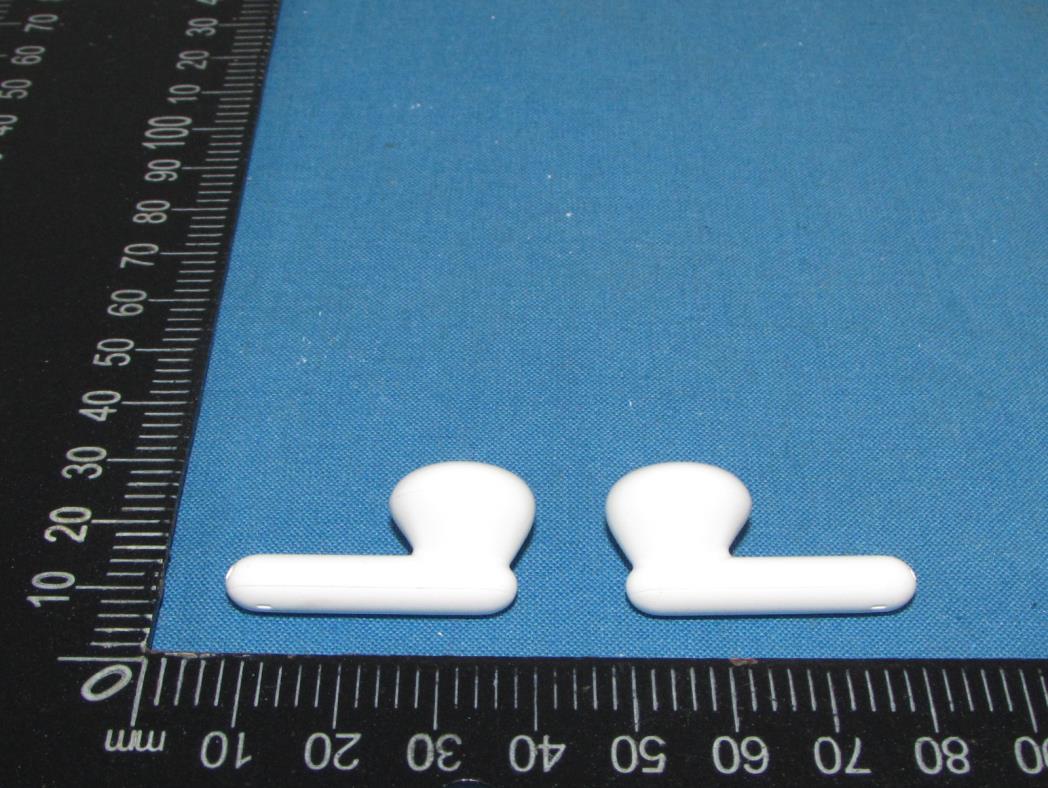

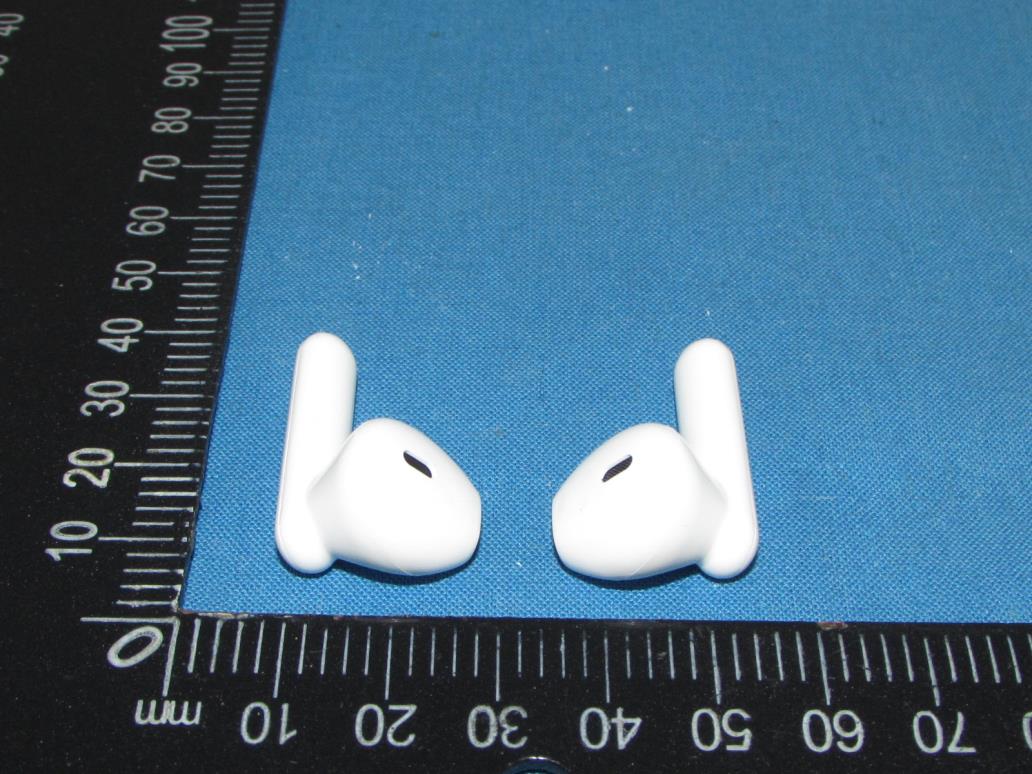

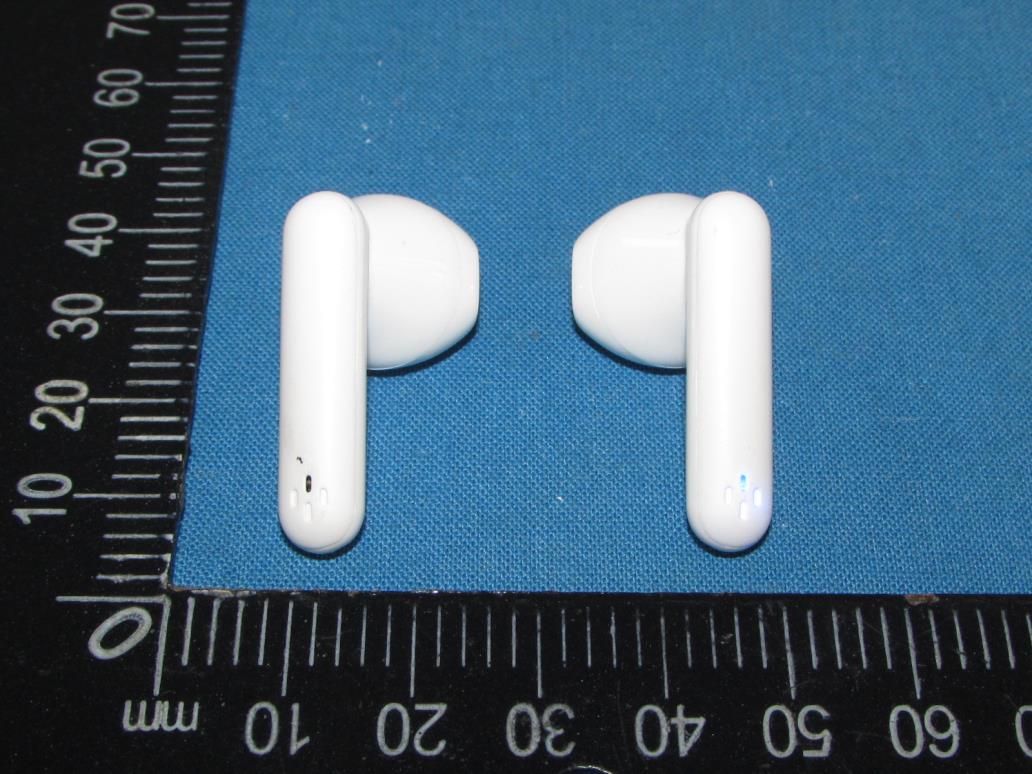

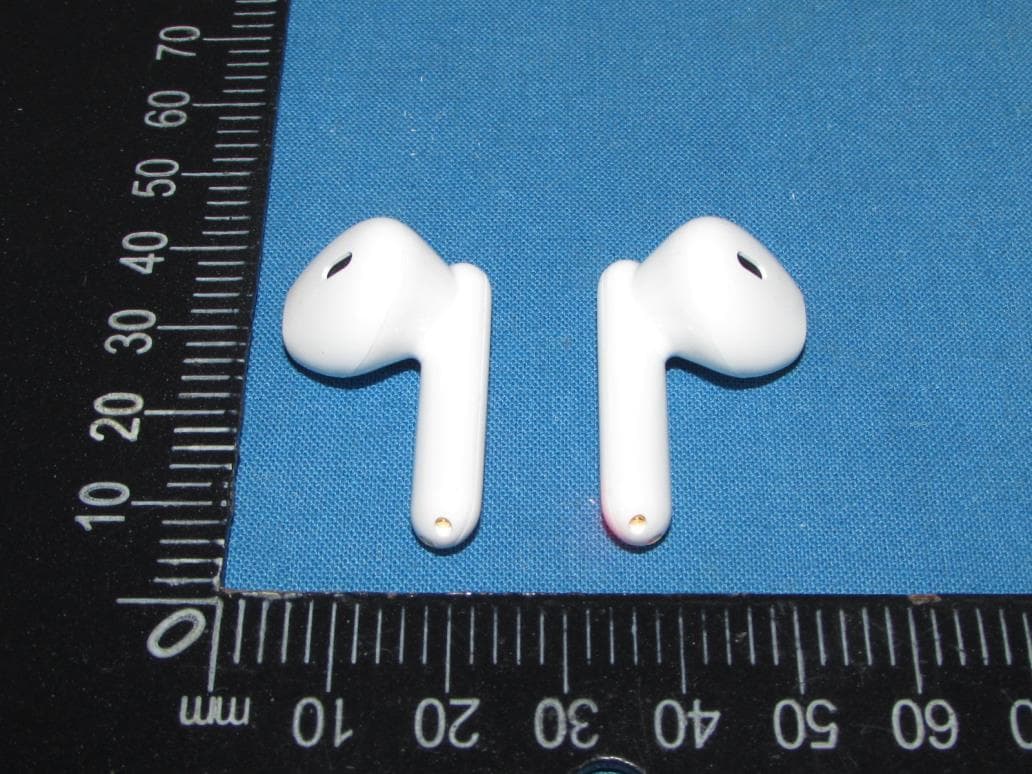

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 5 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 5 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 5 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 5 Fig.7 Fig.8 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 5 Fig.9 Fig.10

Size: 15mm(L)*10mm(W) Label Location: FCC ID: 2AZOJ-EGC05

Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2AZOJ-EGC05 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2AZOJ-EGC05 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Fig.3 Fig.4 Bluetooth Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2AZOJ-EGC05 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Fig.5 Fig.6

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 RADIO FREQUENCY EXPOSURE Limit According to section 4.3.1 of KDB 447498 D01 General RF Exposure Guidance v06, SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Appendix A. Appendix A SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 MHz 30 35 40 45 50 mm 150 232 271 310 349 387 SAR Test Exclusion Threshold (mW) 300 164 192 219 246 274 450 134 157 179 201 224 835 98 115 131 148 164 900 95 111 126 142 158 1500 73 86 98 110 122 1900 65 76 87 98 109 2450 57 67 77 86 96 3600 47 55 63 71 79 5200 39 46 53 59 66 5400 39 45 52 58 65 5800 37 44 50 56 62 Note: Manufacturer declared that the maximum antenna gain is 0dBi(Max.). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Conducted Power Results Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK 00 2402 0.42 39 2441 -0.21 78 2480 0.08 π/4-DQPSK 00 2402 1.00 39 2441 0.33 78 2480 0.58 Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0.0 -0.5 0.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0.5 0.0 0.5 Tolerance ±(dB) 1.0 1.0 1.0 Results Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK 2402 1.0 1.0 1.26 10 2441 0.5 0.5 1.12 10 2480 1.0 1.0 1.26 10 π/4-DQPSK 2402 1.5 1.5 1.41 10 2441 1.0 1.0 1.26 10 2480 1.5 1.5 1.41 10 The antenna gain of the EUT for BT is 0dBi(Max). the Maximum Eirp is used for Routine Evaluation Exemption according to section 4.3.1 of KDB 447498 D01. So, the SAR evaluation is not required.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 Report No.: TZ210302105-E Page 1 of 26 Appendix A RF Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: Bluetooth earphones Trade Mark: Test Model: EGC05 FCC ID: 2AZOJ-EGC05 Environmental Conditions Temperature: 22.8 C Relative Humidity: 56% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen A.1 20 dB Bandwidth TestMode Antenna Channel 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.882 2401.493 2402.375 --- PASS 2441 0.927 2440.484 2441.411 --- PASS 2480 0.891 2479.484 2480.375 --- PASS 2DH5 Ant1 2402 1.317 2401.283 2402.600 --- PASS 2441 1.341 2440.274 2441.615 --- PASS 2480 1.338 2479.274 2480.612 --- PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 Report No.: TZ210302105-E Page 2 of 26 Test Graph DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 Report No.: TZ210302105-E Page 3 of 26 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 Report No.: TZ210302105-E Page 4 of 26 A.2 Dwell Time TestMode Antenna Channel BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH5 Ant1 Hop 2.88 120 0.345 <=0.4 PASS 2DH5 Ant1 Hop 2.89 100 0.289 <=0.4 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 Report No.: TZ210302105-E Page 5 of 26 Test Graph DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 Report No.: TZ210302105-E Page 6 of 26 2DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 Report No.: TZ210302105-E Page 7 of 26 A.3 Carrier Frequency Separation TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 0.934 >=0.927 PASS 2DH5 Ant1 Hop 0.992 >=0.894 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 Report No.: TZ210302105-E Page 8 of 26 Test Graph DH5_Ant1_Hop 2DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 Report No.: TZ210302105-E Page 9 of 26 A.4 Hopping Channel Number TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 >=15 PASS 2DH5 Ant1 Hop 79 >=15 PASS Test Graph DH5_Ant1_Hop 2DH5_Ant1_Hop Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 Report No.: TZ210302105-E Page 10 of 26 A.5 Conducted Peak Output Power TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH5 Ant1 2402 0.42 <=20.97 PASS 2441 -0.21 <=20.97 PASS 2480 0.08 <=20.97 PASS 2DH5 Ant1 2402 1.00 <=20.97 PASS 2441 0.33 <=20.97 PASS 2480 0.58 <=20.97 PASS Test Graph DH5_Ant1_2402 DH5_Ant1_2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 Report No.: TZ210302105-E Page 11 of 26 DH5_Ant1_2480 2DH5_Ant1_2402 2DH5_Ant1_2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 Report No.: TZ210302105-E Page 12 of 26 2DH5_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 Report No.: TZ210302105-E Page 13 of 26 A.6 Band-edge for RF Conducted Emissions TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -0.13 -30.77 <=-20.13 PASS High 2480 -0.62 -44.23 <=-20.62 PASS Low Hop_2402 -0.65 -50.06 <=-20.65 PASS High Hop_2480 -0.20 -48.82 <=-20.2 PASS 2DH5 Ant1 Low 2402 -1.64 -29.5 <=-21.64 PASS High 2480 -0.78 -43.95 <=-20.78 PASS Low Hop_2402 -1.12 -49.6 <=-21.12 PASS High Hop_2480 -1.80 -48.75 <=-21.8 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 Report No.: TZ210302105-E Page 14 of 26 Test Graph DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 Report No.: TZ210302105-E Page 15 of 26 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 Report No.: TZ210302105-E Page 16 of 26 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 Report No.: TZ210302105-E Page 17 of 26 A.7 RF Conducted Spurious Emissions Test Graph DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 Report No.: TZ210302105-E Page 18 of 26 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 DH5_Ant1_2441_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 Report No.: TZ210302105-E Page 19 of 26 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 DH5_Ant1_2480_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 Report No.: TZ210302105-E Page 20 of 26 2DH5_Ant1_2402_0~Reference 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 Report No.: TZ210302105-E Page 21 of 26 2DH5_Ant1_2441_0~Reference 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 Report No.: TZ210302105-E Page 22 of 26 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 Report No.: TZ210302105-E Page 23 of 26 A.8 Restrict-band band-edge measurements TestMode Antenna ChName Channel Detector Freq(MHz) Result(dBm) Limit(dBm) Verdict DH5 Ant1 Low 2402 AV 2310.000 -49.04 <=-41.20 PASS AV 2390.000 -48.63 <=-41.20 PASS Peak 2310.000 -41.99 <=-21.20 PASS Peak 2390.000 -42.15 <=-21.20 PASS High 2480 AV 2483.500 -42.93 <=-41.20 PASS AV 2500.000 -47.95 <=-41.20 PASS Peak 2483.500 -37.40 <=-21.20 PASS Peak 2500.000 -39.51 <=-21.20 PASS 2DH5 Ant1 Low 2402 AV 2310.000 -48.89 <=-41.20 PASS AV 2390.000 -48.67 <=-41.20 PASS Peak 2310.000 -41.28 <=-21.20 PASS Peak 2390.000 -42.10 <=-21.20 PASS High 2480 AV 2483.500 -44.34 <=-41.20 PASS AV 2500.000 -48.00 <=-41.20 PASS Peak 2483.500 -38.01 <=-21.20 PASS Peak 2500.000 -40.52 <=-21.20 PASS Note: 1. The Antenna Gain is compensated in the graph with 2dBi and Antenna Gain which is Higher. 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm . Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AZOJ-EGC05 Report No.: TZ2103…
