2AZOV-RBS955RAYCON PORTABLE BOOMBOX SPEAKER

RAYCON PORTABLE BOOMBOX SPEAKER QUICK START GUIDE CONNECT ． （的） Pairing mode (') * D> :+: .. 品; 0 0 STEPl Press and hold the power button for 1-3 seconds to turn on the speaker. The speaker will enter pairing mode. 心 OFFa)ON STEP2 Select "Raycon Portable Boombox" from the list of available devices in your Bluetooth settings. 01 FUNCTIONS 畸，VolumeDown Tap xl ｀ Previous Track Hold 3 sec 4 Exit Auracast 竺Tap xl Pair/Reconnect @ Hold3sec Pair speakers (TWS} Tap x2 2 畸 � VolumeUp Tap xl Next Track ＂ Hold 3 sec 5 ► I I Play/Pause Tap xl 6 3 C)Power Hold 3 sec 7 乙 Auracast On/Off Tap xl 8 癫, Change Light Mode 111111 Extra Bass On/Off Tap xl I I I Tap xl 势TurnOff Light Hold 3 sec Combo: Hold + and - for 5 sec➔ Reset speaker 02

(Raycon Inc.) (2026/5/25) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2AZOV-RBS955) [Raycon Inc.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the 2025/6/23 of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) (Applicant printed name) Fiona Zhong (Raycon Inc.) (2026/5/25) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2AZOV-RBS955) [Raycon Inc.] (“the applicant”) certifies that, as of the 2025/6/23 of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Fiona Zhong

Raycon Inc. 1115 Broadway, Suite 12, New York, NY10010, United States TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2026/5/25 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2AZOV-RBS955 Applicant FRN: 0030830723 [Raycon Inc.] certifies that, as of the date of the filing of the application, [Raycon Inc.] is our designated U.S. agent for service of process for the above referenced FCC ID. [Raycon Inc.] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. [Raycon Inc.] accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: FRN: 0030830723 Company Name: Raycon Inc. Contact Name: Fiona Zhong Address: 1115 Broadway, Suite 12, New York, NY10010, United States Email: [email protected] Phone: +86-755-86706106 Sincerely, Raycon Inc. Raycon Inc. Fiona Zhong Fiona Zhong

Raycon Inc. 1115 Broadway, Suite 12, New York, NY10010, United States 2026/5/25 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION EUT NAME: RAYCON PORTABLE BOOMBOX SPEAKER Trademark: N/A MODEL: RBS955 FCC ID: 2AZOV-RBS955 To Whom It May Concern: We, the undersigned, hereby authorize SHENZHEN STS TEST SERVICES CO., LTD to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title: Fiona Zhong / Buyer Contact information / address: 1115 Broadway, Suite 12, New York, NY10010, United States

Raycon Inc. 1115 Broadway, Suite 12, New York, NY10010, United States 2026/5/25 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: RAYCON PORTABLE BOOMBOX SPEAKER Trademark: N/A MODEL: RBS955 FCC ID: 2AZOV-RBS955 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title: Fiona Zhong / Buyer Contact information / address: 1115 Broadway, Suite 12, New York, NY10010, United States

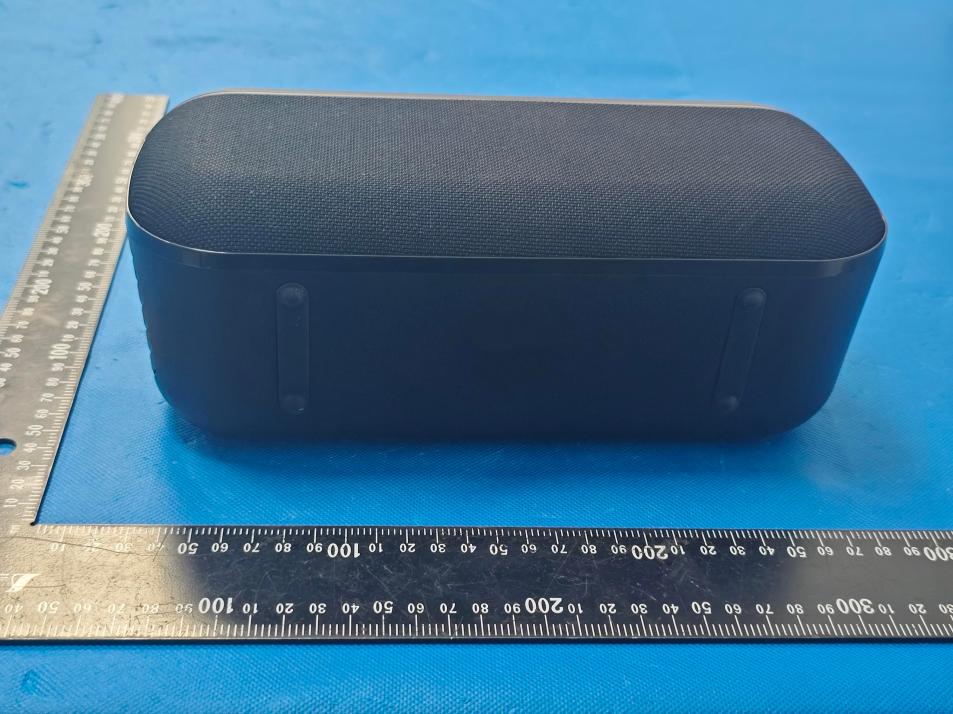

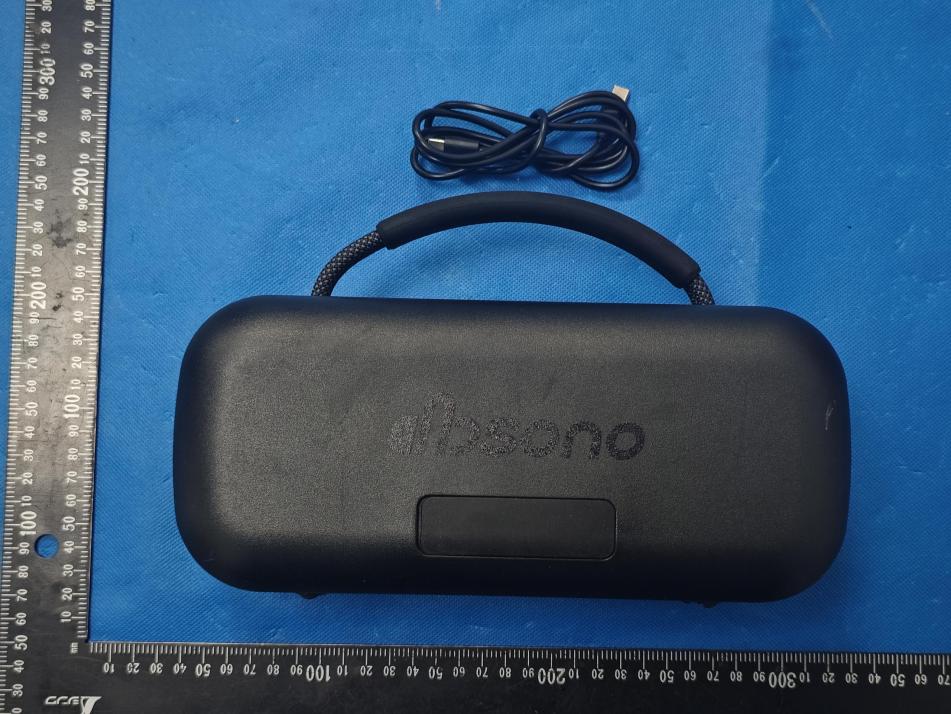

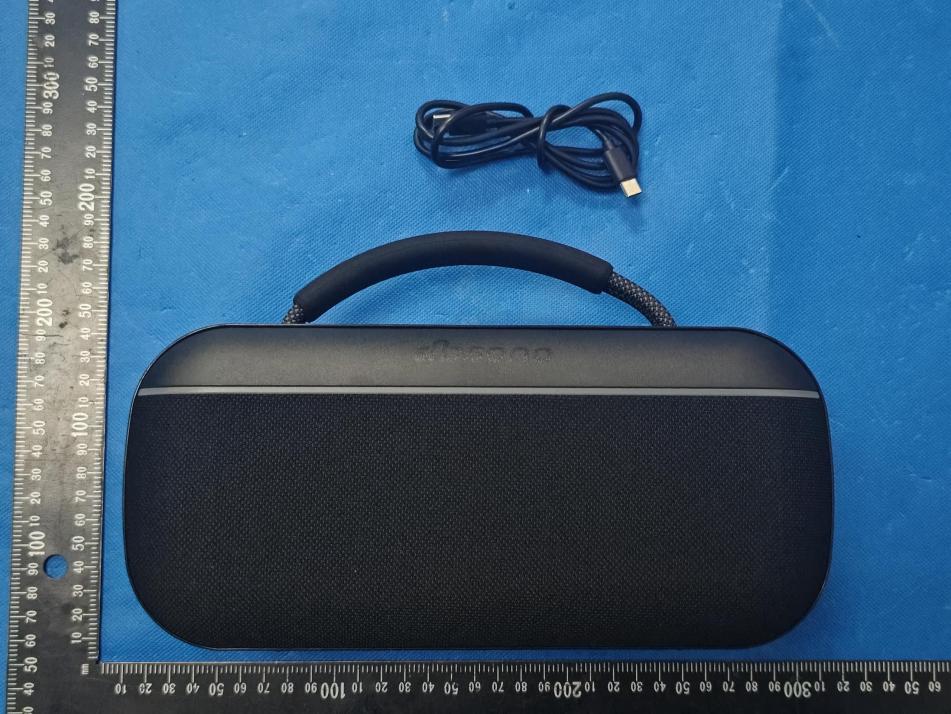

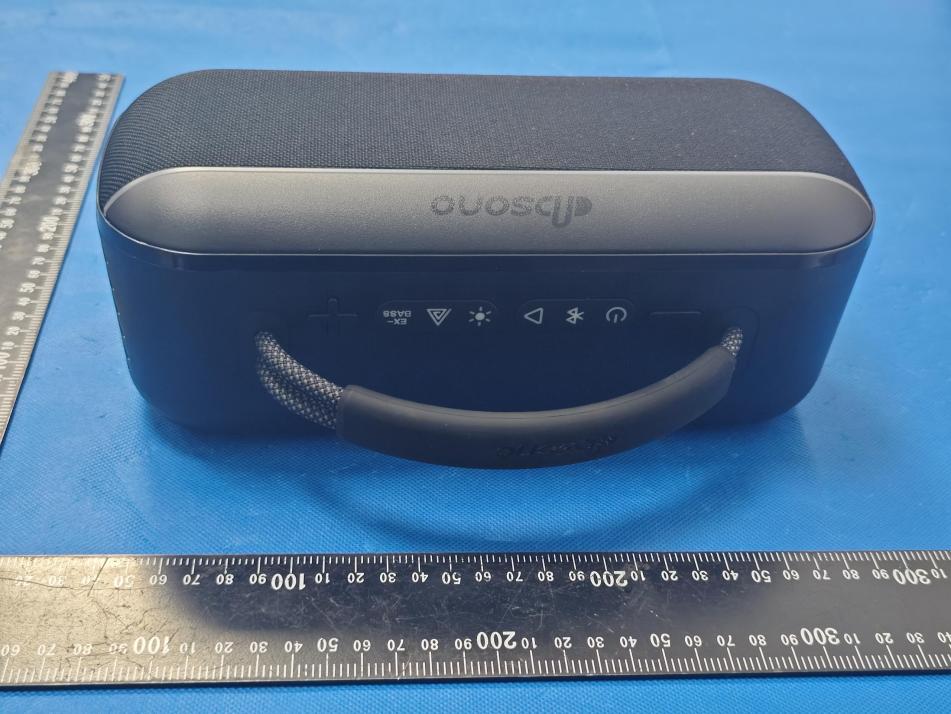

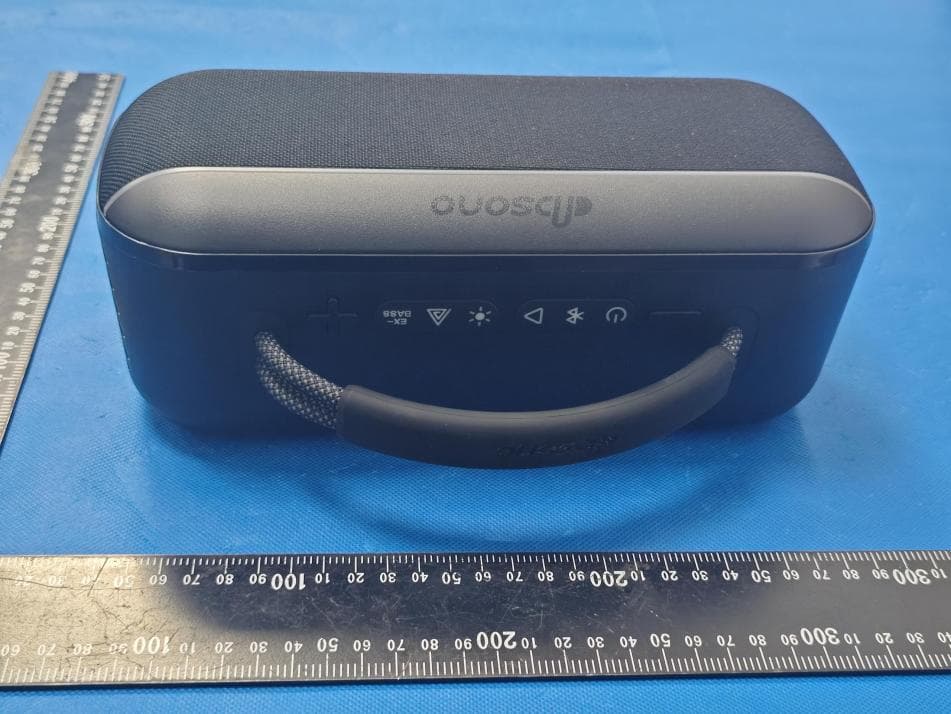

FCC ID: 2AZOV-RBS955 External Photos FCC ID: 2AZOV-RBS955 FCC ID: 2AZOV-RBS955 FCC ID: 2AZOV-RBS955

Laser Print 28.8Wh 48.4mm 21.4mm Bottom view

FCC ID: 2AZOV-RBS955 Internal Photos FCC ID: 2AZOV-RBS955 Antenna FCC ID: 2AZOV-RBS955 FCC ID: 2AZOV-RBS955 FCC ID: 2AZOV-RBS955

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. MPE Report Report No.: STS2605329H01 Issued for Raycon Inc. 1115 Broadway, Suite 12, New York, NY10010, United States Product Name: RAYCON PORTABLE BOOMBOX SPEAKER Brand Name: N/A Model Name: RBS955 Series Model(s): N/A FCC ID: 2AZOV-RBS955 Test Standards: FCC 47CFR §2.1093 Page 2 of 8 Report No.: STS2605329H01 TEST REPORT Applicant’s Name ................. : Raycon Inc. Address ................................. : 1115 Broadway, Suite 12, New York, NY10010, United States Manufacturer's Name ........... : Raycon Inc. Address ................................. : 1115 Broadway, Suite 12, New York, NY10010, United States Product Description Product Name ........................ : RAYCON PORTABLE BOOMBOX SPEAKER Brand Name .......................... : N/A Model Name .......................... : RBS955 Series Model(s) ...................... : N/A Test Standards ..................... : FCC 47CFR §2.1093 447498 D01 Interim General RF Exposure Guidance v06 The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. Date of Test ........................................... : Date of receipt of test item ...................... : 14 Apr. 2026 Date (s) of performance of tests ............. : 14 Apr. 2026 to 13 May. 2026 Date of Issue .......................................... : 13 May. 2026 Test Result .............................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 8 Report No.: STS2605329H01 TABLE OF CONTENTS 1. GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST FACTORY 5 2. FCC 47CFR §2.1093 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 TEST RESULT 8 Page 4 of 8 Report No.: STS2605329H01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 13 May. 2026 STS2605329H01 ALL Initial Issue Page 5 of 8 Report No.: STS2605329H01 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name RAYCON PORTABLE BOOMBOX SPEAKER Brand Name N/A Model Name RBS955 Series Model(s) N/A Model Difference N/A Product Description The EUT is RAYCON PORTABLE BOOMBOX SPEAKER Operation Frequency: 2402~2480MHz Modulation Type: BR+EDR: GFSK, π/4-DQPSK, 8DPSK Antenna gain (dBi): 3.08 Antenna Designation: PCB Power Rating Charging: DC 5V Adapter N/A Battery DC 7.2V Hardware Version N/A Software Version N/A 1.2 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 Page 6 of 8 Report No.: STS2605329H01 2. FCC 47CFR §2.1093 REQUIREMENT 2.1 TEST STANDARDS The limit for Maximum Permissible Exposure (MPE) specified in KDB 447498 D01 General RF Exposure Guidance v06 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 2.2 LIMIT Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. Page 7 of 8 Report No.: STS2605329H01 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] • [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz. Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Page 8 of 8 Report No.: STS2605329H01 2.3 TEST RESULT Maximum measured transmitter power. Worst Case Mode Frequency Maximum Output Power Tune up tolerance Max Tune up GHz dBm dBm dBm BR+EDR 2.441 0.15 -0.5±1 0.5 Evaluation Result Mode Frequency Antenna Distance RF output power including tune up SAR Test Exclusion Threshold SAR Test Exclusion Estimated SAR GHz mm dBm mw BR+EDR 2.441 5 0.5 1.122 0.351 Yes / Note: 1. Remark: The worst case gain of the antenna is 3.08dBi. 2. Threshold at which no SAR required is yyy≤ 3.0 for 1-g SAR, Separation distance ≤ 5mm. ※※※※※END OF THE REPORT※※※※※

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Radio Test Report Report No.: STS2605329W01 Issued for Raycon Inc. 1115 Broadway, Suite 12, New York, NY10010, United States Product Name: RAYCON PORTABLE BOOMBOX SPEAKER Brand Name: N/A Model Name: RBS955 Series Model(s): N/A FCC ID: 2AZOV-RBS955 Test Standards: FCC Part15.247 Page 2 of 101 Report No.: STS2605329W01 TEST REPORT Applicant’s Name ................. : Raycon Inc. Address ................................. : 1115 Broadway, Suite 12, New York, NY10010, United States Manufacturer's Name .......... : Raycon Inc. Address ................................. : 1115 Broadway, Suite 12, New York, NY10010, United States Product Description Product Name........................ : RAYCON PORTABLE BOOMBOX SPEAKER Brand Name .......................... : N/A Model Name .......................... : RBS955 Series Model(s) .................... : N/A Standards ............................. : FCC Part15.247 Test Procedure ...................... : ANSI C63.10-2020+Cor 1-2023 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Date of Test ............................... : Date of receipt of test item ......... : 14 Apr. 2026 Date (s) of performance of tests . : 14 Apr. 2026 to 13 May. 2026 Date of Issue .............................. : 13 May. 2026 Test Result.................................. : Pass Table of Contents Page Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 101 Report No.: STS2605329W01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 FREQUENCY HOPPING SYSTEM REQUIREMENTS 10 2.4 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 12 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 2.6 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 13 2.7 EQUIPMENTS LIST 14 3. EMC EMISSION TEST 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 RADIATED EMISSION MEASUREMENT 19 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 31 4.1 LIMIT 31 4.2 TEST PROCEDURE 31 4.3 TEST SETUP 32 4.4 EUT OPERATION CONDITIONS 32 4.5 TEST RESULTS 32 5. NUMBER OF HOPPING CHANNEL 33 5.1 LIMIT 33 5.2 TEST PROCEDURE 33 5.3 TEST SETUP 33 5.4 EUT OPERATION CONDITIONS 33 5.5 TEST RESULTS 33 6. AVERAGE TIME OF OCCUPANCY 34 6.1 LIMIT 34 6.2 TEST PROCEDURE 34 6.3 TEST SETUP 34 6.4 EUT OPERATION CONDITIONS 34 6.5 TEST RESULTS 34 7. HOPPING CHANNEL SEPARATION MEASUREMEN 35 7.1 LIMIT 35 Page 4 of 101 Report No.: STS2605329W01 Table of Contents Page 7.2 TEST PROCEDURE 35 7.3 TEST SETUP 35 7.4 EUT OPERATION CONDITIONS 35 7.5 TEST RESULTS 35 8. BANDWIDTH TEST 36 8.1 LIMIT 36 8.2 TEST PROCEDURE 36 8.3 TEST SETUP 36 8.4 EUT OPERATION CONDITIONS 36 8.5 TEST RESULTS 36 9. OUTPUT POWER TEST 37 9.1 LIMIT 37 9.2 TEST PROCEDURE 37 9.3 TEST SETUP 38 9.4 EUT OPERATION CONDITIONS 38 9.5 TEST RESULTS 38 10. ANTENNA REQUIREMENT 39 10.1 STANDARD REQUIREMENT 39 10.2 EUT ANTENNA 39 APPENDIX 1-TEST DATA 40 DWELL TIME 40 MAXIMUM CONDUCTED OUTPUT POWER 50 -20DB BANDWIDTH 56 OCCUPIED CHANNEL BANDWIDTH 62 CARRIER FREQUENCIES SEPARATION 68 BAND EDGE 74 BAND EDGE(HOPPING) 81 CONDUCTED RF SPURIOUS EMISSION 88 NUMBER OF HOPPING CHANNEL 98 APPENDIX 2-PHOTOS OF TEST SETUP 101 Page 5 of 101 Report No.: STS2605329W01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 13 May. 2026 STS2605329W01 ALL Initial Issue Page 6 of 101 Report No.: STS2605329W01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247(a)(1) Hopping Channel Separation PASS -- 15.247(a)(1)&(b)(1) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247(d) Conducted Spurious & Band Edge Emission PASS -- 15.247(a)(1)(iii) Number of Hopping Frequency PASS -- 15.247(a)(1)(iii) Dwell Time PASS -- 15.247(a)(1) Bandwidth PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- Note: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020+Cor 1-2023. Page 7 of 101 Report No.: STS2605329W01 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.751dB 2 Unwanted Emissions, conducted ±2.888dB 3 All emissions, radiated 9K-30MHz ±2.48dB 4 All emissions, radiated 30M-1GHz ±2.52dB 5 All emissions, radiated 1G-18GHz ±3.48dB 6 All emissions, radiated>18GHz ±4.18dB 7 Conducted Emission (9KHz-150KHz) ±2.48dB 8 Conducted Emission (150KHz-30MHz) ±2.52dB 9 Occupied Channel Bandwidth ±3.6% 10 Duty Cycle ±3.2% Page 8 of 101 Report No.: STS2605329W01 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name RAYCON PORTABLE BOOMBOX SPEAKER Brand Na…

Text truncated - open the document above for the full version.

Page 71 of 101 Report No.: STS2605329W01 CFS NVNT 2-DH5 2441MHz CFS NVNT 2-DH5 2480MHz Page 72 of 101 Report No.: STS2605329W01 CFS NVNT 3-DH5 2402MHz CFS NVNT 3-DH5 2441MHz Page 73 of 101 Report No.: STS2605329W01 CFS NVNT 3-DH5 2480MHz Page 74 of 101 Report No.: STS2605329W01 Band Edge Condition Mode Frequency (MHz) Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 No-Hopping -51.52 -20 Pass NVNT 1-DH5 2480 No-Hopping -52.35 -20 Pass NVNT 2-DH5 2402 No-Hopping -52.86 -20 Pass NVNT 2-DH5 2480 No-Hopping -51.67 -20 Pass NVNT 3-DH5 2402 No-Hopping -52.91 -20 Pass NVNT 3-DH5 2480 No-Hopping -51.09 -20 Pass Page 75 of 101 Report No.: STS2605329W01 Test Graphs Band Edge NVNT 1-DH5 2402MHz No-Hopping Ref Band Edge NVNT 1-DH5 2402MHz No-Hopping Emission Page 76 of 101 Report No.: STS2605329W01 Band Edge NVNT 1-DH5 2480MHz No-Hopping Ref Band Edge NVNT 1-DH5 2480MHz No-Hopping Emission Page 77 of 101 Report No.: STS2605329W01 Band Edge NVNT 2-DH5 2402MHz No-Hopping Ref Band Edge NVNT 2-DH5 2402MHz No-Hopping Emission Page 78 of 101 Report No.: STS2605329W01 Band Edge NVNT 2-DH5 2480MHz No-Hopping Ref Band Edge NVNT 2-DH5 2480MHz No-Hopping Emission Page 79 of 101 Report No.: STS2605329W01 Band Edge NVNT 3-DH5 2402MHz No-Hopping Ref Band Edge NVNT 3-DH5 2402MHz No-Hopping Emission Page 80 of 101 Report No.: STS2605329W01 Band Edge NVNT 3-DH5 2480MHz No-Hopping Ref Band Edge NVNT 3-DH5 2480MHz No-Hopping Emission Page 81 of 101 Report No.: STS2605329W01 Band Edge(Hopping) Condition Mode Frequency (MHz) Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Hopping -51.29 -20 Pass NVNT 1-DH5 2480 Hopping -52.18 -20 Pass NVNT 2-DH5 2402 Hopping -51.75 -20 Pass NVNT 2-DH5 2480 Hopping -52.92 -20 Pass NVNT 3-DH5 2402 Hopping -50.34 -20 Pass NVNT 3-DH5 2480 Hopping -53.08 -20 Pass Page 82 of 101 Report No.: STS2605329W01 Test Graphs Band Edge(Hopping) NVNT 1-DH5 2402MHz Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2402MHz Hopping Emission Page 83 of 101 Report No.: STS2605329W01 Band Edge(Hopping) NVNT 1-DH5 2480MHz Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2480MHz Hopping Emission Page 84 of 101 Report No.: STS2605329W01 Band Edge(Hopping) NVNT 2-DH5 2402MHz Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2402MHz Hopping Emission Page 85 of 101 Report No.: STS2605329W01 Band Edge(Hopping) NVNT 2-DH5 2480MHz Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2480MHz Hopping Emission Page 86 of 101 Report No.: STS2605329W01 Band Edge(Hopping) NVNT 3-DH5 2402MHz Hopping Ref Band Edge(Hopping) NVNT 3-DH5 2402MHz Hopping Emission Page 87 of 101 Report No.: STS2605329W01 Band Edge(Hopping) NVNT 3-DH5 2480MHz Hopping Ref Band Edge(Hopping) NVNT 3-DH5 2480MHz Hopping Emission Page 88 of 101 Report No.: STS2605329W01 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 -40.29 -20 Pass NVNT 1-DH5 2441 -40.24 -20 Pass NVNT 1-DH5 2480 -38.42 -20 Pass NVNT 2-DH5 2402 -41.41 -20 Pass NVNT 2-DH5 2441 -41.14 -20 Pass NVNT 2-DH5 2480 -37.80 -20 Pass NVNT 3-DH5 2402 -41.17 -20 Pass NVNT 3-DH5 2441 -41.17 -20 Pass NVNT 3-DH5 2480 -39.50 -20 Pass Page 89 of 101 Report No.: STS2605329W01 Test Graphs Tx. Spurious NVNT 1-DH5 2402MHz Ref Tx. Spurious NVNT 1-DH5 2402MHz Emission Page 90 of 101 Report No.: STS2605329W01 Tx. Spurious NVNT 1-DH5 2441MHz Ref Tx. Spurious NVNT 1-DH5 2441MHz Emission Page 91 of 101 Report No.: STS2605329W01 Tx. Spurious NVNT 1-DH5 2480MHz Ref Tx. Spurious NVNT 1-DH5 2480MHz Emission Page 92 of 101 Report No.: STS2605329W01 Tx. Spurious NVNT 2-DH5 2402MHz Ref Tx. Spurious NVNT 2-DH5 2402MHz Emission Page 93 of 101 Report No.: STS2605329W01 Tx. Spurious NVNT 2-DH5 2441MHz Ref Tx. Spurious NVNT 2-DH5 2441MHz Emission Page 94 of 101 Report No.: STS2605329W01 Tx. Spurious NVNT 2-DH5 2480MHz Ref Tx. Spurious NVNT 2-DH5 2480MHz Emission Page 95 of 101 Report No.: STS2605329W01 Tx. Spurious NVNT 3-DH5 2402MHz Ref Tx. Spurious NVNT 3-DH5 2402MHz Emission Page 96 of 101 Report No.: STS2605329W01 Tx. Spurious NVNT 3-DH5 2441MHz Ref Tx. Spurious NVNT 3-DH5 2441MHz Emission Page 97 of 101 Report No.: STS2605329W01 Tx. Spurious NVNT 3-DH5 2480MHz Ref Tx. Spurious NVNT 3-DH5 2480MHz Emission Page 98 of 101 Report No.: STS2605329W01 Number of Hopping Channel Condition Mode Hopping Number Limit Verdict NVNT 1-DH5 79 15 Pass NVNT 2-DH5 79 15 Pass NVNT 3-DH5 79 15 Pass Page 99 of 101 Report No.: STS2605329W01 Test Graphs Hopping No. NVNT 1-DH5 2441MHz Hopping No. NVNT 2-DH5 2441MHz Page 100 of 101 Report No.: STS2605329W01 Hopping No. NVNT 3-DH5 2441MHz Page 101 of 101 Report No.: STS2605329W01 APPENDIX 2-PHOTOS OF TEST SETUP Note: See test photos in setup photo document for the actual connections between Product and support equipment. ※※※※※END OF THE REPORT※※※※※

该文档是极速PDF编辑器生成， 如果想去掉该提示,请访问并下载： http://www.jisupdfeditor.com/ Antenna Describe Antenna PCB Antenna Gain 3.08dBi Frequency Range 2.4Ghz Connector Type Direct Location of mearement (company name) SHENZHEN SHIXINZHONGXN TECHNOLOGY CO., LTD 2：External View Drawing Picture of antenna 3：Measurement Result 3.1 Return Loss (S11 ) 3.2 Smith Chart 3.3 Gain

Page 1 of 2 FCC ID: 2AZOV-RBS955 Conducted emissions Radiated emissions Page 2 of 2 FCC ID: 2AZOV-RBS955 Spurious emissions
