2AZPS-WNIP-8LTA-BSWIFI Camera

Continued on Other Side NOTE: Internet is not required for pairing, but is required for remote viewing features. NOTE: Our WNIP8 Series cameras cannot be added to our BTD2 Series DVRs. IMPORTANT - To add a Wi-Fi IP camera to your wired DVR both devices must be connected to the same Internet (Local Area Network). Wi-Fi IP Camera Quick Setup Guide Flexible Setup Options: Option 2a Setup Video Option 1 Setup Video STOP: Only install a camera in its final location AFTER it’s paired and setup is complete. Ensure your wired DVR has been added to your Night Owl Protect account. Power on your new Wi-Fi IP camera using the provided power adapter. Log in to the Night Owl Protect App from your Smart Device. Tap on “Add New” or “+” and follow the simple on-screen steps. Series: BTD2 / BTD8 Model #'s: WNIP-8LTA-BS Series: Model #'s: BTWN8 WNIP-8LTA-BS First Time User? Download Night Owl Protect. Create an account and log in with your username and password. Already have an account? Log in with your username and password! Product images in setup videos may vary by model, but the setup is the same. Tap “Add New” or “+” and the app will guide you through the setup process. Option 2: Add on Camera - Connecting to your Night Owl Recorder: Wired DVR: Wi-Fi NVR Option 1: Standalone Camera - Connecting to your Wi-Fi Network: Option 2b Setup Video 1 2a 2b 2 3 Power on your new Wi-Fi IP camera using the provided power adapter. Log in to the Night Owl Protect App from your Smart Device. Tap on your existing BTWN8 Series Wi-Fi NVR. Tap on “Add New” or “+” to add your new Wi-Fi IP camera. Follow the on-screen steps to pair your new Wi-Fi IP camera. 1 2 3 4 5 4 NEED HELP? For system manuals, troubleshooting guides, FAQs, video tutorials and more: Please visit Support.NightOwlSP.com Enter WNIP2-CM (for our 1080p Wi-Fi IP Cameras) or WNIP8-CM (for our 4K Wi-Fi IP Cameras) into the Search bar. Why Call? Our Support Site Has it All! For more Support Videos, go to www.youtube.com/nightowlsp FCC RADIATION NORM FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Compliance Statement These limits are designed to provide reasonable protection against frequency interference in residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed or used in accordance with the instructions, the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Consult the dealer or an experienced radio/TV technician for help. CAUTION! responsible for compliance could void the user’s authority to operate the equipment. This equipment should be installed and operated with a minimum distance of 8 inches between the radiator and your body. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. REV 1-210616 Option 2c Setup Video NOTE: Our WNIP2 Series Wi-Fi NVR is ONLY compatible with our WNIP2 Series cameras. Series: Model #'s: WNIP2 WNIP-8LTA-BS Wi-Fi NVR 2c Power on your new Wi-Fi IP camera using the provided power adapter. Ensure your existing WNIP2 Series Wi-Fi NVR is connected to a TV/Monitor (minimum 1080p resolution) via HDMI cable. Right click on the screen using your system's mouse and then click on the “ “ Startup Wizard. Follow the on-screen steps to pair your new Wi-Fi IP camera. 1 2 3 4

Shenzhen Gangshan Guanglian Electronics Tech. Co. Ltd. Add: 3F,Building#11,Heshakeng Industrial Park, Sanlian Village, BujiTown,Longgang District,Shenzhen City,China Date: 2021-7-20 FCC ID: 2AZPS-WNIP-8LTA-BS Dear Sir/Madam, We, Shenzhen Gangshan Guanglian Electronics Tech. Co. Ltd. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: WIFI Camera Model no.: WNIP-8LTA-BS, WNIP-8LTA-BS-U Sincerely, Name/Title： Jing Feng/General manager Company: Shenzhen Gangshan Guanglian Electronics Tech. Co. Ltd. Address: 3F,Building#11,Heshakeng Industrial Park, Sanlian Village, BujiTown,Longgang District,Shenzhen City,China Phone: 0755 2852 1949 Fax: 0755 2852 1949 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-7-20> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AZPS-WNIP-8LTA-BS WNIP-8LTA-BS For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Jing Feng/General manager Company: Shenzhen Gangshan Guanglian Electronics Tech. Co. Ltd. Address: 3F,Building#11,Heshakeng Industrial Park, Sanlian Village, BujiTown,Longgang District,Shenzhen City,China Phone: 0755 2852 1949 Fax: 0755 2852 1949 E-Mail: [email protected]

Shenzhen Gangshan Guanglian Electronics Tech. Co. Ltd. 3F,Building#11,Heshakeng Industrial Park, Sanlian Village, BujiTown,Longgang District,Shenzhen City,China Date: 2021-7-20 FCC ID: 2AZPS-WNIP-8LTA-BS Model Number: WNIP-8LTA-BS To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Shenzhen Gangshan Guanglian Electronics Tech. Co. Ltd., declare that this EUT (FCC ID: 2AZPS-WNIP-8LTA-BS) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name/Title： Jing Feng/General manager Company: Shenzhen Gangshan Guanglian Electronics Tech. Co. Ltd. Address: 3F,Building#11,Heshakeng Industrial Park, Sanlian Village, BujiTown,Longgang District,Shenzhen City,China Phone: 0755 2852 1949 Fax: 0755 2852 1949 E-Mail: [email protected]

Shenzhen Gangshan Guanglian Electronics Tech. Co. Ltd. 3F,Building#11,Heshakeng Industrial Park, Sanlian Village, BujiTown,Longgang District,Shenzhen City,China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-7-20 To whom it may concern: We, Shenzhen Gangshan Guanglian Electronics Tech. Co. Ltd. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AZPS-WNIP-8LTA-BS including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Jing Feng/General manager Company: Shenzhen Gangshan Guanglian Electronics Tech. Co. Ltd. Address: 3F,Building#11,Heshakeng Industrial Park, Sanlian Village, BujiTown,Longgang District,Shenzhen City,China Phone: 0755 2852 1949 Fax: 0755 2852 1949 E-Mail: [email protected]

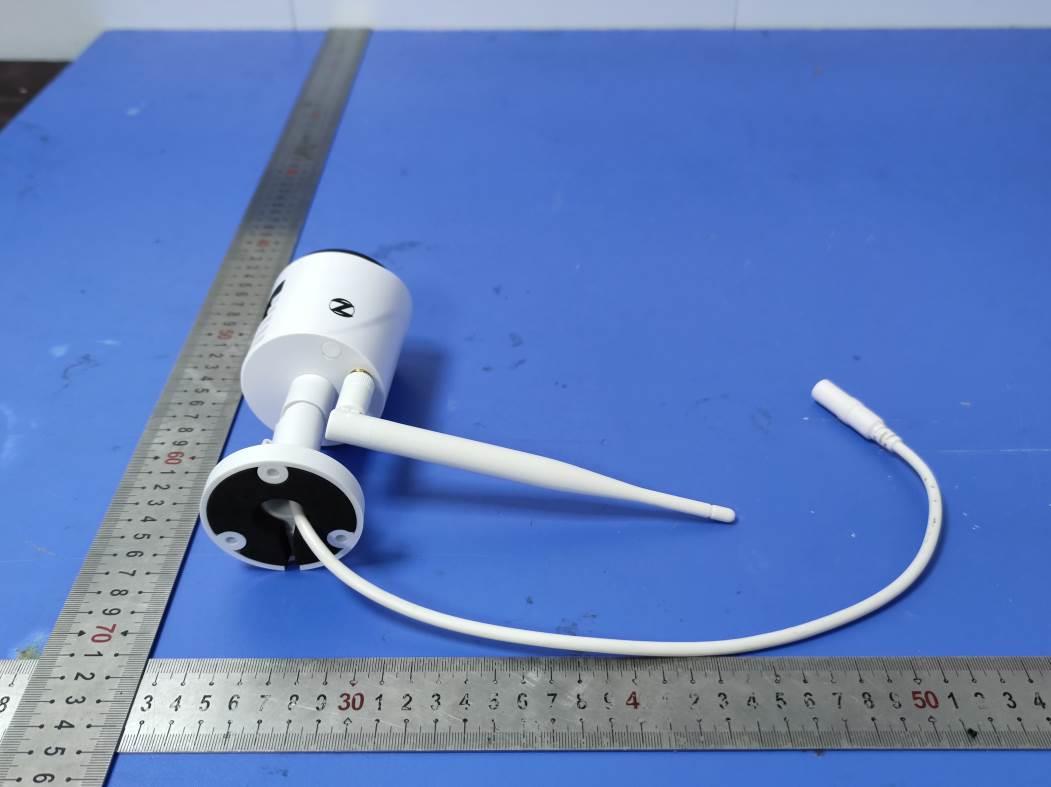

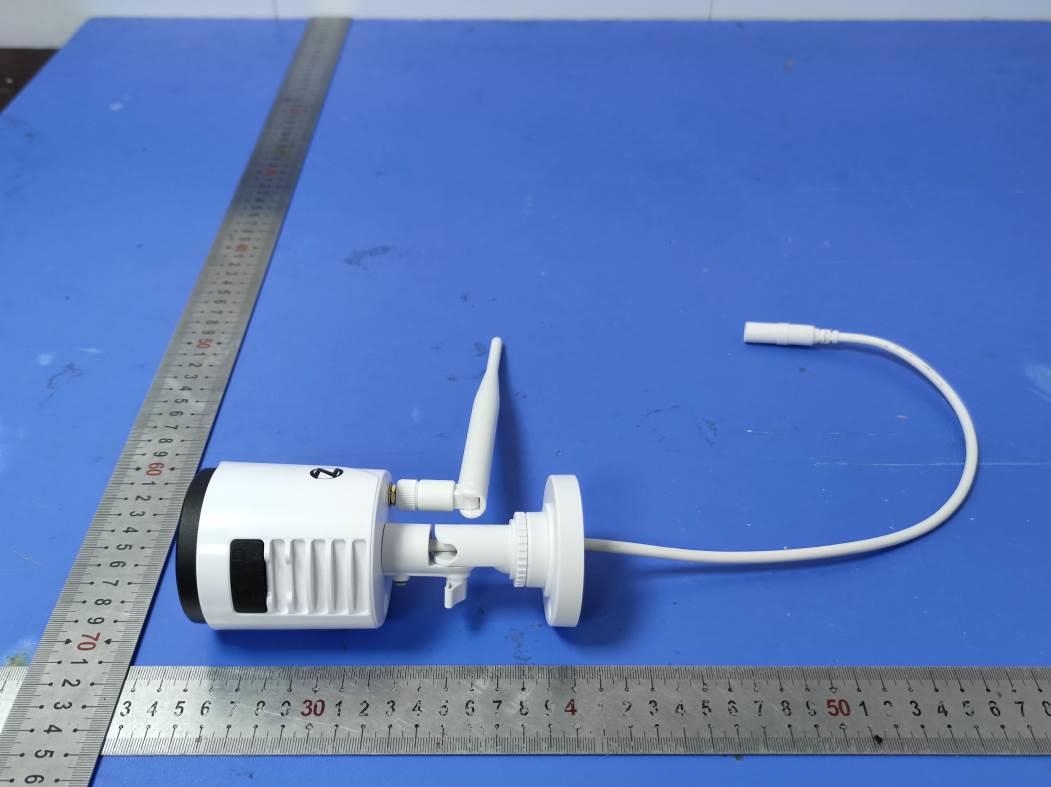

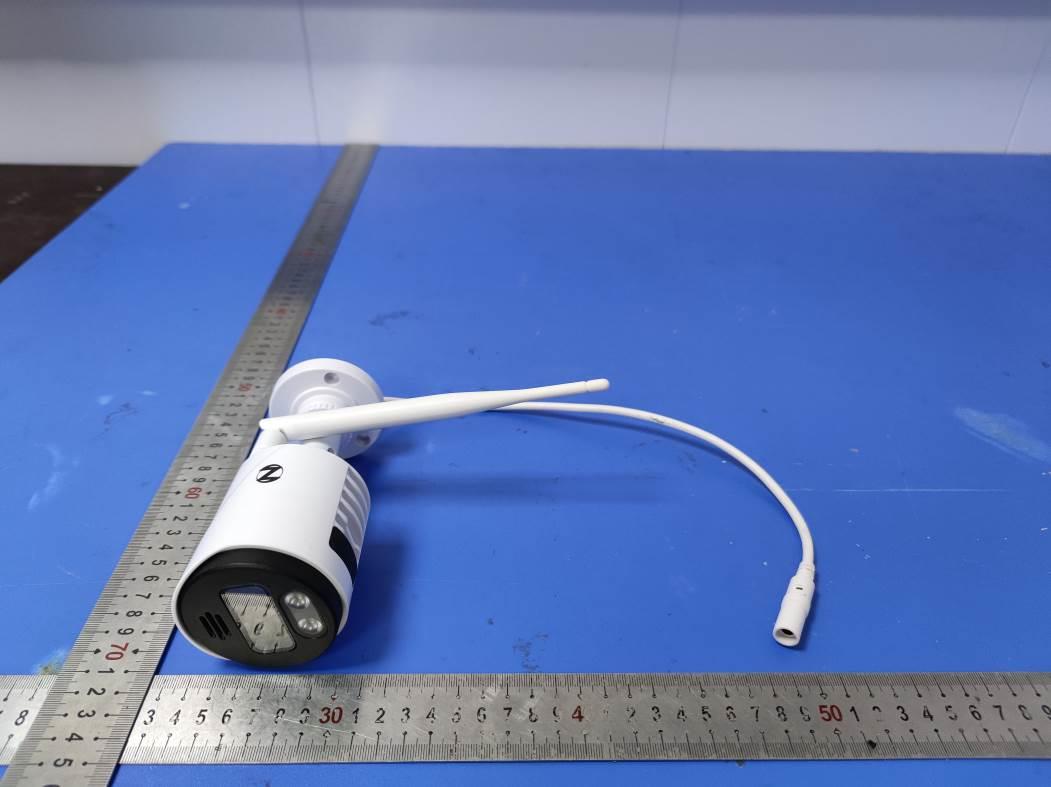

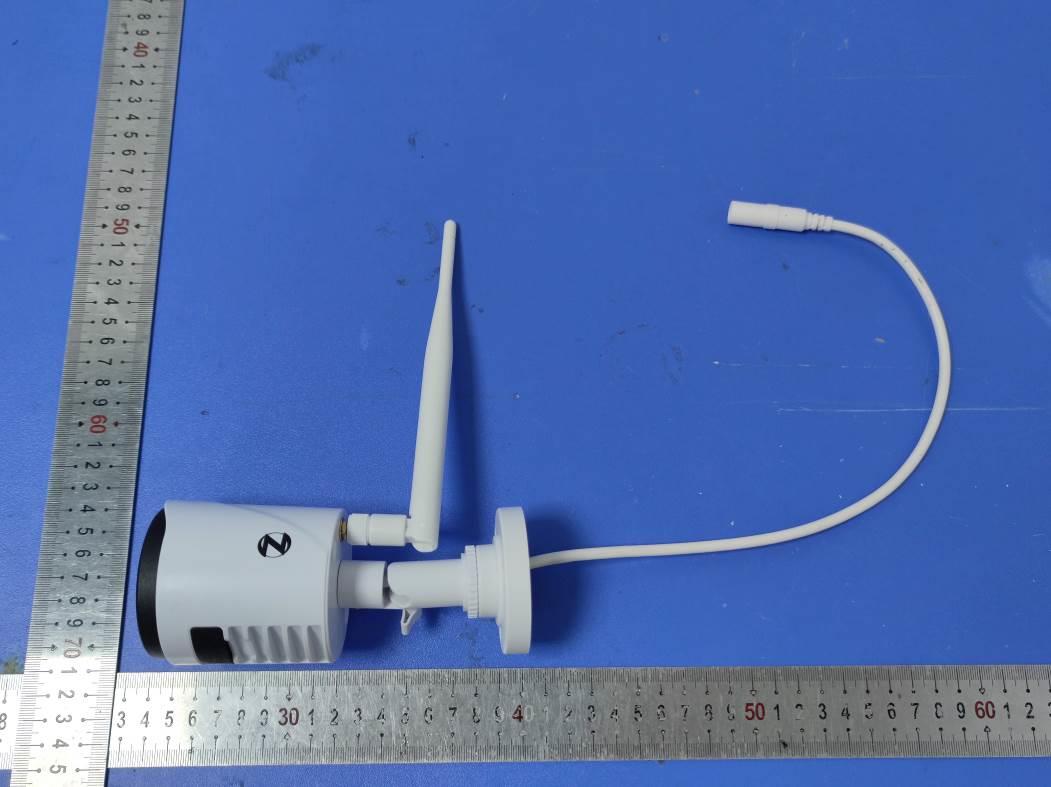

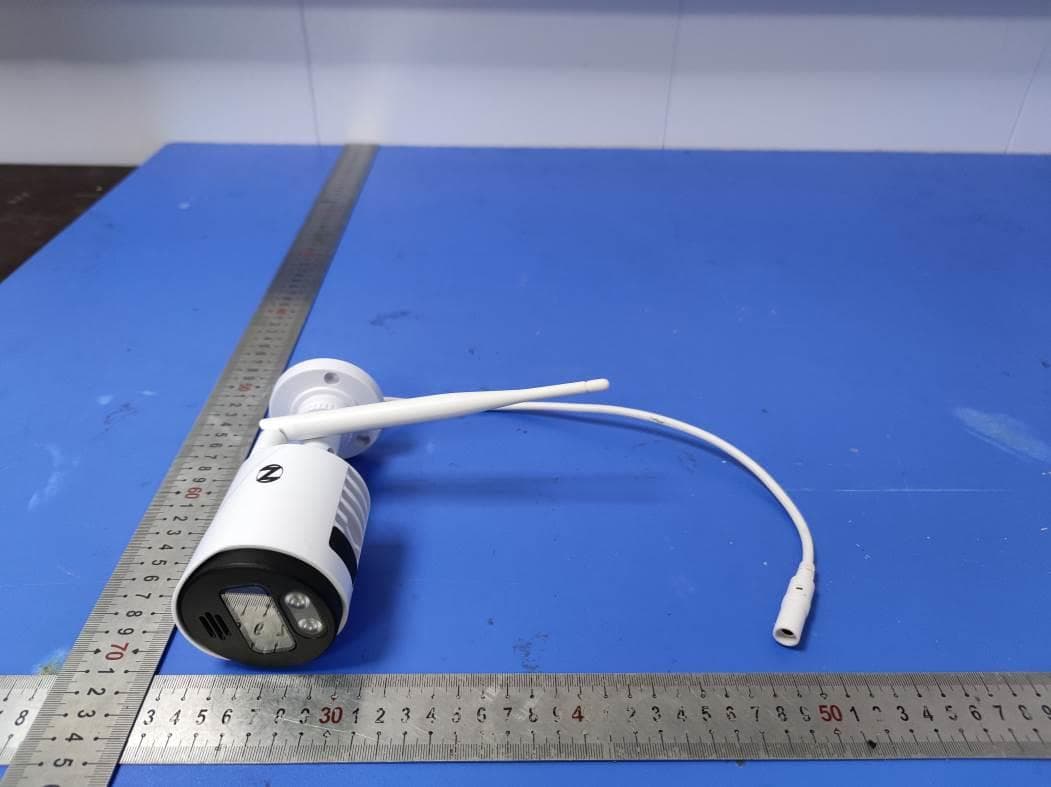

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AZPS-WNIP-8LTA-BS Appendix E for External Photos of EUT Fig.1 Fig.2 Antenna Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AZPS-WNIP-8LTA-BS Fig.3 Fig.4 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AZPS-WNIP-8LTA-BS Fig.5 Fig.6 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AZPS-WNIP-8LTA-BS Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZPS-WNIP-8LTA-BS This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 25mm*W: 15mm Label Location WIFI Camera Model No.: WNIP-8LTA-BS FCC ID: 2AZPS-WNIP-8LTA-BS Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AZPS-WNIP-8LTA-BS Appendix D for Internal Photos of EUT Fig.1 Fig.2 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AZPS-WNIP-8LTA-BS Fig.3 Fig.4 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AZPS-WNIP-8LTA-BS Fig.5 Fig.6

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AZPS-WNIP-8LTA-BS This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 FCC RF Exposure Evaluation 1. Product Information FCC ID 2AZPS-WNIP-8LTA-BS Product name WIFI Camera Model number WNIP-8LTA-BS Additional Model WNIP-8LTA-BS-U Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power supply Input: DC 12V, 1A Hardware version WNIP-8LTA-BS WNIP-8LTA-BS-U Software version WNIP-2LTAP-BS_20210415 FCC Operation frequency 2412MHz-2462MHz Channel Spacing 5MHz Channel Number 11 channels for 20MHz bandwidth(2412MHz~2462MHz) 7 channels for 40MHz bandwidth(2422MHz~2452MHz) Modulation Type IEEE 802.11b: DSSS(CCK,DQPSK,DBPSK); IEEE 802.11g/n: OFDM(64QAM, 16QAM, QPSK, BPSK) Antenna Type External Antenna Antenna Gain 5dBi(Max.) Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Devices 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AZPS-WNIP-8LTA-BS This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information WNIP-8LTA-BS can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Antenna Internal Antenna 2412MHz-2462MHz 5dBi WIFI Antenna Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AZPS-WNIP-8LTA-BS This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 6. Conducted Power <2.4GWLAN Max Conducted Power > Mode Channel Frequency(MHz) Max Conducted Power (dBm) IEEE 802.11b 1 2412 15.71 6 2437 15.73 11 2462 15.81 IEEE 802.11g 1 2412 15.71 6 2437 15.77 11 2462 15.76 IEEE 802.11n HT20 1 2412 15.28 6 2437 15.36 11 2462 15.91 IEEE 802.11n HT40 3 2422 15.87 6 2437 15.80 9 2452 15.64 7. Manufacturing Tolerance <2.4G WIFI> 11B (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 15.0 15.0 15.0 Tolerance ±(dB) 1.0 1.0 1.0 11G (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 15.0 15.0 15.0 Tolerance ±(dB) 1.0 1.0 1.0 11N20SISO (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 15.0 15.0 15.0 Tolerance ±(dB) 1.0 1.0 1.0 11N40SISO (Peak) Channel Channel 3 Channel 6 Channel 9 Target (dBm) 15.0 15.0 15.0 Tolerance ±(dB) 1.0 1.0 1.0 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AZPS-WNIP-8LTA-BS This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 8. Measurement R…
