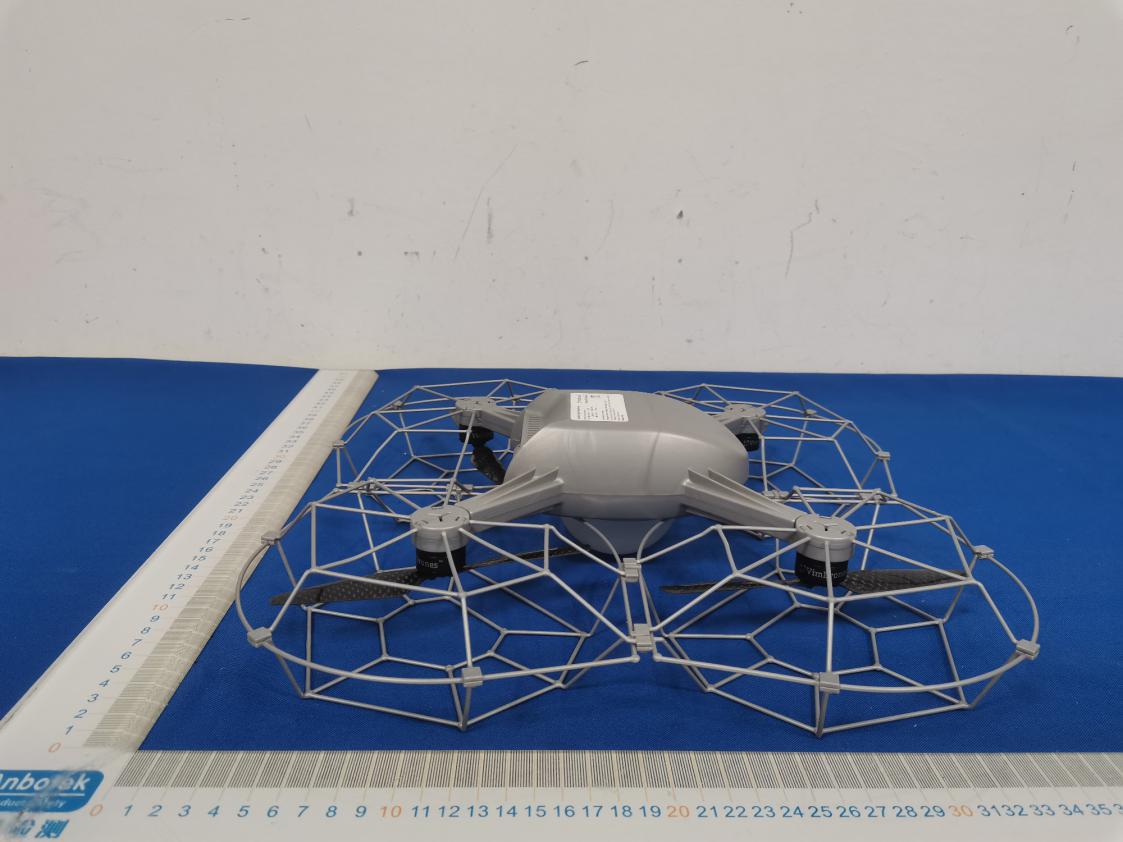

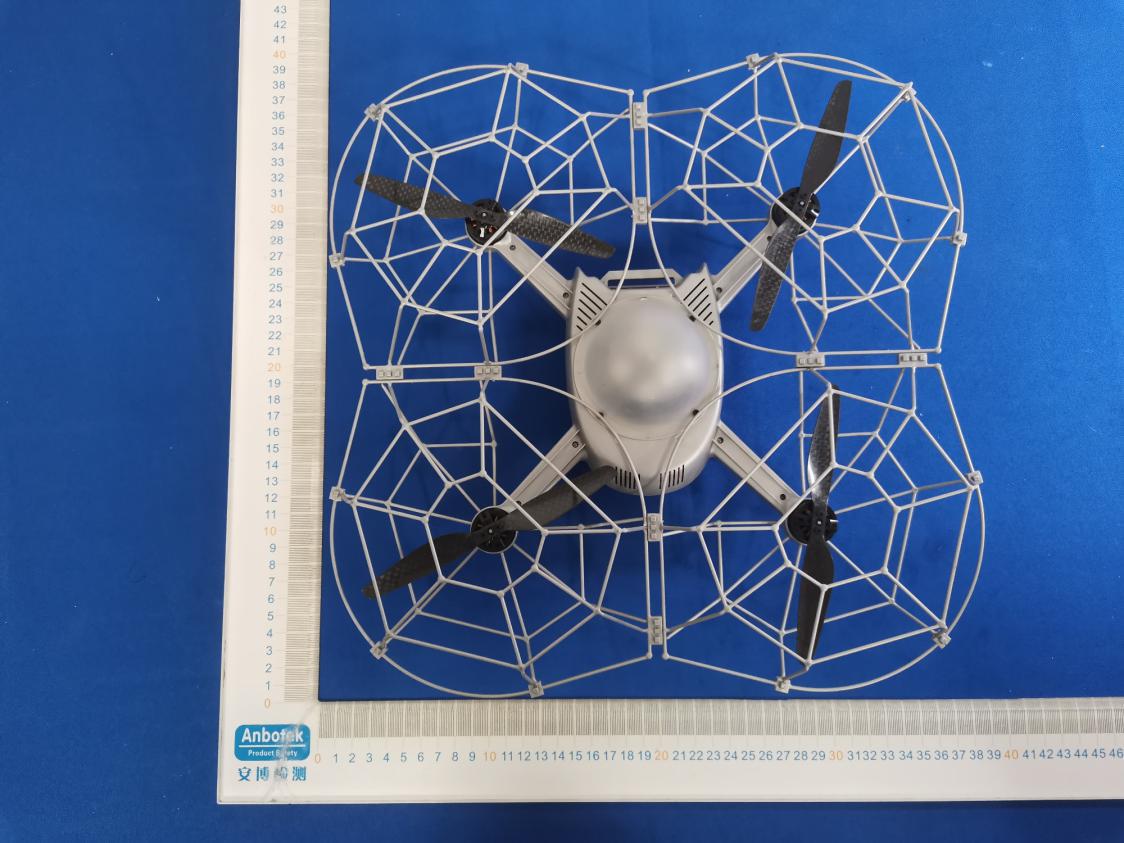

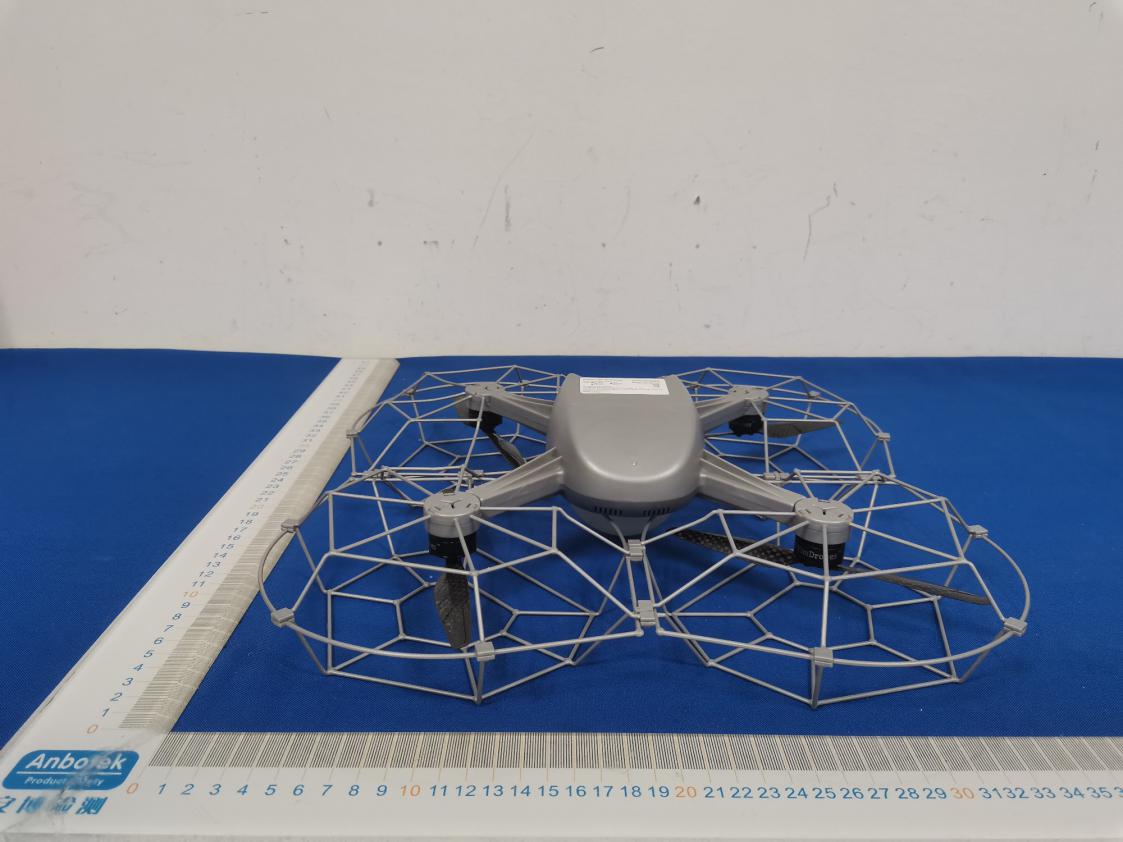

Mazzy Star Drone User Manual Date: 2021-05-10 1. Product profiles Introduction The Mazzy Star Drone is designed for drone light show, featuring a full-colour RGB LED, intelligent flight mode and high precision positioning system. It equips with RTK GPS positioning system and multiple control channels communication system to ensure a stable and safe formation flight. Mazzy Star Drone has full size propeller guard and only 0.46kg armed weight. It flies at a maximum time of 18 minutes. For the revolutionary design, Mazzy Star Drone significantly reduce safety risks compared to other drones on the market. Feature Highlights ● Compact, durable and light airframe, full size propeller guard ● Only 0.46kg armed weight, up to 18-min flight time ● Full-colour RGB LED in high brightness, up to 640LM ● Ground control software with Realtime 3D video preview ● High precision RTK GPS ● 915MHz /868MHz/2.4GHz, 3km Long Range Control ● WIFI transmit, 2.4G ● Radio transmit, Remote Control, 2.4G ● Intelligent flight controller “Vimdrones GCS” with efficient drone dashboard, enables flexible configuration and development ● Drone light show design ecosystem “Vimdrones Designer”—Blender Ready To Fly List ● Mazzy Star Drone (include the package) ● Mazzy Star Drone Battery ● Mazzy Star Drone Battery Charger ● Vimdrones Drone Light Show System o 1 Vimdrones Smart RTK Base o 1 Wifi Router & Charging Cable o 1 Spektrum Transmitter o 1 Tripod o 1 Antenna o 1 Feeder o 1 PoE power supply o 3 Network Cables ● Vimdrones Drone Light Show Designer Software ● Vimdrones Ground Station Software Download Vimdornes Drone Light Show System.pdf Other Additional Equipment ● May need 220V power supply from mobile power bank ● Some of the Power Strips ● A set of foldable desk and chair (would be very good) Aircraft Diagram Figure 1. Aircraft Diagram Technical Specifications Drone Specs Details Airframe Compact, durable and light airframe, full size propeller guard Weight 460± g with 2S 3000mAh battery Body Dimension 340*340*80 mm Motor and Prop 2300 kV brushless motors; 6-inch carbon fiber propeller Max Hover Time 18mins Wind Resistibility < 7 m/s Positioning System RTK GPS (GPS+GLONASS+Beidou), 2 cm precision with RTK fixed Battery LiPo2S, 7.6V, 3000-mAh Remote Control 6-channel 2.4G radio remote controller (1km distance, optional) Ground Antenna 915MHz/868MHz/2.4GHz 1000 mW, communication range 3km Drone Antenna 915MHz/868MHz/2.4GHz 20 mW, communication range, 2km LED Integrated full-color RGB LED, 4W Charger high-power 2S LiPo battery balance charger; 10 charging holes; Input: AC100~240V 50/60Hz,3A(Max); Output: DC8.7 V 1.5A 10 groups Accessory Foam box 1 (420*420*148mm) 2. Battery Figure 2. Battery The battery package is shown in Fig.2, including 2s-3000mAh LiPo battery and its charger. The dimension of one battery is 105*63.5*14.5mm. Its capacity is 3000 mAh and the rated voltage is 8.7V. Battery Charging and Discharging At normal charging mode, in constant current stage, the battery is charged in 0.2C until voltage reaches 8.7V, when constant voltage stage starts. Whole charging ends after 3.5 hours or when charging current is less than 60mA(0.02C). At fast charging mode, the charging current is 1C until voltage reaches at 8.7V. The whole process is up to 3 hours or ends when charging current is less than 60mA(0.02C) While discharging, the fully charged battery is discharged at 0.2C current rate to voltage 6.0V Usage Warning Ÿ Do not disassemble, crush and incinerate, drop or leave high pressure on the battery. Ÿ Do not short circuit the battery Ÿ Do not expose the battery to temperatures above 45 degrees or below 0 degrees Storage Instruction Ÿ Keep the environment dry and clean Ÿ Ensure the battery at a storage voltage (7.08-7.62V) if not in use for a long time. If voltage is above or below that level, please charge or discharge battery Ÿ Battery must be fully charged and discharged routinely every three months. After battery is fully discharged, recharge the battery to 50% capacity 3. Battery Charger Figure 3. Battery Charging Package Ÿ 2S Li-ion HV Battery Charger, 8.7V/1.5A*10Channel Ÿ Input: AC100~240V 50/60Hz 3A(Max) Ÿ Output: DC8.7V/1.5A*10Channel Instruction Ÿ Connecting battery with charger, making sure the positive of battery connecting with the positive of charger, the negative of battery connecting with the negative of charger. Ÿ Plug charger in DC power outlet, LED turns to RED, the charging is starting. Ÿ The charging finish once LED turns to GREEN. After charging, make sure unplug charger from DC power outlet. Ÿ Disconnecting battery with charger. o Note: battery may become hot after charging. Usage Warning Ÿ Don't short circuit charger Ÿ Use the charger to charge correct battery Ÿ Don't cover charger and battery during charging Ÿ Don't charge battery unattended 4. Drone Light Show System Figure 4. RTK Base with Antenna As shown in Fig.4, the RTK base is integrated with long range radio communication system and computing unit integrated. It is connected through WIFI/Ethernet network. The drone light show system includes a Controlling PC with Vimdrones GCS and Designer, RTK base, WIFI router, Remote Control and Mazzy Star Drone. The schematic diagram of the drone light show flight communication system is shown in Figure 5. Figure 5. Drone Light Show Flight Communication Diagram 5. Pre-Flight Setup Procedure Battery preparation Ÿ Please prepare a sufficient number of batteries（more than the number of drones） Ÿ Please charge the battery fully（according to the flight time, the voltage is at less 8.2V) Drone preparation Ÿ Please check the number the drones Ÿ Please check the airframe of the drones, especially for the propeller guard, propeller and the motor Flight Path preparation Ÿ Use Vimdrones Designer to design the Flight path, save the .blend file and export the data Ÿ Usage Warming o Do not let the drone collide when design the Flight path. The distance between drones should need more than 2m o Do not let the…
