Getting Started I1 A156 The notebook User Guide with Windows 10 Getting Started I2 Contents Read Before Use 4 Device Features 6 Getting Started StartScreen 9 ConnectingtoWifi II Setting a Password 13 Power Functions 15 Using Battery Power 15 Adjusting Power Usage 16 Help MyDevice WillNot StartUp 2I My Device Does Not Appear to be Charging 2 I I Cannot Connect to My WIFI or My WIFI Connection is Poor 2 1 The Device Crashesor Does Not Operate Correctly 22 The Operating System Update Failsor Device Freezes During Update 22 I Forgo My Password 22 I've Connectedthe Devicevia HD MIbutthe TV Doesn't Play Sound 22 Welcome to Windows 10 in S mode About Windows 10 in S mode 23 Cortana 24 Enterprise - Grade Secure and Fast 27 Familiar and Easy to Use 28 Multi-Tasking 29 Seamlessly Stay Up to Date 30 Notes 32 Getting Started I3 Read Before Use Please make sure to fully read this manual before use to ensure you have the best user experience with your new device. Treat Your Device with Care lt J s important that you do not twist, drop, puncture, or place heavy objects on your device as this may cause internal or external components to become damaged. Your device screen is made of glass. The glass might break if the device is dropped on a hard surface. If the glass breaks in any way do not touch the broken glass. Stop using the device immediately. Clean frequently. Wipe the screen with a soft, Lint-free cloth to clean it. Keep it covered. Close the device when you're in transit or not using the device. Keep it out of the sun. Don't leave the device in direct sunlight for an extended amount of time. Ultraviolet Light and excessive heat can damage the screen. Do Not Disassemble or Modify Your Device Your device is a sealed unit and there are no customer serviceable parts inside. ALL internal repairs must be done by a qualified repair technician. Attempting to open or modify your device will void the warranty Replacement of the internal rechargeable battery must be done by a qualified repair technician. Prevent Your Device and Charger from Getting Wet Do not immerse your device in water or Leave it in a Location where it can get damp with water. This includes areas such as a bathroom where steam may build up from showering/bathing. Charging and Using Your Device Lithium-ion batteries are sensitive to high temperatures, so keep your device out of the sun and don't Leave it in a hot car. The device may become warm during normal use and while charging. Ensure that you have adequate ventilation around the device. Avoid touching a hot section of the device for any extended time, even through clothing, as this could cause discomfort or even skin burn. Do not charge the device if the charging waLL adapter has been exposed to Liquid or excessive moisture or if the charging wall adapter shows signs of physical damage. The battery doesn't need to be empty or low before you recharge. You can recharge the battery wheneveryou J d Like. To charge use the supplied wall adapter and insert into the Power Connector Port on the device (See page 8 for Port Location). Prevent Hearing Damage Excessive sound pressure from headphones can cause hearing loss. Always keep the volume at an appropriate Getting Started I4 Level. Keep Your Device Away from Small Children By default this device is a fully operational unlocked device that does not begin with parental controls enabled. These settings can be applied to your device under Settings/Accounts/Family & other users. Additionally your device contains small parts that can be a choking hazard to small children. Protect Your Data and Software By accessing any network or the internet you leave your device vulnerable to computer viruses and malicious activities that might damage your device, software, or data. It is your responsibility to ensure that you have adequate protection in the form of firewalls, antivirus software and anti-spyware software and to keep this software up to date. Features Getting Started I5 Getting Started Start Menu On the start screen, you can see many programs (hereafter referred to as Apps). These apps are Located in their positions on the screen Like a "magnet". To activate an app simply click the tile using the touch pad Getting Started I6 and the program will start. Important： You will need to Log into your Microsoft account before some application programs fully operate (such as Cortana). Adding additional tiles to the start screen Besides the apps already fixed on the start screen, you can also fix other apps to the start screen. In this example we are using the property icon (I) which shows us the most used apps. You can also select the main app property icon to access all apps. The all apps icon is Located below the power on/off Logo in the Lower Left hand corner of your screen. Example： (I) Click the properties icon (2) right click the app icon and then click(3)Pin to start Getting Started I7 Deleting a tile on the start screen If you want to delete an app on the start screen, right click the app and select Unpin from Start. Adjusting a tile on the start screen Left click using the touch pad and hold the button down. After 1-2 seconds the tile will become greyed out and you can then move the app around the screen to a more desired position. Release the Left click button and the tile will be repositioned. Getting Started I8 Connecting to WIFI lb access the List of available wireless networks, click on the network icon from the system tray. Locate the network to which you want to connect and click on its name. If it's a network you know and you will connect to it on a regular basis, you can also check the option that says： "Connect automatically JJ . This way whenever your device is in that wireless network's range, it will automatically connect to it. Click on Connect. Windows will do a scan for the security settings of the wireless network. When it J s done, it will ask you for the password (also known as the security key). Getting Started I9 Once you…

Text truncated - open the document above for the full version.

Visionsky (SZ) Industrial Co., Ltd Date: Apr 27, 2021 FCC ID: 2AZQY-A156 Model Number: A156 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Visionsky (SZ) Industrial Co., Ltd , declare that this EUT (FCC ID: 2AZQY-A156) will conduct FCC compliance testing, the SDOC part recognized test lab(Shenzhen NTEK Testing Technology Co., Ltd.( ShenZhen Lab.). 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen 518126 P.R. China) Please contact me if you have any question. Sincerely, (Signed) Name / Title: prince zhao/ Manager Company: Visionsky (SZ) Industrial Co., Ltd Address: 303A, Xiagu, MeishengChuanggu, no. 10, Longchang Road, 68 district, Xingdong community, Xin 'an street, Bao 'an district, Shenzhen, China

C5266091_X8_Ed.1 1/1 Letter of Authorization < Visionsky (SZ) Industrial Co., Ltd> Company: Visionsky (SZ) Industrial Co., Ltd Address: 303A, Xiagu, MeishengChuanggu, no. 10, Longchang Road, 68 district, Xingdong community, Xin 'an street, Bao 'an district, Shenzhen, China Product Name: 15.6-inch notebook Model Number: A156 FCC Identifier: 2AZQY-A156 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: prince zhao Date: 04/27/2021 Title: Manager Signature of applicant:

C5266091_X10_Ed.2 1/1 < Visionsky (SZ) Industrial Co., Ltd > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021-04-27 Subject: Request for Confidentiality FCC ID: 2AZQY-A156 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No Block Diagram ☐ Schematics ☐ Test Report No No Test Setup Photos No User’s Manual ☐ NOTE 1 Internal Photos ☐ NOTE 1 Parts List / Tune Up / BOM List ☐ RF Exposure Info No No Operational Description ☐ Cover Letter(s) No No SOFTWARE SECURITY REQUIREMENTS FOR U- NII DEVICES No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of _180_ days from the date of the Grant of Equipment Authorization and prior to marketing. C5266091_X10_Ed.2 1/1 It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: prince zhao Title: Manager

FCC Software Configuration Control Declaration Rev1.0 Visionsky (SZ) Industrial Co., Ltd FCC Software Configuration Control Declaration Date: April 30, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product: 15.6-inch notebook Model Number: A156 FCC ID: 2AZQY-A156 Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: prince zhao Date: April 30, 2021 Title: manager Signature of applicant

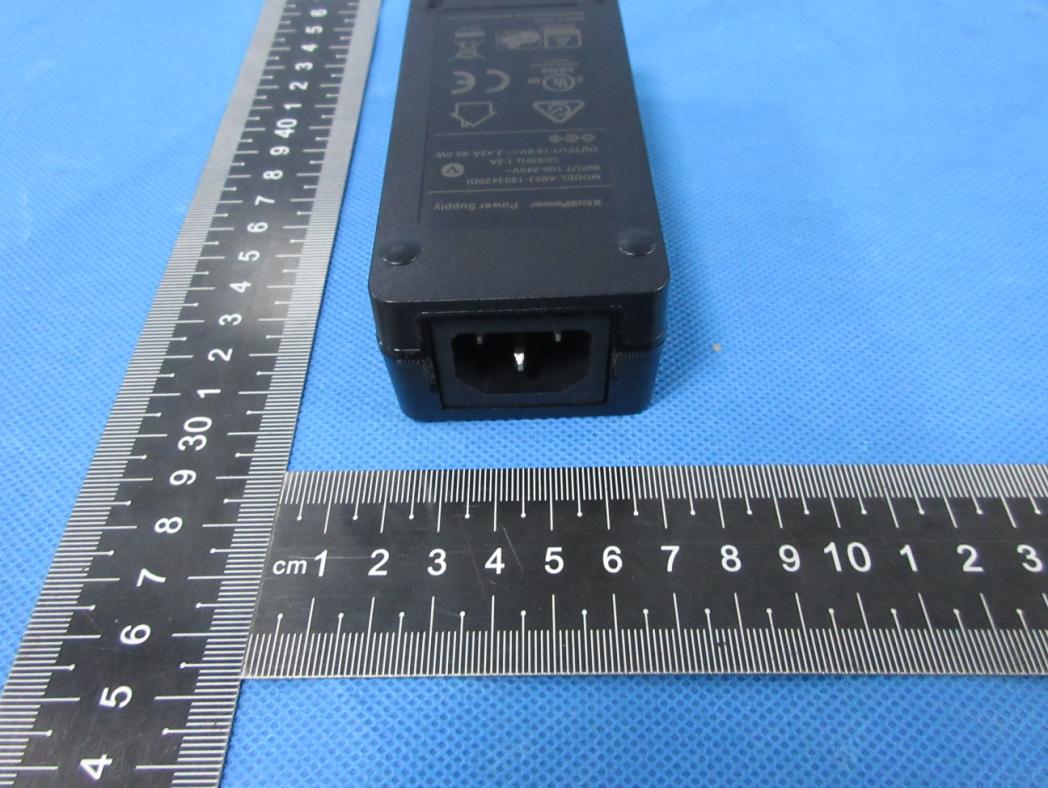

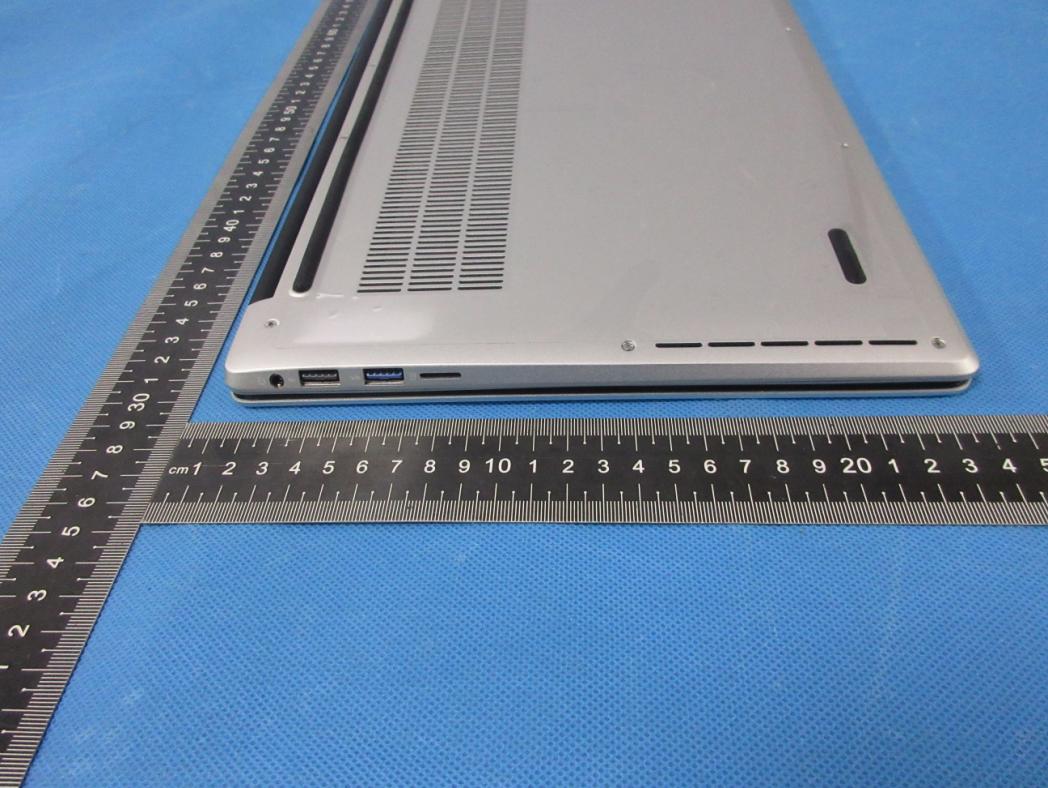

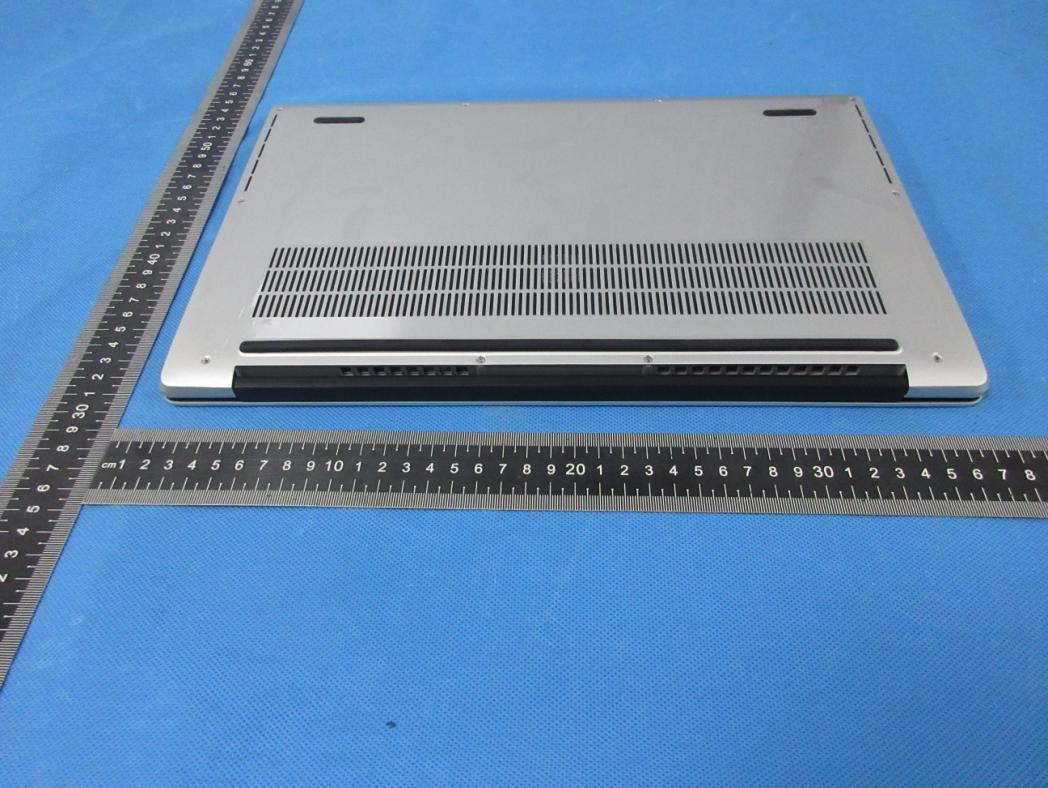

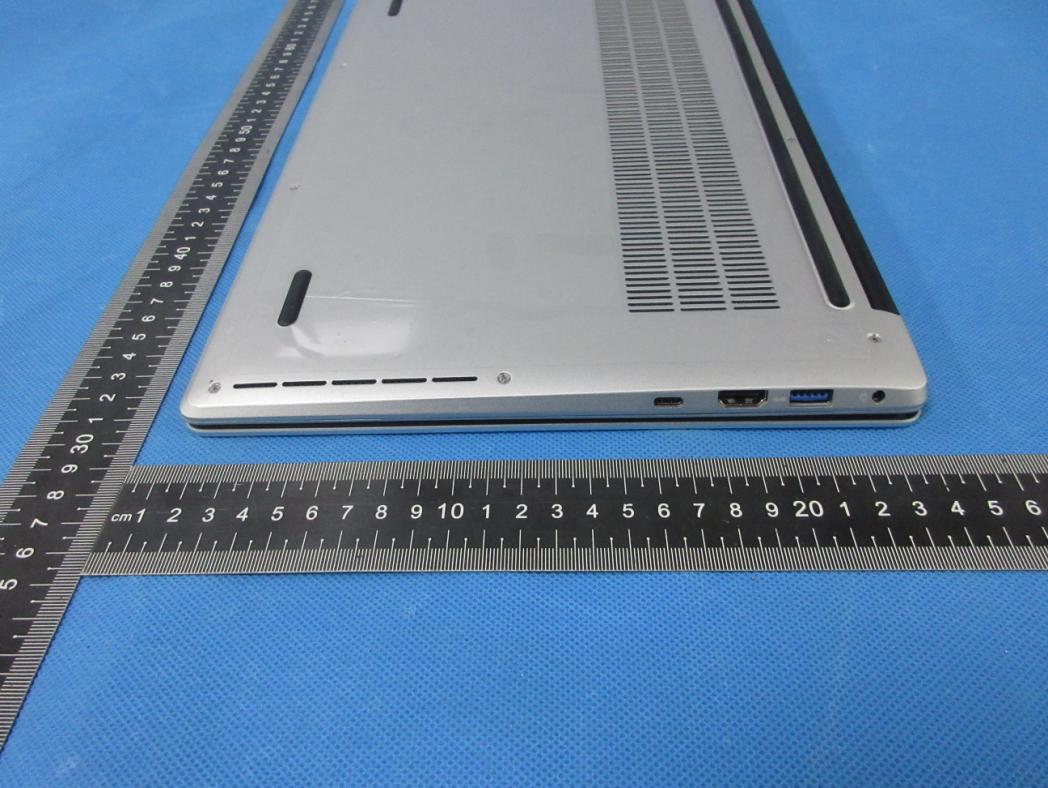

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

A156 19 3.42A 2AZQYA156 Size Floor4,building a,east shilongzi road,Shuitian community,Shiyan Street,Bao’an district,Shenzhen

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 WIFI/BT ANT

Page 1 of 74 Report No.: S21030300407001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： 15.6-inch notebook Trademark： Visionsky Model Name： A156 Family Model： N/A Report No.： S21030300407001 FCC ID： 2AZQY-A156 Prepared for Visionsky (SZ) Industrial Co., Ltd 303A, Xiagu, MeishengChuanggu, no. 10, Longchang Road, 68 district, Xingdong community, Xin 'an street, Bao 'an district, Shenzhen Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 74 Report No.: S21030300407001 TEST RESULT CERTIFICATION Applicant’s name .................. : Visionsky (SZ) Industrial Co., Ltd Address .................................. : 303A, Xiagu, MeishengChuanggu, no. 10, Longchang Road, 68 district, Xingdong community, Xin 'an street, Bao 'an district, Shenzhen Manufacturer's Name ........... : Visionsky (SZ) Industrial Co., Ltd Shiyan Branch Address .................................. : Floor 4, building a, east Shilongzi road, Shuitian community, Shiyan Street, Bao 'an district, Shenzhen Product description Product name ......................... : 15.6-inch notebook Trademark ............................ : Visionsky Model Name ......................... : A156 Family Model .......................... : N/A Standards .............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Date of Test Date (s) of performance of tests ............. : Mar. 23, 2021~Mar. 30, 2021 Date of Issue .......................................... : Apr. 23, 2021 Test Result .............................................. : Pass Prepared By (Test Engineer) : (Cheng Jiawen) Approved By (Lab Manager) : (Alex Li) Page 3 of 74 Report No.: S21030300407001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Apr. 23, 2021 Cheng Jiawen Page 4 of 74 Report No.: S21030300407001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 8 1.5. Ambient Condition ................................................................................... 8 2. SAR Measurement System ................................................................................... 9 2.1. SATIMO SAR Measurement Set-up Diagram ............................................ 9 2.2. Robot ..................................................................................................... 10 2.3. E-Field Probe .......................................................................................... 11 2.3.1. E-Field Probe Calibration ................................................................. 11 2.4. SAM phantoms ...................................................................................... 12 2.4.1. Technical Data .................................................................................. 13 2.5. Device Holder ........................................................................................ 14 2.6. Test Equipment List ................................................................................ 15 3. SAR Measurement Procedures .......................................................................... 17 3.1. Power Reference ................................................................................... 17 3.2. Area scan & Zoom scan .......................................................................... 17 3.3. Description of interpolation/extrapolation scheme .............................. 19 3.4. Volumetric Scan ..................................................................................... 19 3.5. Power Drift ............................................................................................ 19 4. System Verification Procedure .......................................................................... 20 4.1. Tissue Verification ................................................................................. 20 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 21 4.2. System Verification Procedure .............................................................. 22 4.2.1. System Verification Results .............................................................. 23 5. SAR Measurement variability and uncertainty .................................................. 24 5.1. SAR measurement variability ................................................................. 24 5.2. SAR measurement u…

Text truncated - open the document above for the full version.

Report No.: S21030300406003 Version.1.2 Page 1 of 150 FCC RADIO TEST REPORT FCC ID: 2AZQY-A156 Product： 15.6-inch notebook Trade Mark： Visionsky Model Name： A156 Family Model： N/A Report No.： S21030300406003 Prepared for Visionsky (SZ) Industrial Co., Ltd 303A, Xiagu, MeishengChuanggu, no. 10, Longchang Road, 68 district, Xingdong community, Xin 'an street, Bao 'an district, Shenzhen Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-3699 5508 Website: http://www.ntek.org.cn Report No.: S21030300406003 Version.1.2 Page 2 of 150 TEST RESULT CERTIFICATION Applicant’s name ................. : Visionsky (SZ) Industrial Co., Ltd Address ................................. : 303A, Xiagu, MeishengChuanggu, no. 10, Longchang Road, 68 district, Xingdong community, Xin 'an street, Bao 'an district, Shenzhen Manufacturer's Name .......... : Visionsky (SZ) Industrial Co., Ltd Shiyan Branch Address ................................. : Floor 4, building a, east Shilongzi road, Shuitian community, Shiyan Street, Bao 'an district, Shenzhen Product description Product name ........................... : 15.6-inch notebook Model and/or type reference : A156 Family Model ............................. : N/A Standards ............................. : FCC Part15.407 Test procedure ............................... : ANSI C63.10-2013 and KDB 789033 D02 General UNII Test Procedures New Rules v02r01 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements/ the Industry Canada requirements.. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personnel only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 15 Mar. 2021 ~ 20 Apr. 2021 Date of Issue ........................................... : 22 Apr. 2021 Test Result ............................................... : Pass Testing Engineer : (Allen Liu) Technical Manager : (Jason Chen) Authorized Signatory : (Alex Li) Report No.: S21030300406003 Version.1.2 Page 3 of 150 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 6 1.1 FACILITIES AND ACCREDITATIONS 7 1.2 MEASUREMENT UNCERTAINTY 7 2 . GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 DESCRIPTION OF TEST MODES 10 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 12 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 13 3 . TEST REQUIREMENTS 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 RADIATED EMISSION MEASUREMENT 20 3.3 POWER SPECTRAL DENSITY TEST 37 3.4 26DB & 99% EMISSION BANDWIDTH 40 3.5 MINIMUM 6 DB BANDWIDTH 42 3.6 MAXIMUM CONDUCTED OUTPUT POWER 44 3.7 OUT OF BAND EMISSIONS 48 3.8 SPURIOUS RF CONDUCTED EMISSIONS 50 3.9 FREQUENCY STABILITY MEASUREMENT 51 4. ANTENNA REQUIREMENT 58 4.1 STANDARD REQUIREMENT 58 4.2 EUT ANTENNA 58 5. TEST RESULTS 59 5.2G: 59 DUTY CYCLE 59 MAXIMUM CONDUCTED OUTPUT POWER 66 -26DB BANDWIDTH 67 OCCUPIED CHANNEL BANDWIDTH 75 MAXIMUM POWER SPECTRAL DENSITY LEVEL 83 BAND EDGE 91 CONDUCTED RF SPURIOUS EMISSION 97 5.8G 105 DUTY CYCLE 105 MAXIMUM CONDUCTED OUTPUT POWER 112 Report No.: S21030300406003 Version.1.2 Page 4 of 150 Table of Contents Page -6DB BANDWIDTH 113 OCCUPIED CHANNEL BANDWIDTH 121 MAXIMUM POWER SPECTRAL DENSITY LEVEL 129 BAND EDGE 137 CONDUCTED RF SPURIOUS EMISSION 143 Report No.: S21030300406003 Version.1.2 Page 5 of 150 Revision History Report No. Version Description Issued Date S21030300406003 Rev.01 Initial issue of report 22 Apr. 2021 Report No.: S21030300406003 Version.1.2 Page 6 of 150 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.407) , Subpart E Standard Section Test Item Judgment Remark 15.207 AC Power Line Conducted Emissions PASS 15.209(a), 15.407 (b)(1) 15.407 (b)(4) 15.407 (b)(8)(9) Spurious Radiated Emissions PASS 15.407 (a)(1) 15.407 (a)(3) 26 dB and 99% Emission Bandwidth PASS 15.407(e) Minimum 6 dB bandwidth PASS 15.407 (a)(1) 15.407 (a)(3) Maximum Conducted Output Power PASS 15.407(b)(1) 15.407(b)(4) Band Edge PASS 15.407 (a)(1) 15.407 (a)(3) Power Spectral Density PASS 15.407(b) Spurious Emissions at Antenna Terminals PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Report No.: S21030300406003 Version.1.2 Page 7 of 150 1.1 FACILITIES AND ACCREDITATIONS FACILITIES All measurement facilities used to collect the measurement data are located at 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen 518126 P.R. China. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.10 and CISPR Publication 22. LABORATORY ACCREDITATIONS AND LISTINGS Site Description CNAS-Lab. : The Certificate Registration Number is L5516. IC-Registration The Certificate Registration Number is 9270A. CAB identifier:CN0074 FCC- Accredited Test Firm Registration Number: 463705. Designation Number: CN1184 A2LA-Lab. The Certificate Registration Number is 4298.01 Name of Firm : Shenzhen NTEK Testing Technology Co., Ltd. Site Location : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen 518126 P.R. China. 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 Conducted Emission Test ±2.80dB 2 RF power, conducted ±0.16dB 3 Spurious emissions, conducted ±0.21dB 4 All emissions, radiated(30MHz~1GHz) ±2.64dB 5 All emiss…

Text truncated - open the document above for the full version.

Report No.: S21030300406003 Version.1.2 Page 111 of 150 Duty Cycle NVNT 802.11n(HT40) 5755MHz Duty Cycle NVNT 802.11n(HT40) 5795MHz Report No.: S21030300406003 Version.1.2 Page 112 of 150 MAXIMUM CONDUCTED OUTPUT POWER Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT a 5745 Ant1 9.874 0 9.874 30 Pass NVNT a 5785 Ant1 9.761 0 9.761 30 Pass NVNT a 5825 Ant1 11.381 0 11.381 30 Pass NVNT ac20 5745 Ant1 8.945 0 8.945 30 Pass NVNT ac20 5785 Ant1 9.401 0 9.401 30 Pass NVNT ac20 5825 Ant1 9.841 0 9.841 30 Pass NVNT ac40 5755 Ant1 8.359 0 8.359 30 Pass NVNT ac40 5795 Ant1 8.716 0 8.716 30 Pass NVNT ac80 5775 Ant1 7.1 0 7.1 30 Pass NVNT n20 5745 Ant1 8.94 0 8.94 30 Pass NVNT n20 5785 Ant1 9.357 0 9.357 30 Pass NVNT n20 5825 Ant1 10.016 0 10.016 30 Pass NVNT n40 5755 Ant1 8.26 0 8.26 30 Pass NVNT n40 5795 Ant1 8.882 0 8.882 30 Pass Report No.: S21030300406003 Version.1.2 Page 113 of 150 -6DB BANDWIDTH Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT a 5745 Ant1 16.311 0.5 Pass NVNT a 5785 Ant1 16.301 0.5 Pass NVNT a 5825 Ant1 16.302 0.5 Pass NVNT ac20 5745 Ant1 17.036 0.5 Pass NVNT ac20 5785 Ant1 16.525 0.5 Pass NVNT ac20 5825 Ant1 16.532 0.5 Pass NVNT ac40 5755 Ant1 35.001 0.5 Pass NVNT ac40 5795 Ant1 35.335 0.5 Pass NVNT ac80 5775 Ant1 75.061 0.5 Pass NVNT n20 5745 Ant1 16.961 0.5 Pass NVNT n20 5785 Ant1 16.849 0.5 Pass NVNT n20 5825 Ant1 16.915 0.5 Pass NVNT n40 5755 Ant1 35.305 0.5 Pass NVNT n40 5795 Ant1 35.086 0.5 Pass -6dB Bandwidth NVNT a 5745MHz Ant1 Report No.: S21030300406003 Version.1.2 Page 114 of 150 -6dB Bandwidth NVNT a 5785MHz Ant1 -6dB Bandwidth NVNT a 5825MHz Ant1 Report No.: S21030300406003 Version.1.2 Page 115 of 150 -6dB Bandwidth NVNT ac20 5745MHz Ant1 -6dB Bandwidth NVNT ac20 5785MHz Ant1 Report No.: S21030300406003 Version.1.2 Page 116 of 150 -6dB Bandwidth NVNT ac20 5825MHz Ant1 -6dB Bandwidth NVNT ac40 5755MHz Ant1 Report No.: S21030300406003 Version.1.2 Page 117 of 150 -6dB Bandwidth NVNT ac40 5795MHz Ant1 -6dB Bandwidth NVNT ac80 5775MHz Ant1 Report No.: S21030300406003 Version.1.2 Page 118 of 150 -6dB Bandwidth NVNT n20 5745MHz Ant1 -6dB Bandwidth NVNT n20 5785MHz Ant1 Report No.: S21030300406003 Version.1.2 Page 119 of 150 -6dB Bandwidth NVNT n20 5825MHz Ant1 -6dB Bandwidth NVNT n40 5755MHz Ant1 Report No.: S21030300406003 Version.1.2 Page 120 of 150 -6dB Bandwidth NVNT n40 5795MHz Ant1 Report No.: S21030300406003 Version.1.2 Page 121 of 150 OCCUPIED CHANNEL BANDWIDTH Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5745 Ant1 16.484 NVNT a 5785 Ant1 16.492 NVNT a 5825 Ant1 16.533 NVNT ac20 5745 Ant1 17.592 NVNT ac20 5785 Ant1 17.597 NVNT ac20 5825 Ant1 17.608 NVNT ac40 5755 Ant1 36.118 NVNT ac40 5795 Ant1 36.099 NVNT ac80 5775 Ant1 75.496 NVNT n20 5745 Ant1 17.617 NVNT n20 5785 Ant1 17.61 NVNT n20 5825 Ant1 17.609 NVNT n40 5755 Ant1 36.094 NVNT n40 5795 Ant1 36.128 OBW NVNT a 5745MHz Ant1 Report No.: S21030300406003 Version.1.2 Page 122 of 150 OBW NVNT a 5785MHz Ant1 OBW NVNT a 5825MHz Ant1 Report No.: S21030300406003 Version.1.2 Page 123 of 150 OBW NVNT ac20 5745MHz Ant1 OBW NVNT ac20 5785MHz Ant1 Report No.: S21030300406003 Version.1.2 Page 124 of 150 OBW NVNT ac20 5825MHz Ant1 OBW NVNT ac40 5755MHz Ant1 Report No.: S21030300406003 Version.1.2 Page 125 of 150 OBW NVNT ac40 5795MHz Ant1 OBW NVNT ac80 5775MHz Ant1 Report No.: S21030300406003 Version.1.2 Page 126 of 150 OBW NVNT n20 5745MHz Ant1 OBW NVNT n20 5785MHz Ant1 Report No.: S21030300406003 Version.1.2 Page 127 of 150 OBW NVNT n20 5825MHz Ant1 OBW NVNT n40 5755MHz Ant1 Report No.: S21030300406003 Version.1.2 Page 128 of 150 OBW NVNT n40 5795MHz Ant1 Report No.: S21030300406003 Version.1.2 Page 129 of 150 MAXIMUM POWER SPECTRAL DENSITY LEVEL Condition Mode Frequency (MHz) Antenna Max PSD (dBm) Limit (dBm) Verdict NVNT a 5745 Ant1 6.166 30 Pass NVNT a 5785 Ant1 7.328 30 Pass NVNT a 5825 Ant1 7.179 30 Pass NVNT ac20 5745 Ant1 4.299 30 Pass NVNT ac20 5785 Ant1 4.79 30 Pass NVNT ac20 5825 Ant1 5.27 30 Pass NVNT ac40 5755 Ant1 2.056 30 Pass NVNT ac40 5795 Ant1 2.405 30 Pass NVNT ac80 5775 Ant1 -9.437 30 Pass NVNT n20 5745 Ant1 4.599 30 Pass NVNT n20 5785 Ant1 5.004 30 Pass NVNT n20 5825 Ant1 5.755 30 Pass NVNT n40 5755 Ant1 2.267 30 Pass NVNT n40 5795 Ant1 2.927 30 Pass PSD NVNT a 5745MHz Ant1 Report No.: S21030300406003 Version.1.2 Page 130 of 150 PSD NVNT a 5785MHz Ant1 PSD NVNT a 5825MHz Ant1 Report No.: S21030300406003 Version.1.2 Page 131 of 150 PSD NVNT ac20 5745MHz Ant1 PSD NVNT ac20 5785MHz Ant1 Report No.: S21030300406003 Version.1.2 Page 132 of 150 PSD NVNT ac20 5825MHz Ant1 PSD NVNT ac40 5755MHz Ant1 Report No.: S21030300406003 Version.1.2 Page 133 of 150 PSD NVNT ac40 5795MHz Ant1 PSD NVNT ac80 5775MHz Ant1 Report No.: S21030300406003 Version.1.2 Page 134 of 150 PSD NVNT n20 5745MHz Ant1 PSD NVNT n20 5785MHz Ant1 Report No.: S21030300406003 Version.1.2 Page 135 of 150 PSD NVNT n20 5825MHz Ant1 PSD NVNT n40 5755MHz Ant1 Report No.: S21030300406003 Version.1.2 Page 136 of 150 PSD NVNT n40 5795MHz Ant1 Report No.: S21030300406003 Version.1.2 Page 137 of 150 BAND EDGE Condition Mode Frequency (MHz) Antenna Max Value (dBm) Verdict NVNT a 5745 Ant1 -35.44 Pass NVNT a 5825 Ant1 -41.22 Pass NVNT ac20 5745 Ant1 -33.28 Pass NVNT ac20 5825 Ant1 -39.82 Pass NVNT ac40 5755 Ant1 -31.95 Pass NVNT ac40 5795 Ant1 -42.01 Pass NVNT ac80 5775 Ant1 -24.45 Pass NVNT n20 5745 Ant1 -35.82 Pass NVNT n20 5825 Ant1 -36.7 Pass NVNT n40 5755 Ant1 -26.9 Pass NVNT n40 5795 Ant1 -40.29 Pass Band Edge NVNT a 5745MHz Low Ant1 Report No.: S21030300406003 Version.1.2 Page 138 of 150 Band Edge NVNT a 5825MHz High Ant1 Band Edge NVNT ac20 5745MHz Low Ant1 Report No.: S21030300406003 Version.1.2 Page 139 of 150 Band Edge NVNT ac20 5825MHz High Ant1 Band Edge NVNT ac40 5755MHz Low Ant1 Report No.: S21030300406003 Version.1.2 Page 140 of 150 Band Edge NVNT ac40 5795MHz High Ant1 Band Edge NVNT ac80 5775MHz High …

Text truncated - open the document above for the full version.

Radiated Measurement Photos(30MHz~1GHz ) (1GHz~18GHz) (18GHz ~40GHz) AC Conducted Measurement Photos

Test Positions Bottom surface of keyboard (Separation distance of 0mm) N/A N/A END
