2AZRDCMAX2021MaxLite c-Max Controls

Instruction manual Model：NN-RTPSW Features 0-10V Bi-level dimming control USB-C installation Network node Daylight harvesting Specifications Input voltage: 12 VDC Input current: 35mA Power Consumption: <0.5W Dimming: 0-10V Op. temperature: 14°F~113°F (-10°C~45°C) IP rate: IP20 Color: White Certification: UL Warranty: Five year Communication distance: 100ft Line Drawings Unit:inch/mm WIRING CONTROL MODES 1. APP connection control 2.Photocell ON/OFF can be set in the APP 3.QR code can be shared for Admin access. 4.Sensor can be designated to one or more cetain group INSTALLATION 1:Drill a hole length:15.1mm,width 7.5mm throuth the sheet metal in the bottom of the fixture. 2:Connect wires as shown in below WIRING diagram. 3:Restore power from the circuit breaker. WARNING: TURN THE POWER OFF AT THE CIRCUIT BREAKER BEFORE INSTALLING THE SENSOR. FCCStatement ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuantto Part15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmful interferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcanradiateradiofrequency energyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferenceto radiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticular installation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbe determinedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferenceby oneormoreofthefollowingmeasures: --Reorientorrelocatethereceivingantenna. --Increasetheseparationbetweentheequipmentandreceiver. --Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. --Consultthedealeroranexperiencedradio/TVtechnicianforhelp. Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived, includinginterferencethatmaycauseundesiredoperation. Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidthe user'sauthoritytooperatetheequipment.

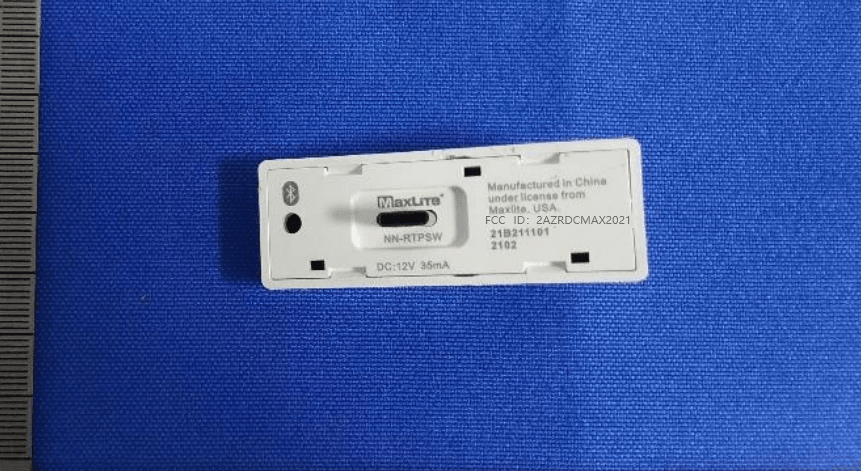

ProductName:MaxLitec-MaxControls ModelNo.：NN-RTPSW,NN-RTW,NN-RTDHW,NN-MGT,NN-RDW,NN-RDB,NNRDMSW, NN-RDMSB FCCID：2AZRDCMAX2021 Allmodelsareelectricallyidentical， Onlymodelnoisdifferent. Name:AymenChami Title:SeniorEngineeringManager ApplicantCompany:MaxliteInc.

DATE: 2021-5-19 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint BlueAsia of Technical Services(Shenzhen) Co.,Ltd. IOT Test Centre of BlueAsiaBuilding C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District,Shenzhen, Guangdong Province, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commissions regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Maxlite Inc. / 12 York Avenue West Caldwell New Jersey United States NameAymen Chami TitleSenior Engineering Manager Applicant CompanyMaxlite Inc.

DATE2021-5-19 Equipment Authorization Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AZRDCMAX2021 Product Name: MaxLite c-Max Controls Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality Schematics and BOM Block diagram Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Name Aymen Chami Title Senior Engineering Manager Applicant Company Maxlite Inc.

Model No.: NN-RTPSW

Model No.: NN-RTPSW

RF Exposure Evaluation Statement Product Name: MaxLite c-Max Controls Model No.：NN-RTPSW, NN-RTW, NN-RTDHW, NN-MGT, NN-RDW, NN-RDB, NN- RDMSW, NN-RDMSB FCC ID：2AZRDCMAX2021 1.1 RF Exposure Compliance Requirement 1.1.1 Standard Requirement According to KDB447498D01 General RF Exposure Guidance v06 Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 1.1.2 Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 17 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion 1.1.3 EUT RF Exposure Operational Mode: BLE Channel Maximum Peak Conducted Output Power (dBm) Tune up tolerance (dB) Maximum tune-up Power Calculated value Exclusion threshold (dBm) (mW) 2402MHz 4.27 ±1 5.27 3.37 1.04 3.0 2442MHz 3.60 ±1 4.60 2.88 0.90 2480MHz 4.08 ±1 5.08 3.22 1.01 Conclusion: the calculated value ≤3.0, SAR is exempted.

Page 1 of67 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Add: Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TEST REPORT Product Name : MaxLite c-Max Controls Brand Mark : NA Model No. : NN-RTPSW, NN-RTW, NN-RTDHW, NN-MGT, NN-RDW, NN-RDB, NN-RDMSW, NN-RDMSB FCC ID : 2AZRDCMAX2021 Report Number : BLA-EMC-202104-A11601 Date of Sample Receipt : 2021/4/30 Date of Test : 2021/4/30 to 2021/6/1 Date of Issue : 2021/6/1 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: Maxlite Inc 12 York Avenue, West Caldwell, NJ 07006 United States Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China TEL: +86-755-23059481 Compiled by: Review by: Approved by: Date: 2021/6/1 Report No.: BLA-EMC-202104-A11601 Page 2 of67 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com REPORT REVISE RECORD Version No. Date Description 00 2021/6/1 Original Report No.: BLA-EMC-202104-A11601 Page 3 of67 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................5 2 GENERAL INFORMATION .........................................................................................................................6 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................6 4 TEST ENVIRONMENT ................................................................................................................................7 5 TEST MODE ................................................................................................................................................7 6 MEASUREMENT UNCERTAINTY ..............................................................................................................7 7 DESCRIPTION OF SUPPORT UNIT...........................................................................................................8 8 LABORATORY LOCATION .........................................................................................................................8 9 TEST INSTRUMENTS LIST ........................................................................................................................9 1 CONDUCTED BAND EDGES MEASUREMENT ..................................................................................... 13 1.1 LIMITS ................................................................................................................................................................... 13 1.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 13 1.3 TEST DATA .............................................................................................................................................................. 14 2 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 15 2.1 LIMITS ................................................................................................................................................................... 15 2.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 15 2.3 TEST DATA .............................................................................................................................................................. 16 3 POWER SPECTRUM DENSITY ............................................................................................................... 17 3.1 LIMITS ................................................................................................................................................................... 17 3.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 17 3.3 TEST DATA .............................................................................................................................................................. 17 4 CONDUCTED EMISSIONS AT AC POWER LINE (150KHZ-30MHZ)..................................................... 18 4.1 LIMITS ................................................................................................................................................................... 18 4.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 18 4.3 PROCEDURE .......................................................................................................................................................... 18 4.4 TEST DATA .............................................................................................................................................................. 20 5 CONDUCTED PEAK OUTPUT POWER ................................................................................................. 22 5.1 LIMITS ................................................................................................................................................................... 22 5.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 22 5.3 TEST DATA .............................................................................................................…

Text truncated - open the document above for the full version.

Report No.: BLA-EMC-202104-A11601 Page 31 of67 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com [TestMode: TX Low channel]; [Polarity: Horizontal] Test Result: Pass Report No.: BLA-EMC-202104-A11601 Page 32 of67 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com [TestMode: TX Low channel]; [Polarity: Vertical] Test Result: Pass Report No.: BLA-EMC-202104-A11601 Page 33 of67 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com [TestMode: TX middle channel]; [Polarity: Horizontal] Test Result: Pass Report No.: BLA-EMC-202104-A11601 Page 34 of67 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com [TestMode: TX middle channel]; [Polarity: Vertical] Test Result: Pass Report No.: BLA-EMC-202104-A11601 Page 35 of67 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com [TestMode: TX high channel]; [Polarity: Horizontal] Test Result: Pass Report No.: BLA-EMC-202104-A11601 Page 36 of67 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com [TestMode: TX high channel]; [Polarity: Vertical] Test Result: Pass Report No.: BLA-EMC-202104-A11601 Page 37 of67 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 9 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS Test Standard 47 CFR Part 15, Subpart C 15.247 Test Method ANSI C63.10 (2013) Section 6.10.5 Test Mode (Pre-Scan) TX Low channel;TX high channel Test Mode (Final Test) TX Low channel;TX high channel Tester Eason Temperature 25°C Humidity 52% 9.1 LIMITS Frequency(MHz) Field strength(microvolts/meter) Measurement distance(meters) 0.009-0.490 2400/F(kHz) 300 0.490-1.705 24000/F(kHz) 30 1.705-30.0 30 30 30-88 100 3 88-216 150 3 216-960 200 3 Above 960 500 3 Remark: The emission limits shown in the above table are based on measurements employing a CISPR quasi-peak detector except for the frequency bands 9-90kHz, 110-490kHz and above 1000 MHz. Radiated emission limits in these three bands are based on measurements employing an average detector, the peak field strength of any emission shall not exceed the maximum permitted average limits specified above by more than 20 dB under any condition of modulation. Report No.: BLA-EMC-202104-A11601 Page 38 of67 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 9.2 BLOCK DIAGRAM OF TEST SETUP 9.3 PROCEDURE a. For below 1GHz, the EUT was placed on the top of a rotating table 0.8 meters above the ground at a 3 or 10 meter semi-anechoic chamber. The table was rotated 360 degrees to determine the position of the highest radiation. b. For above 1GHz, the EUT was placed on the top of a rotating table 1.5 meters above the ground at a 3 meter fully-anechoic chamber. The table was rotated 360 degrees to determine the position of the highest radiation. c. The EUT was set 3 or 10 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. d. The antenna height is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to make the measurement. e. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters (for the test frequency of below 30MHz, the antenna was tuned to heights 1 meter) and the rotatable table was turned from 0 degrees to 360 degrees to find the maximum reading. f. The test-receiver system was set to Peak Detect Function and Specified Bandwidth with Maximum Hold Mode. g. If the emission level of the EUT in peak mode was 10dB lower than the limit specified, then testing could be stopped and the peak values of the EUT would be reported. Otherwise the emissions that did not have 10dB margin would be re-tested one by one using peak, quasi-peak or average method as specified and then reported in a data sheet. Report No.: BLA-EMC-202104-A11601 Page 39 of67 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com h. Test the EUT in the lowest channel, the middle channel, the Highest channel. i. The radiation measurements are performed in X, Y, Z axis positioning for Transmitting mode, and found the X axis positioning which it is the worst case. j. Repeat above procedures until all frequencies measured was complete. Remark 1: Level= Read Level+ Cable Loss+ Antenna Factor- Preamp Factor Remark 2: For frequencies above 1GHz, the field strength limits are based on average limits. However, the peak field strength of any emission shall not exceed the maximum permitted average limits specified above by more than 20 dB under any condition of modulation. For the emissions whose peak level is lower than the average limit, only the peak measurement is shown in the report. Report No.: BLA-EMC-202104-A11601 Page 40 of67 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 9.4 TEST DATA [TestMode: TX Low channel]; [Polarity: Horizontal] Test Result: Pass Report No.: BLA-EMC-202104-A11601 Page 41 of67 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com [TestMode: TX Low channel]; [Polarity: Vertical] Test Result: Pass Report No.: BLA-EMC-202104-A11601 Page 42 of67 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com [TestMode: TX high channel]; [Polarity: Horizonta…

Text truncated - open the document above for the full version.

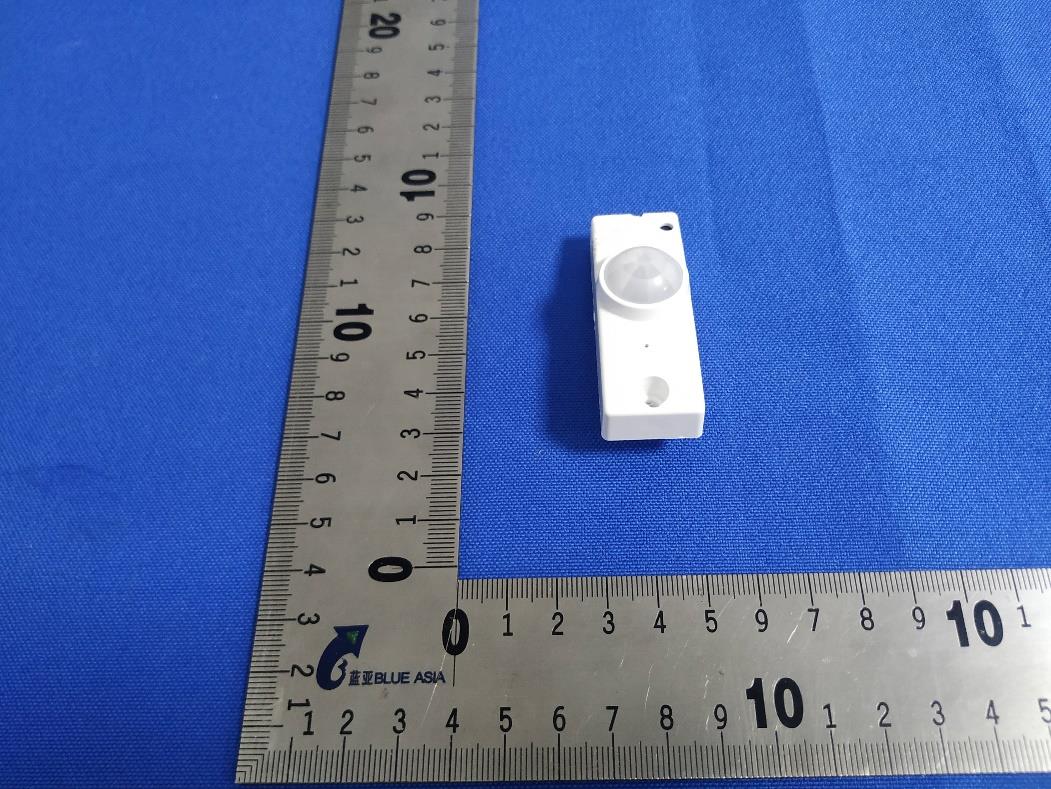

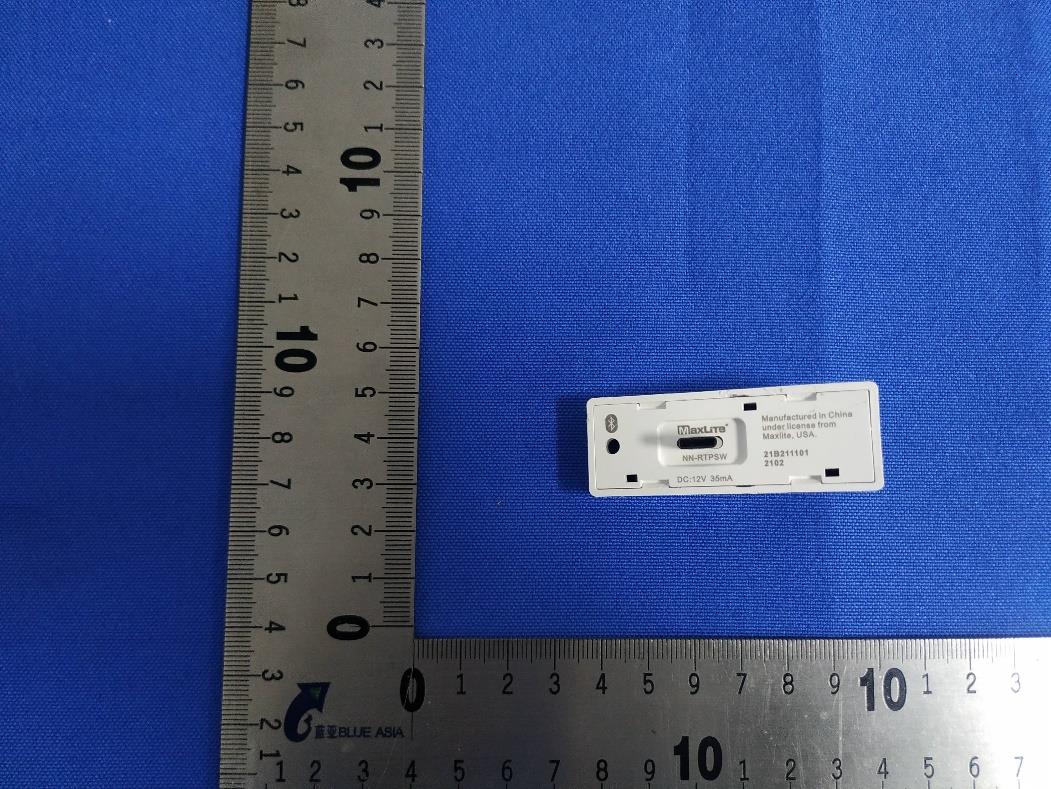

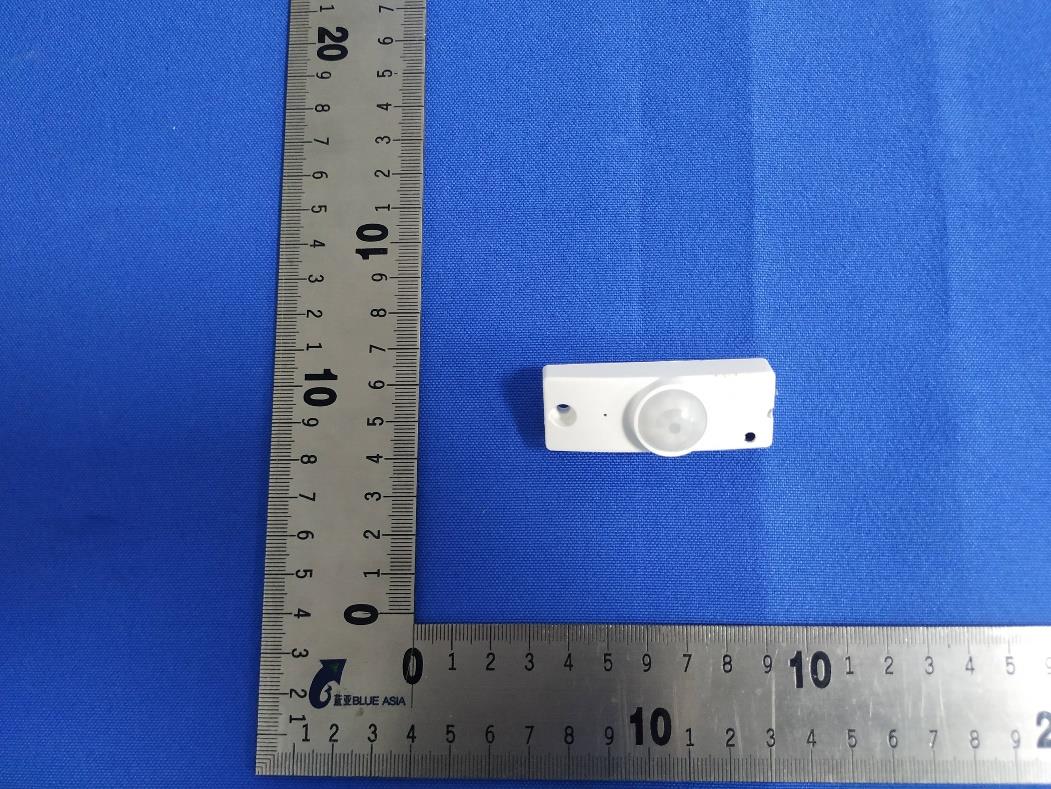

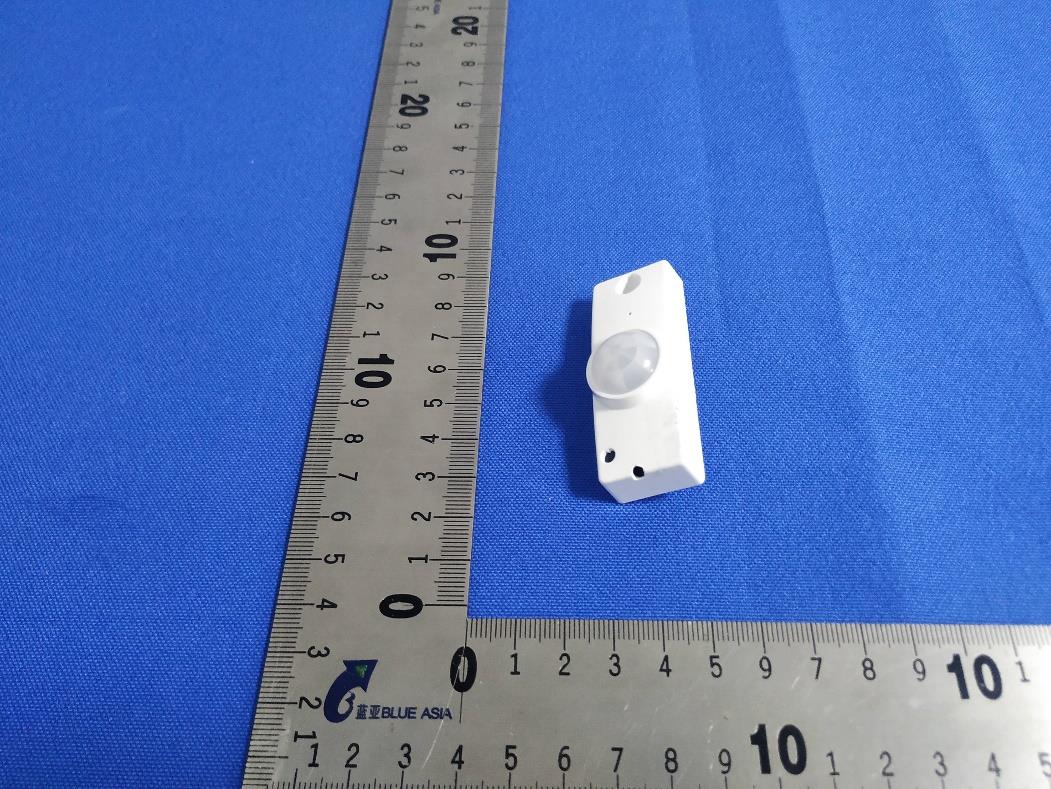

Report No.: BLA-EMC-202104-A11601 Page 61 of67 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com APPENDIX B: PHOTOGRAPHS OF EUT Report No.: BLA-EMC-202104-A11601 Page 62 of67 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202104-A11601 Page 63 of67 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202104-A11601 Page 64 of67 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202104-A11601 Page 65 of67 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202104-A11601 Page 66 of67 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202104-A11601 Page 67 of67 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com ----END OF REPORT---- The test report is effective only with both signature and specialized stamp, The result(s) shown in this report refer only to the sample(s) tested. Without written approval of BlueAsia, this report can’t be reproduced except in full.

Model No.: NN-RTPSW
