2AZRL-SNSCBTUV Measuring Device with BLE

Sunsense AS Technical User Manual SunSense Pro 1 Technical User Manual 2022 SunSense Pro Sunsense AS Technical User Manual SunSense Pro 2 Disclaimer The SunSense Pro UV tracker and accompanying App is a tool to help you enjoy the sun responsibly during the day. It is designed by SunSense AS, No rway. By using the SunSense Pro UV tracker and App, you acknowledge that you have read, understood, and accepted the terms and conditions in this disclaimer. For information on the privacy policy and GDPR compliance, please refer to the terms listed in the SunSense App. The SunSense Pro UV tracker and App is not a replacement for public and/ or individual health advise concerning your sun behaviour. The SunSense Pro UV tracker and App should not be used for infants and young children below 3 years, as these should be kept out of direct sunlight. Use the SunSense Pro UV tracker and App to help plan your daily activity in the sun to reduce UV exposure and avoid skin damage. The SunSense App uses the global/local forecast UV index available from the Danish Meteorological Institute (DMI)/EUMETSAT/O3MSAF and calculates via different algorithms a timeframe for you to stay in the sun (with or without a SPF sun protection applied). All UV index forecasts have inaccuracies because they are predictions. The recommendation given by the app is based on your age, skin type, environment (i.e. beach or land), and your available SPF sun protection. In addition, your location – either obtained from the GPS software of your mobile phone or from information, which you provide – is used to plan your day in the sun. The SunSense App recommends you to seek shade, to wear sunglasses, clothes, or a wide-brim hat, based on your activity and applied SPF sun protection to reduce UV exposure. The SunSense App will remind you to reapply sunscreens depending on conditions and skin type. Factors that can influence your personal UV exposure include, but are not limited to, number of hours in the sun and reflections from your surroundings can change during the day. The amount of sun protection applied can also be lower than recommended from the manufacturer. Thus, the recommendations given in the SunSense App should only be used as a guideline, and should not replace good sun behaviour. Also, how the UV tracker is attached to the body or clothes and its orientation relative the sun will influence the actual UV exposure readings. Dirt, and in particular sunscreen on the UV tracker sensor window can significantly influence the measurements negatively. When used without the SunSense UV, the SunSense App does not measure the actual amount of accumulated UV radiation exposure. Use the SunSense UV tracker as directed to measure your actual and accumulated UV-exposure. Always follow the instructions for proper use of the SunSense UV tracker. The SunSense App and SunSense UV trackers are not scientific instruments. They are health and fitness products and should not be used to diagnose, treat, or monitor any medical conditions. SunSense AS do not accept any liability for any injury, loss, damage, or costs incurred, or any consequences resulting directly or indirectly by use of or the reliance on the information from the SunSense Pro UV tracker and the App. Sunsense AS Technical User Manual SunSense Pro 3 FCC compliance statement FCC ID: 2AZRL-SNSCBT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation. User Information acc. to FCC15.21 Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Class B Statement for Digital Devices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/television technician for help. Sunsense AS Technical User Manual SunSense Pro 4 Introducing SunSense Pro Take UV protection to the next level with the advanced SunSense Pro wearable UV-sensor with Bluetooth connectivity and a smartphone app. Configure the app with your personal profile and skin type, and it how long you can stay in the sun conditions at your location and if necessary tell you when to apply sunscreen. The app will display updated UV- and weather forecasts. Multiple sensors can be connected to the same app and smartphone, and alarm levels are set individually. Easy access to user manuals and other information. The sleek and convenient size of just 23×5 mm together with a variety of wearing accessories means the sensor device can be comfortably worn on a suitable place on body or clothing where it will track your accumulated UV-exposure during the day regardless of how you move in and out of the sun and shadow, shifting cloud conditions, pressing heat or cooling breeze. SunSense will tell you your actual exposure status and warn you whenever you approach your recommended maximum levels. The…

Text truncated - open the document above for the full version.

Antenna Specification for GRA BLE antenna Manufacturer: SunSense AS Vestre Strandgate 27 4611 Kristiansand S Norway Model name: GRA Antenna type: Custom. Spring loaded pin to metal in enclosure. Max. antenna gain: •2402-2480 MHz: -19.88 dBi* *At 0dBm radio output power, -19.88dBm TRP was measured. Antenna pattern Measured at 2402 MHz

CSA Internal | 3rd Party Request for Confidentiality Date: June 21, 2022 Subject: Confidentiality Request for FCC ID: 2AZRL-SNSCBT Pursuant to FCC 47 CRF 0.457(d) and 0.459, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual SunSense AS has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify Phoenix Testlab GmbH in the event information regarding the product or the product is made available to the public. Phoenix Testlab GmbH will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, 1 - The asterisked items (*) require further information to be provided to the TCB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests.

CSA Internal | 3rd Party Authority to Act as Agent Date: June 20, 2022 Phoenix Test Lab GmbH CSA Group Bayern GmbH, Ms. Christa Jaeger is authorized to act on our behalf, until otherwise notified, for applications to Phoenix Test Lab GmbH. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, This authorization is valid until further written notice from SunSense AS

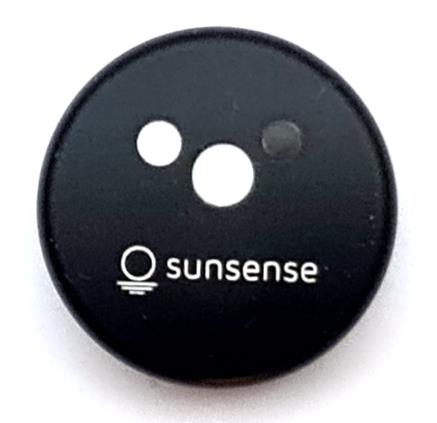

SunSense PRO

The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . CSA Confidential

The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . CSA Group Bayern GmbH File No. 80079239-00 to 80079239-02, page 1 of 5 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.: +49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 5.0, 2020-02-11 CSA Confidential Attachment A Type / Model Name : SunSense Pro Product Description : UV measuring device with BLE Applicant : SunSense as Address : Radyrvegen 16 4737 Hornnes, NORWAY Manufacturer : SunSense as Address : Radyrvegen 16 4737 Hornnes, NORWAY according to Test Report No. : 80079239-00 to 80079239-02 23. May 2022 ______________________________________________________________________________________________ Date of issue The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . CSA Group Bayern GmbH File No. 80079239-00 to 80079239-02, page 2 of 5 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.: +49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 5.0, 2020-02-11 CSA Confidential Contents 1 P h o t o d o c u m e n t a t i o n o f t h e E U T 3 1.1 Conducted Sample: 3 1.2 Radiated Sample: 4 1.3 Battery 5 The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . CSA Group Bayern GmbH File No. 80079239-00 to 80079239-02, page 3 of 5 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.: +49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 5.0, 2020-02-11 CSA Confidential 1 P h o t o d o c u m e n t a t i o n o f t h e E U T 1.1 Conducted Sample: The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . CSA Group Bayern GmbH File No. 80079239-00 to 80079239-02, page 4 of 5 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.: +49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 5.0, 2020-02-11 CSA Confidential 1.2 Radiated Sample:

The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permissi on of the test laboratory . CSA Group Bayern GmbH File No. 80079239-01 Rev_1, page 1 of 33 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 6.4 2021-04-30 R F − T E S T R E P O R T - FCC Part 15.247, RSS-247 - Type / Model Name : SunSense Pro Product Description : UV measuring device with BLE Applicant : SunSense as Address : Radyrvegen 16 4737 Hornnes, NORWAY Manufacturer : SunSense as Address : Radyrvegen 16 4737 Hornnes, NORWAY Test Result according to the standards listed in clause 1 test standards: POSITIVE Test Report No. : 80079239-01 Rev_1 07. July 2022 ______________________________________________________________________________________________ Date of issue CSA Group Bayern GmbH File No. 80079239-01 Rev_1, page 2 of 33 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 6.4 2021-04-30 Contents 1 T E S T S T A N D A R D S 3 2 E Q U I P M E N T U N D E R T E S T 4 2.1 Information provided by the Client 4 2.2 Sampling 4 2.3 General remarks 4 2.4 Photo documentation of the EUT – Detailed photos see ATTACHMENT A 4 2.5 Equipment type 4 2.6 Short description of the equipment under test (EUT) 4 2.7 Variants of the EUT 4 2.8 Operation frequency and channel plan 5 2.9 Transmit operating modes 5 2.10 Antenna 5 2.11 Power supply system utilised 5 2.12 Peripheral devices and interface cables 6 2.13 Determination of worst-case conditions for final measurement 6 3 T E S T R E S U L T S U M M A R Y 7 3.1 Final assessment 7 4 T E S T E N V I R O N M E N T 8 4.1 Address of the test laboratory 8 4.2 Environmental conditions 8 4.3 Statement of the measurement uncertainty 8 4.1 Conformity Decision Rule 8 4.2 Measurement protocol for FCC and ISED 9 5 T E S T C O N D I T I O N S A N D R E S U L T S 12 5.1 Emission bandwidth and Occupied bandwidth 12 5.2 Maximum peak radiated output power 16 5.3 Power spectral density 18 5.4 Radiated emissions in restricted bands 22 5.5 Spurious emissions radiated 31 5.6 Antenna application 31 5.7 Defacto EIRP-Limit 32 6 U S E D T E S T E Q U I P M E N T A N D A C C E S S O R I E S 33 CSA Group Bayern GmbH File No. 80079239-01 Rev_1, page 3 of 33 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 6.4 2021-04-30 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 15, Subpart A - General (September 2020) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15, Subpart C - Intentional Radiators (September 2020) Part 15, Subpart C, Section 15.203 Antenna requirement Part 15, Subpart C, Section 15.204 External radio frequency power amplifiers and antenna modifications Part 15, Subpart C, Section 15.205 Restricted bands of operation Part 15, Subpart C, Section 15.207 Conducted limits Part 15, Subpart C, Section 15.209 Radiated emission limits, general requirements Part 15, Subpart C, Section 15.247 Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz and 5725 - 5850 MHz ANSI C63.10: 2013 Testing Unlicensed Wireless Devices ETSI TR 100 028 V1.3.1: 2001-03, Electromagnetic Compatibility and Radio Spectrum Matters (ERM); Uncertainties in the Measurement of Mobile Radio Equipment Characteristics—Part 1 and Part 2 KDB 558074 D01 v05r02 Guidance for compliance measurements on DTS; FHSS and hybrid system devices operating under Section 15.247 of the FCC rules, April 2, 2019. CSA Group Bayern GmbH File No. 80079239-01 Rev_1, page 4 of 33 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 6.4 2021-04-30 2 E Q U I P M E N T U N D E R T E S T 2.1 Information provided by the Client Please note, we do not take any responsibility for information provided by the client or his representative which may have an influence on the validity of the test results. 2.2 Sampling The customer is responsible for the choice of sample. Sample configuration, start-up and operation is carried out by the customer or according his/her instructions. 2.3 General remarks 2.4 Photo documentation of the EUT – Detailed photos see ATTACHMENT A 2.5 Equipment type BLE device 2.6 Short description of the equipment under test (EUT) The EUT is a Bluetooth 5.0 Low Energy system. The EUT is compatible with the standard 802.15.1. It supports the 2.4 GHz frequency band. Number of tested samples: 1 radiated 1 conducted Serial number: 5 4 2.7 Variants of the EUT There are no variants. CSA Group Bayern GmbH File No. 80079239-01 Rev_1, page 5 of 33 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 6.4 2021-04-30 2.8 Operation frequency and channel plan The operating frequency is 2400 MHz to 2483.5 MHz. Channel plan: Note: the marked frequencies are determined for final testing. 2.9 Transmit operating modes The EUT uses GFSK modulation and may provide following data rates: - 1000 kbps (kbps = kilobits per second) 2.10 Antenna The following antennas shall be used with the EUT: The EUT has only an integrated SMD antenna, no temporary connector and no external antenna to be connected. 2.11 Power supply system utilised Power supply voltage : 3 V DC Channel Frequency Channel Frequency 37 2402 18 2442 0 2404 19 2444 1 2406 20 2446 2 2408 21 2448 3 2410 22 2450 4 2412 23 2452 5 2414 24 2454 6 2416 25 2456 7 2418 26 2458 8 2420 27 2460 9 2422 28 2462 10 2424 29 2464 38 2426 30 2466 11 2428 31 2468 12 2430 32 2470 13 2432 33 2472 14 2434 34 2474 15 2436 35 2476 16 2438 36 2478 17 2440 39 2480 CSA Group Bayern GmbH File No. 80079239-01 Rev_1, page 6 of 33 Ohmstrasse 1-4  94342 STRAS…

Text truncated - open the document above for the full version.

The test report merely corresponds to the test sample. It is not permitted to copy extra cts of these test results without the written permissi on of the test laboratory . CSA Group Bayern GmbH File No. 80079239-02 Rev_0, page 1 of 10 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.: +49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 6.2, 2021-04-27 CSA Confidential R F − T E S T R E P O R T - Human Exposure - Type / Model Name : SunSense Pro Product Description : UV measuring device with BLE Applicant : SunSense as Address : Radyrvegen 16 4737 Hornnes, NORWAY Manufacturer : SunSense as Address : Radyrvegen 16 4737 Hornnes, NORWAY Test Result according to the standards listed in clause 1 test standards: POSITIVE Test Report No. : 80079239-02 Rev_0 02. September 2021 ______________________________________________________________________________________________ Date of issue The test report merely corresponds to the test sample. It is not permitted to copy extra cts of these test results without the written permissi on of the test laboratory . CSA Group Bayern GmbH File No. 80079239-02 Rev_0, page 2 of 10 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.: +49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 6.2, 2021-04-27 CSA Confidential Contents 1 T E S T S T A N D A R D S 3 2 E Q U I P M E N T U N D E R T E S T 4 2.1 Information provided by the Client 4 2.2 Sampling 4 2.3 General remarks 4 2.4 Photo documentation of the EUT – Detailed photos see ATTACHMENT A 4 2.5 Equipment type 4 2.6 Short description of the equipment under test (EUT) 4 2.7 Variants of the EUT 4 2.8 Operation frequency and channel plan 5 2.9 Transmit operating modes 5 2.10 Antenna 5 2.11 Power supply system utilised 5 3 T E S T R E S U L T S U M M A R Y 6 3.1 Final assessment 6 4 T E ST E N V I R O N M E N T 7 4.1 Address of the test laboratory 7 4.2 Environmental conditions 7 4.1 Statement of the measurement uncertainty 7 5 H U M A N E X P O S U R E 8 5.1 SAR test exclusion considerations 8 5.1 Exemption limits for routine evaluation - SAR evaluation 9 ATTACHMENT A as separate supplement The test report merely corresponds to the test sample. It is not permitted to copy extra cts of these test results without the written permissi on of the test laboratory . CSA Group Bayern GmbH File No. 80079239-02 Rev_0, page 3 of 10 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.: +49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 6.2, 2021-04-27 CSA Confidential 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 1, Subpart I - Procedures Implementing the National Environmental Policy Act of 1969 Part 1, Subpart I, Section 1.1310 Radiofrequency radiation exposure limits Part 1, Subpart 2, Section 2.1091 Radiofrequency radiation exposure evaluation: mobile devices. Part 1, Subpart 2, Section 2.1093 Radiofrequency radiation exposure evaluation: portable devices. KDB 447498 D01 v06 RF Exposure procedures and equipment authorisation policies for mobile and portable devices, October 23, 2015. ANSI C95.1: 2005 IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz ETSI TR 100 028 V1.3.1: 2001-03, Electromagnetic Compatibility and Radio Spectrum Matters (ERM); Uncertainties in the Measurement of Mobile Radio Equipment Characteristics—Part 1 and Part 2 The test report merely corresponds to the test sample. It is not permitted to copy extra cts of these test results without the written permissi on of the test laboratory . CSA Group Bayern GmbH File No. 80079239-02 Rev_0, page 4 of 10 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.: +49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 6.2, 2021-04-27 CSA Confidential 2 E Q U I P M E N T U N D E R T E S T 2.1 Information provided by the Client Please note, we do not take any responsibility for information provided by the client or his representative which may have an influence on the validity of the test results. 2.2 Sampling The customer is responsible for the choice of sample. Sample configuration, start-up and operation is carried out by the customer or according his/her instructions. 2.3 General remarks RF Output Power data is taken from CSA test report 80079239-01 to evaluate Human Exposure. 2.4 Photo documentation of the EUT – Detailed photos see ATTACHMENT A 2.5 Equipment type BLE device 2.6 Short description of the equipment under test (EUT) The EUT is a Bluetooth 5.0 Low Energy system. The EUT is compatible with the standard 802.15.1. It supports the 2.4 GHz frequency band. Number of tested samples: 1 Serial number: 4 EUT configuration: (The CDF filled by the applicant can be viewed at the test laboratory.) 2.7 Variants of the EUT There are no variants. The test report merely corresponds to the test sample. It is not permitted to copy extra cts of these test results without the written permissi on of the test laboratory . CSA Group Bayern GmbH File No. 80079239-02 Rev_0, page 5 of 10 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.: +49(0)9424-94810  Fax: +49(0)9424-9481440 Rev. No. 6.2, 2021-04-27 CSA Confidential 2.8 Operation frequency and channel plan The operating frequency is 2400 MHz to 2483.5 MHz. Channel plan: Note: the marked frequencies are determined for final testing. 2.9 Transmit operating modes The EUT uses GFSK modulation and may provide following data rates: - 1000 kbps (kbps = kilobits per second) 2.10 Antenna The following antennas shall be used with the EUT: The EUT has only an integrated PCB antenna, no temporary connector and no external antenna to be connected. The peak antenna gain in the supported frequency band is -25 dBi. 2.11 Power supply system utilised Power supply voltage : 3 V DC ChannelFrequencyChannelFrequency 372402182442 02404192444 12406202446 22408212448 32410222450 42412232452 52414242454 62416252456 72418262458 82420272460 92422282462 102424292464 382426302466 112428312468 122430322470 132432332…

Text truncated - open the document above for the full version.

Page 1 of 1 Internal Test Setup Photos (FCC §15.247) Extract from Test Report 80079239 issued by CSA Group Bayern GmbH Radiated Emissions
