2AZRMKW-112Wireless Keyboard

USER MAUNAL This pr oduct is 2.4G Wireless Keyboard product description see below 1. Compatible with USB1.1/2.0 specifications and passed USB-IF and WHQL test certification 2. 16 channel automatic frequency hopping, strong anti-interference ability 3. Excellent RF characteristics to ensure long-distance/non-direction 4. Full-speed USB, 2 modes, game mode (250Hz)/office mode (125Hz) Can switch online 250/125Hz 5. Support two coding methods (hardware pairing, PC software pairing) 6. Support sensor type The original series: 3212/3205/3065/3204UL/V108//8640 Built-in sensor optimization algorithm to ensure smooth and smooth 7. 6 function keys: left key, middle key, right key, forward key, back key, DPI key Instructions 1. Open "APP Test Software", select Engine Mode (as shown below), a password dialog box will pop up, enter Password "compx", enter the engineering mode. 2.Insert the re ceiver to be tested, <Load EMI> is activated, select the one to be tested from the drop‐down options next to it Project, and then click <Load EMI> to enter the corresponding state, as shown below Multi‐level smart power saving 1. Stop for 1 second, enter the first‐level sleep mode, the current is less than 0.3mA 2. Stop for 1 minute, enter the secondary sleep mode, the current is less than 0.15mA 3. After 15 minutes of parking, it enters the three‐level sleep mode, the Sensor LED is off, and the current is less than 30uA Support frequency：2403.85MHz~2479.85MHz FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Co m Ad d Chin Pr o Mo d 036 010 Pr o We act We an d issu our Sig Na m Title Com mpany: SU dress: Jinm na oduct Name del Numbe 6, BT-037, 0P, KMSW-0 oduct Desc authorize M on our beha declare tha d certificatio ues concern behalf shal nature: me: e: mpany: SUN NNY-TECH mantang Bui e: Wireless er(s): KW-1 KMSW-001 050P, KMS ription: Wi MiCOM Lab alf on all ma at MiCOM L n of equipm ning the app ll have the s SUNNY L Manager SUNNY-T NNY-TECH Agen H ENTERPR ilding, Liuta Keyboard 112, KW-10 1A, KMSW- W-018, KM reless Keyb bs Inc., 575 atters conce Labs Inc. is ment to the r proval applic same effect i ECH ENTE H ENTERP nt Auth RISES CO. ang Road, X 09, C-109, -112, KMSW MSW-915, K board Boulder C o erning the c allowed to f regulatory a cation. Any t as acts of ERPRISES PRISES CO horizat , LIMITED Xixiang Tow BT-001A, K W-005, KM KMSW-916, ourt, Pleasa certification forward all i agencies as and all acts our own. CO., LIMIT O., LIMITE tion wn, Bao’an KW-103U, K MSW-317U, KMSW-00 3 anton, Califo of above na information s required a s carried ou Date: ED D n District, Sh KW-088U, KMSW-1 0 3, KMSW-9 ornia 94566 amed equip related to t nd to discu ut by MiCOM May. 17, 2 henzhen, BT-035, B T 03P, KMSW 913 6, USA, to pment. the approva ss any M Labs on 2021 T- W- al

Office o Federa 7435 O Columb USA Subjec t FCC ID To Wh o Pursua are req u docume These d propriet might b It is ou r corresp docume authoriz Sincer e Signat u Name: Title: M of Engineeri l Communic Oakland Mills bia, MD 210 t; Request f D: 2AZRMKW om It May C nt to the pro uesting the ents from pu documents tary informa be harmful to Schema Block D Parts Lis Operatio Tune-up r understand pondence du ents and thi zation is iss ely, ure: SUNNY Li anage r SUN ing Techno cations Com s Road 046 for Confiden W-112 Concern, ovisions of t Commissio ublic disclos contain det ation in ope o our comp atic Diagram iagram st onal Descri p Procedure ding that all uring the ce s informatio sued. NNY-TECH logy mmission ntiality the Commis on to withho sure indefin tailed syste ration of th e any and wo m ption e l measurem ertification re on will be av ENTERPRI ssion’s rule old the follow nitely. m and equi e equipmen ould give co ment test rep eview proce vailable for ISES CO., L s Title 47 S wing attach pment desc nt. The publ ompetitors a ports, FCC ess cannot public revi e LIMITED Sections §0. hment(s) as criptions an ic disclosu r an unfair ad ID label for be granted ew once the Date: May. 457 and §0 confidentia d are consi re of these d vantage in mat and as confide n e grant of eq .17, 2021 0.459, we al dered as documents the market . ntial quipment .

Model Difference Declaration To Whom It May Concern, We, SUNNY-TECH ENTERPRISES CO., LIMITED(Wireless Keyboard) ; Model Number: KW-112, KW-109, C-109, BT-001A, KW-103U, KW-088U, BT-035, BT-036, BT-037, KMSW-001A, KMSW-112, KMSW-005, KMSW-317U, KMSW-103P, KMSW-010P, KMSW-050P, KMSW-018, KMSW-915, KMSW-916, KMSW-003, KMSW-913 ; All model’s the function, software and electric circuit are the s ame, only with a product color, appearance and model named different. Test sample model: KW-112 Please contact me if you have any question. Name: SUNNY Li Date: May. 17, 2021 Title: Manager Signature of applicant:

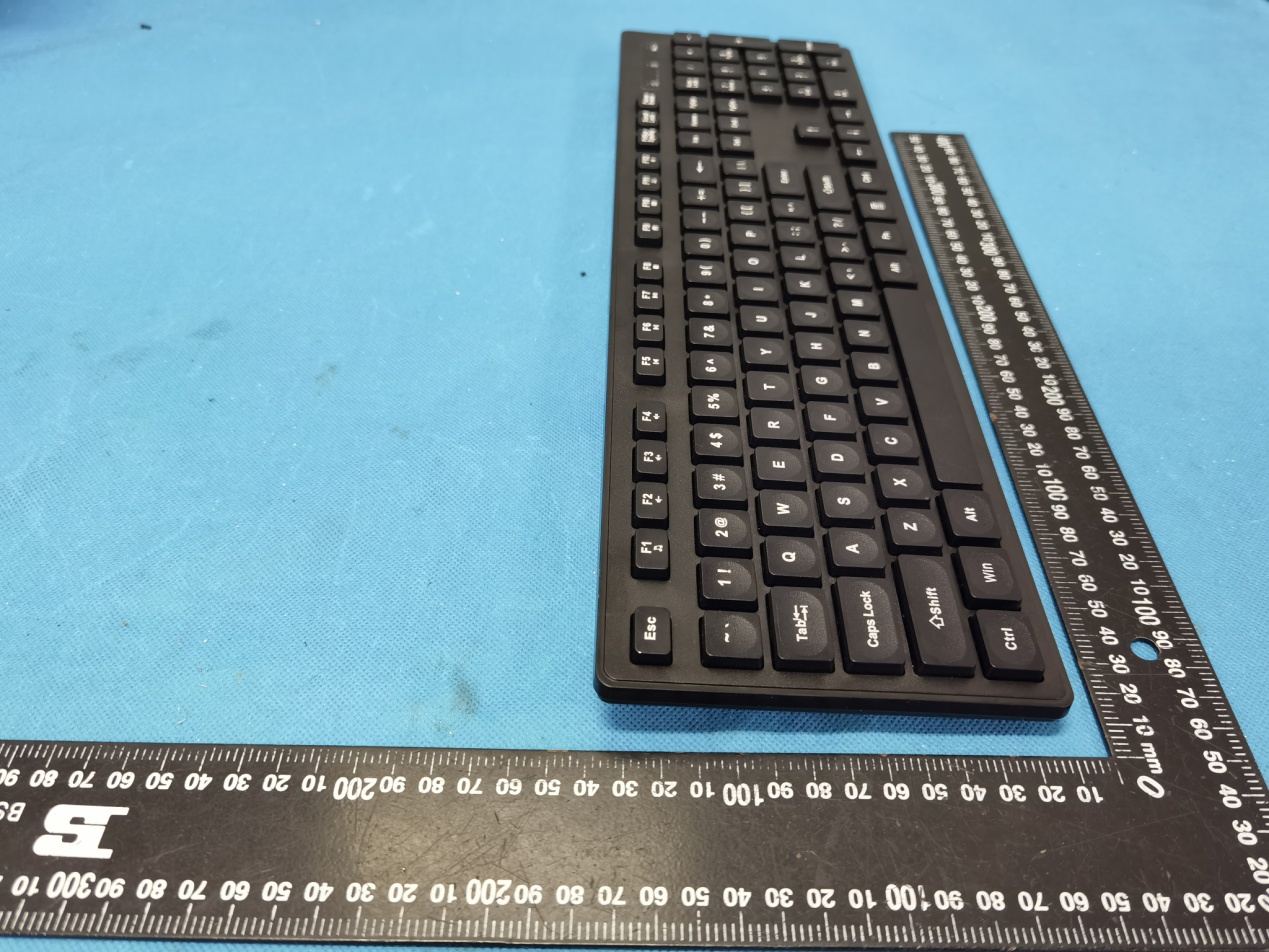

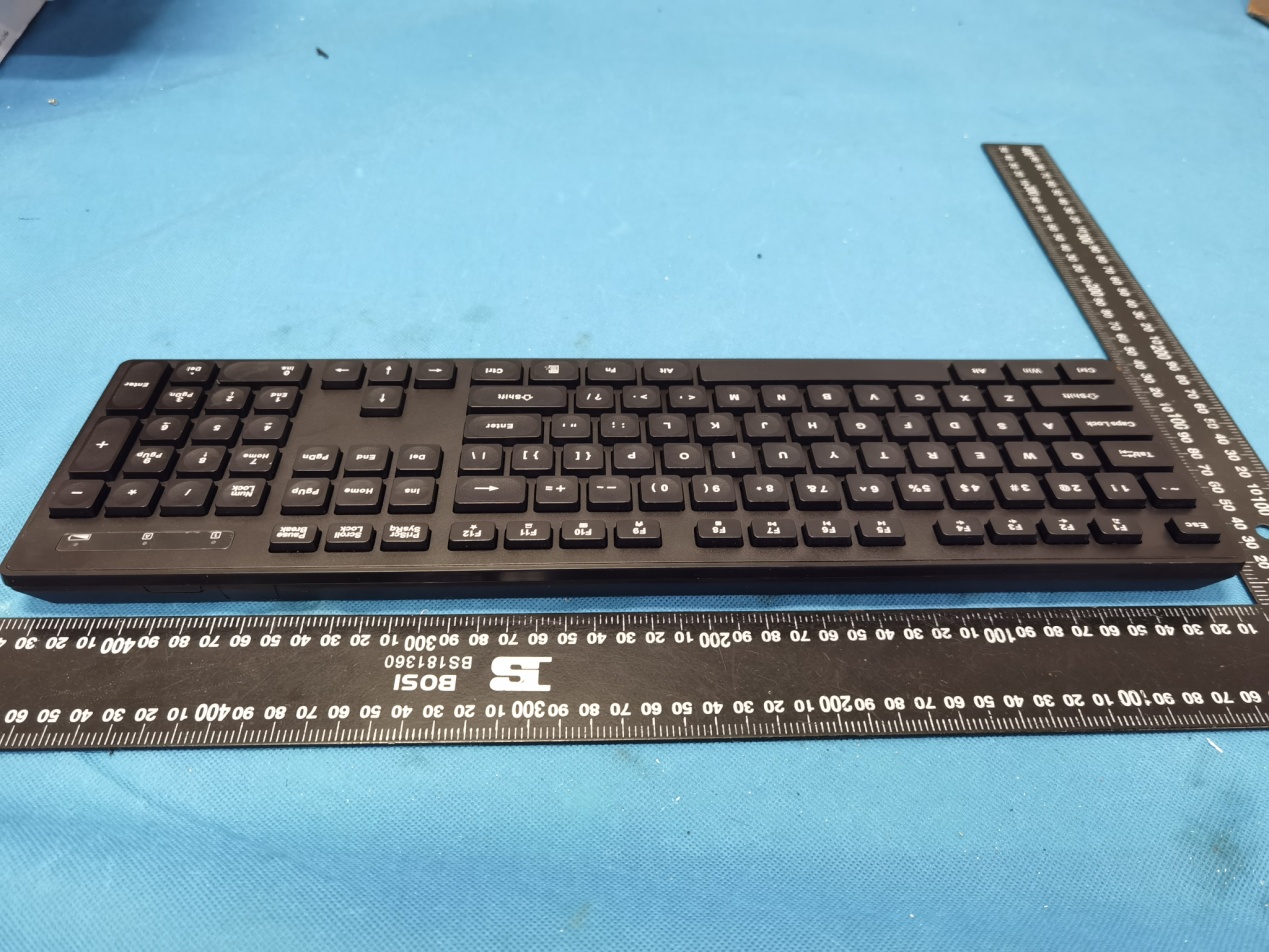

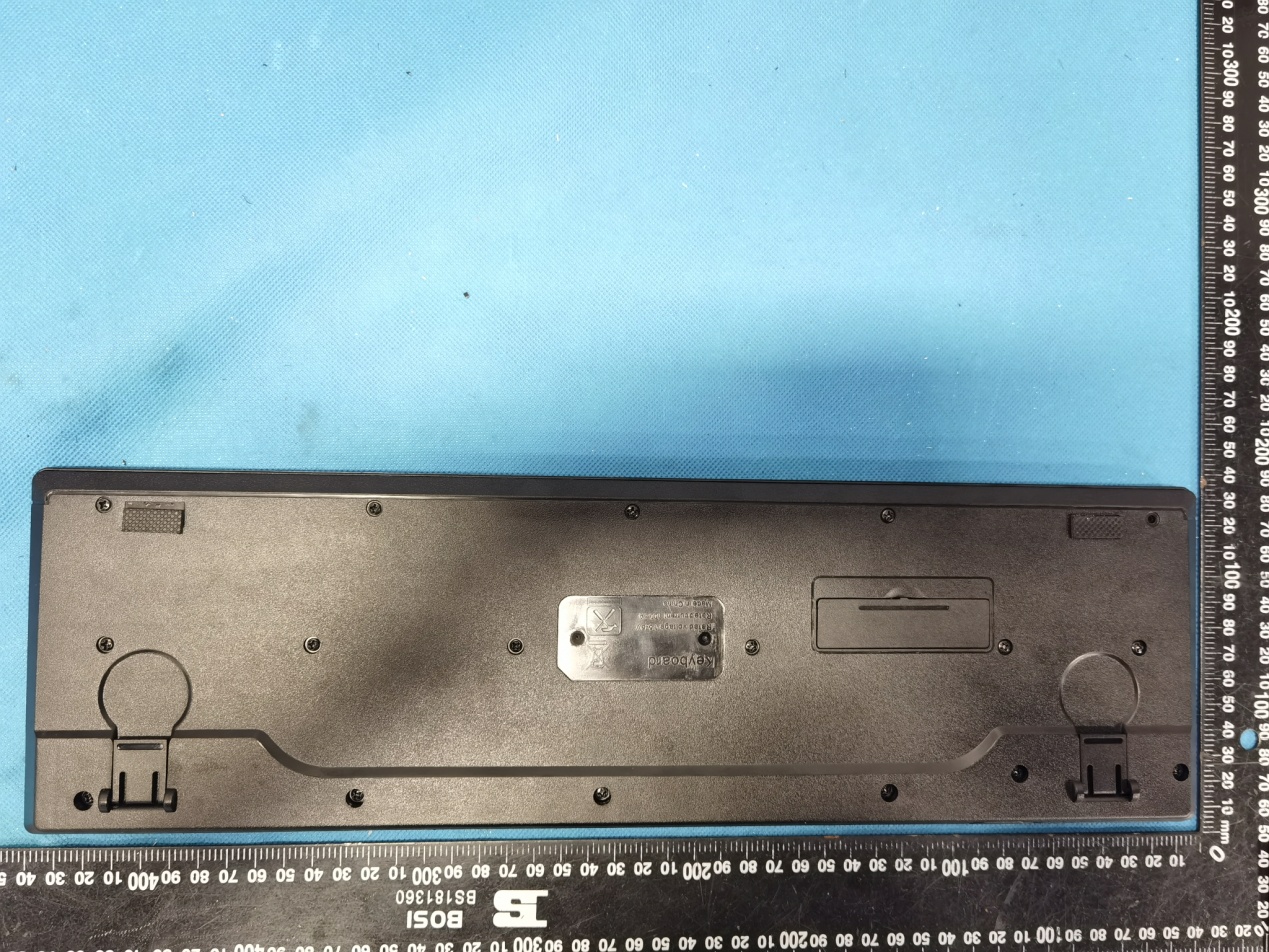

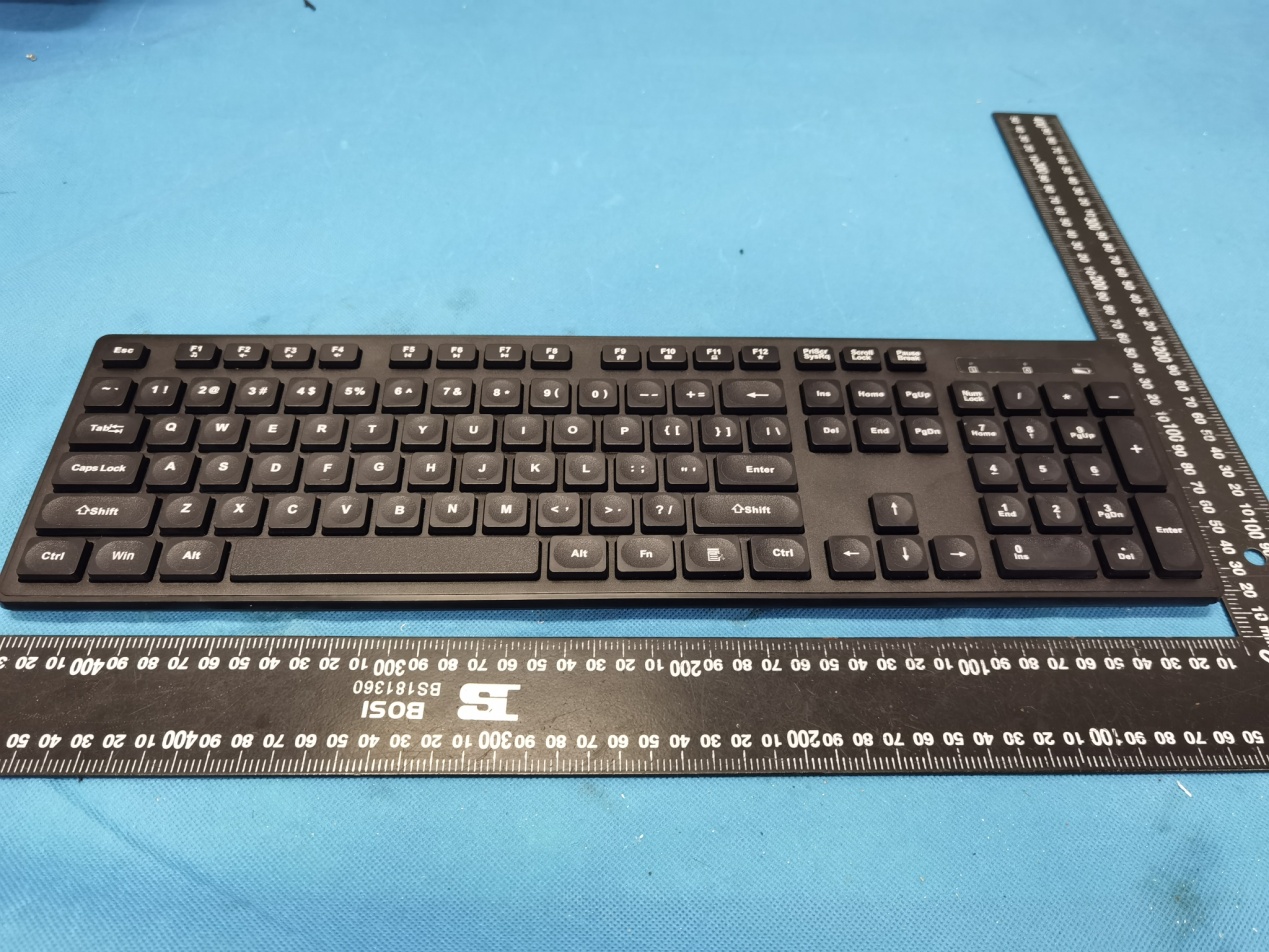

Annex A External Photos Report No.: HK2104261283‐E Page 1 of 3 Report No.: HK2104261283‐E Page 2 of 3 Report No.: HK2104261283‐E Page 3 of 3

FCC ID LABEL: Ca. 5mm x 10mm Include in manual: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location FCC ID: 2AZRMKW-112

Annex B Internal Photos Report No.: HK2104261283‐E Page 1 of 3 Report No.: HK2104261283‐E Page 2 of 3 Antenna Report No.: HK2104261283‐E Page 3 of 3

Page 1 of 25 Report No.: HK2104261283-E FCC TEST REPORT Test report On Behalf of SUNNY-TECH ENTERPRISES CO., LIMITED For Wireless Keyboard Model No.: KW-112, For serial models, please refer to page 6 FCC ID: 2AZRMKW-112 Prepared for : SUNNY-TECH ENTERPRISES CO., LIMITED Jinmantang Building, Liutang Road, Xixiang Town, Bao’an District, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Apr. 22, 2021 ~ Apr. 29, 2021 Date of Report: Apr. 29, 2021 Report Number: HK2104261283-E Page 2 of 25 Report No.: HK2104261283-E TEST RESULT CERTIFICATION Applicant’s name ................. : SUNNY-TECH ENTERPRISES CO., LIMITED Address ................................. : Jinmantang Building, Liutang Road, Xixiang Town, Bao’an District, Shenzhen, China Manufacture's Name ............ : SUNNY-TECH ENTERPRISES CO., LIMITED Address ................................. : Jinmantang Building, Liutang Road, Xixiang Town, Bao’an District, Shenzhen, China Product description Trade Mark: N/A Product name ........................... : Wireless Keyboard Model and/or type reference : KW-112, For serial models, please refer to page 6 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.249 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Apr. 22, 2021 ~ Apr. 29, 2021 Date of Issue ........................................... : Apr. 29, 2021 Test Result .............................................. : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Page 3 of 25 Report No.: HK2104261283-E Table of Contents Page 1 . TEST SUMMARY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 Carrier Frequency of Channels 7 2.3 Operation of EUT during testing 7 2.4 DESCRIPTION OF TEST SETUP 7 2.5 MEASUREMENT INSTRUMENTS LIST 8 3 . CONDUCTED EMISSIONS TEST 9 3.1 Conducted Power Line Emission Limit 9 3.2 Test Setup 9 3.3 Test Procedure 9 3.4 Test Result 10 4 RADIATED EMISSION TEST 11 4.1 Radiation Limit 11 4.2 Test Setup 11 4.3 Test Procedure 12 4.4 Test Result 12 5 BAND EDGE 18 5.1 Limits 18 5.2 Test Procedure 18 5.3 Test Result 19 6 OCCUPIED BANDWIDTH MEASUREMENT 21 6.1 Test Setup 21 6.2 Test Procedure 21 6.3 Measurement Equipment Used 21 6.4 Test Result 21 7 ANTENNA REQUIREMENT 23 8 PHOTOGRAPH OF TEST 24 8.1 Radiated Emission 24 9 PHOTOS OF THE EUT 25 Page 4 of 25 Report No.: HK2104261283-E ** Modifited History ** Revison Description Issued Data Remark Revsion 1.0 Initial Test Report Release Apr. 29, 2021 Jason Zhou Page 5 of 25 Report No.: HK2104261283-E 1. TEST SUMMARY 1.1 TEST PROCEDURES AND RESULTS DESCRIPTION OF TEST RESULT CONDUCTED EMISSIONS TEST §15.207 N/A RADIATED EMISSION TEST §15.249 (a) / §15.209 COMPLIANT BAND EDGE §15.249 (d)/ §15.209 COMPLIANT OCCUPIED BANDWIDTH MEASUREMENT §15.215 (c) COMPLIANT ANTENNA REQUIREMENT §15.203 COMPLIANT 1.2 TEST FACILITY Te s t F i r m ： Shenzhen HUAK Testing Technology Co., Ltd. Address ： 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China 1.3 MEASUREMENT UNCERTAINTY Measurement Uncertainty Conducted Emission Expanded Uncertainty =2.23dB, k=2 Radiated emission expanded uncertainty(9kHz-30MHz) = 3.08dB, k=2 Radiated emission expanded uncertainty(30MHz-1000MHz)= 4.42dB, k=2 Radiated emission expanded uncertainty(Above 1GHz) = 4.06dB, k=2 Page 6 of 25 Report No.: HK2104261283-E 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Wireless Keyboard Model Name KW-112 Serial Model KW-109, C-109, BT-001A, KW-103U, KW-088U, BT-035, BT-036, BT-037, KMSW-001A, KMSW-112, KMSW-005, KMSW-317U, KMSW-103P, KMSW-010P, KMSW-050P, KMSW-018, KMSW-915, KMSW-916, KMSW-003, KMSW-913 Model Difference All model’s the function, software and electric circuit are the same, only with a product color, appearance and model na med different. Test sample model: KW-112 FCC ID 2AZRMKW-112 Antenna Type PCB Antenna Antenna Gain 0dBi Equipment Wireless Keyboard Operation frequency 2403.85MHz~2479.85MHz Number of Channels 16CH Modulation Type GFSK Power Source DC 1.5V from Battery Power Rating DC 1.5V from Battery Page 7 of 25 Report No.: HK2104261283-E 2.2 Carrier Frequency of Channels Description of Channel: Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 1 2403.85 5 2422.85 9 2441.85 13 2463.85 2 2407.85 6 2426.85 10 2445.85 14 2466.85 3 2414.85 7 2436.85 11 2453.85 15 2473.85 4 2419.85 8 2439.85 12 2459.85 16 2479.85 2.3 Operation of EUT during testing Operating Mode The mode is used: Transmitting mode Low Channel: 2403.85MHz Middle Channel: 2441.85MHz High Channel: 2479.85MHz 2.4 DESCRIPTION OF TEST SETUP Operation of EUT during below 1GHz and Above1GHz Radiation testing: The sample was placed (0.8m below 1GHz, 1.5m above 1GHz) above the ground plane of 3m chamber. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating the turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in…
