2AZRQDEVKIT20tooz v0.x PD32_R140_MC50p

DOWNLOAD Download and install the Android apps available for the tooz DevKit 20. For more information on how to navigate in the tooz Control App, visit our website. tooztech.cn/download TOOZ CONTROL APP Set up and manage the glasses, apps and smart functionality. TOOZ EMULATOR Test screen designs and app prototypes, even without your tooz smart glasses. QUICK START GUIDE SAFETY INFORMATION tooz DevKit 20 is a beta product and therefore still in development. As such, it is likely to contain errors and is provided “AS IS” and “AS AVAILABLE”. tooz also makes no representations and gives no warranties that tooz DevKit 20 has particular functionalities. © tooz technologies GmbH 2021 This quick start guide is subject to change. BLUETOOTH PAIRING To connect to the tooz Control App, swipe backwards on the touchpad towards the ear and hold. tooztech.cn OVERVIEWGETTING STARTEDUSING THE GLASSES F A B E D C G Control your tooz smart glasses using the Android-specific touch gestures when connected via Bluetooth using the tooz Control App. To get started with your tooz smart glasses, unfold the temples to turn them on. Fold the temples to turn the glasses off again. The tooz smart glasses discreetly deliver content into the wearer’s field of view, enhancing the essential function of everyday glasses. Touchpad Power On/Off Hinge Pogo Pin Charger Ambient Light Sensor Proximity Sensor Speaker Microphone A B C D E F G To charge the glasses, attach the provided charging cable to the pogo pins under the left temple. The glasses are fully-charged when the LED light on the USB stops blinking and turns solid. CHARGING YOUR GLASSES POWER ON/OFF ANDROID TOUCH GESTURES TOOZ DEVKIT 20 G SHORT TAP Open and control apps FORWARD SWIPE Show homescreen BACKWARD SWIPE Switch between apps Forward swipe, backward swipe and hold FACTORY RESET

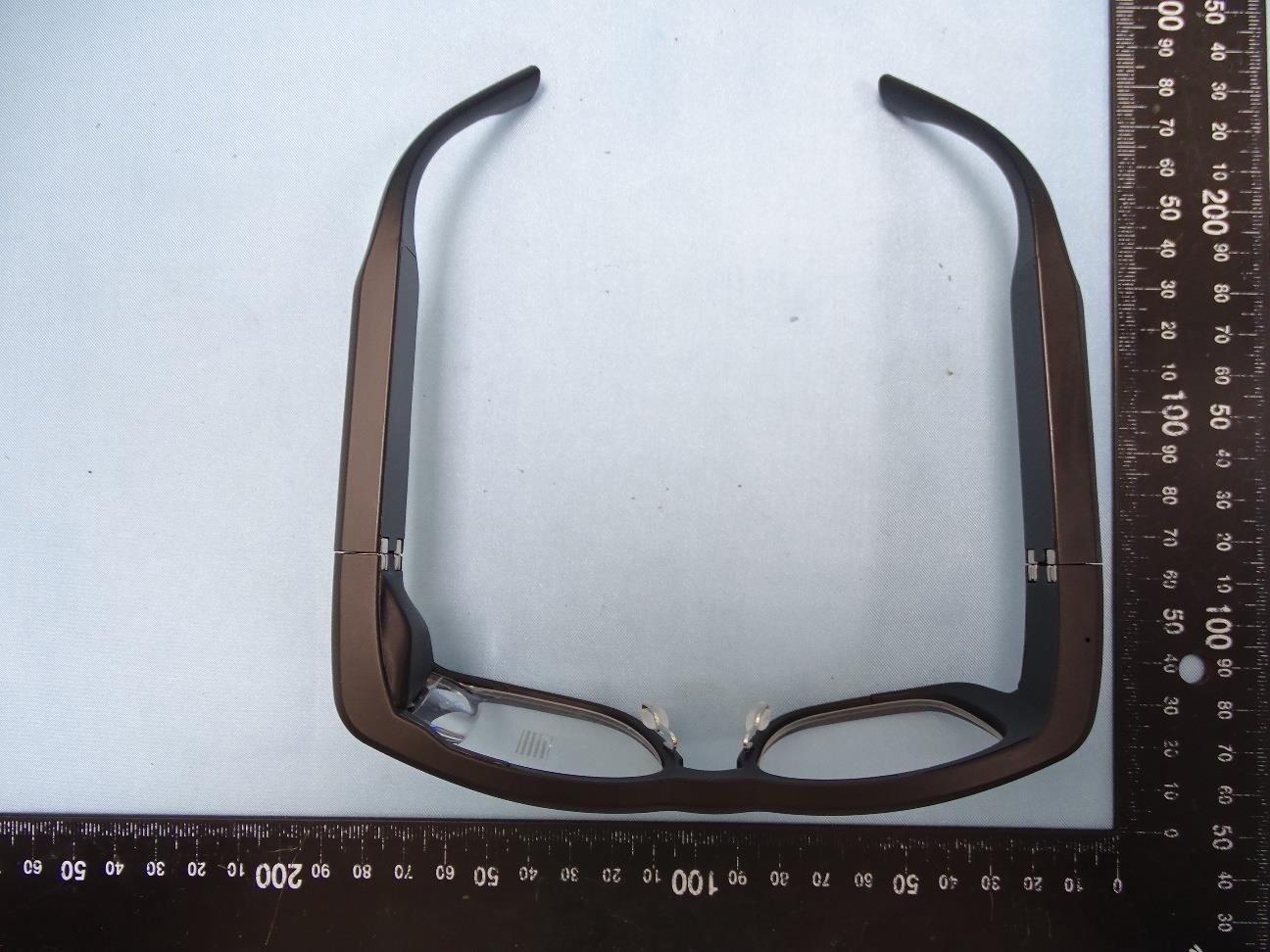

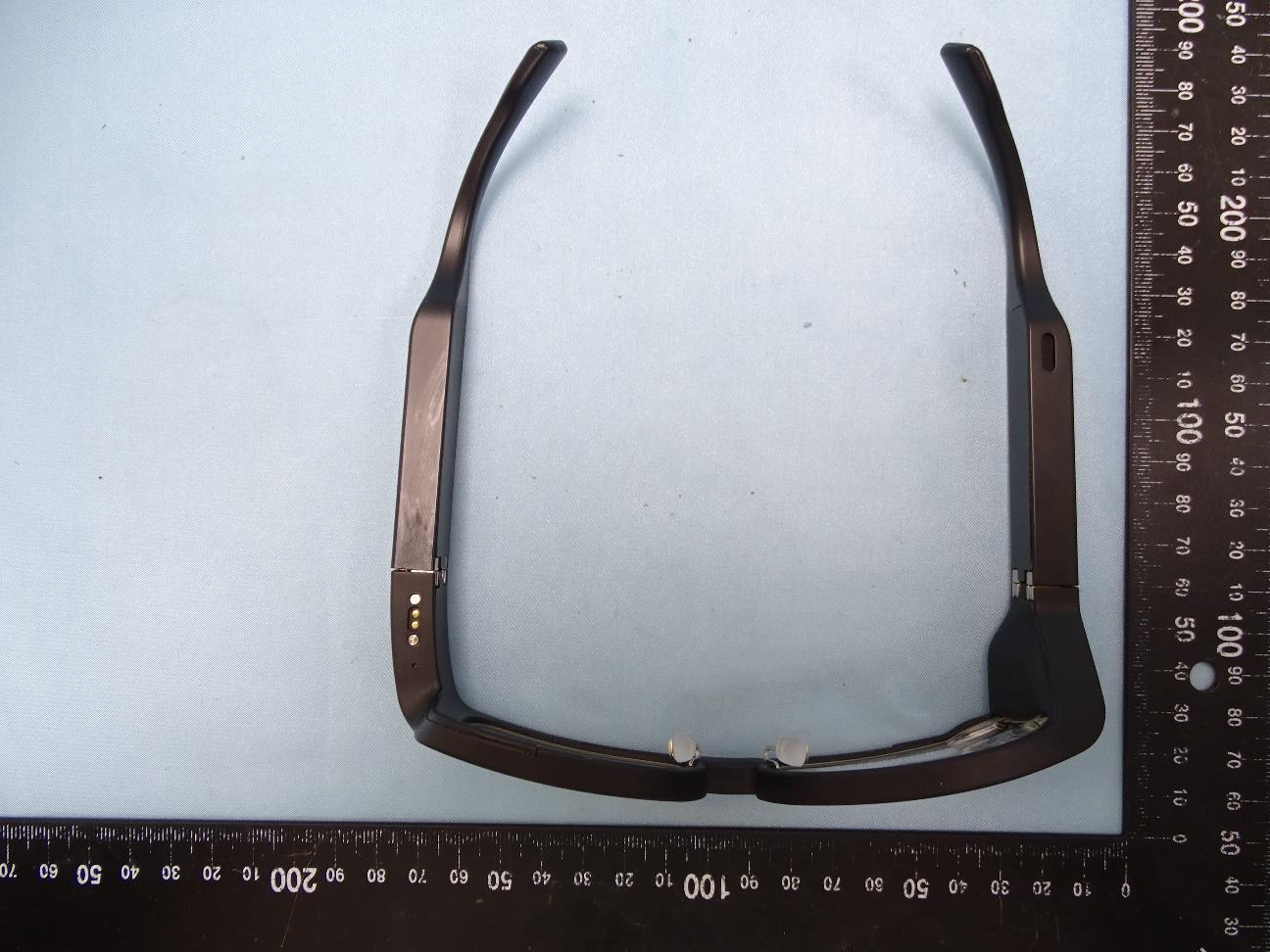

PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 1 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 1. External Photograph of EUT Brand Name: tooz / Model Name: tooz DevKit 20 720510 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 2 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 3 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 4 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 5 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 6 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 7 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 2. Photograph of Accessory Brand Name: tooz / Model Name: tooz DevKit 20 Specification of Accessory Battery Brand Name SYNergy Model Name AHB74490HPC USB Cable Brand Name ND Model Name QT-UP-1M00022 Remark: For accessories equipped with this EUT, please refer to the following photos. PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 8 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 720510 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 9 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 Battery

PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 10 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 3. Internal Photograph of EUT Brand Name: tooz / Model Name: tooz DevKit 20 720510 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 11 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 12 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 13 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 14 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 15 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 16 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 17 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 18 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 19 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 20 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 21 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 22 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 23 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 24 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 25 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 26 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 27 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 28 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 29 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 30 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 31 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 Bluetooth Antenna PHOTOGRAPHS OF EUT Report No.: EP0D0134-01 TEL : 886-3-327-3456 Page Number : 32 of 32 FAX : 886-3-328-4978 Issued Date : May 20, 2021 Report Version : 01 ─────THE END────

SPORTON INTERNATIONAL INC. Page Number : 1 of 4 TEL : 886-3-327-3456 Report Issued Date : May 12, 2021 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AZRQDEVKIT20 RF Exposure Evaluation Report Report No. : FA0D0134-01 RF Exposure Evaluation Report FCC ID : 2AZRQDEVKIT20 Equipment : tooz v0.x PD32_R140_MC50p Brand Name : tooz Model Name : tooz DevKit 20 Marketing Name : tooz DevKit 20 Applicant : TOOZ technologies GmbH Turnstraß e 27, 73430 Aalen, Germany Manufacturer : Quanta Computer Inc. No. 211, Wenhua 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C.) Standard : 47 CFR Part 2.1093 We, SPORTON INTERNATIONAL INC has been evaluated this product in accordance with 47 CFR Part 2.1093 and it complies with applicable limit. Sporton Lab is accredited to ISO 17025 by Taiwan Accreditation Foundation (TAF code: 1190) and the FCC designation No. TW1190 under the FCC 2.948(e) by Mutual Recognition Agreement (MRA) in FCC evaluation. The results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Approved by: Cona Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 4 TEL : 886-3-327-3456 Report Issued Date : May 12, 2021 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AZRQDEVKIT20 RF Exposure Evaluation Report Report No. : FA0D0134-01 Table of Contents 1. General Information ........................................................................................................................... 3 1.1 Description of Device Under Test (DUT) ........................................................................................... 3 2. Maximum RF output power among production units ......................................................................... 3 3. RF Exposure Evaluation .................................................................................................................... 4 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA0D0134-01 Rev. 01 Initial issue of report May 12, 2021 SPORTON INTERNATIONAL INC. Page Number : 3 of 4 TEL : 886-3-327-3456 Report Issued Date : May 12, 2021 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AZRQDEVKIT20 RF Exposure Evaluation Report Report No. : FA0D0134-01 1. General Information 1.1 Description of Device Under Test (DUT) Product Feature & Specification DUT Type tooz v0.x PD32_R140_MC50p Brand Name tooz Model Name tooz DevKit 20 Marketing Name tooz DevKit 20 FCC ID 2AZRQDEVKIT20 Wireless Technology and Frequency Range Bluetooth: 2402 MHz ~ 2480 MHz Mode Bluetooth BR/EDR/LE Antenna Type PIFA Antenna HW Version QFR2_DVT2_20200829 DUT Stage Production Unit Remark: The above DUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. 2. Maximum RF output power among production units Mode Average power (dBm) BR / EDR LE Tune-up Limit 4.00 4.50 SPORTON INTERNATIONAL INC. Page Number : 4 of 4 TEL : 886-3-327-3456 Report Issued Date : May 12, 2021 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AZRQDEVKIT20 RF Exposure Evaluation Report Report No. : FA0D0134-01 3. RF Exposure Evaluation Bluetooth Max Power (dBm) mW Separation Distance (mm) Frequency (GHz) Exclusion Thresholds 4.5 2.82 5 2.48 0.89 Note: 1. Per KDB 447498 D01v06 the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison Conclusion: Per KDB 447498 D01v06, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The test exclusion threshold is 0.89 which is <= 3, SAR testing is not required.

TEL : 886-3-327-3456 Page Number : 1 of 36 FAX : 886-3-328-4978 Issued Date : May 12, 2021 Report Template No.: BU5-FR15CBT4.0 Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR0D0134-01B FCC RADIO TEST REPORT FCC ID : 2AZRQDEVKIT20 Equipment : tooz v0.x PD32_R140_MC50p Brand Name : tooz Model Name : tooz DevKit 20 Applicant : TOOZ technologies GmbH Turnstraß e 27, 73430 Aalen, Germany Manufacturer : Quanta Computer Inc. No. 211, Wenhua 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C.) Standard : FCC Part 15 Subpart C §15.247 The product was received on Mar. 18, 2021 and testing was started from Mar. 22, 2021 and completed on Mar. 30, 2021. We, Sporton International Inc. EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of Sporton International Inc. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. Approved by: Louis Wu Sporton International Inc. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) TEL : 886-3-327-3456 Page Number : 2 of 36 FAX : 886-3-328-4978 Issued Date : May 12, 2021 Report Template No.: BU5-FR15CBT4.0 Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR0D0134-01B Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1 General Description ................................................................................................................................... 5 1.1 Product Feature of Equipment Under Test ........................................................................................ 5 1.2 Modification of EUT ........................................................................................................................... 5 1.3 Testing Location ................................................................................................................................ 5 1.4 Applicable Standards ......................................................................................................................... 5 2 Test Configuration of Equipment Under Test ......................................................................................... 6 2.1 Carrier Frequency Channel ............................................................................................................... 6 2.2 Test Mode .......................................................................................................................................... 7 2.3 Connection Diagram of Test System ................................................................................................. 8 2.4 Support Unit used in test configuration and system .......................................................................... 8 2.5 EUT Operation Test Setup ................................................................................................................ 9 2.6 Measurement Results Explanation Example ..................................................................................... 9 3 Test Result ................................................................................................................................................ 10 3.1 6dB and 99% Bandwidth Measurement .......................................................................................... 10 3.2 Output Power Measurement ............................................................................................................ 15 3.3 Power Spectral Density Measurement ............................................................................................ 16 3.4 Conducted Band Edges and Spurious Emission Measurement ..................................................... 21 3.5 Radiated Band Edges and Spurious Emission Measurement ........................................................ 27 3.6 AC Conducted Emission Measurement........................................................................................... 31 3.7 Antenna Requirements .................................................................................................................... 33 4 List of Measuring Equipment ................................................................................................................. 34 5 Uncertainty of Evaluation........................................................................................................................ 36 Appendix A. Conducted Test Results Appendix B. AC Conducted Emission Test Result Appendix C. Radiated Spurious Emission Appendix D. Radiated Spurious Emission Plots Appendix E. Duty Cycle Plots Appendix F. Setup Photographs TEL : 886-3-327-3456 Page Number : 3 of 36 FAX : 886-3-328-4978 Issued Date : May 12, 2021 Report Template No.: BU5-FR15CBT4.0 Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR0D0134-01B History of this test report Report No. Version Description Issued Date FR0D0134-01B 01 Initial issue of report May 12, 2021 TEL : 886-3-327-3456 Page Number : 4 of 36 FAX : 886-3-328-4978 Issued Date : May 12, 2021 Report Template No.: BU5-FR15CBT4.0 Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR0D0134-01B Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 3.1 15.247(a)(2) 6dB Bandwidth Pass - 3.1 2.1049 99% Occupied Bandwidth Reporting only - 3.2 15.247(b)(3) Output Power Pass - 3.3 15.247(e) Power Spectral Density Pass - 3.4 15.247(d) Con…

Text truncated - open the document above for the full version.

TEL : 886-3-327-3456 Page Number : F1 of F4 FAX : 886-3-328-4978 Issued Date : May 12, 2021 Report Template No.: BU5-FR15CBT4.0 Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR0D0134-01B Appendix F. Setup Photographs <Conducted Emission> Remote View TEL : 886-3-327-3456 Page Number : F2 of F4 FAX : 886-3-328-4978 Issued Date : May 12, 2021 Report Template No.: BU5-FR15CBT4.0 Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR0D0134-01B Rear View TEL : 886-3-327-3456 Page Number : F3 of F4 FAX : 886-3-328-4978 Issued Date : May 12, 2021 Report Template No.: BU5-FR15CBT4.0 Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR0D0134-01B <Radiated Emission> X Plane LF HF TEL : 886-3-327-3456 Page Number : F4 of F4 FAX : 886-3-328-4978 Issued Date : May 12, 2021 Report Template No.: BU5-FR15CBT4.0 Version 2.4 Report Version : 01 FCC RADIO TEST REPORT Report No. : FR0D0134-01B SHF ─────THE END─────
