2AZSJ16CELLSMegacell Charger

MegaCell Charger User Manual v.1.0 Designed in Romania Assembled in China MEGACELL CHARGER 1 FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. IC warning statements This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The digital apparatus complies with Canadian CAN ICES-3 (B)/NMB-3(B). Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. MEGACELL CHARGER 2 Contents 1. Warning: ......................................................................................................................................... 4 2. Charger Interface: ........................................................................................................................... 4 3. Display Diagram: ............................................................................................................................. 5 4. Function and Reset Buttons: ........................................................................................................... 5 5. Power Supply: ................................................................................................................................. 6 6. Installing the MegaCell Monitor Software on Your Laptop/PC ...................................................... 7 7. Exploring the Simple Mode Interface of the Software ................................................................... 9 8. Add the Charger to Your WiFi Network, Using Your Laptop/PC .................................................. 10 9. Add the Charger to Your WiFi Network, Using the WPS Method ................................................ 12 10. Add a Charger and Set-Up. ........................................................................................................... 13 MEGACELL CHARGER 3 1. WARNING: 2. This charger can only charge cylindrical lithium-ion batteries. 3. Please refer to the instructions carefully before use, do not charge cells that do not support at least 1 A charging current. 4. It’s normal for cells to get warm during testing process. If they are hotter than 50 Degree Celsius, the testing process will automatically stop. 5. Unplug the power and remove the batteries when you stop using the charger. 6. Only indoor use. 2. CHARGER INTERFACE: MEGACELL CHARGER 4 3. DISPLAY DIAGRAM: 4. FUNCTION AND RESET BUTTONS: Pressing shortly on the functions button will cycle display info for each cell. Holding down the functions button for more than 2 seconds will cycle through the menu options: 1. Start mCap: Starts the Measure Capacity function 2. Stop mCap: Stops the Measure Capacity function 3. Start Charge: start charging the cells 4. Stop Charge: stop charging the cells 5. Start Discharge: start discharging the cells 6. Stop Discharge: stop discharge the cells 7. IP Information: Shows the charger IP from your network if device is connected 8. Self Test: Starts the self-test for debugging (make sure no cells are inserted in the charger) 9. Factory Reset: Deletes all the settings and returns to the default factory settings 10. Firmware V: Shows the firmware version currently installed 11. Store Charge: Starts the store charge 12. Stop Store Charge: Stops the store charge 13. Exit Push Menu The reset button, restarts the charger operating system, measuring data is lost and process must restart. MEGACELL CHARGER 5 5. POWER SUPPLY: The MegaCell Charger requires a 5 volts power supply to be powered. For the current, we recommend at least 18 Amps. Is recommended using 4mm cross sectional copper wire for the connection between PSU and Megacellcharger. Please make sure that the power supply is providing 5V. MegaCell Charger requires the voltage to be al…

Text truncated - open the document above for the full version.

DeepCycle-Power.SRL Agent Authorization Company: DeepCycle-Power.SRL Address: Romania, Sat Smardan, Comuna Smardan, nr 591, camera 1 Product Name: Megacell Charger Trade Mark: / Model Number(s ): 16 Cells FCC ID: 2AZSJ16CELLS We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-05-18 Name: Alexandru Gradea Title: Administrator Company: DeepCycle-Power.SRL

DeepCycle-Power.SRL Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-05-18 S ubject; Request for Confidentiality FCC ID: 2AZSJ16CELLS To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. Thes e documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In addi tional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, S ignature: Name: Alexandru Gradea Title: Administrator

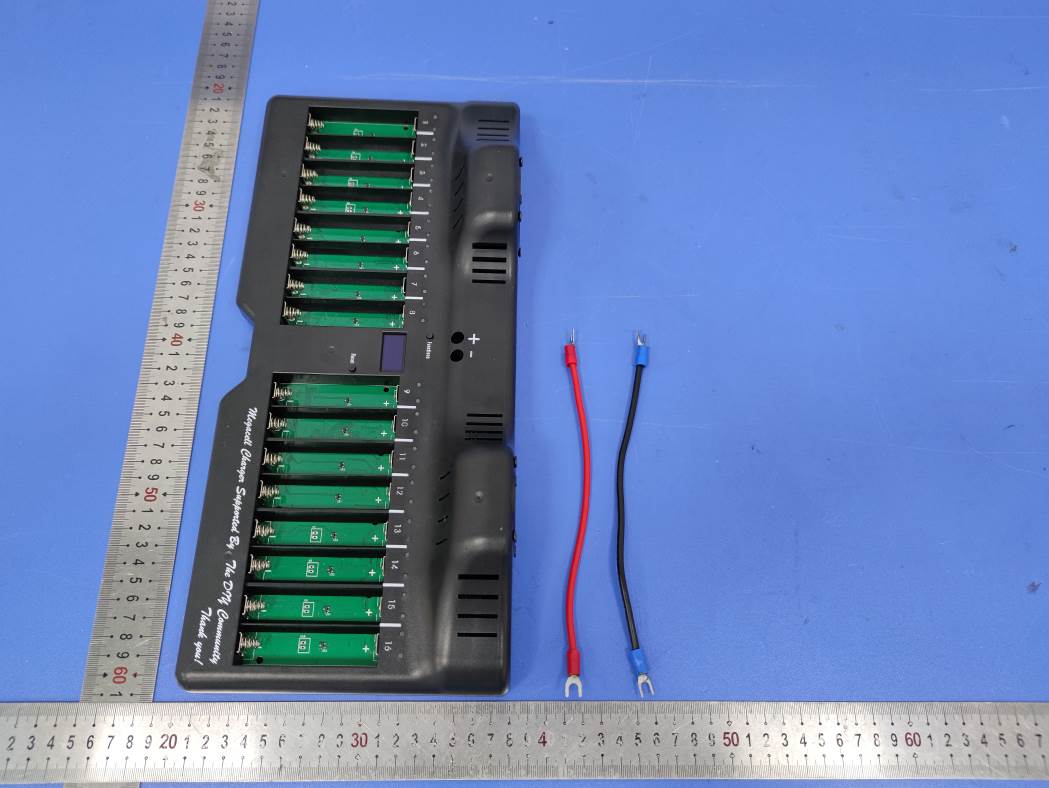

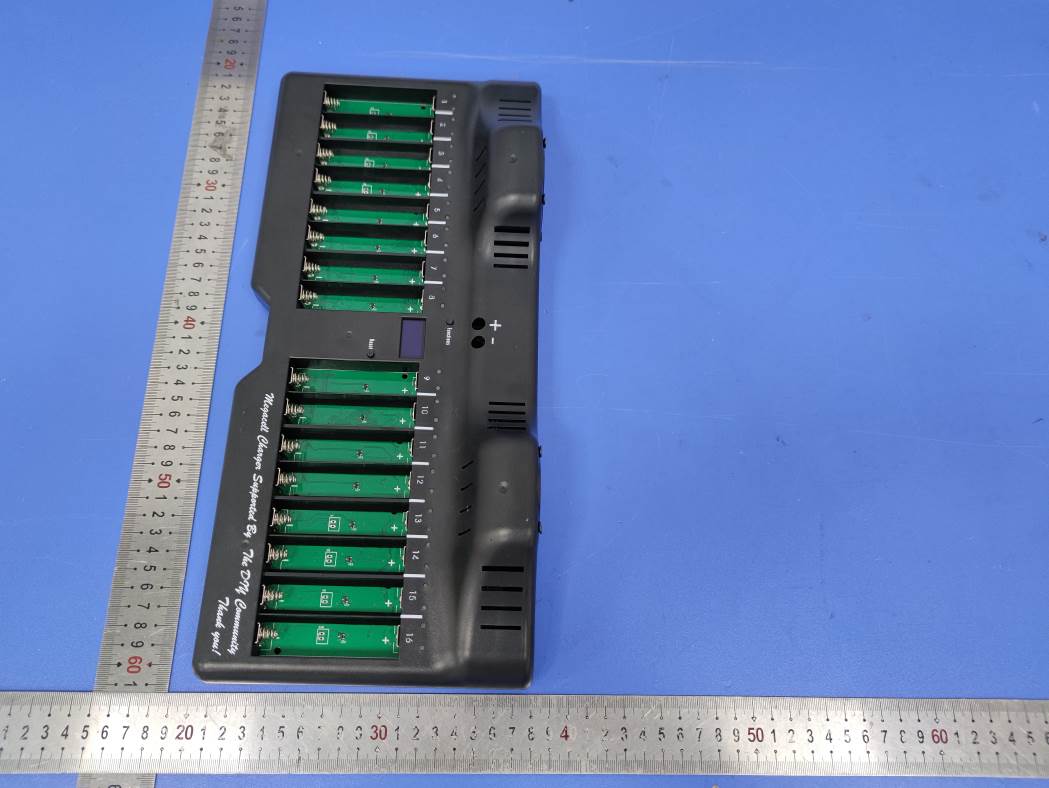

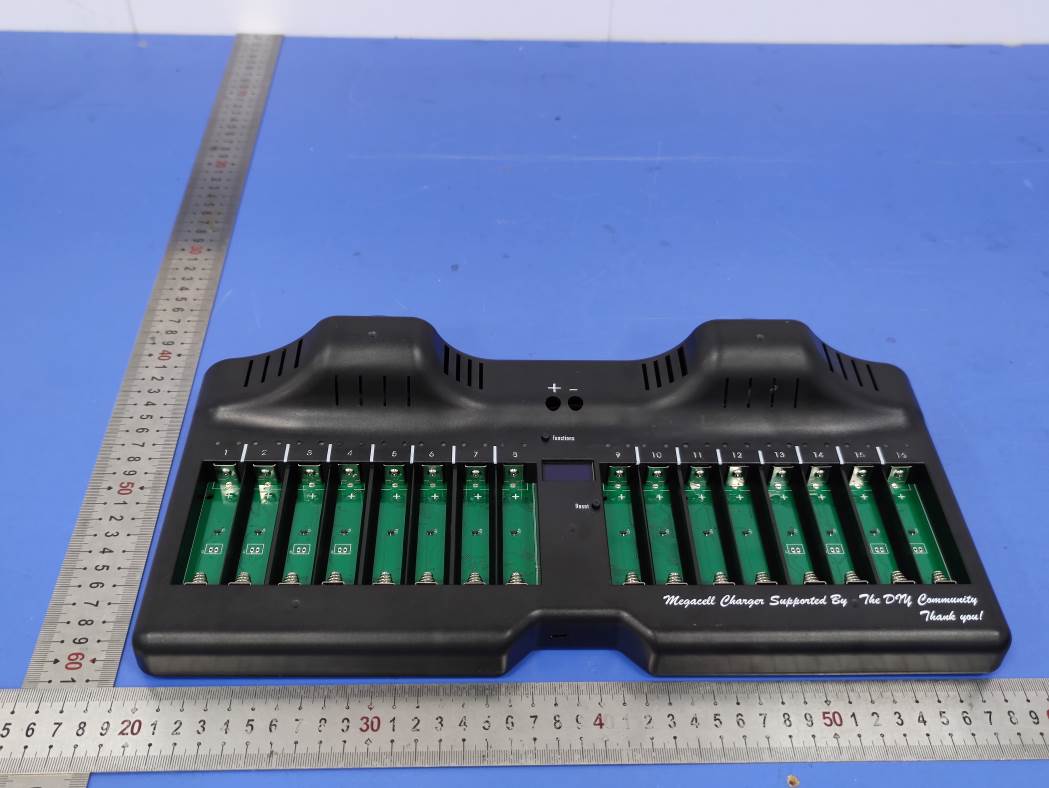

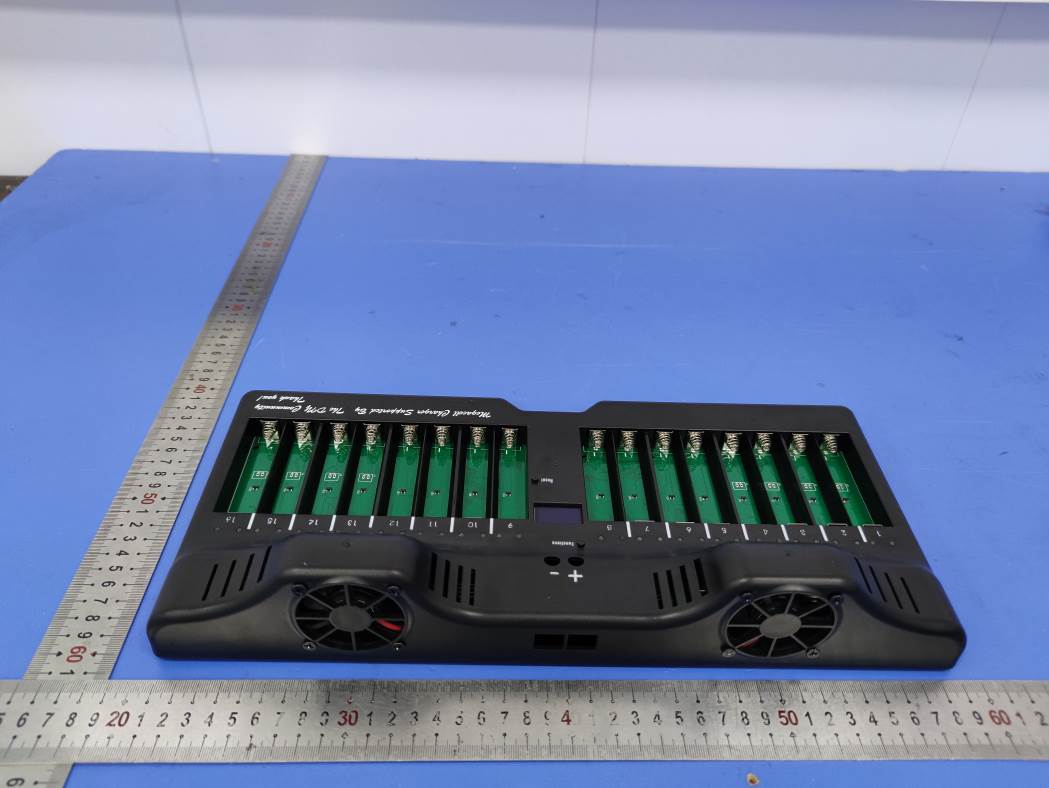

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Fig.7 Fig.8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 8.0cm*W: 4.0cm Label Location Megacell Charger Model No.: 16 Cells FCC ID: 2AZSJ16CELLS

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Fig.3 Fig.4 2.4G WiFi Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Fig.5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 FCC RF Exposure Evaluation 1. Product Information FCC ID 2AZSJ16CELLS Product name Megacell Charger Model number 16 Cells Power supply Input: 220‐240V~, 50/60Hz Output: DC 5V Modulation Type IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM,QPSK, BPSK) Antenna Type PCB Antenna Antenna Gain 0dBi(Max.) Hardware version / Software version / FCC Operation frequency 2412 – 2462 MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Devices 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far‐field plane‐wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane‐wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97‐01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information Artemis Antenna can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Antenna PCB Antenna 2412MHz‐2462MHz0dBiWIFIAntenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 6. Conducted Power Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) 11B 1241217.02 6243716.44 11 2462 17.19 11G 1 2412 16.94 6243717.16 11246217.46 11N20SISO 1241216.89 6243717.14 11 2462 17.46 7. Manufacturing Tolerance 11B (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 17.0 16.0 17.0 Tolerance ±(dB) 1.0 1.0 1.0 11G (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 16.0 17.0 17.0 Tolerance ±(dB) 1.0 1.0 1.0 11N20SISO (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 16.0 17.0 17.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 8. Measurement Results 8.1 Standalone MPE As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power density can be obtained. [Antenna ] Band/Mode RF output power Antenna Gain (dBi) MPE (mW/cm2) MPE Limits (mW/cm2) dBm mW IEEE 802.11b 18.0 63.0957 0 0.012559 1.0000 IEEE 802.11g 18.0 63.0957 0 0.01…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 1 of 40 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: Megacell Charger Trade Mark: N/A Test Model: 16 Cells Environmental Conditions Temperature: 24.6°C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Kay Hu Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 100 PASS 11G 2437 Ant1 100 PASS 11N20SISO 2437 Ant1 100 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 2 of 40 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 3 of 40 Duty Cycle_11N20SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 4 of 40 A.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 17.02 30 PASS MCH 16.44 30 PASS HCH 17.19 30 PASS 11G LCH 16.94 30 PASS MCH 17.16 30 PASS HCH 17.46 30 PASS 11N20SISO LCH 16.89 30 PASS MCH 17.14 30 PASS HCH 17.46 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 5 of 40 Test Graphs 11B/LCH 11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 6 of 40 11B/HCH 11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 7 of 40 11G/MCH 11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 8 of 40 11N20SISO/LCH 11N20SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 9 of 40 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 10 of 40 A.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/3KHz] Limit [dBm/3KHz] Verdict 11B LCH -8.616 8 PASS MCH -9.324 8 PASS HCH -8.136 8 PASS 11G LCH -16.869 8 PASS MCH -15.788 8 PASS HCH -16.713 8 PASS 11N20SISO LCH -17.552 8 PASS MCH -17.627 8 PASS HCH -16.589 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 11 of 40 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 12 of 40 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 13 of 40 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 14 of 40 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 15 of 40 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 8.106 ≥0.5 PASS MCH 8.107 ≥0.5 PASS HCH 8.094 ≥0.5 PASS 11G LCH 16.32 ≥0.5 PASS MCH 16.30 ≥0.5 PASS HCH 16.32 ≥0.5 PASS 11N20SISO LCH 16.58 ≥0.5 PASS MCH 16.61 ≥0.5 PASS HCH 16.57 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 16 of 40 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 17 of 40 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 18 of 40 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 19 of 40 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 20 of 40 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdic t 11B LCH 6.271 -38.024 -13.729 PASS MCH 5.384 -37.594 -14.616 PASS HCH 6.297 -38.023 -13.703 PASS 11G LCH -2.044 -38.010 -22.044 PASS MCH -1.989 -37.994 -21.989 PASS HCH -1.507 -36.832 -21.507 PASS 11N20 SISO LCH -1.954 -37.828 -21.954 PASS MCH -1.767 -37.128 -21.767 PASS HCH -1.453 -37.119 -21.453 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 21 of 40 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 22 of 40 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 23 of 40 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 24 of 40 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 25 of 40 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 26 of 40 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 27 of 40 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 28 of 40 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 29 of 40 11N20SISO_HCH_Graphs Pref/11N20 SISO/HCH Puw/11N20 SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA Page 30 of 40 A.6 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict 11B LCH 6.248 -49.411 -13.75 PASS HCH 6.371 -47.861 -13.63 PASS 11G LCH -2.126 -49.443 -22.13 PASS …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 37 FCC TEST REPORT For DeepCycle-Power.SRL Megacell Charger Test Model: 16 Cells Prepared for : DeepCycle-Power.SRL Address : Romania, Sat Smardan, Comuna Smardan, nr 591, camera 1 Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : March 30, 2021 Number of tested samples : 2 Sample number : 210330013AE-1, 210330013AE-2 Serial number : Prototype Date of Test : March 30, 2021 ~ April 12, 2021 Date of Report : April 16, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 37 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS210330013AEEA Date of Issue .................................. : April 16, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : DeepCycle-Power.SRL Address .......................................... : Romania, Sat Smardan, Comuna Smardan, nr 591, camera 1 Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No.................... : LCSEMC-1.0 TRF Originator ............................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : Megacell Charger Trade Mark ..................................... : N/A Test Model ..................................... : 16 Cells Ratings ........................................... : Input: 5V, 16A Result ........................................... : Positive Compiled by: Supervised by: Approved by: Ray Yang/ Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 37 FCC -- TEST REPORT EUT......................................... : Megacell Charger Test Model............................... : 16 Cells Applicant............................... : DeepCycle-Power.SRL Address.................................. : Romania, Sat Smardan, Comuna Smardan, nr 591, camera 1 Telephone............................... : / Fax.......................................... : / Manufacturer........................ : DeepCycle-Power.SRL Address................................... : Romania, Sat Smardan, Comuna Smardan, nr 591, camera 1 Telephone............................... : / Fax.......................................... : / Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210330013AEEA April 16, 2021 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 37 Revision History Revision Issue DateRevisionsRevised By 000 April 16, 2021 Initial IssueGavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS Report No.: LCS210330013AEEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 37 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 7 1.3. EXTERNAL I/O CABLE ......................................................................................................................................... 7 1.4. DESCRIPTION OF TEST FACILITY ........................................................................................................................ 7 1.5. STATEMENT OF THE MEASUREMENT UNCERTAINTY ................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS _______________________________________________________________________________________________ 7. TEST SETUP PHOTOGRAPHS Photo of Radiated Emissions Measurement Below 1 GHz Above 1 GHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZSJ16CELLS _______________________________________________________________________________________________ Power Line Conducted Emission
