2AZT8-MWG01Magic Wand

Magic Wand Manual How to use a Magic Wand 1. Plug receiver (Adaptor) into the wall socket 2. Plug lighting strings into receiver 3. Unscrew and install 2 AA batteries into Magic Wand 4. Turn your lights on and off with the wave of the magic wand 5. The music will sound and the RGB LED inside snowflake will flash at the same time 第 1 页 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction

Dongguan Terismond Technology Co.,Ltd. Model Difference Product description: Magic Wand Model name: MW-G01 MW-G02, MW-G03, MW-G04, MW-G05, MW-G06, MW-G07, MW-G08, MW-G09 Trade Name: N/A FCC ID: 2AZT8-MWG01 All the model are the same circuit and RF module, only for model name. Regards Sincerely Client’s signature: Client’s name / title : Mike Kwok (Overseas Sales Director) Contact information / address: B406 Zhao Chang Business Center,Number 2 Shuang Long Road, Chang’an Town, Dongguan City, Guangdong, China

C5266091_X10_Ed.1 1/1 <Dongguan Terismond Technology Co.,Ltd.> Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021-05-12 Subject: Request for Confidentiality FCC ID:2AZT8-MWG01 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Mike Kwok Title: Overseas Sales Director

C5266091_X8_Ed.1 1/1 Letter of Authorization <Dongguan Terismond Technology Co.,Ltd.> Company:Dongguan Terismond Technology Co.,Ltd. Address:B406 Zhao Chang Business Center, Number 2 Shuang Long Road, Chang’an Town, Dongguan City, Guangdong, China Product Name: Magic Wand Model Number: MW-G01 MW-G02, MW-G03, MW-G04, MW-G05, MW-G06, MW-G07, MW-G08, MW-G09 FCC Identifier:2AZT8-MWG01 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Mike Kwok Date: 2021-05-12 Title: Overseas Sales Director Signature of applicant:

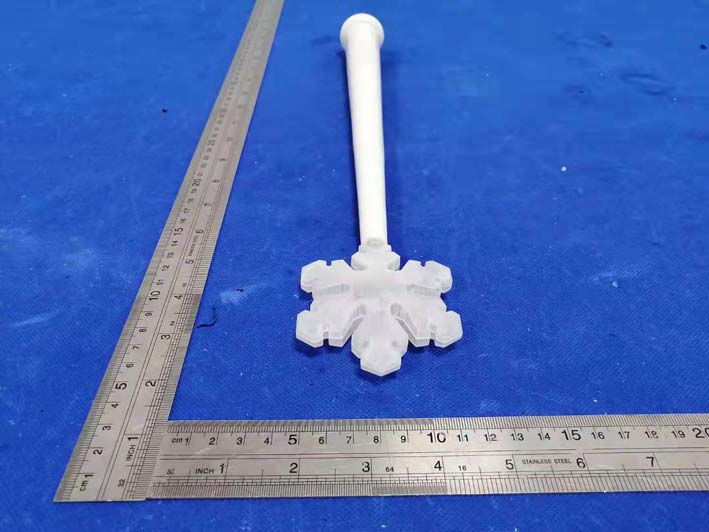

EUT PHOTO(External Photos)

Label and label location Magic Wand FCC IC:2AZT8-MWG01

EUT PHOTO(Internal Photos) ANT RF chip ※※※※※ ※※※※※ END OF REPORT
