2AZTB-D2106-THGN01ZigBee Wireless Module

0 D2106-THGN01UserManual ZigBeeWirelessModule D2106-THGN01_UserManual Contents 1.Generalintroduction ........................................................................................................................................................... 1 1.1Briefintroduction ...................................................................................................................................................... 1 1.2Characteristicfunction .............................................................................................................................................. 1 1.3ZigBeeintroduction .................................................................................................................................................. 2 1.4Application ................................................................................................................................................................ 3 2.Technicalparameters .......................................................................................................................................................... 3 2.1Limitparameter ....................................................................................................................................................... 3 2.2Workingparameters .................................................................................................................................................. 3 3.Mechanicalcharacteristics .................................................................................................................................................. 5 4.Operationmode .................................................................................................................................................................. 6 5.Protocolmode ..................................................................................................................................................................... 6 6.Functiondescription ............................................................................................................................................................ 7 6.1Pindiagram .............................................................................................................................................................. 7 6.2Pinconnectioninstructions ....................................................................................................................................... 8 7.Quickstart ............................................................................................................................................................................ 9 7.1Networkconstructionandcommunication ............................................................................................................... 9 8.Userinstructionset ........................................................................................................................................................... 15 8.1HEXreadcommanddescription ............................................................................................................................. 16 8.2HEXParameterdescription .................................................................................................................................... 17 8.3.HEXcommanddatacommunicationformat ......................................................................................................... 21 8.4ATCommand .......................................................................................................................................................... 22 8.4.1AT+DEV .................................................................................................................................................. 22 8.4.2AT+EXIT .................................................................................................................................................. 22 8.4.3AT+MODE .............................................................................................................................................. 22 8.4.4AT+RMODE ............................................................................................................................................ 23 8.4.5AT+NWK ................................................................................................................................................ 23 8.4.6AT+PANID .............................................................................................................................................. 23 8.4.7AT+KEY ................................................................................................................................................... 24 8.4.8AT+SHORT_ADDR ................................................................................................................................ 24 8.4.9AT+MAC_ADDR .................................................................................................................................... 24 8.4.10AT+COOR_SHORT_ADDR ................................................................................................................. 24 8.4.11AT+COOR_MAC_ADDR ..................................................................................................................... 24 8.4.12AT+GET_SHORT_ADDR ..................................................................................................................... 25 8.4.13AT+GROUP .......................................................................................................................................... 25 8.4.14AT+CH .................................................................................................................................................. 25 8.4.15AT+TXPOWER ..........................................................................................................…

Text truncated - open the document above for the full version.

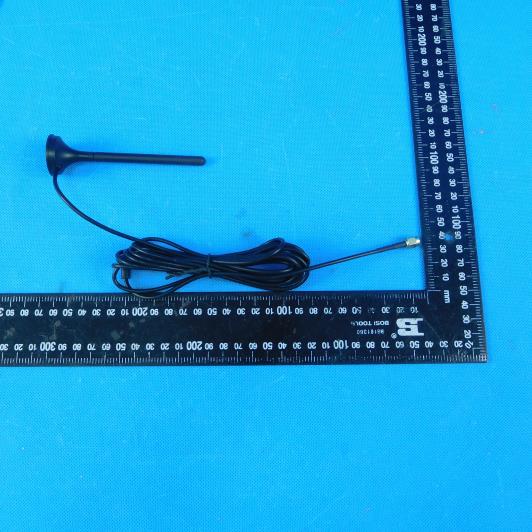

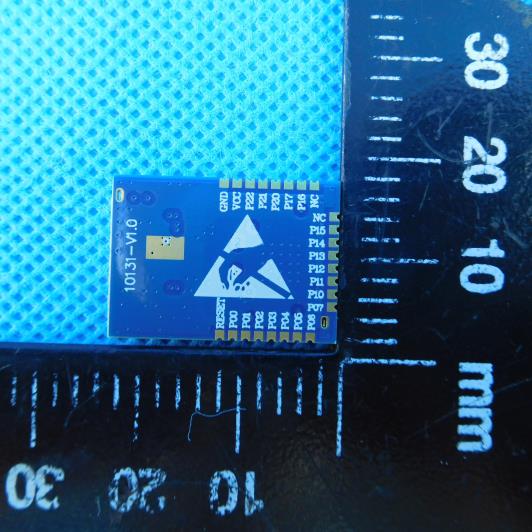

External Photos

Internal Photos

FCC ID: 2AZTB-D2106-THGN01 RF Exposure Evaluation LIMIT The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 - - f/300 6 1500–100,000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 - - f/1500 30 1500–100,000 - - 1.0 30 Note: f = frequency in MHz EVALUATION METHOD Transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW, G = gain of antenna in linear scale; Pi = 3.1416, R = distance between observation point and center of the radiator in cm TEST RESULT Passed Not Applicable Type Conducted Average Power (dBm) Maximum Tune-up (dBm) Power Density (mW/cm2) Limit (mW/cm2) Result CH L 4.40 4.50 0.0009 1.0000 Pass CH M 4.00 4.50 0.0009 1.0000 Pass CH H 3.86 4.50 0.0009 1.0000 Pass Note: 1) The maximum antenna gain is 2dBi 2) The exposure evaluation safety distance is 20cm.

Page: 1 of 33 TEST REPORT Report No. ...................................... : CHTEW21050188 Report Verification: Project No.................................： SHT2104079301EW FCC ID ............................................. : 2AZTB-D2106-THGN01 Applicant’s name ........................... : Trina Solar Co., Ltd Address ............................................. : No 2 Trina Road, Trina PV Industrial Park, Xinbei District, Changzhou, Jiangsu Province, China 213031 Test item description .................... : ZigBee Wireless Module Trade Mark ....................................... : Trinasolar Model/Type reference ....................... : D2106-THGN01 Listed Model(s) ................................. : - Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample..........: Apr.28, 2021 Date of testing.............................: Apr.28, 2021- May 28, 2021 Date of issue...............................: May 31, 2021 Result .................. ........................: PASS Compiled by ( Position+Printed name+Signature): File administrator Echo Wei Supervised by (Position+Printed name+Signature): Project Engineer Kiki Kong Approved by (Position+Printed name+Signature): RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW21050188 Page: 2 of 33 Issued: 2021-05-31 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) Contents 1. TEST S T A N D A R D S AND R E P O R T V E R S I O N 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION 7 4.1. Test frequency list 7 4.2. Test mode 7 4.3. Support unit used in test configuration and system 7 4.4. Testing environmental condition 8 4.5. Measurement uncertainty 8 4.6. Equipment Used during the Test 9 5. TEST CONDITIONS AND RESULTS 11 5.1. Antenna Requirement 11 5.2. AC Conducted Emission 12 5.3. Peak Output Power 15 5.4. Power Spectral Density 16 5.5. 6dB bandwidth 17 5.6. 99% Occupied Bandwidth 18 5.7. Duty Cycle 19 5.8. Conducted Band edge and Spurious Emission 20 5.9. Radiated Band edge Emission 22 5.10. Radiated Spurious Emission 24 6. TEST SETUP PHOTOS 29 7. E X T E R N A L A N D I N T E R N AL P H O T O S 31 8. APPENDIX REPORT 33 Report No.: CHTEW21050188 Page: 3 of 33 Issued: 2021-05-31 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 1. TEST STANDARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: ‒ FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ‒ ANSI C63.10:2013: American National Standard for Testing Unlicensed Wireless Devices ‒ KDB 558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of The FCC Rules 1.2. Report version Revision No. Date of issue Description N/A 2021-05-31 Original Report No.: CHTEW21050188 Page: 4 of 33 Issued: 2021-05-31 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 2. TEST DESCRIPTION Report clause Test Items Standard Requirement Result 5.1 Antenna Requirement 15.203/15.247(c) PASS 5.2 AC Conducted Emission 15.207 PASS 5.3 Peak Output Power 15.247(b)(3) PASS 5.4 Power Spectral Density 15.247(e) PASS 5.5 6dB Bandwidth 15.247(a)(2) PASS 5.6 99% Occupied Bandwidth - PASS *1 5.7 Duty cycle - PASS *1 5.8 Conducted Band Edge and Spurious Emission 15.247(d)/15.205 PASS 5.9 Radiated Band Edge Emission 15.205/15.209 PASS 5.10 Radiated Spurious Emission 15.247(d)/15.205/15.209 PASS Note: ‒ The measurement uncertainty is not included in the test result. ‒ *1: No requirement on standard, only report these test data. Report No.: CHTEW21050188 Page: 5 of 33 Issued: 2021-05-31 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 3. SUMMARY 3.1. Client Information Applicant: Trina Solar Co., Ltd Address: No 2 Trina Road, Trina PV Industrial Park, Xinbei District, Changzhou, Jiangsu Province, China 213031 Manufacturer: Trina Solar Co., Ltd Address: No 2 Trina Road, Trina PV Industrial Park, Xinbei District, Changzhou, Jiangsu Province, China 213031 Factory: Chengdu Ebyte Electronic Technology Co., Ltd. Address: Building B5, Mould Industrial Park, 199# Xiqu Ave, West High-tech Zone, Chengdu, 611731, Sichuan, China 3.2. Product Description Name of EUT: ZigBee Wireless Module Trade Mark: Trinasolar Model No.: D2106-THGN01 Listed Model(s): - Power supply: DC 5.0V Hardware version: v1.0 Software version: v1.0 3.3. Radio Specification Description Support function *2 : Zigbee Modulation: GFSK Operation frequency: 2405MHz~2480MHz Channel number: 16 Channel separation: 5MHz Antenna type: Sucker Antenna Antenna gain: 2dBi Note: *2: only show the RF function associated with this report. Report No.: CHTEW2105…

Text truncated - open the document above for the full version.

Project No.: SHT2104079301EW Radio Specification: Zigbee Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 1 of 14 APPENDIX REPORT Project No. SHT2104079301EW Radio Specification Zigbee Test sample No. YPHT21040793001 Model No. D2106-THGN01 Start test date 2021-05-27 Finish date 2021-05-27 Temperature 26.8°C Humidity 48% Test Engineer Hailey Chen Auditor Appendix clause Test item Result A Peak Output Power PASS B Power Spectral Density PASS C 6 dB Bandwidth PASS D 99% Occupied Bandwidth PASS E Duty cycle PASS F Band edge and Spurious Emissions (conducted) PASS Project No.: SHT2104079301EW Radio Specification: Zigbee Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 2 of 14 Appendix A：Peak Output Power Type Channel Output power (dBm) Average Output power (dBm) Limit (dBm) Result Zigbee CH L 4.78 4.40 ≤ 30.00 Pass CH M 4.30 4.00 CH H 4.13 3.86 Project No.: SHT2104079301EW Radio Specification: Zigbee Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 3 of 14 CH L Date: 27.M AY.2021 16:22:33 CH M Date: 27.M AY.2021 16:27:30 CH H Date: 27.M AY.2021 16:29:42 Project No.: SHT2104079301EW Radio Specification: Zigbee Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 4 of 14 Appendix B：Power Spectral Density Type Channel Power Spectral Density(dBm/3KHz) Limit (dBm/3KHz) Result Zigbee CH L -9.56 ≤8.00 Pass CH M -9.65 CH H -10.04 Project No.: SHT2104079301EW Radio Specification: Zigbee Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 5 of 14 CH L Date: 27.M AY.2021 16:23:25 CH M Date: 27.M AY.2021 16:28:12 CH H Date: 27.M AY.2021 16:30:33 Project No.: SHT2104079301EW Radio Specification: Zigbee Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 6 of 14 Appendix C：6dB bandwidth Type Channel 6dB Bandwidth(kHz) Limit (kHz) Result Zigbee CH L 1610.00 ≥500 Pass CH M 1605.00 CH H 1605.00 Project No.: SHT2104079301EW Radio Specification: Zigbee Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 7 of 14 CH L Date: 27.M AY.2021 16:22:17 CH M Date: 27.M AY.2021 16:27:15 CH H Date: 27.M AY.2021 16:29:27 Project No.: SHT2104079301EW Radio Specification: Zigbee Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 8 of 14 Appendix D：99% Occupied Bandwidth Type Channel 99% Occupied Bandwidth(MHz) Limit (kHz) Result Zigbee CH L 2.57 - Pass CH M 2.57 CH H 2.57 Project No.: SHT2104079301EW Radio Specification: Zigbee Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 9 of 14 CH L Date: 27.M AY.2021 16:22:25 CH M Date: 27.M AY.2021 16:27:22 CH H Date: 27.M AY.2021 16:29:34 Project No.: SHT2104079301EW Radio Specification: Zigbee Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 10 of 14 Appendix E：Duty cycle Test Frequency （MHz） T on time for single burst (ms) T period (ms) Duty cycle 1/T on time (kHz) 2440 1.00 1.00 100% 1.0 Date: 27.M AY.2021 16:25:48 Project No.: SHT2104079301EW Radio Specification: Zigbee Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 11 of 14 Appendix F：Band edge and Spurious Emissions (conducted) Test Item: Band edge CH L Date: 27.M AY.2021 17:11:53 CH H Date: 27.M AY.2021 16:31:58 Project No.: SHT2104079301EW Radio Specification: Zigbee Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 12 of 14 Test Item: SE CH L Reference level Date: 27.M AY.2021 16:24:10 CH L 30MHz~1000MHz Date: 27.M AY.2021 16:24:25 CH L 1GHz~26GHz Date: 27.M AY.2021 16:24:41 Project No.: SHT2104079301EW Radio Specification: Zigbee Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 13 of 14 CH M Reference level Date: 27.M AY.2021 16:28:19 CH M 30MHz~1000MHz Date: 27.M AY.2021 16:28:34 CH M 1GHz~26GHz Date: 27.M AY.2021 16:28:50 Project No.: SHT2104079301EW Radio Specification: Zigbee Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 14 of 14 CH H Reference level Date: 27.M AY.2021 16:32:04 CH H 30MHz~1000MHz Date: 27.M AY.2021 16:32:19 CH H 1GHz~26GHz Date: 27.M AY.2021 16:32:35 --------End of Report--------

TEST SETUP PHOTOS Radiated Emission AC Conducted Emission
