2AZTP-NVT-T15MWireless Charger

NVT-T15M User Guide Introduction * This wireless charger is compatible with mobile device which has a wireless rechargeable Specification Model NVT-T15M Name Wireless Charger Input DC 5V, 9V Output 5.5 W / 14.4 W Working temp 0 ~ 40°C Size (mm) 66 x 63.4 x 8.3 Weight(g) 55g Features Contact Surface LED Indicator How to use 1. Connect Wireless charger to C Type Charger. The color of LED Indicator is changed to Red ->Green ->Orange and goes out. 2. Put wireless charging support device on the Wireless charger 3. When charging start, color of LED indicator turned red. 4.The LED indicator light turns green when the recharging is completed. (LED indicator may not be turn Green at iPhone) 5. LED light may turn red or green when plugged in, the unit is not normal Precaution when using • Charging time will depend on the type of device and wall charger. Your device will display the charging progress. • The product could cause the heat. • Keep the unit away from heat source • Do not use the unit if it has been dropped or damaged in any way. • Please do not place or use the unit on the coin, key, accessories, metal • Please be cautious and guide children, baby or pet not to suck - or bite the product • Please use the unit at dry area where is not wet or damp FCC Statements •FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. • RF Exposure statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instructions as documented in this manual. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. • This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

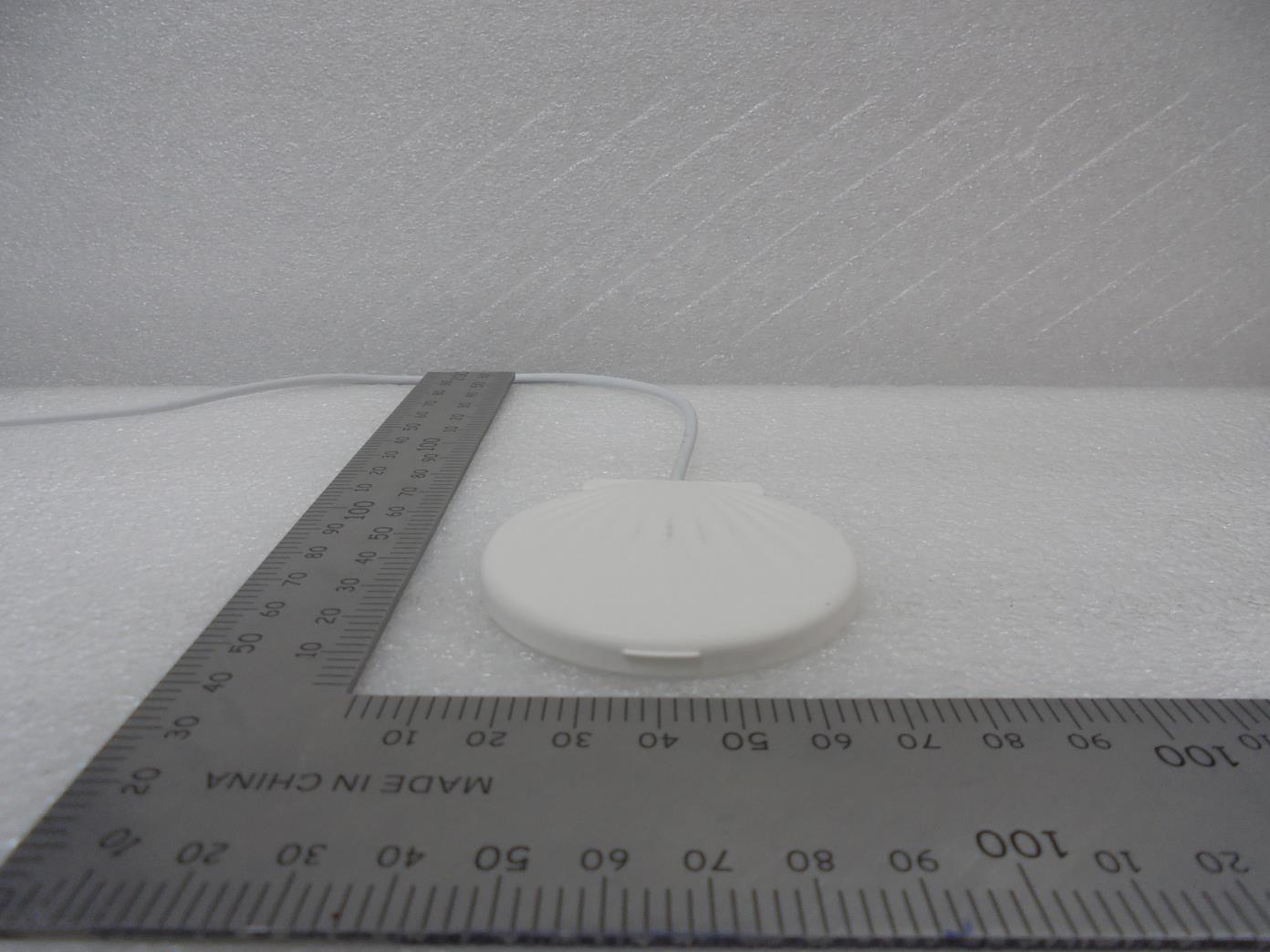

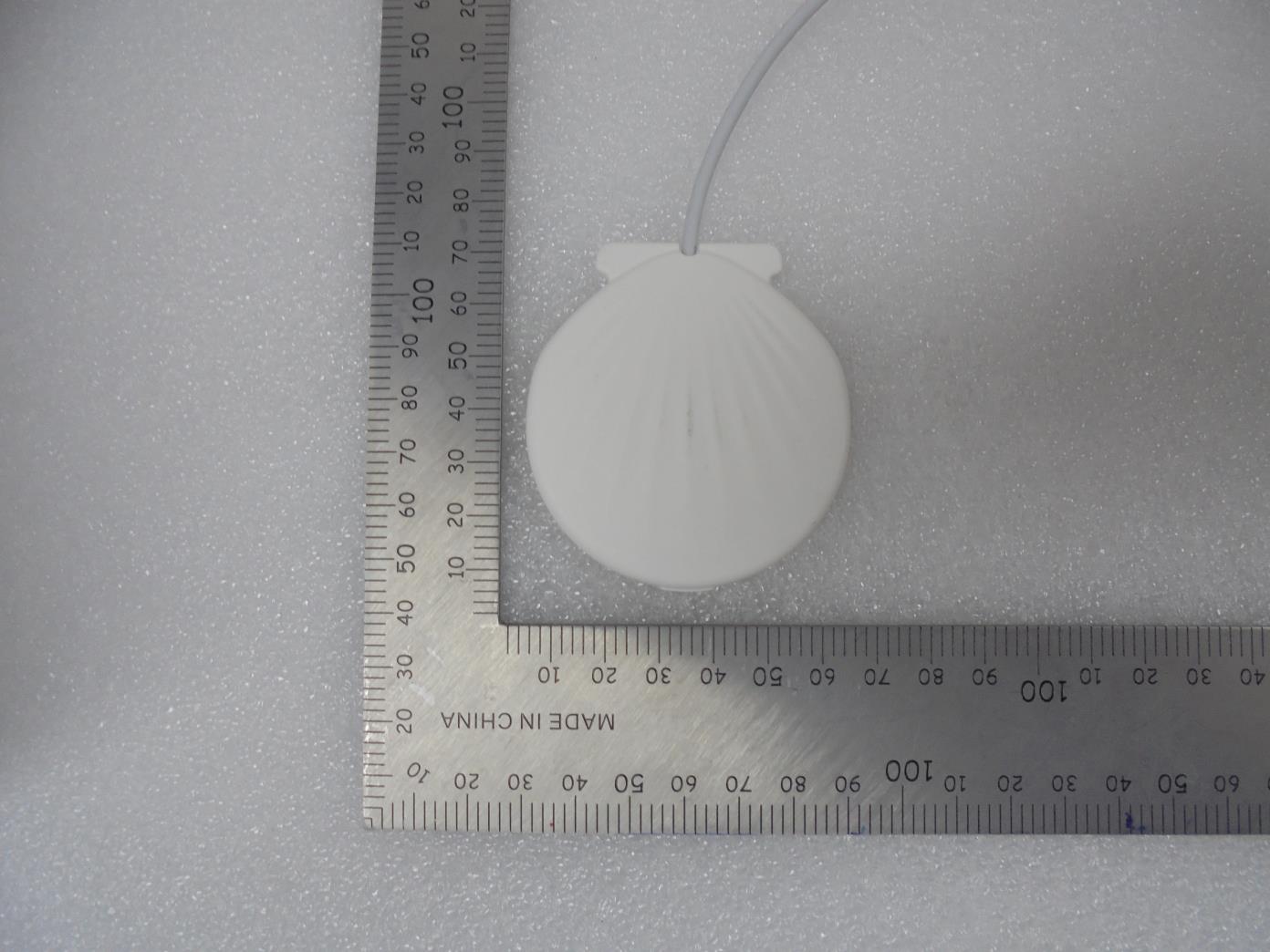

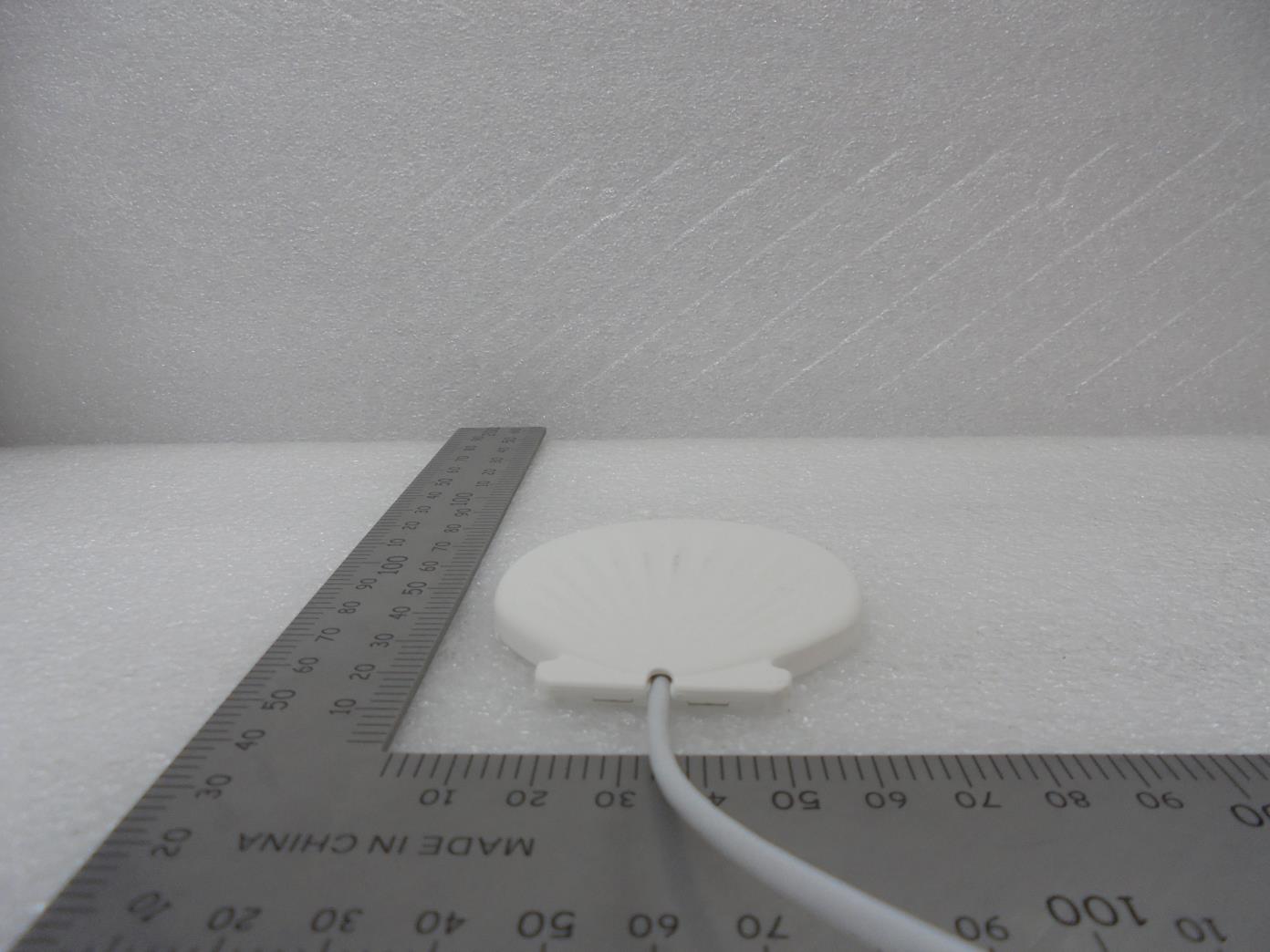

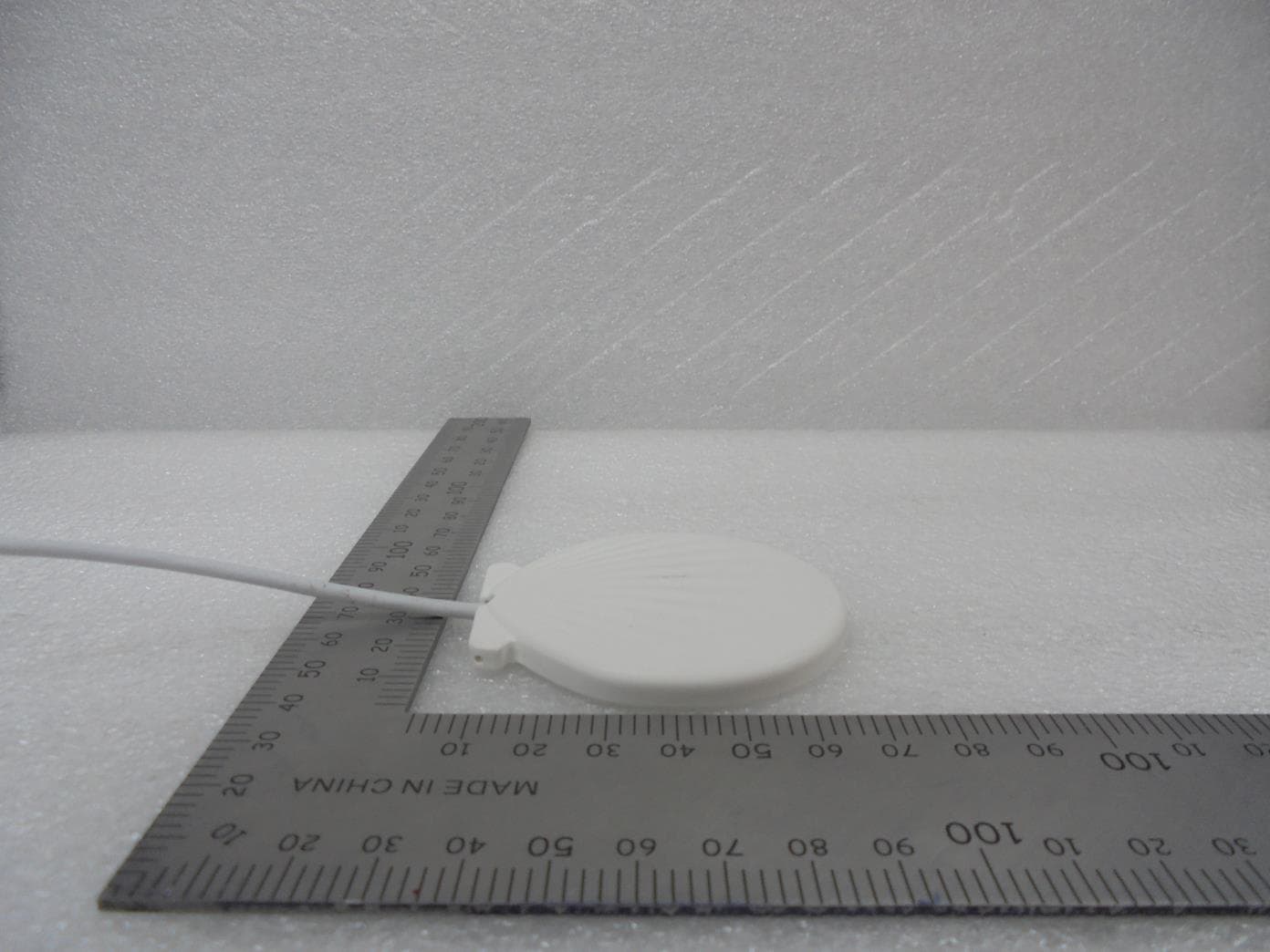

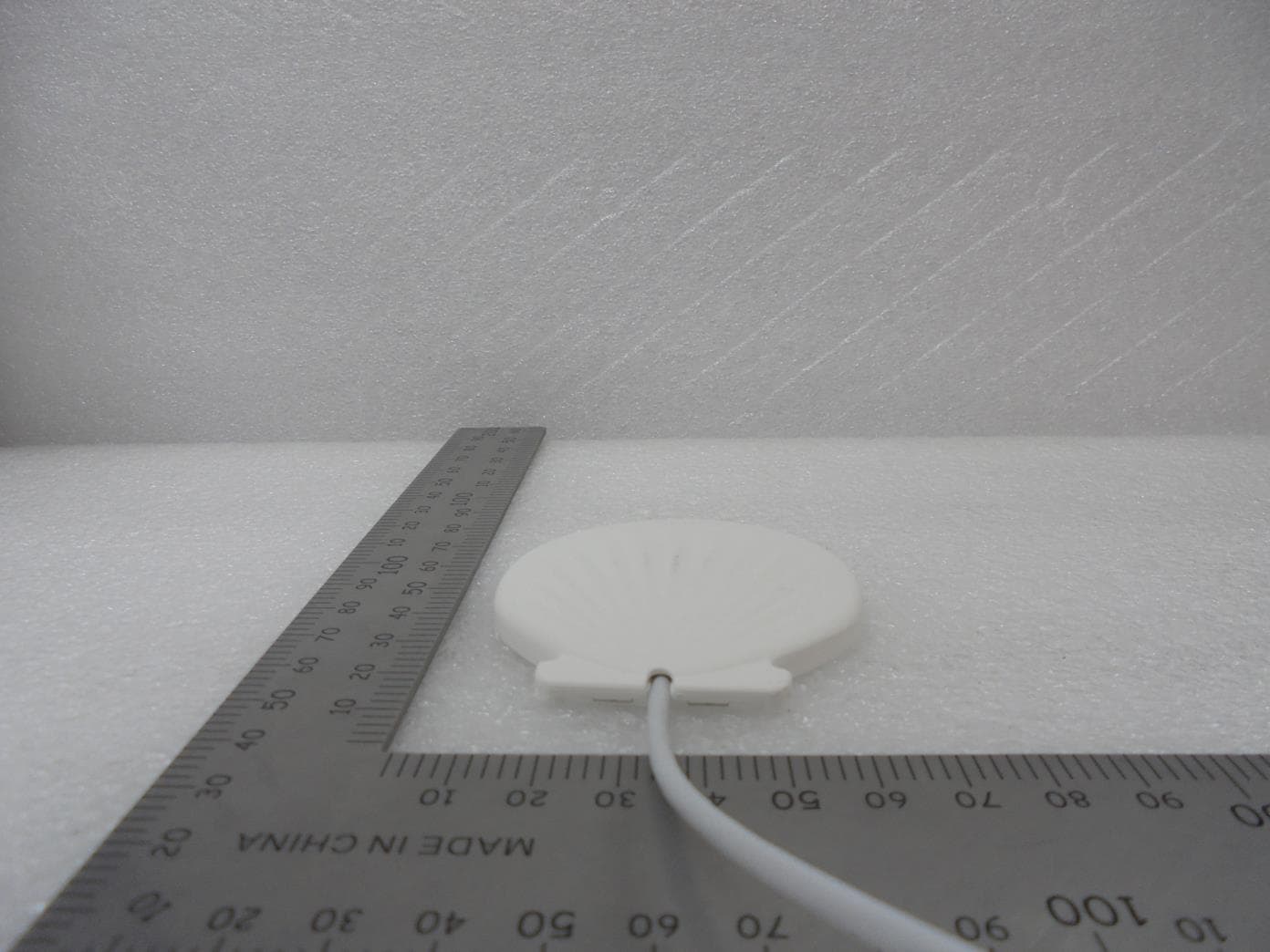

FCC ID: 2AZTP-NVT-T15M HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 8 EXTERNAL PHOTOGRAPHS FCC ID: 2AZTP-NVT-T15M HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 8 ■ EXTERNAL PHOTO FCC ID: 2AZTP-NVT-T15M HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 8 ■ EXTERNAL PHOTO FCC ID: 2AZTP-NVT-T15M HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 8 ■ EXTERNAL PHOTO FCC ID: 2AZTP-NVT-T15M HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 8 ■ EXTERNAL PHOTO FCC ID: 2AZTP-NVT-T15M HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 8 ■ EXTERNAL PHOTO FCC ID: 2AZTP-NVT-T15M HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 8 ■ EXTERNAL PHOTO FCC ID: 2AZTP-NVT-T15M HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 8 ■ EXTERNAL PHOTO

We are professional NovatechConfidential 6 NovatechCo.,Ltd. Wireless Charger Made in Korea Model Name:N VT‐T15M R‐R‐NKW‐NVT‐T15M FCC ID:2AZTP‐NVT‐T15M Label Information The label is placed on the cable. The product contains a cable , and the charger and cable are not separated. The lettering size of label is larger than 4 point.

FCC ID: 2AZTP-NVT-T15M HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 3 INTERNAL PHOTOGRAPHS FCC ID: 2AZTP-NVT-T15M HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 3 ■ INTERNAL PHOTO FCC ID: 2AZTP-NVT-T15M HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 3 ■ INTERNAL PHOTO

HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 F ax. +82 31 645 6401 On your side TEST REPORT FCC WPT Test for NVT-T15M Certification APPLICANT Novatech Co.,Ltd. REPORT NO. HCT-SR-2105-FC004 DATE OF ISSUE May 24, 2021 Tested by Jung Hun Park (signature) Technical Manager Yun Jeang Heo (signature) F-TP22-03 (Rev. 03) Page 2 of 19 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 TE S T R E P O R T F C C W P T T e s t f o r N V T-T 1 5 M REPORT NO. HCT-SR-2105-FC004 DATE OF ISSUE May 24, 2021 Additional Model - Applicant Novatech Co.,Ltd. 11st floor, U-TOWER, 120, Heungdeok Jungang-ro, Giheung-gu Yongin-si Gyeonggi-do 16950 South Korea Eut Type Model Name Wireless Charger NVT-T15M FCC ID 2AZTP-NVT-T15M Frequency of Operation 110 kHz ~ 148 kHz(Wireless Charger) FCC Classification Wireless Power Charger FCC Rule Part(s) FCC Part 1 SUBPART I FCC Part 2 SUBPART J KDB 680106 D01 The result shown in this test report refer only to the sample(s) tested unless otherwise stated. This test results were applied only to the test methods required by the standard. Report No. HCT-SR-2105-FC004 F-TP22-03 (Rev. 03) Page 3 of 19 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 May 24, 2021 Initial Release Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules under normal use and maintenance. * The report shall not be reproduced except in full(only partly) without approval of the laboratory. Report No. HCT-SR-2105-FC004 F-TP22-03 (Rev. 03) Page 4 of 19 CONTENTS 1. EUT DESCRIPTION 5 2. KDB 680106 D01 v03 SECTION 5.b) EQUIPMENT APPROVAL CONSIDERATIONS 6 3 DESCRUPTION OF TEST SETUP 7 4. TEST AND MEASUREMENT EQUIPMENT 8 5. FCC RULES MAXIMUM PERMISSIBLE RE EXPOSURE 8 6. Measurement RESULTS 10 7 FCC SUMMARY OF RESULTS 10 Annex A. Probe calibration 11 Annex B. Setup Photos. 19 Report No. HCT-SR-2105-FC004 F-TP22-03 (Rev. 03) Page 5 of 19 1. EUT DESCRIPTION Model NVT-T15M EUT Type Wireless Charger Power Supply (Operating voltage) DC 5.0 [V] DC 9.0 [V] Travel Adapter Information (For Testing) Model : EP-TA800(SAMSUNG) Type : C to C PDO(Power Data Objective) - 5V(3A), 9V(2.77A) PPS(Programmable Power Supply) - 3.3-5.9V(3A), 3.3-11V(2.25A) Frequency of Operation 110 kHz ~ 148 kHz (Wireless Power Charging) Max. Transmit Power -3.72 dBuV/m @300 m Date(s) of Tests April 05, 2021 ~ May 04, 2021 Report No. HCT-SR-2105-FC004 F-TP22-03 (Rev. 03) Page 6 of 19 2. KDB 680106 D01 v03 SECTION 5.b) EQUIPMENT APPROVAL CONSIDERATIONS Requirement Device (1) Power transfer frequency is less than 1 MHz. Yes. Operation Frequency is between 110 kHz to 148 Khz. (2) Output power from each primary coil is less than or equal to 15 watts. Yes. Maximum power is 14.4 Watts. (3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and client that are able to detect and allow coupling only between individual pairs of coils Yes. (4) Client device is placed directly in contact with the transmitter. Yes. (5) Mobile exposure conditions only(portable exposure conditions are not covered by this exclusion). Yes. (6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yes. The aggregate field at 15 cm from the device are 9.88 % of the FCC H field limit. Report No. HCT-SR-2105-FC004 F-TP22-03 (Rev. 03) Page 7 of 19 3 DESCRUPTION OF TEST SETUP SUPPORT EQUIPMENT & PERIPHERALS SUPPORT EQUIPMENT & PERIPHERALS LIST Description Manufacturer Model Serial Numver FCC ID Watch SAMSUNG Electronics Co., Ltd. SM-R835F RFAM80Q6NJW A3LSMR835 Phone SAMSUNG Electronics Co., Ltd. SM-G986B/DS RF8M70ZA4FH A3LSMG986B TEST SETUP The following three modes are tested in test configuration; All Position of client device were investigated and the worst position results are reported. MEASUREMENT TEST SETUP The measurement was taken using a probe place 15 cm from the edges of DUT or 20 cm above the DUT. Measurement were from the top and all sides of the DUT per KDB680106 D01 v03. Additionally, as the DUT to phone configuration could result with the DUT place either above or below the phone, measurements were performed ‘below’ the DUT by flipping the DUT/phone so that the DUT was uppermost. The probe was moved along the edges or above the DUT to a position that showed the maximum field strength. This position was used for the reported result. Measurement distance: From all sides and top of the primary client pair to the center of the Probe Side : 15 cm / Top side :20cm Report No. HCT-SR-2105-FC004 F-TP22-03 (Rev. 03) Page 8 of 19 4. TEST AND MEASUREMENT EQUIPMENT The following test and measurement equipment was used for the tests documented in this report : Manufacturer Model namr Description S/N Calib. Date Calib.Due Narda EHP-200AC Electric and Magnetic Field Probe 170WX91009 11/22/2019 11/22/2021 5. FCC RULES MAXIMUM PERMISSIBLE RE EXPOSURE 1.13010 The criteria listed in Table 1 shall be used to evaluate the envirimental impact of human exposure to radio-frequency(RF) ragiation as specified in 1.1307(b), except in the case of portable devices which shall ge evaluated according th the provisions of 2.1093 of this chapter. Report No. HCT-SR-2105-FC004 F-TP22-03 (Rev. 03) Page 9 of 19 Report No. HCT-S…

Text truncated - open the document above for the full version.

HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 645 6300 Fax. +82 31 645 6401 F-TP22-03 (Rev. 03) Page 2 of 26 TE S T R E P O R T E M I T e s t f o r F C C C e r t i f i c a t i o n REPORT NO. HCT-EM-2105-FC004 DATE OF ISSUE May 26, 2021 FCC ID. 2AZTP-NVT-T15M Applicant Novatech Co.,Ltd. 11st floor, U-TOWER, 120, Heungdeok Jungang-ro, Giheung-gu Yongin-si Gyeonggi-do 16950 South Korea Product Name Model Name Wireless Charger NVT-T15M Date of Test May 04, 2021 / May 10, 2021 Test Standard Used FCC CFR 47 PART 15 Subpart B Class B ANSI C63.4-2014 Test Results Refer to the present document Manufacturer Novatech Co.,Ltd. The result shown in this test report refer only to the sample(s) tested unless otherwise stated. This test results were applied only to the test methods required by the standard. F-TP22-03 (Rev. 03) Page 3 of 26 Report No. HCT-EM-2105-FC004 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 May 26, 2021 Initial Release The above Test Report is not related to the accredited test result by (KS Q) ISO/IEC 17025 and KOLAS(Korea Laboratory Accreditation Scheme) / A2LA(American Association for Laboratory Accreditation), which signed the ILAC-MRA. * The report shall not be reproduced except in full (only partly) without approval of the laboratory. F-TP22-03 (Rev. 03) Page 4 of 26 Report No. HCT-EM-2105-FC004 CONTENTS 1. GENERAL INFORMATION 5 1.1 Description of EUT 5 1.2 Tested System Details 5 1.3 Cable Description 5 1.4 Noise Suppression Parts on Cable. (I/O Cable) 6 1.5 Test Facility 7 1.6 Calibration of Measuring Instrument 7 1.7 Measurement Uncertainty 7 2. DESCRIPTION OF TEST 8 2.1 Measurement of Conducted Emission 8 2.2 Measurement of Radiated Emission 9 2.3 Configuration of Tested System 10 3. PRELIMINARY TEST 11 3.1 Conducted Emission 11 3.2 Radiated Emission 11 4. EMISSION TEST SUMMARY 12 4.1 Conducted Emission 12 4.2 Radiated Emission Below 1 ㎓ 21 4.3 Radiated Emission Above 1 ㎓ (Not Applicable) 23 5. CONCLUSION 25 6. APPENDIX A. TEST SETUP PHOTOGRAPHS 26 F-TP22-03 (Rev. 03) Page 5 of 26 Report No. HCT-EM-2105-FC004 1. GENERAL INFORMATION 1.1 Description of EUT The EUT is Wireless Charger. FCC ID 2AZTP-NVT-T15M Product Name Wireless Charger Model Name NVT-T15M Frequency Range 110 ㎑ to 148 ㎑ Clock 24 ㎒ Power Supply Voltage DC 5 V, DC 9 V Travel adaptor (EP-TA800): Type: C to C Power Data Objective (PDO): 5 V (3 A), 9 V (2.77 A) Programmable Power Supply (PPS): 3.3 – 5.9 V (3 A), 3.3 – 11 V (2.25 A) Manufacturer Novatech Co.,Ltd. 1.2 Tested System Details All equipment descriptions used in the tested system (including inserted cards) are: Device Type Model Name Serial Number Manufacturer EUT NVT-T15M - Novatech Travel Adapter EP-TA800 - SAMSUNG JIG - - Novatech 5 V LOADER - - Novatech 9 V LOADER - - Novatech NOTE. The peripheral device adapter is a wall type F-TP22-03 (Rev. 03) Page 6 of 26 Report No. HCT-EM-2105-FC004 1.3 Cable Description Product Name Port Power Cord Shielded (Y/N) I/O Cable Shielded (Y/N) Length (m) EUT DC IN N N/A (P)1.2 Adapter DC OUT N N/A (P)1.2 AC IN N N/A (P)- “(D)” Data Cable, “(P)” Power Cable 1.4 Noise Suppression Parts on Cable (I/O Cable) Product Name Port Ferrite Bead (Y/N) Location Metal Hood (Y/N) Location EUT DC IN N N/A Y EUT End Adapter DC OUT N N/A Y EUT End AC IN N N/A N N/A F-TP22-03 (Rev. 03) Page 7 of 26 Report No. HCT-EM-2105-FC004 1.5 Test Facility Test site is located at 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Rep. of Korea. Those measurement facilities are constructed in conformance with the requirements of ANSI C63.4-2014. The Normalized site attenuations (30 ㎒ to 1 ㎓) and Site validation (1 ㎓ to 18 ㎓) were performed in accordance with the standard in ANSI C63.4-2014 This testing laboratories are accredited and accordance with the recognized international Standard ISO/IEC 17025:2017. (KOLAS, Accreditation No. KT197) 1.6 Calibration of Measuring Instrument The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in ac cordance with the manufacturers recommendations for utilizing calibration equipment, which is traceable to recognized national standards.Espectially, all antenna for measurement is calibrated in accordance with the requirements of C63.5:2017 1.7 Measurement Uncertainty The measurement uncertainties shown below were calculated in accordance with the requirements of ANSI C63.4-2014. All measurement uncertainty values are shown with a coverage factor of k = 2 to indicate a 95 % level of confidence. The measurement data shown herein meets or exceeds the U CISPR measurement uncertainty values specified in CISPR 16-4-2 and, thus, can be compared directly to specified limits to determine compliance. Test Item Test Site (Chamber) Expanded Uncertainty Conducted Emission (0.15 ㎒ to 30 ㎒) EMI Shield Room 1.6 ㏈ Radiated Emission (30 ㎒ to 1 ㎓) 3 m Semi Anechoic Chamber #2 5.6 ㏈ F-TP22-03 (Rev. 03) Page 8 of 26 Report No. HCT-EM-2105-FC004 2. DESCRIPTION OF TEST 2.1 Measurement of Conducted Emission The test procedure was in accordance with ANSI C63.4-2014, Clause 7.3 a. The EUT was placed 0.4 meters from the conducting wall of the shielded room with EUT being connected to the power mains through a line impedance stabilization network (LISN). If the EUT is connected to the PC through USB, the AC power-line adapter of the PC is directly connected to a line impedance stabilization network (LISN). Other support units were connected to the power mains through another LISN. The two LISNs provide 50 Ω / 50 μH of coupling impedance for the measuring instrument. b. Both conducted lines are measured in Quasi-Peak and Average mode, including the worst-case data points for each tested configuration. c. The frequency range from 150 ㎑ to 30 ㎒ was searched. [Conducted Emission Limits] FCC Part15 Subpart B Frequency (㎒) Class A Class B Quasi-P…

Text truncated - open the document above for the full version.

File No. HCT-EM-2105-FC004-P Page 1 of 4 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 645 6300 Fax. +82 31 645 6401 A p p e n d i x A : T e s t S e t u p P h o t o FCC ID. 2AZTP-NVT-T15M File No. HCT-EM-2105-FC004-P REVISION HISTORY The revision history for this document is shown in table. Revision No. Date of Issue Description 0 May 26, 2021 Initial Release File No. HCT-EM-2105-FC004-P Page 2 of 4 FCC ID. 2AZTP-NVT-T15M A.1 Conducted Emission File No. HCT-EM-2105-FC004-P Page 3 of 4 FCC ID. 2AZTP-NVT-T15M A.2 Radiated Emission below 1 ㎓ File No. HCT-EM-2105-FC004-P Page 4 of 4 FCC ID. 2AZTP-NVT-T15M A.3 Radiated Emission above 1 ㎓ Not Applicable End of report

FCC ID: 2AZTP-NVT-T15M File No. HCT-SR-2105-FC004-P Page 1 of 6 - WPT Test SETUP PHOTOGRAPHS REVISION HISTORY The revision history for this document is shown in table. Revision No. Date of Issue Description 0 May 24, 2021 Initial Release FCC ID: 2AZTP-NVT-T15M File No. HCT-SR-2105-FC004-P Page 2 of 6 1. DUT Information 1.1 DUT 1.2 Load:5W FCC ID: 2AZTP-NVT-T15M File No. HCT-SR-2105-FC004-P Page 3 of 6 1.3 Load:10W FCC ID: 2AZTP-NVT-T15M File No. HCT-SR-2105-FC004-P Page 4 of 6 2. Test setup Configuration 2.1 Front Side: 15cm 2.2 Left Side: 15 cm FCC ID: 2AZTP-NVT-T15M File No. HCT-SR-2105-FC004-P Page 5 of 6 2.3 Right Side: 15 cm 2.4 Cable Side: 15 cm 2.4 Cable side:15 cm FCC ID: 2AZTP-NVT-T15M File No. HCT-SR-2105-FC004-P Page 6 of 6 2.5 Top side:20 cm
