2AZTU-SWM3USSmart Wall Switch

*Neutral wire is required *().Do not operate Installation with electricity *Electric Shock Operate Carefully N L3L2L1L N L Load Register Login with Existing Account Register usa1+ mobie phone number Email/ Get Verification Code Smart Wall Switch User manual 1 Install device. *Open the switch Panel *Connect the wires screw in the screws cover the panel,, Power Cord Connection ON OFF Button/ Indicator Light Description Wi fi Green Light: OnBlue Light: OffRed Light: 2 Download and installSmartLife App.“” *App is free *//ScanQR code or IOS Android Google play Store The Device Only Support 2 4G WI FI.- 3 Register Account. *Click Register *Choose Location *Fill in your phone num or email for a verification code 4 Add New Device. *Click Add Device *Choose Device and Click Switch Smart Lifr App No devices please add, Add Device my home Click here Click here Add Manually Electrical Engineeri... Lighting Large Home Appliance Small Home Ap... Kitchen Appliance Security& Sensor Exercise& Health Others Switch Electrical Engineering 7 Device Connection WI FI Complete.- *you can control your device by phone now 8 About Timer and Coundown and Schedule. */You can automatically ON OFF the device at any time via timer and countdownand Schedule. *You can schedule all the devices Add ScheduleSave 1013 1114 1215 RepeatOnce SwitchON Add ScheduleSave 1013 1114 1215 RepeatOnce SwitchON 9 About Scenario and Automation in Smart. *With scene settings you can control multiple devices simultaneously.(.e g one click to turn on the TV air.-, conditioningliving room lightsand curtains when you get,, home from work.) . Control multipe devices with one tap or by using an AI speaker through voice commands Add Scenario Action Add Scenario Show on Home Page Select Action Enable or Disable Automation Time lapse- Device *,With automation settings you can automate the work of your devices based on weather temperature PM values,,, and more Execute automatically according to conditions such as the weather device status and time,, Add Automation Scenario Any Condition Is Met Add Condition Action Add Action Effective PeriodAll-day 10gementmy homeFamily.AboutMeFamily Mana MembersAdd Member enter smartlife account() *.Here you can control the device with your family 11 About AI Speaker Voice Commands. *Amazon Alexa MeMore ServicesAlexaConnect to Alexa *Google Assistant MeMore ServicesGoogle Assistant Select Condition Temperature Uumidity Weath Pm2 5. Air Quality Sunset Sunrise/ Schedule Ddvice *IFTTT MeMore ServicesIFTTT 5 Device Connection Network. *Power on the device and confirm that indicator light rapidly blinks *:/Reset method Press and hold any ON OFF button for 5 seconds or continuously Power on and Power off 3 times until the indicator light goes out. 6 Device Connection WI FI.- *-Enter WI FI password *. -Only 2 4Ghz WI FI networks are supported Confirm indicator rapidly blink （ ） SW-M1US SW-M2US SW-M3US FCC STATEMENT This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsiblefor compliance could void your authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits fora Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and,if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, whichcan be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. The distance between user and products should be no less than 20cm

FCC ID: 2AZTU-SWM3US Product Name: Smart Wall Switch Test Model : SW-M1US;SW-M2US;SW-M3US All models are electrically identical , only mode no and number of relays is different. SW-M1US:one relay SW-M2US:two relays SW-M3US:three relays <Signature>: Name: Xinhua Xie Title: Manager Applicant Company: SHENZHEN JIAKEYUAN INDUSTRY CO.,LTD

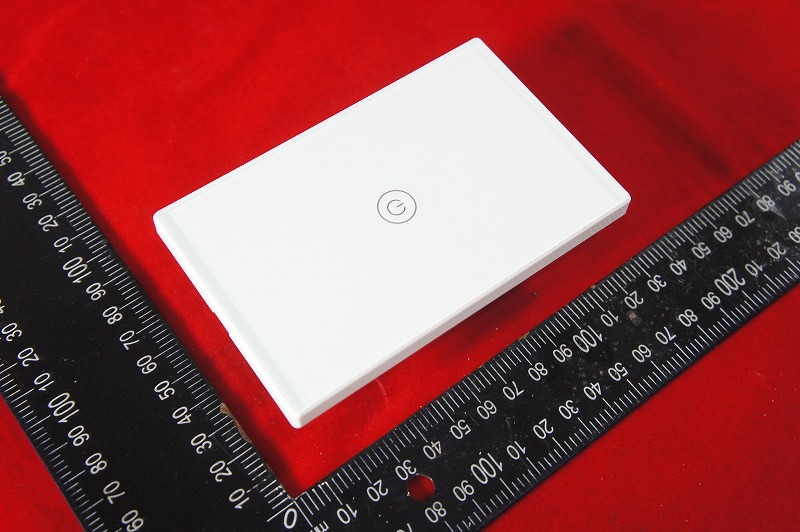

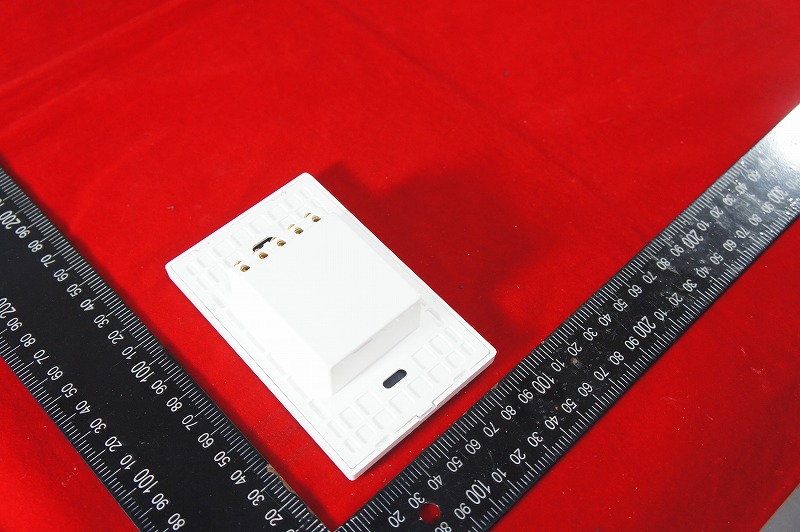

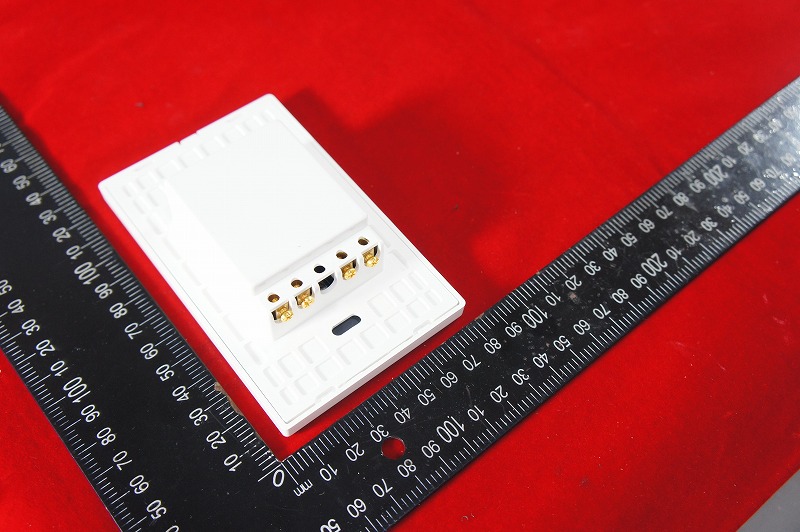

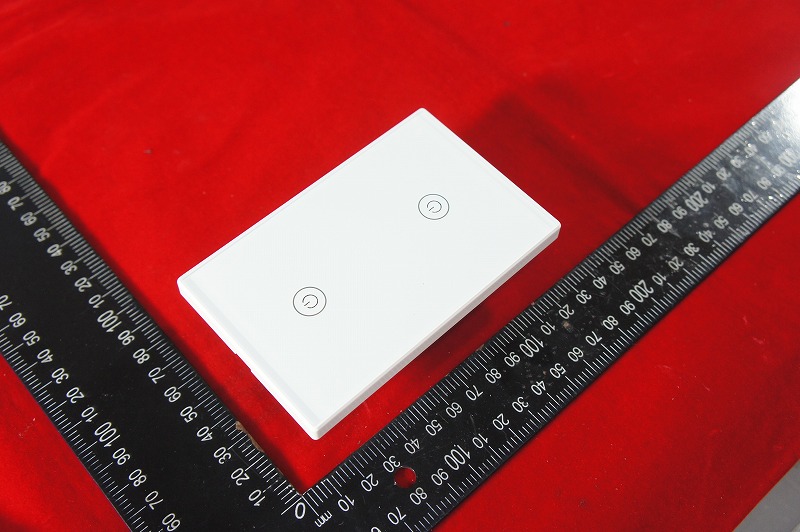

External photos SW-M3US SW-M2US SW-M1US

L3 L2 L1 L Model SW-M3US:Model SW-M3US: Rated Current: 10A Max Voltage AC100 240V:-Voltage AC100 240V:- Max. load 600W/Gang:Max. load 600W/Gang: Wireless type: WiFi2.4GHz SHENZHEN JIAKEYUAN INDUSTRY CO LTD 50/60Hz Smart Wall Switch N μ I I I I I I I I I I I I I I FCC ID 2AZTU-SWM3US:FCC ID 2AZTU-SWM3US: L2L1 L Model SW-M2US:Model SW-M2US: Rated Current: 10A Max Voltage AC100 240V:-Voltage AC100 240V:- Max. load 600W/Gang:Max. load 600W/Gang: Wireless type: WiFi2.4GHz SHENZHEN JIAKEYUAN INDUSTRY CO LTD 50/60Hz Smart Wall Switch N μ I I I I I I I I I I I I I I FCC ID 2AZTU-SWM3US:FCC ID 2AZTU-SWM3US: L1L Model SW-M1US:Model SW-M1US: Rated Current: 10A Max Voltage AC100 240V:-Voltage AC100 240V:- Max. load 600W/Gang:Max. load 600W/Gang: Wireless type: WiFi2.4GHz SHENZHEN JIAKEYUAN INDUSTRY CO LTD 50/60Hz Smart Wall Switch N μ I I I I I I I I I I I I I I FCC ID 2AZTU-SWM3US:FCC ID 2AZTU-SWM3US: 41.00 mm 41.00 mm Label ：

Internal photos SW-M3US SW-M2US SW-M1US

RF EXPOSURE REPORT FCC ID: 2AZTU-SWM3US Applicant’s name ........................ : SHENZHEN JIAKEYUAN INDUSTRY CO.,LTD Address ...................................... : B2301, Fenghuanggang 3rd Industrial Zone, Fenghuanggang Community, Xixiang Street, Bao'an District, Shenzhen City, Guangdong Province, China. Manufacturer .............................. : SHENZHEN JIAKEYUAN INDUSTRY CO.,LTD Equipment .................................. : Smart Wall Switch Trade Mark ................................. : / Model ........................................ : SW-M1US;SW-M2US;SW-M3US Ratings ....................................... : I/P: AC100-240V 50/60HZ 10A Max Testing Laboratory ...................... : DongGuan ShuoXin Electronic Technology Co., Ltd. Address ...................................... : Zone A, 1F, No. 6, XinGang Road YuanGang Street, XinAn District, ChangAn Town, DongGuan City, Guan gDong, China According ................................... : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector Gain(dBi) Note 1 N/A N/A PCB N/A 2 TEST RESULTS EUT： Smart Wall Switch Model Name : SW-M3US Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V 2.4G WIFI Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2 1.5849 21.81 151.705 0.04786 1 Complies Note: the calculated distance is 20 cm.

Report No.:21EFSS04092 04961 Page 1 of 75 FCC Radio Test Report FCC ID: 2AZTU-SWM3US The report concerns: Original Grant Report Reference No. ................. : 21EFSS04092 04961 Date Sample(s) Received ........... : 2021-04-26 Date of Tested ............................. : 2021-04-26 to 2021-05-23 Date of issue ............................... : 2021-06-18 Testing Laboratory ...................... : DongGuanShuoXin Electronic Technology Co., Ltd. Address ...................................... : Zone A, 1F, No. 6, XinGang Road YuanGang Street, XinAn District, ChangAn Town, DongGuan City, GuangDong, China Applicant’s name ........................ : SHENZHEN JIAKEYUAN INDUSTRY CO.,LTD Address ...................................... : B2301, Fenghuanggang 3rd Industrial Zone, Fenghuanggang Community, Xixiang Street, Bao'an District, Shenzhen City, Guangdong Province, China. Manufacturer............................... : SHENZHEN JIAKEYUAN INDUSTRY CO.,LTD Equipment................................... : Smart Wall Switch Trade Mark ................................. : / Model ........................................ : SW-M1US SW-M2US SW-M3US Ratings ....................................... : I/P: AC100-240V 50/60HZ 10A Max O/P: AC100-240V 50/60HZ 10A 600W Max each group Test Engineer: Blue Qiu Responsible Engineer : Smile Wang Authorized Signatory: King Wang Report No.:21EFSS04092 04961 Page 2 of 75 Table of Contents Page 1TEST REPORT DECLARE 4 2 444 SUMMARY OF TEST RESULTS 5 2.1MEASUREMENT UNCERTAINTY 6 3 GENERAL INFORMATION 7 3.1 GENERAL DESCRIPTION OF EUT 7 3.2 DESCRIPTION OF TEST MODES 8 3.3PARAMETERS OF TEST SOFTWARE 9 3.4BLOCKDIAGRAMSHOWINGTHECONFIGURATIONOFSYSTEMTESTED 10 3.5SUPPORT UNITS 10 3.6TEST ENVIRONMENT CONDITIONS 10 3.7DUTY CYCLE 11 4AC POWER LINE CONDUCTED EMISSIONS TEST 12 4.1LIMIT 12 4.2TEST PROCEDURE 12 4.3MEASUREMENT INSTRUMENTS LIST 12 4.4TESTSETUP 13 4.5EUT OPERATION CONDITIONS 13 4.6TEST RESULTS 14 5 RADIATED EMISSIONSTEST 16 5.1LIMIT 16 5.2TEST PROCEDURE 17 5.3MEASUREMENT INSTRUMENTS LIST 18 5.4TESTSETUP 18 5.5EUT OPERATIONCONDITIONS 19 5.6TEST RESULTS - 9KHZ TO 30MHZ 20 5.7TEST RESULTS - 30MHZTO 1000MHZ 21 5.8TEST RESULTS- ABOVE 1000MHZ(BAND EDGE) 23 5.9TEST RESULTS- ABOVE 1000MHZ(HARMONIC) 39 6BANDWIDTH TEST 63 6.1LIMIT 63 6.2TEST PROCEDURE AND SETTING 63 6.3MEASUREMENT INSTRUMENTS LIST 63 6.4TEST SETUP 63 Report No.:21EFSS04092 04961 Page 3 of 75 Table of Contents Page 6.5EUT OPERATION CONDITIONS 63 6.6TESTRESULTS 64 7MAXIMUM OUTPUT POWER TEST 68 7.1LIMIT 68 7.2TEST PROCEDURE AND SETTING 68 7.3MEASUREMENT INSTRUMENTS LIST 68 7.4TEST SETUP 68 7.5EUT OPERATION CONDITIONS 68 7.6TESTRESULTS 69 8CONDUCTED SPURIOUS EMISSIONS 70 8.1 LIMIT 70 8.2TEST PROCEDURE AND SETTING 70 8.3MEASUREMENT INSTRUMENTS LIST 70 8.4TEST SETUP 70 8.5EUT OPERATION CONDITIONS 70 8.6TESTRESULTS 71 9POWER SPECTRAL DENSITY TEST 73 9.1LIMIT 73 9.2TEST PROCEDURE AND SETTING 73 9.3MEASUREMENT INSTRUMENTS LIST 73 9.4TEST SETUP 73 9.5EUT OPERATION CONDITIONS 73 9.6TESTRESULTS 74 Report No.:21EFSS04092 04961 Page 4 of 75 1TEST REPORT DECLARE Applicant SHENZHEN JIAKEYUAN INDUSTRY CO.,LTD Address B2301, Fenghuanggang 3rd Industrial Zone, Fenghuanggang Community, Xixiang Street, Bao'an District, Shenzhen City, Guangdong Province, China. Manufacturer Same as applicant Address Same as applicant Factory Same as applicant Address Same as applicant Equipment Smart Wall Switch Model No. SW-M1US,SW-M2US,SW-M3US Trade Mark / Standard FCC Part15, Subpart C (15.247) ANSI C63.10-2013 We Declare: The equipment described above is tested by DongGuan ShuoXin Electronic Technology Co., Ltd(ATT). and in the configuration tested the equipment complied with the standards specified above. The test results are contained in this test report and DongGuan ShuoXin Electronic Technology Co., Ltd.(ATT) is assumed of full responsibility for the accuracy and completeness of these tests. ATT is not responsible for the sampling stage, so the results only apply to the sample as received. ATT's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. ATT shall have no liability for any declarations, inferences or generalizations drawn by the client or others from ATT issued reports. Report No.:21EFSS04092 04961 Page 5 of 75 2444 SUMMARY OF TEST RESULTS The EUT have been tested according to the applicable standards as referenced below: Standard(s) Section Test Item Judgment Remark FCC ISED 15.207 - AC Power Line Conducted Emissions PASS ------ 15.247(d) 15.205(a) 15.209(a) - Radiated Emissions PASS ------ 15.247(a)(2) - Bandwidth PASS ------ 15.247(b)(3) - Maximum Output Power PASS ------ 15.247(d) - ConductedSpurious EmissionPASS ------ 15.247(e) - Power Spectral Density PASS ------ - - Frequency Stability PASS ------ 15.203 - Antenna Requirement PASS Note(2) Note: (1) “N/A” denotes test is not applicable in this test report. (2) The device what use a permanently attached antenna were considered sufficient tocomply with the provisions of 15.203. Report No.:21EFSS04092 04961 Page 6 of 75 2.1MEASUREMENT UNCERTAINTY Test Item Uncertainty Uncertainty for Conductionemission test (9kHz-150kHz) 3.7 dB Uncertainty for Conduction emission test (150kHz-30MHz) 3.3 dB Uncertainty for Radiation Emission test (30MHz-200MHz) 4.60 dB (Polarize: V) 4.60 dB (Polarize: H) Uncertainty for Radiation Emission test (200MHz-1GHz) 6.10 dB (Polarize: V) 5.08 dB (Polarize: H) Uncertainty for Radiation Emission test (1GHz-6GHz) 5.01 dB (Polarize: V) 5.01 dB (Polarize: H) Uncertainty for Radiation Emission test (6GHz-18GHz) 5.26 dB (Polarize: V) 5.26 dB (Polarize: H) Uncertainty for Radiation Emission test (18GHz-40GHz) 5.06 dB (Polarize: V) 5.06 dB (Polarize: H) Uncertainty for radio frequency ±0.048kHz Uncertainty for conducted RF Power ±0.32dB Note: This uncertainty represents an expanded uncert…
