2AZU3-7101AGLNreal Streaming Box

MANUAL マニュアル 설명서 使用手册 Content Manual マニュアル 설명서 使用手册 1 Get to Know your Nreal Streaming Box Nreal Streaming Box について Nreal Streaming Box 를 알아보기 了解你的 Nreal 无线投屏器 1.1 Set 設定 설정 设置 1.2 Connect to Wi-Fi Wi-Fi への接続 Wi-Fi 연결하기 连接到 Wi-Fi 1.3 Enjoy 楽しむ 체험하기 享受投屏 1.4 Cast an application アプリケーションをキャストする 애플리케이션 캐스팅 应用内投屏 1.4.2 Mirror your device's display お使いの通信端末のディスプレイをミラーリ ングする 스마트 기기의 화면을 미러링하기 镜像设备系统屏 1.4.1 Other optional connection methods その他の接続方法 기타 연결 방법 其他可选连接方式 1.5 Adjust volume 音量調整 음량 조절 调节投屏音量 1.6 Clip Nreal Streaming Box Nreal Streaming Box をクリップで留める Nreal Streaming Box 장착 收纳 Nreal 无线投屏器 1.9 LED Lights LED ライト LED 표시등 LED 灯 1.8 Connect to your Bluetooth Audio Bluetooth ヘッドセットの接続 블루투스 오디오에 연결하기 连接你的蓝牙耳机 1.7 Warranty Card 保証書 제품 보증서 保修卡 4 After Sales Service Policy アフターサービス方針 애프터 서비스 정책 售后服务政策 3 Disclaimer and Safety Guidlines 免責事項と安全上の注意事項 면책 / 경고 / 안전 주의사항 免责声明和安全指南 2 Quick Facts 概要 간단한 팁 简要说明 1.10 Get to Know Your Nreal Streaming Box Nreal Streaming Box について Nreal Streaming Box 를 알아보기 了解你的 Nreal 无线投屏器 Nreal Streaming Box allows you to wirelessly cast/mirror content from your device (mobile phone, tablet, or laptop) to Nreal glasses. Nreal Streaming Box は、お使いの通信端末（スマートフォン、タブレット、ノートパソコン）から Nreal グラ スにコンテンツをワイヤレスでキャストまたはミラーリングすることができます。 Nreal Streaming Box 를 사용시 스마트 기기 ( 휴대폰 , 태블릿 또는 노트북 ) 에서 보이는 콘텐츠를 Nreal 글래스로 캐스팅 / 미러링할 수 있습니다 . 您可使用 Nreal 无线投屏器将设备上的内容无线投屏 / 镜像至 Nreal 眼镜，支持移动电话、平板电脑及笔记本电脑。 1.1 Nreal Streaming Box Nreal Streaming Box Nreal Streaming Box Nreal 无线投屏器 Clip クリップ 클립 卡扣 LED Lights LED ライト LED 표시등 LED 灯 USB-C (Input & Output) タイプ C （入力・出力） USB-C (입력 및 출력) USB-C (输入和输出) Power Button 電源ボタン 전원 버튼 电源键 9V 2A5V 3A 5V 1.5A Input / 入力 / 입력 / 输入 Output / 出力 / 출력 / 输出 Input: Charge Nreal Streaming Box 入力 : Nreal Streaming Box の充電 입력 : Nreal Streaming Box 충전 输入 : 给 Nreal 无线投屏器充电 Output: Connect Nreal Streaming Box to Nreal glasses 出力 : Nreal Streaming Box を Nreal グラスに接続 출력 : Nreal Streaming Box 를 Nreal 글래스에 연결 输出 : 连接 Nreal 无线投屏器与 Nreal 眼镜 Long Press: Turn On or Off Nreal Streaming Box 長押し : Nreal Streaming Box の電源オンまたはオフにご使用ください 길게 누르기 : Nreal Streaming Box 전원 켜기 또는 끄기 长按 : 开启或关闭 Nreal 无线投屏器 Double Click: - Mirror mode: Exit casting mode - Non-mirror mode: Turn on or off Nreal Streaming Box hotspot ダブルクリック : - ミラーモードのとき : キャスティングモードの終了 - ミラーモードでないとき : Nreal Streaming Box のホットスポットのオン / オフ 더블 클릭 : - 화면 투사중 : 초기 화면으로 돌아가기 - 초기 화면 : Nreal Streaming Box 핫스팟 켜기 또는 끄기 按两次 : - 投屏时 : 退出投屏模式 - 非投屏时 : 开启或关闭 Nreal 无线投屏器热点 Click: Switch Nreal Streaming Box mode between Standby and On クリック : Nreal Streaming Box のモードのスタンバイ・オンの切り替え 클릭 : Nreal Streaming Box 를 대기 모드 / 활성 모드 전환 하기 按一次 : 切换待机和开机状态 Power On 電源オン 전원 켜기 打开电源 Long press Power button to turn on Nreal Streaming Box. 電源ボタンを長押しして、 Nreal Streaming Box を起動します。 전원 버튼을 길게 눌러 Nreal Streaming Box 의 전원을 켜주세요 . 长按电源按钮开启 Nreal 无线投屏器。 Connect 接続 연결 하기 连接 Connect Nreal glasses to Nreal Streaming Box with a USB-C cable, put on Nreal glasses. Nreal グラスと Nreal Streaming Box を USB-C ケーブルで接続し、 Nreal グラスをかけます 。 USB-C 케이블로 Nreal 글래스와 Nreal Streaming Box 를 연결하신 후 , Nreal 글래스를 착용하세요 . 用 USB-C 数据线连接 Nreal 眼镜与 Nreal Streaming Box ，戴上 Nreal 眼镜。 Connect your device to Nreal Streaming Box hotspot. お使いの通信端末を Nreal Streaming Box ホットスポット に接続します。 스마트 기기를 Nreal Streaming Box 핫스팟에 연결하세요 . 将您的设备与 Nreal 无线投屏器热点连接。 Set 設定 설정 设置 1.2 Double click Power button to turn on Nreal Streaming Box hotspot (under power on status). 電源ボタンをダブルクリックして、 Nreal Streaming Box のホットスポットをオン にします ( 本製品の電源がオンの状態で行ってください )。 전원 버튼을 두 번 클릭하여 Nreal Streaming Box 핫스팟을 켜주세요 ( Nreal Streaming Box 전원이 켜진 후 ). 按电源键两次开启 Nreal 无线投屏器热点 ( 开机状态下） 。 You should be able to see hotspot status on Nreal glasses. Nreal グラスにホットスポットのス テータスが表示されます。 Nreal 글래스에서 핫스팟 상태를 확인하세요 . 您应该可以通过 Nreal 眼镜看到热 点状态 。 2 Connect your device (such as mobile phone) to Wi- Fi starting with Nreal-xxxxxxxxxx (Make sure the 10-digit characters matches the SN on the back of Nreal Streaming Box). Enter password: 12345678 通信デバイス（スマートフォンなど）を Nreal-xxxxxxxxxx で始まるWi-Fiに接続します（10桁の文字が Nreal Streaming Box の背面にあるSNと一致することを確認し てください）。 パスワードを入力： 12345678 Nreal-xxxxxxxxxx 로 시작하는 Wi-Fi에 연결하세요.(10자리 숫자가 Nreal Streaming Box 뒷면의 SN과 일치 여부를 확인하세요). 비밀번호 입력: 12345678 将您的设备（如手机）连接到以 Nreal-xxxxxxxxxx 为开头号 码的 Wi-Fi (确保10位字符与 Nreal 无线投屏器背面的序列 号相匹配) 。 输入密码： 12345678 * Don't switch to another network if you are prompted to. * 他のネットワークへの切り替えを促されても切り替えないでください。 * 알람으로 표시된 다른 네트워크로 전환하지 마십시오. * 如果有提示切换至其他网络，请您不要切换。 WLAN WiFi02 WiFi03 Nreal-xxxxxxxxxx WiFi01 Now you have completed pairing, you can make Nreal Streaming Box Wi-Fi connection/ settings. ペアリングが完了しました、 Nreal Streaming Box の Wi-Fi 接続・設定を行えます。 페어링이 완료되었습니다. Nreal Streaming Box 의 Wi-Fi 연결/설정를 하세요 . 现在您已经完成配对，可以开始对 Nreal 无线投屏器进行联网/设置了。 Connect to Wi-Fi Wi-Fi への接続 Wi-Fi 연결하기 连接到 Wi-Fi Use your local Wi-Fi to connect Nreal Streaming Box with your device. Wi-Fi を使用して、 Nreal Streaming Box と通信端末を接続するモードです。 주변에 있는 Wi-Fi 로 Nreal Streaming Box 를 스마트 기기와 연결하세요 . 使用本地 Wi-Fi 连接 Nreal 无线投屏器和你的设备。 1.3 Open a browser on your device (such as mobile phone) and enter IP: 192.168.1.1. Login the Nreal Streaming Box settings page and connect to your preferred Wi-Fi. If you cannot find the preferred Wi- Fi, please manually add it. You should be able to see Wi-Fi connection status on Nreal glasses. お使いの通信端末でブラウザを開き、 IP: 192.168.1.1 を入力し、 Nreal Streaming Box の設定画面にログインし、 お好みの Wi-Fi に接続します。お好みの Wi-Fi が見つからない場合は、手動で追加してください。 Nreal グラスに Wi-Fi 接続状況が表示されている状態となります。 스마트 기기에서 브라우저를 열어 IP 주소를 입력하세요 : 192.168.1.1. Nreal Streaming Box 설정 페이지에 접속하신후 , 원하시는 Wi-Fi 에 연결하세요 . 원하시는 Wi-Fi 를 찾을 수 없으면 수동으로 추가하십시오 . Nreal 글래스에서 Wi-Fi 의 연결 상태를 확인할 수 있습니다 . 打开您设备（如手机 ) 上的浏览器并输入 IP: 192.168.1.1 ，进入 Nreal 无线投屏器设置页面，连接您的本地 Wi-Fi 。如 果您查找不到您选择的 Wi-Fi ，请手动添加。 您可以在眼镜中看到 Nreal 无线投屏器当前网络连接状态。 BROWSER WiFi01 WiFi02 WiFi03 Your Wi-Fi xxx.xxx.x.x Switch your device (such as mobile phone) to the same local Wi-Fi you just selected. スマートフォンなどの通信端末を、先ほど選択したものと同じローカル Wi-Fi に切り替えます。 스마트 기기의 네트워크를 선택하신 Wi-F i 로 전환하세요 . 将您的设备（如手机）切换至刚刚选择的同一本地 Wi-Fi 。 SETTING WLAN WiFi01 WiFi02 WiFi03 O…

Text truncated - open the document above for the full version.

Matrixed Reality Technology Co., Ltd. 4/20/2022 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 REQUEST FOR CONFIDENTIALITY - FCC FCC ID: 2AZU3-7101AGL Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request confidential treatment of information accompanying this application as outlined below: PERMANENT LONG-TERM CONFIDENTIALITY: Schematics Block Diagram Operation Description SHORT TERM CONFIDENTIALITY FOR A PERIOD OF 180 DAYS: Internal Photographs External Photographs Test Photographs User Manual When the device is marketed before the requested number of days listed above, the grantee will inform the TCB to release the Short-Term Confidentiality information withheld on the FCC equipment authorization website. The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, Signed: Printed name: Jason Yu Title: Director of Product Safety and Compliance

594280D02U-NIIDeviceSecurityv01r03 Page1 MatrixedRealityTechnologyCo.,Ltd. Date:2022.04.15 SOFTWARESECURITYREQUIREMENTSFORU-NIIDEVICES (594280D02U-NIIDeviceSecurity1.3,11/12/15) CompanyName:MatrixedRealityTechnologyCo.,Ltd. FCCID:2AZU3-7101AGL ProductName:NrealStreamingBox SOFTWARESECURITYDESCRIPTION GeneralDescription Q. 1.Describehowanysoftware/firmwareupdatesforelementsthancanaffectthedevice’sRF parameterswillbeobtained,downloaded,validatedandinstalled.Forsoftwarethatisaccessed throughmanufacturer’swebsiteordevice’smanagementsystem,describethedifferentlevelsof securityasappropriate. A. Theuserthroughthemanufacturerswebpagedownloadsoftware/firmwareupgradewillnot affecttheRFparameters.Becausethesoftware/firmwarewritingarethemanufacturerin accordancewiththerequirementsfortheFCCrule,securitylevelishigh. WEP,TKIP,AES,WPA,WPA2 Q. 2.DescribetheRFparametersthataremodifiedbyanysoftware/firmwarewithoutanyhardware changes.Aretheseparametersinsomewaylimitedsuchthatanyothersoftware/firmware changeswillnotallowthedevicetoexceedtheauthorizedRFcharacteristics? A. AllRFparameterisfixedatthechiplevel.InstalleranduserwillnotabletomodifyanyofRF parameters. Q. 3.Describeindetailtheauthenticationprotocolsthatareinplacetoensurethatthesourceofthe RF-relatedsoftware/firmwareisvalid.DescribeindetailhowtheRF-relatedsoftwareisprotected againstmodification. A. Software/firmwareisdigitallysignedandencryptedusingproprietaryhandshaking.Need authorizedandprovisioningprotocols. Q. 4.DescribeindetailanyencryptionmethodsusedtosupporttheuseoflegitimateRF-related software/firmware. A. Software/firmwareisdigitallysignedandencryptedusingproprietaryhandshaking.Need authorizedandprovisioningprotocols. Q. 5.Foradevicethatcanbeconfiguredasamasterandclient(withactiveorpassivescanning), explainhowthedeviceensurescomplianceforeachmode?Inparticular,Ithedeviceactsas masterinsomebandofoperationandclient inanother;howiscomplianceensuredineachbandofoperation? A. Notapplicable,thisdeviceisaclient-onlydevice. 594280D02U-NIIDeviceSecurityv01r03 Page2 MatrixedRealityTechnologyCo.,Ltd. Third-PartyAccessControl 1.ExplainifanythirdpartishavethecapabilitytooperateaU.S.-solddeviceonanyotherregulatory domain,frequencies,orinanymannerthatmayallowthedevicetooperateinviolationofthedevice’s authorizationifactivatedintheU.S. OnlyGranteecanreleaseormakechangestothesoftware/firmwareusingproprietarysecureprotocols. 2.Describe,ifthedevicepermitsthird-partysoftwareorfirmwareinstallation,whatmechanismsare providedbythemanufacturertopermitintegrationofsuchfunctionswhileensuringthattheRFparameters ofthedevicecannotbeoperatedoutsideitsauthorizationforoperationinthe U.S.Inthedescriptionincludewhatcontrolsand/oragreementsareinplacewithprovidersofthird-party functionalitytoensurethedevices’underlyingRFparametersareunchangedandhowthemanufacturer verifiesthefunctionality. Ifthethirdpartiestooperate,thedevicewillnotwork. 3.ForCertifiedTransmittermodulardevices,describehowthemodulegranteeensuresthathost manufacturersfullycomplywiththesesoftwaresecurityrequirementsforU-NIIdevices.Ifthe moduleiscontrolledthroughdriversoftwareloadedinthehost,describehowthedriversare controlledandmanagedsuchthatthemodulartransmitterRFparametersarenotmodifiedoutsidethe grantofauthorization. N/A,Thisdeviceisnotamodulardevice. SOFTWARECONFIGURATIONDESCRIPTION USER-CONFIGURATIONGUIDE Q. 1.DescribetheuserconfigurationspermittedthroughtheUIIfdifferentlevelsofaccessare permittedforprofessionalinstallers,systemintegratorsorendusers,describethedifferences. A. None a.Whatparametersareviewableandconfigurablebydifferentparties? 9 None b.Whatparametersareaccessibleormodifiablebytheprofessionalinstallerorsystem integrators? None (1)Aretheparametersinsomewaylimited,sothattheinstallerswillnotenterparametersthat exceedthoseauthorized? Parametersofthefactorylimited,whethertoupgradethefirmwareorrestart,willnot changetheoriginalparameters. (2)Whatcontrolsexistthattheusercannotoperatethedeviceoutsideitsauthorizationinthe U.S.? AllRFparameterisfixedatthechiplevel.InstalleranduserwillnotabletomodifyanyofRF parameters. c.Whatparametersareaccessibleormodifiablebytheend-user? None 594280D02U-NIIDeviceSecurityv01r03 Page3 MatrixedRealityTechnologyCo.,Ltd. (1)Aretheparametersinsomewaylimited,sothattheuserorinstallerswillnotenter parametersthatexceedthoseauthorized? Parametersofthefactorylimited,whethertoupgradethefirmwareorrestart,willnotchange theoriginalparameters. (2)Whatcontrolsexistsothattheusercannotoperatethedeviceoutsideitsauthorizationin theU.S.? AllRFparameterisfixedatthechiplevel.InstalleranduserwillnotabletomodifyanyofRF parameters. d.Isthecountrycodefactoryset?CanitbechangedintheUI? Cannot. (1)Ifitcanbechanged,whatcontrolsexisttoensurethatthedevicecanonlyoperatewithin itsauthorizationintheU.S.? AllRFparameterisfixedatthechiplevel.InstalleranduserwillnotabletomodifyanyofRF parameters. e.Whatarethedefaultparameterswhenthedeviceisrestarted? Thedevicewilloperateonlastsavedparameter. Q. 2.Cantheradiobeconfiguredinbridgeormeshmode?Ifyes,anattestationmayberequired. FurtherinformationisavailableinKDBPublication905462D02. A. No Q. 3.Foradevicethatcanbeconfiguredasamasterandclient(withactivepassivescanning),if thisisuserconfigurable,describewhatcontrolsexist,withintheUI,toensurecompliancefor eachmode.Ifthedeviceactsasamasterinsomebandsandclientinothers,howisthis configuredtoensurecompliance? A. Notapplicable,thisdeviceisaclient-onlydevice. Q. 4.Foradevicethatcanbeconfiguredasdifferenttypesofaccesspoints,suchaspoint-to- pointorpoint-to-multipoint,andusedifferenttypesofantennas,describewhatcontrolsexist toensurecompliancewithapplicablelimitsandtheproperantennaisusedforeachmodeof operation. A. Notapplicable,thisdeviceisaclient-onlydevice. Signature: Client’sname/title:JasonYu/QualityDirector

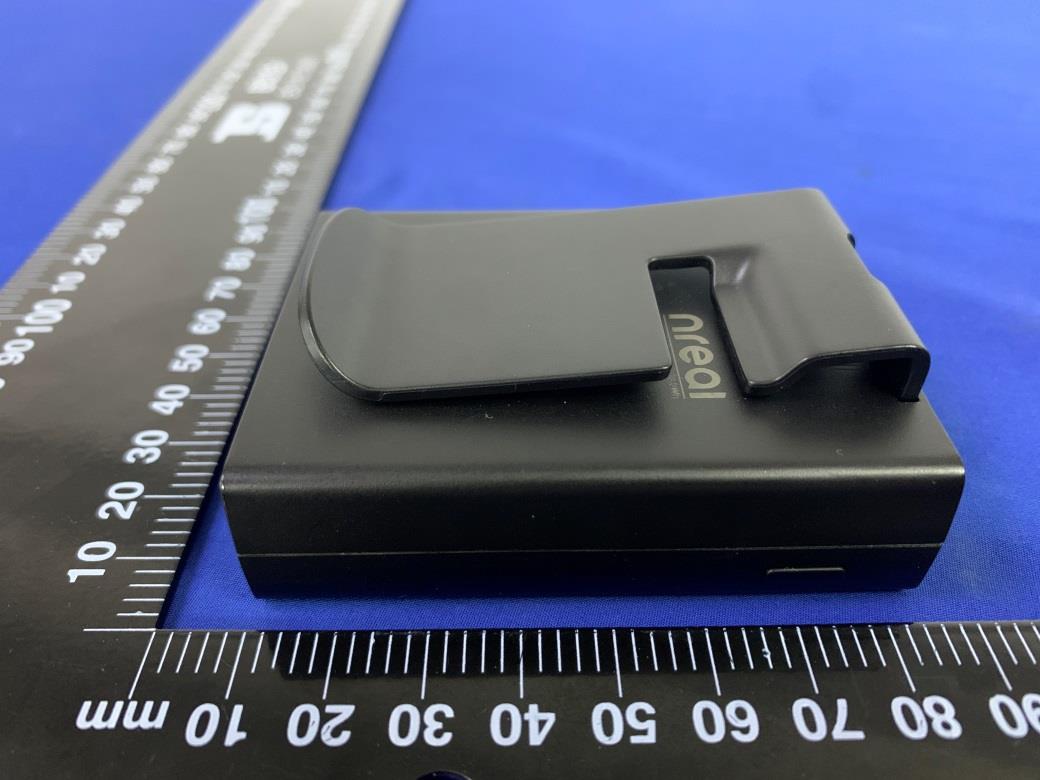

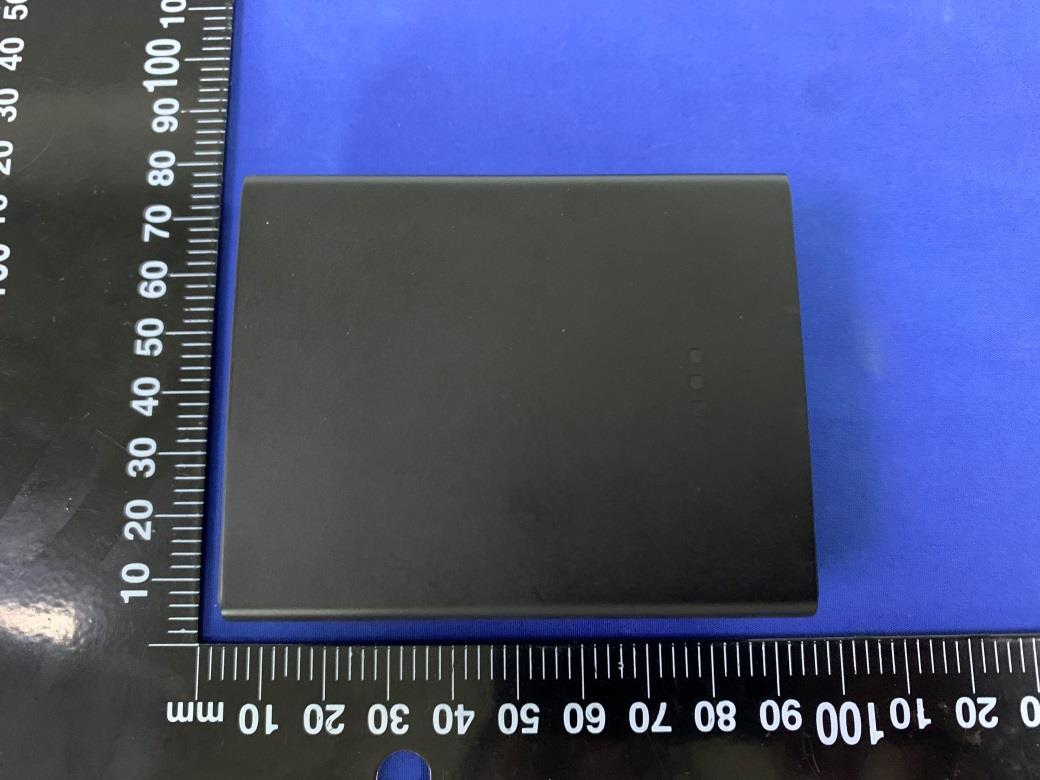

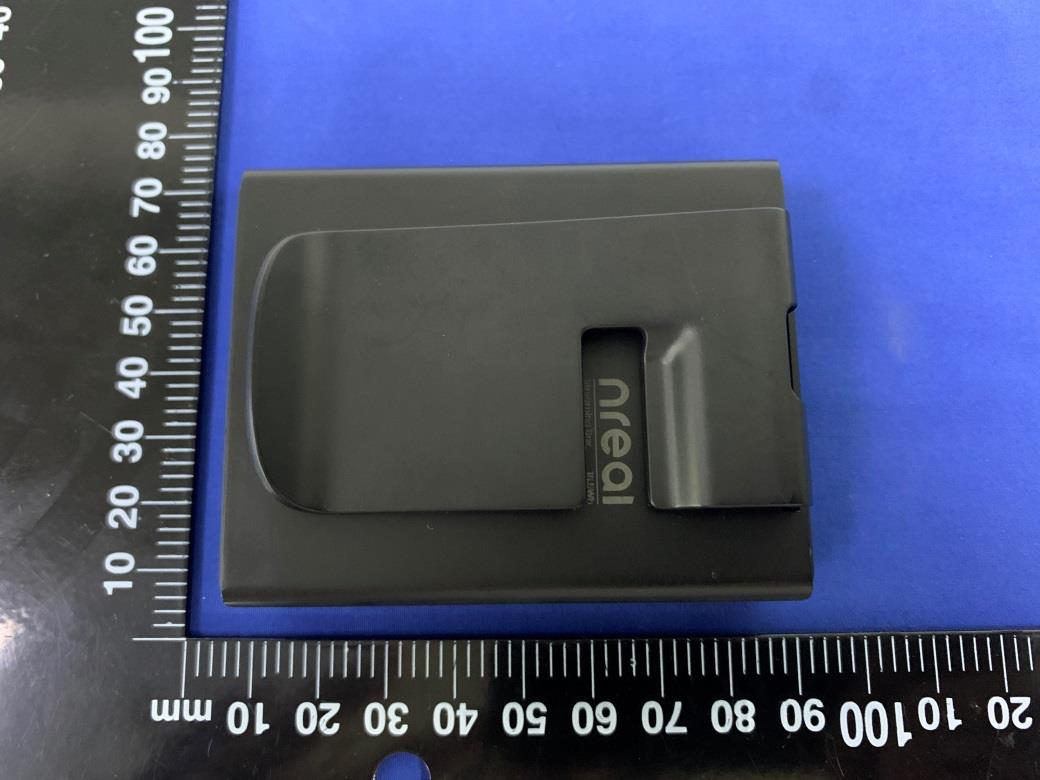

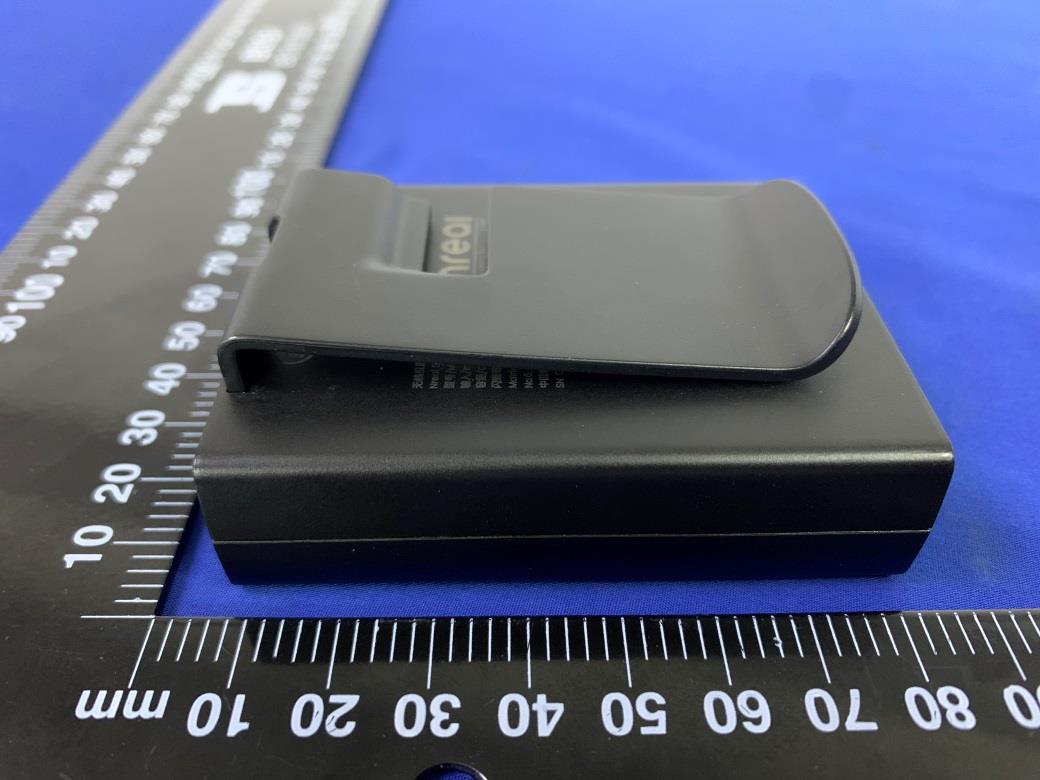

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 Http://www.sz-ctc.org.cn Page 1 of 4 External Photographs Page 2 of 4 Page 3 of 4 Page 4 of 4

无线投屏器 Nreal Streaming Box 型号/Model: NR-7101AGL 输入/Input: 5V 3A 9V 2A 容量/Capacity: 5000mAh 闪耀现实(无锡)科技有限公司 Matrixed Reality Technology Co., Ltd. No.6, Xingchuang 2nd Rd., Xinwu Dist., Wuxi, Jiangsu, PRC CMIIT ID: xxxxxxxxxxx KC: FCC ID: 2AZU3-7101AGL 中国制造/Made in China SN: xxxxxxxxxxxx R 210-175400 Streaming Box 18.5Wh

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 Http://www.sz-ctc.org.cn Page 1 of 5 Internal Photographs RF Antenna Page 2 of 5 Page 3 of 5 Page 4 of 5 Page 5 of 5

Page 1 of 89 Report No.: S22032100201001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： Nreal Streaming Box Trademark： Model Name： NR-7101AGL Family Model： N/A Report No.： S22032100201001 FCC ID： 2AZU3-7101AGL Prepared for Matrixed Reality Technology Co., Ltd. No.6, Xingchuang 2nd Rd., Xinwu Dist., Wuxi, Jiangsu, PRC Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 89 Report No.: S22032100201001 TEST RESULT CERTIFICATION Applicant’s name ................. : Matrixed Reality Technology Co., Ltd. Address .................................. : No.6, Xingchuang 2nd Rd., Xinwu Dist., Wuxi, Jiangsu, PRC Manufacturer's Name ........... : Matrixed Reality Technology Co., Ltd. Address .................................. : No.6, Xingchuang 2nd Rd., Xinwu Dist., Wuxi, Jiangsu, PRC Product description Product name ......................... : Nreal Streaming Box Trademark ............................ : Model Name ......................... : NR-7101AGL Family Model .......................... : N/A Standards ............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Date of Test Date (s) of performance of tests ............. : Mar. 24, 2022 ~ Mar. 30, 2022 Date of Issue .......................................... : Apr. 08, 2022 Test Result .............................................. : Pass Prepared By (Test Engineer) : (Jacob Chen) Approved By (Lab Manager) : (Alex Li) Page 3 of 89 Report No.: S22032100201001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Apr. 08, 2022 Jacob Chen Page 4 of 89 Report No.: S22032100201001 TABLE OF CONTENTS 1. General Information .......................................................................................... 6 1.1. RF exposure limits .................................................................................. 6 1.2. Statement of Compliance ....................................................................... 7 1.3. EUT Description ..................................................................................... 7 1.4. Test specification(s) ................................................................................ 8 1.5. Ambient Condition ................................................................................. 8 2. SAR Measurement System ................................................................................. 9 2.1. SATIMO SAR Measurement Set-up Diagram ........................................... 9 2.2. Robot ................................................................................................... 10 2.3. E-Field Probe ........................................................................................ 11 2.3.1. E-Field Probe Calibration ................................................................ 11 2.4. SAM phantoms .................................................................................... 12 2.4.1. Technical Data ................................................................................ 13 2.5. Device Holder ...................................................................................... 14 2.6. Test Equipment List .............................................................................. 15 3. SAR Measurement Procedures ........................................................................ 17 3.1. Power Reference.................................................................................. 17 3.2. Area scan & Zoom scan ........................................................................ 17 3.3. Description of interpolation/extrapolation scheme ............................. 19 3.4. Volumetric Scan ................................................................................... 19 3.5. Power Drift .......................................................................................... 19 4. System Verification Procedure ......................................................................... 20 4.1. Tissue Verification ................................................................................ 20 4.1.1. Tissue Dielectric Parameter Check Results ..................................... 21 4.2. System Verification Procedure ............................................................. 22 4.2.1. System Verification Results ............................................................ 23 5. SAR Measurement variability and uncertainty ................................................. 24 5.1. SAR measurement variability ............................................................... 24 5.2. SAR measurement uncertainty ............................................................. 24 6. RF Exposure Positions ...................................................................................... 25 6.1. Body Worn Accessory ...................................…

Text truncated - open the document above for the full version.

CTC Laboratories, Inc. $CNAS$ 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 http://www.sz-ctc.org.cn TEST REPORT Report No. ··························: CTC20220322E02 FCC ID.................................: 2AZU3-7101AGL Applicant····························: Matrixed Reality Technology Co., Ltd. Address·······························: No.6, Xingchuang 2nd Rd., Xinwu Dist., Wuxi, China Manufacturer························: Matrixed Reality Technology Co., Ltd. Address·······························: No.6, Xingchuang 2nd Rd., Xinwu Dist., Wuxi, China Product Name······················: Nreal Streaming Box Trade Mark···························: Model/Type reference·············: NR-7101AGL Listed Model(s) ·····················: N/A Standard·····························: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample...: Mar. 08, 2022 Date of testing.......................: Mar. 08, 2022 to Apr. 14, 2022 Date of issue.........................: Apr. 14, 2022 Result.................................:PASS Compiled by: (Printed name+signature) Jim Jiang Supervised by: (Printed name+signature) Miller Ma Approved by: (Printed name+signature) Totti Zhao $英文检测章$ $Totti$ This test report may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CTC. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CTC within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. The test report merely correspond to the test sample. Page 2 of 39 Report No.: CTC20220322E02 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Table of Contents Page 1. TEST SUMMARY ..........................................................................................................................................................3 1.1. TEST STANDARDS .............................................................................................................................................................3 1.2. REPORT VERSION ............................................................................................................................................................3 1.3. TEST DESCRIPTION ...........................................................................................................................................................3 1.4. TEST FACILITY .................................................................................................................................................................4 1.5. MEASUREMENT UNCERTAINTY ...........................................................................................................................................4 1.6. ENVIRONMENTAL CONDITIONS ...........................................................................................................................................5 2. GENERAL INFORMATION .............................................................................................................................................6 2.1. CLIENT INFORMATION ......................................................................................................................................................6 2.2. GENERAL DESCRIPTION OF EUT .........................................................................................................................................6 2.3. ACCESSORY EQUIPMENT INFORMATION ...............................................................................................................................7 2.4. OPERATION STATE ...........................................................................................................................................................8 2.5. MEASUREMENT INSTRUMENTS LIST ....................................................................................................................................9 3. TEST ITEM AND RESULTS ........................................................................................................................................... 11 3.1. CONDUCTED EMISSION ...................................................................................................................................................11 3.2. RADIATED EMISSION ......................................................................................................................................................14 3.3. BAND EDGE EMISSIONS (RADIATED) .................................................................................................................................22 3.4. BAND EDGE AND SPURIOUS EMISSIONS (CONDUCTED) ......................................................................................................... 27 3.5. DTS BANDWIDTH ..........................................................................................................................................................33 3.6. PEAK OUTPUT POWER ...................................................................................................................................................36 3.7. POWER SPECTRAL DENSITY ............................................................................................................................................. 37 3.8. ANTENNA REQUIREMENT .................…

Text truncated - open the document above for the full version.

CTC Laboratories, Inc. $CNAS$ 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 http://www.sz-ctc.org.cn TEST REPORT Report No. ··························: CTC20220322E04 FCC ID.................................: 2AZU3-7101AGL Applicant····························: Matrixed Reality Technology Co., Ltd. Address·······························: No.6, Xingchuang 2nd Rd., Xinwu Dist., Wuxi, China Manufacturer························: Matrixed Reality Technology Co., Ltd. Address·······························: No.6, Xingchuang 2nd Rd., Xinwu Dist., Wuxi, China Product Name······················: Nreal Streaming Box Trade Mark···························: Model/Type reference·············: NR-7101AGL Listed Model(s) ····················: N/A Standard·····························: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample...: Mar. 08, 2022 Date of testing.......................: Mar. 08, 2022 to Apr. 14, 2022 Date of issue.........................: Apr. 14, 2022 Result.................................:PASS Compiled by: (Printed name+signature) Jim Jiang Supervised by: (Printed name+signature) Miller Ma Approved by: (Printed name+signature) Totti Zhao $英文检测章$ $Totti$ This test report may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CTC. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CTC within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. The test report merely correspond to the test sample. Page 2 of 82 Report No.: CTC20220322E04 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Table of Contents Page 1. TEST SUMMARY ....................................................................................................................................................... 3 1.1. TEST STANDARDS .......................................................................................................................................................... 3 1.2. REPORT VERSION ......................................................................................................................................................... 3 1.3. TEST DESCRIPTION ........................................................................................................................................................ 3 1.4. TEST FACILITY .............................................................................................................................................................. 4 1.5. MEASUREMENT UNCERTAINTY ........................................................................................................................................ 4 1.6. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 5 2. GENERAL INFORMATION .......................................................................................................................................... 6 2.1. CLIENT INFORMATION ................................................................................................................................................... 6 2.2. GENERAL DESCRIPTION OF EUT ..............................................................................................................................…

Text truncated - open the document above for the full version.
