2AZUG-GGMMR3Wireless Transmitter

1 GGMMR3 Wireless sensor 1 Temperature display 2 Symbol for radio frequency connection between base unit and wireless sensor (display only appears when the transmission is occurring), and Current 2 transmission channel 3 Low battery indicator 4 Red pilot light 5 Humidity display 6 Sliding switch 1 2 3: Set sensor number (transmission channel) 7 Temperature switch button: °C/°F 8 switch button: TX 9 Battery compartment 10 Loop for hanging 1. Remove the battery compartment cover on the front of the wireless sensor. 2. Insert 2 LR6 (AA) / 1.5 V batteries (not included) facing in the direction indicated on the bottom of the battery compartment. Make sure that the poles of the batteries are correct (+/-). As soon as the wireless sensor is receiving power, the red pilot light will light up and thus display that data is being transmitted to the base unit. 3 3. Put the battery compartment cover back in place. - Do not use batteries that have a voltage that is too low (only 1.2 V instead of 1.5 V). This affects the accuracy of the measurements, among other things. - If possible, use alkaline batteries instead of zinc-carbon batteries. Alkaline batteries last longer, particularly outside in low temperatures. 4.FCC STATEMENT 1）. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2）. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to 4 provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help.

Attestation Statements (2023-4-12) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID: 2AZUG-GGMMR3) (Dongguan Beijia Electronic Technology Co., Ltd ), the undersigned, hereby authorize Lucky Cowboy Global Services, LLC to act as our designated U.S. agent for service of process, (Dongguan Beijia Electronic Technology Co., Ltd ), accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Lucky Cowboy Global Services, LLC accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company Name: Dongguan Beijia Electronic Technology Co., Ltd Contact Name: Jason Wang Address: Room 403, 4th Floor, 102 Yanwu Road, Dalingshan Town, Dongguan City, Guangdong Province Telephone No: +86-769-82586231 Email: [email protected] Signature [Jason Wang] U.S. Agent Information: Company Name: Lucky Cowboy Global Services, LLC Address: 2213 S. Braeswood Blvd. #12E Houston, TX 77030 USA FRN: 0033510934 Contact Name: Louie Liu Telephone No: +1 (713) 992-3369 Email: [email protected] Signature [Louie Liu]

Dongguan Beijia Electronic Technology Co., Ltd 2023-04-12 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2AZUG-GGMMR3) [Dongguan Beijia Electronic Technology Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Jason Wang Dongguan Beijia Electronic Technology Co., Ltd 2023-04-12 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for(FCC ID: 2AZUG-GGMMR3) [Dongguan Beijia Electronic Technology Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Jason Wang

Dongguan Beijia Electronic Technology Co., Ltd Long Term Confidentiality Request Letter 2023-4-12 Eurofins Electrical and Electronic Testing NA, Inc 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Wireless Transmitter / GGMMR3 / 2AZUG-GGMMR3) To Whom It May Concern This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Block Diagram, Schematic diagram, Operational Description) required to be submitted with this application be permanently withheld from public review. SPECIFY REASON FOR REQUEST (i.e. the above documents are company proprietary information that could never get into the possession of your competition). Please contact me if there is any information you may need. Sincerely, Signature: Name: Jason Wang Job Title: Address: Room 403, 4th Floor, 102 Yanwu Road, Dalingshan Town, Dongguan City, Guangdong Province

Agent Authorization Letter 2023-4-12 Eurofins Electrical and Electronic Testing NA, Inc 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen United Testing Technology Co.,Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Jason Wang Job Title: Address: Room 403, 4th Floor, 102 Yanwu Road, Dalingshan Town, Dongguan City, Guangdong Province

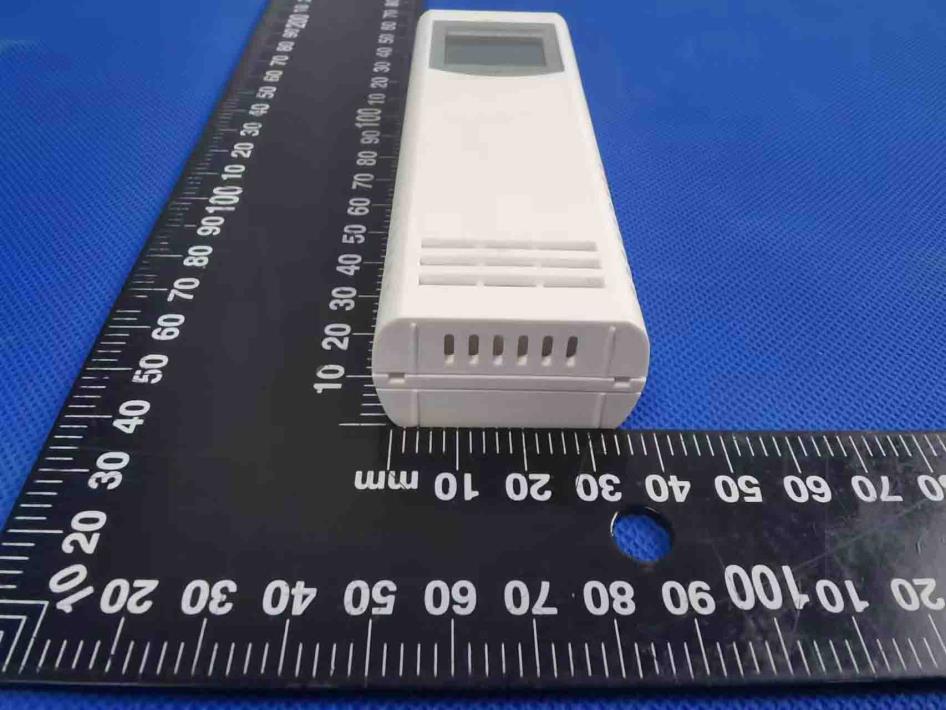

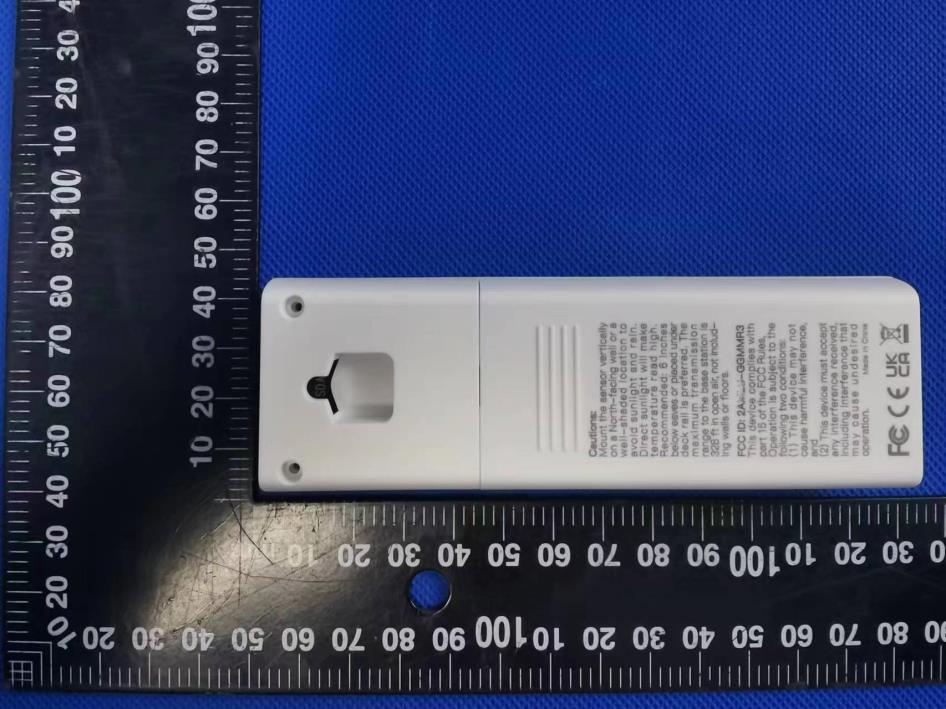

Model: GGMMR3 Model: GGMMR3 Model: GGMMR3

Model: GGMMR3 Model: GGMMR3 Antenna

MPE ESTIMATION FCC ID: 2AZUG-GGMMR3 1. Limit for Portable Equipment Exposure Frequency 1-g SAR 100MHz-6GHz 3.0 For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz 2. Estimation Result Frequency (MHz) PK Output Power(dBm) Output Power(mW) Test Separation Distance (mm) Measurement Result 1-g SAR 433.92 -21.97 0.006 5 0.001 3.0 Note: 1. use the maximum E-field strength(75.38dBuV/m) for the RF exposure evaluation 2. E(dBuV/m)=EIRP(dBm)-95.2 for distance 3m so the EIRP=75.38dBuV/m-95.2=-19.82dBm 3. EIRP(dBm)= ERP+2.15dBi so the ERP=-19.82dBm-2.15dBi=-21.97dBm ------The End------

Model: GGMMR3 Radiated Emission test

Page 1 of 22 Report No.: UNIA23040701ER-61 FCC RADIO TEST REPORT FCC ID: 2AZUG-GGMMR3 Sample ： Wireless Transmitter Trade Name： N/A Main Model： GGMMR3 Additional Model： N/A Report No.： UNIA23040701ER-61 Prepared for Dongguan Beijia Electronic Technology Co., Ltd Room 403, 4th Floor, 102 Yanwu Road, Dalingshan Town, Dongguan City, Guangdong Province Prepared by Shenzhen United Testing Technology Co., Ltd. 2F, Annex Bldg, Jiahuangyuan Tech Park, #365 Baotian 1 Rd, Tiegang C ommuni ty, Xi xi ang Str, Bao'an D i stri ct, Shenzhen, C hi na Page 2 of 22 Report No.: UNIA23040701ER-61 TEST RESULT CERT IFICAT ION Applicant ............................... : Dongguan Beijia Electronic Technology Co., Ltd Address................................... : Room 403, 4th Floor, 102 Yanwu Road, Dalingshan Town, Dongguan City, Guangdong Province Manufacturer ....................... : Dongguan Beijia Electronic Technology Co., Ltd Address................................... : Room 403, 4th Floor, 102 Yanwu Road, Dalingshan Town, Dongguan City, Guangdong Province Product description Product ................................... : Wireless Transmitter Trade Name ............................ : N/A Model Name ........................... : GGMMR 3 Test Methods ......................... : FCC Part 15 Subpart C 15.231 ANSI C63.10: 2013 This device described above has been tested by Shenzhen United Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified i n the report. This report shall not be reproduced except in full, without the written approval of UNI, this document may be altered or revised by Shenzhen United Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. Date (s) of performance of tests ............ : April 3~6, 2023 Date of Issue.......................................... : April 6, 2023 Test Result ............................................. : Pass Prepared by: Jason Ye/Supervisor Reviewer: Kelly Cheng/Supervisor Approved & Authorized Signer: Liuze/Manager Page 3 of 22 Report No.: UNIA23040701ER-61 Table of Contents Pages 1 TEST SUMM ARY.......................................................................................................................... 5 1.1 TEST PROCED URES A ND R ES UL T S ................................................................................... 5 1.2 TEST F ACILIT Y ...................................................................................................................... 6 1.3 MEASUREMENT UNCERTAINTY .......................................................................................... 7 2 GENERAL INFORM ATION ........................................................................................................... 8 2.1 GENER AL DE SCR IPT IO N OF E UT ........................................................................................ 8 2.2 CARRIER F REQ UE NC Y OF CHANNELS ............................................................................... 8 2.3 OPARATIO N OF E UT D UR I NG TESTING .............................................................................. 9 2.4 DESCR IPTIO N OF TEST SETUP ........................................................................................... 9 2.5 EQUIPMENT US ED IN TESTED SYSTEM.............................................................................. 9 2.6 ENV IRO NME NT AL CO ND IT IO NS .......................................................................................... 9 2.7 MEASUREMENT I NST R UME NT S L IST ............................................................................... 10 3 CONDUCTED EM ISSIONS TEST ............................................................................................... 11 3.1 LIM IT .................................................................................................................................... 11 3.2 TEST SETUP........................................................................................................................ 11 3.3 TEST PROCED URE ............................................................................................................. 11 3.4 TEST RESULT ..................................................................................................................... 11 4 RADI ATED EM ISSION TEST...................................................................................................... 12 4.1 LIM IT .................................................................................................................................... 12 4.2 TEST SETUP........................................................................................................................ 12 4.3 TEST PROCEDURE ............................................................................................................. 13 4.4 TEST RESULT ..................................................................................................................... 13 5 -20DB OCCUPIED BANDWIDTH................................................................................................ 17 5.1 LIM IT .................................................................................................................................... 17 5.2 TEST PROCEDURE ............................................................................................................. 17 5.3 TEST CO NF IG UR AT IO N ...................................................................................................... 17 5.4 TEST RESULT ..................................................................................................................... 17 6 DEACTIVATION TIM E ................................................................................................................ 18 6.1 LIM IT .............................................................…
