2AZUS-EW-MOD02BLE Module

4、Functional Block Diagram 5、Working mode schematic MCUDA14531 UART_RX UART_TX Wake_up Interrupt Vcc Gnd APP BLE BLE General Description The EW-MOD02 Module, is Bluetooth® Low Energy module based on world’s lowest power DA14531 SoC. The module offers a unique combination of the lowest power and the integration of all external components including antenna at a very affordable price. The module is designed to enable the use of Bluetooth® Low Energy in applications where Bluetooth® Low Energy could not be used until now because of cost or complexity. The bigger picture is to drive Bluetooth® Low Energy technology into every application, turning every product into a connected IoT node to drive the next 1 billion IoT devices in the market. The EW-MOD02 Module is supported by software that is easy to work with. This lowers the threshold to use Bluetooth® Low Energy technology and significantly speeds up the design time. Key Features ■ Bluetooth Compatible with Bluetooth® v5.1 ■ Processing and memories □ 16 MHz 32-bit Arm® Cortex® M0+ with SWD interface □ 512 Kbytes internal FLASH □ 48 Kbytes RAM □ 144 Kbytes ROM □ 32 Kbytes OTP ■ Current Consumption □ 2 mA RX at VBAT=3V □ 4 mA TX at VBAT=3V and 0 dBm □ 1.8 uA at sleep with all RAM retained ■ Radio □ Programmable RF transmit power from -19.5 to +2.5 dBm □ -94 dBm receiver sensitivity ■ Interfaces □ Quadrature decoder with 3 channels □ 4 channel 11-bit ENOB ADC □ 2 general purpose timers with PWM □ 9 GPIOs □ SPI □ 2x UART, 1wire UART support □ I2C ■ Power Management □ Operating range (1.8 V - 3.3 V) □ Inrush current control ■ Other □ Real Time Clock □ Trimmed 32 MHz Crystal ■ Packaging □ 10.0 mm x 15.0 mm x 3.0 mm package ■ Module Software Development Kit □ Configurable DSPS □ Codeless v2.0 □ SDK6 support Application ■ Beacons ■ Tags ■ Toys ■ Data acquisition ■ IoT ■ Robotics ■ Gaming □ TX Power:3.0dBm(Max.) 1 Pinout and Footprint Pinout Diagram Top View Table1：Pin Description Pin No Name Type Function Description 1 VCC PWR POWER 2 GND GND Ground 3 P0_11 DIO INPUT/OUTPU 4 P0_10 DIO INPUT/OUTPU SWDIO 5 P0_0 DIO Note1 INPUT/OUTPU RST 6 P0_1 DIO Note1 INPUT/OUTPU 7 P0_2 DIO INPUT/OUTPU SWCLK 8 P0_3 DIO Note1 INPUT/OUTPU 9 P0_4 DIO Note1 INPUT/OUTPU 10 P0_5 DIO INPUT/OUTPU 11 P0_6 DIO INPUT/OUTPU 12 P0_7 DIO INPUT/OUTPU 13 P0_8 DIO INPUT/OUTPU 14 P0_9 DIO INPUT/OUTPU 15 GND GND Ground Note 1 This pin is also used for the communication to the internal SPI FLASH ● DIO is Digital Input-Output ● PWR is Digital Input-Output ● GND is Digital Input-Output 2 Characteristic All MIN/MAX specification limits are guaranteed by design, production testing and/or statistical characterization. Typical values are based on characterization results at default measurement conditions and are informative only. Default measurement conditions (unless otherwise specified): VBAT= 3.0 V, TA = 25 oC. All radio measurements are done with standard RF measurement equipment. 3 Absolute Maximum Ratings Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, so functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specification are not implied. Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability. Table 2: Absolute Maximum Ratings Parameter Description Conditions Min Max Unit V BAT_LIM limiting battery supply voltage -0.1 3.6 V 4 nRecommended Operating Conditions Table 3: Recommended Operating Conditions Parameter Description Conditions Min Typ Max Unit V BAT battery supply voltage enabling FLASH programming 1.65 3.3 V V PIN voltage on a pin -0.1 3.3 V T A ambient operating temperature -40 27 85 °C FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) thi s device may not cause harmful interference, and (2) this device must accept any interference received, incl uding interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’ s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursua nt to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inte rference in a residential installation. This equipment generates uses and can radiate radio frequency energy a nd, if not installed and used in accordance with the instructions, may cause harmful interference to radio com munications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turn ing the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help important announcement. Important Note: Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Country Code selection feature to be disabled for products marketed to the US/Canada. This device is intended only for OEM integrators under the following conditions: 1. The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2. The transmitter module may not be co-located with any other tr…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-5-31> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AZUS-EW-MOD02 EW-MOD02 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Weidong Yan/OM Company: Shenzhen Easywphy Communication Technology Co., Ltd. Address: 302, Huichuang Workshop, Gushu Community, Xixiang Street, Baoan District, Shenzhen China Phone: 15697550835 Fax: 0755-23503571 E-Mail: [email protected]

Shenzhen Easywphy Communication Technology Co., Ltd. 302, Huichuang Workshop, Gushu Community, Xixiang Street, Baoan District, Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-5-31 To whom it may concern: We, Shenzhen Easywphy Communication Technology Co., Ltd. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AZUS-EW-MOD02 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Weidong Yan/OM Company: Shenzhen Easywphy Communication Technology Co., Ltd. Address: 302, Huichuang Workshop, Gushu Community, Xixiang Street, Baoan District, Shenzhen China Phone: 15697550835 Fax: 0755-23503571 E-Mail: [email protected]

Shenzhen Easywphy Communication Technology Co., Ltd. 302, Huichuang Workshop, Gushu Community, Xixiang Street, Baoan District, Shenzhen China Module Approval Request Letter Date: 2021-5-31 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subjects: Limited Module Approval Request Letter The Device,FCC ID: 2AZUS-EW-MOD02, is seeking FCC authorization as a modular transmitter. The EUT meets the requirement for modular approval as detailed in FCC Public Notice DA 00-1407. Compliance to each of the requirement is described below: (a) The radio elements must have the radio frequency circuitry be shielded. Physical/discrete and tuning capacitors may be located external to the shield, but must be on the module assembly. Yes the module with a shield. (b) The module shall have buffered modulation/data input(s) (if such inputs are provided) to ensure that the module will comply with the requirements set out in the applicable RSS standard under conditions of excessive data rates or over-modulation. Yes. (c) The module shall have its own power supply regulation on the module. This is to ensure that the module will comply with the requirements set out in the applicable standard regardless of the design of the power supplying circuitry in the host device which houses the module. The modular has an onboard 3.3V regulator(integrated in DA14531). (d) The module shall comply with the provisions for external power amplifiers and antennas detailed in this standard. The equipment certification submission shall contain a detailed description of the configuration of all antennas that will be used with the module. The modular has two Patch Antenna which comply with the antenna requirement of Section 15.203. (e) The module shall be tested for compliance with the applicable standard in a stand-alone configuration, i.e. the module must not be inside another device during testing. The modular was tested in a standalone configuration apart from host units. (f) The module shall comply with the Category I equipment labeling requirements and CFR § 15.212(a)(1)(vi). The modular has its own FCC ID number. (g) The module shall comply with any applicable FCC RF exposure requirement which are based on the intended use/configurations. Yes, RF cexposure evaluation performed at 20cm. (h) The modular transmitter complies with all applicable FCC rules. Instructions for maintaining compliance are given in the user instructions. Yes If you have any questions, please feel free to contact us at the address shown below Sincerely Name/Title： Weidong Yan/OM Company: Shenzhen Easywphy Communication Technology Co., Ltd. Address: 302, Huichuang Workshop, Gushu Community, Xixiang Street, Baoan District, Shenzhen China Phone: 15697550835 Fax: 0755-23503571 E-Mail: [email protected]

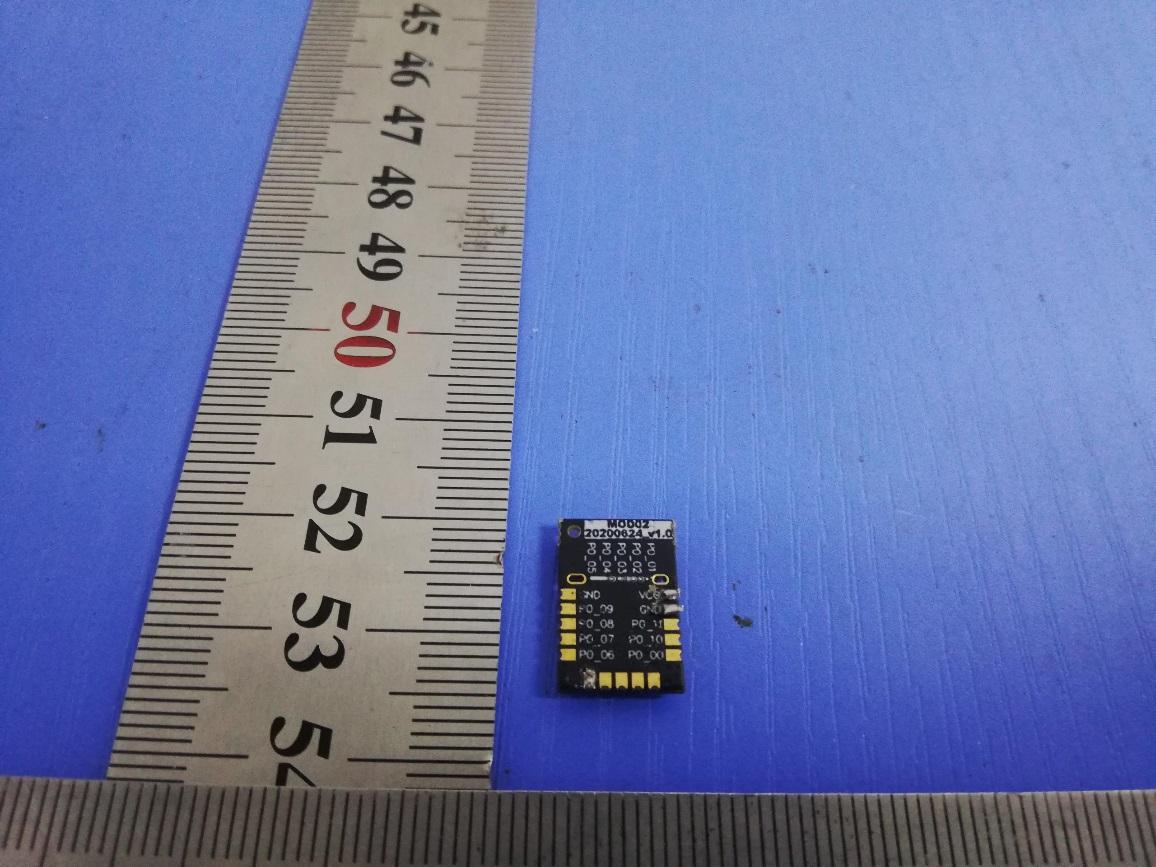

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L0.5cm*W0.5cm Label Location BLE Module Model No.: EW-MOD02 FCC ID: 2AZUS-EW-MOD02

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 Fig.3 BT Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 FCC RF Exposure Evaluation 1. Product Information FCC ID : 2AZUS-EW-MOD02 Product name : BLE Module Test Model : EW-MOD02 Power supply : Input: DC 3.3V, 5mA Bluetooth : 2402MHz ~ 2480MHz Channel Number : 40 channels for Bluetooth V5.1(DTS) Channel Spacing : 2MHz for Bluetooth V5.1(DTS) Modulation Type : GFSK for Bluetooth V5.1(DTS) Bluetooth Version : V5.1 Antenna Type : Ceramics Antenna Antenna Gain : 0dBi(Max.) Hardware version : V1.0 Software version : V1.0 Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Mobile Devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 2. Evaluation method and Limit Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information EW-MOD02 Antenna can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Antenna Ceramics Antenna 2402MHz ~ 2480MHz 0dBi BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 6. Conducted Power Results <BT LE> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 1.253 19 2440 1.556 39 2480 1.364 7. Manufacturing Tolerance <BT LE> GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 1.0 2.0 1.0 Tolerance ±(dB) 1.0 1.0 1.0 6. Evaluation Results 6.1 Standalone Evaluation Band/Mode RF output power Antenna Gain (dBi) MPE (mW/cm2) MPE Limits (mW/cm2) dBm mW GFSK 3.0 1.9953 0 0.0006 1.0000 Remark: 1. Output power including tune-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer; 6.2 Simultaneous Transmission for SAR Exclusion The sample support one BT modular. No need consider simultaneous transmission. 7. Conclusion The measurement results comply with the FCC…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 Report No.: LCS210508010AEA Page 1 of 14 Appendix A RF Test Data for BT V5.1(BLE) (Conducted Measurement) Product Name: BLE Module Trade Mark: Easywphy Test Model: EW-MOD02 Environmental Conditions Temperature: 24.2  C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Jay Li Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 Report No.: LCS210508010AEA Page 2 of 14 A.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH 1.253 30 PASS BT LE MCH 1.556 30 PASS BT LE HCH 1.364 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 Report No.: LCS210508010AEA Page 3 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 Report No.: LCS210508010AEA Page 4 of 14 A.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -14.303 8 PASS BT LE MCH -13.595 8 PASS BT LE HCH -13.766 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 Report No.: LCS210508010AEA Page 5 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 Report No.: LCS210508010AEA Page 6 of 14 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6703 ≥0.5 PASS BT LE MCH 0.6791 ≥0.5 PASS BT LE HCH 0.6799 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 Report No.: LCS210508010AEA Page 7 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 Report No.: LCS210508010AEA Page 8 of 14 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH 1.109 -38.337 -18.891 PASS BT LE MCH 1.498 -38.032 -18.502 PASS BT LE HCH 1.292 -38.169 -18.708 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 Report No.: LCS210508010AEA Page 9 of 14 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 Report No.: LCS210508010AEA Page 10 of 14 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 Report No.: LCS210508010AEA Page 11 of 14 A.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH 1.230 -50.250 -18.77 PASS BT LE HCH 1.364 -45.382 -18.64 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 Report No.: LCS210508010AEA Page 12 of 14 A.8 Restrict-band band-edge measurements Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -42.96 2.0 0 54.30 PEAK 74 PASS Ant1 2310.0 -53.32 2.0 0 43.94 AV 54 PASS Ant1 2390.0 -42.69 2.0 0 54.57 PEAK 74 PASS Ant1 2390.0 -52.86 2.0 0 44.40 AV 54 PASS 2480 Ant1 2483.5 -38.93 2.0 0 58.32 PEAK 74 PASS Ant1 2483.5 -48.52 2.0 0 48.74 AV 54 PASS Ant1 2500.0 -40.85 2.0 0 56.40 PEAK 74 PASS Ant1 2500.0 -52.33 2.0 0 44.93 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 Report No.: LCS210508010AEA Page 13 of 14 Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 Report No.: LCS210508010AEA Page 14 of 14 Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 Report No.: LCS210508010AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 33 FCC TEST REPORT For Shenzhen Easywphy Communication Technology Co., Ltd. BLE Module Test Model: EW-MOD02 Prepared for : Shenzhen Easywphy Communication Technology Co., Ltd. Address : 302, Huichuang Workshop, Gushu Community, Xixiang Street, Baoan District, Shenzhen Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 08, 2021 Number of tested samples : 2 Sample No. : 210508010A-1, 210508010A-2 Serial number : Prototype Date of Test : May 08, 2021 ~ May 19, 2021 Date of Report : May 21, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 Report No.: LCS210508010AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 33 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS210508010AEA Date of Issue ................................... : May 21, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Shenzhen Easywphy Communication Technology Co., Ltd. Address ........................................... : 302, Huichuang Workshop, Gushu Community, Xixiang Street, Baoan District, Shenzhen Test Specification Standard.......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : BLE Module Trade Mark .......................................................................................................................................... : Easywphy Test Model .......................................................................................................................................... : EW-MOD02 Ratings ................................................................................................................................................ : Input: DC 3.3V, 5mA Result ........................................... : Positive Compiled by: Supervised by: Approved by: Vera Deng / File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 Report No.: LCS210508010AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 33 FCC -- TEST REPORT Test Model........................... : EW-MOD02 EUT......................................... : BLE Module Applicant............................... : Shenzhen Easywphy Communication Technology Co., Ltd. Address.................................. : 302, Huichuang Workshop, Gushu Community, Xixiang Street, Baoan District, Shenzhen Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Easywphy Communication Technology Co., Ltd. Address................................... : 302, Huichuang Workshop, Gushu Community, Xixiang Street, Baoan District, Shenzhen Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Easywphy Communication Technology Co., Ltd. Address................................... : 302, Huichuang Workshop, Gushu Community, Xixiang Street, Baoan District, Shenzhen Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210508010AEA May 21, 2021 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 Report No.: LCS210508010AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 33 Revision History Revision Issue Date Revisions Revised By 000 May 21, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 Report No.: LCS210508010AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 33 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DE…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZUS-EW-MOD02 _______________________________________________________________________________________________ Photo of Conducted Emissions Measurement Fig. 3
