2AZV9-ZL006Wireless Cast

Wireless Cast Before using this product, please read this user manual carefully and keep it in a safe place Product Introduction Performance parameter Connected for the first time packing list feature of product Schematic diagram 1. Fast boot in 10 seconds； 2. WeChat scan code quick distribution network； 3. Support Huawei mobile phone computer mode； 4. Support wireless projection for multiple applications, suitable for Android/Apple devices； 5. Support Apple mobile device mirroring same screen display, suitable for iphone, ipad, mac notebook, can cast Images, videos, games, etc . 6. Support Android mobile device mirroring on the same screen display, you can cast pictures, videos, games and other content； 7. Support WIN10 notebook mirror display on the same screen, you can cast PPT, WORD, web pages and other content； Method one- WeChat scan the distribution network Scan the QR code on the homepage of the screen projector, fill in the name and password in the "WIFI Information" according to the prompts, and connect. Method Two- URL distribution network A. Turn on mobile Wi-Fi -> Enter WLAN search and connect to CITIfuture-xxxx -> Enter the password 12345678-> If prompted whether to continue using this WLAN, click "Use"； B. Enter the address 192.168.69.1 in the mobile browser and enter -> Click "Wifi" -> Choose commonly used WIFI-> enter password -> Click "CONNECT". Projector HDMI Micro-USBManual/Warranty Change network Make sure that the phone and the projector are connected under the same WIFI -> Enter the upper right corner of the screen projector homepage in the mobile browser "Set Address" and enter -> After entering the webpage, select "WIFI" -> Select the WIFI that needs to be replaced-> enter password-> Click "CONNECT". Functions and instructions Name and content of hazardous substances in the product Open the video App, enter the video playback window, and click the TV projection icon ，Search and select CITIfuture-xxxx, you can cast screen. 2、TV projection 1、 wireless same screen 1) Android device video/game on the same screen Enter the screen projection function in the phone/tablet, search for and connect to the screen projection device（Mirror same screen selection CITIfuture-xxxx，Picture or video push selection CITIfuture-xxxx）.Path reference for screen projection function of different brands of mobile phones： Huawei： Drop-down menu -> wireless projection/multi-screen interaction （Huawei phones that support computer mode can select computer mode after the same screen）； Millet： Drop-down menu -> cast screen； OPPO/VIVO：Drop-down menu -> Smart screencast； other： Settings -> More connection methods -> Mobile phone screencast. 2) Apple device video/game on the same screen （In order to ensure the smoothness of the same screen, it is recommended that both the mobile phone and the projector are connected to use under 5G WIFI） Make sure that the phone and the projector are connected to the same WIFI-> control center -> Screen mirroring -> Choose CITIfuture-xxxx . 3） WIN10 Office projection Press WIN+K at the same time -> select CITIfuture-xxxx . 4） Macbook Office projection Right-click on the desktop to enter "Display Settings"-> Scroll down to multi-monitor settings -> Go to "Connect to wireless display Finder" -> Search and select CITIfuture-xxxx.Go to "Connect to a wireless display" -> Search and select CITIfuture-xxxx. TV Thank you for choosing our products. You can fully understand the functions and operation methods of the equipment by reading this manual. This product mainly realizes the function of small screen transmission and large screen transmission. The pictures, audios, videos, documents and games on the mobile terminal can be simultaneously pushed to the TV and projector with HDMI socket to watch on the big screen. It is suitable for home entertainment, business meetings, teaching training and other fields, so that users can get better Audiovisual experience. Main chip Resolution RAM storage power supply Projection Agreement stand by WIFI work frequency A11winner H3 DLNA、Miracast、AirPlay 4K/30Hz 5G/2.4G 256MB 5V/1A Micro-USB 16MB × × × × ○：Indicates that the content of the toxic and hazardous substance in all homogeneous materials of the p art is below the limit specified in the GB/T26572 standard. ×：Indicates that the content of the toxic and hazardous substance in at least one of the homogeneous materials of the part exceeds the limit requirement specified in GB/T26572. The number in this logo indicates that the environmental protection use period of the product under normal use is 10 years. 10 Three Guarantees Range If the product has quality problems within 7 days from the date of purchase, you can choose to return or repair it; If the product has quality problems within 15 days from the date of purchase, you can choose to exchange or repair; The host is guaranteed for one year from the date of purchase; The accessory products are guaranteed for three months. The scope of the three guarantees is not allowed (the implementation of paid maintenance services) Normal paint falling, discoloration, abrasion and consumption during product use; Machine failure caused by consumers' disassembly, maintenance or improper storage without the permission of the company； Machine failure or damage caused by natural disasters or force majeure and other non-product quality factors; The machine number filled in the consumer purchase invoice or warranty card is inconsistent with the product body code; The product certificate and the body tamper-proof sticker are damaged; Those who do not have the purchase invoice and warranty card, or the warranty card has not been filled in or the dealer’s seal has not been stamped. Warranty description Warranty Card *Retained by the user, no replacement if lost username User address telephone number Product number Order number Purchase date Invoice number FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following…

Text truncated - open the document above for the full version.

Page 1 of 1 Rev.2.0 Shenzhen Zhile Future Technology Co., Ltd WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for FCC ID: 2AZV9-ZL006 Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo-location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Signature: Name / Title: Jingcheng Wang / CEO Phone: 0755-23200825 Email: [email protected] Date: 2021-05-17

ShenzhenZhileFutureTechnologyCo.,Ltd AgentAuthorization Company:ShenzhenZhileFutureTechnologyCo.,Ltd Address:201Linzhubuilding,No.18LonggangRoad,Longgangstreet,Longgang District,ShenzhenChina ProductName:WirelessCast TradeMark: ModelNumber(s):ZL006 FCCID:2AZV9-ZL006 WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2021-5-17 Name:JingchengWang Title:CEO Company:ShenzhenZhileFutureTechnologyCo.,Ltd

Shenzhen Zhile Future Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-5-17 Subject; Request for Confidentiality FCC ID: 2AZV9-ZL006 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Software Security Requirements For U-NII Devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jingcheng Wang Title: CEO

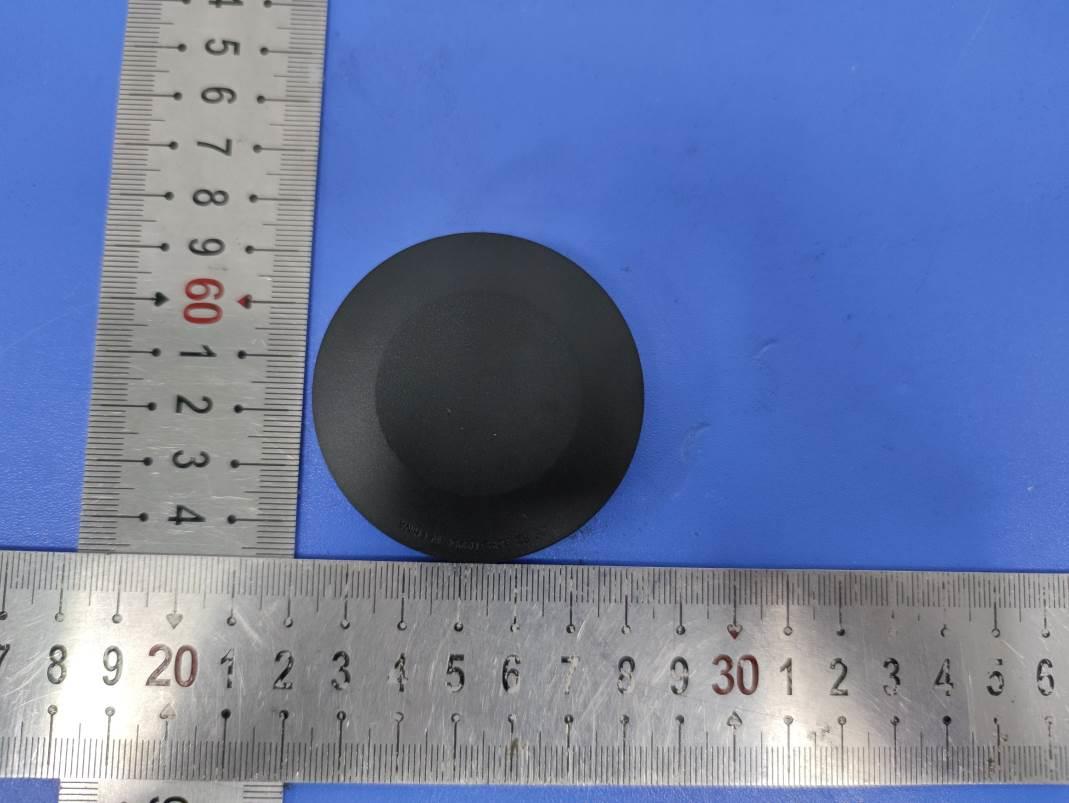

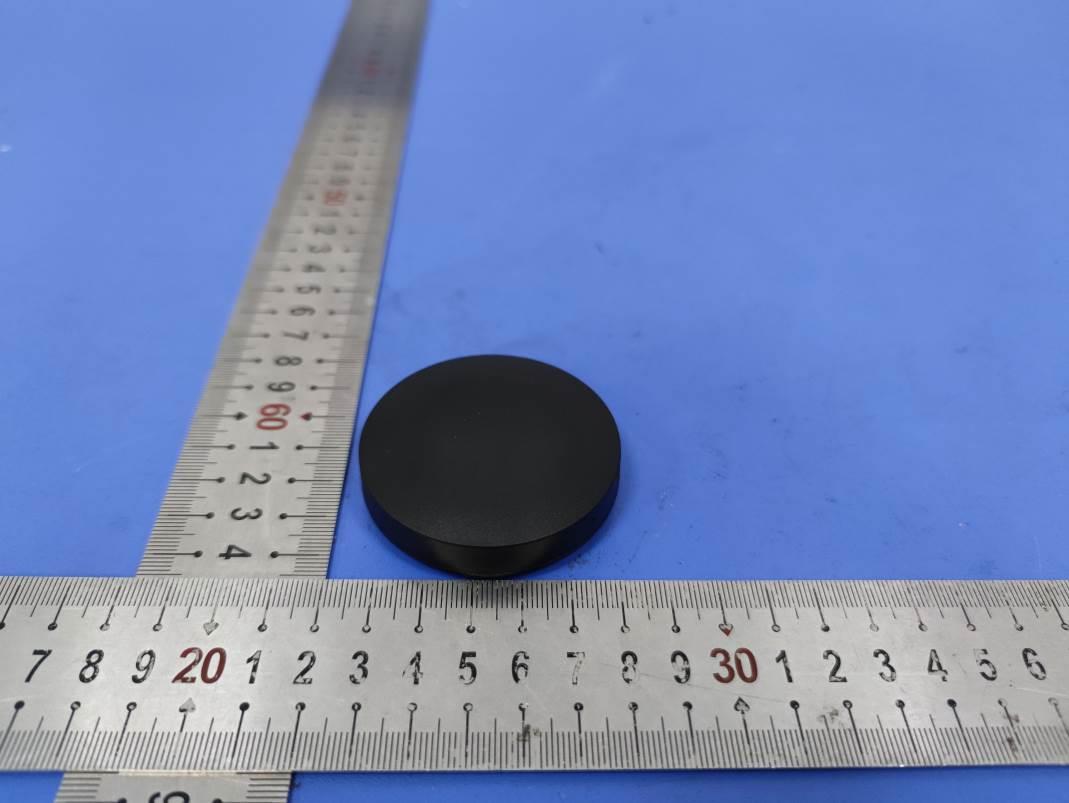

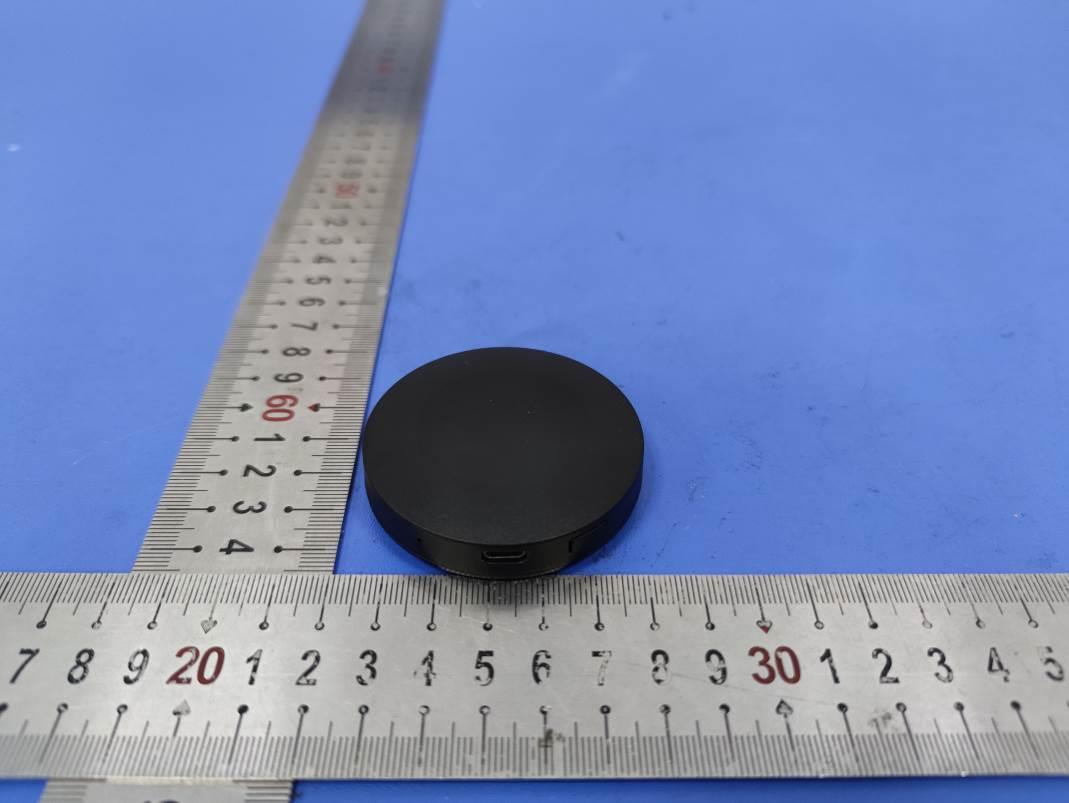

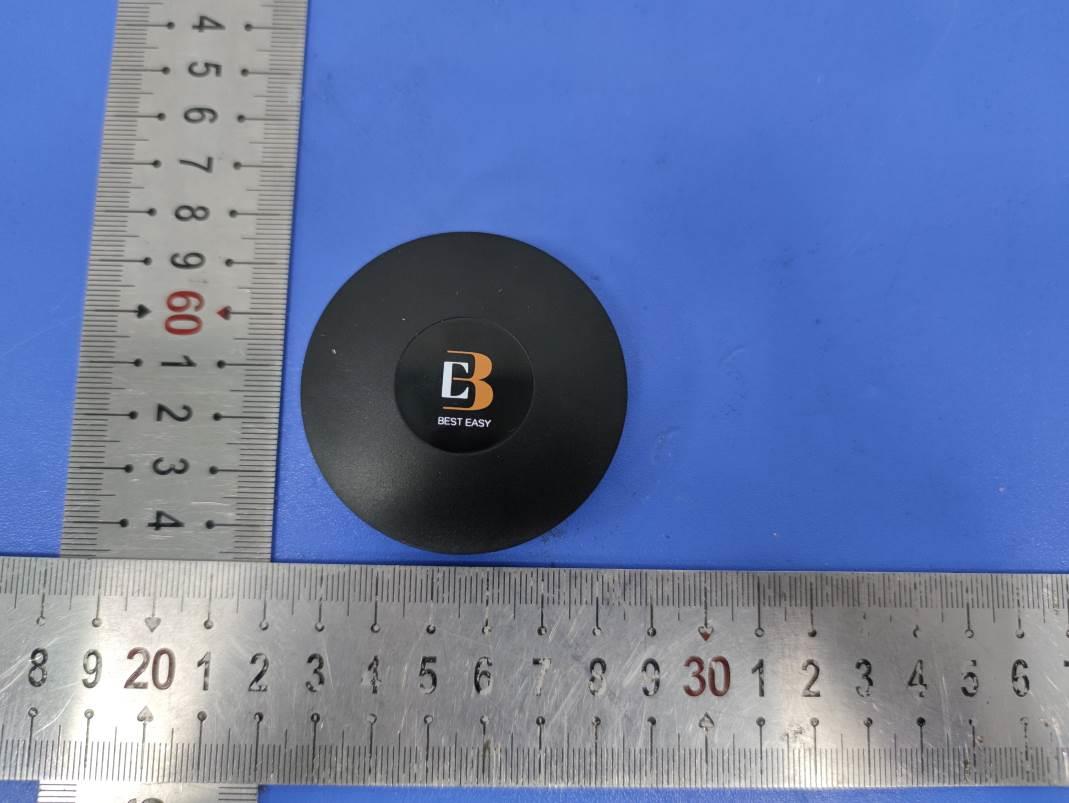

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig. 7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L 4.0cm*W4.0cm Label Location Wireless Cast Model No.: ZL006 FCC ID: 2AZV9-ZL006 Caution:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 INTERIOR PHOTOGRAPHS fig.1 fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 fig.3 fig.4 WIFI/ANT

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AZV9-ZL006 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 6 Maximum Permissible Exposure Report 1. Product Information EUT : Wireless Cast Test Model : ZL006 Power Supply : Input: DC 5V, 1A Hardware Version : H3DL1_DDR3 VER2.1 Software Version : build-166 2.4G WIFI Frequency Range : 2412MHz ~ 2462MHz Channel Spacing : 5MHz Channel Number : 11 Channel for 20MHz bandwidth(2412~2462MHz) 7 Channel for 40MHz bandwidth(2422~2452MHz) Modulation Type : 802.11b: DSSS; 802.11g/n: OFDM Antenna Description : PCB Antenna, 0dBi(Max.) 5G WIFI : Frequency Range : 5180-5240MHz, 5260-5320MHz, 5500-5700MHz, 5745-5825MHz Channel Number : 4 Channels for 20MHz bandwidth(5180-5240MHz) 4 Channels for 20MHz bandwidth(5260-5320MHz) 11 Channels for 20MHz bandwidth(5500-5700MHz) 5 channels for 20MHz bandwidth(5745-5825MHz) 2 channels for 40MHz bandwidth(5190~5230MHz) 2 channels for 40MHz bandwidth(5270~5310MHz) 5 Channels for 40MHz bandwidth(5510-5670MHz) 2 channels for 40MHz bandwidth(5755~5795MHz) Modulation Type : IEEE 802.11a/n: OFDM (256QAM,64QAM,16QAM,QPSK BPSK) Antenna Description : PCB Antenna, 0dBi(Max.) Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AZV9-ZL006 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 6 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices. 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Uncontrolled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AZV9-ZL006 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 6 5. Antenna Information ZL006-Plus can only use antennas certificated as follows provided by manufacturer; Internal/External Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Notes 2.4G-5GWIFI Antenna PCB antenna 5000-6000 MHz 0 dBi 2.4G-5GWIFI Antenna 6. Conducted Power [2.4G WLAN] Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) IEEE 802.11b 1 2412 16.85 6 2437 16.94 11 2462 16.43 IEEE 802.11g 1 2412 16.96 6 2437 16.5 11 2462 16.47 IEEE 802.11n HT20 1 2412 16.93 6 2437 16.7 11 2462 16.65 IEEE 802.11n HT40 3 2422 16.21 6 2437 16.4 9 2452 16.09 [5.2GHz WLAN] Mode Channel Frequency (MHz) Average Conducted Output Power (dBm) IEEE 802.11a 36 5180 13.3 40 5200 13.41 48 5240 13.31 IEEE 802.11n HT20 36 5180 13.39 40 5200 13.23 48 5240 13.07 IEEE 802.11n HT40 38 5190 13.01 46 5230 12.38 [5.3GHz WLAN] Mode Channel Frequency (MHz) Average Conducted Output Power (dBm) IEEE 802.11a 52 5260 12.46 56 5280 12.83 64 5320 13.16 IEEE 802.11n HT20 52 5…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 1 of 46 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: Wireless Cast Trade Mark: N/A Test Model: ZL006 Environmental Conditions Temperature: 24.9 C Relative Humidity: 55.4% ATM Pressure: 100.0 kPa Test Engineer: Kay Hu Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 100 PASS 11G 2437 Ant1 100 PASS 11N20SISO 2437 Ant1 100 PASS 11N40SISO 2437 Ant1 100 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 2 of 46 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 3 of 46 Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 4 of 46 A.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 16.85 30 PASS MCH 16.94 30 PASS HCH 16.43 30 PASS 11G LCH 16.96 30 PASS MCH 16.5 30 PASS HCH 16.47 30 PASS 11N20SISO LCH 16.93 30 PASS MCH 16.7 30 PASS HCH 16.65 30 PASS 11N40SISO LCH 16.21 30 PASS MCH 16.4 30 PASS HCH 16.09 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 5 of 46 A.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/3KHz] Limit [dBm/3KHz] Verdict 11B LCH -14.310 8 PASS MCH -14.226 8 PASS HCH -14.827 8 PASS 11G LCH -18.939 8 PASS MCH -19.291 8 PASS HCH -19.192 8 PASS 11N20SISO LCH -18.345 8 PASS MCH -19.153 8 PASS HCH -18.552 8 PASS 11N40SISO LCH -21.223 8 PASS MCH -20.331 8 PASS HCH -14.060 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 6 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 7 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 8 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 9 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 10 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 11 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 12 of 46 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 9.156 ≥0.5 PASS MCH 9.151 ≥0.5 PASS HCH 9.524 ≥0.5 PASS 11G LCH 16.62 ≥0.5 PASS MCH 16.60 ≥0.5 PASS HCH 16.55 ≥0.5 PASS 11N20SISO LCH 17.83 ≥0.5 PASS MCH 17.76 ≥0.5 PASS HCH 17.74 ≥0.5 PASS 11N40SISO LCH 36.51 ≥0.5 PASS MCH 36.23 ≥0.5 PASS HCH 36.05 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 13 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 14 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 15 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 16 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 17 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 18 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 19 of 46 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdic t 11B LCH 4.16 -37.927 -15.840 PASS MCH 4.276 -38.027 -15.724 PASS HCH 3.739 -38.052 -16.261 PASS 11G LCH -5.12 -37.989 -25.120 PASS MCH -5.206 -38.417 -25.206 PASS HCH -4.764 -38.039 -24.764 PASS 11N20 SISO LCH -5.058 -38.350 -25.058 PASS MCH -4.835 -38.432 -24.835 PASS HCH -4.416 -37.071 -24.416 PASS 11N40 SISO LCH -7.892 -38.056 -27.892 PASS MCH -7.823 -38.073 -27.823 PASS HCH -8.068 -37.621 -28.068 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 20 of 46 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 21 of 46 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 22 of 46 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 23 of 46 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 24 of 46 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 25 of 46 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 26 of 46 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 27 of 46 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 28 of 46 11N20SISO_HCH_Graphs Pref/11N20 SISO/HCH Puw/11N20 SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA Page 29 of 46 11N40SISO_LCH_Graphs Pref/11N40 SISO/LCH Puw…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 37 FCC TEST REPORT For Shenzhen Zhile Future Technology Co., Ltd Wireless Cast Test Model: ZL006 Prepared for : Shenzhen Zhile Future Technology Co., Ltd Address : 201 Linzhu building, No.18 Longgang Road, Longgang street, Longgang District, Shenzhen China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : March 30, 2021 Number of tested samples : 1 Serial number : Prototype Date of Test : March 30, 2021 ~ April 16, 2021 Date of Report : April 20, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 37 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS210301242AEA Date of Issue ................................... : April 20, 2021 Testing Laboratory Name ............. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Shenzhen Zhile Future Technology Co., Ltd Address ........................................... : 201 Linzhu building, No.18 Longgang Road, Longgang street, Longgang District, Shenzhen China Test Specification Standard .......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : Wireless Cast Trade Mark ...................................... : Test Model ..................................... : ZL006 Ratings ............................................ : Input: DC 5V, 1A Result ............................................ : Positive Compiled by: Supervised by: Approved by: Linda He/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 37 FCC -- TEST REPORT EUT........................................ : Wireless Cast Test Model........................... : ZL006 Applicant............................... : Shenzhen Zhile Future Technology Co., Ltd Address.................................. : 201 Linzhu building, No.18 Longgang Road, Longgang street, Longgang District, Shenzhen China Telephone.............................. : / Fax......................................... : / Manufacturer........................ : Shenzhen Zhile Future Technology Co., Ltd Address................................... : 201 Linzhu building, No.18 Longgang Road, Longgang street, Longgang District, Shenzhen China Telephone.............................. : / Fax......................................... : / Factory.................................. : SHENZHEN AIKEWEIDA TECHNOLOGY CO., LTD Address.................................. : 5th Floor, Building A, Building A, Building B, Building C, Building D, Guangmingzhizao High-tech Industrial Park, Zhenmei Community, Xinhu Street, Guangming District, Shenzhen China Telephone.............................. : / Fax......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210301242AEA April 20, 2021 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 37 Revision History Revision Issue Date Revisions Revised By 000 April 20, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZV9-ZL006 Report No.: LCS210301242AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 37 TABLE OF CONTENTS 1. GENERAL INFORMATION .............................................................................................................…
