RADIOTELEPHONE SERVICE SIGNALS IS PROHIBITED UNDER FCC AM Mode FM Mode Bluetooth turn on GPS GPS turn on Transmitting power Indicates the amplitude of audio transmission when transmitting, and the signal strength when receiving Icon Description CTCSS display DCS display Frequency difference + Frequency difference - Dual standby VOX Reverse Frequency Talk Around Narrow Band Battery level display Keypad lock High Power Low Power Tone while DTMF transmitting 4R-CTCSS接收模拟亚音 OFFNone DCS 67.0HZ,...,2 54.1HZ Standard CTCSS. Input standard or nonstandard CTCSS via keypad. 5R-DCS接收数字亚音 OFFNone DCS D023N,...,D7 54I Standard DCS None CTCSS 6T-CTCSS发射模拟亚音 OFF 67.0HZ,...,2 54.1HZ Standard CTCSS. Input standard or nonstandard CTCSS via keypad. 7T-DCS发射数字亚音 OFFNone DCS D023N,...,D7 54I Standard DCS High Power Transmitting Lower Power Transmitting Off Battery saving Off Battery saving 8VOICEPRI 语音加密OFF Encryption 1 Encryption 2 Encryption 3 Encryption 4 Common name List 9CH-MAME 信道名称 10TXP发射功率 HIGH LOW 11SAVE省电模式 OFF 1 2Normal saving 3Super saving 12 POGER 通话结束提示音 OFF Turn off ON Turn on 13TOT发射限时 30,60,... 480S The number is from 30 to 480s, and the maximum time for PTT transmission is indicated in 30s steps 14VOX声控发射 OFF Turn off VOX function, transmitting without PTT pressing 1,2,...9 15W/N信道带宽 WIDEWide mode NARRNarrow mode Activate the sound pressure intensity of voice control, level 1 is the most sensitive 16VOICE语音提示开关 OFF ON 17BEEP哔音开关 OFF ON 18LANGUAGE菜单语言 ENGLISHEnglish Chinese Chinese 19BCL繁忙锁定 OFFOFF ONON 20SC-REV扫描模式 TO Time scanning, the walkie-talkie pauses scanning when it detects a signal, and after staying stopped for about 5 seconds, the walkie-talkie will continue scanning even if the signal is still there. CO Carrier scanning, the two-way radio pauses scanning when a channel is detected and keeps it on the same frequency until the signal disappears. There is a 2 second delay between the disappearance of the signal and the resumption of scanning to allow time for the response to begin transmission. SE Search scaning, the walkie-talkie exits scanning when it detects a signal and stays at this frequency. 21PF2 侧键2短按功能设 置 22 PF2LONG PRESS 侧键2长按功能设 置 23PF3 侧键3短按功能设 置 24ABR 自动背光灯时间设 置 ON 5S,10S... 3Min、 Time between the background light ON to automatically OFF. 25OFFSET频差频率 00.000,...,9 9.995 In frequency mode, the difference between the transmitting and receiving frequencies 26SFT-D频差方向 OFF In frequency mode, turn off the difference between the transmitting and rece- iving frequencies + In frequency mode, the TX frequency=RX frequency plus frequency difference In frequency mode, the TX frequency=RX frequency minus frequency difference - Turn off voice prompt Turn on voice prompt Turn off operation prompt Turn on operation prompt Background light is always on 27SCANCTCSS扫描模拟亚音 28SCANDCS扫描数字亚音 29 CDCSSSAVE MODE 扫描亚音频存储 ALL ALL RXReceiving TXTransmitting 30POWERONMSG开机画面选择 LOGOPhoto VOLTAGEBattery voltage 31ANINAME本机名称选择 NUM1...NUM60 32S-CODEDTMF信息码1,2,3...15 33DTMFCODE上下线码 OFF Turn off BOT EOT BOTH 34DTMFST侧音开关 OFF DT-ST ANI-ST DTMF prompt when automatically transmitting DTM DT+ANI DTMF prompt when automatically transmitting DTMF and press key to transmitting DTMF 35AUTOLK自动键盘锁 OFF 5S、10S、15S 36SCANADD信道扫描添加 37TONETONE音 1000,1450, 1750,2100Hz 38PTT-LT发码附加延迟 0,100,...,10 00 Delay time before automatic DTMF transmitting Control the time of menu automatically exit 39 MENUEXIT TIME 菜单自动退出时间5,10,...60S 40VOXDELAY声控延时 0.5SEC..... 2.0SEC 41RP_STE过中继尾音消除OFF Due to the delay of the repeater, noise appears when receive instant signal. No.1---No.50 radio. The radio name of 51-60 can be set Press PTT to transmitting DTMF Release PTT to transmitting DTMF No DTMF prompt when press key to transmitting DTMF DTMF prompt when press key to transmitting DTMF BOTH Turn off auto keypad lock Turn on the keypad timing automatic lock function OFF: Adjust to el iminate the tail. If want to ensure if the repeater is work or not, set OFF. 1,2,3,4,5, ...10S 42RPT-RL过中继尾音延时 OFF OFF: Adjust the length of time the tail sound appears, if not needed, set it to off. 1,2,3,4,5, ...10S 43ANIFUNCTION身份码功能 OFFTurn off ONTurn on 44MDF-AA段显示模式 FREQ A band displays as frequency in channel mode , CH A band displays as channel in channel mode NAME A band displays as channel name in channel mode 45MDF-BB段显示模式 FREQ B band displays as freq- uency in channel mode CH B band displays as channel in channel mode NAME band displays as channel name in channel mode In dual standby mode, press PTT to transmitting A band for cross-band TX/RX A In dual standby mode press PTT to tra- nsmitting B band for cross-band TX/RX After releasing the PTT, the radio will send a turn-off code to suppress the instant noise of the receiver. After releasing the PTT, the radio will send a turn-off code to suppress the instant noise of the receiver. After releasing the PTT, the radio will send a turn-off code to suppress the instant noise of the receiver. B 48STE尾音消除 OFF ON 49AL-MOD报警模式 SITEOn-site Emergency SOUND CODE 50GPSGPS定位 OFF ON 51BLUETOOTH蓝牙写频 OFF ON 52DISPLAY接收时间显示 OFF ON 53 RESET 恢复出厂设置 VFO ALL 46TDR双频守侯 OFFTurn off ONTurn on In dual standby mode, transmitting current frequency band 47TX-A/B 双守发射选择 OFF Send emergency voice Send emergency code Turn off Turn on Turn off Turn on Turn off Turn on Menu back to factory setting Menu and channel back to factory setting Note: When entering the menu, take note of whether to set A band or B band. NoMenu List Chinese 2nd menu characters Description 0SQL静噪等级 0,...,9 1STEP步进频率 2.50K 5.00K 6.25K 10.00K 12.50K 20.00K 25.00K 50.00K 2MEMCH信道存储000,...,256 Indicate the channel number to be stored while store channel. if ‘CH’ in front of number means this channel already has a channel parameter. 3DELCH信道删除000,...,256 The lower the level, the easier it is to be disturbed, the higher the level, the worse the sensitivity. Better set as medium. In frequency mode, to change frequency step Delete the channelparameters of the speci…

Text truncated - open the document above for the full version.

MATH MARK (FUJIAN)COMMUNICATIONS CORP. LIMITED July 09, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : 2AZVIJC-8629 Model Number: JC-8629, JC-8630 To Whom It May Concern: We, The MATH MARK (FUJIAN)COMMUNICATIONS CORP. LIMITED hereby declare that the models are identical except the Surface shell exterior line design. Except for the different above, no other modification is performed. Sincerely, Signature: MATH MARK (FUJIAN)COMMUNICATIONS CORP. LIMITED Contact person: Sandy Sun

MATH MARK (FUJIAN)COMMUNICATIONS CORP. LIMITED Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-06-30 Subject; Request for Confidentiality FCC ID: 2AZVIJC-8629 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely MATH MARK (FUJIAN)COMMUNICATIONS CORP. LIMITED Contact person: Sandy Sun

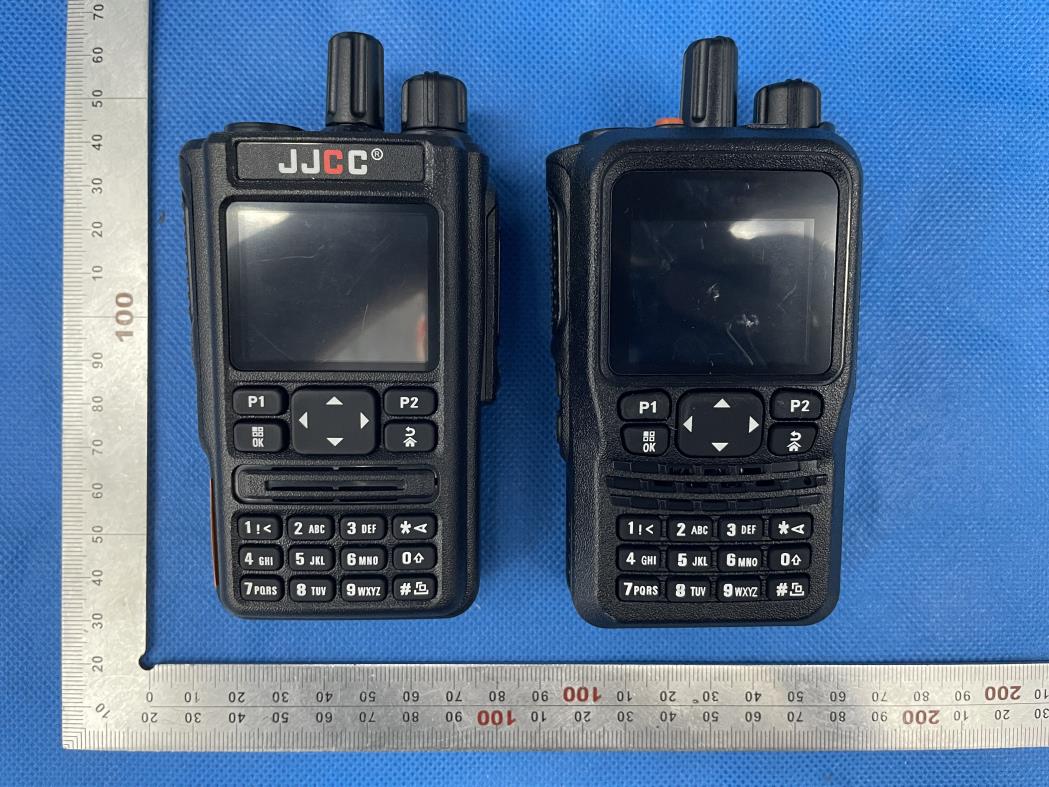

External Photos ALL VIEW OF SERIAES MODEL ALL VIEW OF SERIES MODEL-BACK VIEW WHOLE VIEW OF EUT TOP VIEW OF EUT Antenna BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location 30mm&40mm FCC ID: 2AZVIJC-8629

Internal Photos OPEN VIEW-1 OF EUT OPEN VIEW-2 OF EUT OPEN VIEW-3 OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT INTERNAL VIEW-8 OF EUT INTERNAL VIEW-9 OF EUT

Page 1 of 22 FCC Test Report Report No.: AGC04447210505FE01 FCC ID : 2AZVIJC-8629 PRODUCT DESIGNATION : Two-way radio BRAND NAME : JJCC MODEL NAME : JC-8629, JC-8630 APPLICANT : MATH MARK (FUJIAN)COMMUNICATIONS CORP. LIMITED DATE OF ISSUE : Jun. 30, 2021 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V 1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC04447210505FE01 Page 2 of 22 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jun. 30, 2021 Valid Initial release Report No.: AGC04447210505FE01 Page 3 of 22 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ................................................................................................................. 4 2. PRODUCT INFORMATION .............................................................................................................................. 5 3. IDENTIFICATION OF THE RESPONSIBLE TESTING LOCATION ............................................................... 6 4. SUPPORT EQUIPMENT LIST ......................................................................................................................... 7 5. SYSTEM DESCRIPTION .................................................................................................................................. 7 6. MEASUREMENT UNCERTAINTY ................................................................................................................... 8 7. SUMMARY OF TEST RESULTS ..................................................................................................................... 8 8. FCC RADIATED EMISSION TEST .................................................................................................................. 9 8.1 PROVISIONS APPLICABLE ................................................................................................................... 9 8.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................... 9 8.3 TEST PROCEDURE .............................................................................................................................. 11 8.4 TEST RESULT ....................................................................................................................................... 12 9. FCC CONDUCTED EMISSION TEST ............................................................................................................ 16 9.1 PROVISIONS APPLICABLE ................................................................................................................. 16 9.2 TEST SETUP BLOCK DIAGRAM ......................................................................................................... 16 9.3 TEST PROCEDURE .............................................................................................................................. 17 9.4 TEST RESULT ....................................................................................................................................... 18 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................................. 20 APPENDIX II: PHOTOGRAPHS OF EUT .......................................................................................................... 22 Report No.: AGC04447210505FE01 Page 4 of 22 1. VERIFICATION OF COMPLIANCE Applicant: MATH MARK (FUJIAN)COMMUNICATIONS CORP. LIMITED Address: No 789,Xiacuo Area,Sihuang Village,Daxiamei,Nan'an,Quanzhou,Fujian,China 362302 Manufacturer: MATH MARK (FUJIAN)COMMUNICATIONS CORP. LIMITED Address: No 789,Xiacuo Area,Sihuang Village,Daxiamei,Nan'an,Quanzhou,Fujian,China 362302 Factory: MATH MARK (FUJIAN)COMMUNICATIONS CORP. LIMITED Address: No 789,Xiacuo Area,Sihuang Village,Daxiamei,Nan'an,Quanzhou,Fujian,China 362302 Product Designation: Two-way radio Brand Name: JJCC Test Model: JC-8629 Series Model JC-8630 Difference Description Surface shell exterior line design is different Measurement Procedure: ANSI C63.4: 2014 Deviation: No any deviation from the test method. Date of Test: May 12, 2021~Jun. 30, 2021 Condition of Test Sample: Normal Test Result: Pass Report Template AGCRT-US-PTT/EMC The above equipment was tested by Attestation Of Global Compliance (Shenzhen) Co., Ltd. for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, the measurement procedure according to ANSI C63.4:2014. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. The test results of this report relate only to the tested sample identified in this report. Prepared By Donjon Huang (Project Engineer) Jun. 30, 2021 Reviewed By Calvin Liu (Reviewer) Jun. 30, 2021 Approved By Forrest Lei Authorized Officer Jun. 30, 2021 Report No.: AGC04447210505FE01 Page 5 of 22 2. PRODUCT INFORMATION The EUT is a Two-way radio designed for voice communication. It is designed by way of utilizing the F3E modulation achieves the system operating. A major technical description of EUT is described as following: Communication Type Voice / Tone only Modulation AM RX Frequency Range 108-136MHz Emission Type A3E Antenna Designation Detachable Antenna Antenna Gain 1.5dBi Hardware Version JJCC_8629_PCB1.1 Software Version 1.4.8 Power Supply DC 7.4V,2000mAh by battery, charging for DC8.4V I/O Port Information (Applicable Not Applicable) I/O Port of EUT I/O Port Type Q’TY Cable Tested with Antenna Port 1 - 1 Earphone Port 1 - 1 Report No.: AGC04447210505FE01 Page 6 of 22 3. IDENTIFICATION OF THE RESPONSIBLE TESTING LOCATION List of Test Equipment: TEST EQUIPMENT OF CONDUCTED EMISSION TEST Equipment Manufacturer Model S/N Cal. Date Cal. Due TEST RECEIVER R&S ESPI 101206 May 11, 2021 May 10, 2022 LISN R&S ESH2-Z5 100086 Jul. 03, 2020 Jul. 02, 2021 TEST SOFTWARE R&S ES-K1 (Ver.V1.71) N/A N/A N/A TEST EQUIPMENT OF RADIATED EMISSION TEST …

Text truncated - open the document above for the full version.

Test Setup Photos CONDUCTED EMISSION TEST SETUP RADIATED EMISSION TEST SETUP-BELOW 1GHZ RADIATED EMISSION TEST SETUP-ABOVE 1GHZ
