FCC StatementThis device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:· Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.· Consult the dealer or an experienced radio/TV technician for help.The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Page 1 of 1 Rev.2.0 Shenzhen CYX Industrial Co.,Ltd. WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for FCC ID: 2AZWX-ACLANL Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo-location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Signature: Name / Title: Lynn Jackie / Management Phone: 86-18038126510 Email: [email protected] Date: 2021-06-24

Shenzhen CYX Industrial Co.,Ltd. Agent Authorization Company: Shenzhen CYX Industrial Co.,Ltd. Address: 201 Linzhu building, No.18 Longgang Road, Longgang street, Longgang District, Shenzhen China Product Name: Laptop Trade Mark: N/A Model Number(s): ACL1, ACL2, ACL3, ACL4, ACL5, ACL6, ACL7, ACL8, ACL9, ACL10, ANL1, ANL2, ANL3, ANL4, ANL5, ANL6, ANL7, ANL8, ANL9, ANL10 FCC ID: 2AZWX-ACLANL We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-6-24 Name: Lynn Jackie Title: Management Company: Shenzhen CYX Industrial Co.,Ltd.

Shenzhen CYX Industrial Co.,Ltd. Date: 2021-6-24 To: MiCOM Labs Inc 575 Boulder Court, Pleasanton, California 94566, USA Dear Sir/Madam, We, Shenzhen CYX Industrial Co.,Ltd.Hereby declares the following statement for MiCOM Labs Inc, PCB board, structure and internal of these model(s) are the same, Only models name is different for these models: Product name: Laptop Trade Mark: N/A Model No.: ACL1, ACL2, ACL3, ACL4, ACL5, ACL6, ACL7, ACL8, ACL9, ACL10, ANL1, ANL2, ANL3, ANL4, ANL5, ANL6, ANL7, ANL8, ANL9, ANL10 Sincerely, Signature: Date: 2021-6-24 Name: Lynn Jackie Title: Management Company: Shenzhen CYX Industrial Co.,Ltd.

Shenzhen CYX Industrial Co.,Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-6-24 Subject; Request for Confidentiality FCC ID: 2AZWX-ACLANL To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Software Security Requirements For U-NII Devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Lynn Jackie Title: Management

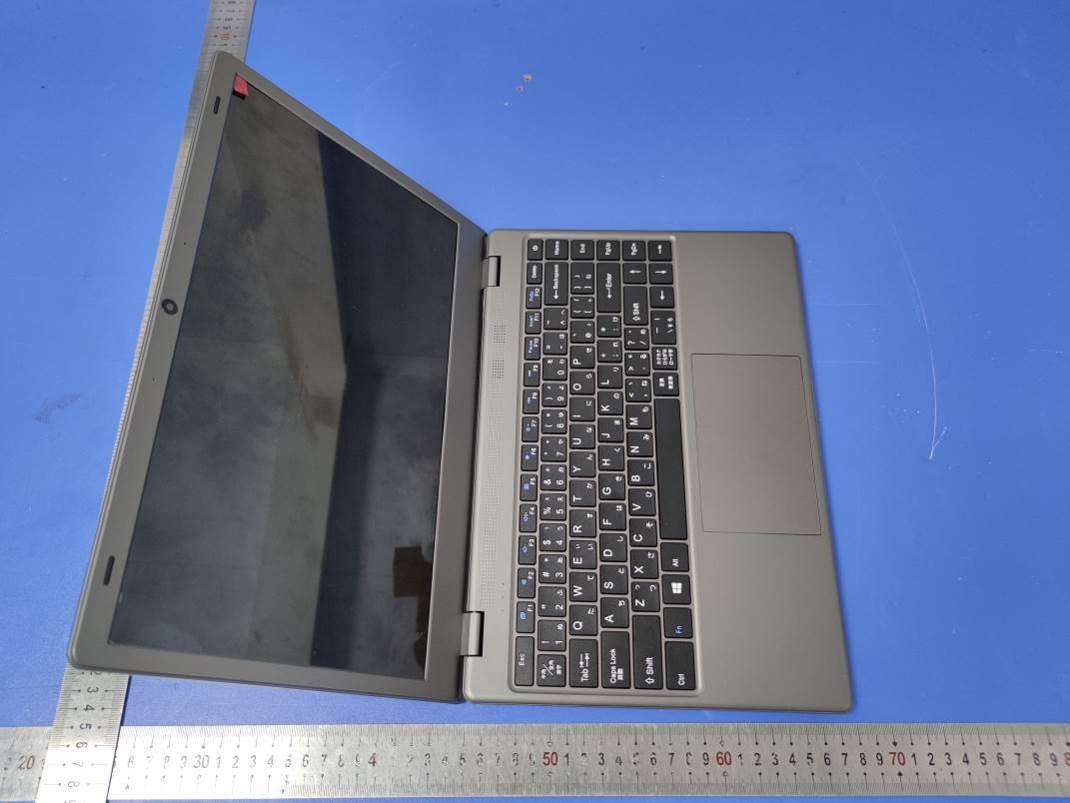

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Fig. 9 Fig. 10

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 3.5cm*W: 3.0cm Label Location Laptop Model No.: ACL1 FCC ID : 2AZWX-ACLANL Input: DC 12V, 2500mA DC 7.6V by Rechargeable Li-ion Battery, 5000mAh This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made In China

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Fig.1 Fig.2 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Fig.1 Fig.2

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 12 FCC RF Exposure Evaluation 1. Product Information EUT : Laptop Test Model : ACL1 Additional Model No. : ACL2, ACL3, ACL4, ACL5, ACL6, ACL7, ACL8, ACL9, ACL10, ANL1, ANL2, ANL3, ANL4, ANL5, ANL6, ANL7, ANL8, ANL9, ANL10 Model Declaration : PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power Supply : Input: DC 12V, 2500mA DC 7.6V by Rechargeable Li-ion Battery, 5000mAh Hardware Version : G142F1 RVE01 Software Version : Windows 10 Pro2004 Bluetooth : Frequency Range : 2402MHz ~ 2480MHz Channel Number : 79 channels for Bluetooth V4.2 (BDR/EDR) 40 channels for Bluetooth V4.2 (BT LE) Channel Spacing : 1MHz for Bluetooth V4.2 (BDR/EDR) 2MHz for Bluetooth V4.2 (BT LE) Modulation Type : GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V4.2 (BDR/EDR) GFSK for Bluetooth V4.2 (BT LE) Bluetooth Version : V4.2 Antenna Description : FPC Antenna, 1.8dBi(Max.) 2.4G WLAN : Frequency Range : 2412MHz ~ 2462 MHz Channel Spacing : 5MHz Channel Number : 11 Channels for 20MHz bandwidth (2412~2462MHz) 7 Channels for 40MHz bandwidth (2422~2452MHz) Modulation Type : IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM,QPSK,BPSK) Antenna Description : ANT0: FPC Antenna, 1.8dBi(Max.) ANT1: FPC Antenna, 1.8dBi(Max.) 5G WLAN : Frequency Range : 5180-5240MHz, 5260-5320MHz, 5500-5700MHz Channel Number : 4 Channels for 20MHz bandwidth(5180MHz-5240MHz) 4 Channels for 20MHz bandwidth(5260MHz-5320MHz) 11 Channels for 20MHz bandwidth(5500MHz-5700MHz) 2 channels for 40MHz bandwidth(5190MHz~5230MHz) 2 channels for 40MHz bandwidth(5270MHz~5310MHz) 5 Channels for 40MHz bandwidth(5510MHz-5670MHz) 1 channels for 80MHz bandwidth(5210MHz) 1 channels for 80MHz bandwidth(5290MHz) SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 12 2 Channels for 80MHz bandwidth(5530MHz-5610MHz) Modulation Type : IEEE 802.11a/n/ac: OFDM (256QAM, 64QAM,16QAM,QPSK BPSK) Antenna Description : ANT0: FPC Antenna, 1.8dBi(Max.) ANT1: FPC Antenna, 1.8dBi(Max.) 5.8G WLAN : Frequency Range : 5745-5825MHz Channel Number : 5 channels for 20MHz bandwidth(5745-5825MHz) 2 channels for 40MHz bandwidth(5755~5795MHz) 1 channels for 80MHz bandwidth(5775MHz) Modulation Type : IEEE 802.11a/n/ac: OFDM (256QAM, 64QAM, 16QAM, QPSK, BPSK) Antenna Description : ANT0: FPC Antenna, 1.8dBi(Max.) ANT1: FPC Antenna, 1.8dBi(Max.) Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm a ccording to f) in section 4.1 is applied to determine SAR test exclusion. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 12 3. Refer evaluation method ANSI C95.1–2019: IEEE Standard for Safe…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEB Page 1 of 15 Appendix B RF Test Data for BT V4.2(BDR/EDR) (Conducted Measurement) Product Name: Laptop Trade Mark: N/A Test Model: ACL1 Environmental Conditions Temperature: 24.6 C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Kay Hu Supervised by: Li Huan B.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEB Page 2 of 15 B.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH -2.95 30 PASS BT LE MCH -3.601 30 PASS BT LE HCH -3.01 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEB Page 3 of 15 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEB Page 4 of 15 B.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -17.648 8 PASS BT LE MCH -18.562 8 PASS BT LE HCH -18.539 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEB Page 5 of 15 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEB Page 6 of 15 B.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.7216 ≥0.5 PASS BT LE MCH 0.7211 ≥0.5 PASS BT LE HCH 0.7237 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEB Page 7 of 15 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEB Page 8 of 15 B.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH -4.807 -37.977 -24.807 PASS BT LE MCH -4.448 -37.652 -24.448 PASS BT LE HCH -3.897 -36.852 -23.897 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEB Page 9 of 15 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEB Page 10 of 15 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEB Page 11 of 15 B.6 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH -4.511 -50.019 -24.51 PASS BT LE HCH -3.585 -49.198 -23.59 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEB Page 12 of 15 B.7 Restrict-band band-edge measurements Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -43.29 2.0 0 51.97 PEAK 74 PASS Ant1 2310.0 -53.32 2.0 0 41.94 AV 54 PASS Ant1 2390.0 -43.25 2.0 0 52.01 PEAK 74 PASS Ant1 2390.0 -52.93 2.0 0 42.33 AV 54 PASS 2480 Ant1 2483.5 -42.16 2.0 0 53.10 PEAK 74 PASS Ant1 2483.5 -52.52 2.0 0 42.74 AV 54 PASS Ant1 2500.0 -41.69 2.0 0 53.56 PEAK 74 PASS Ant1 2500.0 -52.36 2.0 0 42.90 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEB Page 13 of 15 Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEB Page 14 of 15 Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEB Page 15 of 15

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 1 of 88 Appendix C RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: Laptop Trade Mark: N/A Test Model: ACL1 Environmental Conditions Temperature: 24.6 C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Kay Hu Supervised by: Li Huan C.1 Duty Cycle ANT0 Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 100 PASS 11G 2437 Ant1 100 PASS 11N20SISO 2437 Ant1 100 PASS 11N40SISO 2437 Ant1 100 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 2 of 88 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 3 of 88 Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 4 of 88 ANT1 Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 100 PASS 11G 2437 Ant1 100 PASS 11N20SISO 2437 Ant1 100 PASS 11N40SISO 2437 Ant1 100 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 5 of 88 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 6 of 88 Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 7 of 88 C.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict Ant_1 Ant_2 Sum 11B LCH 5.28 5.73 / 30 PASS MCH 5.64 5.63 / 30 PASS HCH 5.38 5.41 / 30 PASS 11G LCH 5.68 5.69 / 30 PASS MCH 5.96 5.51 / 30 PASS HCH 5.73 5.27 / 30 PASS 11N20SISO LCH 5.81 5.32 8.58 30 PASS MCH 5.68 5.67 8.69 30 PASS HCH 5.49 5.47 8.49 30 PASS 11N40SISO LCH 5.3 5.79 8.56 30 PASS MCH 5.36 5.81 8.60 30 PASS HCH 5.3 5.72 8.53 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 8 of 88 C.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/3KHz] Limit [dBm/3KHz] Verdict Ant_1 Ant_2 Sum 11B LCH -27.697 -27.133 / 8 PASS MCH -27.375 -27.215 / 8 PASS HCH -27.590 -27.479 / 8 PASS 11G LCH -30.830 -30.621 / 8 PASS MCH -30.241 -30.795 / 8 PASS HCH -29.966 -30.563 / 8 PASS 11N20SISO LCH -30.474 -29.797 -27.112 8 PASS MCH -30.759 -30.690 -27.714 8 PASS HCH -30.402 -31.157 -27.753 8 PASS 11N40SISO LCH -32.904 -32.156 -29.504 8 PASS MCH -29.546 -32.537 -27.779 8 PASS HCH -33.075 -32.545 -29.792 8 PASS Test Graphs-Ant 0 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 9 of 88 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 10 of 88 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 11 of 88 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 12 of 88 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 13 of 88 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 14 of 88 11N40SISO/HCH st Graphs-Ant 1 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 15 of 88 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 16 of 88 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 17 of 88 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 18 of 88 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 19 of 88 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 20 of 88 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 21 of 88 C.4 6dB Bandwidth ANT0 Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 10.14 ≥0.5 PASS MCH 10.13 ≥0.5 PASS HCH 10.14 ≥0.5 PASS 11G LCH 16.58 ≥0.5 PASS MCH 16.57 ≥0.5 PASS HCH 16.57 ≥0.5 PASS 11N20SISO LCH 17.76 ≥0.5 PASS MCH 17.71 ≥0.5 PASS HCH 17.76 ≥0.5 PASS 11N40SISO LCH 36.50 ≥0.5 PASS MCH 36.53 ≥0.5 PASS HCH 36.55 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 22 of 88 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 23 of 88 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 24 of 88 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 25 of 88 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 26 of 88 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 27 of 88 11N40SISO/HCH ANT1 Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 10.13 ≥0.5 PASS MCH 10.14 ≥0.5 PASS HCH 10.14 ≥0.5 PASS 11G LCH 16.56 ≥0.5 PASS MCH 16.58 ≥0.5 PASS HCH 16.58 ≥0.5 PASS 11N20SISO LCH 17.71 ≥0.5 PASS MCH 17.71 ≥0.5 PASS HCH 17.75 ≥0.5 PASS 11N40SISO LCH 36.52 ≥0.5 PASS MCH 36.50 ≥0.5 PASS HCH 36.54 ≥0.5 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEC Page 28 of 88 Test Graphs 11B/LCH 11…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 34 FCC TEST REPORT For Shenzhen CYX Industrial Co.,Ltd. Laptop Test Model: ACL1 Additional Model No.: Please Refer to Page 6 Prepared for : Shenzhen CYX Industrial Co.,Ltd. Address : Building A, Corrent Low Carbon Industrial Zone, Huarong Road, Dalang Street, Longhua District, ShenZhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 17, 2021 Number of tested samples : 2 Serial number : Prototype Date of Test : May 17, 2021 ~ June 02, 2021 Date of Report : June 09, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 34 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS210513034AEB Date of Issue ................................... : June 09, 2021 Testing Laboratory Name ............. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Shenzhen CYX Industrial Co.,Ltd. Address ........................................... : Building A, Corrent Low Carbon Industrial Zone, Huarong Road, Dalang Street, Longhua District, ShenZhen, China Test Specification Standard .......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : Laptop Trade Mark ...................................... : N/A Test Model ...................................... : ACL1 Ratings ............................................ : Input: DC 12V, 2500mA DC 7.6V by Rechargeable Li-ion Battery, 5000mAh Result ............................................ : Positive Compiled by: Supervised by: Approved by: Linda He/ Administrator Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 34 FCC -- TEST REPORT Test Model........................... : ACL1 EUT......................................... : Laptop Applicant............................... : Shenzhen CYX Industrial Co.,Ltd. Address.................................. : Building A, Corrent Low Carbon Industrial Zone, Huarong Road, Dalang Street, Longhua District, ShenZhen, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen CYX Industrial Co.,Ltd. Address................................... : Building A, Corrent Low Carbon Industrial Zone, Huarong Road, Dalang Street, Longhua District, ShenZhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen CYX Industrial Co.,Ltd. Address................................... : Building A, Corrent Low Carbon Industrial Zone, Huarong Road, Dalang Street, Longhua District, ShenZhen, China Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210513034AEB June 09, 2021 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 34 Revision History Revision Issue Date Revisions Revised By 000 June 09, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AZWX-ACLANL Report No.: LCS210513034AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 34 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1 DESCRIPTION OF DEVICE (EUT) ......................................................................................................................... 6 1.2. HOST SYSTEM CONFIGUR…
