2AZX5-X-10Wireless Charger

Instruction Manual for X Series Wireless Charger Product description: This wireless charger is a smart product with a simple design and compatible with any Qi standard mobile phone. There is no plug when charging the mobile phone, which is more convenient and more efficient. It can bring you unlimited freedom and fun, as well as a wireless security experience. Product picture: Applicable equipment: 1. Smart devices with built-in wireless charging receivers, including but not limited to iPhone, Samsung, Huawei, Xiaomi, OPPO, VIVO, etc. 2. A smart device with a reserved wireless charging interface. 3. A smart device with a protective case of a wireless charging receiver. Note: All smart devices must be under Qi standard. Instructions: 1. Insert one end of the USB charging cable into the power adapter or computer, as shown in the picture below. 2. Put the phone on the wireless charger and make sure that the phone is in the charging area of the wireless charger. Product specifications: Model: X-10E, X-10D Size: 76*14mm Material: Flame-retardant and fire-retardant material Input voltage: 5V 2A / 9V 2A Output power: 5W/7.5W/10W Charging frequency: 115K-205K Charging distance: 2-7mm Product color: black, white Product accessories: X-10D wireless charger*1 Exquisite packaging box*1 Precautions: 1. Do not put the charger in water or other liquids. 2. If you need to clean the charger, please make sure it is not connected to a power source. 3. The operational environment temperature is maintained at 0-45°C. FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC RF exposure statement: The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. During the operation of device a distance of 15 cm surrounding the device and 20 cm above the top surface of the device must be respected. FCC ID: 2AZX5-X-10

Foshan Jindaming Technology Co., Ltd. Model difference statement Product Name: Wireless charger Model N o.: X-10E, X-10D We (Foshan Jindaming Technology Co., Ltd., No.19 HeAn Street, North Debao Road, Ronggui Town, Shunde District, Foshan City, Guangdong, China.) hereby state that all the models are the same circuit and RF module, except the material and model No.. Signature: Name: Yuan Rao Title: General manager Tel: 18925951915 Email: [email protected] Date: 5.27.2021

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: Foshan Jindaming Technology Co., Ltd. Address: No.19 HeAn Street, North Debao Road, Ronggui Town, Shunde District, Foshan City, Guangdong, China. Product Name: Wireless charger Model Number: X-10E, X-10D FCC Identifier: 2AZX5-X-10 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Yuan Rao Date: 5/27/2021 Title: General manager Signature of applicant:

C5266091_X10_Ed.1 1/1 Foshan Jindaming Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 5/27/2021 Subject: Request for Confidentiality FCC ID: 2AZX5-X-10 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Yuan Rao Date: 5/27/2021 Title: General manager

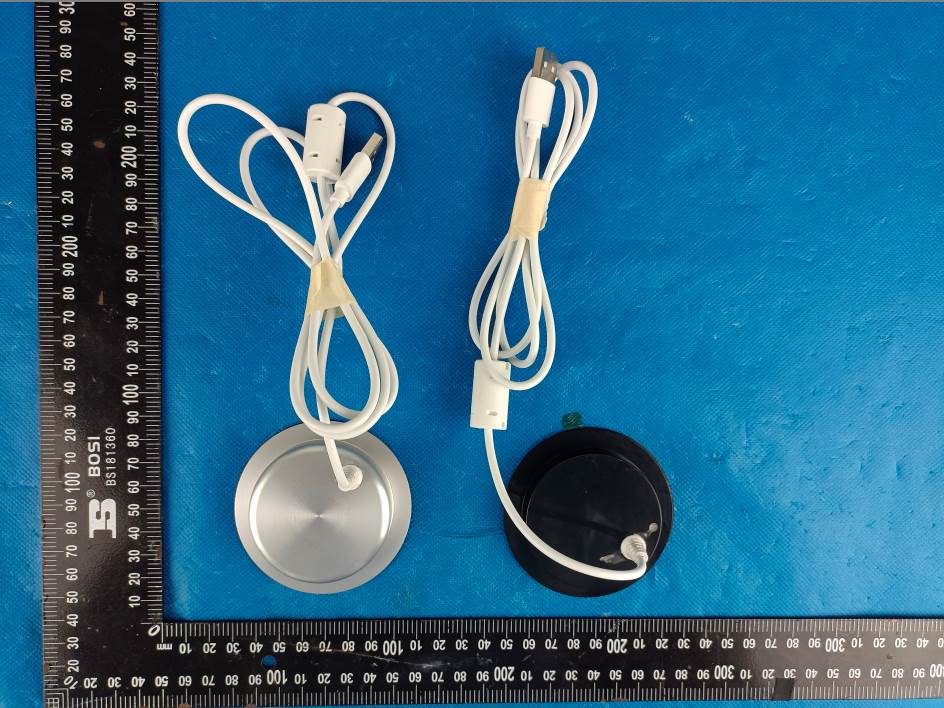

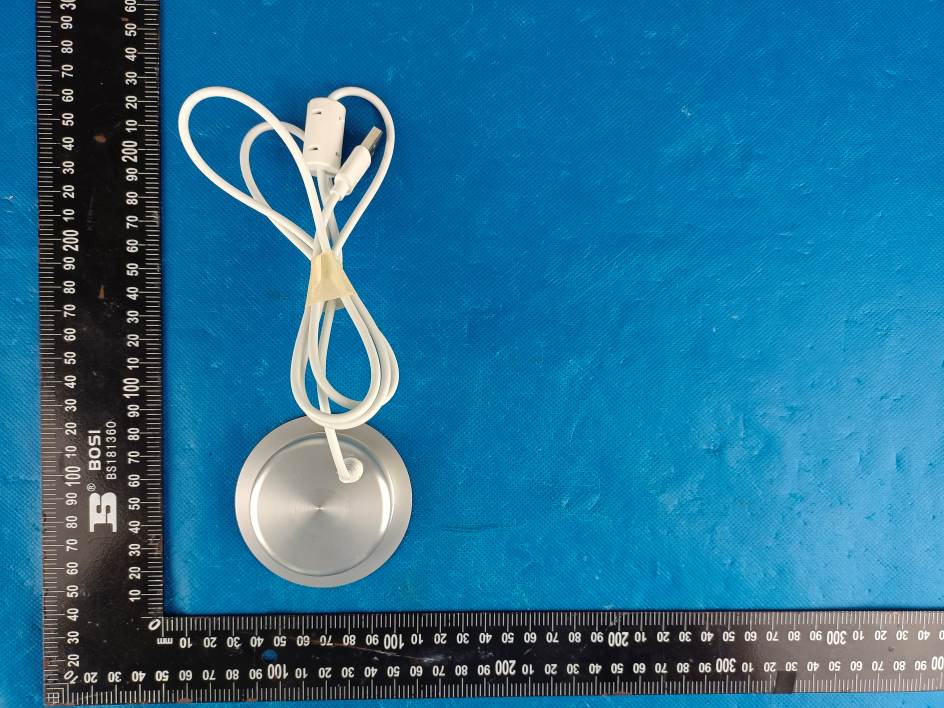

1 - Page 1 of 4 - Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] APPENDIX 1- EUT PHOTO Photo 1 (For model X-10E) Photo 2 1 - Page 2 of 4 - Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Photo 3 Photo 4 1 - Page 3 of 4 - Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Photo 5 Photo 6 1 - Page 4 of 4 - Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Photo 7

30*20mm Wireless charger Model:X-10E Input:5V/2A,9V/2A Output:5W/7.5W/10W Made in China FCC ID:2AZX5-X-10

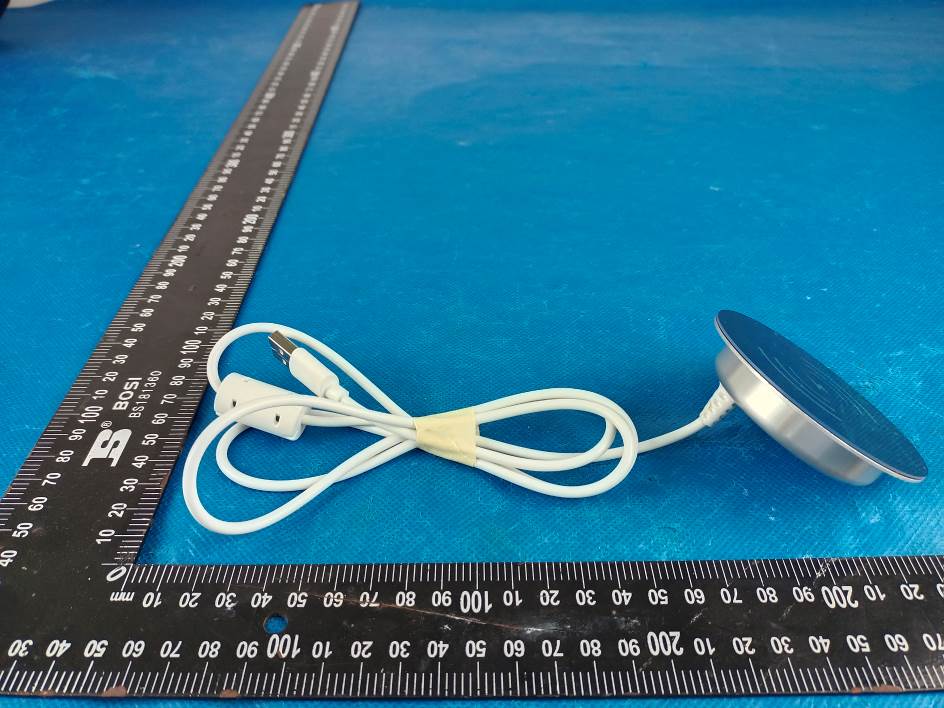

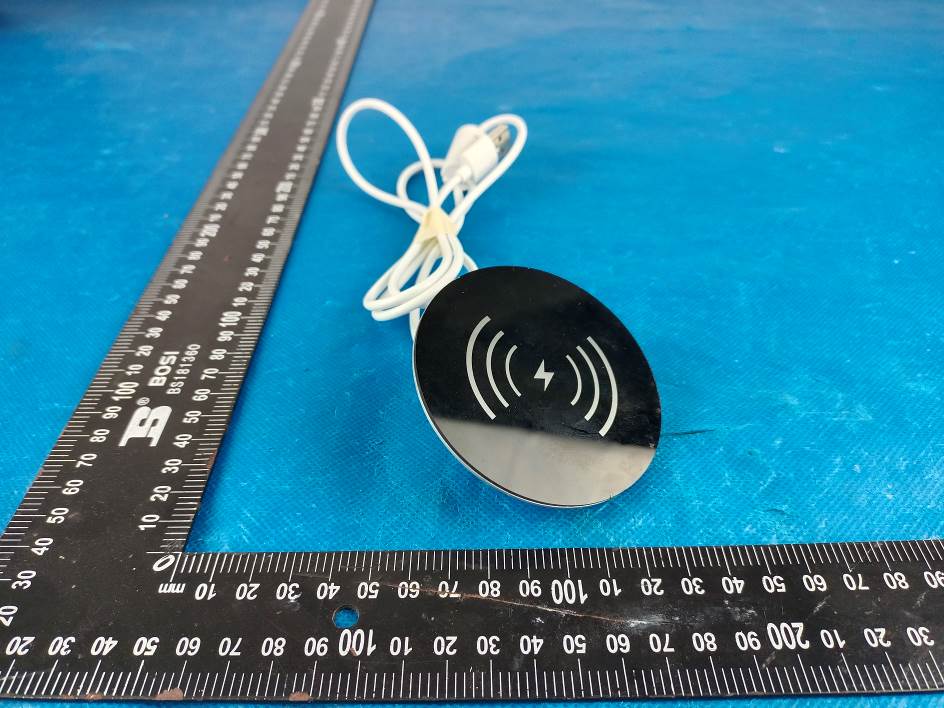

1 - Page 1 of 3 - Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] APPENDIX 1- EUT PHOTO Photo 1 (For model X-10E) Photo 2 Wireless charge ANT 1 - Page 2 of 3 - Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Photo 3 Photo 4 1 - Page 3 of 3 - Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Photo 5 Photo 6

Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Tel: (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] RF EXPOSURE Test Report Report No.: MTi210309011-01E2 Date of issue: May 11, 2021 Applicant: Foshan Jindaming Technology Co., Ltd. Product name: Wireless charger Model(s): X-10E, X-10D FCC ID: 2AZX5-X-10 Shenzhen Microtest Co., Ltd. http://www.mtitest.com - Page 2 of 11 - Report No.: MTi210309011-01E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Tel: (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Instructions 1. The report shall not be partially reproduced without the written consent of the laboratory; 2. The test results of this report are only responsible for the samples submitted; 3. This report is invalid without the seal and signature of the laboratory; 4. This report is invalid if transferred, altered or tampered with in any form without authorization; 5. Any objection to this report shall be submitted to the laboratory within 15 days from the date of receipt of the report. - Page 3 of 11 - Report No.: MTi210309011-01E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Tel: (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] TEST RESULT CERTIFICATION Applicant’s name .................... : Foshan Jindaming Technology Co., Ltd. Address .................................. : No.19 HeAn Street, North Debao Road, Ronggui Town, Shunde District, Foshan City, Guangdong Province, China. Manufacturer's Name ............. : Foshan Jindaming Technology Co., Ltd. Address .................................. : No.19 HeAn Street, North Debao Road, Ronggui Town, Shunde District, Foshan City, Guangdong Province, China. Factory: Raytrons Limitted Co., Ltd. Address: No.8 Xipu Road, Xinqing Science and Technology Industrial Park, Doumen District, Zhuhai City, Guangdong Province, China Product description Product name ........................... : Wireless charger Trademark ............................. : N/A Model Name .......................... : X-10E Serial Model ............................ X-10D Standards ............................... : FCC CFR 47 PART 1, 1.1310 Test procedure ....................... : KDB 680106 D01 RF Exposure Wireless Charging Apps v03r01 Date of Test Date (s) of performance of tests ............ : Mar. 11, 2021 ~May 11, 2021 Test Result ............................................. : Pass This device described above has been tested by Shenzhen Microtest Co., Ltd. and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Testing Engineer : (Danny Xu) Technical Manager : (Leo Su) Authorized Signatory : (Tom Xue) - Page 4 of 11 - Report No.: MTi210309011-01E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Tel: (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Table of Contents 1 GENERAL INFORMATION .......................................................................................................................................... 5 1.1 DESCRIPTION OF EUT ................................................................................................................................................... 5 1.2 ANCILLARY EQUIPMENT LIST ........................................................................................................................................... 5 1.3 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 TESTING SITE ............................................................................................................................................................ 6 3 LIST OF TEST EQUIPMENT ......................................................................................................................................... 7 4 TEST RESULTS ........................................................................................................................................................... 8 4.4 MAXIMUM PERMISSIBLE EXPOSURE.................................................................................................................................. 8 4.4.1 Limit .................................................................................................................................................................... 8 4.4.2 Test Procedures ................................................................................................................................................... 8 4.4.3 Test Setup............................................................................................................................................................ 9 4.4.4 Test Result ........................................................................................................................................................... 9 4.4.5 MPE Setup photo .............................................................................................................................................. 11 - Page 5 of 11 - Report No.: MTi210309011-01E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Tel: (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] 1 General Information 1.1 Description of EUT Product name: Wireless charger Brand name: N/A Model name: X-10E Series model: X…

Text truncated - open the document above for the full version.

Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Tel: (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Test Report Report No.: MTi210309011-01E1 Date of issue: May 11, 2021 Applicant: Foshan Jindaming Technology Co., Ltd. Product name: Wireless charger Model(s): X-10E, X-10D FCC ID: 2AZX5-X-10 Shenzhen Microtest Co., Ltd. http://www.mtitest.com - Page 2 of 24 - Report No.: MTi210309011-01E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Tel: (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Instructions 1. The report shall not be partially reproduced without the written consent of the laboratory; 2. The test results of this report are only responsible for the samples submitted; 3. This report is invalid without the seal and signature of the laboratory; 4. This report is invalid if transferred, altered or tampered with in any form without authorization; 5. Any objection to this report shall be submitted to the laboratory within 15 days from the date of receipt of the report. - Page 3 of 24 - Report No.: MTi210309011-01E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Tel: (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Table of Contents 1 GENERAL INFORMATION ................................................................................................................................... 5 1.1 FEATURE OF EQUIPMENT UNDER TEST (EUT) ................................................................................................................... 5 1.2 TEST MODE .............................................................................................................................................................. 5 1.3 EUT TEST SETUP ........................................................................................................................................................ 5 1.4 ANCILLARY EQUIPMENT .............................................................................................................................................. 5 2 SUMMARY OF TEST RESULT ............................................................................................................................... 6 2.1 OPERATION CHANNEL LIST ........................................................................................................................................... 6 2.2 TEST CHANNEL .......................................................................................................................................................... 6 3 TEST FACILITIES AND ACCREDITATIONS .............................................................................................................. 7 3.1 TEST LABORATORY...................................................................................................................................................... 7 3.2 ENVIRONMENTAL CONDITIONS ..................................................................................................................................... 7 3.3 MEASUREMENT UNCERTAINTY ...................................................................................................................................... 7 4 LIST OF TEST EQUIPMENT .................................................................................................................................. 8 5 TEST RESULTS ..................................................................................................................................................... 9 5.1 ANTENNA REQUIREMENT ............................................................................................................................................ 9 5.1.1 Standard requirement ................................................................................................................................. 9 5.1.2 EUT Antenna ............................................................................................................................................... 9 5.2 CONDUCTED EMISSION ............................................................................................................................................. 10 5.2.1 Limits ......................................................................................................................................................... 10 5.2.2 Test Procedures ......................................................................................................................................... 10 5.2.3 Test Setup .................................................................................................................................................. 10 5.2.4 Test Result ................................................................................................................................................. 10 5.3 RADIATED EMISSION ................................................................................................................................................. 15 5.3.1 Limits ......................................................................................................................................................... 15 5.3.2 Test Procedures ......................................................................................................................................... 16 5.3.3 Test Setup .................................................................................................................................................. 17 5.3.4 Test Result ....................................................................................................................................…

Text truncated - open the document above for the full version.

Model: X-10E Radiated emission Conducted emission
