2AZYA-A6PLUSsmartphone

Senwa Global International, S.A. de C.V.

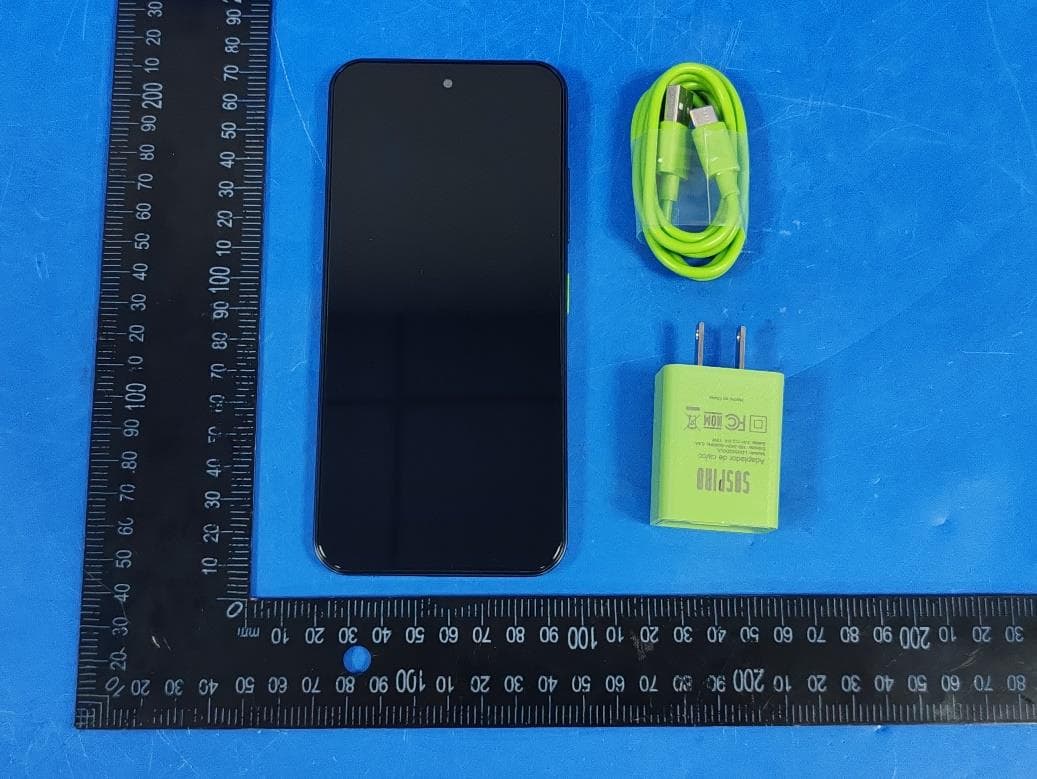

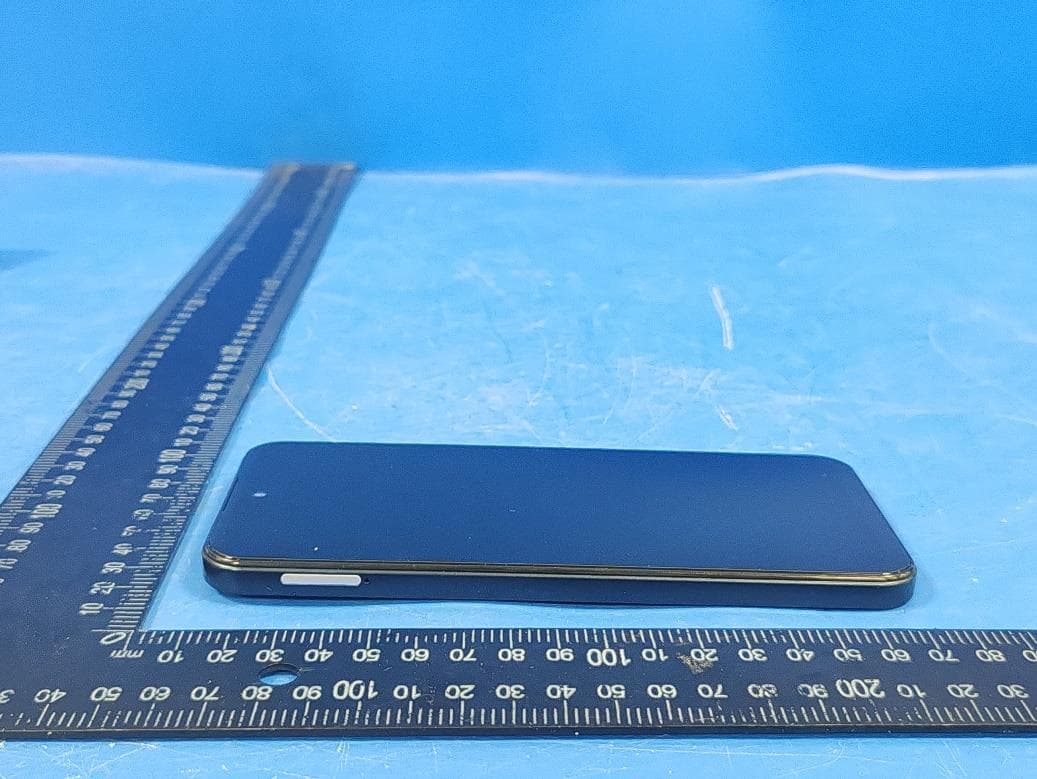

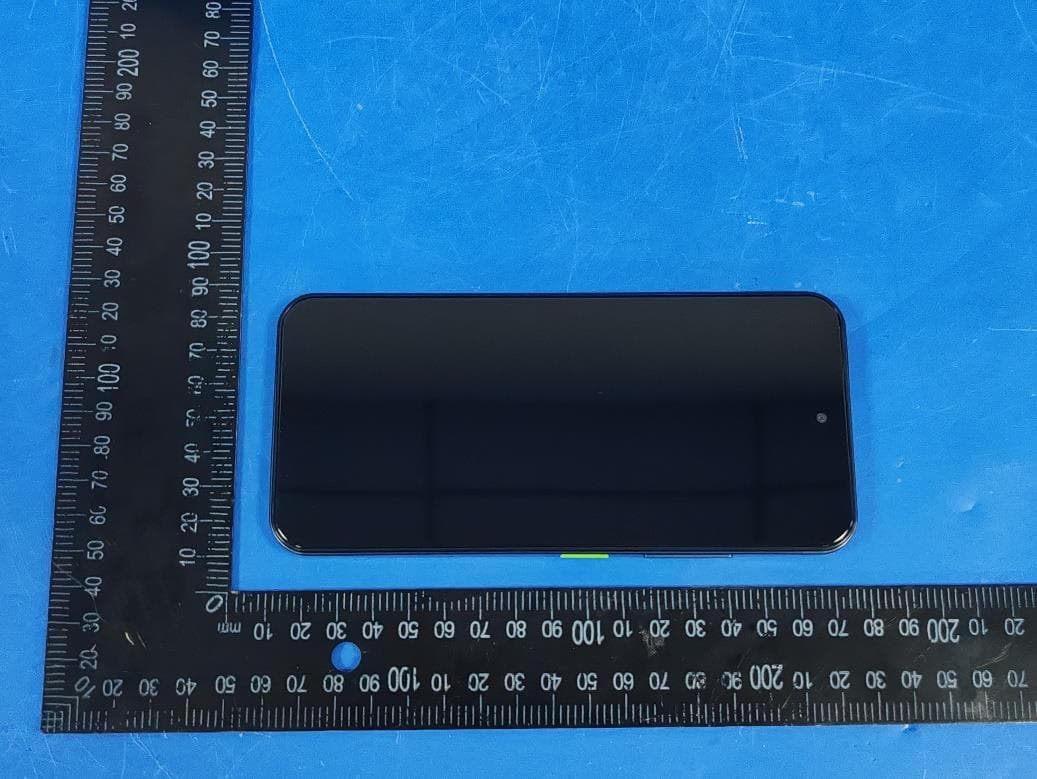

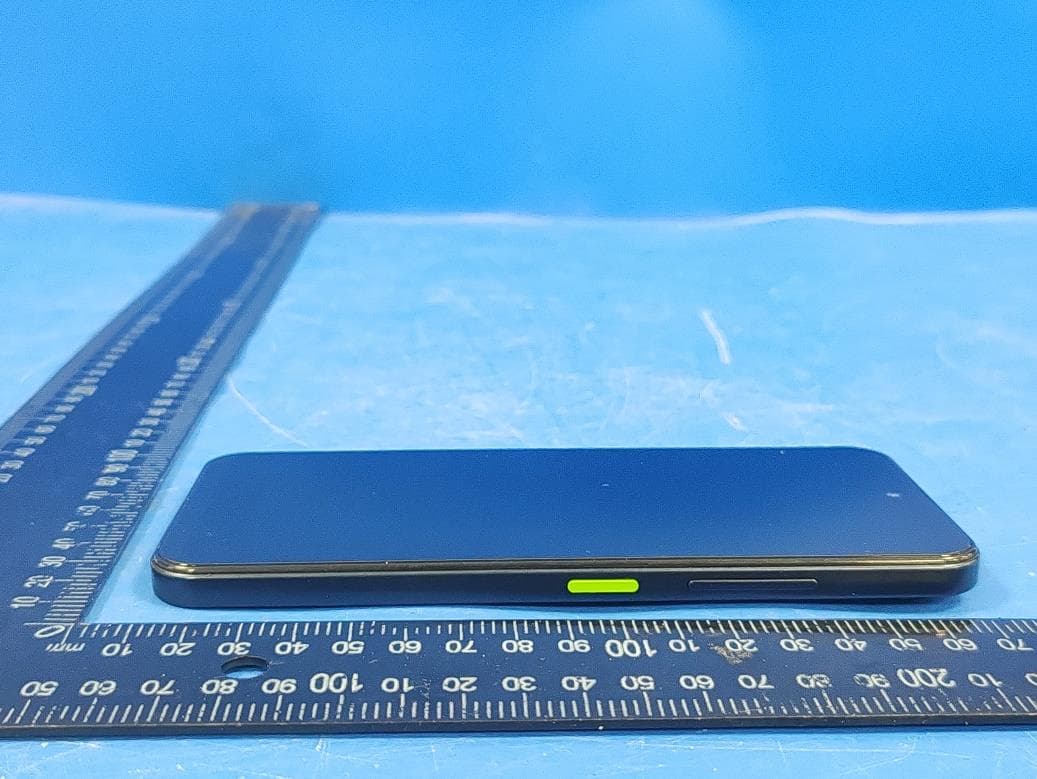

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Sep 11, 2026
Application Purpose: Original Equipment
Equipment Note: smartphone
Frequency Range: 2402.00000000 - 2480.00000000
Company: Senwa Global International, S.A. de C.V.
Country: Mexico

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Federal Communication Commission Interference Statement FCC ID: 2AZYA-A6PLUS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Radiation Exposure Statement: This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The exposure standard for wireless device employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. Tests for SAR are conducted using standard operating positions (10mm) accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands. The use of holsters and similar accessories should not contain metallic components in its assembly, the use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided.

RF Exposure Info

Page: 1/10 Ref : ACR.37.13.26.PAR.B Cancel and replace the report ACR.37.13.26.PAR.A SHENZHEN LGT TEST SERVICE CO., LTD. ROOM 205, BUILDING 13,ZONE B, ZHENXIONGINDUSTRIAL PARK, NO.177, RENMIN WEST ROAD,JINSHA, KENGZI STREET, PINGSHAN DISTRICT,SHENZHEN, GUANGDONG, CHINA MVG COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: 0326-EPGO-431 Calibrated at MVG 13 Rue du Zephyr 91140 Villejust - FRANCE Calibration date: 2026/01/22 Scope available on :https://a2la.org/ Summary: This document presents the method and results from an accredited COMOSAR Dosimetric E-Field Probe calibration performed at MVG, using the CALIPROBE test bench, for use with a MVG COMOSAR system only. The test results covered by accreditation are traceable to the International System of Units (SI). COMOSAR E-Field Probe Calibration Report Docusign Envelope ID: 441A23A1-88DE-4D98-BD64-561319DF94DB COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.37.13.26.PAR.B Page: 2/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vN This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. Name Function Date Signature Prepared by : Pedro Ruiz Technical Manager 2/6/2026 Checked & approved by: Pedro Ruiz Technical Manager 2/6/2026 Authorized by: Christophe Barrot Quality Manager Customer Name Distribution : SHENZHEN LGT TEST SERVICE CO., LTD Issue Name Date Modifications A Pedro Ruiz 2/6/2026 Initial release B Pedro Ruiz 04/10/2026 Update customer address Docusign Envelope ID: 441A23A1-88DE-4D98-BD64-561319DF94DB 2026 April 13 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.37.13.26.PAR.B Page: 3/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vN This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. TABLE OF CONTENTS 1 Device Under Test ..................................................................................................... 4 2 Product Description ................................................................................................... 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ................................................................................................ 4 3.1 Sensitivity _______________________________________________________________ 4 3.2 Linearity ________________________________________________________________ 4 3.3 Isotropy _________________________________________________________________ 5 3.4 Boundary Effect __________________________________________________________ 5 3.5 Probe Modulation Response _________________________________________________ 5 4 Measurement Uncertainty .......................................................................................... 6 5 Calibration Results ..................................................................................................... 6 5.1 Calibration in air __________________________________________________________ 6 5.2 Calibration in liquid _______________________________________________________ 7 6 Verification Results ................................................................................................... 8 7 List of Equipment ...................................................................................................... 9 Docusign Envelope ID: 441A23A1-88DE-4D98-BD64-561319DF94DB COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.37.13.26.PAR.B Page: 4/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vN This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer MVG Model SSE2 Serial Number 0326-EPGO-431 Product Condition (new / used) New Frequency Range of Probe 0.15 GHz-7.5GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.234 M Dipole 2: R2=0.234 M Dipole 3: R3=0.214 M 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION MVG’s COMOSAR E field Probes are built in accordance to the IEC/IEEE 62209-1528 and FCC KDB865664 D01 standards. Figure 1 – MVG COMOSAR Dosimetric E field Probe Probe Length 330 mm Length of Individual Dipoles 2 mm Maximum external diameter 8 mm Probe Tip External Diameter 2.5 mm Distance between dipoles / probe extremity 1 mm 3 MEASUREMENT METHOD The IEC/IEEE 62209-1528 and FCC KDB865664 D01 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their effect. All calibrations / measurements performed meet the fore-mentioned standards. 3.1 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards for frequency range 600- 7500MHz and using the calorimeter cell method (transfer method) as outlined in the standards for frequency 150-450 MHz. 3.2 LINEARITY The evaluation of the linearity was done in free space using the waveguide, performing a power sweep to cover the SAR range 0.01W/kg to 100W/kg. Docusign Envelope ID: 441A23A1-88DE-4D98-BD64-561319DF94DB COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.37.13.26.PAR.B Page: 5/10 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Probe vN This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is…

Text truncated - open the document above for the full version.

Test Setup Photos

Page 1 of 2 Report No.: LGT26H012 Appendix - Test Setup photos Set-up for Radiated Spurious Emission, Below 1GHz Set-up for Radiated Spurious Emission, Above 1GHz Page 2 of 2 Report No.: LGT26H012 Set-up for Conducted Emission

Test Setup Photos

FCC ID_SAR Setup photos Right Touch Right Tilt Left Touch Left Tilt Body Front side (separation distance is 10mm) Body Back side (separation distance10mm) Body Left side (separation distance is 10mm) Body Right side (separation distance is 10mm) Body Top side (separation distance is 10mm) Body Bottom side (separation distance is 10mm)

Test Report

Report No.: LGT26H012RF01 Page 51 of 73 Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Report No.: LGT26H012RF01 Page 52 of 73 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Report No.: LGT26H012RF01 Page 53 of 73 4. Carrier Frequency Separation 4.1 Test Result 4.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Channel Separation (MHz) 20dB Bandwidth (MHz) Limit (MHz) Verdict GFSK SISO HOPP DH5 0.994 0.883 >=0.883 Pass Pi/4DQPSK SISO HOPP 2DH5 1.034 1.322 >=0.881 Pass 8DPSK SISO HOPP 3DH5 1.056 1.295 >=0.863 Pass Report No.: LGT26H012RF01 Page 54 of 73 4.2 Test Graph 4.2.1 Ant1 GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV 8DPSK_3DH5_HOPP_Ant1_NTNV Report No.: LGT26H012RF01 Page 55 of 73 5. Number of Hopping Frequencies 5.1 Test Result 5.1.1 HoppNum Mode TX Type Frequency (MHz) Packet Type Num of Hopping Frequencies Verdict ANT1 Limit GFSK SISO HOPP DH5 79 >=15 Pass Pi/4DQPSK SISO HOPP 2DH5 79 >=15 Pass 8DPSK SISO HOPP 3DH5 79 >=15 Pass Report No.: LGT26H012RF01 Page 56 of 73 5.2 Test Graph 5.2.1 HoppNum GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV 8DPSK_3DH5_HOPP_Ant1_NTNV Report No.: LGT26H012RF01 Page 57 of 73 6. Time of Occupancy (Dwell Time) 6.1 Test Result 6.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Duration of Single Pulse (ms) Observation Period (s) Num of Pulse in Observation Period Dwell Time (ms) Limit (ms) Verdict GFSK SISO HOPP DH5 2.892 31.600 109 315.228 <=400 Pass Pi/4DQPSK SISO HOPP 2DH5 2.896 31.600 96 278.016 <=400 Pass 8DPSK SISO HOPP 3DH5 2.900 31.600 116 336.400 <=400 Pass Report No.: LGT26H012RF01 Page 58 of 73 6.2 Test Graph 6.2.1 Ant1 GFSK_DH5_HOPP_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Report No.: LGT26H012RF01 Page 59 of 73 Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV 8DPSK_3DH5_HOPP_Ant1_NTNV 8DPSK_3DH5_HOPP_Ant1_NTNV Report No.: LGT26H012RF01 Page 60 of 73 7. Unwanted Emissions In Non-restricted Frequency Bands 7.1 Test Result 7.1.1 Ref Mode TX Type Frequency (MHz) Packet Type ANT Level of Reference (dBm) GFSK SISO 2402 DH5 1 -0.26 2441 DH5 1 0.23 2480 DH5 1 0.17 HOPP DH5 1 0.51 0.51 Pi/4DQPSK SISO 2402 2DH5 1 -0.03 2441 2DH5 1 0.47 2480 2DH5 1 -0.06 HOPP 2DH5 1 0.47 0.47 8DPSK SISO 2402 3DH5 1 0.01 2441 3DH5 1 0.31 2480 3DH5 1 -0.06 HOPP 3DH5 1 0.35 0.35 7.1.2 CSE Mode TX Type Frequency (MHz) Packet Type ANT Level of Reference (dBm) Limit (dBm) Verdict GFSK SISO 2402 DH5 1 -0.26 -20.26 Pass 2441 DH5 1 0.23 -19.77 Pass 2480 DH5 1 0.17 -19.83 Pass HOPP DH5 1 0.51 -19.49 Pass 0.51 -19.49 Pass Pi/4DQPSK SISO 2402 2DH5 1 -0.03 -20.03 Pass 2441 2DH5 1 0.47 -19.53 Pass 2480 2DH5 1 -0.06 -20.06 Pass HOPP 2DH5 1 0.47 -19.53 Pass 0.47 -19.53 Pass 8DPSK SISO 2402 3DH5 1 0.01 -19.99 Pass 2441 3DH5 1 0.31 -19.69 Pass 2480 3DH5 1 -0.06 -20.06 Pass HOPP 3DH5 1 0.35 -19.65 Pass 0.35 -19.65 Pass Report No.: LGT26H012RF01 Page 61 of 73 7.2 Test Graph 7.2.1 Ref GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV GFSK_DH5_HCH_2480MHz_Ant1_NTNV Report No.: LGT26H012RF01 Page 62 of 73 GFSK_DH5_HOPP_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Report No.: LGT26H012RF01 Page 63 of 73 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Report No.: LGT26H012RF01 Page 64 of 73 Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV Report No.: LGT26H012RF01 Page 65 of 73 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV 8DPSK_3DH5_HOPP_Ant1_NTNV 8DPSK_3DH5_HOPP_Ant1_NTNV Report No.: LGT26H012RF01 Page 66 of 73 7.2.2 CSE GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV Report No.: LGT26H012RF01 Page 67 of 73 GFSK_DH5_HCH_2480MHz_Ant1_NTNV GFSK_DH5_HCH_2480MHz_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV Report No.: LGT26H012RF01 Page 68 of 73 GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV Report No.: LGT26H012RF01 Page 69 of 73 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV Report No.: LGT26H012RF01 Page 70 of 73 Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV Report No.: LGT26H012RF01 Page 71 of 73 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV Report No.: LGT26H012RF01 Page 72 of 73 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV 8DPSK_3DH5_HOPP_Ant1_NTNV 8DPSK_3DH5_HOPP_Ant1_NTNV Report No.: LGT26H012RF01 Page 73 of 73 APPENDIX II - MEASUREMENT PHOTOS Note: Please see the attached RF_Test Setup photos for FCC ID. ※※※※※END OF THE REPORT※※※※※

Test Report

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 73 RF TEST REPORT Product Name: smartphone Model Number: A6 PLUS FCC ID: 2AZYA-A6PLUS Issued For : Senwa Global International, S.A. de C.V. Av. Jose Maria Castorena 283 oficina 204 Col. Cuajimalpa. C.P. 05320 Ciudad de Mexico, Mexico Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT26H012RF01 Sample Received Date: Aug. 06, 2026 Date of Test: Aug. 06, 2026 ~ Aug. 26, 2026 Date of Issue: Aug. 26, 2026 Report No.: LGT26H012RF01 Page 2 of 73 TEST REPORT CERTIFICATION Applicant: Senwa Global International, S.A. de C.V. Address: Av. Jose Maria Castorena 283 oficina 204 Col. Cuajimalpa. C.P. 05320 Ciudad de Mexico, Mexico Manufacturer: Senwa Global International S.A. de C.V. Address: Av. Jose Maria Castorena 283 oficina 204 Col. Cuajimalpa, C.P. 05000 Alcaldía Cuajimalpa de Morelos, CDMX. Mexico City, Mexico Product Name: smartphone Trademark: ACER Model Number: A6 PLUS Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247, Subpart C ANSI C63.10-2020 + Cor. 1-2023+C63.10a-2024 + Errata to C63.10a-2024 PASS Prepared by: Approved by: Chris Chen Vita Li Engineer Technical Director Report No.: LGT26H012RF01 Page 3 of 73 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST LABORATORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 FREQUENCY HOPPING SYSTEM REQUIREMENTS 10 2.4 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 12 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST 13 3. EMC EMISSION TEST 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 RADIATED EMISSION MEASUREMENT 19 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 30 4.1 LIMIT 30 4.2 TEST PROCEDURE 30 4.3 TEST SETUP 30 4.4 EUT OPERATION CONDITIONS 31 4.5 TEST RESULTS 31 5. NUMBER OF HOPPING CHANNEL 32 5.1 LIMIT 32 5.2 TEST PROCEDURE 32 5.3 TEST SETUP 32 5.4 EUT OPERATION CONDITIONS 32 5.5 TEST RESULTS 32 6. AVERAGE TIME OF OCCUPANCY 33 6.1 LIMIT 33 6.2 TEST PROCEDURE 33 6.3 TEST SETUP 33 6.4 EUT OPERATION CONDITIONS 33 6.5 TEST RESULTS 33 7. HOPPING CHANNEL SEPARATION MEASUREMEN 34 7.1 LIMIT 34 7.2 TEST PROCEDURE 34 Report No.: LGT26H012RF01 Page 4 of 73 7.3 TEST SETUP 34 7.4 EUT OPERATION CONDITIONS 34 7.5 TEST RESULTS 34 8. BANDWIDTH TEST 35 8.1 LIMIT 35 8.2 TEST PROCEDURE 35 8.3 TEST SETUP 35 8.4 EUT OPERATION CONDITIONS 35 8.5 TEST RESULTS 35 9. OUTPUT POWER TEST 36 9.1 LIMIT 36 9.2 TEST PROCEDURE 36 9.3 TEST SETUP 36 9.4 EUT OPERATION CONDITIONS 36 9.5 TEST RESULTS 36 10. ANTENNA REQUIREMENT 37 10.1 STANDARD REQUIREMENT 37 10.2 EUT ANTENNA 37 APPENDIX I - TEST RESULTS 38 1. DUTY CYCLE 38 2. BANDWIDTH 42 3. MAXIMUM CONDUCTED OUTPUT POWER 49 4. CARRIER FREQUENCY SEPARATION 53 5. NUMBER OF HOPPING FREQUENCIES 55 6. TIME OF OCCUPANCY (DWELL TIME) 57 7. UNWANTED EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS 60 APPENDIX II - MEASUREMENT PHOTOS 73 Report No.: LGT26H012RF01 Page 5 of 73 Revision History Rev. Issue Date Revisions 00 Aug. 26, 2026 Initial Issue Report No.: LGT26H012RF01 Page 6 of 73 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247, Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247(a)(1) Hopping Channel Separation PASS -- 15.247(a)(1)&(b)(1) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247(d) Conducted Spurious & Band Edge Emission PASS -- 15.247(a)(1)(iii) Number of Hopping Frequency PASS -- 15.247(a)(1)(iii) Dwell Time PASS -- 15.247(a)(1) Bandwidth PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020 + Cor. 1-2023+C63.10a-2024 + Errata to C63.10a-2024. Report No.: LGT26H012RF01 Page 7 of 73 1.1 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: FCC Registration No.: 746540 CAB ID: CN0136 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 Occupied Channel Bandwidth ±0.46% 2 RF Output Power, Conducted ±0.71dB 3 Power Spectral Density, Conducted ±1.57dB 4 Unwanted Emission, Conducted ±0.63dB 5 Conducted emission ±2.80dB 6 All Emissions, Radiated (0.009-30MHz) ±2.16dB 7 All Emissions, Radiated (30MHz-1GHz) ±4.61dB 8 All Emissions, Radiated (1GHz-18GHz) ±5.49dB 9 All Emissions, Radiated (18GHz-40GHz) ±4.31dB 10 Temperature ±0.5°C 11 Humidity ±2% 12 Duty Cycle ±2.3% Note: The measurement uncertainty is not included in the test result. Report No.: LGT26H012RF01 Page 8 of 73 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name: smartphone Test Model Number: A6 PLUS Series Number: N/A Model Difference: N/A Channel List: Please refer to the Note 3. Bluetooth: Frequency:2402 – 2480 MHz Modulation: GFSK(1Mbps), π/4-DQPSK(2Mbps), 8DPSK(3Mbps) Antenna Type: FPC Anten…

Text truncated - open the document above for the full version.

Test Report

Shenzhen Qixin Tongda Technology Co., Ltd Antenna Specification Client:YIBOTONG ProjectName: E66D3 FrequencyBand:G2/3/5/8+W1/2/4/ 5/8+ FDD-B1/ 2/ 3/ 4/ 5/ 7/13/20/28AB/66+TDD-B38/40/41 Engineering:Jason（13 7 60255827） date：202 6-0 7-22 Factoryaddress:Bao'anDistrict,Shenzhen,ShajingStreet,ShayiNorth YongfaScienceand TechnologyPark,the first thirdfloor 1.TestProject 2.TestEquipment Agilent5071B（SParameter（RL/VSWR）TestEquipment） TestProjectEquipment 1.SParameter1.ReturnLoss(RL) 2.VSWR NetworkAnalyzer： Agilent5071B 2.RFTest （2/3/4/5G） 1.power 2.level 3.TRP/TIS ComprehensiveTest： SP9500/CMW500/8960 TestEnvironment： AnechoicChamber SP9500（5GTestEquipment） Agilent8960（ 2G/3GTestEquipment ） CMW500（2G/3G/4GTestEquipment） 3.TestEnvironment MicrowaveAnechoicChamber 4.TestSteps PassiveVSWR/RLTestSteps: Gain/EfficiencyTestSteps: ActiveTRP/TISTestSteps： 50 Ω CoaxialCable 90mmLength CopperPipe 5071BNetwork Analyzer TestFixture OpenComputerOTA TestSoftware OpenTurntableSwitch AndResetTozero Open8960/CMW500 TestEquipment TestmobilephoneinserttestSIM cardandPutintothemicrowave darkroomtoconnect OTASoftwareautomatic testing OutputData OpenComputer Gain/Efficiency TestSoftware OpenTurntableSwitch AndResetTozero Open5071B TestEquipment PuttheTestedobjectintothe microwavedarkroomtoconnect OTASoftwareautomatic testing OutputData 5.Antennasizediagram - 6.AntennaGain BandMaxGain GSM850(824-894MHZ)-2.64 GSM900(880-960MHZ)-2.31 DCS1800(1710-1880MHZ)0.34 PCS1900(1850-1990MHZ)0.27 WCDMA1(1920-2170MHZ)0.25 WCDMA2(1850-1990MHZ)0.27 WCDMA4(1710-2155MHZ)0.24 WCDMA5(824-894MHZ)-2.64 WCDMA8(880-960MHZ)-2.31 LTE-B1(1920-2170MHZ)0.24 LTE-B2(1850-1990MHZ)0.27 LTE-B3(1710-1880MHZ)0.31 LTE-B4(1710-2155MHZ)0.24 LTE-B5(824-894MHZ)-2.64 LTE-B7(880-960MHZ)0.44 LTE-B13(746-777MHZ)-2.79 LTE-B20(791-862MHZ)-2.64 LTE-B28(703-803MHZ)-2.87 LTE-B66(1710-1780MHZ)0.34 LTE-B38(2570-2620MHZ)0.44 LTE-B40(2300-2400MHZ)0.38 LTE-B41(2496-2690MHZ)0.44 (L1/BT/WIFI2.4/5150-5.850G/GPS) BandMaxGain(dBi) Bluetooth0.15 WIFI-2.4G0.15 WIFI-5G0.12 GPS-L10.06 7.2D&3DLobeDiagram GPS-L1 BT-2.4G 2.4G-WIFI WIFI-5.1G WIFI-5.8G 8.IntroductiontoAntennaInformation E66D3-4G Antennatypeandfrequencyband MAINANTENNA(PIFA):2G/3G/4G DIVANTENNA(PIFA):2G/3G/4G GPS/WIFI/BTANTENNA(PIFA):GPS-L1/WIFI-2.4 G/WIFI-5.8G/BT-2.4G AntennamateriaFPC

RF Exposure Info

Report No.: LGT26H012HA01 Page 68 of 137 50 24 Left Cheek 2560 0.786 -0.11 20.40 20.11 1.069 0.840 / 100 24 Left Cheek 2510 0.714 0.03 20.90 20.61 1.069 0.763 / 100 24 Left Cheek 2535 0.678 2.32 20.40 20.16 1.057 0.717 / 100 24 Left Cheek 2560 0.7 -2.81 20.40 20.11 1.069 0.748 / 1 99 Left Tilt 2510 0.527 -2.92 22.00 21.71 1.069 0.563 / 50 24 Left Tilt 2510 0.531 3.96 20.90 20.61 1.069 0.568 / LTE Band 13 10M QPSK 1 0 Right Cheek 782 0.346 -1.25 24.60 24.28 1.076 0.372 29 25 0 Right Cheek 782 0.309 1.09 23.40 23.09 1.074 0.332 / 1 0 Right Tilt 782 0.208 -1.83 24.60 24.28 1.076 0.224 / 25 0 Right Tilt 782 0.188 -1.51 23.40 23.09 1.074 0.202 / 1 0 Left Cheek 782 0.229 -1.66 24.60 24.28 1.076 0.247 / 25 0 Left Cheek 782 0.208 -0.60 23.40 23.09 1.074 0.223 / 1 0 Left Tilt 782 0.141 -1.03 24.60 24.28 1.076 0.152 / 25 0 Left Tilt 782 0.129 3.27 23.40 23.09 1.074 0.139 / LTE Band 38 20M QPSK 1 0 Right Cheek 2610 0.285 -2.53 25.10 24.76 1.081 0.308 / 50 0 Right Cheek 2610 0.259 0.81 24.50 24.15 1.084 0.281 / 1 0 Right Tilt 2610 0.173 0.05 25.10 24.76 1.081 0.187 / 50 0 Right Tilt 2610 0.155 2.31 24.50 24.15 1.084 0.168 / 1 0 Left Cheek 2610 0.372 3.10 25.10 24.76 1.081 0.402 31 50 0 Left Cheek 2610 0.334 -0.58 24.50 24.15 1.084 0.362 / 1 0 Left Tilt 2610 0.226 3.84 25.10 24.76 1.081 0.244 / 50 0 Left Tilt 2610 0.201 2.93 24.50 24.15 1.084 0.218 / LTE Band 40 10M QPSK 1 0 Right Cheek 2360 0.21 -2.58 15.20 14.90 1.072 0.225 / 50 0 Right Cheek 2360 0.192 0.98 14.50 14.19 1.074 0.206 / 1 0 Right Tilt 2360 0.127 -1.86 15.20 14.90 1.072 0.136 / 50 0 Right Tilt 2360 0.116 2.28 14.50 14.19 1.074 0.125 / 1 0 Left Cheek 2360 0.274 -2.75 15.20 14.90 1.072 0.294 33 50 0 Left Cheek 2360 0.248 0.82 14.50 14.19 1.074 0.266 / 1 0 Left Tilt 2360 0.164 2.42 15.20 14.90 1.072 0.176 / 50 0 Left Tilt 2360 0.148 -0.52 14.50 14.19 1.074 0.159 / LTE Band 41 20M QPSK 1 0 Right Cheek 2680 0.29 -0.39 25.00 24.65 1.084 0.314 / 50 0 Right Cheek 2680 0.262 1.00 24.40 24.05 1.084 0.284 / 1 0 Right Tilt 2680 0.175 2.49 25.00 24.65 1.084 0.190 / 50 0 Right Tilt 2680 0.157 -3.68 24.40 24.05 1.084 0.170 / 1 0 Left Cheek 2680 0.382 0.64 25.00 24.65 1.084 0.414 35 50 0 Left Cheek 2680 0.349 1.92 24.40 24.05 1.084 0.378 / Report No.: LGT26H012HA01 Page 69 of 137 1 0 Left Tilt 2680 0.234 -1.34 25.00 24.65 1.084 0.254 / 50 0 Left Tilt 2680 0.21 3.79 24.40 24.05 1.084 0.228 / LTE Band 66 20M QPSK 1 0 Right Cheek 1745 0.362 -3.81 24.60 24.25 1.084 0.392 / 50 0 Right Cheek 1770 0.326 0.80 23.50 23.16 1.081 0.353 / 1 0 Right Tilt 1745 0.22 1.22 24.60 24.25 1.084 0.238 / 50 0 Right Tilt 1770 0.197 1.45 23.50 23.16 1.081 0.213 / 1 0 Left Cheek 1745 0.478 -0.18 24.60 24.25 1.084 0.518 37 50 0 Left Cheek 1770 0.431 0.97 23.50 23.16 1.081 0.466 / 1 0 Left Tilt 1745 0.287 0.04 24.60 24.25 1.084 0.311 / 50 0 Left Tilt 1770 0.26 0.87 23.50 23.16 1.081 0.281 / Note: 1. Per KDB 447498 D01, the reported SAR is the measured SAR value adjusted for maximum tune-up tolerance. a. Tune-up scaling Factor = tune-up limit power (mW) / EUT RF power (mW), where tune-up limit is the maximum rated power among all production units. b. Scaled SAR(W/kg) = Measured SAR(W/kg) *Tune-up Scaling Factor 2. Per KDB 865664 D01, Repeated measurement is not required when the original highest measured SAR is <0.80 W/kg. Report No.: LGT26H012HA01 Page 70 of 137 12.2 Body-worn and Hotspot SAR Band Model Test Position Freq. SAR (1g) (W/kg) Power Drift (%) Max. Turn-up Power (dBm) Meas. Output Power (dBm) Scaling Factor Scaled SAR (W/Kg) Meas. No. GSM850 EGPRS (8PSK, 4- Slot) Front Side 848.8 0.268 1.20 28.70 28.39 1.074 0.288 / Back Side 848.8 0.328 3.38 28.70 28.39 1.074 0.352 / Left Side 848.8 0.141 2.46 28.70 28.39 1.074 0.151 / Right Side 848.8 0.306 -0.22 28.70 28.39 1.074 0.329 / Top Side 848.8 0.073 -1.43 28.70 28.39 1.074 0.078 / Bottom Side 848.8 0.397 0.45 28.70 28.39 1.074 0.426 2 PCS 1900 GPRS Data-4 Slot Front Side 1880 0.482 3.42 25.90 25.58 1.076 0.519 / Back Side 1880 0.538 -1.64 25.90 25.58 1.076 0.579 4 Left Side 1880 0.42 -1.98 25.90 25.58 1.076 0.452 / Right Side 1880 0.148 3.19 25.90 25.58 1.076 0.159 / Bottom Side 1880 0.437 -3.48 25.90 25.58 1.076 0.470 / WCDMA Band II RMC Front Side 1852.4 0.397 -0.27 25.60 25.27 1.079 0.428 / Back Side 1852.4 0.433 2.81 25.60 25.27 1.079 0.467 6 Left Side 1852.4 0.344 -3.60 25.60 25.27 1.079 0.371 / Right Side 1852.4 0.115 -3.63 25.60 25.27 1.079 0.124 / Bottom Side 1852.4 0.361 3.37 25.60 25.27 1.079 0.389 / WCDMA Band lV RMC Front Side 1740 0.701 -2.38 25.40 25.08 1.076 0.755 / Back Side 1712.6 0.768 2.15 25.20 24.89 1.074 0.825 / Back Side 1740 0.783 1.16 25.40 25.08 1.076 0.843 8 Back Side 1752.4 0.775 1.42 25.40 25.06 1.081 0.838 / Left Side 1740 0.614 -1.11 25.40 25.08 1.076 0.661 / Right Side 1740 0.212 -1.38 25.40 25.08 1.076 0.228 / Bottom Side 1740 0.638 -2.54 25.40 25.08 1.076 0.687 / WCDMA Band V RMC Front Side 846.6 0.230 -0.16 25.60 25.32 1.067 0.245 / Back Side 846.6 0.303 3.51 25.60 25.32 1.067 0.323 / Left Side 846.6 0.117 -3.02 25.60 25.32 1.067 0.125 / Right Side 846.6 0.280 3.16 25.60 25.32 1.067 0.299 / Bottom Side 846.6 0.367 2.61 25.60 25.32 1.067 0.391 10 2.4GHz WLAN 802.11b Front Side 2412 0.151 2.63 15.50 15.42 1.019 0.154 / Back Side 2412 0.192 1.35 15.50 15.42 1.019 0.196 / Right Side 2412 0.149 3.23 15.50 15.42 1.019 0.152 / Top Side 2412 0.206 0.59 15.50 15.42 1.019 0.210 12 5.2GHz WLAN 802.11a Front Side 5200 0.332 1.05 16.60 16.33 1.064 0.353 / Back Side 5200 0.369 -1.01 16.60 16.33 1.064 0.393 / Right Side 5200 0.346 0.28 16.60 16.33 1.064 0.368 / Top Side 5200 0.392 2.24 16.60 16.33 1.064 0.417 14 5.3GHz WLAN 802.11a Front Side 5300 0.303 3.73 15.80 15.50 1.072 0.325 / Back Side 5300 0.335 -2.05 15.80 15.50 1.072 0.359 / Right Side 5300 0.315 -2.35 15.80 15.50 1.072 0.338 / Top Side 5300 0.357 1.93 15.80 15.50 1.072 0.383 16 5.6GHz WLAN 802.11a Front Side 5580 0.158 1.67 16.20 15.86 1.081 0.171 / Back Side 5580 0.176 -1.01 16.20 15.86 1.081 0.190 / Right Side 5580 0.167 -3.80 16.20 15.86 …

Text truncated - open the document above for the full version.

RF Exposure Info

Text truncated - open the document above for the full version.

Contact Information

Applicant

Roberto Fregoso(CTO)

[email protected]Fax: +1 949-394-1881

Technical Contact

HOPEK CORPORATION INCYangyang Xu

[email protected]

16755 Coyote Bush Dr Unit 84, · United States

Test Firm

Shenzhen LGT Test Service Co., Ltd.Wen Wen

[email protected]

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	2.30 mW

Confidentiality

Long Term

Grant Notes

Output power listed is conducted power. SAR compliance for body-worn operating configurations is limited to the specific configurations tested for this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.0 cm separation between the device and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router), and simultaneous transmission use conditions are 0.11 W/kg, 0.11 W/kg, 0.11 W/kg and 1.05 W/kg respectively.
