2AZYTPNB000003-03Fixed Luminaires

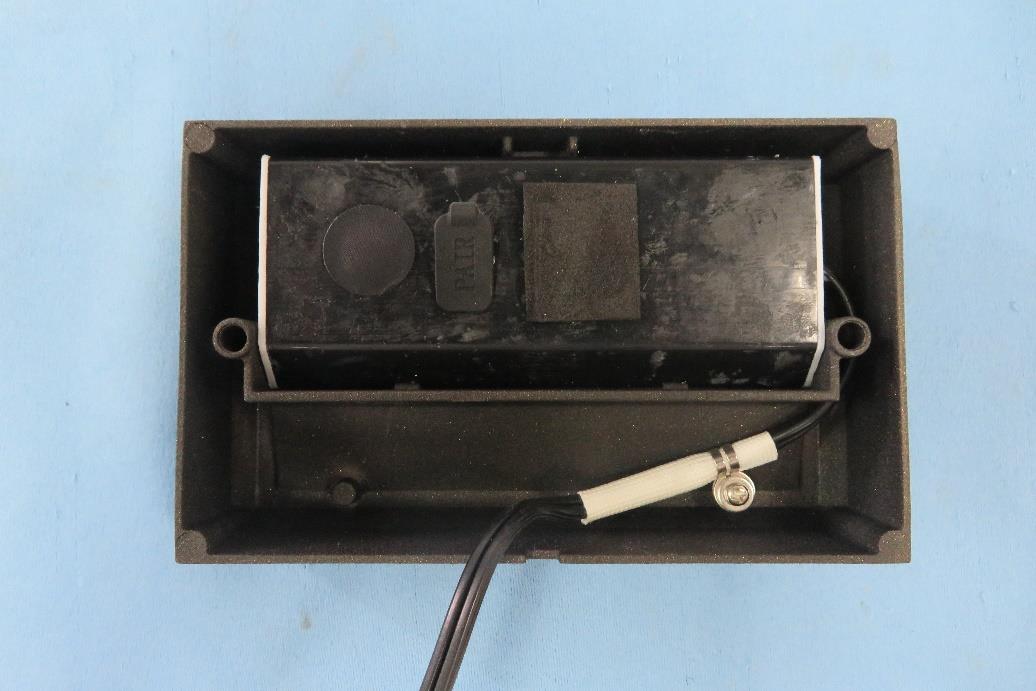

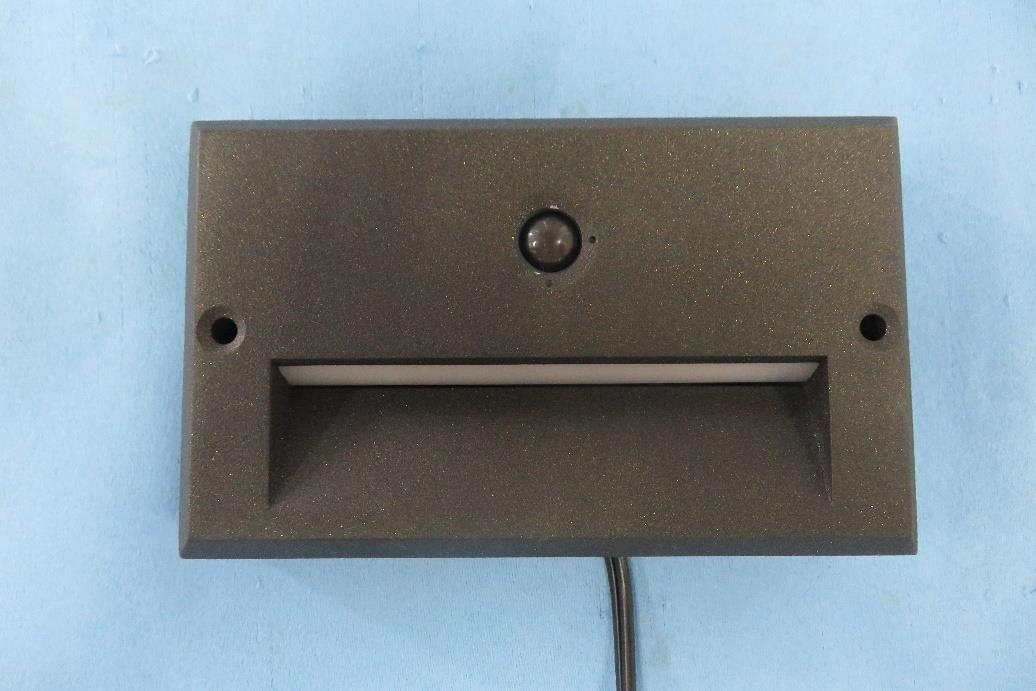

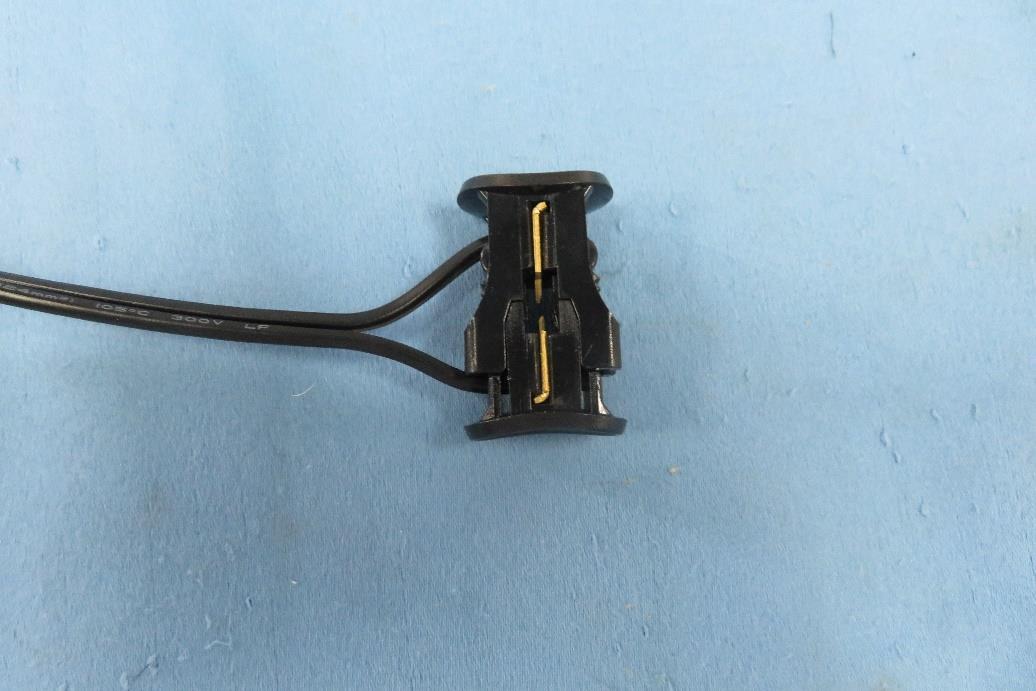

Technical Specifications ⚫ Power Supply: 12VAC -15VAC ⚫ Non-removable battery: 3.7V 800mAh ⚫ Normal battery charge time: 4 Hours, indicate light will be green once fully charged ⚫ Motion Sensor Range: Up to 15 ft. (varies with surrounding temperature) ⚫ Sensor Detection Angle: 90° ⚫ Electrical Requirements: 12VAC - 15VAC ⚫ Light Bulb: Integrated LED ⚫ Installation Height: Ideally, 0.9M (3 ft.) above the ground. ⚫ Minimum to Maximum Outdoor Outdoor Temperature: -20°to 50°Celsius (-4°to 122°Fahrenheit) ⚫ Distance between fixtures: 10M (30 ft.) ⚫ Group member : up to 8 fixtures ⚫ Pair Signal: 2.4 GHZ ⚫ Water Proof: IPX6 ⚫ PIR Delay Time : 1 minute Setting Up and Operating Multiple PIR Deck Lights What to know before intall: 1. Decide which PIR Deck Lights will be grouped (up to 8 fixtures) 2. Open the plastic cover on back of each PIR Deck Light. 3. Refer to the “Pairing via DIP Switch’’ Step to pair the deck lights. 4. Close the plastic cover (to prevent water go inside fixture) General Notes: ⚫ When the transformer is turned off the fixture light will turn of, then PIR function become active and converts to battery power. ⚫ PIR Function is only active after the sensor detects the environmental brightness at less than 50LUX at night. ⚫ When the sensor detects the environmental brightness of less than 50LUX, plus PIR detects motion, the deck light will turn on and stay on for 1 minute before turning off. ⚫ When the sensor detects the environmental brightness higher than 200LUX, after a 90 second delay time, deck light will turn off. The purpose of setting 90 second delay is to prevent the 200LUX brightness caused by a flash of lightning or car light. Pairing via DIP Switch - If operating only one fixture, place the fixture in its permanent location. - To operate multiple fixtures, please pair the fixtures before installation, follow the PAIR steps below: ⚫ There is a DIP switch in the back of fixture, the 4 bottons on the switch can be slided to up and down. The fixtures with the switch bottons in the exactly same setting will be paired as a group . You can make up to 16 groups. ⚫ When at Off mode (0000), fixture is at off status, will not pair. ⚫ When at Test mode (1111), fixture will turn on after detecting motion whenever at day or night, then turn off after 3S of delay. ⚫ If Pairing lost efficacy, press the Reset botton for 1S, the light will turn on for 10s, then turn off, reset succeed. You can start a new pairing. FCC Warning Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.

Dong Guan Jia Sheng Lighting Technology Co. Ltd. [06-30-2021] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject:Limited Agency Agreement (DongGuanJiaShengLightingTechnologyCo.Ltd.) FCC ID: (2AZYTPNB000003-03) To Whom It May Concern: We, (Dong Guan Jia Sheng Lighting Technology Co. Ltd.), hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number(2AZYT) under all applicable parts of the FCC rules and regulations. Theeffectivedateofthislimitedagencyagreement is (06-30-2021). The Limited Agency Agreement expires on (12-30-2021), unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, [[Wu Bin] [Manager]

1 ( 1 ) Dong Guan Jia Sheng Lighting Technology Co. Ltd. [06-30-2021] Attention: Application Examiner RE:Request for Confidentiality Applicant: [Dong Guan Jia Sheng Lighting Technology Co. Ltd.] FCC ID: [2AZYTPNB000003-03] To Whom It May Concern: Permanent Confidentiality[Complete this section if permanent confidentiality is requested] Request is hereby submitted by [Dong Guan Jia Sheng Lighting Technology Co. Ltd.] to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: [Select one or more of items below, as appropriate]  Schematics  Detailed Bloc kDiagrams  Detailed O perational/Functional Description Rationale for request for confidentiality: [Dong Guan Jia Sheng Lighting Technology Co. Ltd.] has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality:Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.] If you have questions or need further information, please contact the undersigned. Sincerely, [Wu Bin] [Manager] [Dong Guan Jia Sheng Lighting Technology Co. Ltd.]

Ó á Ó

Intertek Testing Services Shenzhen Ltd. Guangzhou Branch Room 02, & 101/E201/E301/E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Job No.: 210616211GZU FCC ID: 2AZYTPNB000003-03 RF Exposure Compliance Requirement Calculation formula： E (V/m) = (30*P*G) 0.5/d E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between EUT and antenna (m) Remark: E(V/m)=10 X (dBUV/m) /20 ×10 -6 P=(E*d) 2 /30G in the formula above, d=3m, field strength= 89.71dBuV/m (max described by client), G=1.58 (Antenna gain=2dBi) so P=0.177mW The worst case test separation distance is 5mm. The product belongs to standalone portable device base the FCC rule part 2.1091&2.1093. The transmission frequencies of the device are between 100 MHz and 6 GHz. In KDB 447498 D01 v06: 4.3.1 Standalone SAR test exclusion considerations: The SAR Test Exclusion Threshold is calculated from: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR  f(GHz) is the RF channel transmit frequency in GHz.  Power and distance are rounded to the nearest mW and mm before calculation 17.  The result is rounded to one decimal place for comparison. The Max Conducted Output Power and SAR Test Exclusion Threshold (mW) are listed below: Transmit Frequency (GHz) Output power (mW) SAR Test Exclusion Threshold (mW) 2.450 0.177 9.58 According to SAR Exclusion Threshold in KDB 447498 (D01) General RF Exposure Guidance v05, the SAR report is not required. Test Location: Intertek Testing Services Shenzhen Ltd. Guangzhou Branch All tests were performed at: Room102/104, No 203, KeZhu Road, Science City, GETDD Guangzhou, China

Dong Guan Jia Sheng Lighting Technology Co. Ltd TEST REPORT SCOPE OF WORK EMC TESTING–PNB000003-03 REPORT NUMBER 210616211GZU-001 ISSUE DATE [REVISED DATE] 13-July-2021 [---------------------] PAGES 28 DOCUMENT CONTROL NUMBER FCC Part 15.249-d © 2017 INTERTEK TEST REPORT Room 02, & 101/E201/E301/ E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Telephone: +86 20 8213 9688 Facsimile: +86 20 3205 7538 www.intertek.com.cn This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Guangzhou Branch Room 02, & 101/E201/E301/E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Version: 10 June 2019 Page 2 of 29 FCC Part 15.249-d Applicant Name & Address : Dong Guan Jia Sheng Lighting Technology Co. Ltd. Humen Township, Shutian Village, DONG GUAN CITY, Guang Dong, 523930 Manufacturing Site : Same as applicant Intertek Report No: FCC ID: 210616211GZU-001 2AZYTPNB000003-03 Test standards 47 CFR PART 15 Subpart C: 2019 section 15.249 Sample Description Product : Fixed Luminaires Model No. : PNB000003-03 Electrical Rating : Input: 12Vac-15Vac, 60Hz, 5W From battery: 3.7V, 800mAh Serial No. : Not Labeled Date Received : 16 June 2021 Date Test Conducted : 20 June 2021-07 July 2021 Prepared and Checked By Oscar Gao Project Engineer Approved By: Strong Yao Manager TEST REPORT Intertek Report No.: 210616211GZU-001 Version: 10 June 2019 Page 3 of 29 FCC Part 15.249-d CONTENT TEST REPORT ........................................................................................................................... 1 CONTENT ............................................................................................................................. 3 1.0 TEST RESULT SUMMARY ............................................................................................ 4 2.0 GENERAL DESCRIPTION .............................................................................................. 5 2.1 PRODUCT DESCRIPTION ........................................................................................................ 5 2.2 RELATED SUBMITTAL(S) GRANTS ............................................................................................ 5 2.3 TEST METHODOLOGY ........................................................................................................... 5 2.4 TEST FACILITY ...................................................................................................................... 6 3.0 SYSTEM TEST CONFIGURATION .................................................................................. 6 3.1 JUSTIFICATION ..................................................................................................................... 6 3.2 EUT EXERCISING SOFTWARE.................................................................................................. 7 3.3 SPECIAL ACCESSORIES ........................................................................................................... 7 3.4 MEASUREMENT UNCERTAINTY ............................................................................................... 7 3.5 EQUIPMENT MODIFICATION .................................................................................................. 8 3.6 SUPPORT EQUIPMENT LIST AND DESCRIPTION .......................................................................... 8 4.0 MEASUREMENT RESULTS ........................................................................................... 9 4.1 ANTENNA REQUIREMENT ...................................................................................................... 9 4.2 OCCUPIED BANDWIDTH ...................................................................................................... 10 4.3 TRANSMITTER OUTPUT POWER ............................................................................................ 12 4.4 RADIATED EMISSION .......................................................................................................... 15 4.4 BAND EDGES REQUIREMENT ................................................................................................ 23 4.5 CONDUCTED EMISSIONS AT MAINS TERMINALS ...................................................................... 26 5.0 TEST EQUIPMENT LIST ............................................................................................. 29 TEST REPORT Intertek Report No.: 210616211GZU-001 Version: 10 June 2019 Page 4 of 29 FCC Part 15.249-d 1.0 TEST RESULT SUMMARY Test Item Test Requirement Test Method Result Antenna Requirement FCC PART 15 C Section 15.203 FCC PART 15 C Section 15.203 PASS Occupied Bandwidth FCC PART 15 C section 15.215(c) ANSI C63.10: Clause 6.9 PASS Radiated Emission FCC PART 15 C section 15.249 (a), (d) ANSI C63.10: Clause 6.4, 6.5 & 6.6 PASS Band Edges Measurement FCC PART 15 C section 15.249 (d) ANSI C63.10: Clause 6.10 PASS Conducted Emissions at Mains Terminals FCC PART 15 C section 15.207 ANSI C63.10: Clause 6.2 PASS Remark: N/A: not applicable. Refer to the relative section…

Text truncated - open the document above for the full version.

Conducted Emission Radiated Emission(Below 1GHz) Radiated Emission(Above 1GHz)
