2BA2CIC-ADIEEE 802.11 a/b/g/n/ac(1T1R)WLAN Module

Please refer to the intraoral camera manual for instructions on how to connect the intraoral camera to the receiver The intraoral camera manual can be downloaded from the www.gooddrs.com website by clicking on the product GDUM-IC-AD-Direct V_Rev.2 Quality Guaranteed This product was produced under strict quality control.In a normal operating environment, no problems occurwithin one year of the purchase date of the product,and product repairs are provided free of charge. Part No: AC0213Size: Approx. 79x24.5x12.5mmWeight: Approx. 16.2 gOperating Voltage: 5V 0.5A (USB power) Product Information Thank you for purchasing the product.This manual contains information on the stable use of the produ ct. a. Rule Part 15.19(a)(3): This device complies with part 15 of the FCC Rules. Operation is subject to the following two condit ions: (1) This device may not cause harmful interference, and (2) thi s device must accept any interference received, including inter ference that may cause undesired operation.b. Rule Part 15.21: The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsibl e for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with t he limits for a Class B digital NOTE: This equipment has been tested and found to comply with t he limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecti on against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the in structions, may cause harmful interference to radio communications. However , there is no guarantee that interference will not occur in a p articular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by t urning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different fr om that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for h elp How to Install 2) After approximately 5 seconds, thereceiver will display a logo and thereceiver's default number "001" 3) To change to a number that does not overlap with otherreceivers, press the ▲ and ▼ buttons on the receiver to change the number.(Press and hold the ▲ and ▼ buttons to change quickly.) 1) Connect the receiver to the USB porton your PC Connect to the USB port

Good Doctors Co., Ltd. #208, B-dong, 283 Bupyeong-daero, Bupyeong-gu Incheon, 21315, Republic of Korea Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 04-27-2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BA2CIC-AD Good Doctors Co., Ltd. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, YOUNG WOON KIM / CEO Good Doctors Co., Ltd. Rev 1/26/2023 Good Doctors Co., Ltd. #208, B-dong, 283 Bupyeong-daero, Bupyeong-gu Incheon, 21315, Republic of Korea Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 04-27-2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BA2CIC-AD Good Doctors Co., Ltd. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, YOUNG WOON KIM / CEO Good Doctors Co., Ltd. Rev 1/26/2023

Good Doctors Co., Ltd. #208, B-dong, 283 Bupyeong-daero, Bupyeong-gu (Woolim Lions Valley ,Cheongchoen-dong) Incheon, 21315, Republic of Korea Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 04-27-2023 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID or Grantee Code: 2BA2CIC-AD [Good Doctors Co., Ltd.]certifies that, as of the date of the filing of the application, [FCC US Agent, LLC] is our designated U.S. agent for service of process for the above referenced FCC ID. [Good Doctors Co., Ltd.] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. [FCC US Agent, LLC] accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Email: [email protected] Sincerely, Good Doctors Co., Ltd. FCC US Agent, LLC Young Woon Kim Tim Payne Signature Signature

Good Doctors Co., Ltd. #208, B-dong, 283 Bupyeong-daero, Bupyeong-gu Incheon, 21315, Republic of Korea April 27, 2023 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Good Doctors Co., Ltd. FCC Application for FCC ID : 2BA2CIC-AD To whom it may concern: We, the undersigned, hereby attest to the fact that we will apply the Supplier’s Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely, YOUNG WOON KIM / CEO Good Doctors Co., Ltd.

Good Doctors Co., Ltd. #208, B-dong, 283 Bupyeong-daero, Bupyeong-gu Incheon, 21315, Republic of Korea April 27, 2023 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: 2BA2CIC-AD including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Good Doctors Co., Ltd. LTA Co.,LTD. (Contact Person) Contact name: Ja-Beom Koo Position: Manager Phone:(82)31-323-6008 E-mail: [email protected] Sincerely, YOUNG WOON KIM / CEO Good Doctors Co., Ltd.

Good Doctors Co., Ltd. #208, B-dong, 283 Bupyeong-daero, Bupyeong-gu Incheon, 21315, Republic of Korea April 27, 2023 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Good Doctors Co., Ltd. FCC ID : 2BA2CIC-AD Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), Good Doctors Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Good Doctors Co., Ltd. commporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name CONFIDENTIAL Schematics CONF APPENDIX 2BA2CIC-AD-F SCH DIA.pdf Parts list CONF APPENDIX 2BA2CIC-AD-F PL.pdf Block diagram CONF APPENDIX 2BA2CIC-AD-F BLK DIA.pdf Operational description CONF APPENDIX 2BA2CIC-AD-F OpDes.pdf SHORT-TERM CONFIDENTIAL External Photos SHORT-TERM CONF 2BA2CIC-AD-F EXT Photo.pdf Internal Photos SHORT-TERM CONF 2BA2CIC-AD-F INT Photo.pdf Te s t-Setup Photos SHORT-TERM CONF 2BA2CIC-AD-F Test Photo.pdf User’s Manual SHORT-TERM CONF 2BA2CIC-AD-F Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, YOUNG WOON KIM / CEO Good Doctors Co., Ltd.

April 27, 2023 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Cover letter FCC ID : 2BA2CIC-AD Gentlemen: 1. This product uses a certified module, but it is controlled by software to use BT and not the DFS band on the WLAN. 2. Electrical circuit is the same as conventional modules because it is only blocked by software. Sincerely, YOUNG WOON KIM / CEO Good Doctors Co., Ltd. Good Doctors Co., Ltd. #208, B-dong, 283 Bupyeong-daero, Bupyeong-gu Incheon, 21315, Republic of Korea

May 08, 2023 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Module Request Letter FCC ID : 2BA2CIC-AD To Whom It May Concern: Per 2.933(b) 1. The orginal identification is FCC ID : 2AL6KBL-M8821CS1 2. The original identification grant date is 01/06/2020 3. The equipment is electrically identical with no change in design, circuitry and construction 4. The Original test results are applicable and representative 5. A statement that there is no change in the design, circuitry, or construction, and the original test results continue to be representative of and applicable to the equipment. 6. The Original test results are applicable and representative of the original device and of the new FCC ID 2BA2CIC-AD If you have any questions, please feel free to contact us at the address shown above. Sincerely, YOUNG WOON KIM / CEO Good Doctors Co., Ltd. Good Doctors Co., Ltd. #208, B-dong, 283 Bupyeong-daero, Bupyeong-gu Incheon, 21315, Republic of Korea

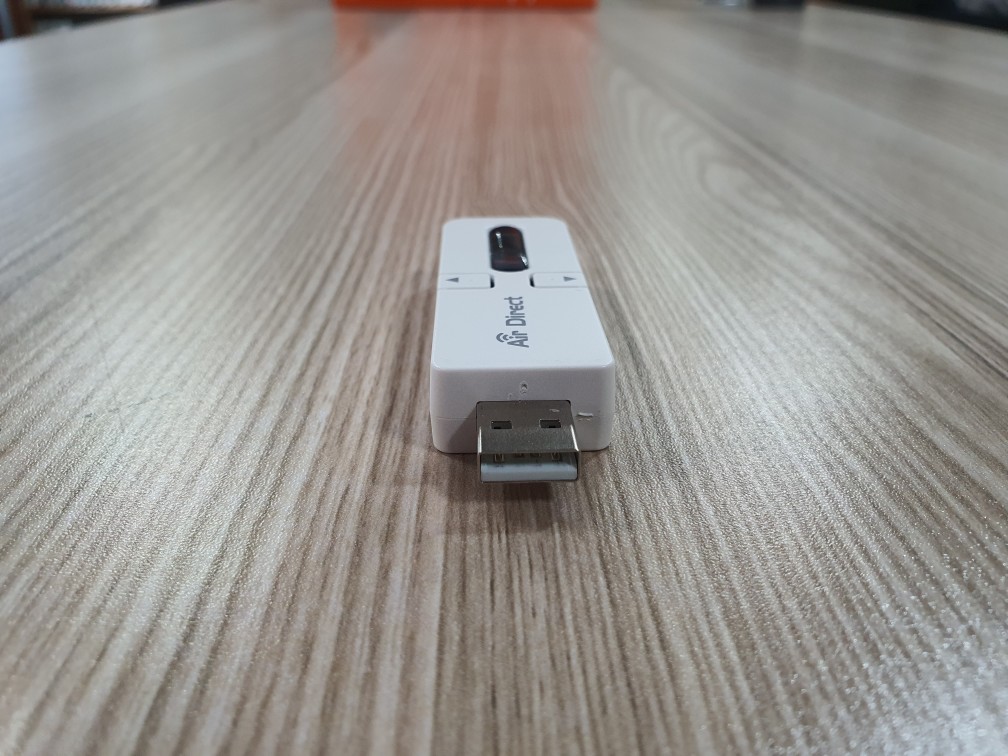

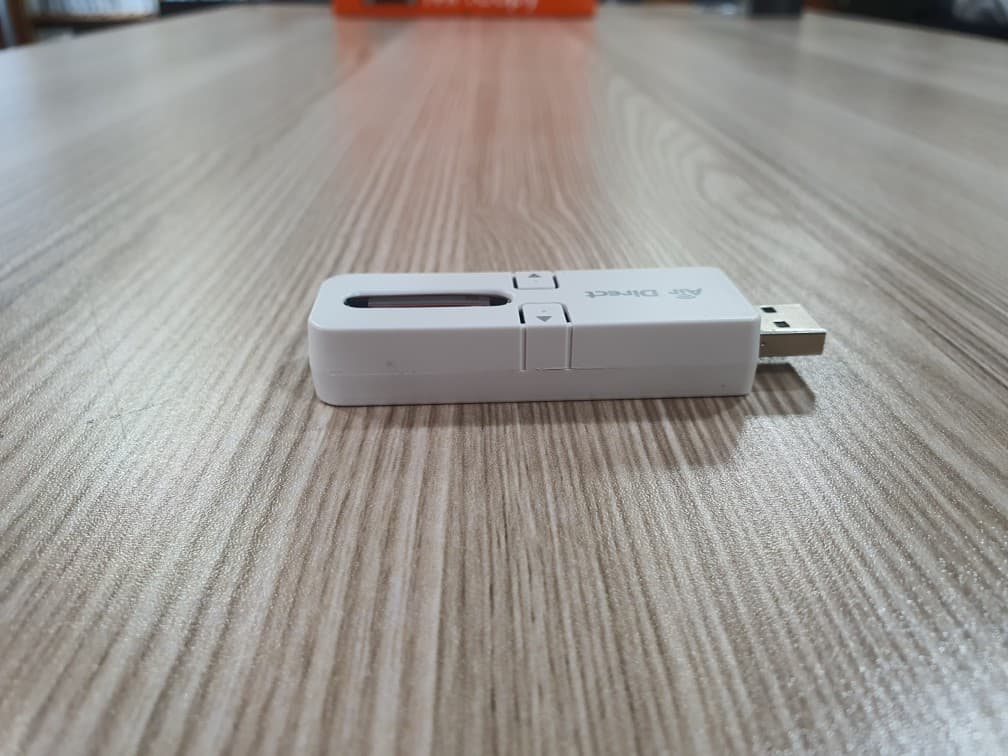

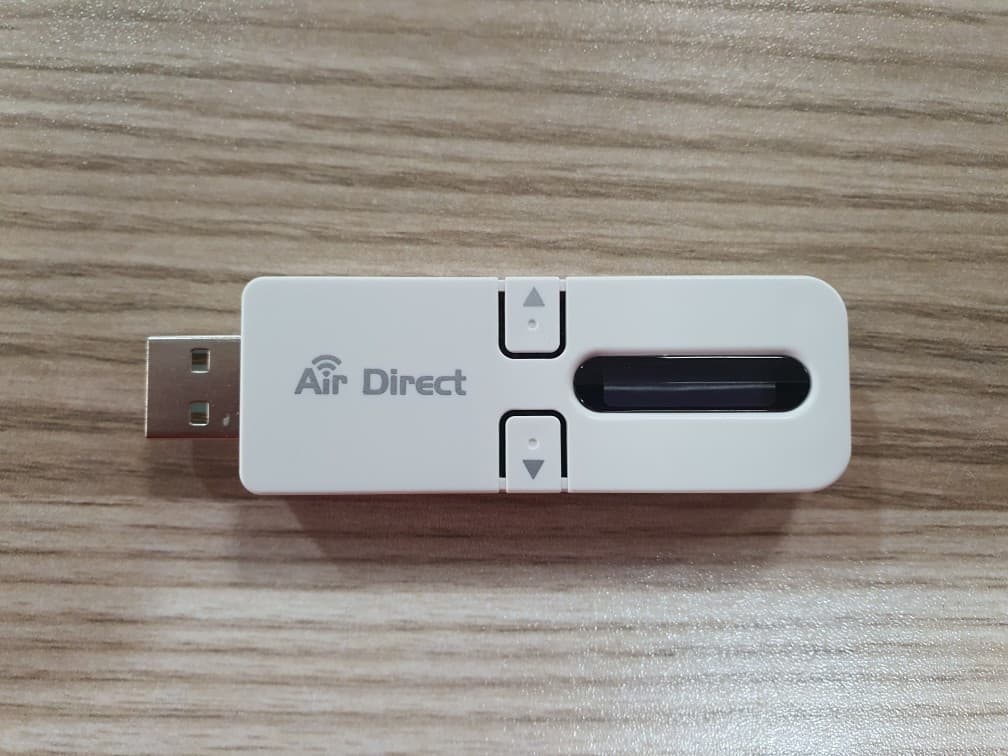

FCC ID: 2BA2CIC-AD Front Rear Copyright ○ c 2023, LTA Co., Ltd .Page 1 of 4 FCC ID: 2BA2CIC-AD To p Bottom Copyright ○ c 2023, LTA Co., Ltd .Page 2 of 4 FCC ID: 2BA2CIC-AD Left Right Copyright ○ c 2023, LTA Co., Ltd .Page 3 of 4 FCC ID: 2BA2CIC-AD Label Position Copyright ○ c 2023, LTA Co., Ltd .Page 4 of 4

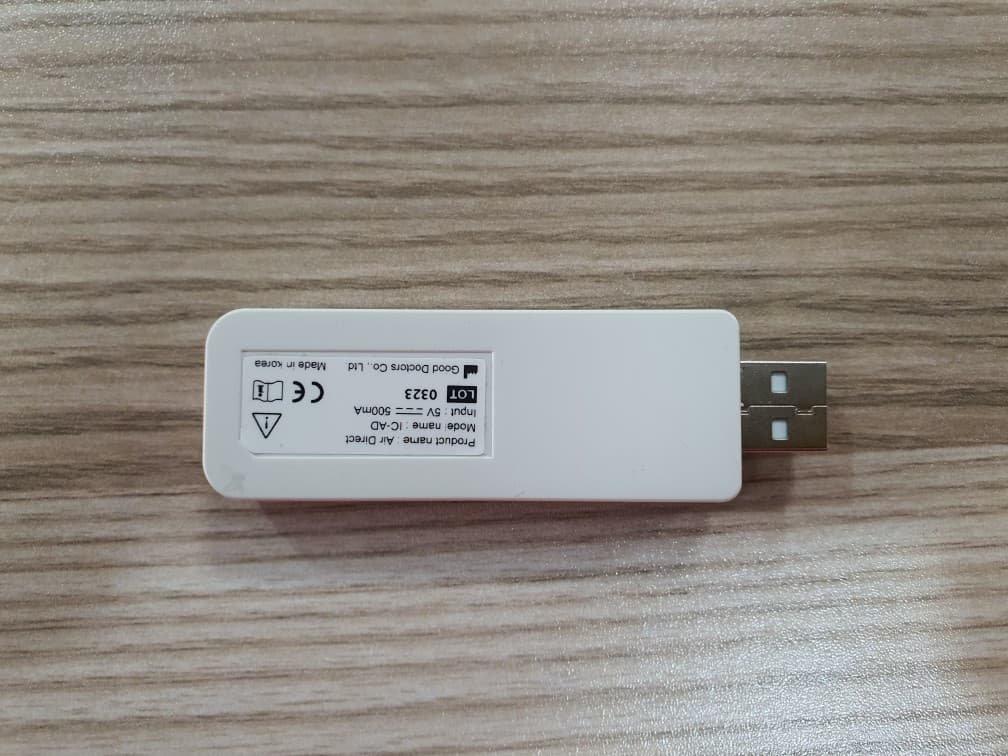

FCC ID: 2BA2CIC-AD SAMPLE LABEL & LOCATION Rear Position Good Doctors Co., Ltd. Model : IC-AD FCCID : 2BA2CIC-AD Contains FCC ID: 2AL6KBL-M8821CS1 Made in Korea Copyright Ⓒ 2023, LTA Co., Ltd.

FCC ID: 2BA2CIC-AD Board–Front Board–Rear Copyright ○ c 2023, LTA Co., Ltd. Page 1 of 2 FCC ID: 2BA2CIC-AD Antenna(2.4GHz, 5GHz ANT) Copyright ○ c 2023, LTA Co., Ltd. Page 2 of 2

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No...................... : FCC ID. ............................................ : GTS20191209006-2-26 2AL6KBL-M8821CS1 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Moon Tan Approved by ( position+printed name+signature) . : Manager Simon Hu Date of issue .................................... : Dec.21, 2019 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Shenzhen Bilian Electronic Co.,Ltd. Address ............................................ : Building B1, Zhongxing Industrial Zone, Juling, Jutang Community, Guanlan street, LongHua district, Shenzhen, China Test specification ........................... : Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : IEEE 802.11 a/b/g/n/ac(1T1R)WLAN with Bluetooth Module Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Bilian Electronic Co.,Ltd. Model/Type reference ...................... : BL-M8821CS1 Listed Models .................................. : N/A Modulation Type ............................... : IEEE 802.11a /802.11b/802.11g/802.11n/802.11ac Operation Frequency........................ : From 2402MHz-2480MHz, 2412MHz to 2462MHz, 5180MHz to 5240MHz, 5745MHz to 5825MHz Hardware Version ............................ : 1.0 Software Version .............................. : V1.0 Rating ............................................... : DC 3.3V Result ............................................... : PASS Report No.: GTS20191209006-2-26 Page 2 of 12 T E S T R E P O R T Test Report No. : GTS20191209006-2-26 Dec.21, 2019 ______________________________________________________________________________________________ Date of issue Equipment under Test : IEEE 802.11 a/b/g/n/ac(1T1R)WLAN with Bluetooth Module Model /Type : BL-M8821CS1 Listed Models : N/A Applicant : Shenzhen Bilian Electronic Co.,Ltd. Address : Building B1, Zhongxing Industrial Zone, Juling, Jutang Community, Guanlan street, LongHua district, Shenzhen, China Manufacturer : Shenzhen Bilian Electronic Co.,Ltd. Address : Building B1, Zhongxing Industrial Zone, Juling, Jutang Community, Guanlan street, LongHua district, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20191209006-2-26 Page 3 of 12 Contents 1. SUMMARY ............................................................................................................................................................. 4 1.1 EUT CONFIGURATION ........................................................................................................................................................ 4 1.2 PRODUCT DESCRIPTION ..................................................................................................................................................... 4 2. TEST ENVIRONMENT .............................................................................................................................................. 5 2.1 ADDRESS OF THE TEST LABORATORY ..................................................................................................................................... 5 2.2 TEST FACILITY .................................................................................................................................................................. 5 2.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................................ 5 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .................................................................................................................. 5 3. METHOD OF MEASUREMENT ................................................................................................................................. 6 3.1 APPLICABLE STANDARD ...................................................................................................................................................... 6 3.2 REQUIREMENT ................................................................................................................................................................. 6 3.3 LIMIT ............................................................................................................................................................................. 6 3.4 MPE CALCULATION METHOD ............................................................................................................................................. 7 3…

Text truncated - open the document above for the full version.

FCC ID: 2BA2CIC-AD ATTACHMENT RF EXPOSURE EVULATION 1.1 Limit According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength Magnetic field Strength Power density Averaging time 1.34 - 30....................................... 824/f 2.19/f *(180/ f²) 30 30 - 300....................................... 27.5 0.073 0.2 30 300 - 1500.................................... ............... ............... f/1500 30 1500 - 100.000................................. ............... ............... 1.0 30 F = frequency in MHz * = Plane-wave equivalent power density 1.2 MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance Power density at the specific separation: S = PG/(4R 2 π) Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20 cm = limit for MPE) S = (39.6 * 1.86) / (4 * 20 2 * π) S = 0.13mW/cm 2 FCC ID: 2BA2CIC-AD ATTACHMENT 1.3 MAXIMUM PERMISSIBLE EXPOSURE Prediction (Measured power 16 dBm ± 0.5dB) 3-1. WLAN Max Peak output Power at antenna input terminal 15.98 dBm Max Peak output Power at antenna input terminal 39.6 mW Prediction distance 5 cm Prediction frequency 2442 MHz Antenna Gain(typical) 2.7 dBi Antenna Gain(numeric) 0.86 - Power density at prediction frequency( S) 0.13 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.38 mW/cm 2 Simultaneous transmission operations SAR Test exclusion thresholds for 100MHz to 6GHz at test separation distance ≤ 50 mm = Used [(max.power of channel, including tune-up torelance, mW)/(min. test separation distance, mm)] * [√f(GHz)] = [39.6 / 50 ] * [ √2.442 ] = 1.24 ≤ 3, for 1g SAR Thus, SAR for this device is not required.

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.407 Report Reference No. ..................... : FCC ID............................................. : GTS20191209006-2-25 2AL6KBL-M8821CS1 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Moon Tan Approved by ( position+printed name+signature) . : Manager Simon Hu Date of issue .................................... : Dec.21, 2019 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Shenzhen Bilian Electronic Co.,Ltd. Address ............................................ : Building B1, Zhongxing Industrial Zone, Juling, Jutang Community, Guanlan street, LongHua district, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.407: UNLICENSED NATIONAL INFORMATION INFRASTRUCTURE DEVICES TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : IEEE 802.11 a/b/g/n/ac(1T1R)WLAN with Bluetooth Module Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Bilian Electronic Co.,Ltd. Model/Type reference ...................... : BL-M8821CS1 Listed Models .................................. : N/A Operation Frequency ........................ : From 5180MHz to 5240MHz/ 5745MHz to 5825MHz Hardware Version ............................ : 1.0 Software Version .............................. : V1.0 Rating ............................................... : DC 3.3V Result ............................................... : PASS Report No.: GTS20191209006-2-25 Page 2 of 60 T E S T R E P O R T Test Report No. : GTS20191209006-2-25 Dec.21, 2019 ____________________________________________________________________________________ Date of issue Equipment under Test : IEEE 802.11 a/b/g/n/ac(1T1R)WLAN with Bluetooth Module Model /Type : BL-M8821CS1 Listed Models : N/A Applicant : Shenzhen Bilian Electronic Co.,Ltd. Address : Building B1, Zhongxing Industrial Zone, Juling, Jutang Community, Guanlan street, LongHua district, Shenzhen, China Manufacturer : Shenzhen Bilian Electronic Co.,Ltd. Address : Building B1, Zhongxing Industrial Zone, Juling, Jutang Community, Guanlan street, LongHua district, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20191209006-2-25 Page 3 of 60 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 6 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 6 2.5. EUT operation mode .............................................................................................................................. 6 2.6. Block Diagram of Test Setup ................................................................................................................. 6 2.7. Related Submittal(s) / Grant (s) ............................................................................................................. 6 2.8. Special Accessories ............................................................................................................................... 6 2.9. Modifications .......................................................................................................................................... 6 3. TEST ENVIRONMENT ..................................................................................................................................... 7 3.1. Address of the test laboratory ................................................................................................................ 7 3.2. Test Facility ............................................................................................................................................ 7 3.3. Environmental conditions ....................................................................................................................... 7 3.4. Test Description ....…

Text truncated - open the document above for the full version.

Report No.: GTS20191209006-2-25 Page 29 of 60 5725-5850MHz: 802.11a Test Mode Channel Frequency (MHz) Report PSD (dBm/300KHz) Duty factor (dB) RBW factor (dB) Report PSD+ Duty factor+ RBW factor (dBm/500kHz) Limits (dBm/500kHz) Verdict 149 5745 -1.23 0 2.20 0.97 30 PASS 157 5785 -7.04 0 2.20 -4.84 30 PASS 165 5825 -1.96 0 2.20 0.24 30 PASS 802.11n HT20 Test Mode Channel Frequency (MHz) Report PSD (dBm/300KHz) Duty factor (dB) RBW factor (dB) Report PSD+ Duty factor+ RBW factor (dBm/500kHz) Limits (dBm/500kHz) Verdict 149 5745 -1.00 0 2.20 1.20 30 PASS 157 5785 -1.34 0 2.20 0.86 30 PASS 165 5825 -2.16 0 2.20 0.04 30 PASS 802.11ac20 Test Mode Channel Frequency (MHz) Report PSD (dBm/300KHz) Duty factor (dB) RBW factor (dB) Report PSD+ Duty factor+ RBW factor (dBm/500kHz) Limits (dBm/500kHz) Verdict 149 5745 -1.25 0 2.20 0.95 30 PASS 157 5785 -1.35 0 2.20 0.85 30 PASS 165 5825 -2.34 0 2.20 -0.14 30 PASS 802.11n40Test Mode Channel Frequency (MHz) Report PSD (dBm/300KHz) Duty factor (dB) RBW factor (dB) Report PSD+ Duty factor+ RBW factor (dBm/500kHz) Limits (dBm/500kHz) Verdict 149 5755 -5.09 0 2.20 -2.89 30 PASS 157 5795 -4.89 0 2.20 -2.69 30 PASS 802.11ac40 Test Mode Channel Frequency (MHz) Report PSD (dBm/300KHz) Duty factor (dB) RBW factor (dB) Report PSD+ Duty factor+ RBW factor (dBm/500kHz) Limits (dBm/500kHz) Verdict 149 5755 -5.12 0 2.20 -2.92 30 PASS 157 5795 -4.89 0 2.20 -2.69 30 PASS 802.11ac80 Test Mode Channel Frequency (MHz) Report PSD (dBm/300KHz) Duty factor (dB) RBW factor (dB) Report PSD+ Duty factor+ RBW factor (dBm/500kHz) Limits (dBm/500kHz) Verdict 155 5775 -7.99 0 2.20 -5.79 30 PASS Note: 1. The test results including the cable lose. Report No.: GTS20191209006-2-25 Page 30 of 60 5150-5250MHz: 802.11a 802.11n HT20 CH 36 CH 36 CH 40 CH 40 CH 48 CH 48 Report No.: GTS20191209006-2-25 Page 31 of 60 802.11ac20 802.11n HT40 CH 36 CH 38 CH 40 CH 46 CH 48 Report No.: GTS20191209006-2-25 Page 32 of 60 802.11ac40 802.11ac80 CH 38 CH 42 CH 46 Report No.: GTS20191209006-2-25 Page 33 of 60 5725-5850MHz: 802.11a 802.11n HT20 CH 149 CH 149 CH 157 CH 157 CH 165 CH 165 Report No.: GTS20191209006-2-25 Page 34 of 60 802.11ac20 802.11n HT40 CH 149 CH 151 CH 157 CH 159 CH 165 Report No.: GTS20191209006-2-25 Page 35 of 60 802.11ac40 802.11ac80 CH 151 CH 155 CH 159 Report No.: GTS20191209006-2-25 Page 36 of 60 4.6. 6dB Bandwidth TEST CONFIGURATION EUT SPECTRUM ANALYZER TEST PROCEDURE According to KDB789033 D02 General UNII Test Procedures New Rules v01 for one of the following procedures may be used for section 15.407(e) specifies the minimum 6 dB emission bandwidth of at least 500 KHz for the band 5.715-5.85 GHz. The following procedure shall be used for measuring this bandwidth: a. Set RBW = 100 kHz. b. Set the video bandwidth (VBW) ≥ 3 × RBW c. Detector = Peak. d. Trace mode = max hold. e. Sweep = auto couple. f. Allow the trace to stabilize g. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. Note: The automatic bandwidth measurement capability of a spectrum analyzer or EMI receiver may be employed if it implements the functionality described above. LIMIT For Section 15.407(e) specifies the minimum 6 dB emission bandwidth of at least 500 KHz for the band 5.715- 5.85 GHz TEST RESULTS Type Channel 99%Bandwidth (MHz) 6dB Bandwidth (MHz) Limit (KHz) Result 802.11a 149 17.387 16.560 ≥500 Pass 157 17.216 16.560 165 17.158 16.560 802.11nHT20 149 18.370 17.800 ≥500 Pass 157 18.161 17.720 165 18.039 17.720 802.11ac20 149 18.327 17.760 ≥500 Pass 157 18.090 17.680 165 18.058 17.720 802.11n40 151 37.478 36.560 ≥500 Pass 159 37.252 36.560 802.11ac40 151 37.540 36.560 ≥500 Pass 159 37.255 36.560 802.11ac80 155 76.134 76.320 ≥500 Pass Report No.: GTS20191209006-2-25 Page 37 of 60 99%Bandwidth 802.11a 802.11n HT20 CH149 CH149 CH157 CH157 CH165 CH165 Report No.: GTS20191209006-2-25 Page 38 of 60 99%Bandwidth 802.11ac20 802.11n HT40 CH149 CH151 CH157 CH159 CH165 Report No.: GTS20191209006-2-25 Page 39 of 60 99%Bandwidth 802.11ac40 802.11ac80 CH151 CH155 CH159 Report No.: GTS20191209006-2-25 Page 40 of 60 6dB Bandwidth 802.11a 802.11n HT20 CH149 CH149 CH157 CH157 CH165 CH165 Report No.: GTS20191209006-2-25 Page 41 of 60 6dB Bandwidth 802.11ac20 802.11n HT40 CH149 CH151 CH157 CH159 CH165 Report No.: GTS20191209006-2-25 Page 42 of 60 6dB Bandwidth 802.11ac40 802.11ac80 CH151 CH155 CH159 Report No.: GTS20191209006-2-25 Page 43 of 60 4.7. 26dBc Bandwidth TEST CONFIGURATION EUT SPECTRUM ANALYZER TEST PROCEDURE According to KDB789033 D02 General UNII Test Procedures New Rules v01 for one of the following procedures may be used for Emission Bandwidth (EBW) measurement: a. Set RBW = 300 kHz (approximately 1% of the emission bandwidth). b. Set the video bandwidth (VBW) = 1000 KHz (VBW > RBW) c. Detector = Peak. d. Trace mode = max hold. e. Sweep = auto couple. f. Allow the trace to stabilize g. Measure the maximum width of the emission that is 26 dB down from the maximum of the emission. Compare this with the RBW setting of the analyzer. Readjust RBW and repeat measurement as needed until the RBW/EBW ratio is approximately 1%. Note: The automatic bandwidth measurement capability of a spectrum analyzer o…

Text truncated - open the document above for the full version.
