2BA2T-LPC1Wearable device to collect quantitative biometric data from the thoracic region of adult patients.

!

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023-05-26 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: (2BA2T-LPC1) Elastic Care Incorporated (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Todd Meaney

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 09-12-2023 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: (2BA2T-LPC1) Elastic Care Incorporated (“the applicant”) certifies that, as of the date of the filing of the application, Techlink International LLC is our designated U.S. agent for service of process for the above referenced FCC ID. Elastic Care Incorporated accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Techlink International LLC accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: Techlink International LLC Address: East Coast Office, 2875 NE 191st Street Suite #539, Aventura, FL 33180, USA. Contact Person: Lilian Llull Tel.: 305-206-6777 Email: [email protected] Sincerely, Elastic Care Incorporated FRN 0033722059 Techlink International LLC FRN 0034233189 Todd Meaney Lilian Llull 95 Apple Creek Blvd., Markham, Ontario L3R 1C7 1-(416)-214-6363 [email protected] www.elasticcare.com

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023-05-26 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: (2BA2T-LPC1) Elastic Care Incorporated (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Todd Meaney

Date 2023-05-26 Timco Engineering, Inc. 849 NW State Road 45, Newberry, Florida 32669, USA Dear Sir or Madam, We, Elastic Care Incorporated, hereby authorize Raymond Au of Megalab Group Inc., 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada; 905-752-1925 to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. The authorization expires on May 26, 2024. Yours sincerely, Name: Todd Meaney Title: Engineer

Date: 2023-05-26 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: 2BA2T-LPC1 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Elastic Care Incorporated hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation Elastic Care Incorporated also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of period of 120 days: Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457(d)(1)(ii) of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Name: Todd Meaney Title: Engineer

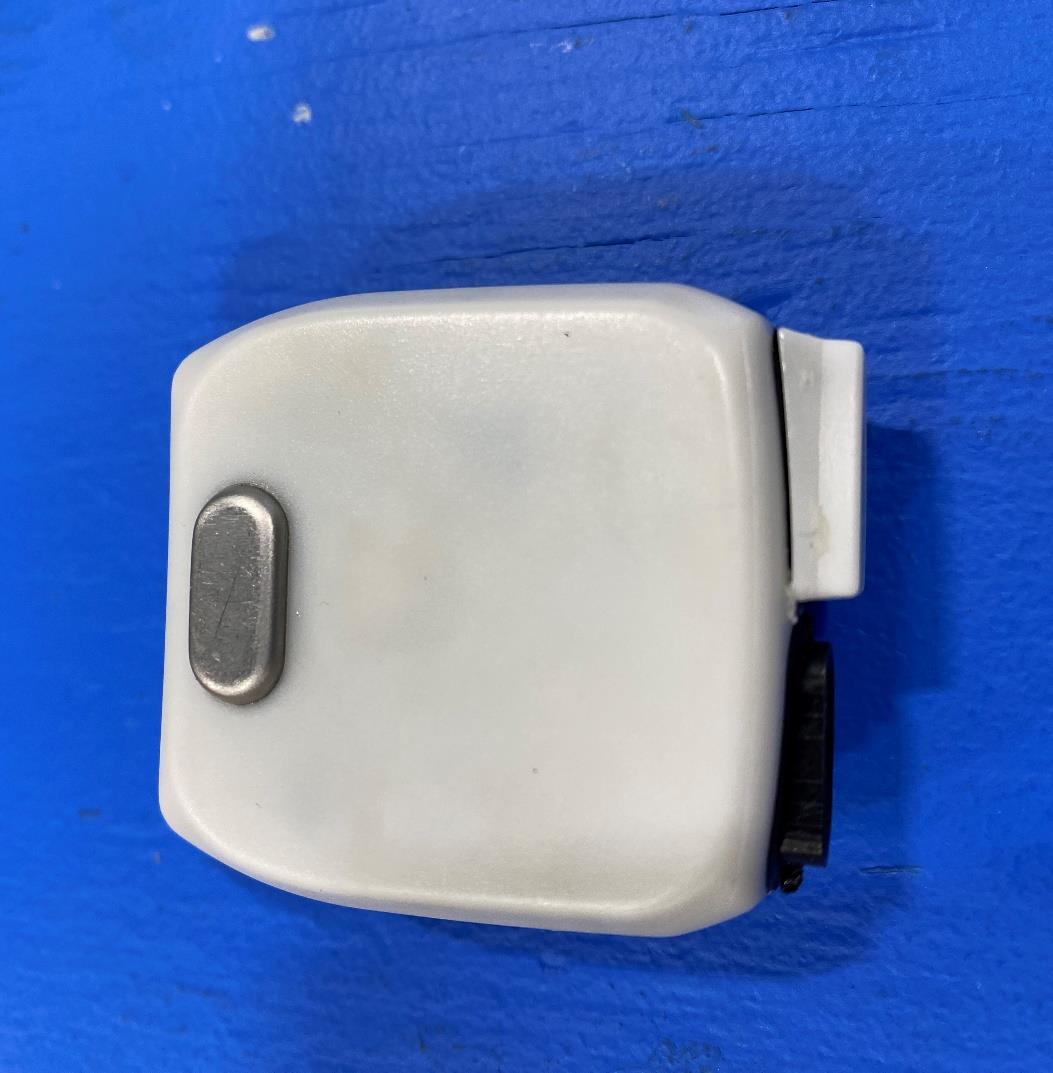

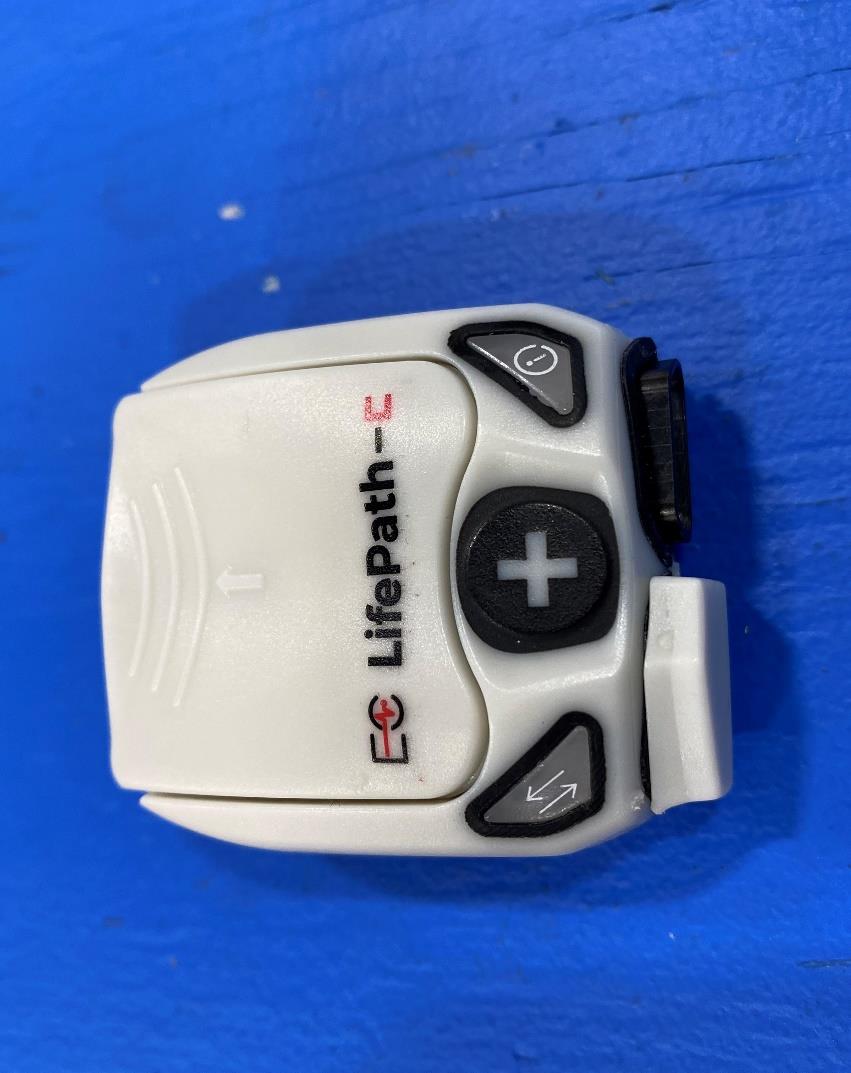

Report No.: ML300116-RF00 Issue Date: June 5, 2023 Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. Page 1 of 7 Client: Elastic Care Product Name/Model: Mobile ECG and multi-sensor medical monitor / Lifepath-C FCC ID: 2BA2T-LPC1 IC: 30674-LPC1 External Photos Figure 1 – External, Front view Battery installed Report No.: ML300116-RF00 Issue Date: June 5, 2023 Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. Page 2 of 7 Figure 2 – External, Back view Report No.: ML300116-RF00 Issue Date: June 5, 2023 Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. Page 3 of 7 Figure 3 – External, Top view Battery removed Report No.: ML300116-RF00 Issue Date: June 5, 2023 Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. Page 4 of 7 Figure 4 – External, Bottom view Report No.: ML300116-RF00 Issue Date: June 5, 2023 Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. Page 5 of 7 Figure 5 – External, Side view 1 Report No.: ML300116-RF00 Issue Date: June 5, 2023 Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. Page 6 of 7 Figure 6 – External, Side view 2 Report No.: ML300116-RF00 Issue Date: June 5, 2023 Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. Page 7 of 7 Figure 7 – Battery removed Device FCC Label Location Shown Figure 8 – FCC Label Outer Packaging Label

Report No.: ML300116-RF00 Issue Date: June 5, 2023 Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. Page 1 of 1 Client: Elastic Care Product Name/Model: Mobile ECG and multi-sensor medical monitor / Lifepath-C FCC ID: 2BA2T-LPC1 IC: 30674-LPC1 FCC Label Location FCC label of device will be installed under the removable battery as shown in the following diagram. Device: Lifepath-C Battery Compartment DEVICE BOTTOM FCC label DEVICE TOP

Report No.: ML300116-RF00 Issue Date: June 5, 2023 Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. Page 1 of 6 Client: Elastic Care Product Name/Model: Mobile ECG and multi-sensor medical monitor / Lifepath-C FCC ID: 2BA2T-LPC1 IC: 30674-LPC1 Internal Photos Figure 1 – Enclosure removed Report No.: ML300116-RF00 Issue Date: June 5, 2023 Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. Page 2 of 6 Figure 1 – PCB close-up, Top view Antenna Report No.: ML300116-RF00 Issue Date: June 5, 2023 Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. Page 3 of 6 Figure 2 – PCB, Top angled view Antenna Report No.: ML300116-RF00 Issue Date: June 5, 2023 Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. Page 4 of 6 Figure 3 – PCB, Bottom view Report No.: ML300116-RF00 Issue Date: June 5, 2023 Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. Page 5 of 6 Figure 4 – Antenna, Top view Report No.: ML300116-RF00 Issue Date: June 5, 2023 Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. Page 6 of 6 Figure 5 – Antenna, Bottom view

Report No.: MEGA300116-RF00 Issue Date: July 13, 2023 Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. Page 1 of 3 Client: Elastic Care Product Name/Model: Lifepath-C FCC ID: 2BA2T-LPC1 Reference FCC KDB 447498 D04 v01 FCC RF Exposure Where the Device Under Test (DUT) can be shown to meet the requirements for an exemption pursuant to FCC 47 CFR §1.1307(b)(3), an evaluation is not required with respect to the limits on human exposure to RF emissions provided in FCC 47 CFR §1.1310. 1. Determination of Exemption As per 47 CFR §1.1307(b)(3), for single RF sources (i.e., any single fixed RF source, mobile device, or portable device), a single RF source is exempt if: A. 1-mW Test Exemption: The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of this section. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); B. SAR-Based Exemption: The available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). P th is given by: 푃 푡ℎ ( 푚푊 ) = { 퐸푅푃(푑20 푐푚 ⁄ ) 푥 푑 ≤20 푐푚 퐸푅푃 20푐푚 20 푐푚 <푑 ≤40 푐푚 Where 푥= −푙표푔 10 ( 60 퐸푅푃 20푐푚 √ 푓 ) 푎푛푑 푓 푖푠 푖푛 퐺퐻푧 And 퐸푅푃 20푐푚 ( 푚푊 ) = { 2040푓0.3 퐺퐻푧≤푓<1.5 퐺퐻푧 30601.5 퐺퐻푧≤푓≤6 퐺퐻푧 d = the minimum separation distance (cm) in any direction from any part of the device antenna(s) or radiating structure(s) to the body of the device user. Report No.: MEGA300116-RF00 Issue Date: July 13, 2023 Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. Page 2 of 3 C. MPE-Based Exemption: Using Table 1 and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time- averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). Table 1 of § 1.1307(b)(3)(i)(C) - Single RF Sources Subject to Routine Environmental Evaluation RF Source Frequency (MHz) Threshold ERP (Watts) 0.3-1.34 1,920 R 2 1.34-30 3,450 R 2 /f 2 30-300 3.83 R 2 300-1,500 0.0128 R 2 f 1,500-100,000 19.2 R 2 2. RF Exposure Evaluation The DUT is a portable device designed to be used in other than fixed locations and generally used in such a way that the RF source's radiating structure is within 20 centimeters of the body of the user. Report No.: MEGA300116-RF00 Issue Date: July 13, 2023 Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. Page 3 of 3 2.1 DUT RF Output Power Evaluation Frequency (MHz) Max Conducted Power (dBm) Max Conducted Power (mW) Duty Cycle (%) Duty Cycle (numerical) Max Average Conducted Power (mW) Max Average Conducted Power (dBm) Max Antenna Gain (dBi) Max Average EIRP (dBm) Max Average ERP (dBm) Max Average ERP (mW) Minimum Separation Distance (cm) 2402 6.69 4.67 10.5 0.105 0.490 -3.10 3.58 0.482 -1.668 0.681 0.15 2440 6.82 4.81 10.5 0.105 0.505 -2.97 3.58 0.612 -1.538 0.702 0.15 2480 6.98 4.99 10.5 0.105 0.524 -2.81 3.58 0.772 -1.378 0.728 0.15 Notes: 1. Average Conducted Power = Conducted Power (mW) * Duty Cycle 2. Average EIRP (dBm) = Average conducted power (dBm) + Antenna Gain (dBi) 3. ERP (dBm) = EIRP (dBm) – 2.15 4. Max out of Conducted and Radiated measurements used for calculations. 2.2 1-mW Test Exemption Evaluation Frequency (MHz) Max Time-Averaged Output E.R.P. (mW) Limit For Test Exemption (mW) Result 2402 0.681 1 Pass 2440 0.702 1 Pass 2480 0.728 1 Pass According to 47 CFR §1.1307(b)(3)(i)(A), this device complies with the RF exposure test exemption.

Inventek Systems, LLC. DOC-DS-20075-1.0 Page 1 of 8 Inventek Systems OEM Wi-Fi Antennas P/N: W24P-U Inventek Systems, LLC. DOC-DS-20075-1.0 Page 2 of 8 Table of Contents 1 GENERAL DESCRIPTION ....................................................................................... 3 2 PART NUMBER DETAIL DESCRIPTION .............................................................. 3 Ordering Information................................................................................................. 3 3 GENERAL FEATURES ............................................................................................. 3 3.1 Environmental Specifications ............................................................................. 3 4 Features ....................................................................................................................... 4 5 Applications ................................................................................................................ 4 6 Electrical Specifications.............................................................................................. 4 6.1 Return Loss(S¹¹) .................................................................................................. 4 6.2 Smith Chart(S¹¹) .................................................................................................. 5 7 Antenna Dimensions (unit: mm) ................................................................................. 5 8 Radiation Pattern ......................................................................................................... 6 8.1 3D Gain Pattern (Radiation Pattern at 2442 MHz) ............................................. 6 8.2 9-2 Efficiency Table ........................................................................................... 7 8.3 9-3 Efficiency vs. Frequency .............................................................................. 7 9 Electrical Specifications.............................................................................................. 7 10 REVISION CONTROL .............................................................................................. 8 11 CONTACT INFORMATION ..................................................................................... 8 Inventek Systems, LLC. DOC-DS-20075-1.0 Page 3 of 8 1 GENERAL DESCRIPTION The Inventek 2400-2500 Mhz Wi-Fi PCB (30 x 5 mm) antennas let you integrate Wi-Fi functionality into your product quickly and easily. It’s suitable for a wide range of applications and recommended for use with Inventek eS-Wi-Fi modules. 2 PART NUMBER DETAIL DESCRIPTION Ordering Information Device Description Ordering Number W24P-U 2400-2500 Mhz Wi-Fi PCB antenna with U.Fl connector and 90 mm cable length W24P-U 3 GENERAL FEATURES Characteristics Specifications Unit Outline Dimensions 30 x 5.0 x .05 mm Center Frequency 2442 MHz Bandwith 100 min. MHz VSWR 2 max. Impedance 50 Ω Polarization Linear Polarization Gain Peak 3.2 (typical) dBi Efficiency 79 (typical) % 3.1 Environmental Specifications Item Description Operating temperature rang -40 deg. C to +80 deg. C Storage temperature range -55 deg. C to +100 deg. C Humidity 95% max non-condensing Inventek Systems, LLC. DOC-DS-20075-1.0 Page 4 of 8 4 Features  Stable and reliable in performances  PCB antenna has excellent sensitivity to consistently provide high signal reception efficiency  Compact size  RoHS compliance 5 Applications *IEEE802.11 (b/g/n). *Hand-held devices when WiFi (802.11 b/g/n) functions are needed. 6 Electrical Specifications 6.1 Return Loss(S¹¹) Inventek Systems, LLC. DOC-DS-20075-1.0 Page 5 of 8 6.2 Smith Chart(S¹¹) 7 Antenna Dimensions (unit: mm) Our standard cable length is 90mm long. Minimum order custom cable lengths can be special order by request. Inventek Systems, LLC. DOC-DS-20075-1.0 Page 6 of 8 8 Radiation Pattern 8.1 3D Gain Pattern (Radiation Pattern at 2442 MHz) 2.4 Inventek Systems, LLC. DOC-DS-20075-1.0 Page 7 of 8 8.2 9-2 Efficiency Table 8.3 9-3 Efficiency vs. Frequency 9 Electrical Specifications Frequency(GHz) 2.400 2.412 2.417 2.422 2.427 2.432 2.437 2.442 2.447 2.452 2.457 2.462 2.467 2.472 2.484 Efficiency(dB) -1.51 -1.26 -1.21 -1.13 -1.09 -0.99 -0.90 -1.01 -1.06 -1.04 -0.87 -0.79 -0.82 -0.86 -0.98 Efficiency (%) 70.63 74.82 75.68 77.09 77.80 79.62 81.28 79.25 78.34 78.70 81.85 83.37 82.79 82.04 79.80 Gain(dBi) 2.76 2.96 3.02 3.05 3.15 3.24 3.32 3.26 3.23 3.26 3.42 3.55 3.56 3.58 3.48 Inventek Systems, LLC. DOC-DS-20075-1.0 Page 8 of 8 RoHS: Restriction of Hazardous Substances (RoHS) directive has come into force since 1st July 2006 all electronic products sold in the EU must be free of hazardous materials, such as lead. 10 REVISION CONTROL Document : W24P-U 2.4 Ghz PCB antenna Internal Release DOC-DS-20075 Date Author Revision Comment 10/1/2013 FMT 1.0 Preliminary 11 CONTACT INFORMATION Inventek Systems 2 Republic Road Billerica Ma, 01862 Tel: 978-667-1962 [email protected] www.inventeksys.com Inventek Systems reserves the right to make changes without further notice to any products or data herein to improve reliability, function, or design. The information contained within is believed to be accurate and reliable. However Inventek Systems does not assume any liability arising out of the application or use of this information, nor the application or use of any product or circuit described herein, neither does it convey any license under its patent rights nor the rights of others.

Megalab Group Inc. – 150 Addison Hall Circle, Aurora, Ontario, L4G 3X8, Canada www.megalabinc.com – (905) 752-1925 This report may not be reproduced, except in full, without prior written approval of Megalab Group Inc. RF_FCC249_v1 RF Test Report Standard(s):FCC Part 15 Subpart 15.247, RSS-247 Issue 3:2023 Unlicensed Intentional Radiators Issued To:Elastic Care 95 Apple Creek Boulevard Markham, Ontario Canada, L3R 1C7 Product Name:Mobile ECG and multi-sensor medical monitor Model:Lifepath-C FCC ID:2BA2T-LPC1 IC:30674-LPC1 Report No.ML300116-RF00 Date of Issue:June 5, 2023 Report Prepared By:ReviewedBy: Raymond Au, Project EngineerAmir Emami, Project Engineer Report No.: ML300116-RF00Issue Date: June 5, 2023 Page 2 of 52 Table of Contents 1. Revision History .................................................................................................................................... 3 2. Summary of Test Results ....................................................................................................................... 4 2.1 Test Verdict ................................................................................................................................... 4 2.2 Test Standards............................................................................................................................... 6 2.3 Test Facility ................................................................................................................................... 7 3. General Information ........................................................................................................................... 10 3.1 Client Information ....................................................................................................................... 10 3.2 Device Under Test (DUT) ............................................................................................................. 10 3.3 Test Setup of DUT ....................................................................................................................... 11 3.4 Modifications for Compliance ..................................................................................................... 11 4. Test Results ......................................................................................................................................... 12 4.1 Spurious Radiated Emissions ...................................................................................................... 12 4.2 Emission Bandwidth .................................................................................................................... 25 4.3 Maximum Output Power ............................................................................................................ 32 4.4 Maximum Radiated Output Power ............................................................................................. 36 4.5 Antenna Spurious Conducted Emissions .................................................................................... 43 4.6 Power Spectral Density ............................................................................................................... 47 5. Test Setup Photos ............................................................................................................................... 52 Report No.: ML300116-RF00Issue Date: June 5, 2023 Page 3 of 52 1.Revision History Project No. & Revision Report Date Initials Description ML300116-RF00 June 5, 2023 RA Initial Release - - - - NOTE: • The latest revision replaces previous revisions. • This report relates only to the sample(s) identified in this report. Report No.: ML300116-RF00Issue Date: June 5, 2023 Page 4 of 52 2.Summary of Test Results 2.1Test Verdict Unless otherwise stated, the results shown in this test report relate only to the sample(s) tested. Requirement Test Type Result Remark FCC ISED 15.203 -- Antenna Requirement Pass Antenna is an Inventek Systems P/N W24P-U. It connects to the PCB using a U.Fl connector, and is located inside the unit’s enclosure. It is not accessible to, or changeable by, the user. 15.205 RSS-GEN (Table 7) Restricted Bands for Intentional Operation Pass --- 15.209 RSS-GEN (Tables 5 & 6) Transmitter Spurious Radiated Emissions & Band Edges Pass --- FCC 15.247(a)(2) RSS-247 5.2(a) 6 dB Emission Bandwidth Pass --- --- RSS-GEN 6.7 99% Emission Bandwidth Pass --- FCC 15.247(b)(3) RSS-247 5.4(d) Maximum Output Power Pass --- FCC 15.247(b)(4) --- Antenna Gain Pass Antenna has a max gain of +3.58 dBi. --- RSS-247 5.4(d) Max E.I.R.P Output Pass --- FCC 15.247(d) RSS-247 5.5 Antenna Spurious Conducted Emissions Pass --- FCC 15.247(e) RSS-247 5.2(b) Power Spectral Density Pass --- FCC 15.247(i) RSS-102 (Table 1) Maximum RF exposure Pass --- Report No.: ML300116-RF00Issue Date: June 5, 2023 Page 5 of 52 FCC 15.207 RSS-GEN (Table 4) Power Line Conducted Emissions N/A DUT is powered by a battery which must be detached before being recharged in a separate charger. DUT does not have a means of transmitting while connected to mains power. N/A = Not Applicable 2.1.1Test Verdict Notes The DUT was mounted in three orthogonal axes and worst-case results were obtained with the DUT upright. Worst case results are presented. See the Test Setup Photos for test orientation. Antenna details were obtained from the client. Max antenna gain is less than 6dBi. As per FCC 15.203, the antenna connects to the PCB using a U.Fl connector, and is located within the unit’s enclosure. It is not accessible or changeable by the user. For testing, the DUT’s output is set to transmit continuously at 100% duty cycle at the maximum output power used during the unit’s operation. The DUT is powered by a battery which must be detached before being recharged in a separate charger. It does not have a means of transmitting while connected to mains power. Report No.: ML300116-RF00Issue Date: June 5, 2023 Page 6 of 52 2.2Test Standards Standard Descripti…
