2BA2WAGH-ASpeaker tumbler

INSTRUCTIONS Minus key:Long press for the previous song Short press to reduce the volume Power key:Long press to turn on/off the Power Short press to play or pause the music When there is a call: Short press to answer or hang up the phone Plus key:Long press for the next song Short press to increase the volume BASIC INFORMATIONS Main Material: Food grade stainless steel 18/8+ PP Accessories included: plastic straw + slid lid + USB charger Usage: Beer/ ice water/ coffee/ cold cola etc. Advised temperature of drinks: < 108 FEATURES 1.Hands off, no need to touch; 2.Hifi sound quality, with LED flashing light; 3.Double walled Insulation design, with seamless design, keeping cold for longer hours; 4.Food grade 304 (18/8) inner, eco-friendly; 5.Straight shape, better and easier to make heat press sublimation process. Customize: Yes, custom logo/ packing/ color accepted(check with your seller) DESCRIPTIONS DC IN: Micro USB 5V-500mA OUTPUT POWER: 3W POWER: 600mAh CHARGING TIME:120 Minutes PLAYBACK TIME:120 Minutes WATERPROOF:IP5 BLUETOOTH EFFECTIVE DISTANCE: Within 15 Metres 1 2 3 4 5 6 Micro USB LED Speaker Minus key Power key Plus key DC5V 500mA IN FCC warning： 1.This device should be installed and operated with minimum distance 0mm between the radiator&your bo dy. 2.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 3. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 4. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

sichuanhuangchongwangluokejiyouxiangongsi Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland M�ls Road Columbia, MD 21046 5/4/23 U.S. Aaent Desianation Sichuanhuangchongwangluokejiyouxiango ngsl acknowledges thei『 consent for the following contact located in the United States to act as their agent for se『vice of process for the equipment for w h i c h a u t h o r i z a t i o n i s s o u g h t ( F C C I D : 2 B A 2 W A G H - A : N a m e a n d c o m p a n y o f U . S . a g e n t : S T EY R I N C P hysical U . S . a d d r e s s o f a g e n t : 1 3 1 2 1 7 t h S t r e e t 11692, D e n v e r , C O 8 0 2 0 2 , U n i t e d S t a t e s F R N o f U . S . a g e n l : 0 0 3 3 7 3 7 5 8 6 E m a i l a d d r e s s o f U.S. a g e n t : y a o u s h e n g @ o u t l o o k . c o m U . S . A g e n t a c k n o w l e d g e s t h e i r o b l i g a t i o n t o a c c e p t s e r v i c e o f p r o c e s s o n behalf o f S i c h u a n h u a n g c h o n g w a n g l u o k ej i y o u x i a n g o n g s l . S i chuanhuangch ongwangluokejly o u x i a n g o n g s l w i t h t h e F R N 0 0 3 3 7 2 9 1 4 6 a c c e p t s i t s o b l i g a t i o n t o ma i n tain a n a g e n t f o r s e 『 v i c e o f p r o c e s s i n t h e U n i t e d S t a t e s f o r n o l e s s t h a n o n e y e a r a f t e r e i t h e r t h e g r a n t e e h a s p e r m a n e n t l y t e r m i n a t e d a l l m a 『 k e t i n g a n d i m p o 『 1 a \ i o n o f t h e a p p l i c a b l e e q u i p m e n t w i t h i n t h e U . S . , o r t h e c o n c l u s i o n o f a n y C o m m i s s i o n - r e l a t e d a d m i n i s t r a t i v e o r j u d i c i a l p r o c e e d i n g i n v o l v i n g t h e e q u i p m e n t , w h i c h e v e r i s l a t e r . B y s i g n i n g t h i s f o 『m , w e c o n f i r m t h e a b o v e a n d t h a t w e a r e a w a r e o f t h e a p p l i c a t i o n r e q u i 『 e m e n t s l i s t e d u n d e r § 2 . 9 1 1 ( d ） （ η ． S i n c e 『 e l y , 咛－O〉－3Ah 琴』－－ BHldzu曲〈 'inn与VIII队队 Signature [Name] Xiaoyan Mn 阴lie) Manager (Company)Sichuanhua『igchongwangluokejiyouxiang ongsi 工机，队 a!Gre [Name of U.S. agent) Fairy lee 阴阳ofU.S. agent) manage [Company of U.S. agent) STEVR INC A2 －u3E － J 守 11比川fonna1ionprovided ,n 1t11s tcucr as bas,..J on lhc refc阿阳叫阳le阴阳。fT11te47 oflhc CFR陋、刊II o.s KDD 986446 DOI An e:\ptr.lllon dale for lhas teller docs nol e.-,s1 In c 葛川 k u s >Sffil cronges. II、c grantee陋。bh g, 1rdto 0011电 lhr FCC "11h m 30 cb) s、.. II、eg田111ngl°C日

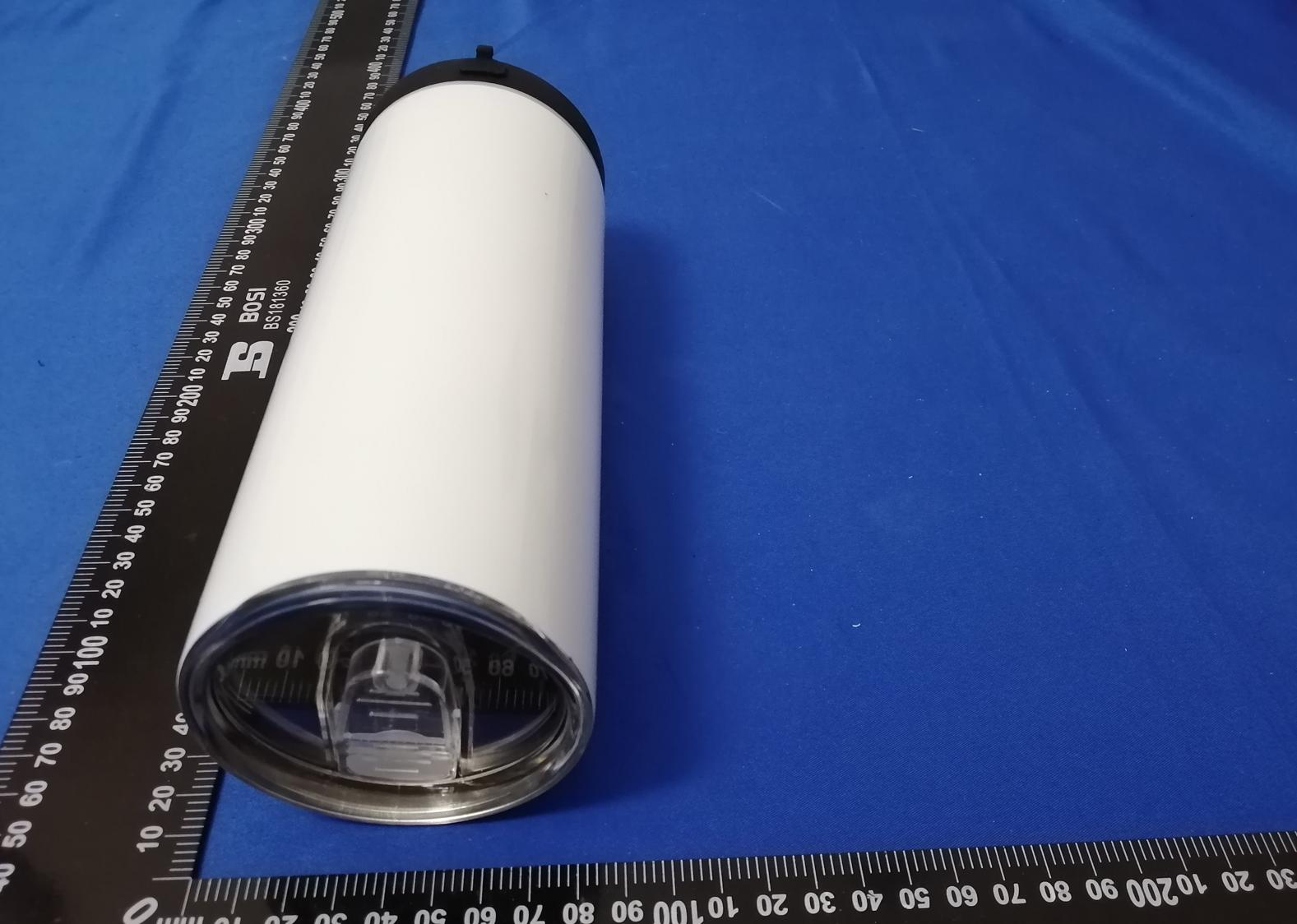

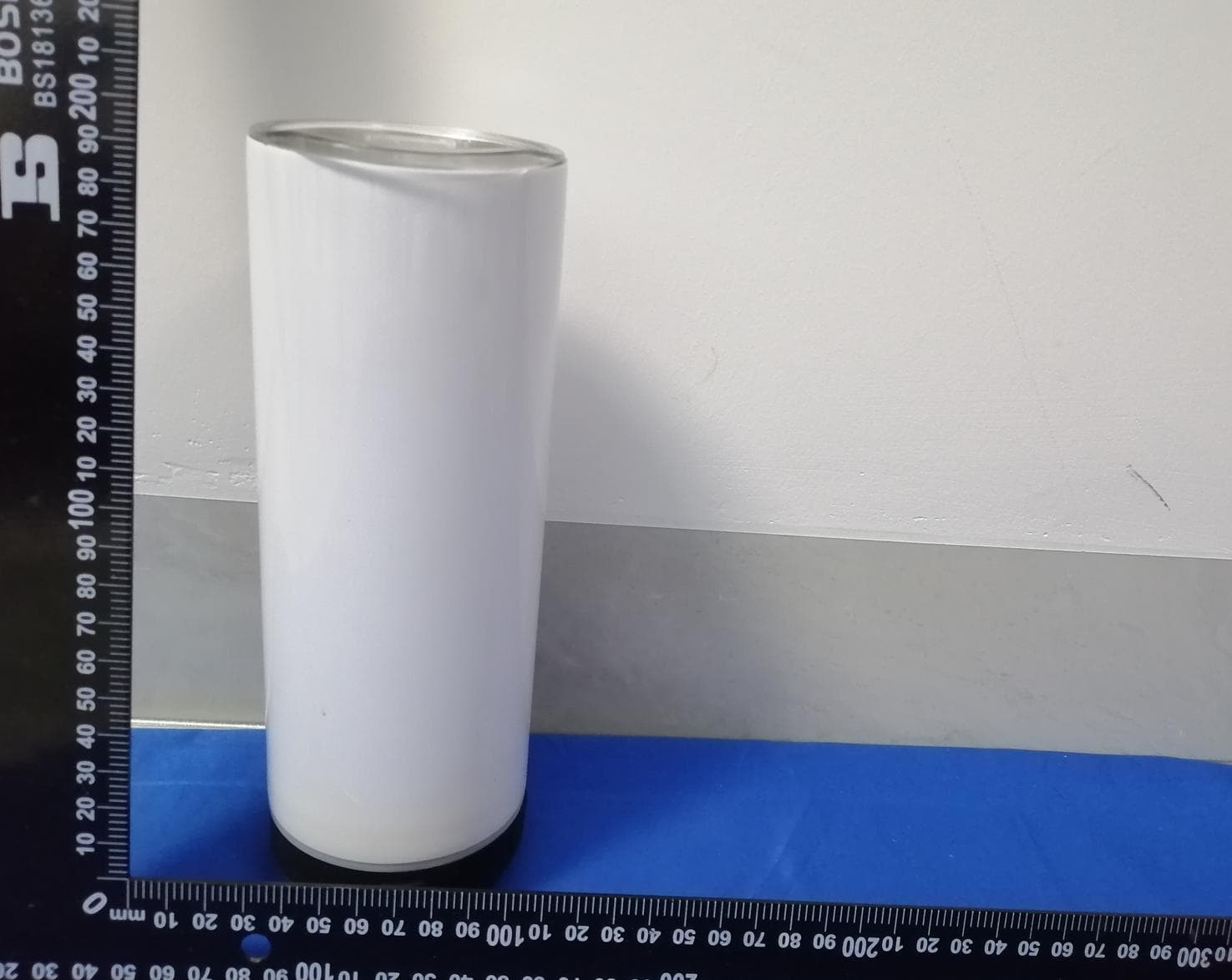

Speakertumbler FCCID:2BA2WAGH-A AGH-A-1ExternalPhotographs

AGH-A-1Labelandlabellocation ProductName:Speakertumbler Model:AGH-A-1 FCCID:2BA2WAGH-A

Speakertumbler FCCID:2BA2WAGH-A AGH-A-1InternalPhotographs

RFExposureRequirements 1.1ProductDescriptionforEquipmentUnderTest(EUT) ClientInformation Applicant:sichuanhuangchongwangluokejiyouxiangongsi Addressof applicant:tianhuayilu99hao7dong6ceng10haoGaoxinqv chengdu Manufacturer:sichuanhuangchongwangluokejiyouxiangongsi Addressof manufacturer:tianhuayilu99hao7dong6ceng10haoGaoxinqv chengdu GeneralDescriptionof EUT ProductName:Speakertumbler BrandName:/ ModelNo.:AGH-A-1 AddingModel(s): AGH-A-2, AGH-A-3, AGH-A-4, AGH-A-5, AGH-A-6, AGH-B-1, AGH-B-2, AGH-B-3, AGH-B-4, AGH-B-5 AGH-B-6, AGH-C-1, AGH-C-2, AGH-C-3, AGH-C-4 AGH-C-5, AGH-C-6, AGH-D-1, AGH-D-2, AGH-D-3, AGH-D-4, AGH-D-5, AGH-D-6, AGH-E-1, AGH-E-2, AGH-E-3, AGH-E-4, AGH-E-5, AGH-E-6 RatedVoltage:DC 3.7V from Battery BatteryCapacity:/ SoftwareVersion:/ HardwareVersion: / Serial Number: A05 FCC ID: 2BA2WAGH-A TechnicalCharacteristicsof EUT BluetoothVersion:V5. 3 BLE FrequencyRange:2402-2480MHz RF OutputPower:-2.14 dBm Data Rate:1Mbps Modulation:GFSK Quantityof Channels:40 ChannelSeparation:2MHz Type of Antenna:PCB AntennaGain:-0.68 dBi 1.2StandardApplicable Accordingto§1.1307(b)(1)andKDB447498D01GeneralRFExposureGuidancev06,the followingRFexposureevaluationshalltodemonstrateRFexposurecompliance. [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f(GHz)]≤3.0 Where -f(GHz)istheRFchanneltransmitfrequencyinGHz -PoweranddistanceareroundedtothenearestmWandmmbeforecalculation -Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mm, andfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmaccordingto4.1f)isappliedtodetermineSAR testexclusion. 1.3CalculationMethod Bluetooth Txfrequencyrange:2402~2480MHz Min.testseparationdistance:5mm MaximumTune-upConductedOutputPower:-2dBm RFchanneltransmitfrequency:2440MHz Result:0.197 Limit:3.0 SothetransmittercomplieswiththeRFexposurerequirementsandtheSARisnotrequired.

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.73-0.84-0.68-6.15-3.70-2.32 MAX. Gain -0.68dBi PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dBi) Frequency (MHz) MaxMinAvg 2400-1.73178-30.0815-8.48713 2450-0.845801-38.5605-7.88012 2500-0.685586-24.0318-6.79139 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dBi) Frequency (MHz) MaxMinAvg 2400-6.1530-24.1420-13.0295 2450-3.7054-26.5836-10.6700 2500-2.32122-30.4301-9.70536 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 1 of 38 TESTREPORT ReferenceNo.......................:WTX23X03058241W001 FCCID....................................:2BA2WAGH-A Applicant ...............................: sichuanhuangchongwangluokejiyouxiangongsi Address.................................:tianhuayilu99hao7dong6ceng10haoGaoxinqvchengdu ProductName......................:Speakertumbler TestModel.............................:AGH-A-1 Standards..............................:FCCPart15.247 DateofReceiptsample .....: April24,2023 DateofTest...........................:April24~May2,2023 DateofIssue ........................: May2,2023 TestResult ............................: Pass Remarks: Theresultsshowninthistestreportreferonlytothesample(s)tested,thistestreportcannotbe reproduced,exceptinfull,withoutpriorwrittenpermissionofthecompany.Thereportwouldbeinvalidwithout specificstampoftestinstituteandthesignaturesofcompilerandapprover. PreparedBy: WaltekTestingGroup(Shenzhen)Co.,Ltd. Address:1/F.,Room101,Building1,HongweiIndustrialPark,Liuxian2ndRoad, Block70Bao'anDistrict,Shenzhen,Guangdong,China Testedby:Approved&AuthorizedBy: JackHuangSilinChen ReferenceNo.:WTX23X03058241W001 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 2 of 38 TABLEOFCONTENTS 1.GENERALINFORMATION...................................................................................................................................4 1.1PRODUCTDESCRIPTIONFOREQUIPMENTUNDERTEST(EUT).............................................................................4 1.2TESTSTANDARDS...................................................................................................................................................5 1.3TESTMETHODOLOGY.............................................................................................................................................5 1.4TESTFACILITY.......................................................................................................................................................5 1.5EUTSETUPANDTESTMODE................................................................................................................................6 1.6MEASUREMENTUNCERTAINTY..............................................................................................................................6 1.7TESTEQUIPMENTLISTANDDETAILS....................................................................................................................7 2.SUMMARYOFTESTRESULTS............................................................................................................................9 3.ANTENNAREQUIREMENT.................................................................................................................................10 3.1STANDARDAPPLICABLE.......................................................................................................................................10 3.2EVALUATIONINFORMATION.................................................................................................................................10 4.POWERSPECTRALDENSITY............................................................................................................................11 4.1STANDARDAPPLICABLE.......................................................................................................................................11 4.2TESTSETUPBLOCKDIAGRAM.............................................................................................................................11 4.3TESTPROCEDURE.................................................................................................................................................11 4.4SUMMARYOFTESTRESULTS/PLOTS....................................................................................................................11 5.DTSBANDWIDTH..................................................................................................................................................12 5.1STANDARDAPPLICABLE.......................................................................................................................................12 5.2TESTSETUPBLOCKDIAGRAM.............................................................................................................................12 5.3TESTPROCEDURE.................................................................................................................................................12 5.3SUMMARYOFTESTRESULTS/PLOTS....................................................................................................................12 6.RFOUTPUTPOWER.............................................................................................................................................13 6.1STANDARDAPPLICABLE.......................................................................................................................................13 6.2TESTSETUPBLOCKDIAGRAM.............................................................................................................................13 6.3TESTPROCEDURE.................................................................................................................................................13 6.4SUMMARYOFTESTRESULTS/PLOTS....................................................................................................................13 7.FIELDSTRENGTHOFSPURIOUSEMISSIONS..............................................................................................14 7.1STANDARDAPPLICABLE.......................................................................................................................................14 7.2TESTPROCEDURE.................................................................................................................................................14 7.3CORRECTEDAMPLITUDE&MARGINCALCULATION..........................…

Text truncated - open the document above for the full version.

Speakertumbler FCCID:2BA2WAGH-A AGH-A-1TestSetupPhotos Radiatedemission30MHz~1GHz Radiatedemissionabove1GHz Conductedemission
