2BA39HX-DU1022DWireless date transceiver

HX-DU10 22D Common AT Command Operation Instructions 1, Th e methods of entering and exiting the radio parameter configuration mode of HX-DU1022D 400M. (1), method 1: CONFIG configuration pin (46 pin) Setting the CONFIG pin to low level, the radio will enter the configuration mode; setting the Config pin to the high level, and the radio will exit the configuration mode (ie entering the normal working mode of the system); (2), method 2: sending the string +++ and ATA commands Sending the string +++ the radio will enter the configuration mode; (Note: it must be sent as follows, 1 second before the string "+++" sent, no characters can be sent; after the string "+++" sent, No characters can be sent after 1 second, otherwise the system cannot enter the radio parameter configuration mode; there is no carriage return line feed (\r\n) after the string; Sending the ATA command the radio will exit the configuration mode; 2, HX-DU1022D commonly used AT command (1), AT&W It is the parameter saving command. Note: If you want the parameter to be saved when powered off, you must first send this AT&W command to save the parameters. After the command is successfully sent, it will return to the prompt OK. (2),ATP0=CH TX RX It is The 400M fixed frequency working frequency table configuration E.g: ATP0=00 450.125 450.125 It is Indicated that the transmitting frequency of channel 0 is 450.125MHZ and the receiving frequency is 450.125MHZ. If you want to configure multiple channels, just follow the steps below: ... ... ... Note: The frequency and the channel number are separated by a space character (only one space symbol); (3)、ATP0? Query the working frequency table that the current station has configured of 400M fixed frequency. E.g: (4)、AT&V Query current radio operating parameters (5), Modify the current serial port baud rate ATS102=value The value is as follows: 1-115200; 2-57600; 3-38400; 5-19200; 7-9600; Special Note: After sending this command, the serial port baud rate will take effect immediately. If you want to save the current configuration parameters, you need to switch the serial port baud rate of the current configuration tool, and then send the AT&W saved command. For example: change the current serial port baud rate to 9600, as follows: (1). ATS102=7 (2). Switch the serial port baud rate of the configuration tool to 9600; (3). Send an AT&W saved command; (6), Modify the wireless baud rate ATS103=value The value is as follows: 0-4800; 1-8000; 2-9600; 3-16000; 4-19200; Remarks: The protocols of TRANSEOT and TRIMTALK support both wireless baud rates of 4800 and 9600, and TRIMMM3 only supports 19200 wireless baud rate; (7), Modify the transmission power ATS108=value The value is as follows: H: high power; L: low power; (8), Set the current radio work transmission channel ATS131=value Value range: 0-63 (9), Set the current radio work receiving channel ATS132=value Value range: 0-63 (10), Select the communication protocol ATS186=value The value is as follows: 1-TRIMTALK; 2-TRIMMK3; 4-TT450S; 5-TRANSEOT 11-HITARGET (11), AT&F53 It is the default configuration of the TRANSEOT protocol. The default configuration of the current radio operating parameters is as follows: S102=1; The serial port baud rate is 115200 S103=2; The wireless baud rate is 9600; S108=H; The transmitting power is high S131=00-xxx.xxxxx; The current sending channel is 0. For the frequency, check the frequency table configured by the ATP0 command, and the corresponding 0 channel is the sending frequency. S132=00-xxx.xxxxx; The current receiving channel is 0. For the frequency, check the frequency table configured by the ATP0 command, and the corresponding 0 channel is the receiving frequency point. S186=05; TRANSOSOT protocol; S127=0; 400M fixed frequency mode (band can only be queried in this command) (12), AT&F54 It is the default configuration of the TRIMTALK protocol. The default configuration of the current radio parameters is as follows: S102=1; The serial port baud rate is 115200 S103=2; The wireless baud rate is 9600; S108=H; The transmitting power is high; S131=00-xxx.xxxxx; the current sending channel is 0. For the frequency, check the frequency table configured by the ATP0 command, and the corresponding 0 channel is the sending frequency. S132=00-xxx.xxxxx; the current receiving channel is 0. For the frequency, check the frequency table configured by the ATP0 command, and the corresponding 0 channel is the receiving frequency point. S186=01; TRIMTALK protocol; S127=0; 400M fixed frequency mode (band can only be queried in this command) (13), AT&F55 It is the default configuration of the TRIMMK3 protocol, the default configuration of the current radio operating parameters is as follows: S102=1; The serial port baud rate is 115200 S103=4; The wireless baud rate 19200; S108=H; The transmitting power is high S131=00-xxx.xxxxx; The current sending channel is 0. For the frequency, check the frequency table configured by the ATP0 command, and the corresponding 0 channel is the sending frequency. S132=00-xxx.xxxxx; the current receiving channel is 0. For the frequency, check the frequency table configured by the ATP0 command, and the corresponding 0 channel is the receiving frequency. S186=02; TRIMMK3 protocol; S127=0; 400M fixed frequency mode (band can only be queried in this command) Remarks: Unless otherwise specified, each AT command must be followed by "carriage return (\r\n)" FCC regulatory compliance statement § 15.19 Statement(N/A) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. §15.21 Information to user Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. List of applicable FCC rules: 47 CFR Par…

Text truncated - open the document above for the full version.

ApplicantDeclaration QSF27-14-04Rev 1.0 Rev. Feb 6, 2023Page 1 of 1 OriginalIssue:Jan. 4, 2021 SGS North Amer ica Inc. 620 Old PeachtreeRoad SUITE100 Suwanee,Georgia30024 UnitedStates ApplicantLegal BusinessName SHENZHENSATLEADTECHNOLOGYCO., LTD. Address TCL Science Park,NO.1001 Zhongshanyuan Road Shenzhen China GranteeCode 2BA39 FCC ID 2BA39HX-DU1022D AuthorizedContactName YONGCHEN ContactEmail [email protected] ContactPhone +86-755-26989946 I, the undersigned,certifythat I am an authorizedsignatoryfor the Applicantand thereforedeclare; a) in accordancewith 47CFR2.911(d),all of the statementshereinand the exhibitsattachedheretoare true and correctto the best of my knowledgeand belief. b) in acceptinga Grant of EquipmentAuthorizationissuedby a TCB, under the authorityof the FCC, as a result of the representationsmade in this application,the Applicantis responsiblefor: (1) labelingthe equipmentwith the exact FCC ID as specifiedin this application, (2) compliancestatementlabelingpursuantto the applicablerules, (3) complianceof the equipmentwith the applicabletechnicalrules, c) if the Applicantis not the actualmanufacturerof the equipment,appropriatearrangementshave been made with the manufacturerto ensure that productionunits of this equipmentwill continueto complywith the FCC ’s technicalrequirements. d) in accordancewith 47 CFR 2.909 and KDB394321,the Applicanthas read, understoodand agreesto acceptthat they are the responsible party and agree to abide by their responsibilitiesas specifiedunder 47 CFR 2.909 and KDB394321. e) in accordancewith ISO 17065,FCC KDB641163,FCC KDB610077,KDB394321and RSP-100,the Applicanthas read, understood,accepts and agreesto abide by the post marketsurveillancerequirements. (1) the Applicantunderstands,acceptsand agreesthat a samplemay be requestedfor surveillancetesting. (2) the Applicantshallmake provisionsto alwayshave a productionsampleavailableupon requestby SGS, FCC and/orISED. (3) the Applicantshall, upon requestby SGS, at the Applicant’s expense,providea productionsampleof the requestedproductto SGS, FCC and/orISED as instructed.The sampleshall includeall supportdevices,cables,software,accessoriesor other hardwareor softwarerequiredfor evaluation,review,certificationand audit surveillanceof productscertifiedby SGS. f) neitherthe Applicantnor any party to the applicationis subjectto a denialof Federalbenefits,that includesFCC benefits,pursuantto Section 5301 of the Anti-DrugAbuseAct of 1988, 21 U.S.C.§862 becauseof a convictionfor possessionor distributionof a controlledsubstance.See 47CFR1.2002(b)for the definitionof a “party ” for these purposes. g) the Applicanthas read, understood,acceptsand agreesto abide by the SGS North America,Inc.(TCB)terms and conditions. Link to CFRs:https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs:https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100:https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Link to the CoveredList: CoveredList [SHENZHENSATLEADTECHNOLOGYCO., LTD.](“the applicant”) certifiesthat the equipmentfor which authorizationis soughtis not “covered” equipmentprohibitedfrom receivingan equipmentauthorizationpursuantto section2.903 of the FCC rules. [SHENZHENSATLEADTECHNOLOGYCO., LTD.](“the applicant”) certifiesthat, as of the date of the filing of the application,the applicant[is not] identifiedon the Coveredlist, establishedpursuantto§1.50002,as an entity producing“covered” equipment. ApplicantSignature: Date:2023/04/10 Print Name: YONGCHEN Title: Supervisor *NOTE:This declarationcannotbe signedby an Agent,it shall be signedby an authorizedpersonlisted in the FCC database

UNITEDSTATESDESIGNATEDAGENTLETTER 2023-4-23 TO:FederalCommunicationCommission EquipmentAuthorizationBranch 7435 OaklandMills Road Columbia,MID 21046 ApplicantU.S. designatedagent CompanyName:SHENZHENSATLEAD TECHNOLOGYCO., LTD. CompanyName: UnitedConsultingTechnology ServicesCo., Ltd. GranteeCode:2BA39FRN: ContactName: 0033495714 David Wu ContactName:YONGCHENAddress: Address: TCL Science Park,NO.1001 Zhongshanyuan Road Shenzhen China City/Province/Zip: 17800CASTLETONST STE 665 Industry,CA 91748United States Telephone: (626) 217-4022 Telephone:+86-755-26989946 Email: [email protected] Email:[email protected] ApplicableEquipment:FCC ID: 2BA39HX-DU1022D ATTN:Directorof Certification: We, <SHENZHENSATLEADTECHNOLOGYCO., LTD.> and <UnitedConsultingTechnologyServices Co., Ltd.> understandand acknowledgethe applicantsconsentand the designatedagent ’s obligationto acceptserviceof processin the UnitedStatesfor mattersrelatedto the applicableequipment,and at the physicalU.S. addressand e-mailof the designatedagent listed above. We, <SHENZHENSATLEADTECHNOLOGYCO., LTD.> and < UnitedConsultingTechnologyServices Co., Ltd.> acknowledgethe applicant’s acceptanceof its obligationto maintainan agent for serviceof processin the UnitedStatesfor no less than one year after either the granteehas permanently terminatedall marketingand importationof the applicableequipmentwithin the U.S., or the conclusionof any Commission-relatedadministrativeor judicialproceedinginvolvingthe equipment,whicheveris later. ApplicantU.S. designatedagent Name(Printed): YONGCHENName(Printed):DavidWu Title: SupervisorTitle: CEO Signature:Signature:

SHENZHENSATLEADTECHNOLOGYCO.,LTD. Date:2023/04/10 TO:FederalCommunicationCommission EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MID21046 Regarding:FCCID:2BA39HX-DU1022D Towhomitmayconcern: We,theundersigned,herebyauthorizeSGS-CSTCStandardsTechnicalServicesCo.,Ltd.toactonour behalfinallmannersrelatingtoapplicationforequipmentauthorizationwithrespecttotheFCCIDabove, includingsigningofalldocumentsrelatingtothesematters.Anyandallactscarriedoutbytheagenton ourbehalfshallhavethesameeffectasactsofourown. We,theundersigned,herebycertifythatwearenotsubjecttoadenialoffederalbenefits,thatincludes FCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseActof1988,21U.S.C.853(a). Whereouragentsignstheapplicationforcertificationonourbehalf,Iacknowledgethatallresponsibility forcomplyingwiththetermsandconditionsforCertification,asspecifiedbySGSNorthAmerica,Inc.,still resideswithSHENZHENSATLEADTECHNOLOGYCO.,LTD. Thisauthorizationisvaliduntilfurtherwrittennoticefromtheapplicant. Sincerely, PrintName:YONGCHENTitle:Supervisor Signature: OnbehalfofCompany:SHENZHENSATLEADTECHNOLOGYCO.,LTD. Telephone:+86-755-26989946 E-mail:[email protected]

SHENZHEN SATLEAD TECHNOLOGY CO., LTD. TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: Confidentiality Request regarding application forFCC ID: 2BA39HX-DU1022D LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions Tune up procedure The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. SHORT TERM CONFIDENTIALITY Additionally, the applicant requests the following documents be held confidential until the device is marketed or180days from the grant date, whichever is less. If the device is marketed within aforementioned days of the Grant Date, the applicant will notify the TCB per FCC KDB 726920 D01 Confidentiality Request Procedures. External Photos Internal Photos Test Setup Photos User manual(s) Sincerely, Print Name:YONG CHENTitle:Supervisor Signature: On behalf of Company: SHENZHEN SATLEAD TECHNOLOGY CO., LTD. Telephone:+86-755-26989946 E-mail:[email protected]

SHENZHEN SATLEAD TECHNOLOGY CO., LTD. Cover Letter-Modular Approval FCC ID: 2BA39HX-DU1022D Date: 2023/04/10 Gentlemen: There’s a Wireless date transceiver Module that would like to have your authorization as a modular approval. The specific product as below, Wireless date transceiver Module with its designed features and specified description, meets special requirements for Full modular approval on FCC KDB996369 by cross-reference list below. Company SHENZHEN SATLEAD TECHNOLOGY CO., LTD. Model Name Wireless date transceiver Model Number HX-DU1022D FCC ID 2BA39HX-DU1022D Requirement of FCC KDB996369 Comply（Y/N） 1. The modular transmitter must have its own RF shielding. Y The EUT provides the RF shielding. See EUT photo. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 90 requirements under conditions of excessive data rates or over-modulation. Y The EUT has its buffered modulation. Please see the Schematic Diagram. 3. The modular transmitter must have its own power supply regulation. Y The EUT has its own power supply regulation, please see the Schematic Diagram. 4. The modular transmitter must comply with the antenna and transmission system requirements of Sections 90.205 and 90.279. Y The EUT meets the FCC antenna requirements; photo of antenna are shown in the test report. 5. The modular transmitter must be tested in a stand ‐alone configuration, i.e., the module must not be inside another device during testing. Y The EUT was tested with a test board, Please see test report and setup photo 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: 2BA39HX-DU1022D” or “Contains FCC ID: 2BA39HX-DU1022D” Any similar wording that expresses the same meaning may be used. The Y Please see exhibition label sample for the FCC ID of this module. And also in the exhibition Users manual, there are instructions give to the OEM on how to label the end product. SHENZHEN SATLEAD TECHNOLOGY CO., LTD. Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. 7.The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Y The EUT is compliant with all applicable FCC rules. Details instructions for maintaining compliance are give in the User Manual. 8.The modular transmitter must comply with any applicable RF exposure requirements. Y The EUT complies with RF exposure requirement. Thank you. Sincerely, Print Name: Yong Chen Title: Supervisor Signature: On behalf of Company: SHENZHEN SATLEAD TECHNOLOGY CO., LTD. Telephone: +86-755-26989946 E-mail: [email protected]

SHENZHEN SATLEAD TECHNOLOGY CO., LTD. TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Dear Sir/Madam, We, SHENZHEN SATLEAD TECHNOLOGY CO., LTD. hereby declare that out product: Wireless date transceiver, FCC ID: 2BA39HX-DU1022D. Acknowledge that this device will not be market to USA users with the frequency band which is not allowed by rule part 90. And it is a violation of FCC rules if this device is operated on unauthorized frequencies inside the U.S.A. Acknowledge that this device meets the requirements of FCC Rules, Part 90.203 as applicable. Programming of this product’s transmit frequencies can be performed only by the manufacturer or by service or maintenance personnel. The operator cannot program transmit frequencies using the equipment’s external operation. Sincerely, Print Name: YONG CHEN Title: Supervisor Signature: On behalf of Company: SHENZHEN SATLEAD TECHNOLOGY CO., LTD. Telephone: +86-755-26989946 E-mail: [email protected]

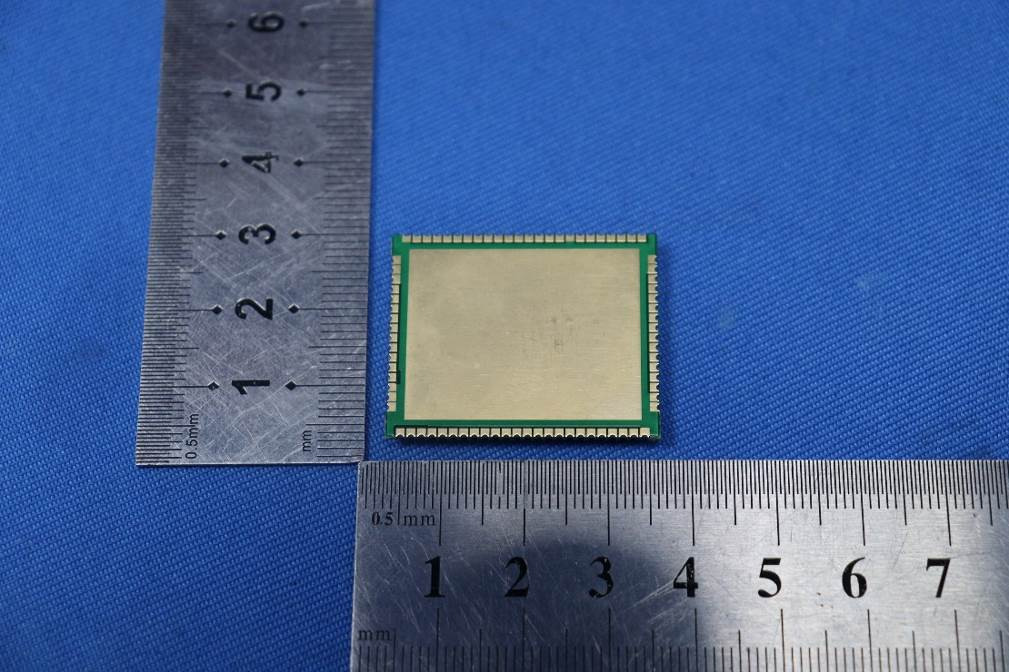

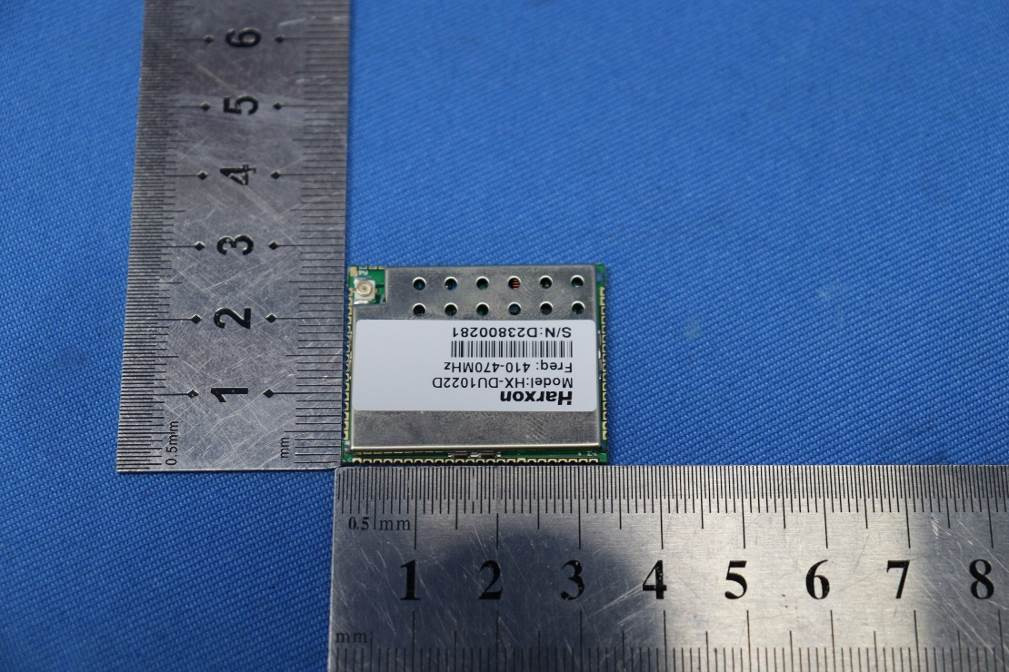

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-A02 Rev.A/0 Page: 1 of 3 External Photos for SZCR2303000891AT FCC ID: 2BA39HX-DU1022D SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-A02 Rev.A/0 Page: 2 of 3 EUT Constructional Details (EUT Photos) SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-A02 Rev.A/0 Page: 3 of 3

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-A03 Rev.A/0 Page: 1 of 2 Internal Photos for SZCR2303000891AT FCC ID: 2BA39HX-DU1022D SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-A03 Rev.A/0 Page: 2 of 2 EUT Constructional Details (EUT Photos) - End of the Appendix -

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-01 Rev. A/0 Aug01,2022 Report No.: SZCR230300089102 Page: 1 of 9 Keny Xu EMC Laboratory Manager RF EXPOSURE EVALUATION REPORT Application No.: SZCR2303000891AT Applicant: SHENZHEN SATLEAD TECHNOLOGY CO., LTD. Address of Applicant: TCL Science Park, NO.1001 Zhongshanyuan Road Shenzhen China Manufacturer: SHENZHEN SATLEAD TECHNOLOGY CO., LTD. Address of Manufacturer: TCL Science Park, NO.1001 Zhongshanyuan Road Shenzhen China Equipment Under Test (EUT): EUT Name: Wireless date transceiver Model No.: HX-DU1022D FCC ID: 2BA39HX-DU1022D Standard(s) : 47 CFR PART 1, Subpart I, Section 1.1307 47 CFR PART 2, Subpart J, Section 2.1091 Date of Receipt: 2023-03-30 Date of Evaluation: 2023-05-01 to 2023-06-01 Date of Issue: 2023-06-02 Evaluation Result: Pass* * In the configuration evaluated, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-01 Rev. A/0 Aug01,2022 Report No.: SZCR230300089102 Page: 2 of 9 Revision Record Version Chapter Date Modifier Remark 01 2023-05-18 Original Authorized for issue by: Darren Yuan/Project Engineer Eric Fu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-01 Rev. A/0 Aug01,2022 Report No.: SZCR230300089102 Page: 3 of 9 2 Evaluation Summary Note: E.U.T./EUT means Equipment Under Test. Pass means the test result passed the test standard requirement, please find the detailed decision rule in the report relative section. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-01 Rev. A/0 Aug01,2022 Report No.: SZCR230300089102 Page: 4 of 9 3 Contents Page 1 Cover Page ......................................................................................................................................... 1 2 Evaluation Summary .......................................................................................................................... 3 3 Contents ............................................................................................................................................. 4 4 General Information............................................................................................................................ 5 4.1 Details of E.U.T. ........................................................................................................................... 5 4.2 Evaluating Location ...................................................................................................................... 6 4.3 Test Facility .................................................................................................................................. 6 4.4 Deviation from Standards ............................................................................................................. 6 4.5 Abnormalities from Standard Conditions ....................................................................................... 6 5 Technical Requirements Specification .............................................................................................. 7 5.1 RF Exposure Evaluation ............................................................................................................... 7 5.1.1 Limits ....................................................................................................................................... 7 5.1.2 Test Procedure ........................................................................................................................ 7 5.1.3 EUT RF Exposure Evaluation ................................................................................................... 8 6 EUT Constructional Details (EUT Photos) ......................................................................................... 9 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-01 Rev. A/0 Aug01,2022 Report No.: SZCR230300089102 Page: 5 of 9 4 General Information 4.1 Details of E.U.T. Power supply: DC 3.3V Internal source: More than 108MHz Frequency Range: 421MHz to 470MHz Modulation Type: GMSK, 4FSK Channel Separation: 12.5KHz Number of Channels: The equipment is able to operate on any designated channel within the specified frequency range. Antenna Type: IPEX Antenna Connector Antenna Gain: 4dBi SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-01 Rev. A/0 Aug01,2022 Report No.: SZCR230300089102 Page: 6 of 9 4.2 Evaluating Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen Branch No. 1 Workshop, M-10, Middle Section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China. 518057. Tel: +86 755 2601 2053 Fax: +86 755 2671 0594 No tests were sub-contracted. 4.3 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 3816.01) SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 3816.01. • VCCI (Member No. 1937) The 3m Fully-anechoic chamber for above 1GHz, 10m Semi-anechoic chamber for below 1GHz, Shielded Room for Mains Port Conducted Interference Measurement and Telecommunication Port Conducted Interference Measurement of SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen EMC laboratory have been registered in accordance with the Regulations for Voluntary Control Measures with Registration No.: G-20026, R-14188, C-12383 and T-11153 respectively. • FCC –Designation Number: CN1336 SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been recognized as an accredited testing laboratory. Designation Number: CN1336. Test Firm Registration Number: 787754. • Innovation, Science and Economic Development Canada SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been recognized by ISED as an…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-01 Rev. A/0 Aug01,2022 Report No.: SZCR230300089101 Page: 1 of 65 Keny Xu EMC Laboratory Manager Cover Page TEST REPORT Application No.: SZCR2303000891AT Applicant: SHENZHEN SATLEAD TECHNOLOGY CO., LTD. Address of Applicant: TCL Science Park, NO.1001 Zhongshanyuan Road Shenzhen China Manufacturer: SHENZHEN SATLEAD TECHNOLOGY CO., LTD. Address of Manufacturer: TCL Science Park, NO.1001 Zhongshanyuan Road Shenzhen China Equipment Under Test (EUT): EUT Name: Wireless date transceiver Model No.: HX-DU1022D FCC ID: 2BA39HX-DU1022D Standard(s) : 47 CFR Part 90 Date of Receipt: 2023-03-30 Date of Test: 2023-05-01 to 2023-06-01 Date of Issue: 2023-06-02 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-01 Rev. A/0 Aug01,2022 Report No.: SZCR230300089101 Page: 2 of 65 Revision Record Version Chapter Date Modifier Remark 01 2023-06-02 Original Authorized for issue by: Darren Yuan/Project Engineer Eric Fu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-01 Rev. A/0 Aug01,2022 Report No.: SZCR230300089101 Page: 3 of 65 1 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 90 N/A 47 CFR Part 90.205(d) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result RF Power Output 47 CFR FCC Part 2, Part90 ANSI/TIA- 102.CAAA-E-2016, ANSI/TIA-603-E (2016), ANSI C63.26-2015 47 CFR FCC Part 2.1046, Part90.205 Pass Frequency Stability 47 CFR FCC Part 2, Part90 47 CFR FCC Part 2.1055, Part90.213 Pass Occupied Bandwidth 47 CFR FCC Part 2, Part90 47 CFR FCC Part 2.1049, FCC Part90.209 Pass Emission Mask 47 CFR FCC Part 2, Part90 47 CFR FCC Part 2.1049, FCC Part90.210 Pass Transient Frequency Behaviour 47 FCC CFR Part90 47 CFR FCC Part90.214 Pass Conducted Spurious Emission 47 CFR FCC Part 2, Part90 47 CFR FCC Part 2.1051, Part90.210 Pass Radiated Spurious Emission 47 CFR FCC Part 2, Part90 47 CFR FCC Part 2.1053, Part90.210 Pass N/A: Not Applicable. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch SZEMC-TRF-01 Rev. A/0 Aug01,2022 Report No.: SZCR230300089101 Page: 4 of 65 2 Contents Page 1 COVER PAGE ..................................................................................................................................... 1 1 TEST SUMMARY ................................................................................................................................. 3 2 CONTENTS ......................................................................................................................................... 4 3 GENERAL INFORMATION .................................................................................................................. 6 3.1 DETAILS OF E.U.T. ......................................................................................................................... 6 3.2 DESCRIPTION OF SUPPORT UNITS .................................................................................................... 6 3.3 MEASUREMENT UNCERTAINTY ......................................................................................................... 7 3.4 TEST LOCATION ............................................................................................................................. 8 3.5 TEST FACILITY ............................................................................................................................... 8 3.6 DEVIATION FROM STANDARDS ......................................................................................................... 8 3.7 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................. 8 4 EQUIPMENT LIST ............................................................................................................................... 9 5 RADIO SPECTRUM TECHNICAL REQUIREMENT ............................................................................11 5.1 ANTENNA REQUIREMENT ................................................................................................................11 5.1.1 Test Requirement: ..................................................................................................................11 5.1.2 Conclusion ..............................................................................................................................11 6 RADIO SPECTRUM MATTER TEST RESULTS .................................................................................12 6.1 RF POWER OUTPUT ......................................................................................................................12 6.1.1 E.U.T. Operation .....................................................................................................................14 6.1.2 Test Setup Diagram ..…

Text truncated - open the document above for the full version.
