2BA3R-EWL-22111-B3 IN 1 QUICK MAGNETIC WIRELESS CHARGER

3 IN 1 QUICK MAGNETIC WIRELESS CHARGER FCC RF exposure statement: The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance between 20cm the radiator your body.

1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: Zeikos Inc FRN: 0024248841 Contact Name: Bella Guo Address: 86 Northfield Ave, Edison, NJ, 08837, United States Telephone No: 15381968111 Email: [email protected] Applicant: Company name: JSE VIETNAM ELECTRONIC TECHNOLOGY COMPANY LIMITED Product Description: 3 IN 1 QUICK MAGNETIC WIRELESS CHARGER Grantee code: 2BA3R FCC ID: 2BA3R-EWL-22111-B Contact Name: Chen Ruqin Address: Lot-CN-15, Van Trung industrial park, Van Trung village, Viet Yen district, Bac Giang province, Vietnam Telephone No: 084976892723 Email: [email protected] [JSE VIETNAM ELECTRONIC TECHNOLOGY COMPANY LIMITED] certifies that, as of the date of this filing of the application with the TCB, [Zeikos Inc] is our designated US agent for service of process for the above referenced FCC ID. [JSE VIETNAM ELECTRONIC TECHNOLOGY COMPANY LIMITED] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [Zeikos Inc] accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 5.17.2023 Applicant’s Name: Chen Ruqin US Agent’s Name: Bella Guo Title: Director Title: Manager Signature Signature

C5266091_X24_Ed.2 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: JSE VIETNAM ELECTRONIC TECHNOLOGY COMPANY LIMITED Grantee code: 2BA3R FCC ID: 2BA3R-EWL-22111-B Contact Name: Chen Ruqin Address: Lot-CN-15, Van Trung industrial park, Van Trung village, Viet Yen district, Bac Giang province, Vietnam Telephone No: 084976892723 Fax No: Email: [email protected] i. [JSE VIETNAM ELECTRONIC TECHNOLOGY COMPANY LIMITED] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [JSE VIETNAM ELECTRONIC TECHNOLOGY COMPANY LIMITED] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. [JSE VIETNAM ELECTRONIC TECHNOLOGY COMPANY LIMITED] certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Date: 2023/5/17 Applicant’s Name: Chen Ruqin Title: Director Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

JSE VIETNAM ELECTRONIC TECHNOLOGY COMPANY LIMITED Product Similarity Declaration Product name: 3 IN 1 QUICK MAGNETIC WIRELESS CHARGER Model name: SAM01, EWL-22111-B FCC ID: 2BA3R-EWL-22111-B We (JSE VIETNAM ELECTRONIC TECHNOLOGY COMPANY LIMITED) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), the only difference is the model name. Demonstrate the detail(descriptions and pictures) as to the difference list above. Signature: Name: Chen Ruqin Title: Director Date: 5.17.2023

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: JSE VIETNAM ELECTRONIC TECHNOLOGY COMPANY LIMITED Address: Lot-CN-15, Van Trung industrial park, Van Trung village, Viet Yen district, Bac Giang province, Vietnam Product Name: 3 IN 1 QUICK MAGNETIC WIRELESS CHARGER Model Number: SAM01, EWL-22111-B FCC Identifier: 2BA3R-EWL-22111-B We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Chen Ruqin Date: 5/17/2023 Title: Director Signature of applicant:

C5266091_X10_Ed.1 1/1 JSE VIETNAM ELECTRONIC TECHNOLOGY COMPANY LIMITED Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 5/17/2023 Subject: Request for Confidentiality FCC ID: 2BA3R-EWL-22111-B To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Chen Ruqin Date: 5/17/2023 Title: Director

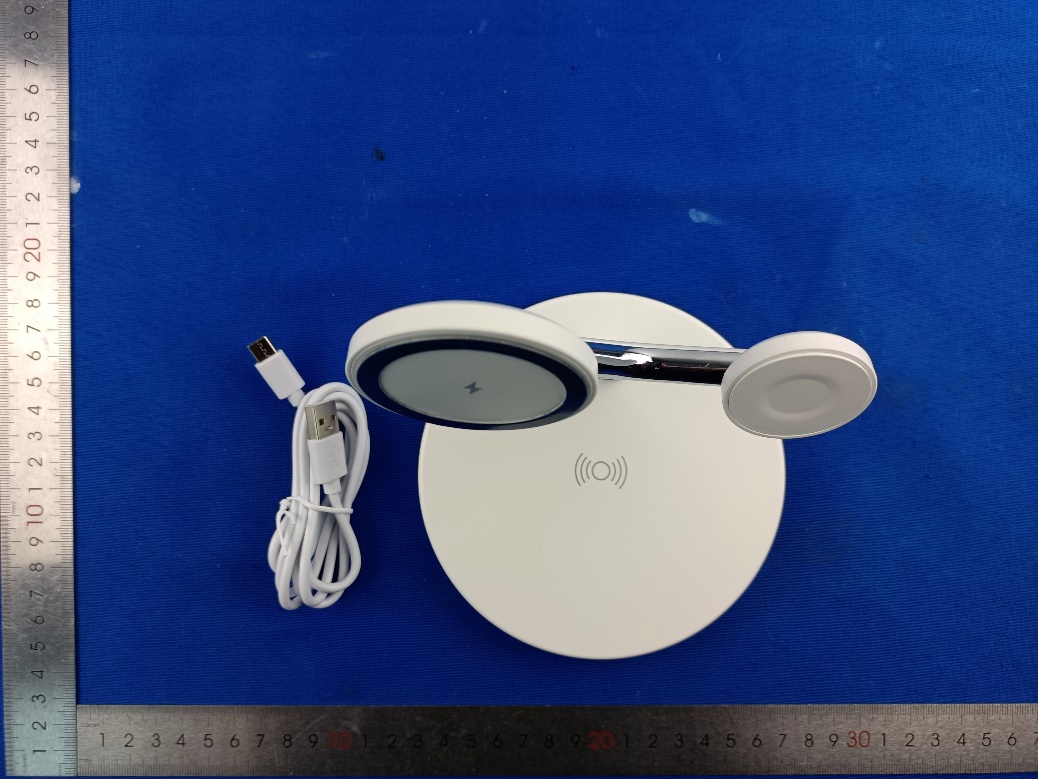

Page 1 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Appendix - EUT Photos Model: SAM01 Page 2 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Page 3 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Page 4 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] ----End of Report----

Page 1 of 5 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Appendix - EUT Photos Model: SAM01 Transmitter 3 (for watch) Transmitter 2 (for phone) Page 2 of 5 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Transmitter 1 (for earphone) Page 3 of 5 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Page 4 of 5 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Page 5 of 5 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] ----End of Report----

Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 We b : www.mtitest.com E-mail: [email protected] Test Report Report No.: MTi230406018-05E2 Date of issue: 2023-05-08 Applicant: JSE VIETNAM ELECTRONIC TECHNOLOGY COMPANY LIMITED Product: 3 IN 1 QUICK MAGNETIC WIRELESS CHARGER Model(s): SAM01, EWL-22111-B FCC ID: 2BA3R-EWL-22111-B Shenzhen Microtest Co., Ltd. http://www.mtitest.com Page 2 of 13 Report No.: MTi230406018-05E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Instructions 1. This test report shall not be partially reproduced without the written consent of the laboratory. 2. The test results in this test report are only responsible for the samples submitted 3. This test report is invalid without the seal and signature of the laboratory. 4. This test report is invalid if transferred, altered, or tampered with in any form without authorization. 5. Any objection to this test report shall be submitted to the laboratory within 15 days from the date of receipt of the report. Page 3 of 13 Report No.: MTi230406018-05E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Contents 1 General Description ........................................................................................................................ 5 1.1 Description of the EUT ....................................................................................................................................... 5 1.2 Description of test modes ................................................................................................................................... 5 1.3 Description of support units ................................................................................................................................ 6 2 Measurement uncertainty ............................................................................................................... 6 3 Test facilities and accreditations .................................................................................................... 7 3.1 Test laboratory .................................................................................................................................................... 7 4 List of test equipment ..................................................................................................................... 8 5 Test result ........................................................................................................................................ 9 5.2 Test setup ......................................................................................................................................................... 10 5.3 Test Procedures ................................................................................................................................................ 10 5.4 Equipment Approval Considerations item 5 b) of KDB 680106 D01 v03r01 .................................................... 10 5.5 Test results ....................................................................................................................................................... 12 Photographs of the Test Setup ............................................................................................................ 13 Photographs of the EUT....................................................................................................................... 13 Page 4 of 13 Report No.: MTi230406018-05E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Test Result Certification Applicant: JSE VIETNAM ELECTRONIC TECHNOLOGY COMPANY LIMITED Address: Lot-CN-15, Van Trung industrial park, Van Trung village, Viet Yen district, Bac Giang province, Vietnam Manufacturer: HONG KONG ETECH GROUPS LIMITED Address: 16/F, Block C, 2nd Phase of Central Avenue, Haihong Industrial Area, Xixiang Road, Baoan District, Shenzhen, 518102 China Product description Product name: 3 IN 1 QUICK MAGNETIC WIRELESS CHARGER Trademark: N/A Model name: SAM01 Series Model: EWL-22111-B Standards: FCC CFR 47 PART 1, § 1.1310 Test method: KDB 680106 v03r01 Date of Test Date of test: 2023-04-10 ~ 2023-04-14 Te s t result: Pass Test Engineer : (David Lee) Reviewed By: : (Leon Chen) Approved By: : (Tom Xue) Page 5 of 13 Report No.: MTi230406018-05E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] 1 General Description 1.1 Description of the EUT Product name: 3 IN 1 QUICK MAGNETIC WIRELESS CHARGER Model name: SAM01 Series Model: EWL-22111-B Model difference: All the models are the same circuit and module, except the model name. Electrical rating: Input: DC 5V/3A, 9V/3A Output: USB: DC 5V/1A Wireless Output: 5W/7.5W/10W/15W for mobile phone 5W for Airpods, 3W for iwatch Accessories: Cable: USB-A to Type-C cable 100cm Hardware version: V1.0 Software version: V1.0 RF specification: Operation frequency: Transmitter 1(Earphone): 115 kHz – 205 kHz Transmitter 2(Mobile phone): 115 kHz – 205 kHz Transmitter 3(Watch): 326.5 kHz Modulation type: ASK Antenna type: Coil Antenna 1.2 Description of test modes All the test modes were carried out with the EUT in normal operation, the final test mode of …

Text truncated - open the document above for the full version.

Address: 101, No.7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 We b : www.mtitest.com E-mail: [email protected] Test Report Report No.: MTi230406018-05E1 Date of issue: 2023-05-08 Applicant: JSE VIETNAM ELECTRONIC TECHNOLOGY COMPANY LIMITED Product: 3 IN 1 QUICK MAGNETIC WIRELESS CHARGER Model(s): SAM01, EWL-22111-B FCC ID: 2BA3R-EWL-22111-B Shenzhen Microtest Co., Ltd. http://www.mtitest.com Page 2 of 23 Report No.: MTi230406018-05E1 Address: 101, No. 7, Zone2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Instructions 1. This test report shall not be partially reproduced without the written consent of the laboratory. 2. The test results in this test report are only responsible for the samples submitted 3. This test report is invalid without the seal and signature of the laboratory. 4. This test report is invalid if transferred, altered, or tampered with in any form without authorization. 5. Any objection to this test report shall be submitted to the laboratory within 15 days from the date of receipt of the report. Page 3 of 23 Report No.: MTi230406018-05E1 Address: 101, No. 7, Zone2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Table of contents 1. General Description ........................................................................................................................ 5 1.1 Description of the EUT ....................................................................................................................................... 5 1.2 Description of test modes ................................................................................................................................... 5 1.3 Description of support units ................................................................................................................................ 6 1.4 Environmental conditions ................................................................................................................................... 6 2. Measurement uncertainty ............................................................................................................... 7 3. Test laboratory ................................................................................................................................. 7 4. Summary of Test Result .................................................................................................................. 8 5. List of test equipment ..................................................................................................................... 9 6. Test Results ................................................................................................................................... 10 6.1 Antenna requirement .................................................................................................................................. 10 6.2 AC power line conducted emissions ........................................................................................................... 11 6.3 Radiated emissions..................................................................................................................................... 14 6.4 Occupied bandwidth test ............................................................................................................................ 21 Photographs of the test setup ............................................................................................................. 23 Photographs of the EUT....................................................................................................................... 23 Page 4 of 23 Report No.: MTi230406018-05E1 Address: 101, No. 7, Zone2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Test Result Certification Applicant: JSE VIETNAM ELECTRONIC TECHNOLOGY COMPANY LIMITED Address: Lot-CN-15, Van Trung industrial park, Van Trung village, Viet Yen district, Bac Giang province, Vietnam Manufacturer: HONG KONG ETECH GROUPS LIMITED Address: 16/F, Block C, 2nd Phase of Central Avenue, Haihong Industrial Area, Xixiang Road, Baoan District, Shenzhen, 518102 China Product description Product name: 3 IN 1 QUICK MAGNETIC WIRELESS CHARGER Trademark: N/A Model name: SAM01 Series Model: EWL-22111-B Standards: FCC 47 CFR Part 15 Subpart C Test method: ANSI C63.10-2013 Date of Test Date of test: 2023-04-10 ~ 2023-04-14 Te s t result: Pass Test Engineer : (David Lee) Reviewed By: : (Leon Chen) Approved By: : (Tom Xue) Page 5 of 23 Report No.: MTi230406018-05E1 Address: 101, No. 7, Zone2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] 1. General Description 1.1 Description of the EUT Product name: 3 IN 1 QUICK MAGNETIC WIRELESS CHARGER Model name: SAM01 Series Model: EWL-22111-B Model difference: All the models are the same circuit and module, except the model name. Electrical rating: Input: DC 5V/3A, 9V/3A Output: USB: DC 5V/1A Wireless Output: 5W/7.5W/10W/15W for mobile phone 5W for Earphone, 3W for Watch Accessories: Cable: USB-A to Type-C cable 100cm Hardware version: V1.0 Software version: V1.0 Test sample(s) number: MTi230406018-05S1001 RF specification: Operation frequency: Transmitter 1(Earphone): 115 kHz – 205 kHz Transmitter 2(Mobile phone): 115 kHz – 205 kHz Transmitter 3(Watch): 326…

Text truncated - open the document above for the full version.

客户/Client 名称/TYPE 发射线圈 44MM （环保状况：RoHS+HF ） 产品型号 Model NO SG-A1144-6.6UH 产品编号 SG-A11-030 Part nunbering systey 客户料号 Client p/NO 工程编号 Enginrer NO TQE 1800510003 日期/Date 2021-10 -9 编制/Prepared 审核/Checked 认可/Approved DuanJiaWang XieLiang XieXiaoZai 客户认可回签/Authorixed Signaturure Company Chop 工程/ Enginrer 认可/QC APProved 认可日期/APProved 一、 线圈工艺/Winding Procese: NO 绕组 线规 匝数 绕线方向 备注 本公司工程部/For Enginer Departner Only 修改内容/Rrvised Content 认可日期/APProved Date 1 N1 2UEW-B-0. 08 *24 P*2 10 TS CCW 2 二．电气性能/FEATURES: 1.测试条件（Test conditions）：25 °C,65%RH@100KHz/1V 1.1 电感量（Inductance） 1.11 L0A（单独线圈）=3.8uH±20% 1.12 L0A(线圈+磁片)=6.3uH±10% 1.2 Q值=70MIN 1.3 直流电阻（DCR）：55mΩ MAX 1.4 工作温度(Operating Temperature)：-25°C~85°C 2.测试仪器(Test instrument)： L:创达1068+1310;DCR:502BC;SIZE:Callipers 3.材料清单 三．电路图/CIRCUIT DIAGRAM NO 项目 材料 1 WIRE ￠0.08*24p*2 2UEW-1.0mm 2 FERRITE 43.5*4.7*0.8 L双槽 铁氧体硬磁 3 GLUE 白胶 4 SOLDER XCD-907B 5 Adhesive 双面背胶 6 High temperature adhesive 8MM高温胶带 7 8 单位： MM 四．外形图/OUTSIDE DIAGRA 注：线圈出线位置缠绕8MM（ref）高温胶纸 标准 A B C D E F I T STD 43.5±1 20.5±0.5 4.7±0.5 30±2 2-5 39±1.2 0.8±0.2 1.6Max 单位： MM 五．包装/PACKAGE 5.3包装以现有包装盘为参照标准，以实际出货包装为准，如有特需要求可以定制。 The packaging shall be based on the exusting packing plate and the actual delivery package shall prevail .If there is any requirement,we can customize it. 1400 六、贮存和使用条件 Storage and Use condition 6.1 贮存条件 Storage condition 6.1.1 建议贮存条件：温度-25°C~ 85°C ，湿度70% (Max.) Recommended keeping conditions: -25°C ~85°C, 70%RH (Max.) 6.1.2 贮存期限：自生产之日起六个月内 Storage life : Within the limits of six months from being produced. 6.2 使用条件 Use condition 使用条件限制：温度=-25°C~ 85°C, 湿度≤ 90% Use condition limit: T=-25°C~85°C, RH≤ 90%.

Page 1 of 3 承认 书 SPECIFICATION FOR APPROVAL 客 户 CUSTOMER: 客 户 料 号： CUST P/N: 零 件料 号： TX P/N: YM-Y0825S 产 品 型 号 DESC: φ14.0*20.5-0.08*24P-13TS-8-25C 日 期 DATE: 2023/05/08 版 本： Version: A.0 拟制 PREPARED BY 审核 CHECKED BY 批准 APPROVED BY 客户承认 CUSTOMER APPROVE 深圳市永漫数码有限公司 地址：深圳市龙华区大浪华达路天通工业园1栋二楼 TEL：13714532610 Page 2 of 3 版本变更历史 Version Change History 版本 Rev. 变 更 前 Before Change 变 更 后 After Change 更 改 日 期 Change Date 批 准 Approved By A.0 新发行 ---- 2023/05/08 Page 3 of 3 产 品 型 号： DESC φ14.0*20.5-0.08*24P-13TS-8-25CC SPECIFICATION Rev：A.0 客户CUST: 客户料号CUST P/N: 一、尺寸DIMENSION:(mm) 二、原理图SCHEMATIC DIAGRAM A 8.0±0.5 B25.0±0.5 C 15.0±1 D 20.5±1 注： 1.线圈交叉出线 2.线圈贴圆形硬磁片,尺寸 φ8*25*1.0mm； 3.引线出线位置如图（出线朝上 时，深缺口在下方） 4.线圈总体厚度不超过3mm; 5.双线浸锡，线长8mm,浸锡长 度齐磁片边缘 三、绕线参数Winding Specification: 序号 NO. 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 Winding Direction 1 S F 0.08*24 13Ts 逆时针 四、电气特性ELECTRICAL CHARACTERISTICS: 温度TEMPERATURE:25±10°C, 湿度RELATIVE HUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TEST FREQUENCY 测试仪器 TEST EQUIPMENTS 1 IND. S-F 4.4 uH±10% 单独线圈 100KHz/1.0V LCZ METER 1062B 2 IND. S-F 7.0 uH±10% 带磁片 100KHz/1.0V LCZ METER 1062B 3 DCR S-F 600mΩ Max LCZ METER 502B 拟制/日期PREPARED BY/DATE 审核/日期CHECKED BY/DATE E 8.0 mm F 3.00±0.5 G 2.6±0.5 深缺口

Page 1 of 2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Appendix - Test Setup Photos Model: SAM01 Radiated emissions – Below 30 MHz Radiated emissions –Below 1 GHz Page 2 of 2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Conducted emissions MPE ----End of Report----
