2BA3T-DK006Bluetooth Keyboard

Product Model: DK006 PMN: Bluetooth Keyboard This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. French: Cet appareil contient des émetteurs/récepteurs exempts de licence qui sont conformes aux RSS exemptés de licence d'Innovation, Sciences et Développement économique Canada. L'exploitation est soumise aux deux conditions suivantes : (1) Cet appareil ne doit pas provoquer d'interférences. (2) Cet appareil doit accepter toute interférence, y compris les interférences susceptibles de provoquer un fonctionnement indésirable de l'appareil. This device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS 102 RF exposure, users can obtain Canadian information on RF exposure and compliance. cet appareil est conforme à l'exemption des limites d'évaluation courante dans la section 2.5 du cnr - 102 et conformité avec rss 102 de l'exposition aux rf, les utilisateurs peuvent obtenir des données canadiennes sur l'exposition aux champs rf et la conformité. This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. Cet équipement est conforme aux limites d'exposition aux rayonnements du Canada établies pour un environnement non contrô lé. The device has been evaluated to meet general RF exposure requirement. This equipment should be installed and operated with minimum distance 0mm between the radiator & your body. L'appareil a été évalué pour répondre aux exigences générales d'exposition aux RF. Cet équipement doit être installé et utilisé avec une distance minimale de 0mm entre le radiateur et votre corps. FCC statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause u ndesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement in portable exposure condition without restriction.

Shenzhen Houlici Network Technology CO., Ltd 2606, West Tower, Galaxy Twin Towers, Yaxing Road 8, Nankeng Community, Bantian Street, Longgang District, Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-3-30 To whom it may concern: We, Shenzhen Houlici Network Technology CO., Ltd, hereby certify that the equipment for which authorization is sought (FCC ID: 2BA3T-DK006) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Yiran Lin General Manager Shenzhen Houlici Network Technology CO., Ltd 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-3-30> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BA3T-DK006 DK006 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Yiran Lin/General Manager Company: Shenzhen Houlici Network Technology CO., Ltd Address: 2606, West Tower, Galaxy Twin Towers, Yaxing Road 8, Nankeng Community, Bantian Street, Longgang District, Shenzhen China Phone: 8613823666838 Fax: N/A E-Mail: [email protected]

Shenzhen Houlici Network Technology CO., Ltd 2606, West Tower, Galaxy Twin Towers, Yaxing Road 8, Nankeng Community, Bantian Street, Longgang District, Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-3-30 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BA3T-DK006 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Yiran Lin/General Manager Company: Shenzhen Houlici Network Technology CO., Ltd Address: 2606, West Tower, Galaxy Twin Towers, Yaxing Road 8, Nankeng Community, Bantian Street, Longgang District, Shenzhen China Phone: 8613823666838 Fax: N/A E-Mail: [email protected]

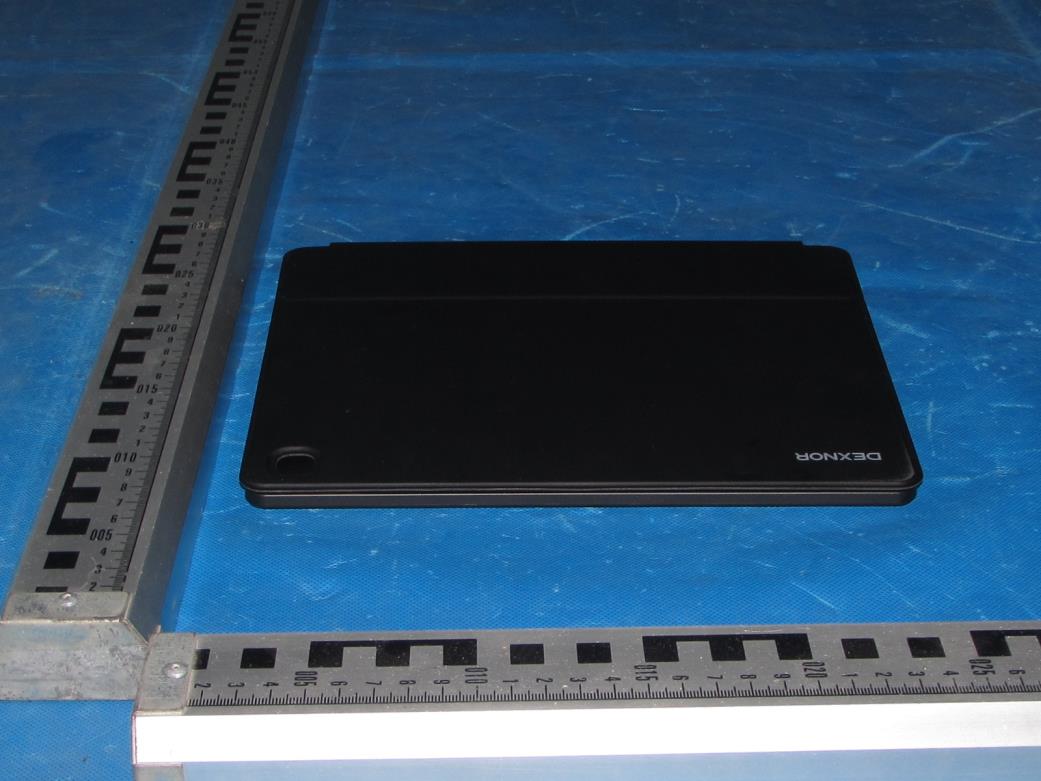

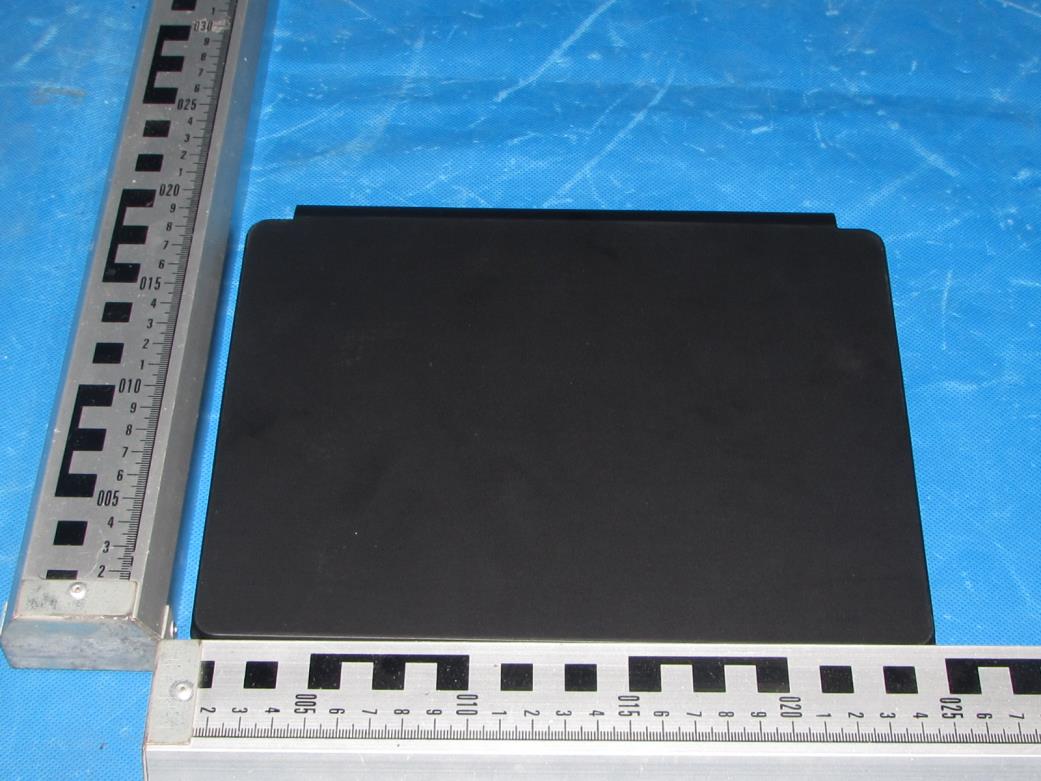

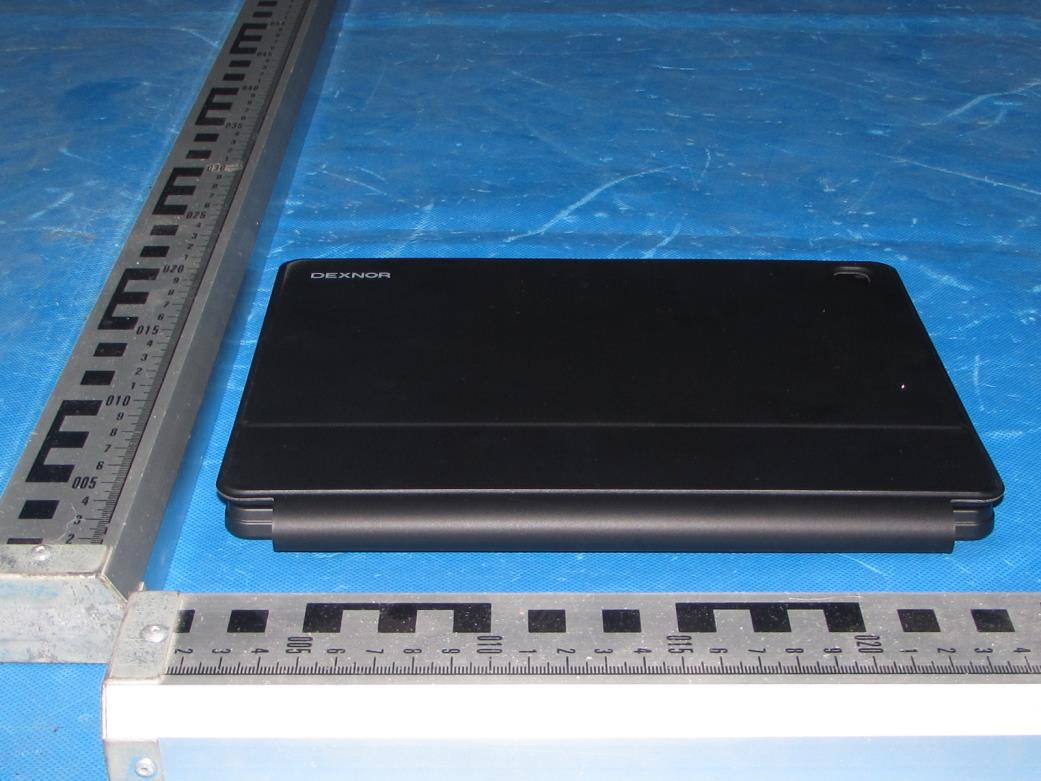

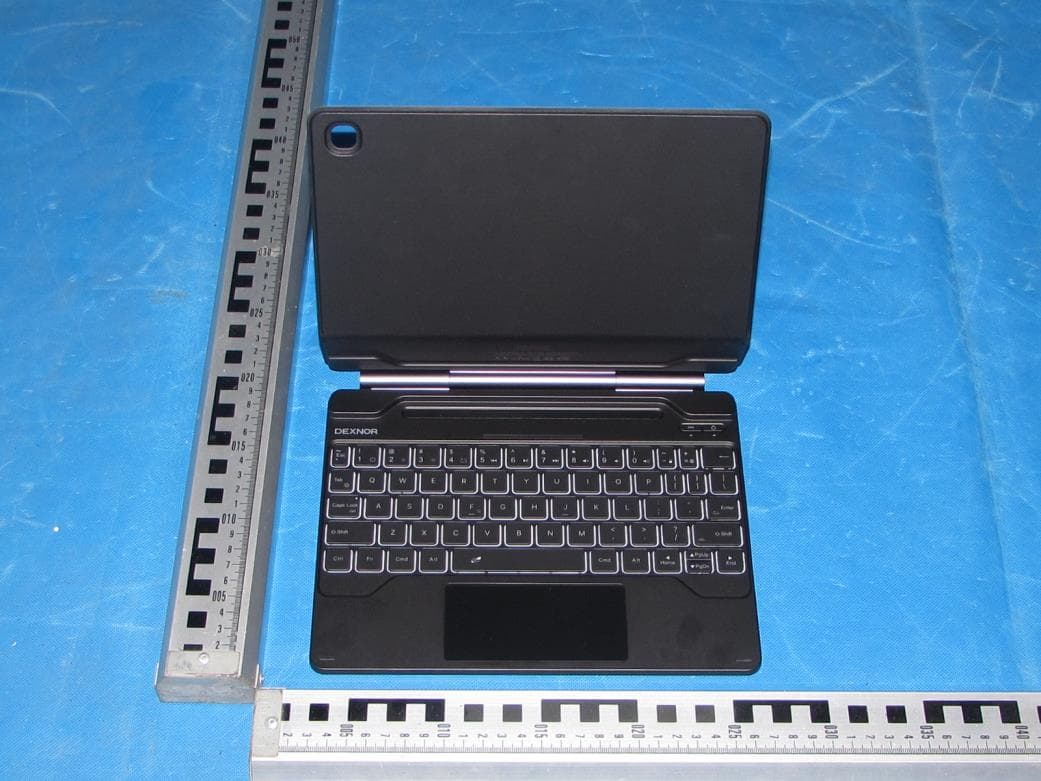

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7

Label & Label Location Size: 20mm(L)*15mm(W) Material Tagboard Glue adhesive sticker Font color. Black Label color: White L Model/HVIN: DK006 IC: 31497-DK006 FCC ID: 2BA3T-DK006 W

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Bluetooth Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7 Fig.8

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 The example values shown in Table B.2 are for illustration only. Frequency (MHz) Distance (mm) 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Conducted Power Results Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK 00 2402 -2.68 39 2441 -2.76 78 2480 -3.23 Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -3.0 -3.0 -3.5 Tolerance ±(dB) 1.0 1.0 1.0 Results Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK 2402 -2.0 -0.13 0.97 3 2441 -2.0 -0.13 0.97 3 2480 -2.5 -0.63 0.86 3 The antenna gain of the EUT for BT is PCB Antenna, 1.87dBi (Max). the Maximum Eirp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Report for Broadcom By Alfred Grau UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Tested Products.• Antenna 1: integrated antenna. • Frequency = 2.402GHz. • Frequency = 2.441GHz. • Frequency = 2.480GHz. UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Coordinate System Reference: Antenna 1. Top view Side view Z Y X Front view Front view Rear view X Y UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XZ Plane at f = 2.402GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. YZ Plane at f = 2.402GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XY Plane at f = 2.402GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XZ Plane at f = 2.441GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. YZ Plane at f = 2.441GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XY Plane at f = 2.441GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XZ Plane at f = 2.480GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. YZ Plane at f = 2.480GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XY Plane at f = 2.480GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Return Loss: Antenna 1 BW(-10dB) ¡ 13.48% 2 2.2 2.4 2.6 2.8 3 Frequency (GHz) -16-14-12-10 -8-6-4-2 R e t u r n L o s s ( d B ) UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Measurements summary Frequency (GHz) Plane Return Loss (dB) Polarization Gain max. (dBi) θ for Gain max. φ for Gain max. Antenna 1 2.402 XZ -10.90 Vertical -7.8 290 2.402 XZ -10.90 Horizontal 0.786 182 2.402 YZ -10.90 Vertical 1.21 226 2.402 YZ -10.90 Horizontal -7.75 10 2.402 XY -10.90 Vertical -15.4 20 2.402 XY -10.90 Horizontal 0.93 180 2.441 XZ -12.20 Vertical -7.36 318 2.441 XZ -12.20 Horizontal 1.32 180 2.441 YZ -12.20 Vertical 0.981 204 2.441 YZ -12.20 Horizontal -8.23 24 2.441 XY -12.20 Vertical -14.1 -14 2.441 XY -12.20 Horizontal 1.74 180 2.48 XZ -13.80 Vertical -7.95 312 2.48 XZ -13.80 Horizontal 1.81 186 2.48 YZ -13.80 Vertical 0.204 214 2.48 YZ -13.80 Horizontal -8.38 8 2.48 XY -13.80 Vertical -15.8 12 2.48 XY -13.80 Horizontal 1.87 180

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 Report No.: TZ240305436-BT Page 1 of 24 Appendix Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: Bluetooth Keyboard Trade Mark: Dexnor Test Model: DK006 FCC ID: 2BA3T-DK006 Environmental Conditions Temperature: 22.8 C Relative Humidity: 56% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.969 2401.547 2402.516 --- --- DH5 Ant1 2441 0.963 2440.550 2441.513 --- --- DH5 Ant1 2480 0.960 2479.550 2480.510 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 Report No.: TZ240305436-BT Page 2 of 24 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 Report No.: TZ240305436-BT Page 3 of 24 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.87413 2401.5784 2402.4525 --- --- DH5 Ant1 2441 0.86524 2440.5815 2441.4467 --- --- DH5 Ant1 2480 0.87704 2479.5787 2480.4558 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 Report No.: TZ240305436-BT Page 4 of 24 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 Report No.: TZ240305436-BT Page 5 of 24 Appendix C: Maximum peak conducted output power Test Result Test Mode Antenna Frequency[MHz] Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -2.68 ≤20.97 PASS DH5 Ant1 2441 -2.76 ≤20.97 PASS DH5 Ant1 2480 -3.23 ≤20.97 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 Report No.: TZ240305436-BT Page 6 of 24 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS DH5-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 Report No.: TZ240305436-BT Page 7 of 24 Appendix D: Carrier frequency separation Test Result TestMode Antenna Frequency[MHz] Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 0.846 ≥0.646 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 Report No.: TZ240305436-BT Page 8 of 24 Test Graphs DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 Report No.: TZ240305436-BT Page 9 of 24 Appendix E: Time of occupancy Test Result TestMode Antenna Frequency[MHz] BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH5 Ant1 Hop 2.885 90 0.26 ≤0.4 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 Report No.: TZ240305436-BT Page 10 of 24 Test Graphs DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 Report No.: TZ240305436-BT Page 11 of 24 Appendix F: Number of hopping channels Test Result TestMode Antenna Frequency[MHz] Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 Report No.: TZ240305436-BT Page 12 of 24 Test Graphs DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 Report No.: TZ240305436-BT Page 13 of 24 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -3.10 -49.85 ≤-23.1 PASS DH5 Ant1 High 2480 -3.65 -45.18 ≤-23.65 PASS DH5 Ant1 Low Hop_2402 -4.17 -50.62 ≤-24.17 PASS DH5 Ant1 High Hop_2480 -3.99 -46.35 ≤-23.99 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 Report No.: TZ240305436-BT Page 14 of 24 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS DH5-Ant1-Hop_2402-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 Report No.: TZ240305436-BT Page 15 of 24 DH5-Ant1-Hop_2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 Report No.: TZ240305436-BT Page 16 of 24 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 0~Reference -3.72 -3.72 --- PASS DH5 Ant1 2402 30~1000 -3.72 -62.72 ≤-23.72 PASS DH5 Ant1 2402 1000~26500 -3.72 -51.34 ≤-23.72 PASS DH5 Ant1 2441 0~Reference -4.05 -4.05 --- PASS DH5 Ant1 2441 30~1000 -4.05 -63.66 ≤-24.05 PASS DH5 Ant1 2441 1000~26500 -4.05 -49.52 ≤-24.05 PASS DH5 Ant1 2480 0~Reference -4.45 -4.45 --- PASS DH5 Ant1 2480 30~1000 -4.45 -63.09 ≤-24.45 PASS DH5 Ant1 2480 1000~26500 -4.45 -50.55 ≤-24.45 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 Report No.: TZ240305436-BT Page 17 of 24 Test Graphs DH5-Ant1-2402-0~Reference-PASS DH5-Ant1-2402-30~1000-PASS DH5-Ant1-2402-1000~26500-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 Report No.: TZ240305436-BT Page 18 of 24 DH5-Ant1-2441-0~Reference-PASS DH5-Ant1-2441-30~1000-PASS DH5-Ant1-2441-1000~26500-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 Report No.: TZ240305436-BT Page 19 of 24 DH5-Ant1-2480-0~Reference-PASS DH5-Ant1-2480-30~1000-PASS DH5-Ant1-2480-1000~26500-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 Report No.: TZ240305436-BT Page 20 of 24 Appendix I: Duty Cycle Test Result TestMode Antenn a Frequency[ MHz] ON Time [ms] Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] DH5 Ant1 2402 2.88 3.73 77.21 1.12 DH5 Ant1 2441 2.88 3.72 77.42 1.11 DH5 Ant1 2480 2.88 3.72 77.42 1.11 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 Report No.: TZ240305436-BT Page 21 of 24 Test Graphs NTNV-DH5-Ant1-2402 NTNV-DH5-Ant1-2441 NTNV-DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 Report No.: TZ240305436-BT Page 22 of 24 Appendix J: Emissions in Restricted Bands Test Result TestMode Antenna ChName Frequenc y[MHz] Detector Freq [MHz] Result [dBm] Limit [dBm] Result [dBuV/m] Limit [dBuV/m] Verdict DH5 Ant1 Low 2402 Peak 2390.000 -43 ≤-21.20 52.20 ≤74 PASS DH5 Ant1 Low 2402 Peak 2310.000 -42.84 ≤-21.20 52.36 ≤74 PASS DH5 Ant1 Low 2402 Peak 2312.810 -38.83 ≤-21.20 56.37 ≤74 PASS DH5 Ant1 Low 2402 AV 2390.000 -49.41 ≤-41.20 45.79 ≤54 PASS DH5 Ant1 Low 2402 AV 2310.000 -49.17 ≤-41.20 46.03 ≤54 PASS DH5 Ant1 Low 2402 AV 2387.780 -48.45 ≤-41.20…

Text truncated - open the document above for the full version.

Report No.: TZ240305436-BT Page 1 of 35 FCC TEST REPORT Test report On Behalf of Shenzhen Houlici Network Technology CO., Ltd For Bluetooth Keyboard Model No.: DK006 FCC ID: 2BA3T-DK006 Prepared for : Shenzhen Houlici Network Technology CO., Ltd 2606, West Tower, Galaxy Twin Towers, Yaxing Road 8, Nankeng Community, Bantian Street, Longgang District, Shenzhen, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2024/3/8 ~ 2024/3/13 Date of Report: 2024/3/14 Report Number: TZ240305436-BT The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ240305436-BT Page 2 of 35 TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Houlici Network Technology CO., Ltd Address .................................. : 2606, West Tower, Galaxy Twin Towers, Yaxing Road 8, Nankeng Community, Bantian Street, Longgang District, Shenzhen, China Manufacture's Name ............ : Shenzhen Houlici Network Technology CO., Ltd Address .................................. : 2606, West Tower, Galaxy Twin Towers, Yaxing Road 8, Nankeng Community, Bantian Street, Longgang District, Shenzhen, China Product description Trade Mark ................................ : Dexnor Product name ............................ : Bluetooth Keyboard Model and/or type reference : DK006 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests.............. : 2024/3/8 ~ 2024/3/13 Date of Issue ........................................... : 2024/3/14 Test Result .............................................. : Pass Testing Engineer : (Anna Hu) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ240305436-BT Page 3 of 35 Revision History Revision Issue Date Revisions Revised By 00 2024/3/14 Initial Issue Andy Zhang Report No.: TZ240305436-BT Page 4 of 35 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................ 5 1.1 Description of Device (EUT) ...................................................................................................... 5 1.2 Wireless Funtion Tested in this Report ..................................................................................... 5 1.3 EUT configuration ..................................................................................................................... 6 1.4 External I/O and Cable .............................................................................................................. 6 1.5 Description of Test Facility ........................................................................................................ 6 1.6 Statement of the Measurement Uncertainty .............................................................................. 6 1.7 Measurement Uncertainty ......................................................................................................... 7 1.8 Description of Test Modes ........................................................................................................ 7 2 TEST METHODOLOGY ..................................................................................................... 8 2.1 EUT Configuration ..................................................................................................................... 8 2.2 EUT Exercise ............................................................................................................................ 8 2.3 Test Sample .............................................................................................................................. 8 3 SYSTEM TEST CONFIGURATION .................................................................................... 9 3.1 Justification ............................................................................................................................... 9 3.2 EUT Exercise Software ............................................................................................................. 9 3.3 Special Accessories .................................................................................................................. 9 3.4 Block Diagram/Schematics ....................................................................................................... 9 3.5 Equipment Modifications ........................................................................................................... 9 3.6 Test Setup ................................................................................................................................. 9 4 SUMMARY OF TEST RESULTS ...................................................................................... 10 5 MEASUREMENT RESULTS ............................................................................................ 11 5.1 Maximum Peak Conducted Output Power .............................................................................. 11 5.2 Frequency Separation and 20 dB Bandwidth .......................................................................... 12 5.3 Number of Hopping Frequency ............................................................................................... 13 5.4 Time of Occupancy (Dwell Time) .…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2BA3T-DK006 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 TEST SETUP PHOTOS OF THE EUT Conducted Emission Radiated Emission Below 1GHz Shenzhen Tongzhou Testing Co.,Ltd FCC …
